I have an Aero upper is the M5 Enhanced and lower. Ballistic Advantage barrel in 6.5 creedmoor. The buffer, spring, and tube are Vltor. The buffer tube is a carbine Vltor RE-10/A5 SR. The buffer soring and tube cane as a kit. A5-2.

The bolt doesnt lock back almost always and basically only when done by hand by racking it back. When it is locked back, it easily gets sent forward on the slightest touch.

So, is the buffer not the right one? This is a new kit. Was thinking of selling it and getting the Aero stuff. Since its the enhanced buffer, do i need the Aero Enhanced budder system??

Thanks guys.


msgriff

Sergeant of the Hide
Full Member
Minuteman
Feb 10, 2021
166
154
Rogue Valley OR
For large frames, the intermediate (A5) length RE uses a AR-15 carbine length buffer (3.25"). Most use a H3 or H2. For the AR-15 , the A5 buffer is 4" long. If you're using the 4" long buffer, the bolt catch is probably engaging the carrier and not the bolt, not to mention the BCG won't cycle far enough back to function.

  • Like
Reactions: bfoosh006

hlee

Sergeant
Full Member
Minuteman
  • Jul 14, 2012
    7,402
    9,364
    43
    TX
    Lock the bolt back manually. Look at where the catch is holding the bolt. It should be interfacing on the front of the bolt. If it is interfacing on the nose of the carrier, there is something amiss.


    anthonylapoint

    Sergeant
    Full Member
    Minuteman
    Nov 8, 2011
    617
    10
    37
    central CT
    For large frames, the intermediate (A5) length RE uses a AR-15 carbine length buffer (3.25"). Most use a H3 or H2. For the AR-15 , the A5 buffer is 4" long. If you're using the 4" long buffer, the bolt catch is probably engaging the carrier and not the bolt, not to mention the BCG won't cycle far enough back to function.
    The gun functions. I have shot it with decent accuracy a few times. I checked and the bolt is catching and not the buffer. Ill measure the buffer and see what length it is


    r.tenorio671

    Private
    Full Member
    Minuteman
    Feb 19, 2017
    641
    478
    13° 28' 0" N / 144° 46' 59" E
    I have an Aero upper is the M5 Enhanced and lower. Ballistic Advantage barrel in 6.5 creedmoor. The buffer, spring, and tube are Vltor. The buffer tube is a carbine Vltor RE-10/A5 SR. The buffer soring and tube cane as a kit. A5-2.

    The bolt doesnt lock back almost always and basically only when done by hand by racking it back. When it is locked back, it easily gets sent forward on the slightest touch.

    So, is the buffer not the right one? This is a new kit. Was thinking of selling it and getting the Aero stuff. Since its the enhanced buffer, do i need the Aero Enhanced budder system??

    Thanks guys.

    ...the Aero M5 buffer kit is on sale RIGHT NOW and it's the lowest price you would have to spend to possibly resolve your issue.

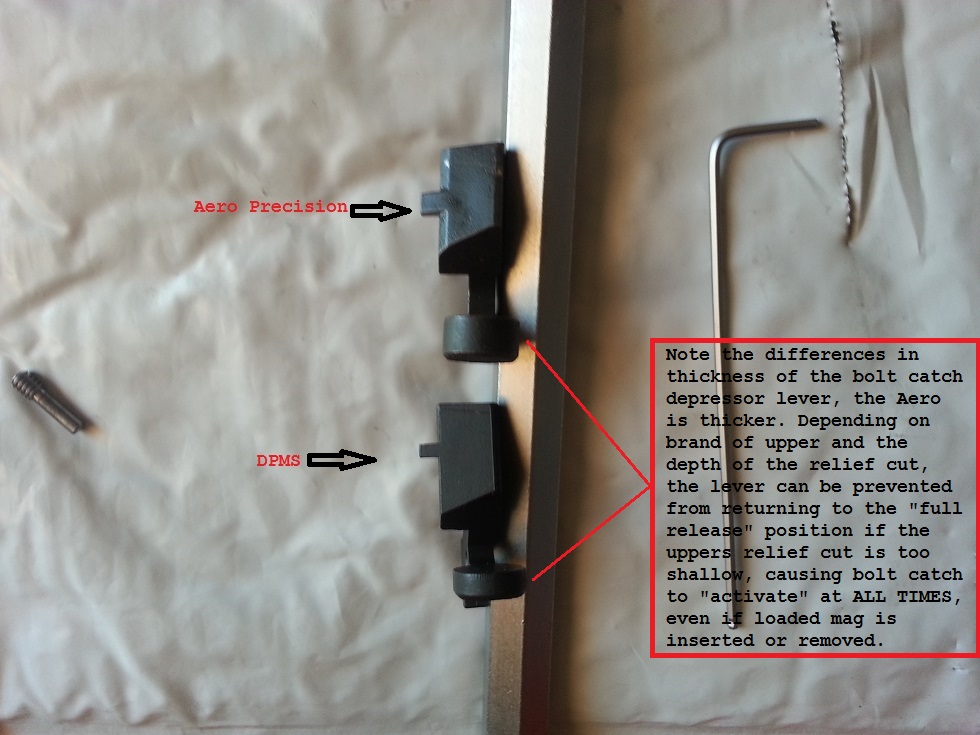

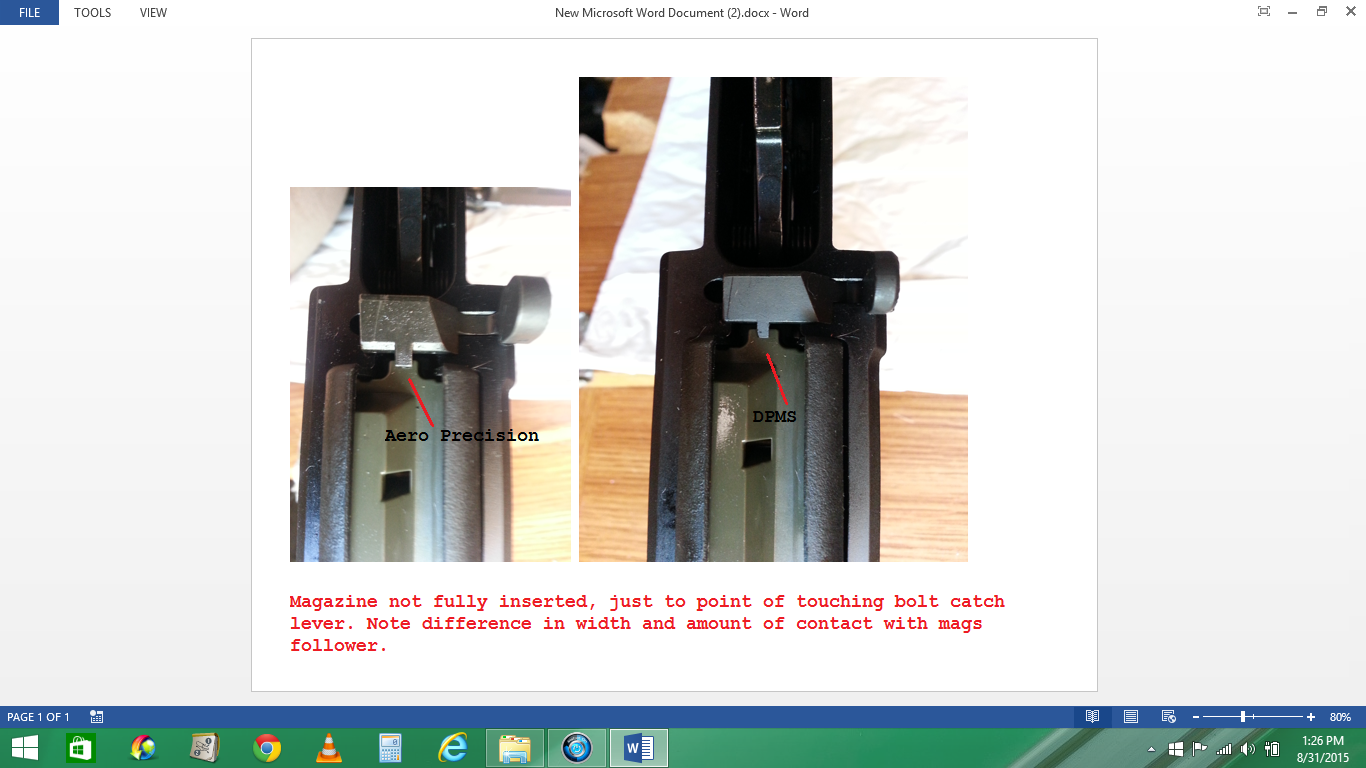

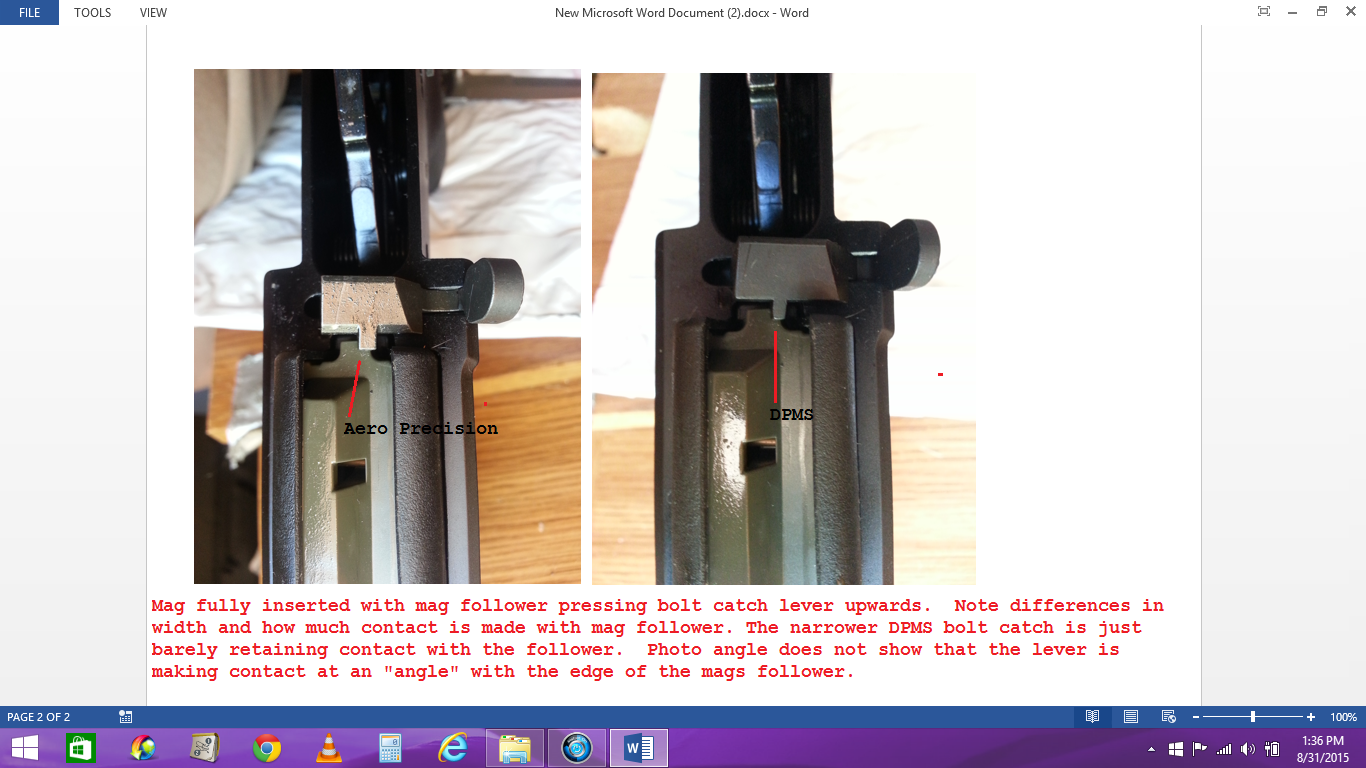

    ...you also didn't indicate what LPK you used, but if anything I'd also recommend you use Aero's bolt catch at a minimum, especially since you say a slight touch will release the locked back BCG, that could indicate an issue with the bolt catch's lever. Some DPMS style bolt catches had a very thin width lever to catch the bolt while the mag follower pressed it upward, they were thin enough that they barely contacted the edge of the follower (see attached pic). The bolt catch is on sale right now too, or you can just go for the whole LPK minus FCG & grip so you have spares on hand. Links to bolt catch & LPK:


    YMMV, and good luck.


    Attachments

    • Compare-A.jpg
      191.8 KB · Views: 28
    • Compare-B.png
      560.1 KB · Views: 28
    • Compare-C.png
      703.6 KB · Views: 31

    anthonylapoint

    Sergeant
    Full Member
    Minuteman
    Nov 8, 2011
    617
    10
    37
    central CT
    ...the Aero M5 buffer kit is on sale RIGHT NOW and it's the lowest price you would have to spend to possibly resolve your issue.


    ...you also didn't indicate what LPK you used, but if anything I'd also recommend you use Aero's bolt catch at a minimum, especially since you say a slight touch will release the locked back BCG, that could indicate an issue with the bolt catch's lever. Some DPMS style bolt catches had a very thin width lever to catch the bolt while the mag follower pressed it upward, they were thin enough that they barely contacted the edge of the follower (see attached pic). The bolt catch is on sale right now too, or you can just go for the whole LPK minus FCG & grip so you have spares on hand. Links to bolt catch & LPK:


    YMMV, and good luck.
    I bought the Aero lower parts kit so that should be good…..im assuming its the buffer system. I have the enhanced upper so im wondering if i need aeros enhanced buffer kit too?!
