xylo chassis.....and Surgeon 591 actions

Sleepertruckguy

Private
Minuteman
Aug 25, 2019
60
16
Is anyone running a Surgeon 591 action in a xylo chassis. I'm wondering because the side bolt release is large and low on the action. I called American Rifle Company and spoke to Justin. He wasn't sure if it fit. If anyone is running this action in a xylo please let me know and post a picture.


PatrickChewing

Gunny Sergeant
Full Member
Minuteman
  • Jul 28, 2010
    1,868
    70
    36
    Birmingham, AL

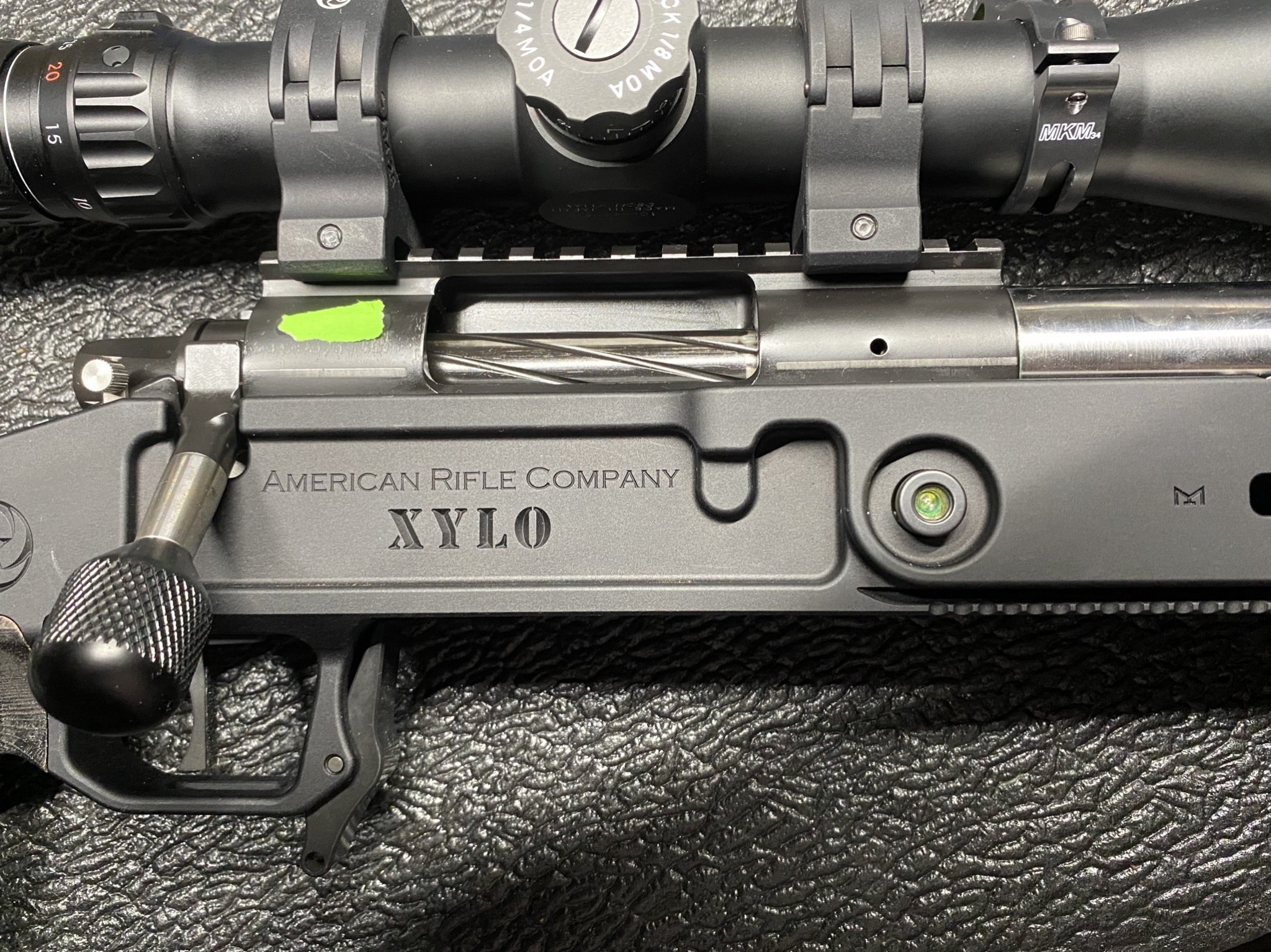

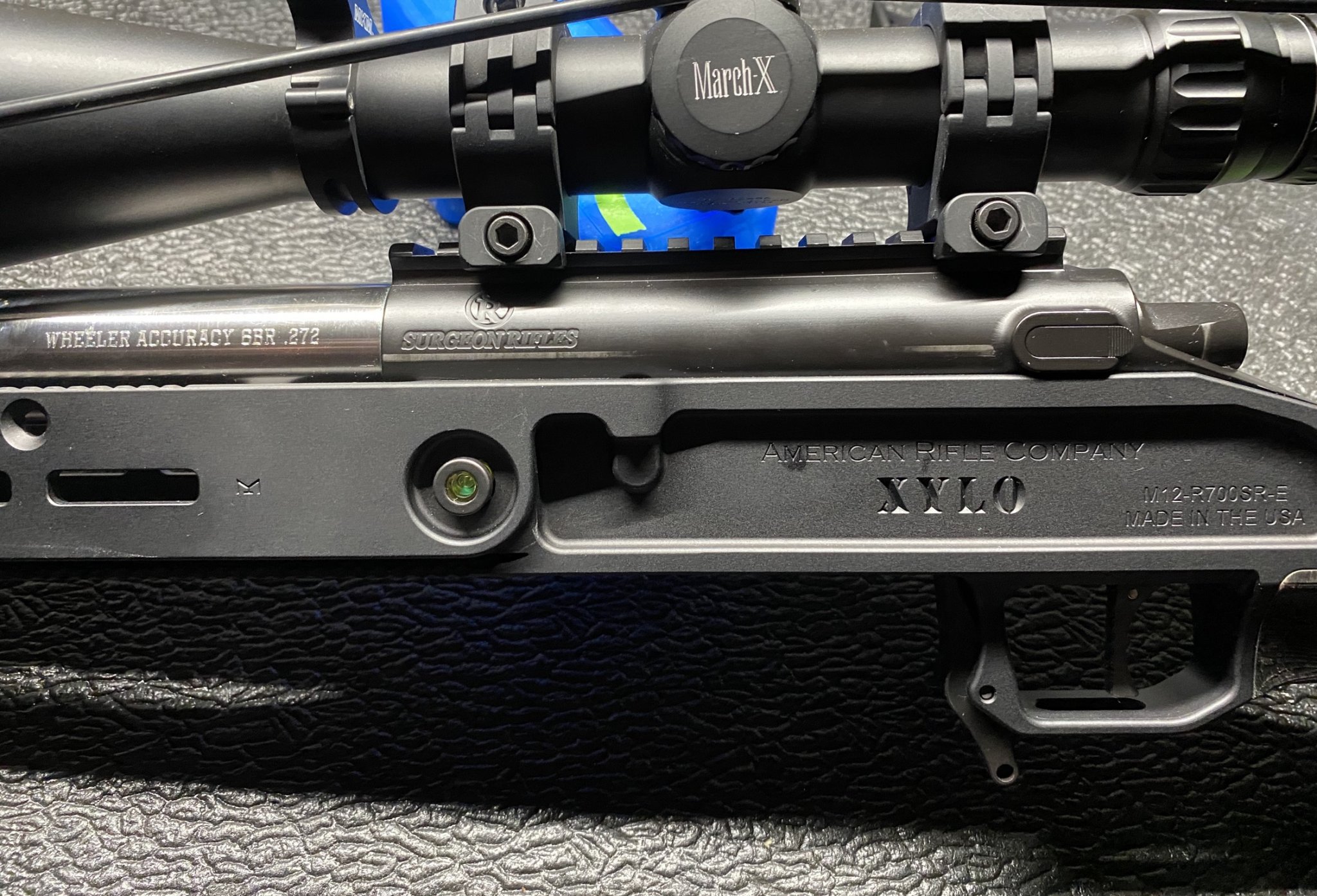

    Hope these pictures help. No alterations were needed on the action or chassis.

    Here is your FYI:

    These stock use a M12 recoil lug clamp. The standard (and what came on mine) has a thickness of 0.185”. For the Surgeon action you need the 0.25” thick model. So, ask for yours to be swapped before it ships or purchase the .250 lug clamp.


    Attachments

    • 1F614F0B-2D27-4609-ABA2-36231A647F6A.jpeg
      693.8 KB · Views: 61
    • 35F171CB-1DDA-437C-A386-C1208054DB1E.jpeg
      534.7 KB · Views: 60
