300 PRC update

jmornoinf

Private
Minuteman
Mar 27, 2019
74
53
On my lapua brass I'm using a redding .335 bushing in my FL die. Then .3075 expander mandrel. Getting very consistent seating pressure of 40 psi +/-2 psi on my 21st centry arbor press.
Thanks for the intel. I am probably going to do the same. I have have great luck using a smallish size bushing on 6.5 Creedmoor(.288) then using a mandrel to get .001-.002 neck tension.

  • Like
Reactions: PRCdude

338LM

Sergeant
Full Member
Minuteman
Jun 20, 2003
483
17
STL Missouri
Your chamber is a bit small (~.002") which is causing higher pressures than normal. Mine comes in at .003" under.

As @DellaDog mentioned, there are some small reamers out there.
Got my barrel maker to open my chamber up with the correct size reamer. They did get some of the out of spec (undersize) 300 PRC reamers when they originally chambered my barrel.
No more sticky bolt anymore with 76.0 grains of Retumbo or H1000. The barrel is still drilling 5 shots into the same hole at 100 yards. Now I can proceed in increasing my powder charges to see how much more velocity/accuracy I can get out of it.


screaminweasil

Supporter
Supporter
Full Member
Minuteman
Mar 3, 2018
262
112
USA
Got my barrel maker to open my chamber up with the correct size reamer. They did get some of the out of spec (undersize) 300 PRC reamers when they originally chambered my barrel.
No more sticky bolt anymore with 76.0 grains of Retumbo or H1000. The barrel is still drilling 5 shots into the same hole at 100 yards. Now I can proceed in increasing my powder charges to see how much more velocity/accuracy I can get out of it.
What size is your brass at the web now? You went from .530" to what?????

My Bergara Premier Approach in 300 PRC shows .532" after firing but I haven't sized or shot anything other than virgin to know if I'm going to run into "issues" in the future.


338LM

Sergeant
Full Member
Minuteman
Jun 20, 2003
483
17
STL Missouri
What size is your brass at the web now? You went from .530" to what?????

My Bergara Premier Approach in 300 PRC shows .532" after firing but I haven't sized or shot anything other than virgin to know if I'm going to run into "issues" in the future.
When I measure with my micrometer (versus calipers), the original undersize chamber fired brass was .5295. The brass now is measuring only .001 larger (.5305). This is with Hornady brass and not real hot loads. The main thing is that the bolt is not sticking at all. Before, the bolt was pretty hard to open. I did not ask how much the chamber got opened up.


LongRangeAggie

Supporter
Supporter
Full Member
Minuteman
Aug 27, 2019
178
39
Central TX
Got my barrel maker to open my chamber up with the correct size reamer. They did get some of the out of spec (undersize) 300 PRC reamers when they originally chambered my barrel.
No more sticky bolt anymore with 76.0 grains of Retumbo or H1000. The barrel is still drilling 5 shots into the same hole at 100 yards. Now I can proceed in increasing my powder charges to see how much more velocity/accuracy I can get out of it.
Same problem I was having with my Christensen, my GS is opening it up right now and hope that fixes the issue. Glad to hear it did for you.


jmm68

Private
Minuteman
Aug 20, 2020
15
5
Hi,
I was testing my hotest load using 80 gn of N565 with 230 a-tips and I noticed a curious phenomenon, the cases are completely cold and almost 100% clean after shooting (adg virgin brass), a 79 gn load with same bullet an virgin brass comes hot and dirty out of the action.
Could this mean that the 80 gn load is expanding the brass in a way that seals much better and no gases go into the chamber?
There are no bolt stickiness nor ejector marks with this load and primers have reasonably round edges.


Emerson0311

Private
Minuteman
Feb 17, 2018
30
8
Comox BC
Hi,
I was testing my hotest load using 80 gn of N565 with 230 a-tips and I noticed a curious phenomenon, the cases are completely cold and almost 100% clean after shooting (adg virgin brass), a 79 gn load with same bullet an virgin brass comes hot and dirty out of the action.
Could this mean that the 80 gn load is expanding the brass in a way that seals much better and no gases go into the chamber?
There are no bolt stickiness nor ejector marks with this load and primers have reasonably round edges.
The same thing happened to me with a 375 H&H AI. A bit more pressure cleaned them right up.


96C

Sergeant
Full Member
Minuteman
Aug 9, 2007
1,008
1,023
Aust

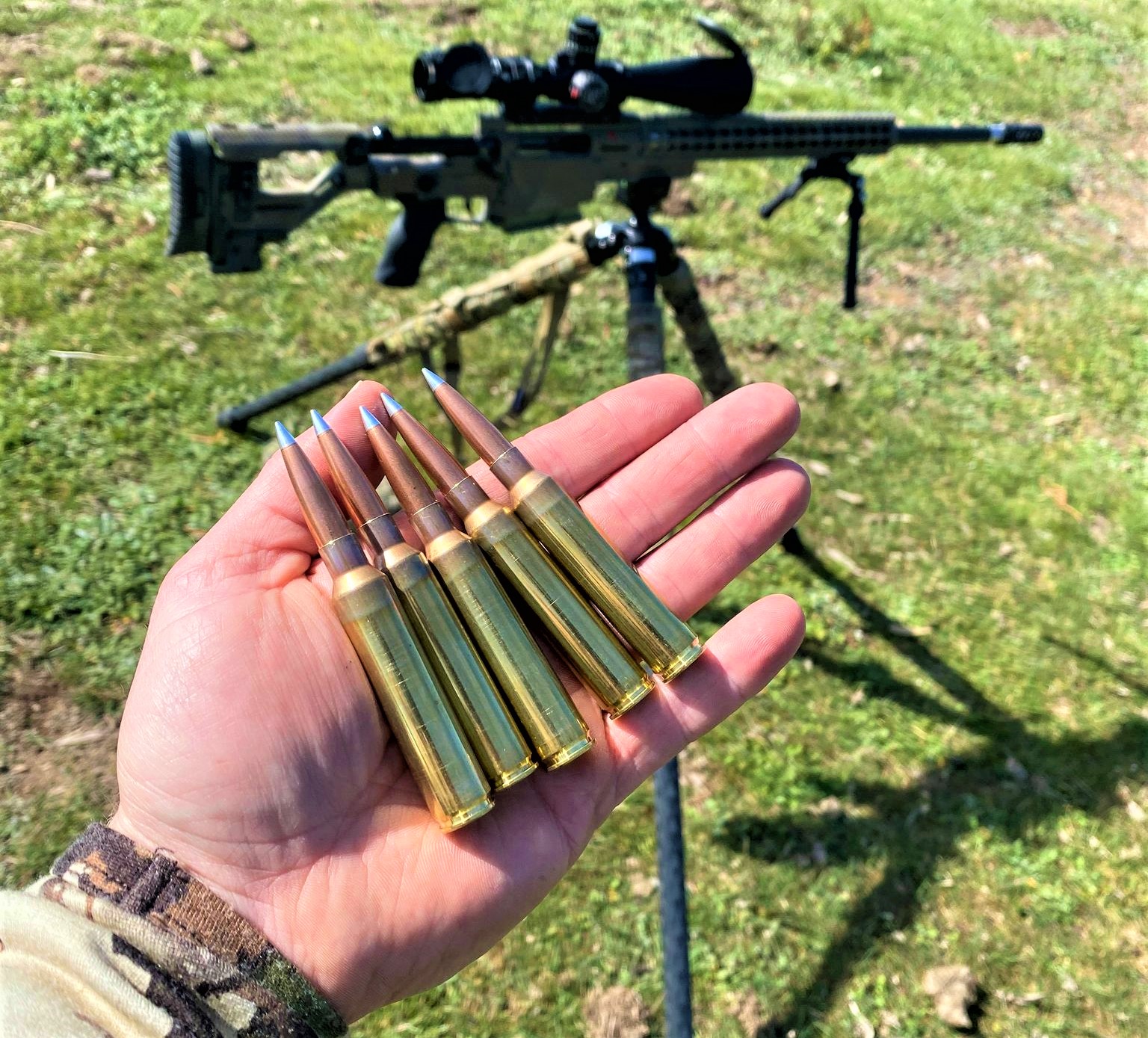

241294358_645096083138414_6219724532287765978_n (2).jpg
230gr A-Tips in ADG brass. 2850fps. Have been happy with these. Sitting at 0.135" off.


Bandit320

Sergeant of the Hide
Full Member
Minuteman
Sep 1, 2018
291
272
Missouri
How do you like your ADG brass? I’ve been on back order for Lapua brass since January and I’m getting tired of waiting. Thanks.


96C

Sergeant
Full Member
Minuteman
Aug 9, 2007
1,008
1,023
Aust
How do you like your ADG brass? I’ve been on back order for Lapua brass since January and I’m getting tired of waiting. Thanks.
It's nice, this is the first ADG I have used, difficult to get in Australia until recently.

The packaging is excellent, everything comes extremely clean and straight.

  • Like
Reactions: Bandit320

JB.IC

Jackass of the Hide
Full Member
Minuteman
Jan 25, 2019
650
387
Proof prefit 26” 1:8T carbon. 👍
I’m always stunned how shorter barrels compared to my 29” are pushing nice speeds. I used RL26 or n565. Have some h1000 and n570 to test at some point.

  • Like
Reactions: 96C

JB.IC

Jackass of the Hide
Full Member
Minuteman
Jan 25, 2019
650
387
Isn't that slow for 300 prc? I don't know though just asking. I do don't have or never shot one. Just curious
It depends on a lot of things. Brass, powder, bullet, bore tightness, action, barrel thickness around the combustion area. That’s why everyone repeats the same old phrases about starting low and working up.

  • Like
Reactions: Schw15

Schw15

Longrange
Supporter
Full Member
Minuteman
  • Jul 21, 2019
    2,607
    441
    Colorado
    It depends on a lot of things. Brass, powder, bullet, bore tightness, action, barrel thickness around the combustion area. That’s why everyone repeats the same old phrases about starting low and working up.
    I was thinking the 300 prc pushes the 230 like 2950 to 3000. But yes everything plays a factor in all of it.


    JB.IC

    Jackass of the Hide
    Full Member
    Minuteman
    Jan 25, 2019
    650
    387
    I was thinking the 300 prc pushes the 230 like 2950 to 3000. But yes everything plays a factor in all of it.
    From what I can tell amongst all the various combinations of things, 2800 is a pretty safe bet for a 230 bullet with a 26” barrel. 2900 fps if we’re talking close to pressure. But I’ve seen people shooting 250s near in 2800-2900fps with 26-28” barrels and I just scratch my head when I see that.

    What I consider a safe load is when pressure occurs from say a heavy bolt lift, backing off that by 100 FPS. Idk how many people follow a rule like mine but I suspect some are pushing it closer to the edge than they want to admit.


    Schw15

    Longrange
    Supporter
    Full Member
    Minuteman
  • Jul 21, 2019
    2,607
    441
    Colorado
    From what I can tell amongst all the various combinations of things, 2800 is a pretty safe bet for a 230 bullet with a 26” barrel. 2900 fps if we’re talking close to pressure. But I’ve seen people shooting 250s near in 2800-2900fps with 26-28” barrels and I just scratch my head when I see that.

    What I consider a safe load is when pressure occurs from say a heavy bolt lift, backing off that by 100 FPS. Idk how many people follow a rule like mine but I suspect some are pushing it closer to the edge than they want to admit.
    I tend to not run at top pressure I always back off a grain or two and run with it. I had a 300 win mag throated long 28 inch barrel 225 eldm at 2929 and 245 berger 2800. That's why I was asking. Seeing the difference maybe coming back to 30 cal.

    • Like
    Reactions: 96C

    Bandit320

    Sergeant of the Hide
    Full Member
    Minuteman
    Sep 1, 2018
    291
    272
    Missouri
    I tend to not run at top pressure I always back off a grain or two and run with it. I had a 300 win mag throated long 28 inch barrel 225 eldm at 2929 and 245 berger 2800. That's why I was asking. Seeing the difference maybe coming back to 30 cal.

    For reference, I have a 26” 300WM that I run 225 ELDMs at 2900. My 24” Howa PRC does about the same with 225 ELDMs / 230 A-Tips. It gets around 2830 with 250 A-Tips. It’s a factory barrel that seems slow to me. It’s about to become a 28”.

    • Like
    Reactions: 96C and Schw15

    Schw15

    Longrange
    Supporter
    Full Member
    Minuteman
  • Jul 21, 2019
    2,607
    441
    Colorado
    For reference, I have a 26” 300WM that I run 225 ELDMs at 2900. My 24” Howa PRC does about the same with 225 ELDMs / 230 A-Tips. It gets around 2830 with 250 A-Tips. It’s a factory barrel that seems slow to me. It’s about to become a 28”.
    Seems like the old 300 win mag keeps up well with the 300 prc

    • Like
    Reactions: 96C

    Schw15

    Longrange
    Supporter
    Full Member
    Minuteman
  • Jul 21, 2019
    2,607
    441
    Colorado
    Have any of you guys had any issues with the 230 a-tip or 250 a-tip blowing up? I know some of the eldms and 190 a-tip has


    96C

    Sergeant
    Full Member
    Minuteman
    Aug 9, 2007
    1,008
    1,023
    Aust
    It’s definitely not FAST, but I’m not trying to kill the barrel either.

    This is 78 grains of ADI AR2225 (our version of Retumbo / Reloader 25). There isn’t heaps of room left in the case.

    I’d rather be fairly conservative and have an accurate load, for the distances I’m generally shooting (800-1300m) this is plenty of rifle.

    What charge loads are you guys sitting around?


    Bandit320

    Sergeant of the Hide
    Full Member
    Minuteman
    Sep 1, 2018
    291
    272
    Missouri
    It
    Seems like the old 300 win mag keeps up well with the 300 prc

    It does well. Of course, I seat them quite long ( a bit over 3.6”) and have to single feed them. If I’d bought an 8 twist barrel instead of a 10 twist for my WM I wouldn’t be messing with the PRC.


    Schw15

    Longrange
    Supporter
    Full Member
    Minuteman
  • Jul 21, 2019
    2,607
    441
    Colorado
    It

    It does well. Of course, I seat them quite long ( a bit over 3.6”) and have to single feed them. If I’d bought an 8 twist barrel instead of a 10 twist for my WM I wouldn’t be messing with the PRC.
    My win mag with the 225 eldm was loaded at 3.777 I run long action cup mags load alot longer in them. But got rid of it for other things. But 30 cals are fun might be getting another

    • Like
    Reactions: Bandit320

    newageroman

    Sergeant of the Hide
    Full Member
    Minuteman
    Jul 13, 2018
    114
    34
    www.brassbucket.net
    Any thoughts on Structured Barrell with a +1 twist for copper solids? Would the faster spin rate be better for turned copper solids. I'm thinking more spin would be better through the transonic zone will help stabilize it no? nice info thread , I'm about to read/catch up on it.


    parshal

    Private
    Supporter
    Full Member
    Minuteman
    Feb 13, 2017
    782
    156
    Colorado
    www.bambooflyrods.com
    I just tested 250 a-tips in the yard for pressure before I test for accuracy. Velocity was with the Magnetospeed. 29" barrel has exactly 100 rounds down it before these shots. Action is an Atlas Tactical. At 88 degrees, with Lapua brass and 215M's I got the following:

    N565
    72 - 2660 fps
    76 - 2845 fps; no bolt lift and a very small smear

    N570
    75 - 2702 fps
    76 - 2790 fps; began feeling powder when seating bullet with Wilson arbor die
    78 - 2829 fps; zero pressure signs; could still hear powder when shaking case

    • Like
    Reactions: nealm66

    nealm66

    Sergeant of the Hide
    Full Member
    Minuteman
    Jan 14, 2020
    217
    84
    I just tested 250 a-tips in the yard for pressure before I test for accuracy. Velocity was with the Magnetospeed. 29" barrel has exactly 100 rounds down it before these shots. Action is an Atlas Tactical. At 88 degrees, with Lapua brass and 215M's I got the following:

    N565
    72 - 2660 fps
    76 - 2845 fps; no bolt lift and a very small smear

    N570
    75 - 2702 fps
    76 - 2790 fps; began feeling powder when seating bullet with Wilson arbor die
    78 - 2829 fps; zero pressure signs; could still hear powder when shaking case
    Coal?


    newageroman

    Sergeant of the Hide
    Full Member
    Minuteman
    Jul 13, 2018
    114
    34
    www.brassbucket.net
    Used rifle on the way. Hint - no structured barrel. I will need a brake(Cortina Tuner Brake?) and some powder, I think I have everything else. Will be digging on the recipes and new profiles for strelock.


    nealm66

    Sergeant of the Hide
    Full Member
    Minuteman
    Jan 14, 2020
    217
    84
    COAL was roughly 3.700".
    Man, that’s bitter sweet. I fricking love/hate n570. Not sure your groups but I bought a tmb tuner and was able to keep coal and charge with the 245’s @2940 and punching one big hole at 200 yards. Hoping to test out to distance this Saturday = 4.5 hour drive

    • Like
    Reactions: TrevK

    b2lee

    Stealthy
    Full Member
    Minuteman
  • Dec 30, 2018
    1,692
    2,029
    52
    N. KY
    I know I can get it faster but I also want to keep the recoil down so I can better spot my shots in ELR events.

    In ELR events...we are running our COAL a lot longer than 3.7.....by about 100 thou or more. I don't even go down to 3.70 when magazine feeding.


    parshal

    Private
    Supporter
    Full Member
    Minuteman
    Feb 13, 2017
    782
    156
    Colorado
    www.bambooflyrods.com
    The seater was set to the depth I'm using on the 225 ELD-M's. Since I was just looking for pressure I just left the depth where it was. I hit my velocity goal before any real pressure at that depth. I'll be starting at max length for the CIP magazine when I start testing for accuracy.


    nealm66

    Sergeant of the Hide
    Full Member
    Minuteman
    Jan 14, 2020
    217
    84
    Might have been better to seat out as far as will cycle to check pressure. Then seating in to get groups.


    b2lee

    Stealthy
    Full Member
    Minuteman
  • Dec 30, 2018
    1,692
    2,029
    52
    N. KY
    Anybody fiddled with N568 yet? I'll be trying it soon with 215 and 245s.

    I'll play with it after the ELR season....don't have the time to do new load development when all I do is work all week...and travel on the weekends to shoot. This Winter...I'll put some effort into it...but I can almost guarantee you that I'll run 76.0 grains and tune a seating depth in about 10 shots and call it a day....with the 245's

    • Like
    Reactions: LongRangeAggie

    b2lee

    Stealthy
    Full Member
    Minuteman
  • Dec 30, 2018
    1,692
    2,029
    52
    N. KY
    Today...about an hour ago actually....

    300PRC
    29.5" barrel
    245gr EOL's
    76.0gr of RL-26
    2887 fps no pressure signs ******* caveat ******
    Lapua Brass
    Elevation 954ft

    So....the reason my speeds are slower than the were...and no pressure signs are the following:

    I didn't clean my brass...I brushed out the necks with a 30cal nylon brush just to get the big carbon out.
    I annealed with Aztec Code 168 on an Amp Annealer *** on neck turned brass at 13.5Thou ***
    I full length resized with a LE WIlson bushing die...and I forget exactly which bushing...but very little neck sizing.
    I Mandrel each one back out to 2 thou below bullet size.
    I Coat my bullets with HBN

    This coupled with my seating depth...I've reduced pressure for the sake of consistency. If I skip one of these steps and go same powder load...it will show pressure signs....The HBN really slicks up the bullets and drops your MV...but it makes verticals at ELR ranges really nice.

    So....when you read loads on the Internet...even if they are true and real...there are a lot more things going on that you need to be aware of.

    Signed,

    B2


    Bandit320

    Sergeant of the Hide
    Full Member
    Minuteman
    Sep 1, 2018
    291
    272
    Missouri
    b2lee

    I was looking at AB Mobile for the 245 EOLs and it was showing a higher G7 BC than the Berger published number (.438 vs Berger’s .413). From your usage does this seem correct? Also, what’s your opinion on the quality and consistency compared to the A-Tips. I had planned on starting out using the 250s since I can find them, occasionally. Thanks.

    Mike


    b2lee

    Stealthy
    Full Member
    Minuteman
  • Dec 30, 2018
    1,692
    2,029
    52
    N. KY
    b2lee

    I was looking at AB Mobile for the 245 EOLs and it was showing a higher G7 BC than the Berger published number (.438 vs Berger’s .413). From your usage does this seem correct? Also, what’s your opinion on the quality and consistency compared to the A-Tips. I had planned on starting out using the 250s since I can find them, occasionally. Thanks.

    Mike

    I do believe that Berger is conservative with their numbers....and hence why they tried to educate people with the No BS BC series. The .413 is at a certain condition at a certain range.....with a certain barrel...and a certain velocity. Me using a 29.5" barrel and getting a little more giddy up behind the bullets....increases the BC. Now....I also tip my bullets and HBN coat them...I'm currently at around a .455 G7.

    I've shot a lot of 230 A-Tips...and many hundred 250's. While I really like the A-Tips...they have a tendency to explodicate at the absolute worst time. If I'm shooting an ELR match and one explodes and I miss....probably not that big a deal since my odds of hitting that 2000+ yard steel aren't certain....but when you shoot 1 mile paper...and 1 miss is a DQ....then it just pisses you off.

    I originally started shooting the 245 EOLs because they were $50/100 or so...while the A-Tips where like $80/100.....the price difference was large enough for me to give them a try. Then I found I shot consistent with the Bergers and while I was going to tip them...thus more work....I really liked them. It seems a 1-9tw likes the 245 Berger more than the 250 A-Tip...

    I still have hundreds of A-Tips...but I have a lot of 245 EOL's I will shoot first.....until the new 245-ish Berger comes out soon...then I'll test them out. I was hoping the Bergers were 'close enough' for me not to fret over when shooting ELR....and they've exceeded my expectations.....I've had matches where I shoot a sub 2" vertical at a mile...but blow my wind calls....and last week I shot 3 groups with 2" horizontals....but had something going wonky with the rear bag and my vertical dispersion was too much to keep all 5 on paper. One day I'll get both at the same time and it will be magical.

    So...the A-Tip is one sexy looking bullet. They are great....it's just that the low probability of one flying apart...seems to catch me and others at exactly the wrong time. Not much Hornady can do about that....it is what it is. The bergers have been consistently great for me....I'll measure the snot out of stuff...and they are great from lot to lot.

    Both are great bullets....but like I said...I originally shot the A-Tips...and wanted to convert to something not so price heavy...and ended up finding something I like more.

    • Like
