This seems like an easy solution for something like @Tyler Kemp to make.
I’ve had a 3d printed plate made in the past. Cool and all but I’m looking for and prefer the metal plates like in the previous pic. Just a preference thing.


Attachments

  • C2365811-5340-42C2-B1B4-76650592D169.jpeg
    613.9 KB · Views: 48
  • 8E2FA4AF-5C88-44DD-AE56-9BCA55FE68F8.jpeg
    703 KB · Views: 49

Tyler Kemp

Print Daddy
Commercial Supporter
Full Member
Minuteman
Aug 23, 2008
1,602
1,122
MO
mkmachining.com
I’ve had a 3d printed plate made in the past. Cool and all but I’m looking for and prefer the metal plates like in the previous pic. Just a preference thing.
So yes to just a grippy Do-Dad? No way I'm gonna tool up for milling them, but if you're not familiar with my MJF printing you're missing out. Leagues above the FDM printing you listed and probably preferable for this task. Could do a superior grip pattern at a substantially lower cost, similar weight if adding heft is the goal...or nearly weightless if not.


SNAFU308

Sergeant
Full Member
Minuteman
Apr 13, 2012
137
111
The Land Downunder

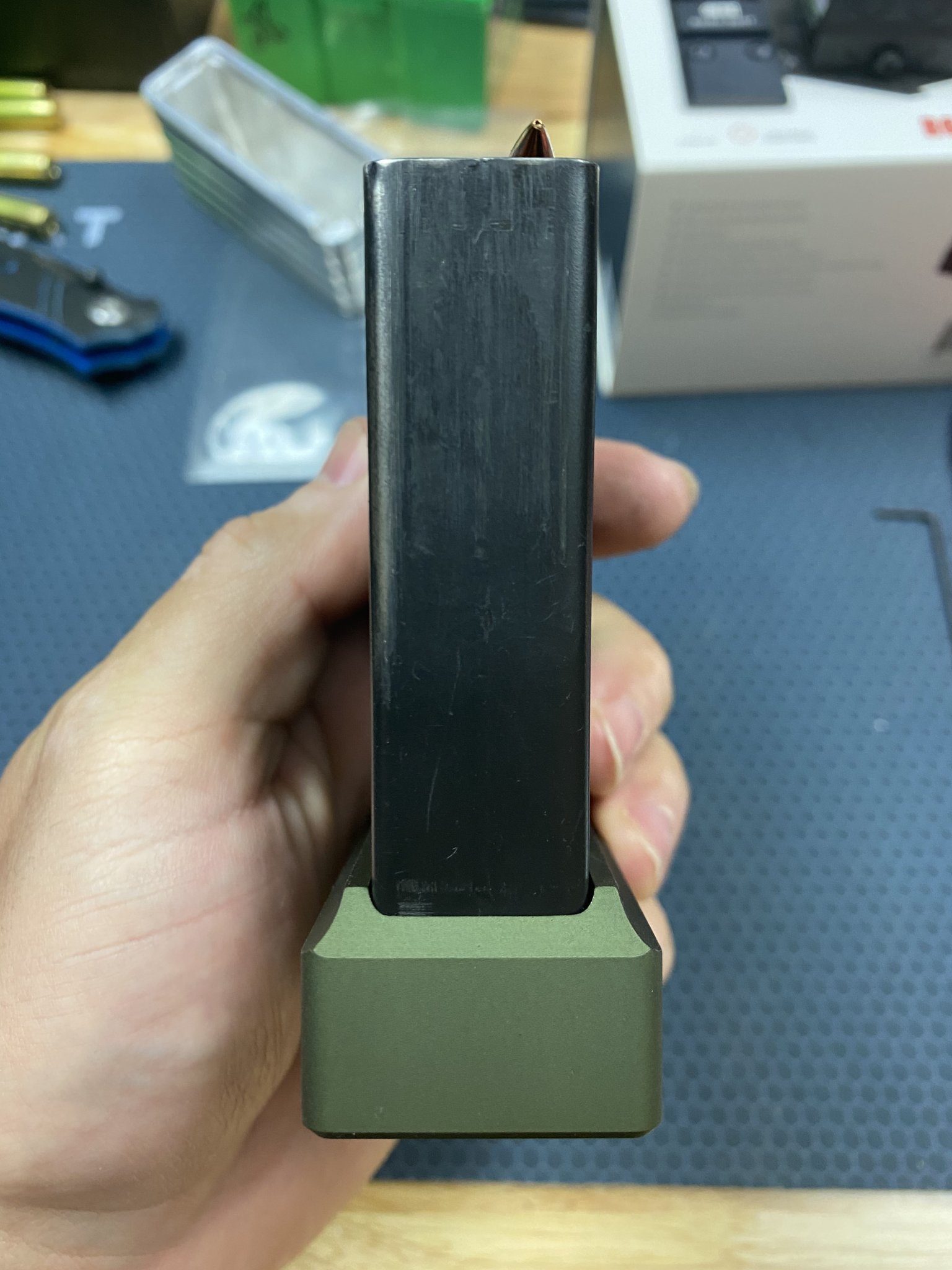

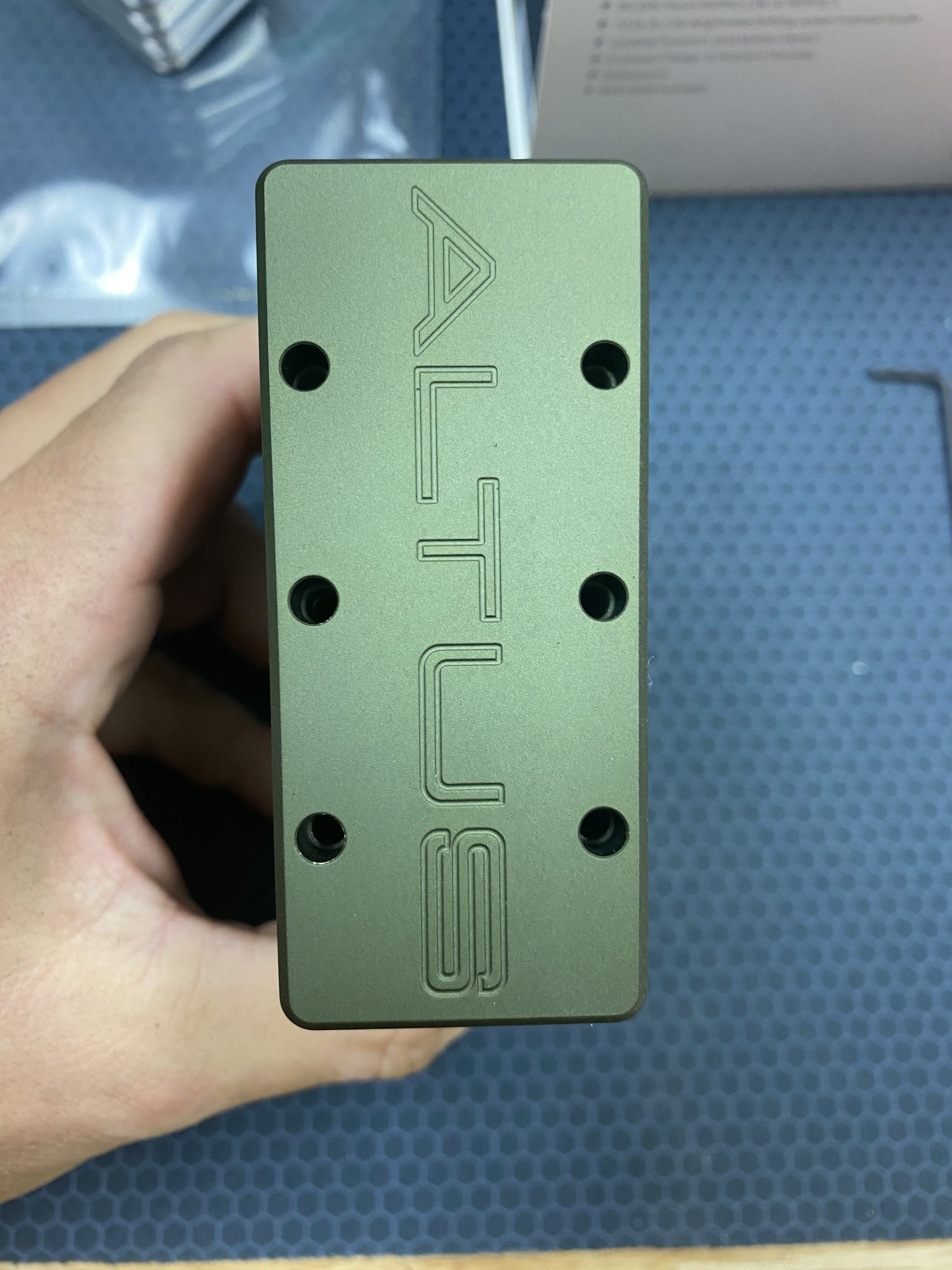

These are made here in Australia. Metal base plate for those interested.





Stag556

Supporter
Supporter
Full Member
Minuteman
Feb 10, 2017
1,175
537
So yes to just a grippy Do-Dad? No way I'm gonna tool up for milling them, but if you're not familiar with my MJF printing you're missing out. Leagues above the FDM printing you listed and probably preferable for this task. Could do a superior grip pattern at a substantially lower cost, similar weight if adding heft is the goal...or nearly weightless if not.
Appreciate the post but I wasn’t asking you to mill anything or make anything. I’m sure you are good at what you do and know what you’re talking about. But I’m strictly looking for one item for a certain reason. If you decided to make something cool for an AW base, you’d have a lot of customers.


Tritiumdials

Supporter
Supporter
Full Member
Minuteman
Aug 29, 2020
315
86
CONUS
I’d be interested in a bag rider made with that high speed material that is direct fit/replaces the pic rail.

My typical petg 3D printed one on the XLR Envy continually unravels because it’s the first point of contact to the ground whenever I place the rifle down.


ATC4USMC

Private
Minuteman
Sep 22, 2010
78
47
VA

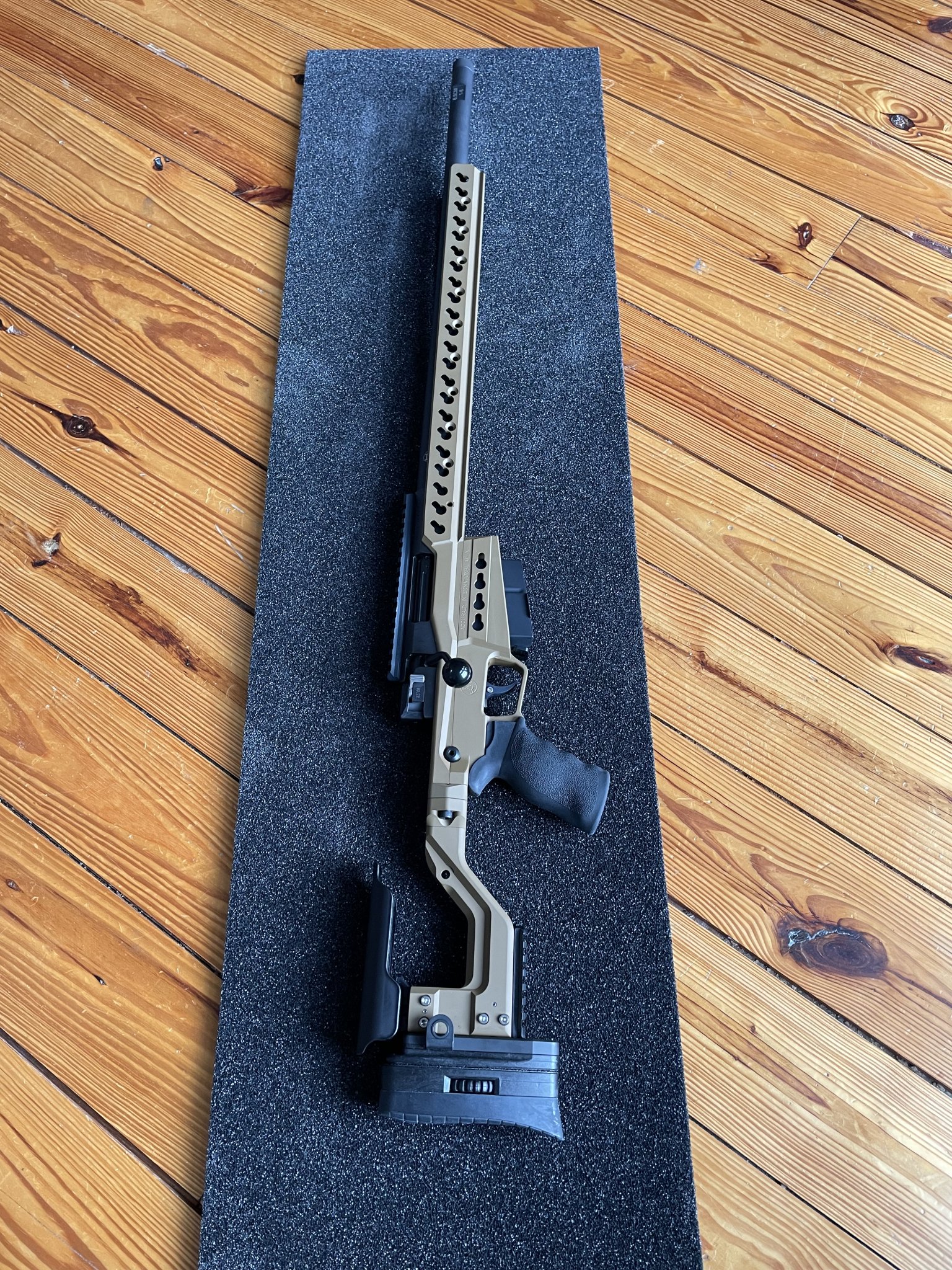

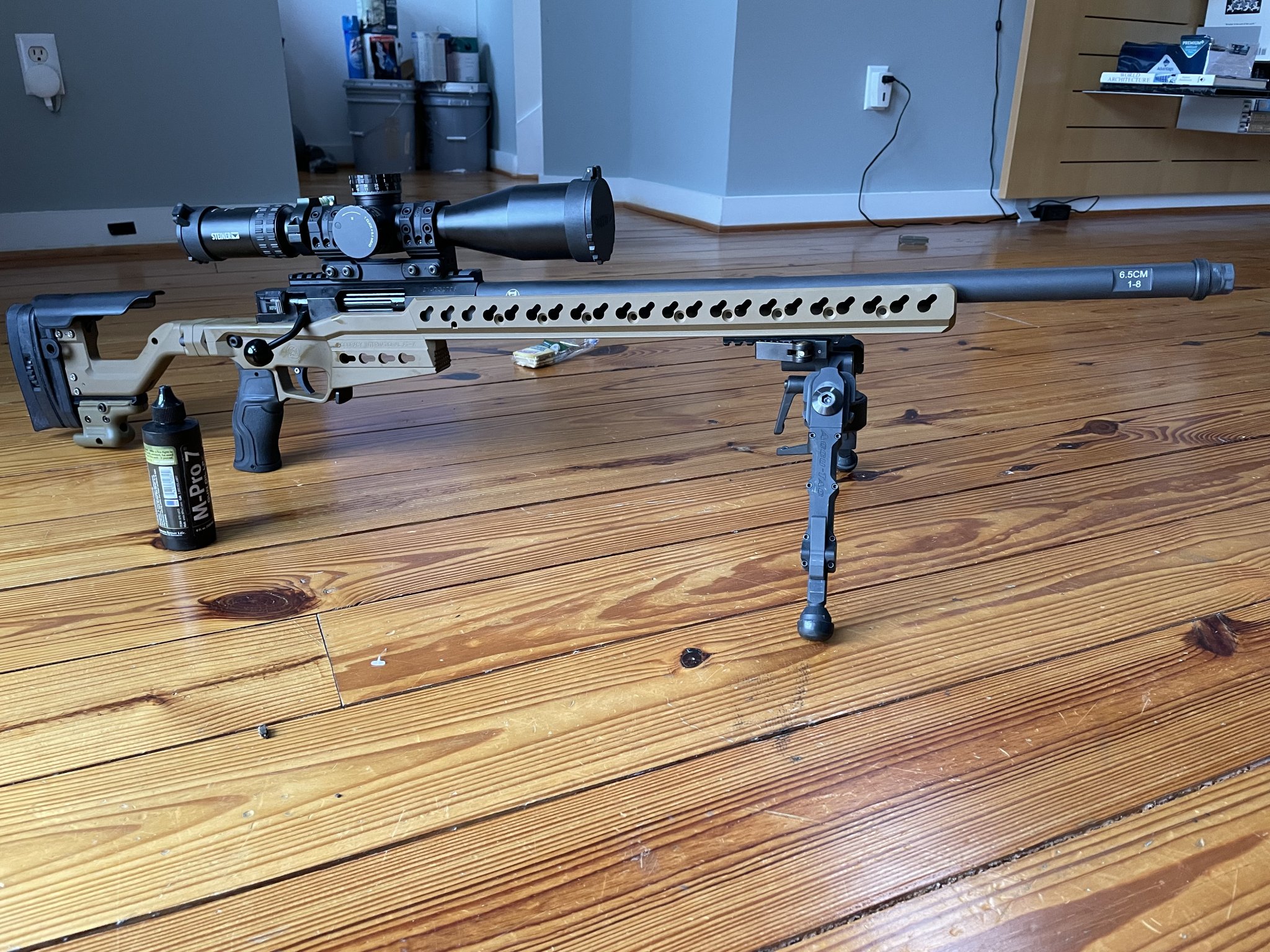

More eye candy for your time.

I have just called Mike High for all the stuff I wanted, honestly I didn’t even look at the website because most either wasn’t listed or updated but they have great customer service. I do think they’re prioritizing who ordered a rifle first and if those people want bridges.

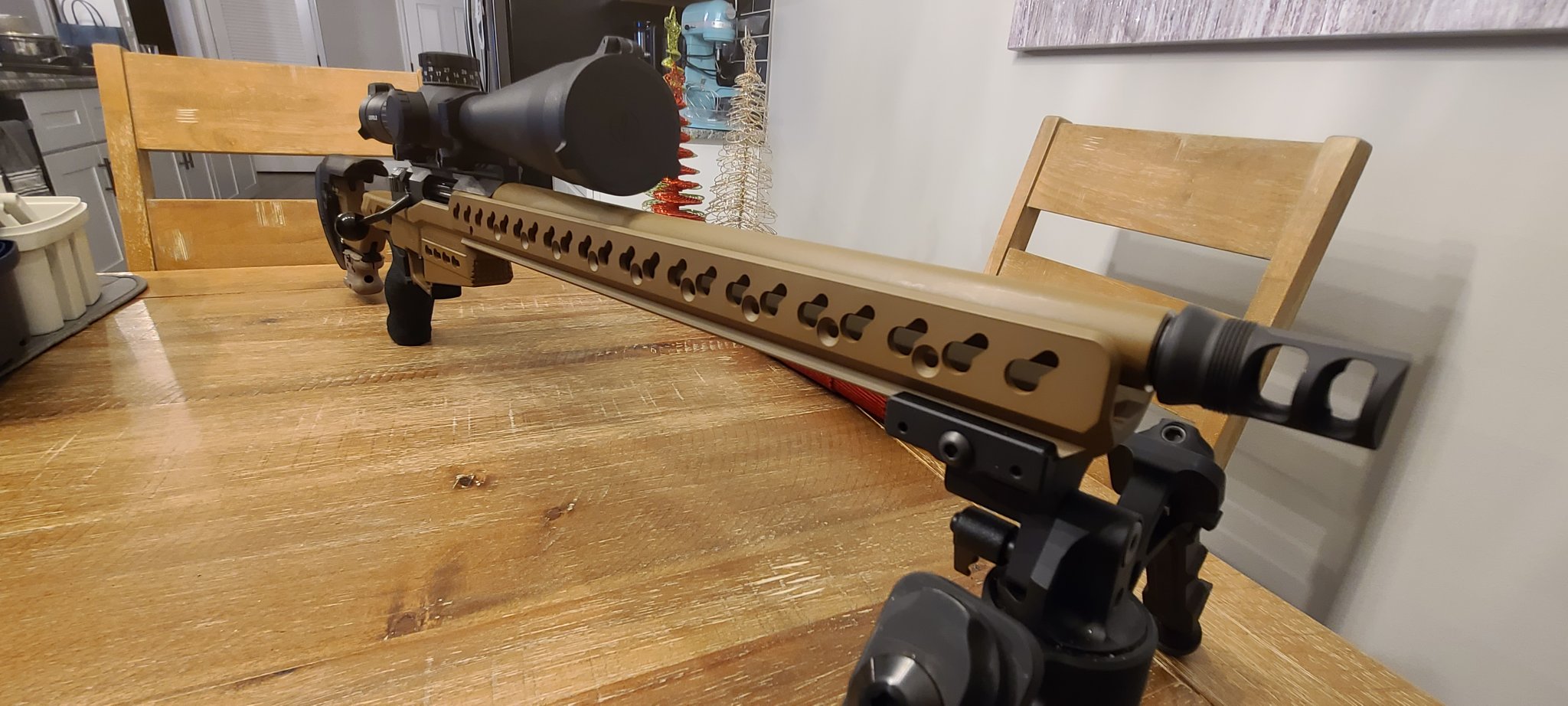

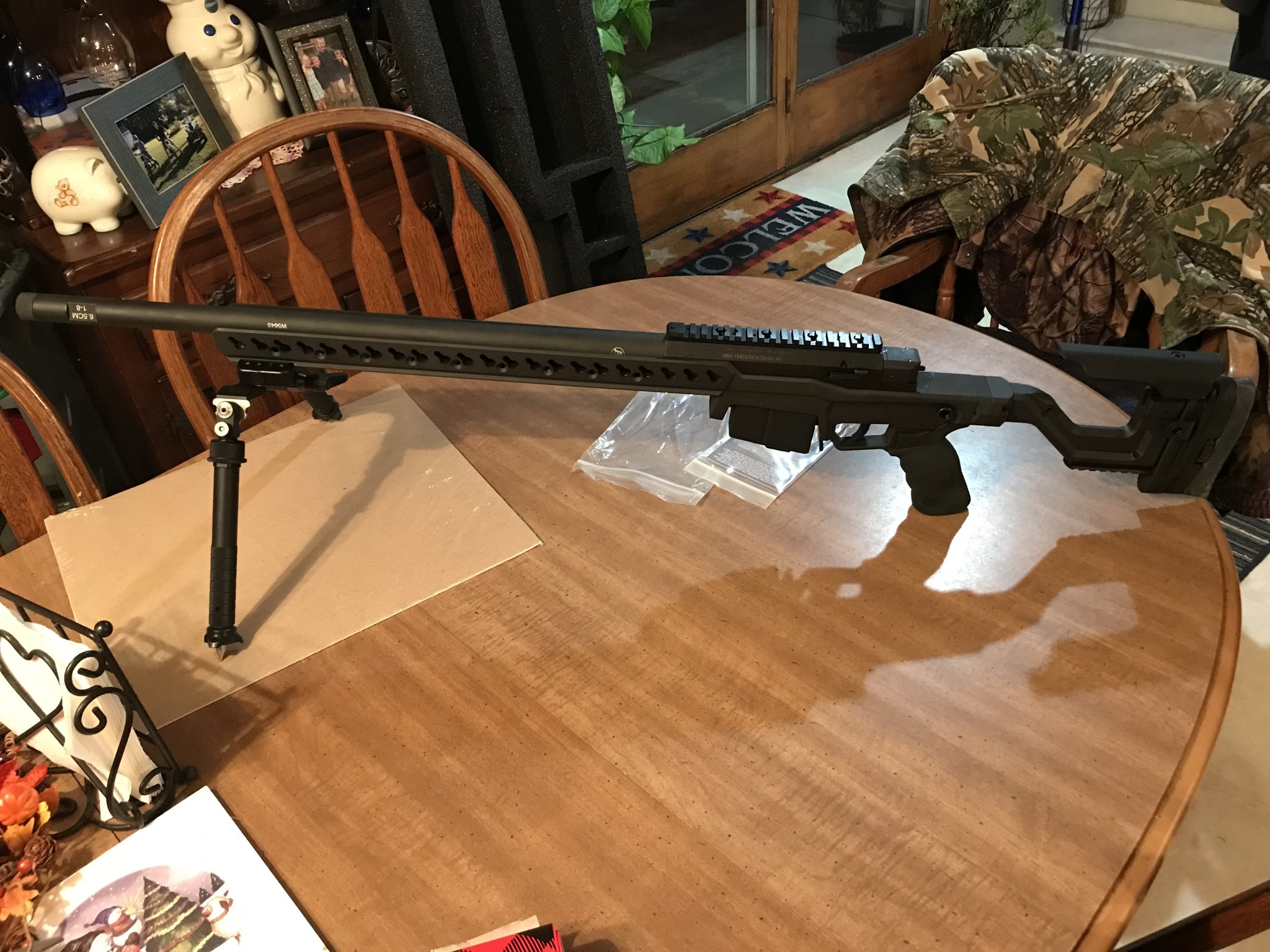

Thanks for the eye candy @Peter Laurvick ..picked mine up on Tuesday and left out of town Wednesday. Was able to get the scope and bipod mocked up on it, still missing the brake for my suppressor. Not the best pic but gives you an idea…that FDE is nice but still love my RED! Happy Turkey day!


Attachments

  • B6D70063-A241-436D-A533-795E750D95CE.jpeg
    344 KB · Views: 97

Peter Laurvick

‘Merica!
Full Member
Minuteman
Jul 4, 2017
266
68
Jacksonville, NC
Does it come with the light spring installed ?
Mine did not, at least how the bag with the spring was labeled anyways, which is crazy cause it’s pretty light as is. If anything I’d say there is a lot of take up in the first stage before getting to the wall of the second. And I’m really just comparing it to what I know with a Timney one and two stage. I love the trigger shoe compared to the timneys I have


Attachments

  • C86B7EFF-E6D9-4B33-9696-6B4623340255.jpeg
    513 KB · Views: 25

Peter Laurvick

‘Merica!
Full Member
Minuteman
Jul 4, 2017
266
68
Jacksonville, NC
Ok y’all I’m lost. I really want a 2 round holder on the side of the gun, it has those keyslot holes but I can’t find a round holder to fit it. I even tried a Keymod pic rail to see if it was that and it’s not. What am I missing? Or is it designed to go keyslot to picatinny, then get a picatinny 2 round holder? I know the other option is the Velcro version like SAP but then why have the keyslot on the side?

Next is keyslot to QD Sling swivel options. I see MHS has some short pic rails with QD cups in them, are there other options just for mounting a sling swivel? I swear Google hates you searching for “keyslot” it just spams you with keymod


deersniper

What would BurtGummer do?
Supporter
Full Member
Minuteman
  • Feb 22, 2007
    11,948
    15,458
    Northeast
    Ok y’all I’m lost. I really want a 2 round holder on the side of the gun, it has those keyslot holes but I can’t find a round holder to fit it. I even tried a Keymod pic rail to see if it was that and it’s not. What am I missing? Or is it designed to go keyslot to picatinny, then get a picatinny 2 round holder? I know the other option is the Velcro version like SAP but then why have the keyslot on the side?

    Next is keyslot to QD Sling swivel options. I see MHS has some short pic rails with QD cups in them, are there other options just for mounting a sling swivel? I swear Google hates you searching for “keyslot” it just spams you with keymod
    There’s a link for AO sling QD cup mount somewhere in this thread

    Edit.

    • Like
    Reactions: seansmd

    Stag556

    Supporter
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,175
    537
    Ok y’all I’m lost. I really want a 2 round holder on the side of the gun, it has those keyslot holes but I can’t find a round holder to fit it. I even tried a Keymod pic rail to see if it was that and it’s not. What am I missing? Or is it designed to go keyslot to picatinny, then get a picatinny 2 round holder? I know the other option is the Velcro version like SAP but then why have the keyslot on the side?

    Next is keyslot to QD Sling swivel options. I see MHS has some short pic rails with QD cups in them, are there other options just for mounting a sling swivel? I swear Google hates you searching for “keyslot” it just spams you with keymod
    This is what I have waiting for the rifle. I’ve used them before. Get the keymod version.



    Peter Laurvick

    ‘Merica!
    Full Member
    Minuteman
    Jul 4, 2017
    266
    68
    Jacksonville, NC
    AT-X range report: just back from second trip out and I’m calling load development done. Did the recommended barrel break in per AI’s manual and used factory Hornady match 108gr ELD-M. Effortless to get zeroed but I expected that. The last 10 round group wasn’t spectacular but right under an inch with that Ammo. Moved on to my old rifles match load of 105gr Berger handloads. The AT-X didn’t like them as much but they kept the same zero as the 108gr factory Ammo which was cool. Speeds were about 140fps slower with my handloaded 105’s than with my other rifle which has the same length barrel but a Proof. Fired (38) total rounds between those two then started my load test of (5) groups of 5-shots with Peterson LRP brass, CCI 200’s, Berger 109gr Hybrid LR, and H4350 between 40.4-41.6gr.
    Some groups in the 1/2” range, most were about 3/4”. After putting the data in a spreadsheet I noticed the lower end between 40.4-40.7 gr was a huge flat node that was obviously even bigger than that, but the SD/ES were a little higher than I wanted. Decided to hit the center of that node and work the seating depth to see if it would improve. Went with an initial target of 2.800 COAL and worked 0.006” up and down then again to cover as much ground as I felt it needed.

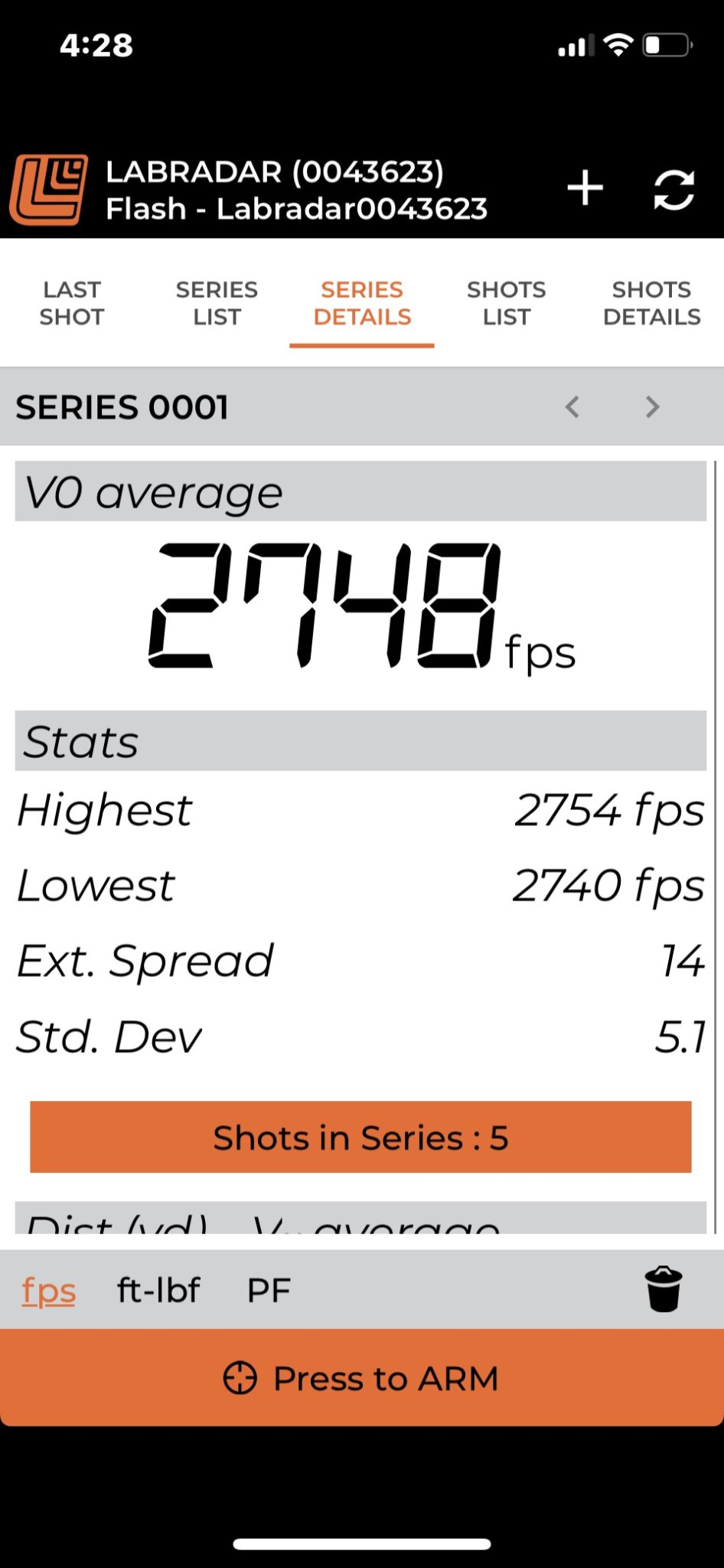

    End result, so far the gun and barrel has (88) rounds. Many 0.50” groups, and the mirage was insane today for whatever reason so I’m honestly surprised it did that. A lot of SD’s in the 10 fps range and landed on gold at group #4 at 2958 FPS avg, 3.9SD and 9ES. I’ll take that to the races anywhere and it’ll save me a little barrel life running it a tad slower. That same load picked up 20fps from yesterday and even the hornady 108’s are up 20-30fps. I’m pretty sure it’s done speeding up now though, gonna load a few hundred and hit the barricades.

    And got lucky with the MDT Black Friday sale so I’ve got a CKYE pod on the way to take advantage of the crazy low center of gravity this thing has.

    Last two pictures are a 10-shot with Hornady 108gr ELD-M. And shooting a (3) shot group standing off a barricade at 100yds (circled) and removing/reinstalling the barrel, firing one round, then repeating for another round, for a total of a 5-shot group standing off a barricade with barrel removed twice at 100yds. Needless to say I’m happy


    Attachments

    • 95E0C8AA-C38E-4214-B0AC-3D64050B225E.jpeg
      486 KB · Views: 29
    • AF146032-9F95-4906-8B7B-07A1F1848CD5.jpeg
      484.7 KB · Views: 30
    • 71978DC6-A317-4590-A7E1-8856D7A3A1FB.jpeg
      552.8 KB · Views: 31
    • FB47CD11-0C33-4CDE-8775-3C97AF5670FB.jpeg
      526.3 KB · Views: 30
    • 7449A297-A166-4F24-9175-F4F935D807AC.jpeg
      533.9 KB · Views: 29

    craigos

    craigos from Scout 2015
    Full Member
    Minuteman
  • Feb 11, 2017
    2,889
    1,025
    PNW
    AT-X range report: just back from second trip out and I’m calling load development done. Did the recommended barrel break in per AI’s manual and used factory Hornady match 108gr ELD-M. Effortless to get zeroed but I expected that. The last 10 round group wasn’t spectacular but right under an inch with that Ammo. Moved on to my old rifles match load of 105gr Berger handloads. The AT-X didn’t like them as much but they kept the same zero as the 108gr factory Ammo which was cool. Speeds were about 140fps slower with my handloaded 105’s than with my other rifle which has the same length barrel but a Proof. Fired (38) total rounds between those two then started my load test of (5) groups of 5-shots with Peterson LRP brass, CCI 200’s, Berger 109gr Hybrid LR, and H4350 between 40.4-41.6gr.
    Some groups in the 1/2” range, most were about 3/4”. After putting the data in a spreadsheet I noticed the lower end between 40.4-40.7 gr was a huge flat node that was obviously even bigger than that, but the SD/ES were a little higher than I wanted. Decided to hit the center of that node and work the seating depth to see if it would improve. Went with an initial target of 2.800 COAL and worked 0.006” up and down then again to cover as much ground as I felt it needed.
    End result, so far the gun and barrel has (88) rounds. Many 0.50” groups, and the mirage was insane today for whatever reason so I’m honestly surprised it did that. A lot of SD’s in the 10 fps range and landed on gold at group #4 at 2958 FPS avg, 3.9SD and 9ES. I’ll take that to the races anywhere and it’ll save me a little barrel life running it a tad slower. That same load picked up 20fps from yesterday and even the hornady 108’s are up 20-30fps. I’m pretty sure it’s done speeding up now though, gonna load a few hundred and hit the barricades.

    And got lucky with the MDT Black Friday sale so I’ve got a CKYE pod on the way to take advantage of the crazy low center of gravity this thing has.

    Last two pictures are a 10-shot with Hornady 108gr ELD-M. And shooting a (3) shot group standing off a barricade at 100yds (circled) and removing/reinstalling the barrel, firing one round, then repeating for another round, for a total of a 5-shot group standing off a barricade with barrel removed twice at 100yds. Needless to say I’m happy
    hope you got the rrs head and a LR RRS clamp, the arca swiss clamp on the cyke pod (with the "dial" kinda sucks). Its what i have on my ATX and just get the RRS head and had a clamp here ... far far better
