Build problems advice appreciated

malinkyhoy

Private
Full Member
Minuteman
Dec 30, 2011
103
2
44
Oregon

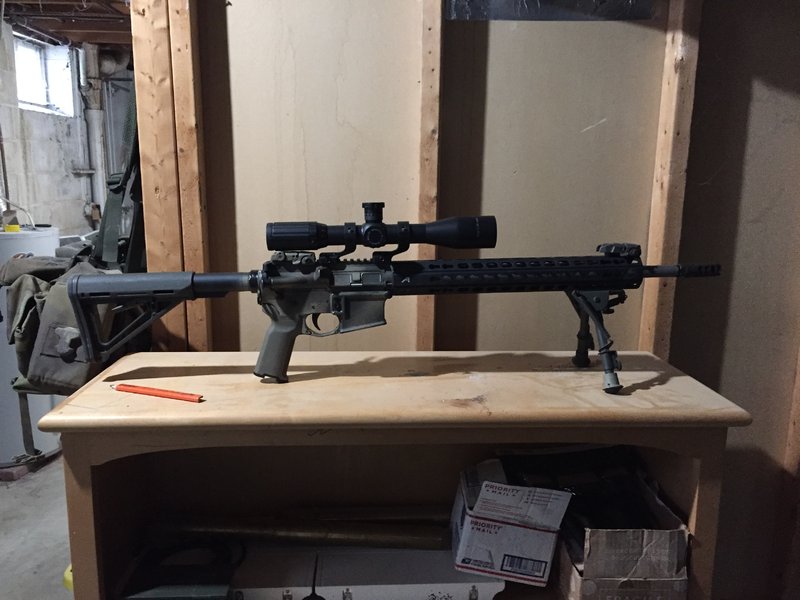

I built this rifle on a rainier arms 18” Wylde barrel, with a geissele national match trigger. The rest of the lpk and the bcg are PSA. Shot well for 60rds after which the trigger locked and would not discharge rounds. I’m of the opinion that the bcg is the issue. Any thoughts?


Attachments

  • photo82312.jpg
    71.9 KB · Views: 1

BurnOut

DDOJSIOC
Full Member
Minuteman
Nov 24, 2013
1,833
771
Dallas
Have you disassembled the rifle to see if there are any obstructions in the fire control? I hate to be super-basic, but given the provided information, that's where we'll need to start.


cleric

Private
Full Member
Minuteman
Nov 13, 2011
560
183
40
Dallas, tx
So you pulled the trigger. The round discharged and the bolt remained closed? Did the round exit the barrel? Can you manually cycle the bolt?

I would first try to manually cycle the weapon.
i would then take upper out and remove bcg
inspect the barrel, bolt face, and trigger group


malinkyhoy

Private
Full Member
Minuteman
Dec 30, 2011
103
2
44
Oregon
I disassembled the rifle and checked for a blockage, stripped and reassembled the bcg. This happened with multiple rounds. A bad box of ammo?


malinkyhoy

Private
Full Member
Minuteman
Dec 30, 2011
103
2
44
Oregon
So you pulled the trigger. The round discharged and the bolt remained closed? Did the round exit the barrel? Can you manually cycle the bolt?

I would first try to manually cycle the weapon.
i would then take upper out and remove bcg
inspect the barrel, bolt face, and trigger group

no, round loaded but would not discharge as the trigger was locked back. I manually cycled the bolt but again the trigger would not release.


padom

SuperMod
Staff member
Moderator
Supporter
Full Member
Minuteman
  • Mar 13, 2013
    10,397
    5,257
    Southeastern, Pennsylvania
    no, round loaded but would not discharge as the trigger was locked back. I manually cycled the bolt but again the trigger would not release.

    Does the trigger operate without the upper installed? Might sound basic but is the BCG assembled properly? Is the trigger installed properly?


    malinkyhoy

    Private
    Full Member
    Minuteman
    Dec 30, 2011
    103
    2
    44
    Oregon
    It does fire without the upper installed. I called Geissele about the trigger, which is installed correctly. The BCG is also assembled correctly. I was wondering if the PSA bolt is the issue.


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    10,397
    5,257
    Southeastern, Pennsylvania
    Yea if the trigger functions without the upper then I would look to the BCG. Easy to swap it out with another to test.


    Kadams1563

    Giver of Bad Advice
    Full Member
    Minuteman
    Feb 13, 2017
    1,785
    1,390
    Take the trigger out and re install it. I have seen trigger springs put in all kinds of ways. Sometime they work for awhile and sometime they don’t.

    Im


    Sent from my iPhone using Tapatalk


    malinkyhoy

    Private
    Full Member
    Minuteman
    Dec 30, 2011
    103
    2
    44
    Oregon
    I'm going to pull the trigger on another BCG and see what happens. I have removed and re-installed the trigger also. Unless I let the BCG slap into place it doesn't always go into battery. I will report back as soon as I can and probably contact PSA also. Thanks guys.


    rth1800

    Two Star General
    Full Member
    Minuteman
  • Sep 16, 2009
    8,601
    4,721
    Midwest
    Check for debris in locking lug area and headspace if only happening with a live round. Lube and shoot.


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    10,397
    5,257
    Southeastern, Pennsylvania
    I'm going to pull the trigger on another BCG and see what happens. I have removed and re-installed the trigger also. Unless I let the BCG slap into place it doesn't always go into battery. I will report back as soon as I can and probably contact PSA also. Thanks guys.

    If your looking for a top quality bcg, with unconditional lifetime warranty buy one of these. They make BCG's for some of the big name companies in the industry who just put their logo on them and charge a premium. I have a bunch of them and they are top quality. Most never heard of them but those that have know they are top notch. They provide replacement BCG's to .MIL as well.

    http://www.toolcraftinc.com/products/



    Toolcraft Black Nitride - $79.99
    https://www.joeboboutfitters.com/To...Carrier-Group-AR15-M-p/tool-tooauto-011bn.htm


    Toolcraft Nickel Boron - $99.99
    https://www.joeboboutfitters.com/To...Carrier-Group-AR15-M1-p/tool-tooauto-010m.htm


    malinkyhoy

    Private
    Full Member
    Minuteman
    Dec 30, 2011
    103
    2
    44
    Oregon
    If your looking for a top quality bcg, with unconditional lifetime warranty buy one of these. They make BCG's for some of the big name companies in the industry who just put their logo on them and charge a premium. I have a bunch of them and they are top quality. Most never heard of them but those that have know they are top notch. They provide replacement BCG's to .MIL as well.

    http://www.toolcraftinc.com/products/



    Toolcraft Black Nitride - $79.99
    https://www.joeboboutfitters.com/To...Carrier-Group-AR15-M-p/tool-tooauto-011bn.htm


    Toolcraft Nickel Boron - $99.99
    https://www.joeboboutfitters.com/To...Carrier-Group-AR15-M1-p/tool-tooauto-010m.htm

    Thanks, I have been looking at these recently. Any serious reason to go with Nicole boron over nitride?


    malinkyhoy

    Private
    Full Member
    Minuteman
    Dec 30, 2011
    103
    2
    44
    Oregon
    Did OP get this resolved yet? Just curious about what was discovered.

    I stripped and reassembled the BCG again and could find no issues there, it was clean and assembled correctly. I noticed before the incident occurred that letting the BCG slam into battery was the only way it would function. If I let it slide in gently it would not go into battery even with the aid of the forward assist.

    I reported the issue to PSA and they sent me a form to fill for a return so they could generate a label, that was two days ago and I haven't heard back from them yet. I wonder if it is a problem with the finish on the BCG as there is no way my Rainier Barrel or Geissele High Speed National Match Trigger are at fault, at least by my reckoning. I did order some LPK's from Sons of Liberty and a Toolcraft BCG which arrived today. The next time the weather permits me to get out to the range I will report back.
