I'm still working on talking and saving for one. It takes me a while to save up that much with how I am currently spending my paychecks.
Night Vision EOTECH CLIP ON THERMALS ( Full details)
- Thread starter DownRangeThermal
- Start date
I'm might have to go full fanboi mode with that and their new Vudu 1-10 lol
I'm going to pull the trigger on the first Vudu 1-10 I see in stock with the LE5 reticle.
I just swapped an old IOR 3-18 (long overdue) for a Revic 428 smart scope. 4.5x on the low end is higher than I'd like for night shooting, but the ballistic solver in the scope is awesome with a SiCo Radius and a clip on. I'm getting a better image at higher magnification with the Revic too.
A Steiner 2.9-20 IFS may have been a better choice but then I wouldn't have been able to order the xELR.
A Steiner 2.9-20 IFS may have been a better choice but then I wouldn't have been able to order the xELR.
You wreak from the stench of poor.
Probably!
I'm just hoping they space your order out and only give you one or two xELRs from the first shipment, instead of the 10 or 20 you ordered that way the rest of us have a chance to get one before that invalid in the oval office burns the country down around us.
I'm just hoping they space your order out and only give you one or two xELRs from the first shipment, instead of the 10 or 20 you ordered that way the rest of us have a chance to get one before that invalid in the oval office burns the country down around us.
Anyway, kids are born with extra kidneys, right? Asking for a friend.
You’re definitely heading in the right direction here. I hope my encouraging words played some small part in your new life course.

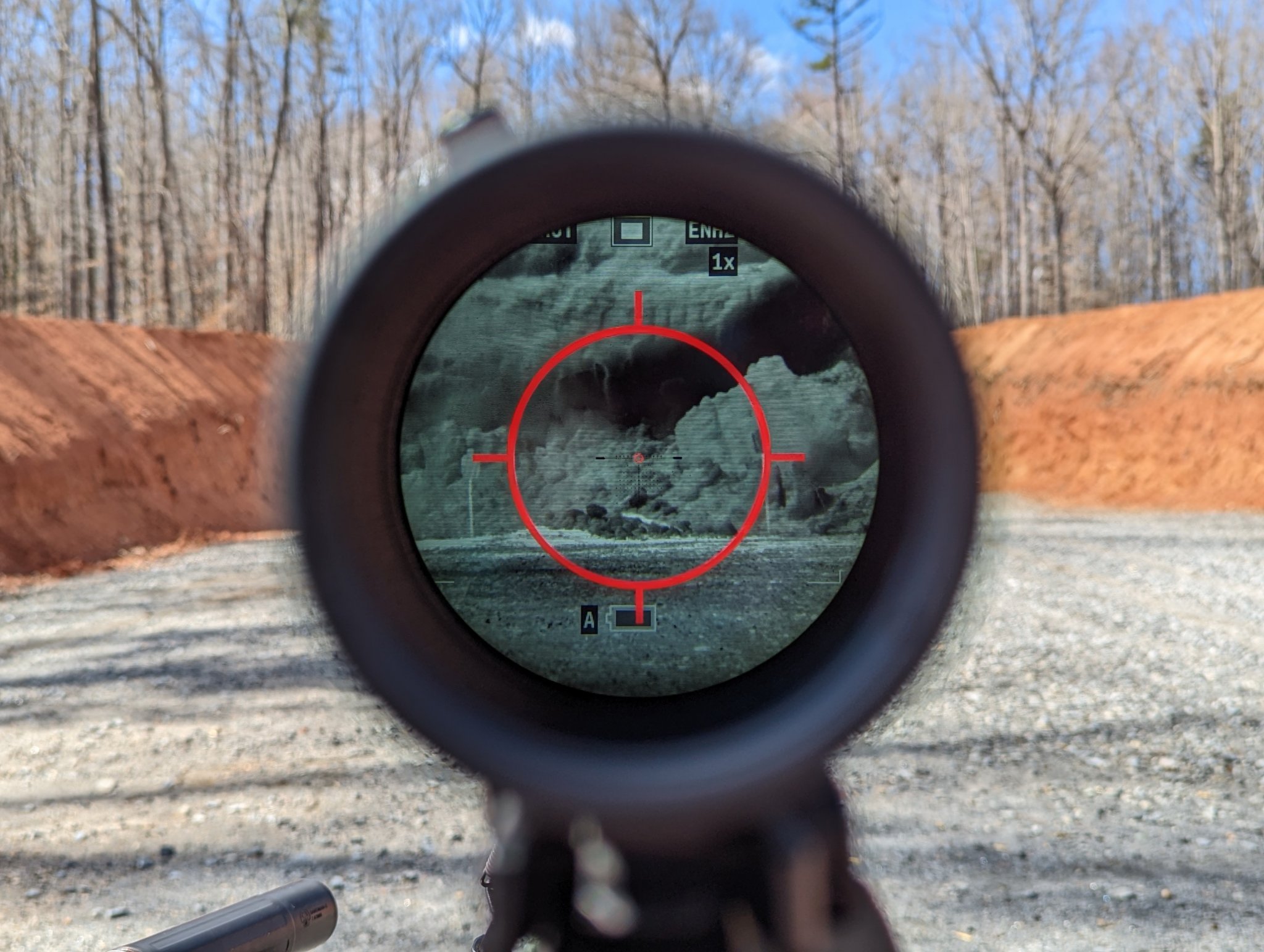

All you need is the medium range clip on for that. 1-10 is at about 3 power here. Obviously IQ is much more impressive in real life.
Yeah I can definitely live with that!
It was your influence that caused me to buy my TigIR, and now there's the xELR. I know you're trying to kill me by proxy via my wife.
Thought I'd bump this up in the hopes that @DownRangeThermal would give us some more pictures through the xELR.
I'd still like to see some love for the LR also....
My shopping list for the year includes helmet mounted NODS and clip on thermal. Sadly this idiotic state doesn't allow any hunting with night optics.
Hear hear!

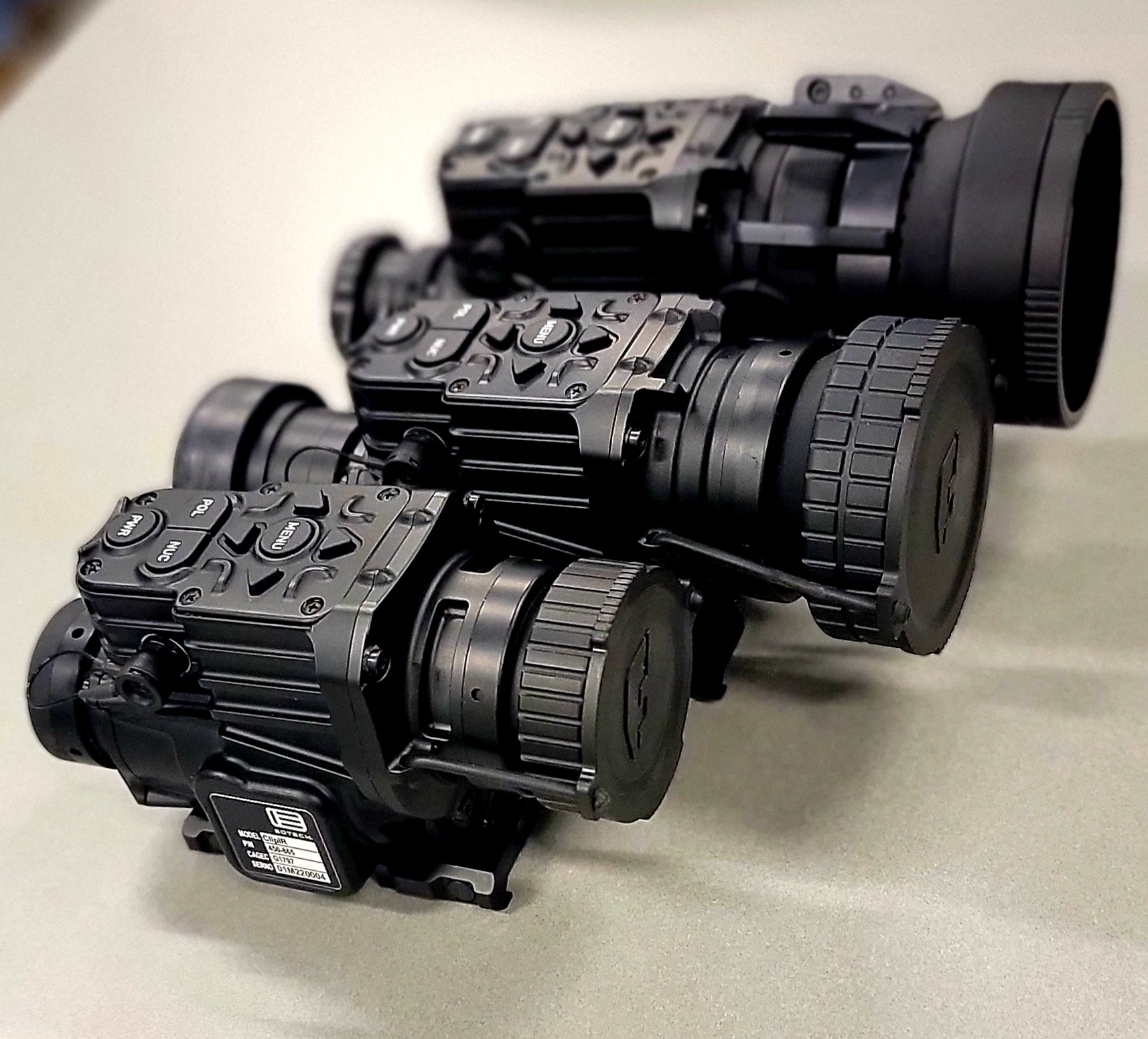

ClipIR 12 degree
ClipIR-LR 8 degree
ClipIR-xELR 5 degree
ClipIR-LR 8 degree
ClipIR-xELR 5 degree
Hot dang.
Someone better go kidnap Horta and tie him up in the basement for a month or these units are history.
Someone better go kidnap Horta and tie him up in the basement for a month or these units are history.
street price on these beauties? And how is the warranty if my SCAR 20 kills it? LOL
No scar restriction
Are any unspoken for?
That XELR mine???
Can't wait to see video and pictures through all of them. What is the recoil rating for them all? I know the XELR is .50 but the rest (or did I miss it in an earlier post?).
Yep some xxx XELR does Dallas would hit the spot.
Does the 50mm version also have manual focus? It looks like it does but uncertain. If so I could see that being a very tasty medium-range hunting option. Like a beefed-up Tig.
I've spent a fair amount of time with the little one and I really like it.
How much day scope magnification does it support?
they are all 50 cal rated. IMHO the 12 degree small unit is nice around 4-5x. 10x is beyond my personal comfort zone but can be done.
I would really like to see some more pictures of the ClipIR 12 degree. Thinking about running one infront of a nx8 lpvo.
I may have missed this in an earlier comment, but is the xELR collimated with a prism or does it have to be self adjusted for every platform it mounts to?
This is why Horta travels to Africa so often. All these toys get expensive for a stay at home dad
Per my recent readings in the last 2 or 3 months here on SH, it appears (if my comprehension is correct) that thermal clip ons do not contain a risley prism like some of the NV clip-ons.
I think that even "some" of the higher end thermal clip ons have a "user ability" to adjust the screen to fine tune POA/POI with the day optic.
However, hopefully some of the more knowledgeable people in that arena will come along and shed more light on the subject.
Last edited:
Military thermal clip ons (at least almost all of them) have no user adjustability to make them work with the day scope. This is because they leave the factory already engineered to work with day scopes without significant affect on day scope POI.
There is some debate/discussion about HOW military thermal clip-ons accomplish this. Is it a prism? Is it ocular lense design? Is it software/pixel arrangement at the factory? Is it some other magic?
Industry insiders have given conflicting statements about how it’s accomplished, and it may be accomplished in different ways for different devices.
What IS certain, is that all military clip ons (with one possible exception) are designed/intended to mount, dismount, mount to a different weapon, etc., with no adjustment needed (and usually no adjustment possible).
So far, commercial clip-ons have failed to figure out the magic and have relied on zeroing the screens which is vastly inferior for several important reasons.
Reports on the Theon units (and the fact that it’s been adopted by a serious military) tell us that whatever specific method/magic was employed, no adjustment are necessary to mount-shoot-switch weapons, etc.
There is some debate/discussion about HOW military thermal clip-ons accomplish this. Is it a prism? Is it ocular lense design? Is it software/pixel arrangement at the factory? Is it some other magic?
Industry insiders have given conflicting statements about how it’s accomplished, and it may be accomplished in different ways for different devices.
What IS certain, is that all military clip ons (with one possible exception) are designed/intended to mount, dismount, mount to a different weapon, etc., with no adjustment needed (and usually no adjustment possible).
So far, commercial clip-ons have failed to figure out the magic and have relied on zeroing the screens which is vastly inferior for several important reasons.
Reports on the Theon units (and the fact that it’s been adopted by a serious military) tell us that whatever specific method/magic was employed, no adjustment are necessary to mount-shoot-switch weapons, etc.
Can you expand on the reasons shifting the screen around to zero is vastly inferior.
I understand and recognize that you do not have the convenience of going from rifle to rifle without having to make adjustments, but are there other reasons that the commercial solution of shifting the screen is vastly inferior.
From my little experience with the Yoter-C you're basically adding a second aiming device with the screen shifters. If it moves or deflects or the mount shifts, so does your POI.
Example. Lock the rifle down in a vice and aim the optic at a 100yd target. Now add your thermal to your rail. Since it isn't aimed precisely at the target, you shift the screen around until your cross hair is back on the target in the image to compensate. Now if you deflect the forend as if you loaded the bipod or the mount moves or doesn't RTZ, the thermal is "looking" somewhere else and the image on the screen moves again to reflect where it's looking now. The action/barrel/day scope didn't move, but your target isn't under your cross hairs anymore.
If someone can explain how the "coliminated" military optics seemingly pass the image straight through the scope without affecting the POI or requiring any adjustment, I'm very interested in trying to understand it. Or at least point out the flaw in my thinking.
Like a lot of people here I started seriously looking at buying thermal clip-ons in the last couple of years, and at the start, I heard a lot about how the best systems were collimated with a Risley prism. My current understanding is that that is largely accidental misinformation carried over from the world of night vision (image intensification) clip-ons. I will explain my current understanding below, but I am happy to be corrected by an expert if one comes along.
A Risley prism is basically a clever arrangement of wedge-shaped prism lenses that allow you to "steer" a light beam or path. See here for a neat demo with a laser beam: YouTube link. Although the laser beam comes out of the emitter in a straight line, you can see that you can alter its path very precisely by rotating the prisms to a certain position. Some high-end NV clip-ons like the PVS-30 use such a system. It is not user-adustable, but during the manufacturing process, each device is attached to a test fixture and aimed at a calibrated light source, and then the prisms are set such that the image seen at the ocular end is the same as what goes into the objective end. Then the setting is locked down, and the result is that the image is basically passing straight through the intensification clip-on without being distorted or bent. Thus, as long as the day optic and NV clip-on are reasonably aligned, there will be minimal POI shift when the clip-on device is attached.
Thermals are different. The light is not really "passing through" the device in the way that light passes through an NV tube. The infrared waves fall onto a microbolometer sensor (or a fancy pixel-counting sensor for cooled MWIR systems) and are stopped completely there. For the clip-on to function correctly, you really just have to ensure that the displayed image on the rear screen matches what the day optic would have seen when the clip-on is removed, but this does not require any "bending" of the light path at all, so no Risley prism is necessary. Instead, special software calibration systems are used to ensure that a given pixel on the microbolometer activates the correct pixel on the display screen on the back of the unit when it is hit by infrared light. They also have to ensure that the image size is calibrated correctly, so that 1 mil on the day optic reticle is 1 mil when looking through the clip-on, and not 1.002 mil. This is factory set for military clip-ons primarily to ensure the device will work with minimal POI shift on just about any weapon if the day scope and clip-on are reasonably aligned. However, there is no real reason that a civilian end-user couldn't fine tune the screen image position for their exact rifle, and indeed, many thermal clip-ons allow this. However, doing so ruins the ability to slap the thing onto any rifle in your squad and have it work well enough to engage the enemy without re-calibration. Since the military doesn't want to futz with calibration, the extra cost of pre-calibrated units makes sense, but for civilians, that extra labor isn't necessarily worth the extra price tag, so it can be omitted on civilian units. The owner is then forced to calibrate the clip-on for a given rifle or a few rifles in his collection. Many clip-ons intended for military use do not allow the owner to even access a calibration menu, to prevent grunts from fucking up the calibration.
A Risley prism is basically a clever arrangement of wedge-shaped prism lenses that allow you to "steer" a light beam or path. See here for a neat demo with a laser beam: YouTube link. Although the laser beam comes out of the emitter in a straight line, you can see that you can alter its path very precisely by rotating the prisms to a certain position. Some high-end NV clip-ons like the PVS-30 use such a system. It is not user-adustable, but during the manufacturing process, each device is attached to a test fixture and aimed at a calibrated light source, and then the prisms are set such that the image seen at the ocular end is the same as what goes into the objective end. Then the setting is locked down, and the result is that the image is basically passing straight through the intensification clip-on without being distorted or bent. Thus, as long as the day optic and NV clip-on are reasonably aligned, there will be minimal POI shift when the clip-on device is attached.
Thermals are different. The light is not really "passing through" the device in the way that light passes through an NV tube. The infrared waves fall onto a microbolometer sensor (or a fancy pixel-counting sensor for cooled MWIR systems) and are stopped completely there. For the clip-on to function correctly, you really just have to ensure that the displayed image on the rear screen matches what the day optic would have seen when the clip-on is removed, but this does not require any "bending" of the light path at all, so no Risley prism is necessary. Instead, special software calibration systems are used to ensure that a given pixel on the microbolometer activates the correct pixel on the display screen on the back of the unit when it is hit by infrared light. They also have to ensure that the image size is calibrated correctly, so that 1 mil on the day optic reticle is 1 mil when looking through the clip-on, and not 1.002 mil. This is factory set for military clip-ons primarily to ensure the device will work with minimal POI shift on just about any weapon if the day scope and clip-on are reasonably aligned. However, there is no real reason that a civilian end-user couldn't fine tune the screen image position for their exact rifle, and indeed, many thermal clip-ons allow this. However, doing so ruins the ability to slap the thing onto any rifle in your squad and have it work well enough to engage the enemy without re-calibration. Since the military doesn't want to futz with calibration, the extra cost of pre-calibrated units makes sense, but for civilians, that extra labor isn't necessarily worth the extra price tag, so it can be omitted on civilian units. The owner is then forced to calibrate the clip-on for a given rifle or a few rifles in his collection. Many clip-ons intended for military use do not allow the owner to even access a calibration menu, to prevent grunts from fucking up the calibration.
Last edited:
@Conqueror , excellent information. Our learning and understanding continues. Much appreciated.
Hopefully, others that posses intimate knowledge into this issue will chime in with additional information as well.
Hopefully, others that posses intimate knowledge into this issue will chime in with additional information as well.
Regarding the advantages of military clip ons vs screen aligned clip ons, Ksracer hit the nail on the head.
Civilian thermals:
1. Cannot be reliably moved gun to gun to gun. (Some can by selecting different zero profiles, which is better than nothing)
2. Rail/chassis flex results in a miss (ALL rails and chassis flex)
3. Return to zero mounts… don’t.
4. Theoretical (perfect) RTZ mounts still don’t work if dirt, grit, lint, etc. get in the mounting surface of the mount or the gun.
I’ll admit that practical results for most pig/yote hunters using commercial clip ons are often better than the above list could make it seem. If your interests don’t include real world life or death situations, commercial clip ons may be a very viable option.
Civilian thermals:
1. Cannot be reliably moved gun to gun to gun. (Some can by selecting different zero profiles, which is better than nothing)
2. Rail/chassis flex results in a miss (ALL rails and chassis flex)
3. Return to zero mounts… don’t.
4. Theoretical (perfect) RTZ mounts still don’t work if dirt, grit, lint, etc. get in the mounting surface of the mount or the gun.
I’ll admit that practical results for most pig/yote hunters using commercial clip ons are often better than the above list could make it seem. If your interests don’t include real world life or death situations, commercial clip ons may be a very viable option.
If there isn't a prism in thermals, how are 'military' clip-ons "engineered" to allow swap between rifles?
Seems to me they all (mil and commercial) adjust the screen.
Seems to me they all (mil and commercial) adjust the screen.
Give us some of those Vodoo magic specifics. That's what us inquiring minds want to know.
You have played with a lot of these units. Details man, details.
Exactly. "Our company's magic is better than those other hacks."
I suspect the difference between clip-ons (sensitivity to alignment) has more to do with their eyepiece design, than their "magic".
Or... they're less expensive due to differences in materials, build quality, component prices, R&D, and brand reputation.... you know, like most things.
Not sure how much of that cost is the magic...seems to vary.
