    That’s pretty awesome.

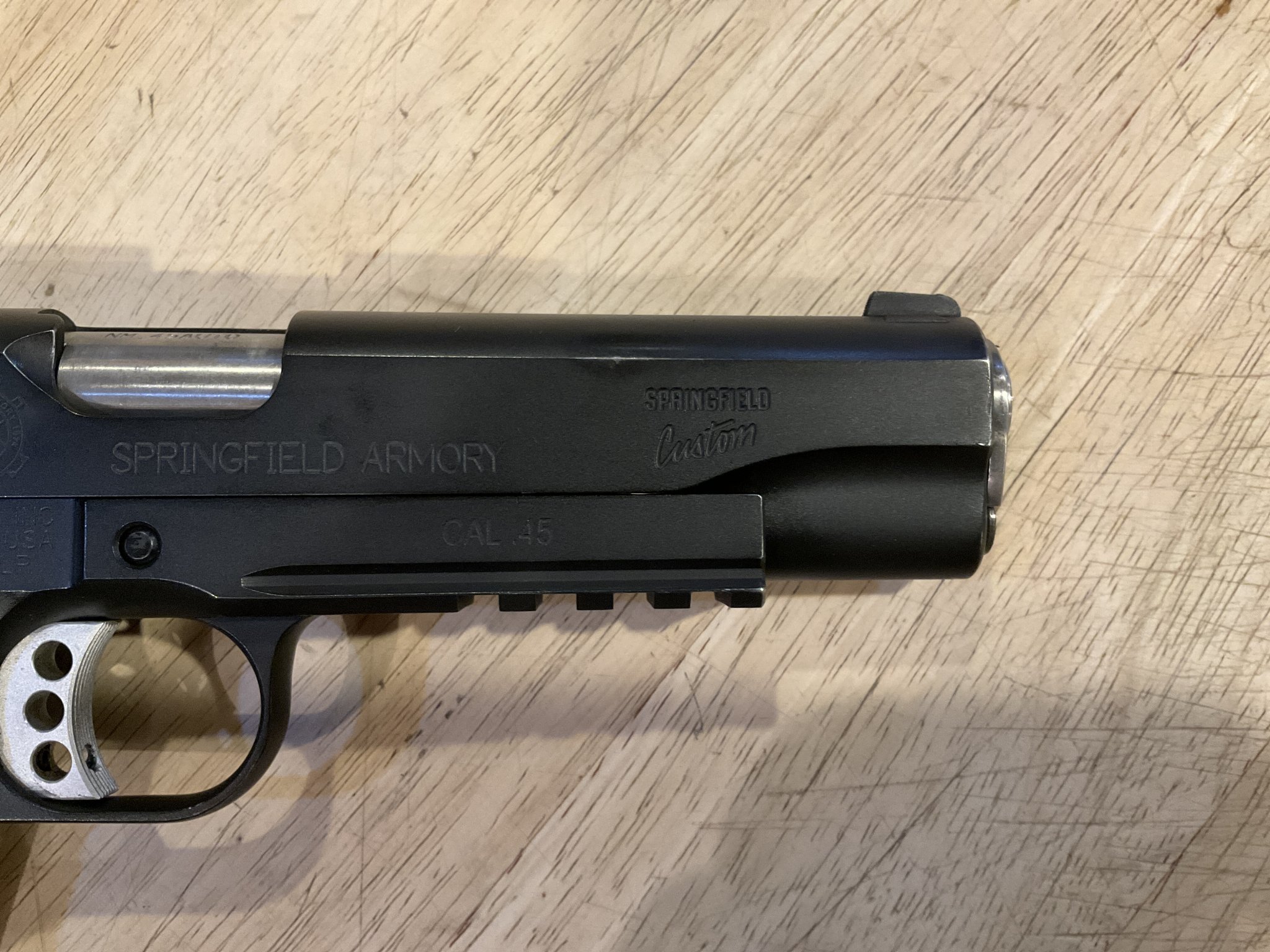

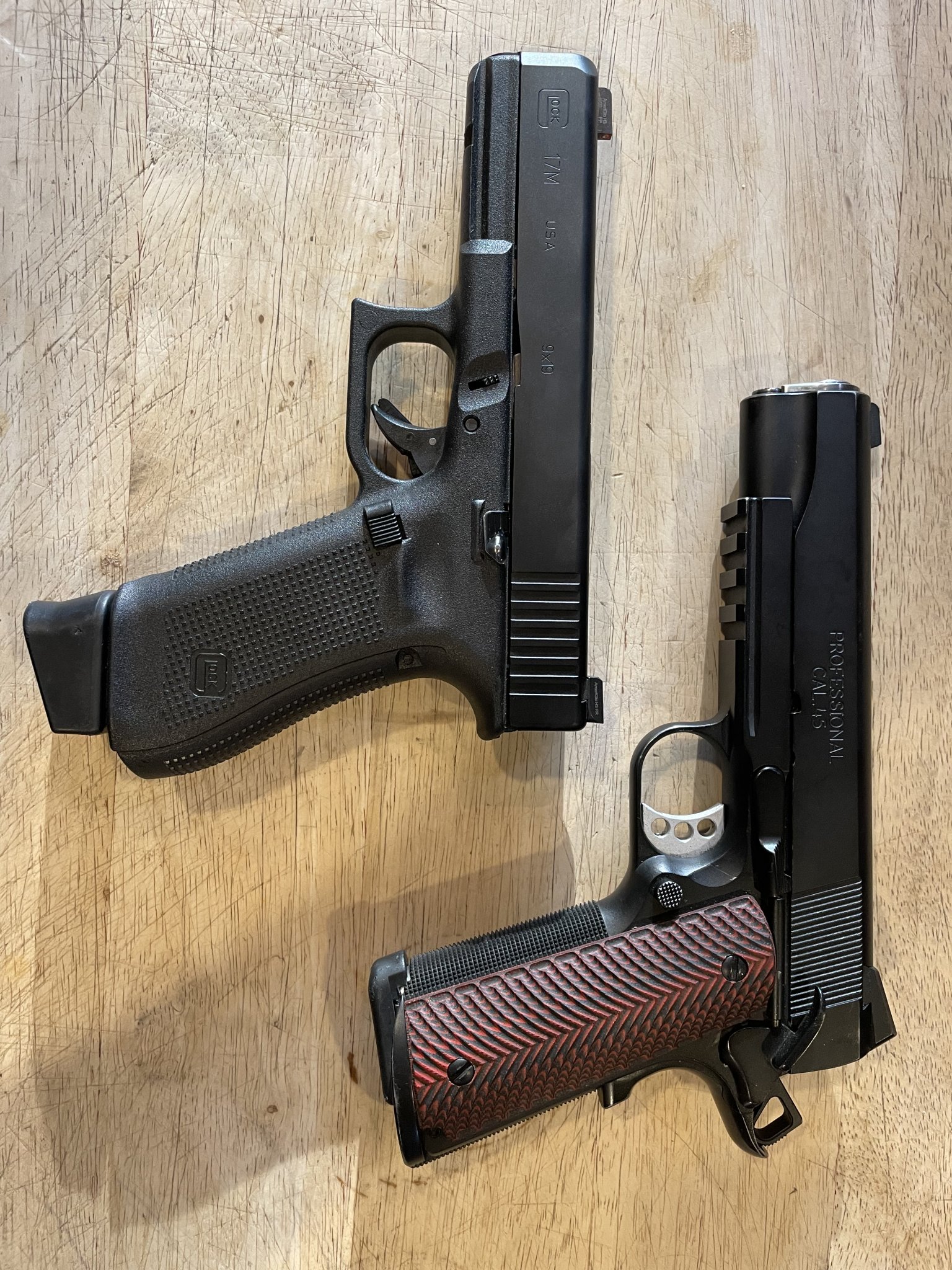

    Just this week I was talking with one of my HRT buddies about 1911’s and the growing pains they had in the early days of the Springfield. Apparently, barrels were rupturing under the copious diet of 230gr +P stuff we feed them. So, they were almost all modified to ramped barrels.

    View attachment 7948591
    No double spring?

    Really like the dual spring on the M45A1 but might only be the “feeling” in difference of shooting more Commander than full size.


    Skunk

    Amongst the Enemy
    Full Member
    Minuteman
    Nov 24, 2003
    1,165
    2,626
    On gun…
    No double spring?

    Really like the dual spring on the M45A1 but might only be the “feeling” in difference of shooting more Commander than full size.
    Nope, but they’re fairly stout. I think 22lbs springs. Probably not as evolved as a double spring….

    • Like
    Reactions: pmclaine

    Skunk

    Amongst the Enemy
    Full Member
    Minuteman
    Nov 24, 2003
    1,165
    2,626
    On gun…
    One of those is that they did a bunch of different things, from whole guns to just top end replacements to just barrels and... the barrel thing seems interesting with Skunk's comment.
    That’s right. As far as I’ve been told, the Bureau Models and Professionals were originally purchase as slick bottom guns (no light rail). When the barrel issue surfaced, the lower receivers and barrels were replaced and “LR” was added to the serial. These guns have a mismatch of slide cut and end of frame. As pictured….

    The later purchase guns, the Operators, were purchased as railed guns and the slides had ball-end milling to match the lower receivers.


    MikeMiller

    Full Member
    Full Member
    Minuteman
    Apr 4, 2017
    1,113
    118
    That’s pretty awesome.

    Just this week I was talking with one of my HRT buddies about 1911’s and the growing pains they had in the early days of the Springfield. Apparently, barrels were rupturing under the copious diet of 230gr +P stuff we feed them. So, they were almost all modified to ramped barrels.

    View attachment 7948591
    Wow that’s a bit of history. Any idea what year they went to ramped barrels?


    Skunk

    Amongst the Enemy
    Full Member
    Minuteman
    Nov 24, 2003
    1,165
    2,626
    On gun…
    Wow that’s a bit of history. Any idea what year they went to ramped barrels?
    No idea. I didn’t start carrying these things until about 2012 and they had already been modified by then. The SWAT program went back to a Glock 17 in about 2015-2016.


    Phil McGrath

    Private
    Full Member
    Minuteman
    Sep 26, 2007
    116
    91
    That’s pretty awesome.

    Just this week I was talking with one of my HRT buddies about 1911’s and the growing pains they had in the early days of the Springfield. Apparently, barrels were rupturing under the copious diet of 230gr +P stuff we feed them. So, they were almost all modified to ramped barrels.

    View attachment 7948591

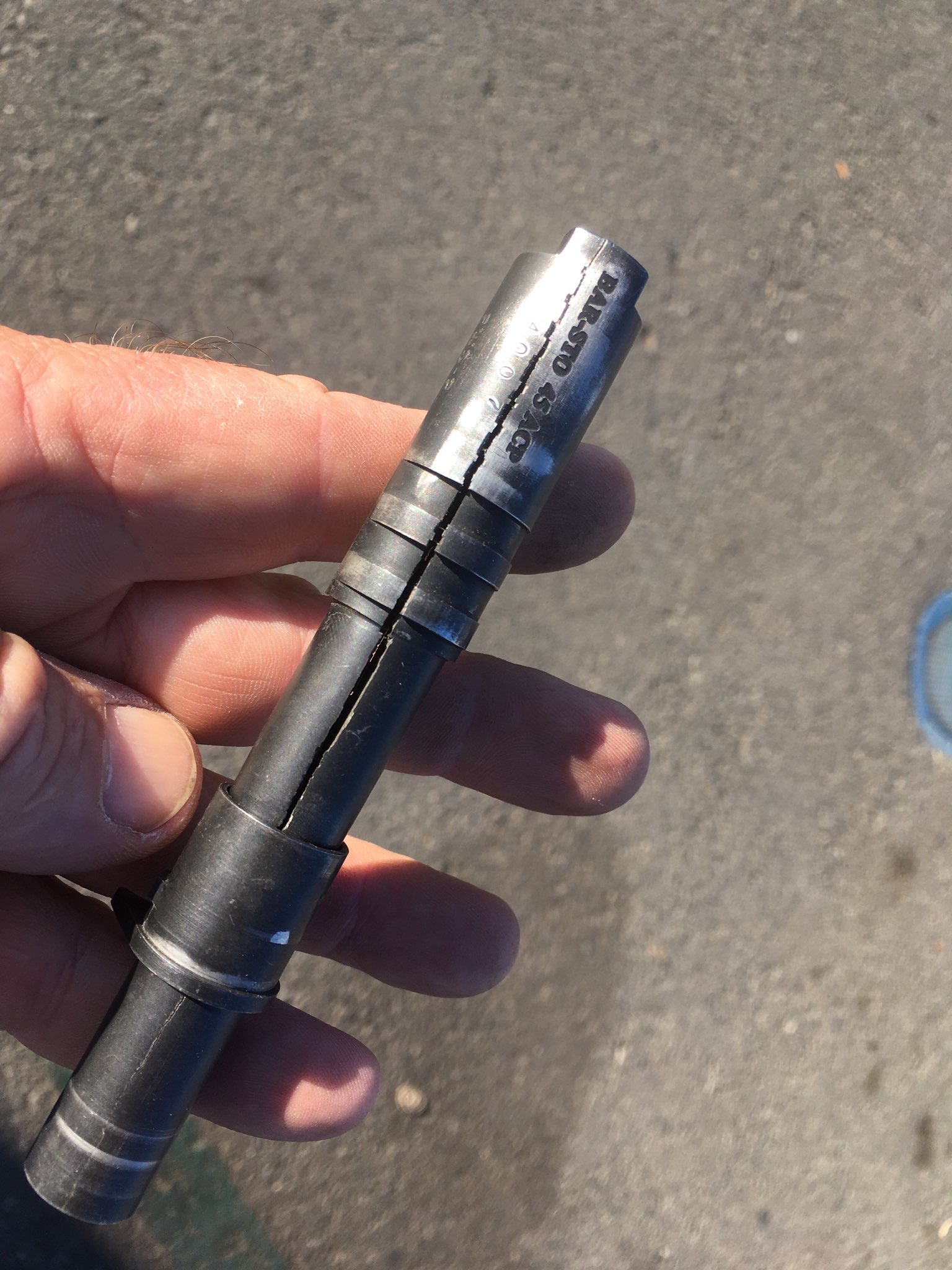

    Hmmm, I heard same about ruptured Barstow barrels in MEUSOC 1911’s? Here is a picture of one barrel from a 2112 that I know notice the weapons ser number 4007 on top of the chamber and the faint PWS on the side.

    When the barrels fail/failed they just replace it with another one and drive on.


    Attachments

    • 33174AD4-50D2-440C-A4E4-72DF84DC7056.jpeg
      509.3 KB · Views: 98
    Last edited:
    • Wow
    Reactions: shoobe01

    Skunk

    Amongst the Enemy
    Full Member
    Minuteman
    Nov 24, 2003
    1,165
    2,626
    On gun…
    Pretty obvious that the old PPC course of fire is no longer used. The 4x4's cut right off.
    There have been at least three pistol qual courses (PQC’s) over the course of the last ten years, and there is a SWAT PQC. I think the SWAT PQC calls for the barricade, but I’ve never shot it that way and haven’t seen barricades used outside the Academy at all. I’ve also not fired on a range outside Quantico where the turning targets still work…

    Qual courses are just administrative requirements anyhow. Training is a different animal altogether.

    I’m not familiar with the PPC course you reference..

    • Like
    Reactions: RTESanteFe

    Xcount

    Sergeant
    Full Member
    Minuteman
    Jul 31, 2009
    372
    119
    It was a FBI developed cof in the 40's and turned into an NRA competition course. Obviously not relevant anymore.


    • Like
    Reactions: Skunk

    Ol CATM NCO

    Private
    Full Member
    Minuteman
    There have been at least three pistol qual courses (PQC’s) over the course of the last ten years, and there is a SWAT PQC. I think the SWAT PQC calls for the barricade, but I’ve never shot it that way and haven’t seen barricades used outside the Academy at all. I’ve also not fired on a range outside Quantico where the turning targets still work…

    Qual courses are just administrative requirements anyhow. Training is a different animal altogether.

    I’m not familiar with the PPC course you reference..
    The PPC Course was a 150 rd. Course fired at 7,15, 25 and 50 yards. Shot double action with the revolver with barricades at 25 and 50 yards. Also required shooting right and left handed on the barricades. As I remember there were 5 classes; Marksman, Sharpshooter, Expert, Master and Hi Master. The ILL. Police Assn shot for many years a 48 shot course which was shot by many police departments. I competed 11 years with the IPA winning the Top Gun in ‘95. Great fun!


    9/11

    We shoot
    Minuteman
    Feb 23, 2020
    60
    16
    Pennsylvania mountains
    Now, why use a .30-06 Long Action when they're chambered for .308 WIN? Same reason as the US Army M24 sniper rifles being built on long actions, so they could be changed to a longer, more powerful cartridge (i.e., the 300 WinMag) one day?

    Edit: Stupid me, I thought Winchester had a short version of their receiver too but nope. That explains it. xD
    A coyote model is a short action mostly all 70's are long action


    sandwarrior

    Sergeant
    Full Member
    Minuteman
    Apr 21, 2007
    6,511
    2,030
    in yooperland
    Now, why use a .30-06 Long Action when they're chambered for .308 WIN? Same reason as the US Army M24 sniper rifles being built on long actions, so they could be changed to a longer, more powerful cartridge (i.e., the 300 WinMag) one day?

    Edit: Stupid me, I thought Winchester had a short version of their receiver too but nope. That explains it. xD

    A coyote model is a short action mostly all 70's are long action
    Short actions started being produced in 1985 in push feed only. The Coyote (2000~ish) model can be one of two short actions. That action handles WSM cartridges which is roomy, but the same length as the one that handles all .308 based cases (or close proximity). The other 'shorter' action is the one that handles all WSSM cartridges.

    • Like
    Reactions: cornhusker86

    cornhusker86

    C Co. 3/63 2nd. Bgd.
    Full Member
    Minuteman
    Supporter+
  • Oct 20, 2012
    1,696
    4,190
    Red Michigan
    Short actions started being produced in 1985 in push feed only. The Coyote (2000~ish) model can be one of two short actions. That action handles WSM cartridges which is roomy, but the same length as the one that handles all .308 based cases (or close proximity). The other 'shorter' action is the one that handles all WSSM cartridges.
    You are correct sir. I have a couple WSM's ( 7 & 300) and still have a 25 WSSM.


    j-huskey

    Jafo / Instigator !
    Full Member
    Minuteman
    Jul 27, 2001
    3,727
    8,540
    AL
    None

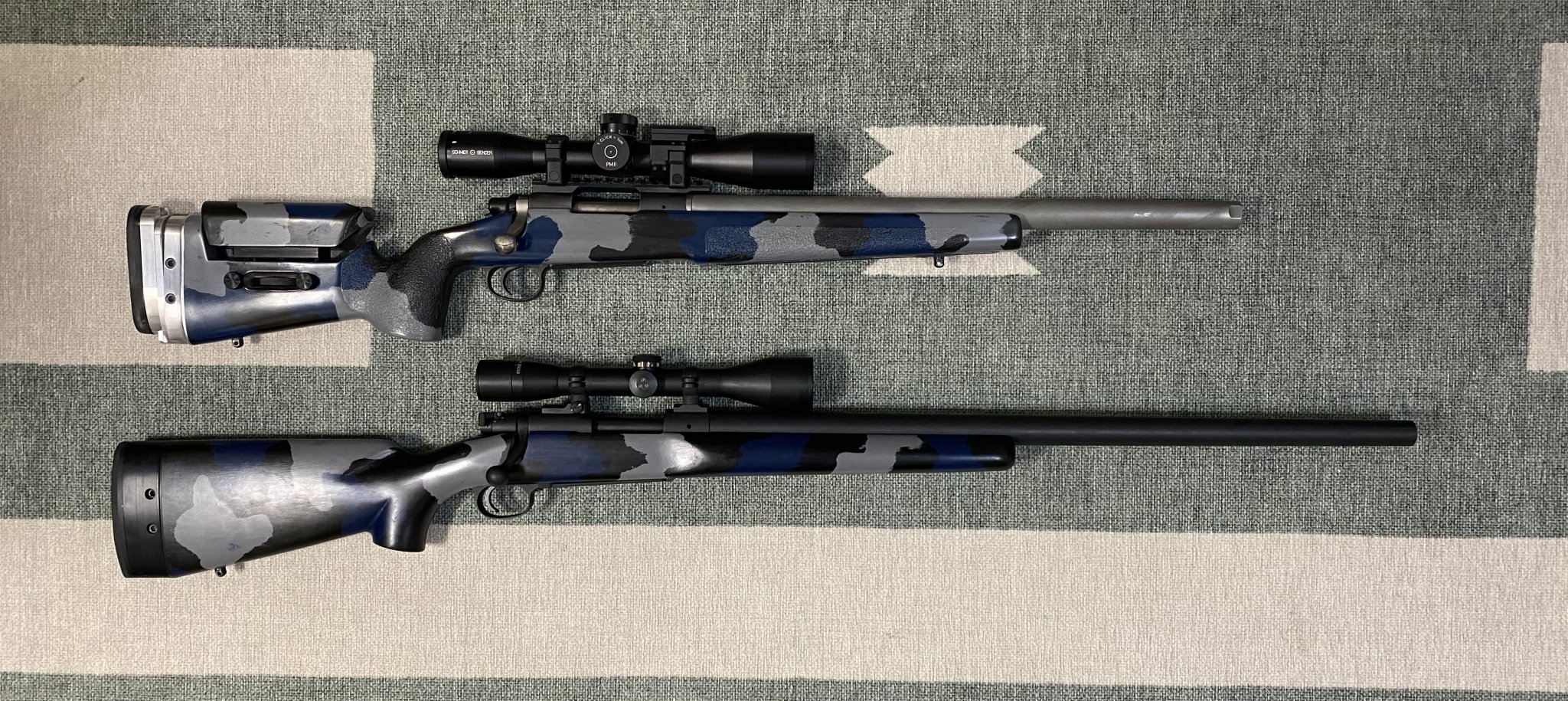

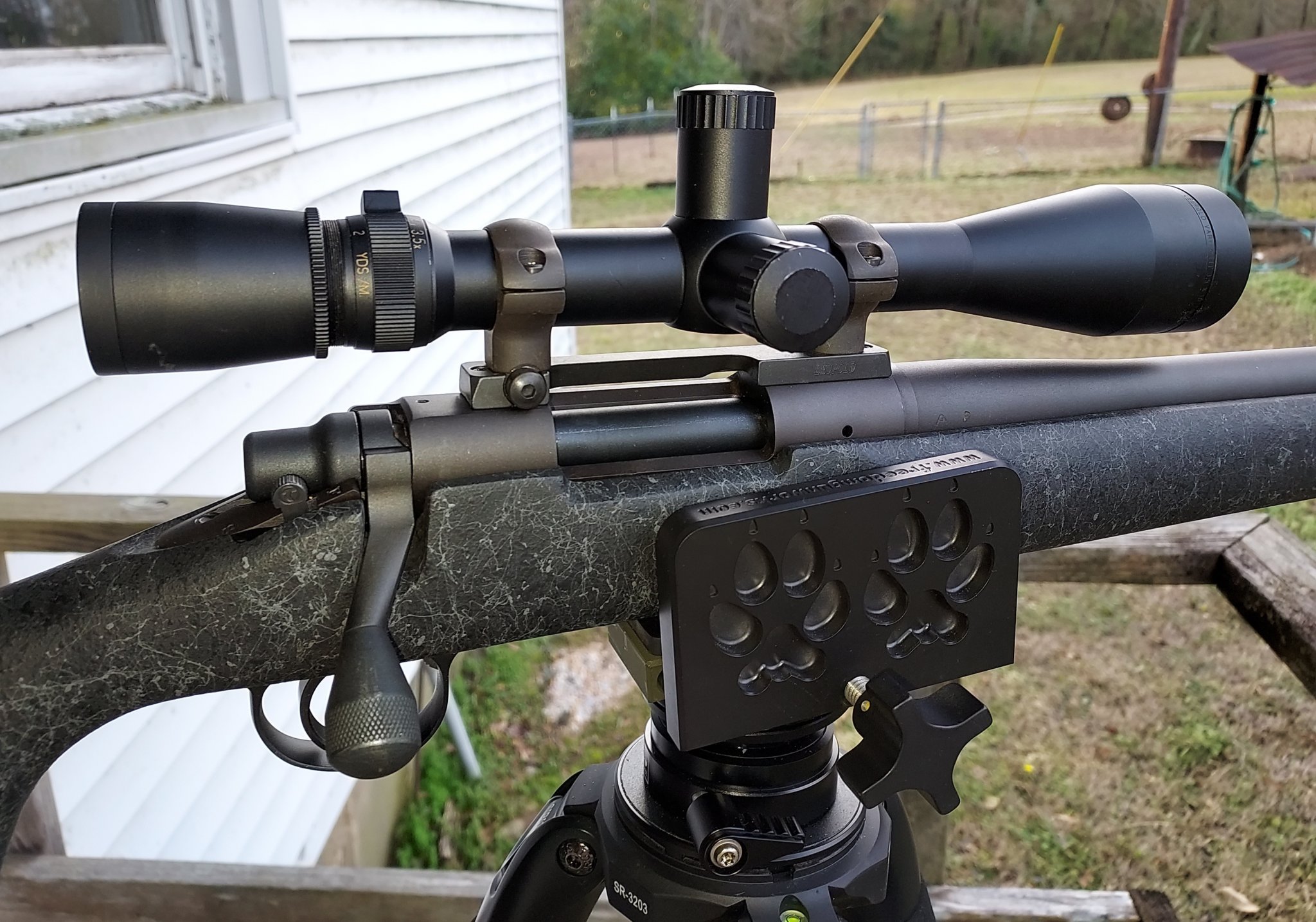

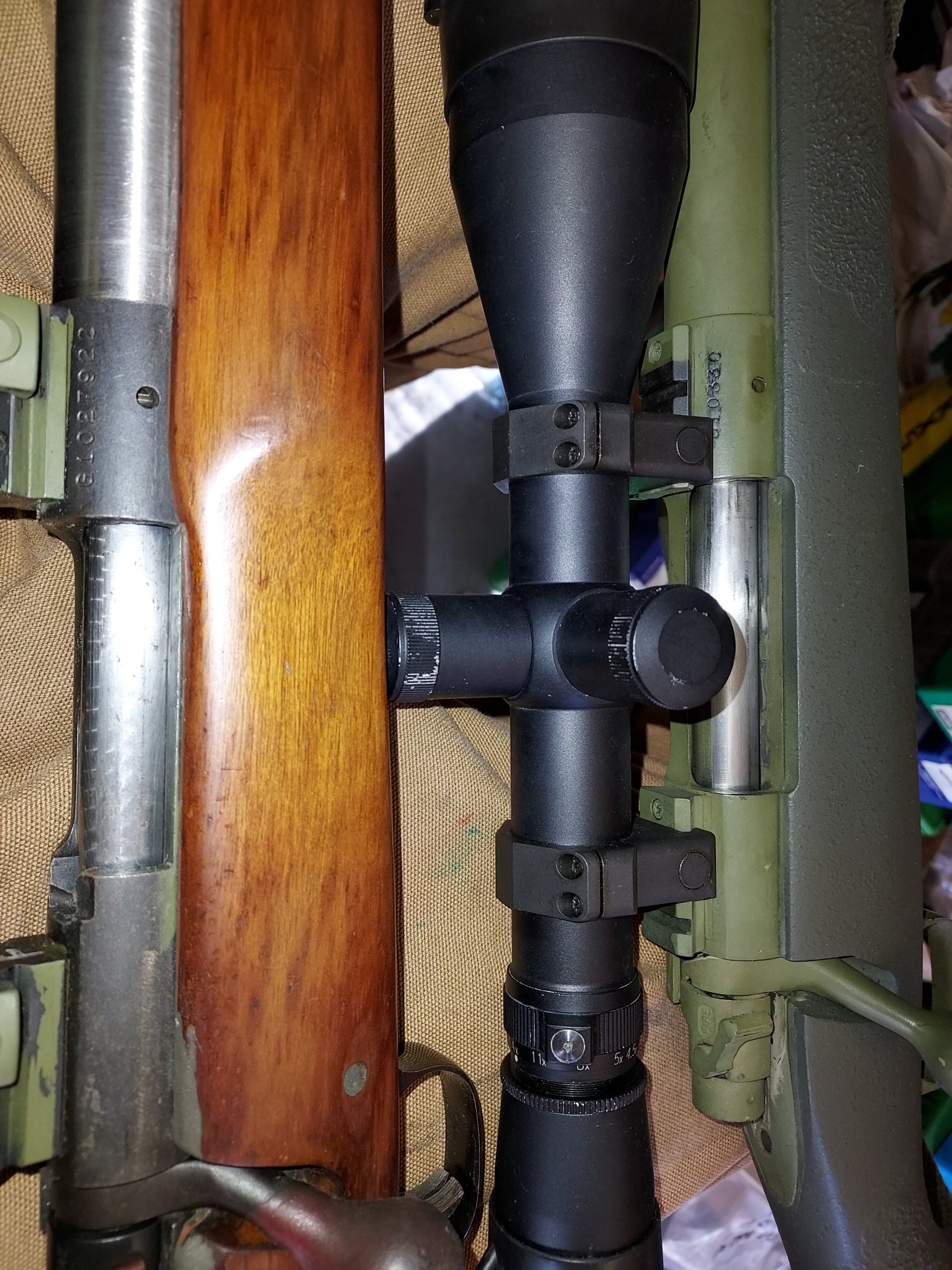

    After Skunk built the clone for his retired bud, February 2022, I started gathering parts to do the same for my retired bud (and, maybe me also...)

    First thing I got was a short 70 action. Then a barrel, then a short 700 action, then a 3.5-10 mildot, then a second 3.5-10 mildot. Got the matte mount and a set of matte rings. Didn't have much luck with stocks, yet, wasn't ready to order from McMillan. Yet...

    Today, is much closer, still working out the stock thing. It's not perfect. But, closer and shootable...



    Bud would probably take it, as is, but, he can't have it yet...


    Forgetful Coyote

    Sergeant
    Full Member
    Minuteman
    Dec 13, 2011
    4,149
    3,491
    Georgia
    After Skunk built the clone for his retired bud, February 2022, I started gathering parts to do the same for my retired bud (and, maybe me also...)

    First thing I got was a short 70 action. Then a barrel, then a short 700 action, then a 3.5-10 mildot, then a second 3.5-10 mildot. Got the matte mount and a set of matte rings. Didn't have much luck with stocks, yet, wasn't ready to order from McMillan. Yet...

    Today, is much closer, still working out the stock thing. It's not perfect. But, closer and shootable...

    View attachment 8035089

    Bud would probably take it, as is, but, he can't have it yet...
    Barrel details?


    Coejro

    Private
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Apr 6, 2017
    256
    101
    Spokane, Washington

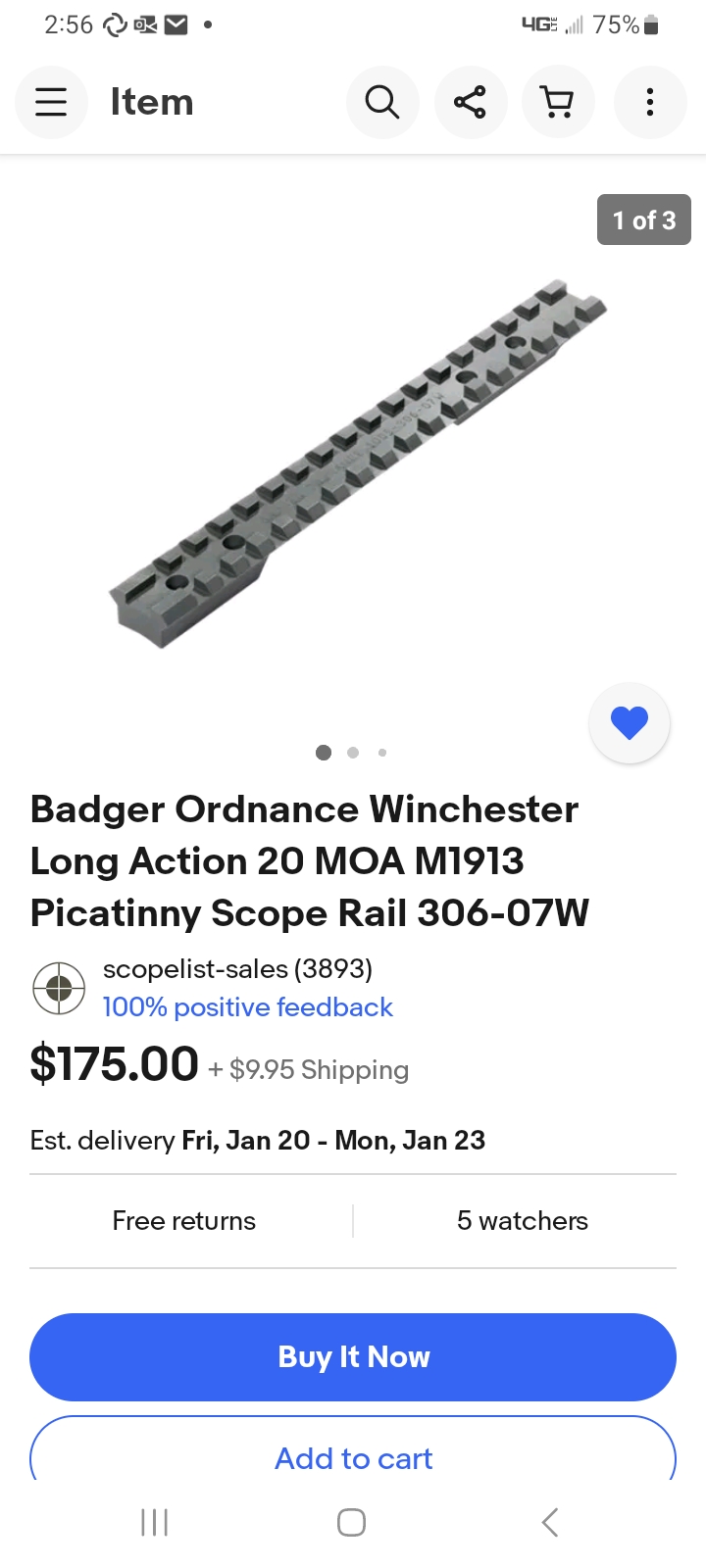

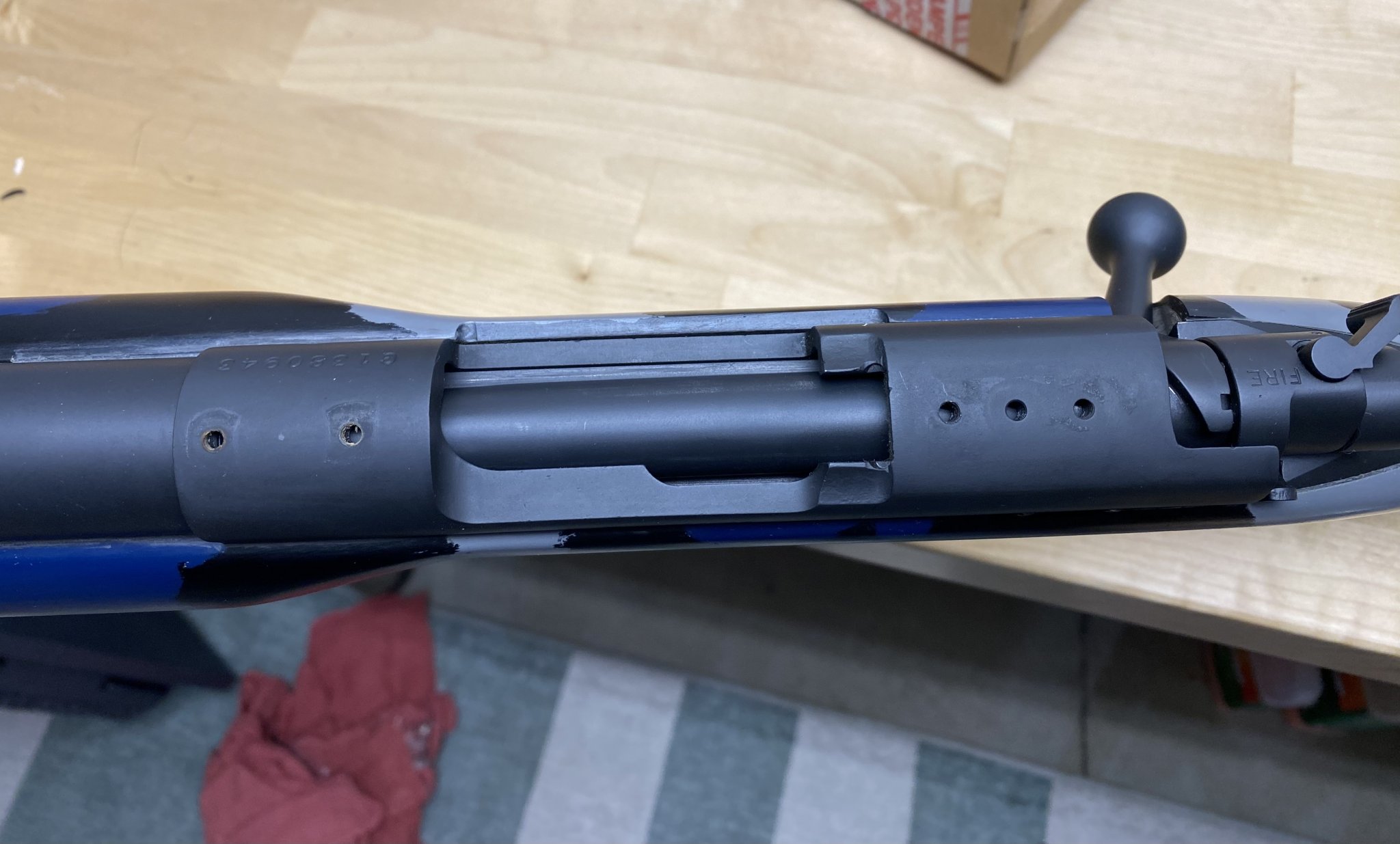

    @j-huskey any idea what would be the best mid 80’s era scope base for this? I bought a badger SA without measuring, and it’s definitely not a SA (even though it’s a 308). I have a Leupold 3.5-10x40 that is begging to go on the rifle.


    Attachments

    • 48375E20-8EE6-4A01-A66C-639A356D0F5D.jpeg
      229.6 KB · Views: 46
    Last edited:

    j-huskey

    Jafo / Instigator !
    Full Member
    Minuteman
    Jul 27, 2001
    3,727
    8,540
    AL
    None
    That's a clip slotted long action model 70 in 308.

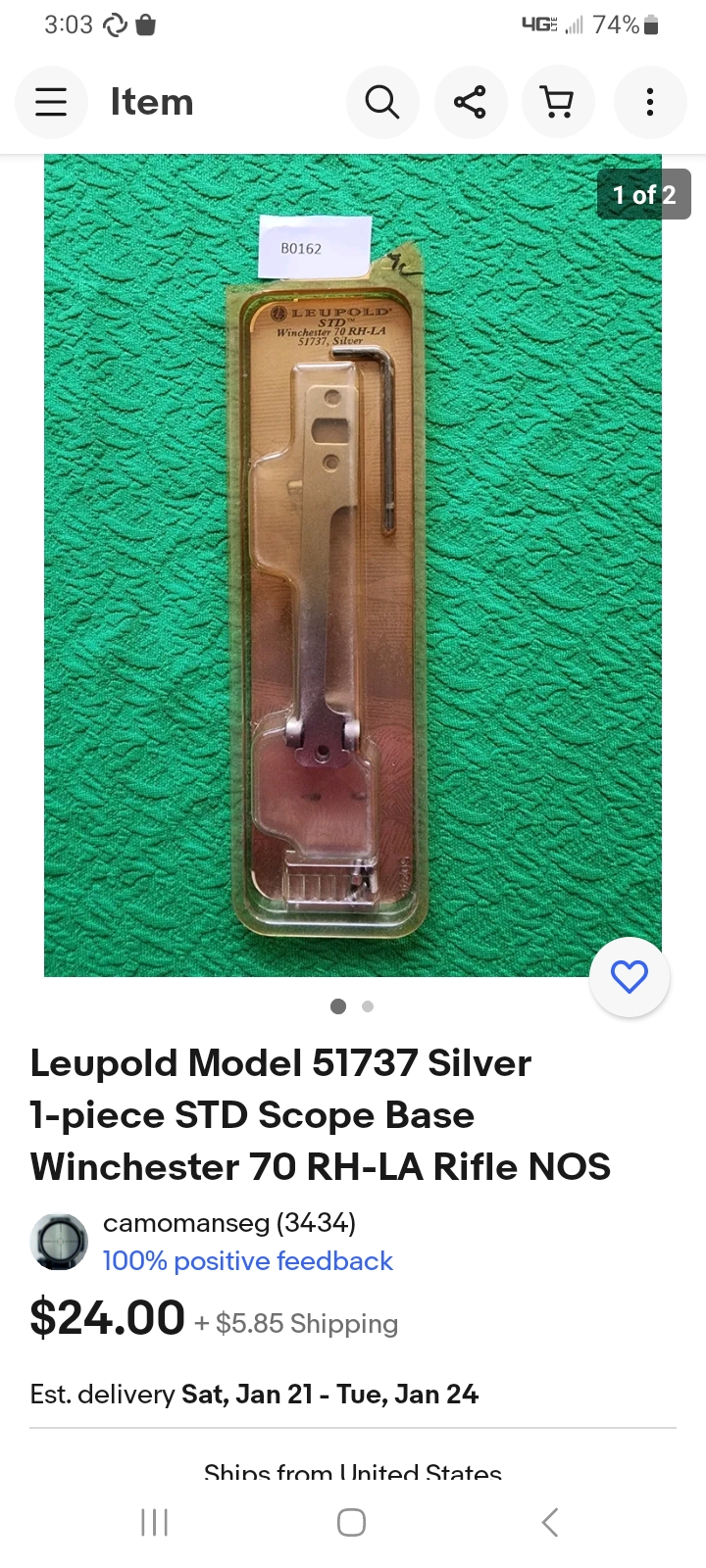

    The Redfield or leupold long action 70 base should fit as long as it's a 4 hole base. The right base would only take one screw on the rear bc the clip slot ate the 4th hole location. That receiver has extra holes drilled in it.
    Will post the correct hole spacing in the morning.


    j-huskey

    Jafo / Instigator !
    Full Member
    Minuteman
    Jul 27, 2001
    3,727
    8,540
    AL
    None
    65-66-67 palma rifle has the clip slots like that. It's specific to that action, is a standard long action but has the additional clip slot. Not describing it just right, will have to dig mine out to get photos to show yall the differences.
    Things intruded this a.m.. still on the agenda.


    j-huskey

    Jafo / Instigator !
    Full Member
    Minuteman
    Jul 27, 2001
    3,727
    8,540
    AL
    None

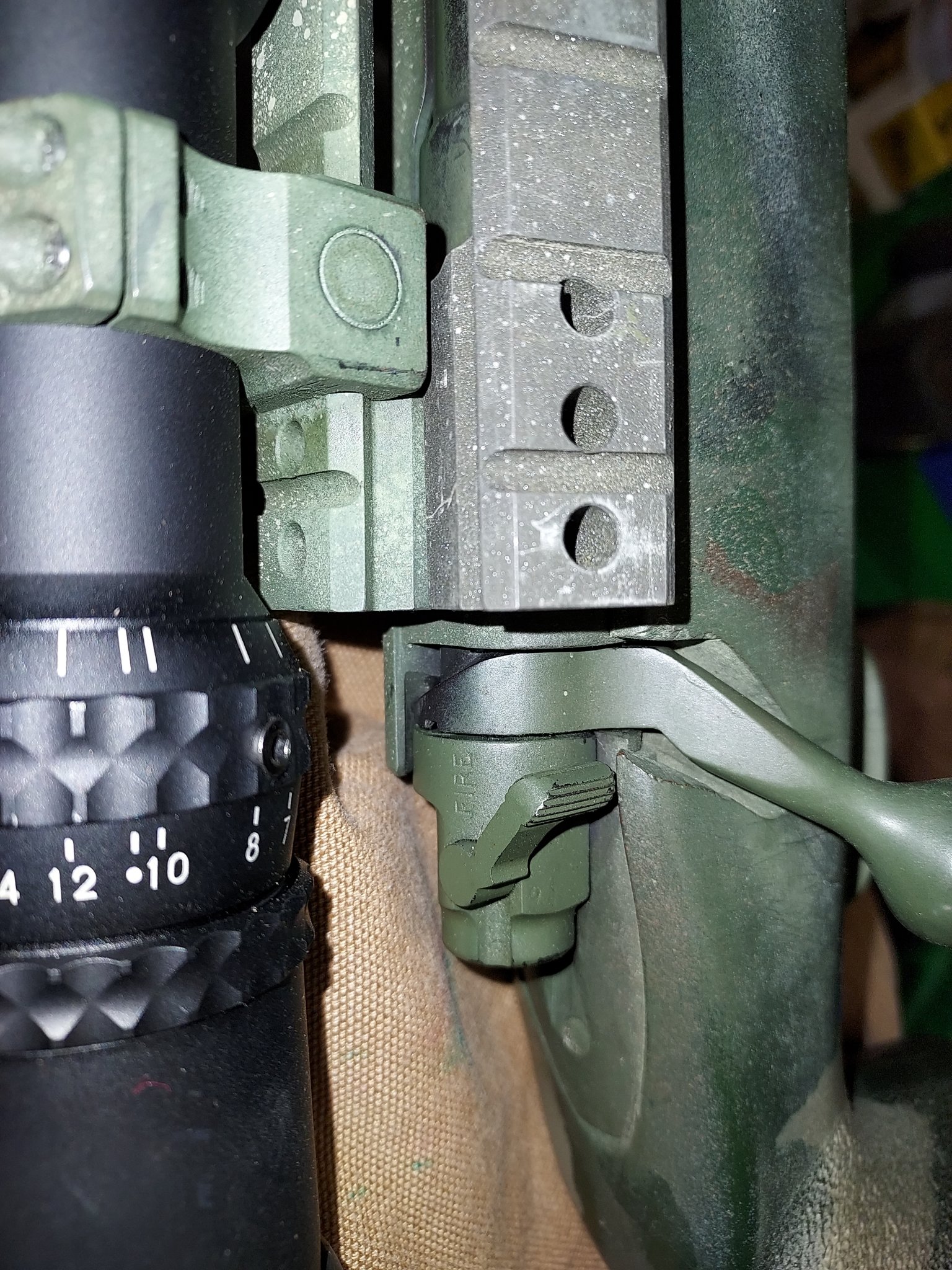

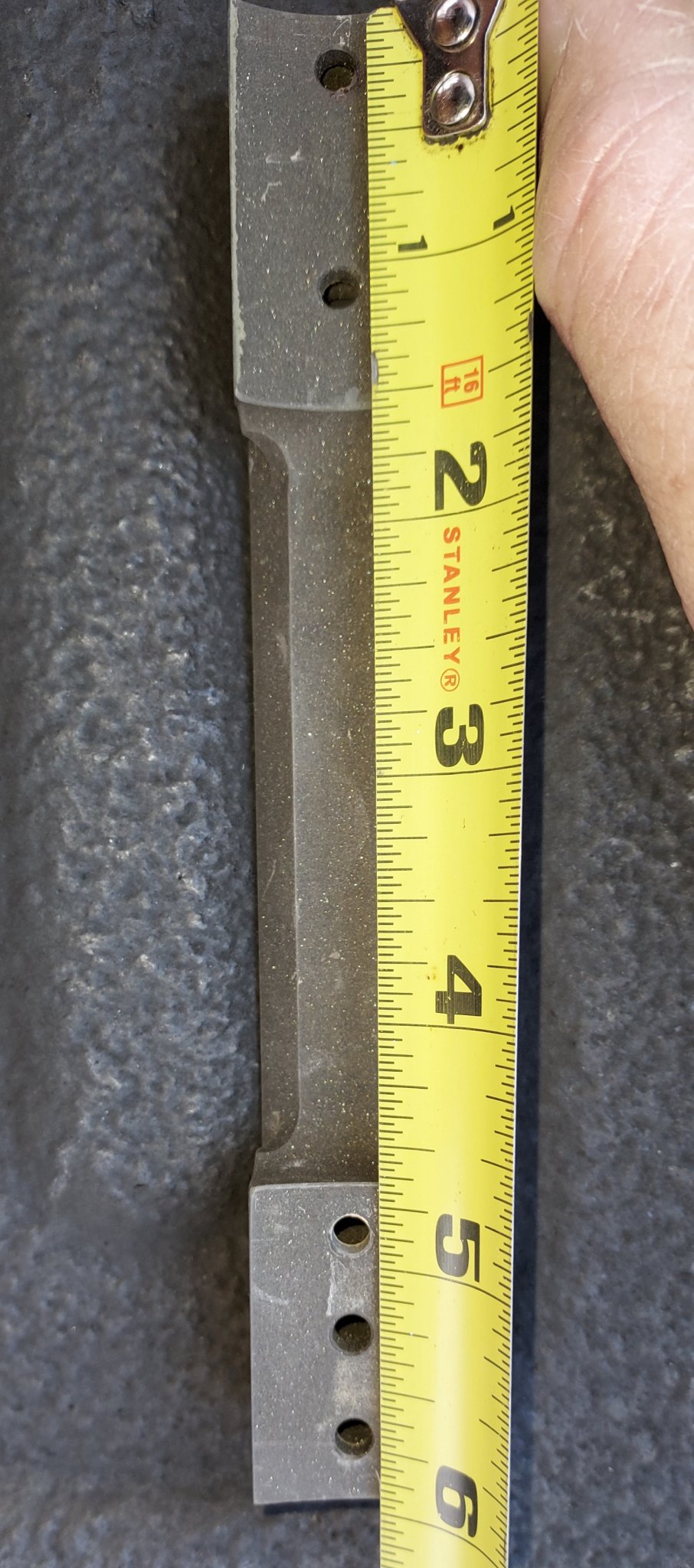

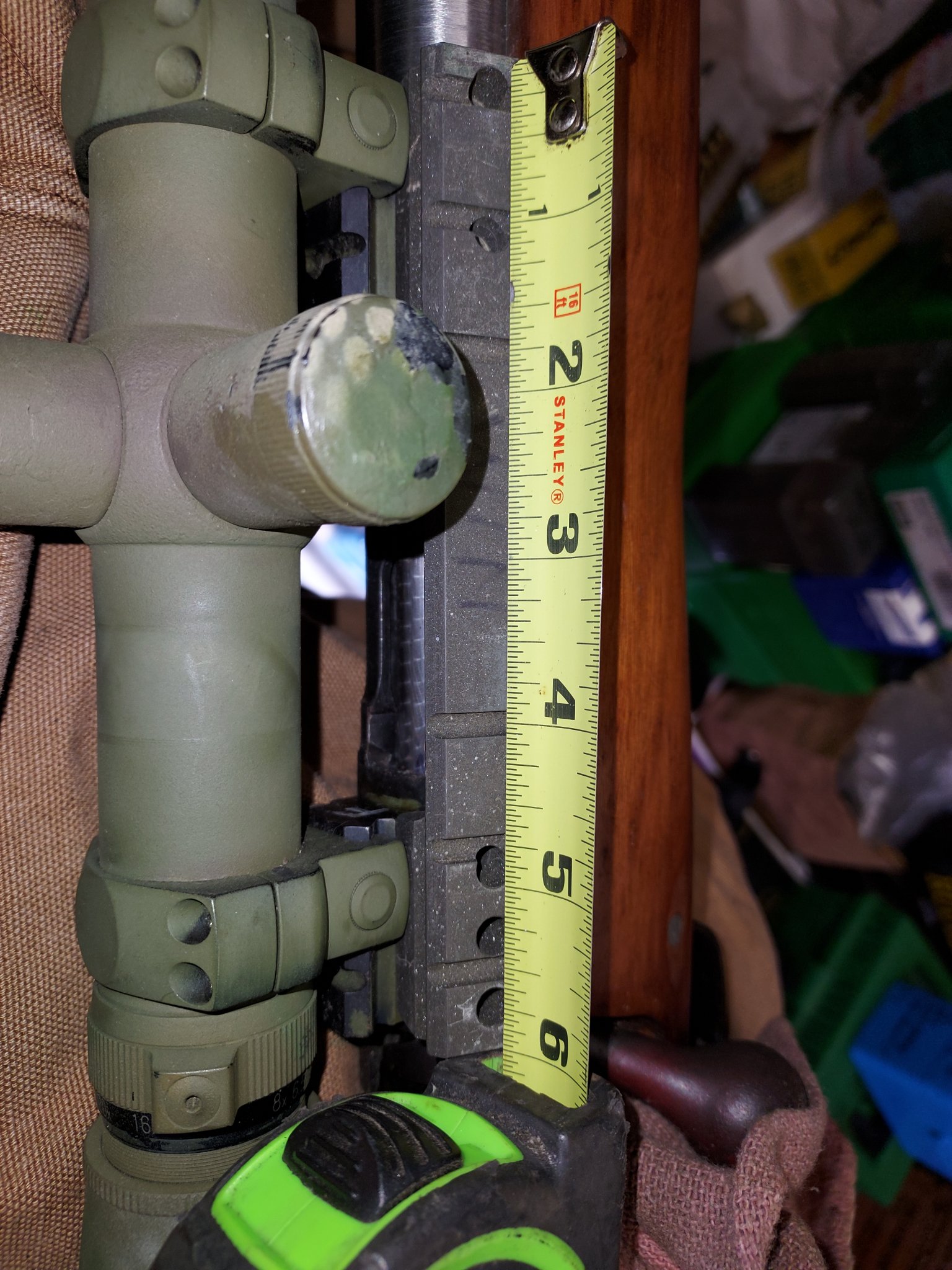

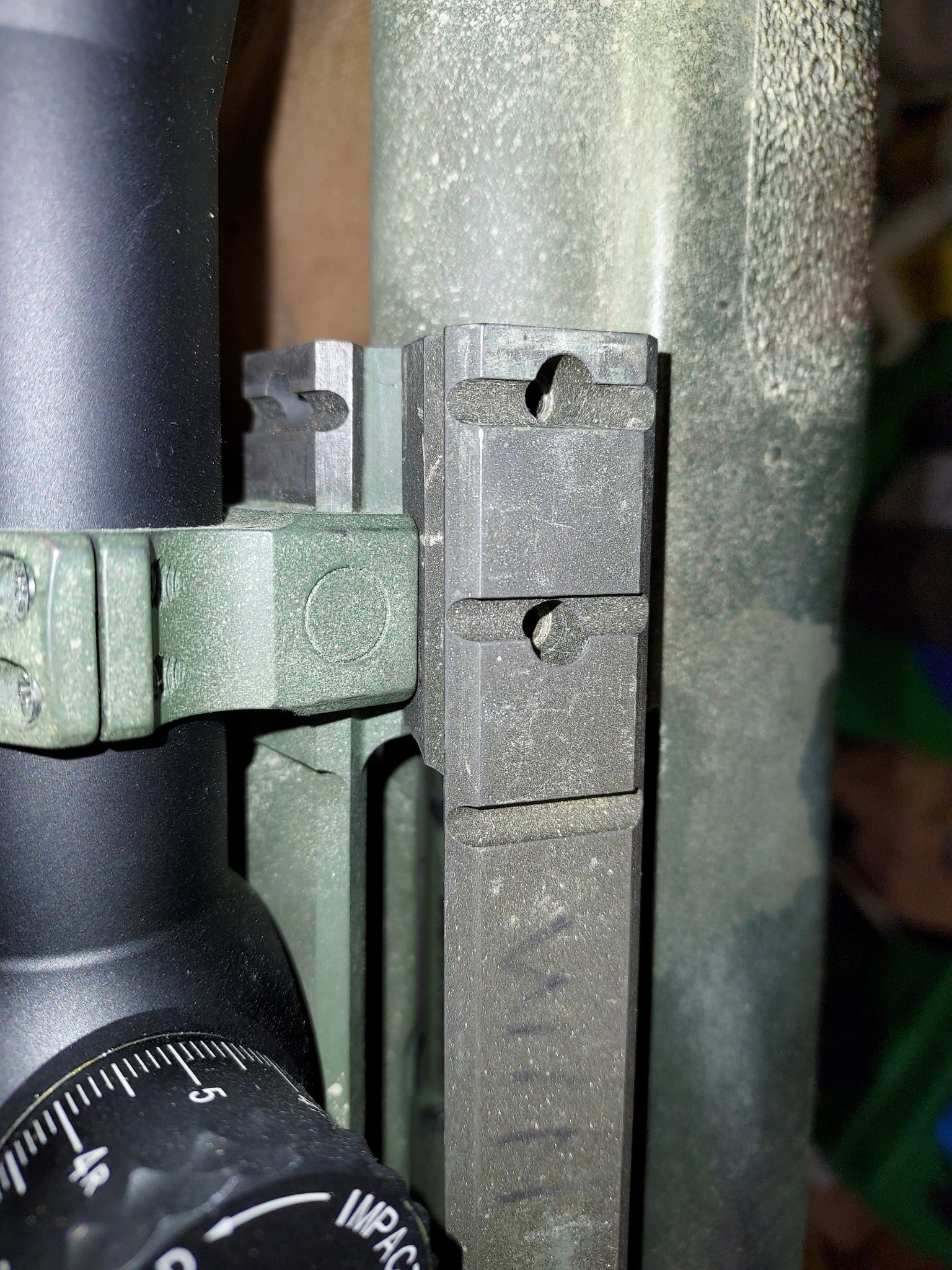

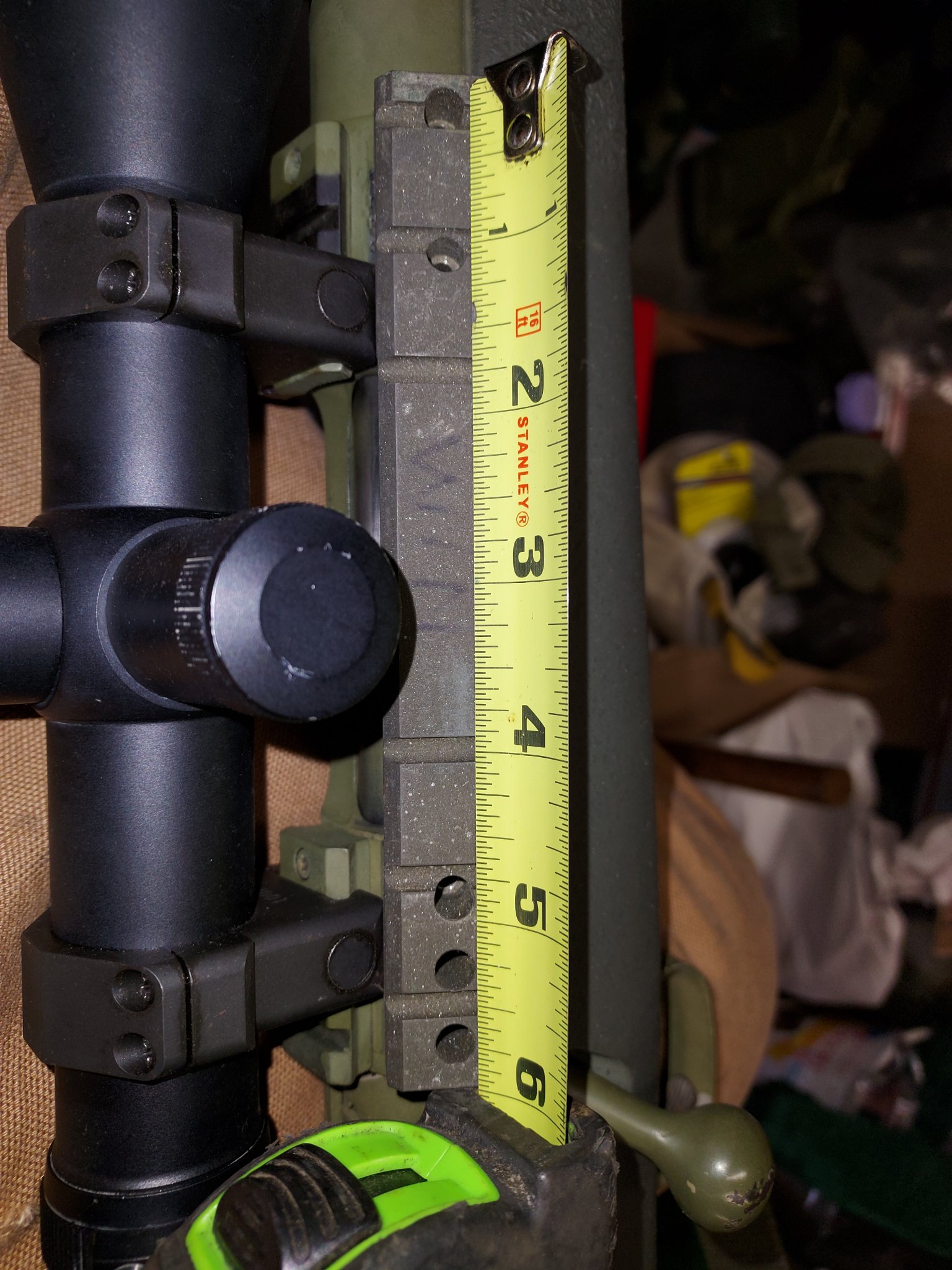

    A base pic with ruler


    This is a custom base, made off a nightforce/badger base dimension for a 1965 and later long action model 70. It has the additional hole in the middle rear to fit clip slotted 3006 target models.
    It also fits the pre-64 model 70's.


    j-huskey

    Jafo / Instigator !
    Full Member
    Minuteman
    Jul 27, 2001
    3,727
    8,540
    AL
    None

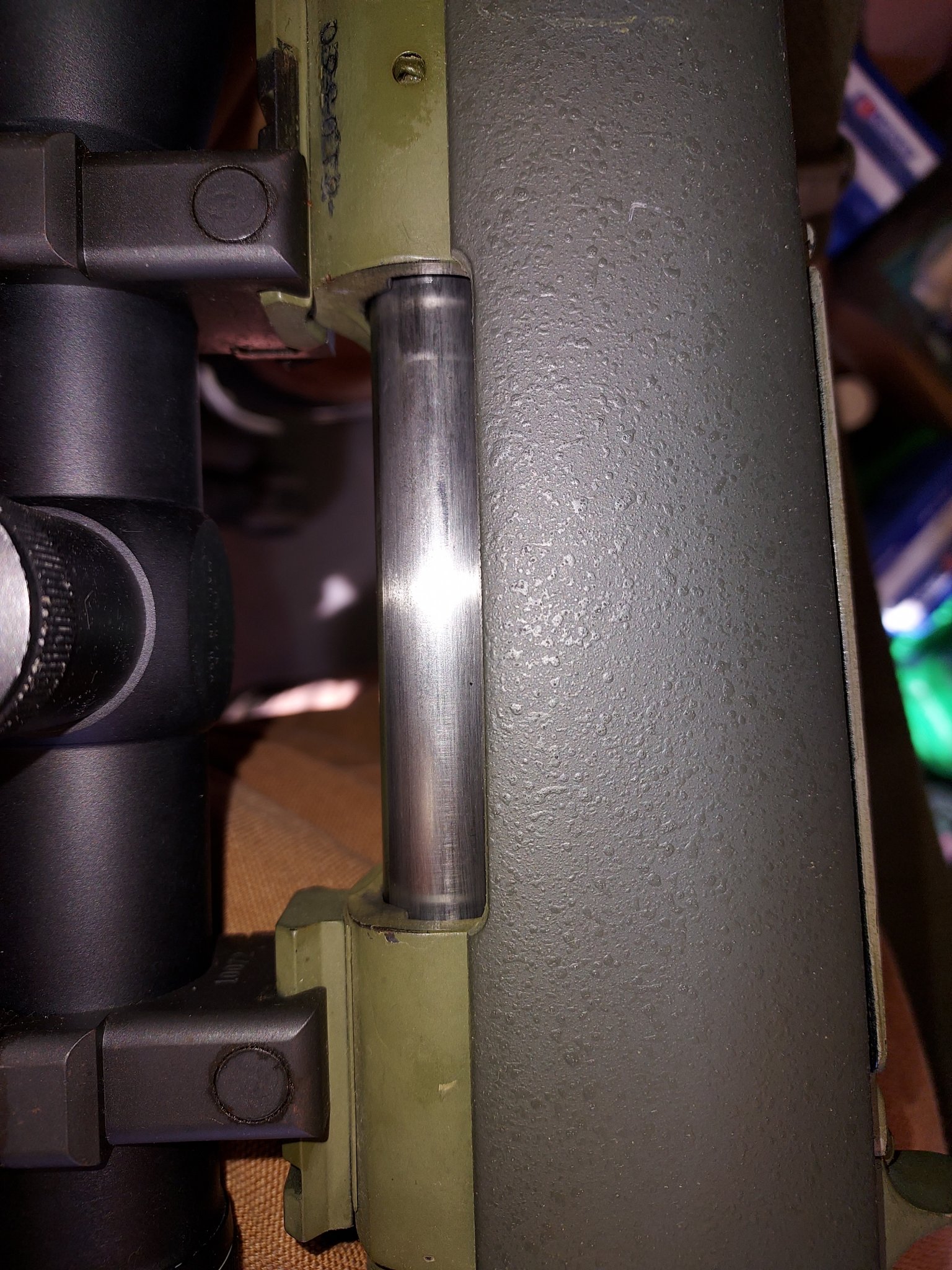

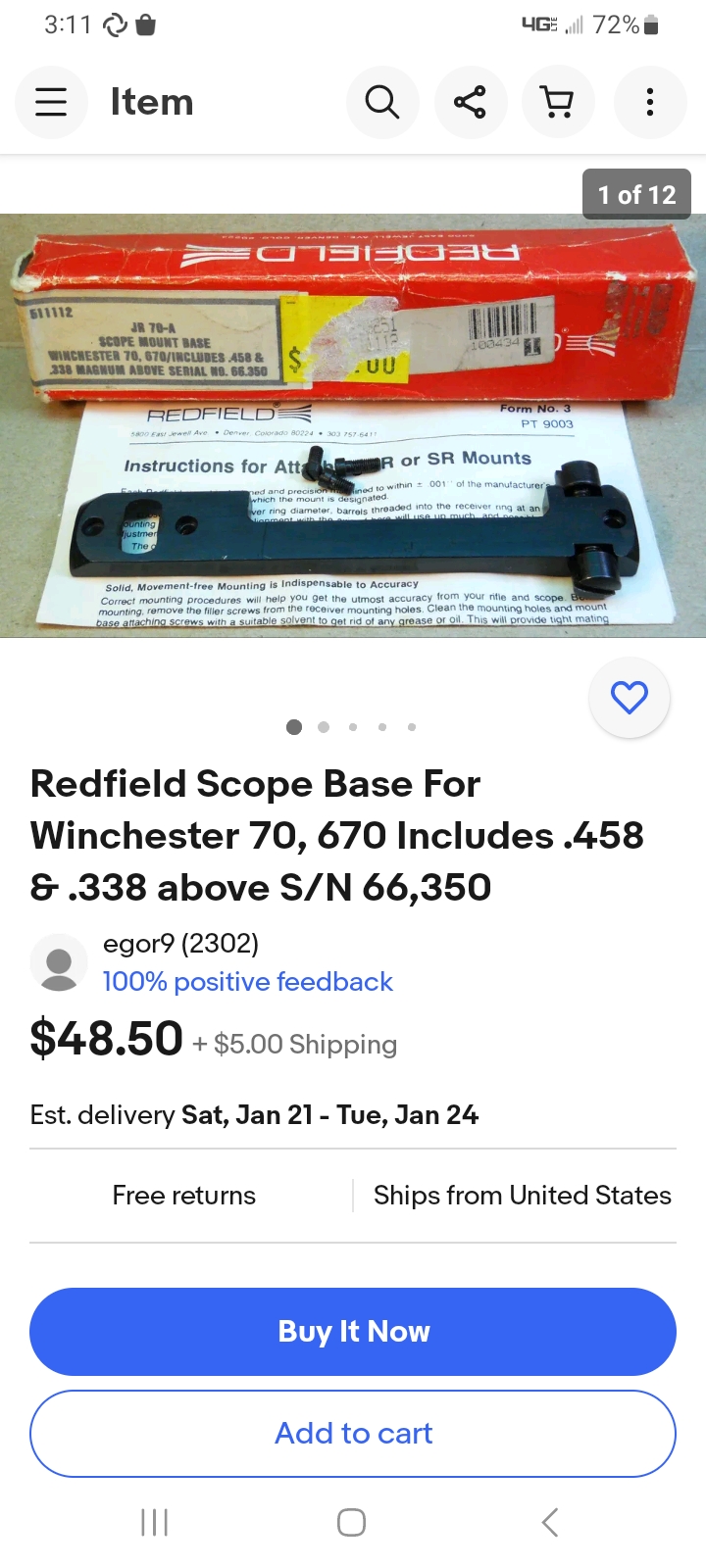

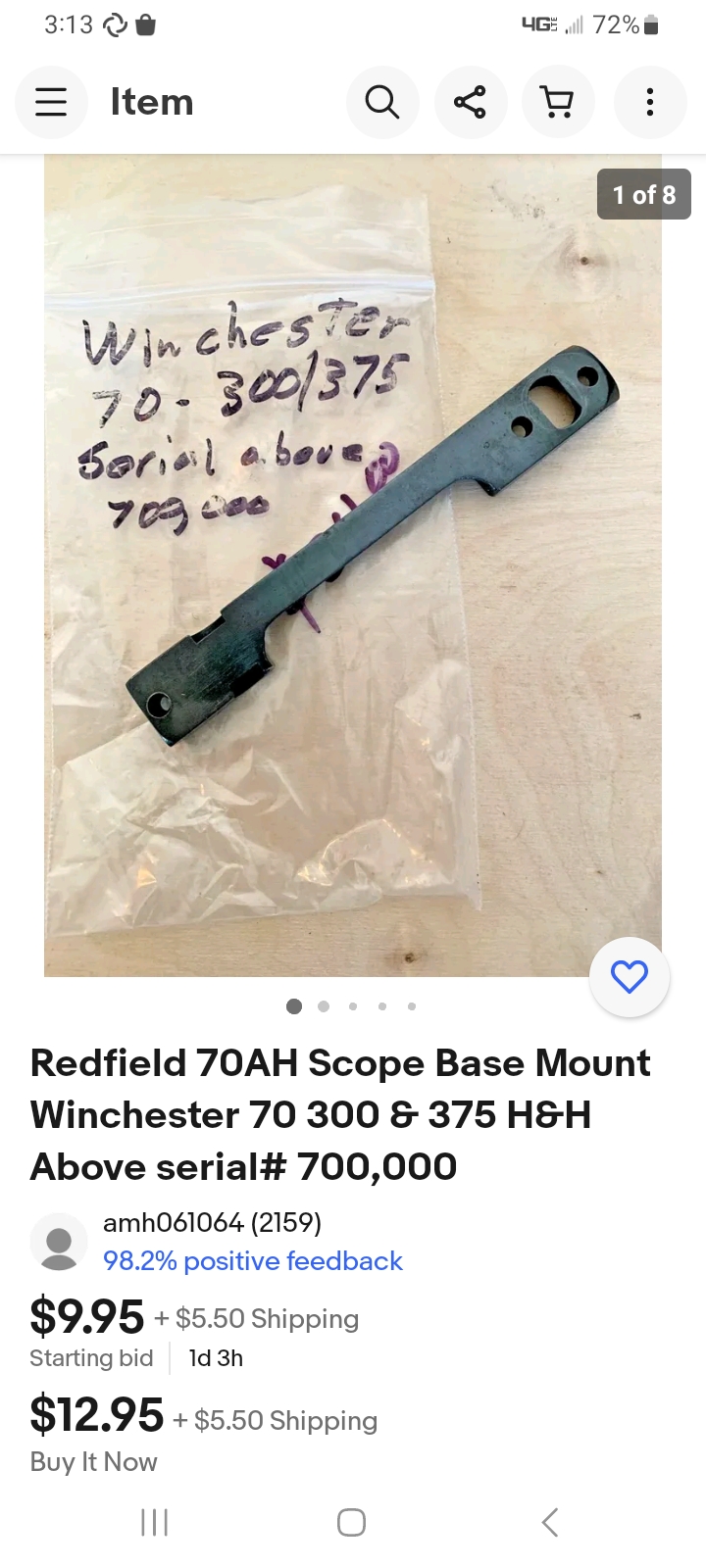

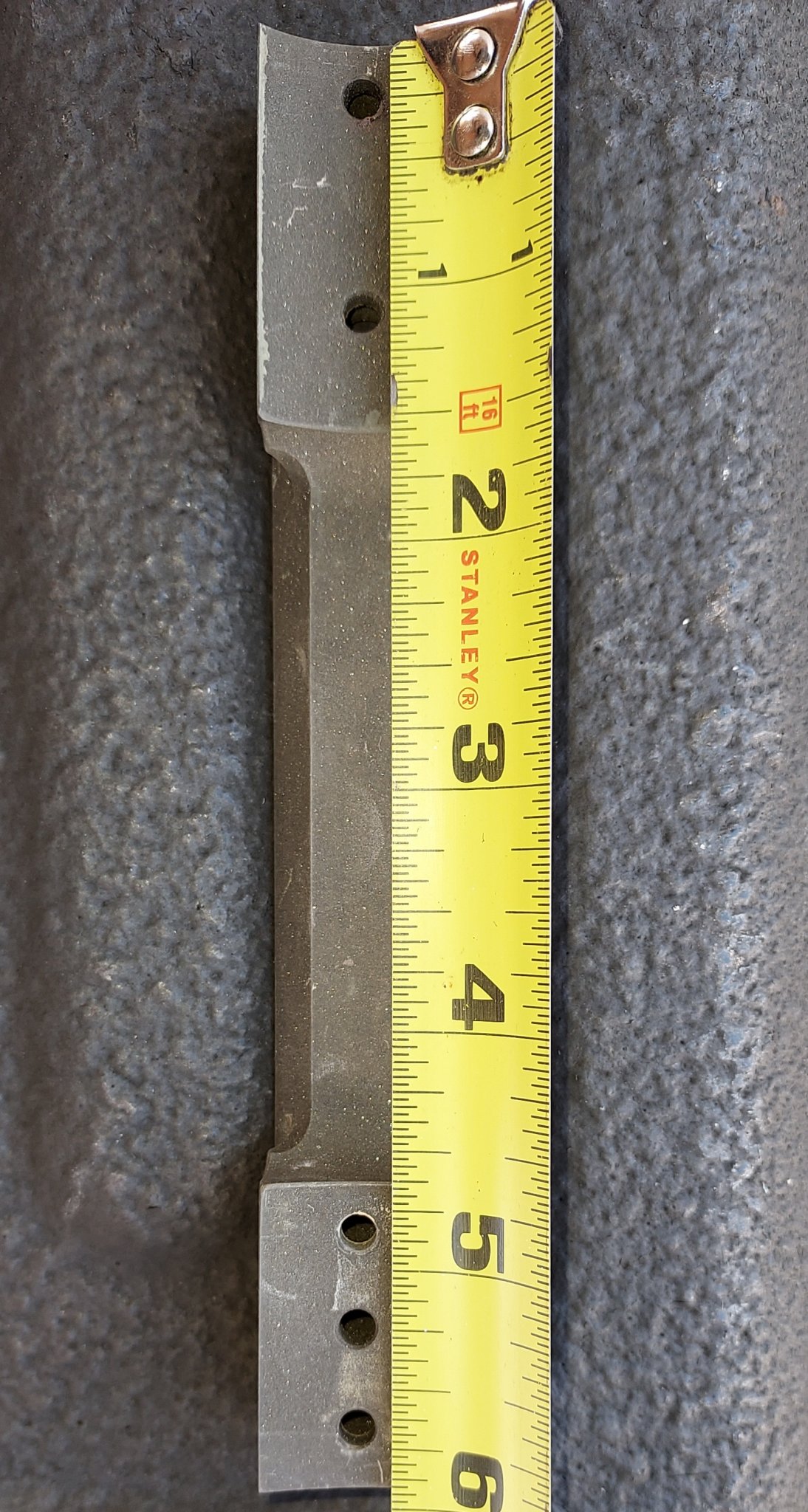

    Redfield



    This below base is longer AND is probably a base that the extra hole in your receiver was drilled for, my best guess.


    • Like
    Reactions: Coejro

    Coejro

    Private
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Apr 6, 2017
    256
    101
    Spokane, Washington

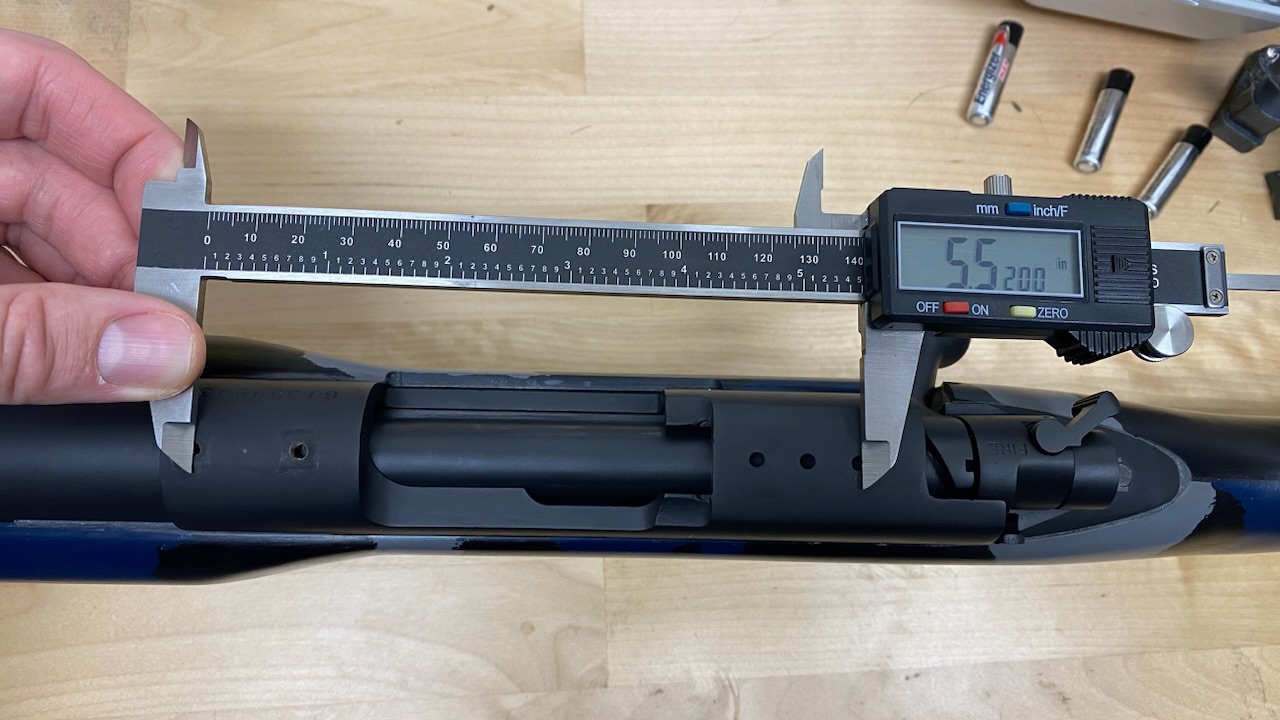

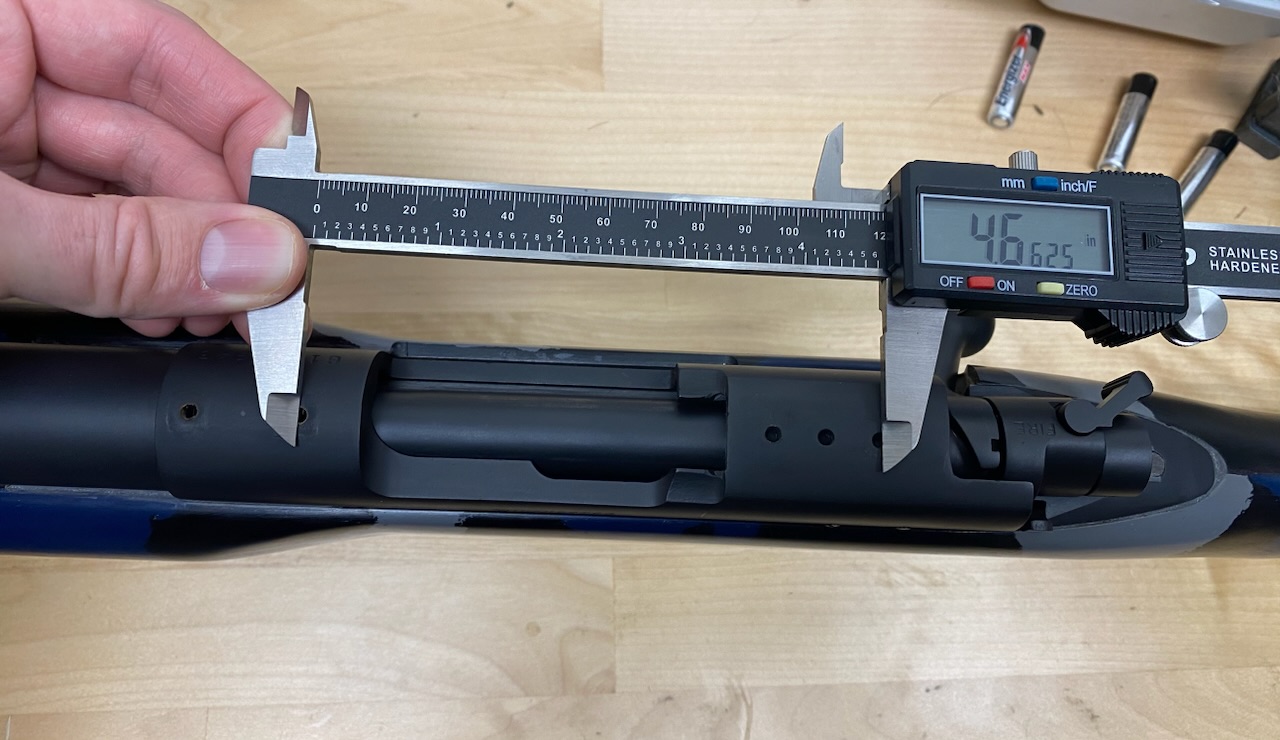

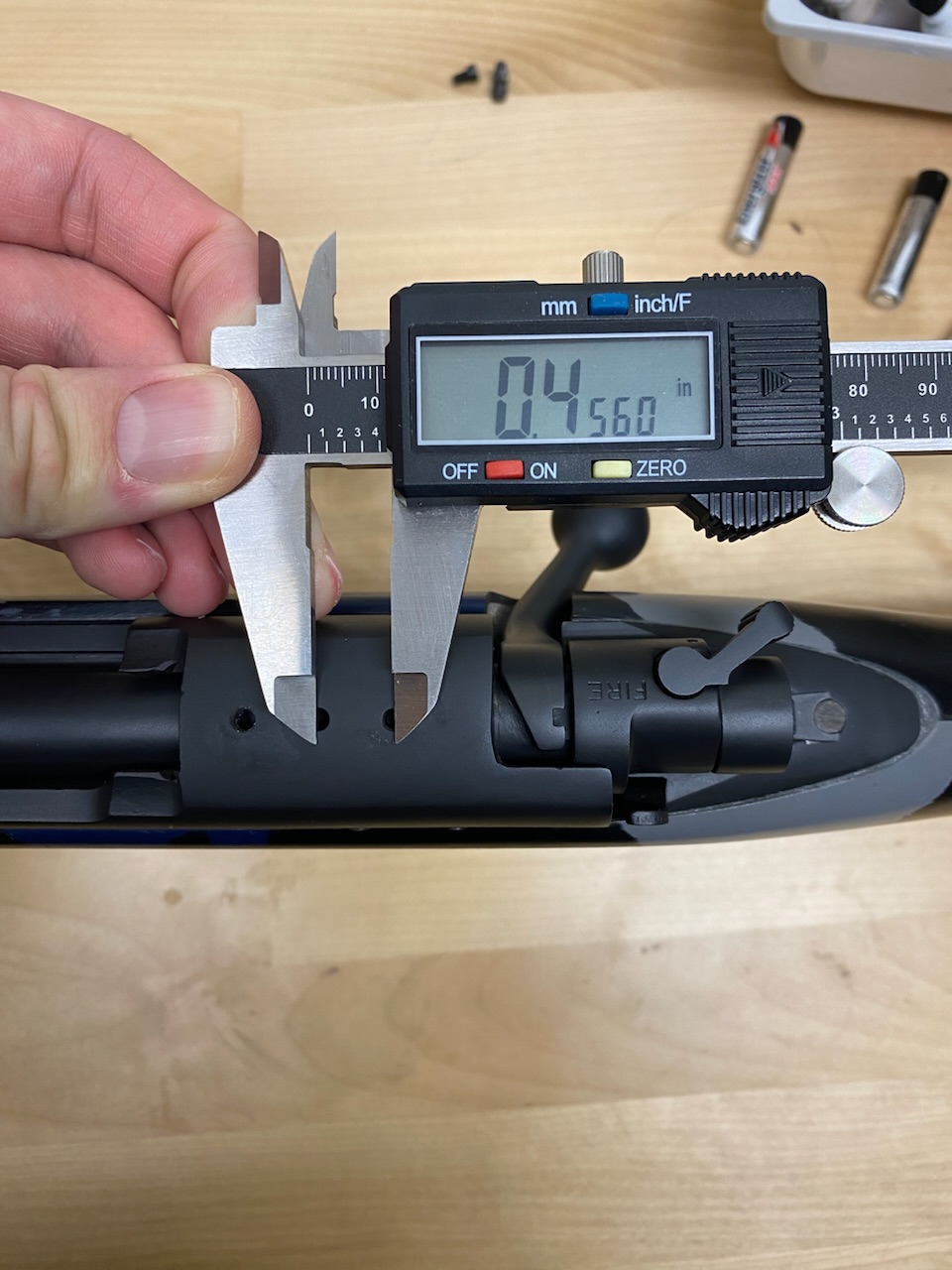

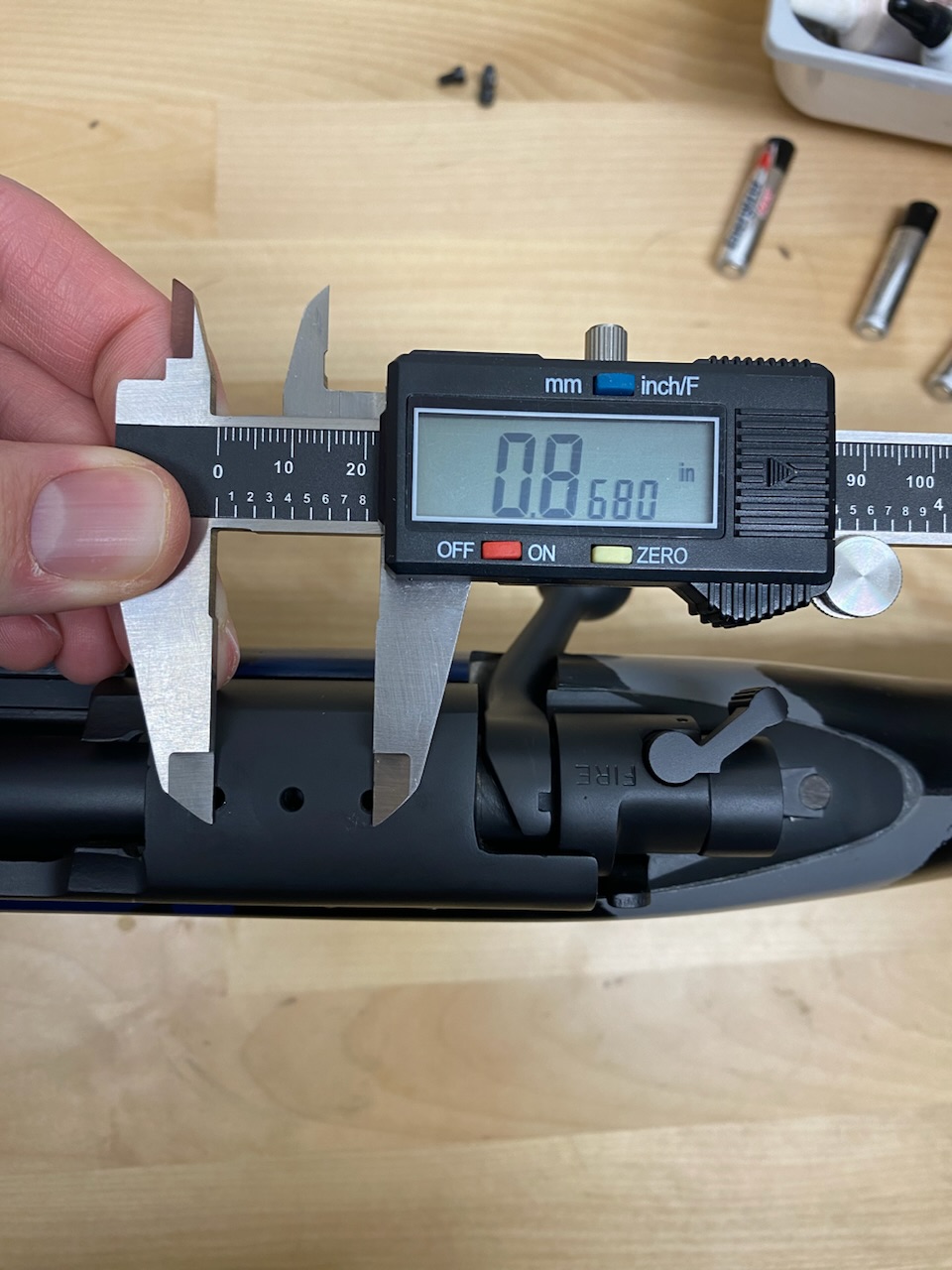

    All right, that pretty much spells it out perfectly. Thanks for the pictures as well. I sat down and measured approximate spacing between the holes last night (all referenced the the rear-most hole:

    This continues to be one of my all time favorite threads!





    stealthgoat

    Captain
    Full Member
    Minuteman
    Jun 30, 2004
    153
    13
    Nolensville/Brentwood TN
    Very cool thread!

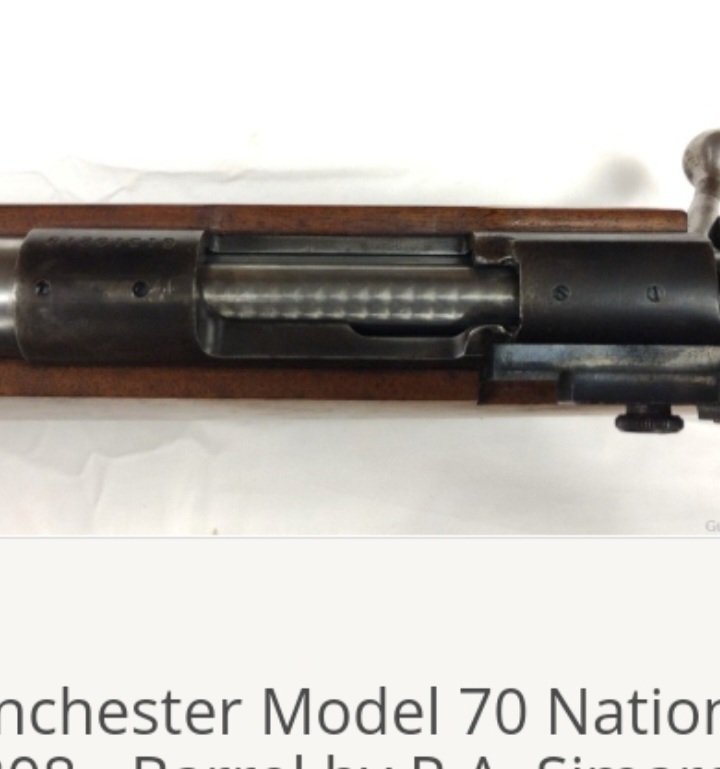

    I have a couple clip-slotted Winchesters (National Match XTC style, no FBI history), and scope mounting was a little more work. 70 Pre-war with clip slot has a special order rail from Badger.

    Win 70 Short actions have used one piece rails, with just one attachment used in rear due to clip slot.
    Looking at the 3 hole pictures, I think I can have an additional hole drilled & tapped between the rear mounting hole & slip slot for more stability.....


    • Like
    Reactions: Calfed

    j-huskey

    Jafo / Instigator !
    Full Member
    Minuteman
    Jul 27, 2001
    3,727
    8,540
    AL
    None
    Very cool thread!

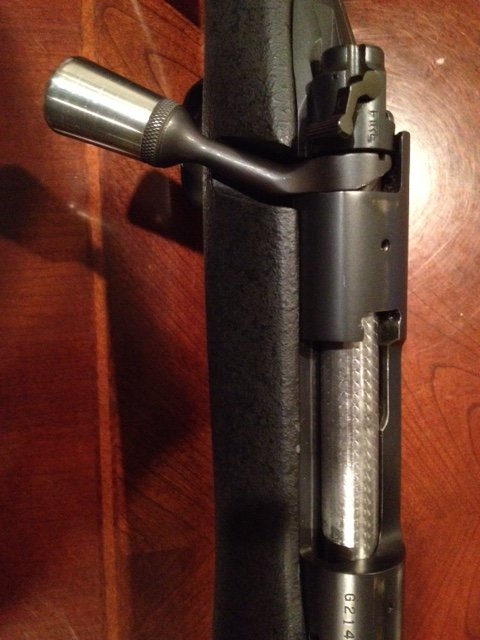

    I have a couple clip-slotted Winchesters (National Match XTC style, no FBI history), and scope mounting was a little more work. 70 Pre-war with clip slot has a special order rail from Badger.

    Win 70 Short actions have used one piece rails, with just one attachment used in rear due to clip slot.
    Looking at the 3 hole pictures, I think I can have an additional hole drilled & tapped between the rear mounting hole & slip slot for more stability.....

    View attachment 8052611

    You can add a hole, too easy, and customize a base to fit it by adding a hole to it too. Zero problems.

    • Like
    Reactions: stealthgoat

    Calfed

    Private
    Full Member
    Minuteman
    Dec 3, 2009
    414
    533
    Very cool thread!
    I have a couple clip-slotted Winchesters (National Match XTC style, no FBI history), and scope mounting was a little more work. 70 Pre-war with clip slot has a special order rail from Badger.

    Win 70 Short actions have used one piece rails, with just one attachment used in rear due to clip slot.
    Looking at the 3 hole pictures, I think I can have an additional hole drilled & tapped between the rear mounting hole & slip slot for more stability.....

    View attachment 8052611

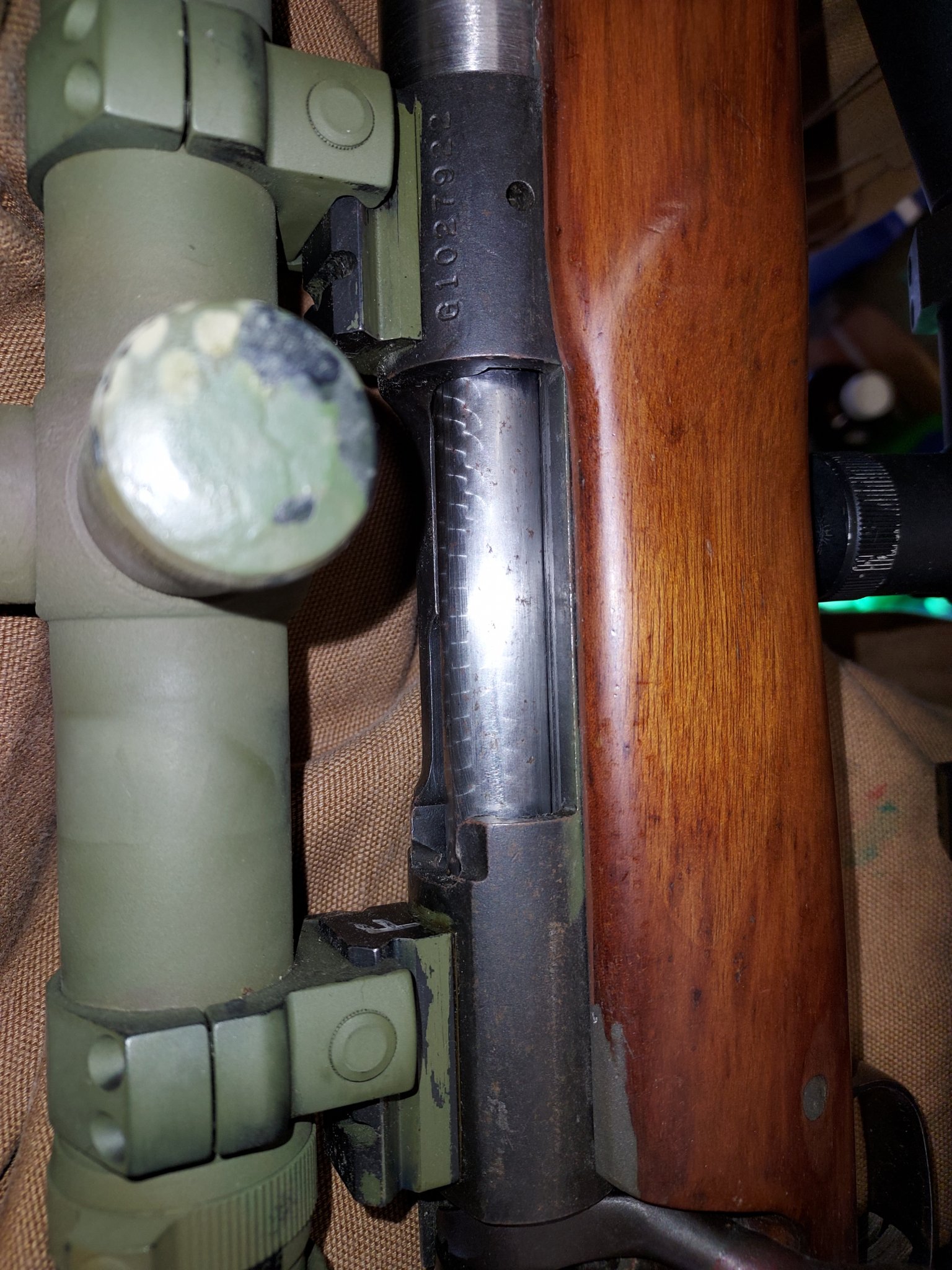

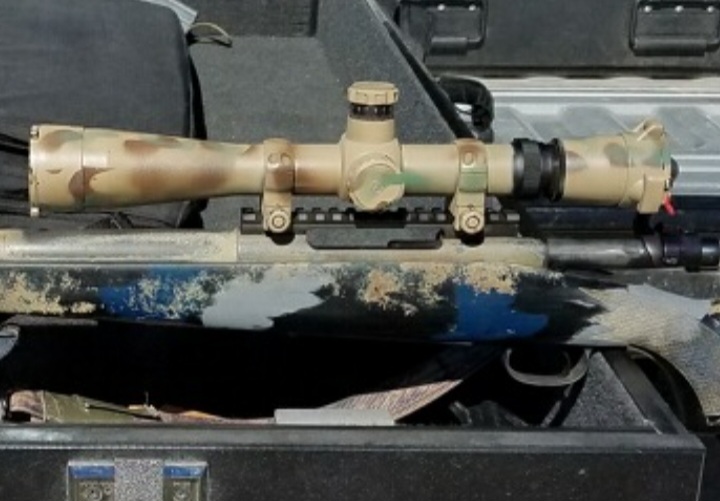

    I've got an older clip slotted Winchester M70 NM model also. Note that the older clip slotted 70's use a Model 70 H&H magnum size base. I bought one from EGW when I got my rifle.



    This is the one that fit mine...


    deltawiskey

    DILLIGAF
    Full Member
    Minuteman
    Feb 13, 2017
    1,069
    921
    Wisconsin

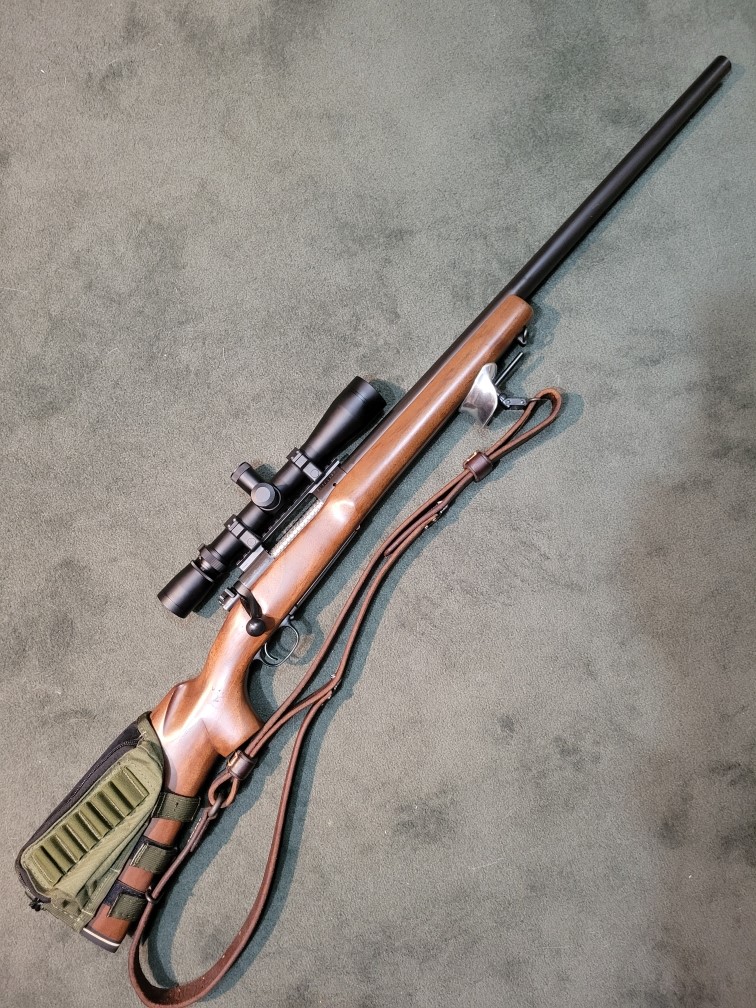

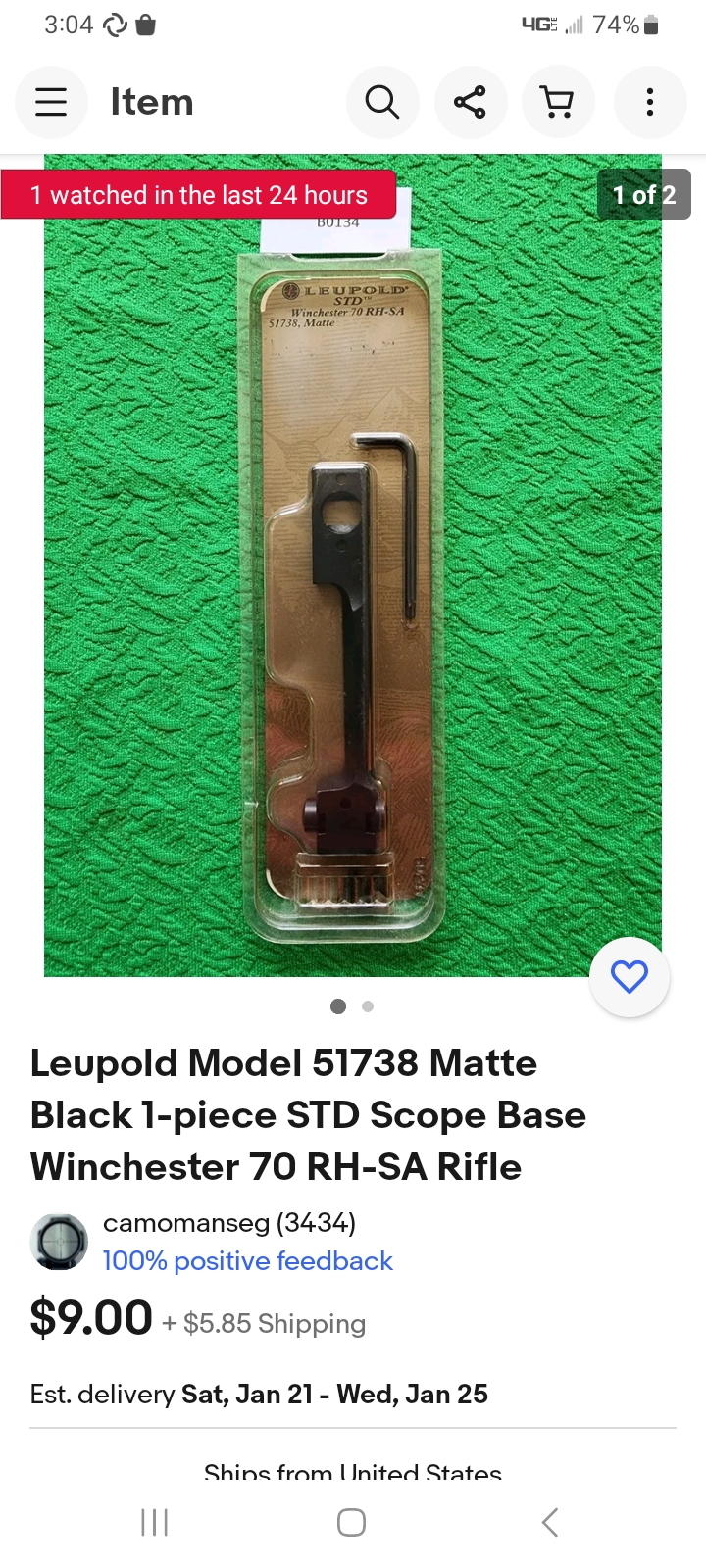

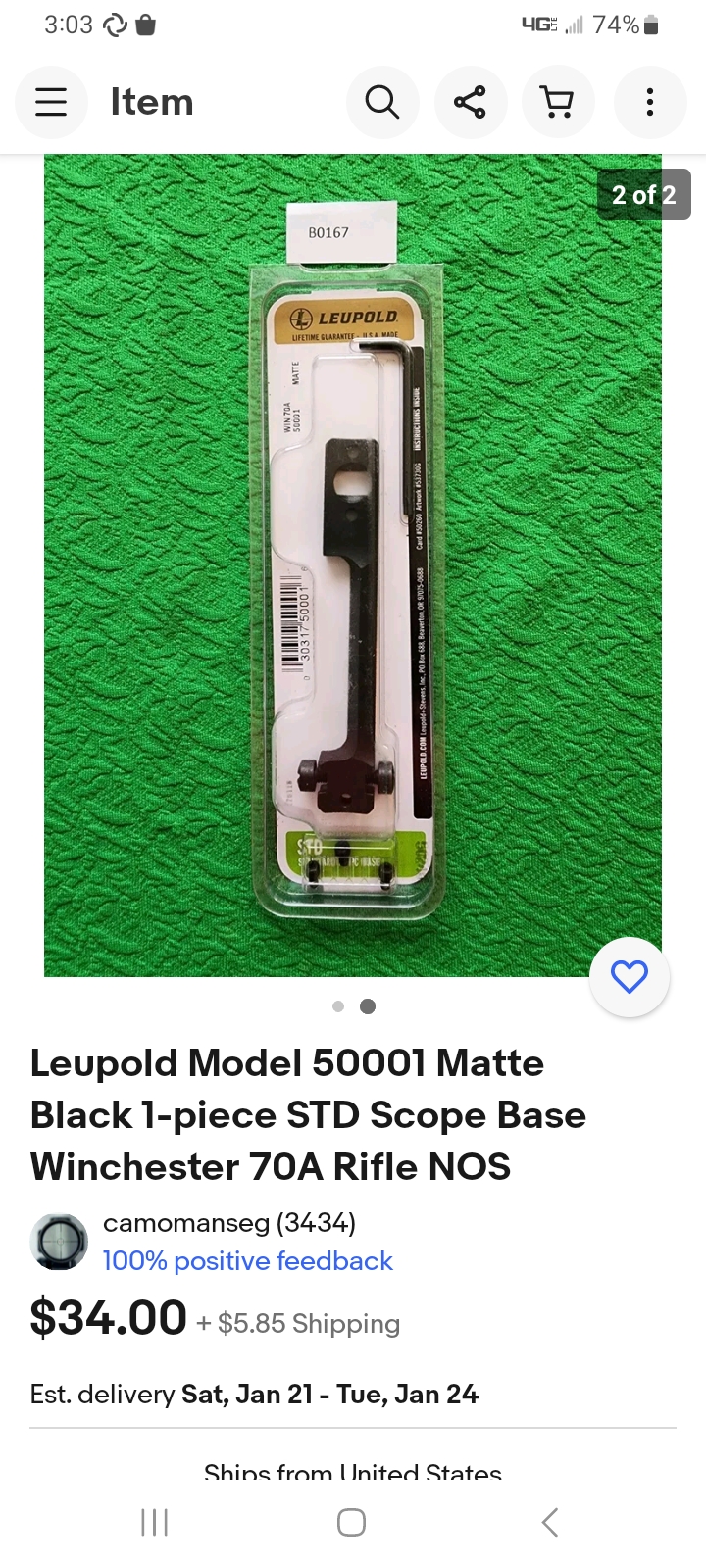

    I have a Post-64 clip slot 30-06 (1 rear scope base screw) and a couple different options for the Leupold scope sitting around doing nothing. This thread has got me thinking I should build one of these FBI clones, but where to get a stock? Are you ordering them from McMillan, or managing to find used ones someplace...
    Post64 Win Mod 70.jpg



    DW


    jrhtx

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Feb 4, 2006
    819
    484
    Houston, TX
    Did they/FBI only use the 3.5-10 VXIII's? Were the 4.5-14 w/AO tactical's ever used?


    Stevo86

    No one
    Supporter
    Full Member
    Minuteman
    Supporter+
    May 26, 2014
    1,482
    2,968

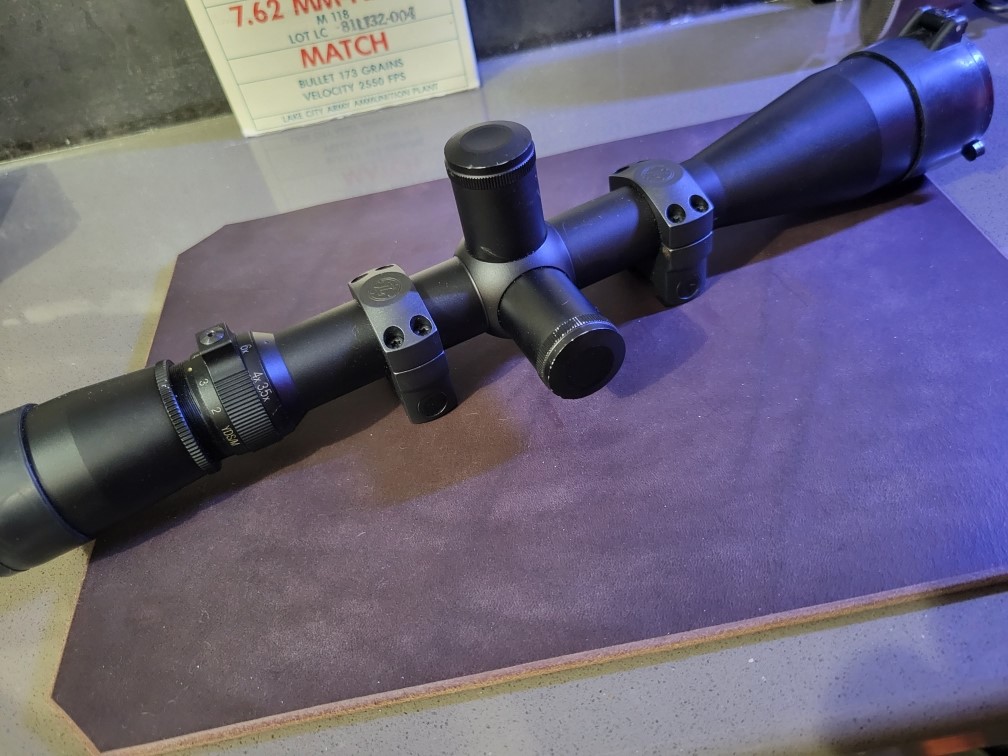

    I have a Post-64 clip slot 30-06 (1 rear scope base screw) and a couple different options for the Leupold scope sitting around doing nothing. This thread has got me thinking I should build one of these FBI clones, but where to get a stock? Are you ordering them from McMillan, or managing to find used ones someplace...
    View attachment 8053403
    View attachment 8053404

    DW
