floating the bushing in Redding Type S die?

secondofangle2

Online Training Member
Full Member
Minuteman
Jul 3, 2017
832
453
I'm trying to get out of the habit of not reading instructions even when it seems obvious but still haven't kicked the habit completely. Just read the instructions for the latest Type S die I ordered and it says screw the decapping rod down to touch the bushing then back it off 1/16th turn, to allow "0.003-0.004" for the "bushing to center on the neck." It then says "this last step is very important to master." Am I the only one who has not been doing this?


max1840

Private
Full Member
Minuteman
Jun 9, 2017
126
80
I'm trying to get out of the habit of not reading instructions even when it seems obvious but still haven't kicked the habit completely. Just read the instructions for the latest Type S die I ordered and it says screw the decapping rod down to touch the bushing then back it off 1/16th turn, to allow "0.003-0.004" for the "bushing to center on the neck." It then says "this last step is very important to master." Am I the only one who has not been doing this?
I always read instructions

  • Like
Reactions: marchboom

rustyinbend

GySgt USMC 1976-1992
Full Member
Minuteman
  • Dec 9, 2018
    2,209
    2,064
    Bend, Oregon
    I'm trying to get out of the habit of not reading instructions even when it seems obvious but still haven't kicked the habit completely. Just read the instructions for the latest Type S die I ordered and it says screw the decapping rod down to touch the bushing then back it off 1/16th turn, to allow "0.003-0.004" for the "bushing to center on the neck." It then says "this last step is very important to master." Am I the only one who has not been doing this?
    Yes, you're the only one.


    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com
    I'm running a full size S die with SAC bushings.
    Does this method apply to all bushings, or just the redding bushings?
    I noticed, even if I tighten the top all the way with the sac bushing, there is still play and the bushing rattles around, which I assumed was OK.


    rustyinbend

    GySgt USMC 1976-1992
    Full Member
    Minuteman
  • Dec 9, 2018
    2,209
    2,064
    Bend, Oregon
    I'm running a full size S die with SAC bushings.
    Does this method apply to all bushings, or just the redding bushings?
    I noticed, even if I tighten the top all the way with the sac bushing, there is still play and the bushing rattles around, which I assumed was OK.
    If you remove the decapping and mandrel thingie (like I do), make sure you still put the black holder ring over the size bushing ... that's very important and could be causing your "rattle". My SAC bushing is nice and tight in all four Type-S dies I use them in.


    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com
    If you remove the decapping and mandrel thingie (like I do), make sure you still put the black holder ring over the size bushing ... that's very important and could be causing your "rattle". My SAC bushing is nice and tight in all four Type-S dies I use them in.
    Yep, did that. Removed decapping rod and threaded the top part with lock ring back on. Still has rattle.
    I'll take it apart again this evening and double check everything though.


    max1840

    Private
    Full Member
    Minuteman
    Jun 9, 2017
    126
    80
    Yep, did that. Removed decapping rod and threaded the top part with lock ring back on. Still has rattle.
    I'll take it apart again this evening and double check everything though.
    So, what did you find after double checking?

    • Like
    Reactions: savagemann

    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com
    So, what did you find after double checking?
    Same thing.

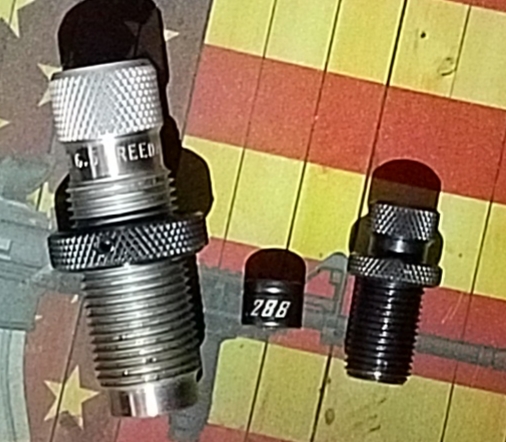

    Attached a crappy pic of the parts of the die I am using.
    Still rattle when top is bottomed out.


    Attachments

    • 20220424_092524.jpg
      151.2 KB · Views: 46

    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com
    I just received my SAC bushing for my Redding Tyoe S die. There were no instructions nor could I find them onsite. So, are they supposed tight or snug? Not to back off 1/16th turn.
    I sent an email to short action customs asking them about it. Once I hear from them, I will report back.


    max1840

    Private
    Full Member
    Minuteman
    Jun 9, 2017
    126
    80
    Same thing.
    Attached a crappy pic of the parts of the die I am using.
    Still rattle when top is bottomed out.
    From the looks of the picture, there is only 1 piece inside the die "the bushing". There should be another piece on top of the bushing as suggested by @rustyinbend in post #8. The bushing won't get tight without it. I use the SAC bushings and set them up the same way as Redding suggests to set theirs up. The small knurled nut is part of the original decapping rod which was removed

    Last edited:

    FLIGHT762

    Sergeant
    Full Member
    Minuteman
    Sep 27, 2008
    1,454
    401
    California/SFO
    O/P, do you see now when you removed the decapping rod with its locking nut on the bottom, it changed the distance of how far down you can screw the top down to secure the bushing. That bottom locking nut needs to be there. I suppose you could just drop it on top of the bushing when you install the bushing.

    SAC says their bushing dies will give you less runout than the other brands will. SAC bushings have a very short taper to them that allows the case neck to enter the bushing and center before sizing. You have to install the SAC bushings the correct way, there is a top and a bottom.

    • Like
    Reactions: secondofangle2

    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com

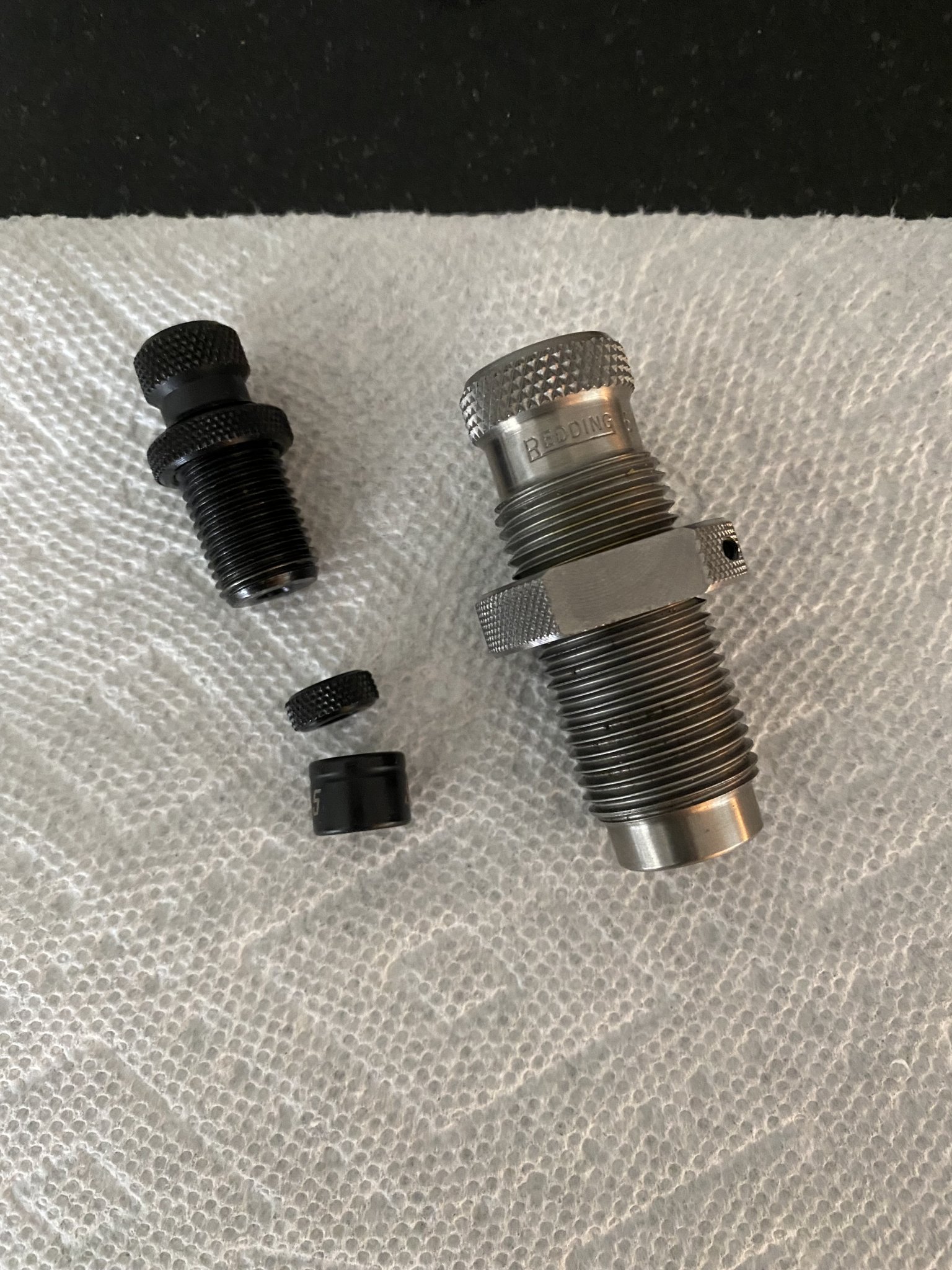

    From the looks of the picture, there is only 1 piece inside the die "the bushing". There should be another piece on top of the bushing as suggested by @rustyinbend in post #8. The bushing won't get tight without it. I use the SAC bushings and set them up the same way as Redding suggests to set theirs up. The small knurled nut is part of the original decapping rod which was removed
    View attachment 7856460
    Thank you. I felt like I was missing something.

    • Like
    Reactions: max1840

    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    832
    453
    O/P, do you see now when you removed the decapping rod with its locking nut on the bottom, it changed the distance of how far down you can screw the top down to secure the bushing. That bottom locking nut needs to be there. I suppose you could just drop it on top of the bushing when you install the bushing.

    SAC says their bushing dies will give you less runout than the other brands will. SAC bushings have a very short taper to them that allows the case neck to enter the bushing and center before sizing. You have to install the SAC bushings the correct way, there is a top and a bottom.
    By OP, I presume you mean the guy with the SAC dies? My OP was even more elementary LOL.

    I read that on the SAC website too, is that something real or marketing? If there were a runout issue, one would think Redding could have identified it and come up with this "advancement".

    • Like
    Reactions: savagemann

    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com
    By OP, I presume you mean the guy with the SAC dies? My OP was even more elementary LOL.

    I read that on the SAC website too, is that something real or marketing? If there were a runout issue, one would think Redding could have identified it and come up with this "advancement".
    Sorry for jumping in on your thread with the sac topic.
    But I think we both got our answers here.
    🤘

    • Like
    Reactions: secondofangle2

    FLIGHT762

    Sergeant
    Full Member
    Minuteman
    Sep 27, 2008
    1,454
    401
    California/SFO
    By OP, I presume you mean the guy with the SAC dies? My OP was even more elementary LOL.

    I read that on the SAC website too, is that something real or marketing? If there were a runout issue, one would think Redding could have identified it and come up with this "advancement".
    Sorry O/P, I got you & the thread jumper mixed up.


    For the Savagemann thread jumper, in the below video @5:50, the guy from Bolt Action Reloading explains and demonstrates what he feels is a plus on the SAC bushings. Whether it is or not, I use the Redding TiN bushings and get low runout.


    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    832
    453
    ^^ Nice video, I just wish he had shown the runout of the Redding bushing too. Plus, I'm just not all that sure that outside case neck runout affects much of anything, but that's a debate for another day. Maybe I'm going to have to get me some of those SAC bushings, now that I already have hundreds of dollars wrapped up in Redding ones - at least I'll be able to select the right size the first time!


    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    832
    453
    Here he does more comparison, and because the difference in price of these bushings is only $20 and it won't take me any more time to use them, I'm highly inclined to get them. (However, I'll be disinclined to get multiple for each cartridge, LOL.) Thanks guys for the heads up!

    • Like
    Reactions: savagemann

    savagemann

    Private
    Full Member
    Minuteman
    Oct 8, 2014
    52
    29
    www.citizengearco.com
    In case anyone was wondering, i heard back from SAC.
    The setup using their bushings is the same has any other bushings. The mistake I was making was not putting the decapping rod lock ring on top of the bushing before screwing the die back on, as noted in my earlier post.
    Btw, b
    Bolt Action Reloading youtube videos are great. I've been watching a lot of them lately.


    MarkyMark007

    Sergeant of the Hide
    Full Member
    Minuteman
    Jan 31, 2018
    274
    87
    Europe
    not-on-google.shit
    I'm trying to get out of the habit of not reading instructions even when it seems obvious ... Am I the only one who has not been doing this?
    I saw this pattern at most at retarded people. they think that they are smart, but in reality they are stupid and retarded and don't know shit, and that's why they have always problems with things...

    and in reality they dont understand instructions, because they are so stupid.


    secondofangle2

    Online Training Member
    Full Member
    Minuteman
    Jul 3, 2017
    832
    453
    ^ I can’t even understand what you’re saying dude. Maybe I’m retarded
