Forester CO-AX upgrades?

Kadams1563

Giver of Bad Advice
Belligerents
Minuteman
Feb 13, 2017
1,640
1,161
I have had a CO-AX for around 3 years now and am looking to purchase some upgrades for it.

Mainly looking at the access side linkages from Inline Fabrication.

Some of the older photos show that they were like half moon shaped. The new ones show they have a point in the middle of them for some reason. Kinda defeats the purpose of having them imo.

Anyone know why they put them that way?

I also looking for a short handle. The stock one is too long and having to move side to side is getting old.

Last edited:

Jefe's Dope

Red Forman
Belligerents
Minuteman
  • Dec 20, 2017
    8,064
    54,774
    Right in the description on Inline's website. ?

    Note: Improved design retains use of the factory stops.

    Short handle was a HUGE improvement for me and makes me wonder why it doesn't come with it. I know why it doesn't and it is worth the $25.95 + shipping. ?

    I'd ASSume there's some other options available? A quick Google shows one guy made his own. They were square and the increase in room was quite a bit. I'd be worried about flex though.

    7051272


    7051273


    Kadams1563

    Giver of Bad Advice
    Belligerents
    Minuteman
    Feb 13, 2017
    1,640
    1,161
    I still don’t understand the “new” design. The old design used the same side pins.

    Guess it’s beyond my understanding.


    EXTREMEPREJUDICE

    Major Hide Member
    Belligerents
    Minuteman
    Oct 21, 2008
    2,015
    211
    SE MICHIGAN
    I still don’t understand the “new” design. The old design used the same side pins.

    Guess it’s beyond my understanding.

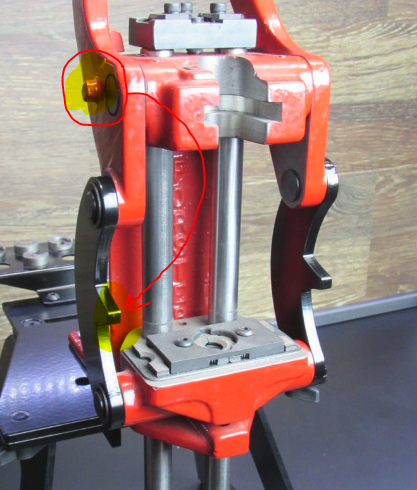

    The stops (peg) on the sides of the ram bottom out on the triangular projections on the new links, stopping the press before it might potentially damage the shell holder plate. On the original straight links, that's where the pegs would bottom out. With the half moon links you had to add a stop (allen screw) to keep the press from over-caming as the ram could travel beyond the design limit.

    • Like
    Reactions: Jefe's Dope

    bunsen27

    ACME Labs
    Belligerents
    Minuteman
    Jan 2, 2011
    1,598
    298
    Raleigh, NC

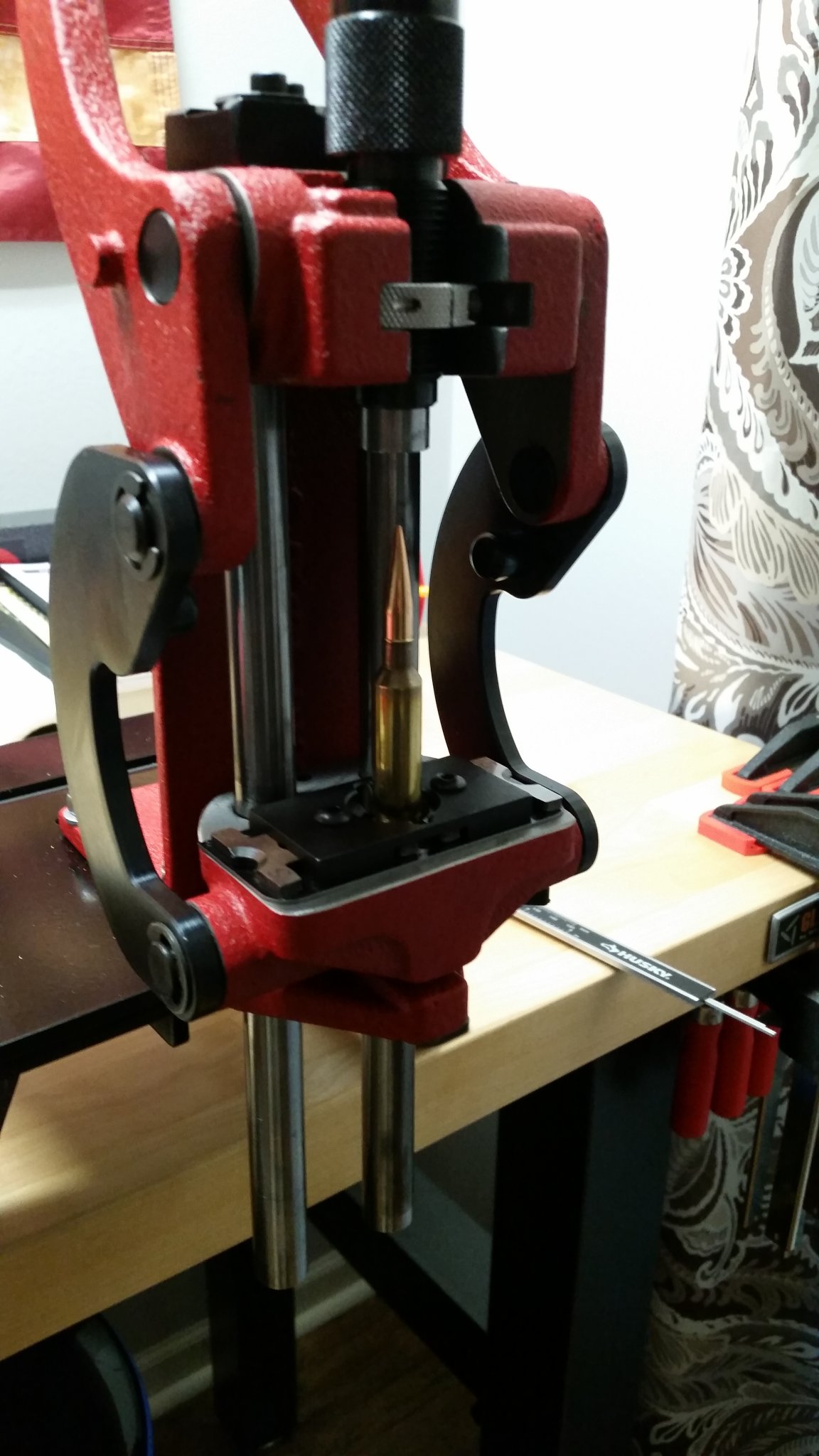

    I can highly recommend these three upgrades for the Co-Ax. I used to have mine mounted to the bench top, but going with the ultramount made it much more ergonomic to work with.



    Cascade Hemi

    Gunny Sergeant
    Belligerents
    Minuteman
    Feb 9, 2019
    852
    686
    PNW
    The Inline Fab short roller handle moves your hand to the side of the press instead of the center. I find manipulating the press with the roller more intuitive than the straight handle. The new linkage is kind of a waste.

    • Like
    Reactions: Bonjourjr

    CarlM

    Private
    Minuteman
    Apr 11, 2018
    32
    23
    I cut about 2" off my handle and that was a big improvement, but the new links opened up the entire front of the press. I was thinking about getting an led kit for it, but I no longer need it.

    • Like
    Reactions: sinister

    Herb Stoner

    Public Nuisance
    Belligerents
    Minuteman
    Jan 13, 2019
    119
    56
    Two Places at Once
    Is he still doing these?
    Sent an inquiry and haven't heard back. From his video it looks like it could be a one-man show / maybe a side gig so perhaps some patience on my part is needed. I acquired an old Bonanza that looks like hell but is pretty solid under the gunk and some surface rust. Worst of it is the shell holder assembly so I would rather use this instead of OEM if its still available.
    Most mentions of this I could find through a web search were a year old or more. I'll be stoked if its still available!


    CarlM

    Private
    Minuteman
    Apr 11, 2018
    32
    23
    Is he still doing these?
    Sent an inquiry and haven't heard back. From his video it looks like it could be a one-man show / maybe a side gig so perhaps some patience on my part is needed. I acquired an old Bonanza that looks like hell but is pretty solid under the gunk and some surface rust. Worst of it is the shell holder assembly so I would rather use this instead of OEM if its still available.
    Most mentions of this I could find through a web search were a year old or more. I'll be stoked if its still available!
    Just got mine 2 weeks ago, so yes these should be available.

    • Like
    Reactions: Herb Stoner

    Kadams1563

    Giver of Bad Advice
    Belligerents
    Minuteman
    Feb 13, 2017
    1,640
    1,161
    Dang I like those linkages.

    What does the jaws upgrade actually do?


    texascavediver

    Private
    Minuteman
    Aug 10, 2018
    23
    12
    The jaws upgrade make it somewhat easier to switch the jaws from S - LG. It's still a pain in the ass, but not as much as with the stock jaws, so I just bought a pair of the Forster quick change jaws. One standard small and one standard large.
