Help: SAKO TRG 22 - Screws

samupin

Private
Minuteman
Apr 26, 2022
2
2
USA
Hi.

I have a SAKO TRG 22 (6.5 Creedmoor caliber; 26" Barrel) - Factory.

Does anyone know the type of screws used that mount under the trigger and near top of the barrel? That is to mount the butt stock to the barrel.
Its two screws.

I took the gun apart and cannot seem to find the two screws :(
Your help or any reference would be greatly appreciated.

Thank you.
Sam


silentheart

Sergeant
Full Member
Minuteman
Mar 28, 2013
229
31
Hi.

I have a SAKO TRG 22 (6.5 Creedmoor caliber; 26" Barrel) - Factory.

Does anyone know the type of screws used that mount under the trigger and near top of the barrel? That is to mount the butt stock to the barrel.
Its two screws.

I took the gun apart and cannot seem to find the two screws :(
Your help or any reference would be greatly appreciated.

Thank you.
Sam
Can you take a picture of the location you are asking? That can help.


sirhrmechanic

Command Sgt. Major
Full Member
Minuteman
Sakos are loaded with metric Allen screws. And very specific sizes, strengths and shoulders. And torque values.

If you lost your action screws (!!??!!) look up an exploded diagram and order new ones from Beretta USA. They have excellent customer service.

Don’t screw around (pardon the pun) with hardware store or eBay fasteners on a TRG. Get the right parts. Get a torque wrench. Get a bit set.

And get a working area if you are going to take apart a TRG commensurate with working on an incredible bit of engineering. They aren’t kitchen table gunsmithing rifles.

Cheers, Sirhr

PS… in owning my Sako for some 15 years, the “only” time I “took it apart” was to test fit a prototype KRG chassis to help beta test it… and a couple of times taking action out of chassis for cleaning after shooting in dusty areas. And never took apart beyond removing barreled action from chassis to clean. Re. taking some things apart: “Why break in to jail?”

  • Like
Reactions: silentheart

CerebralDistortion

Private
Full Member
Minuteman
Oct 8, 2017
312
269
@samupin

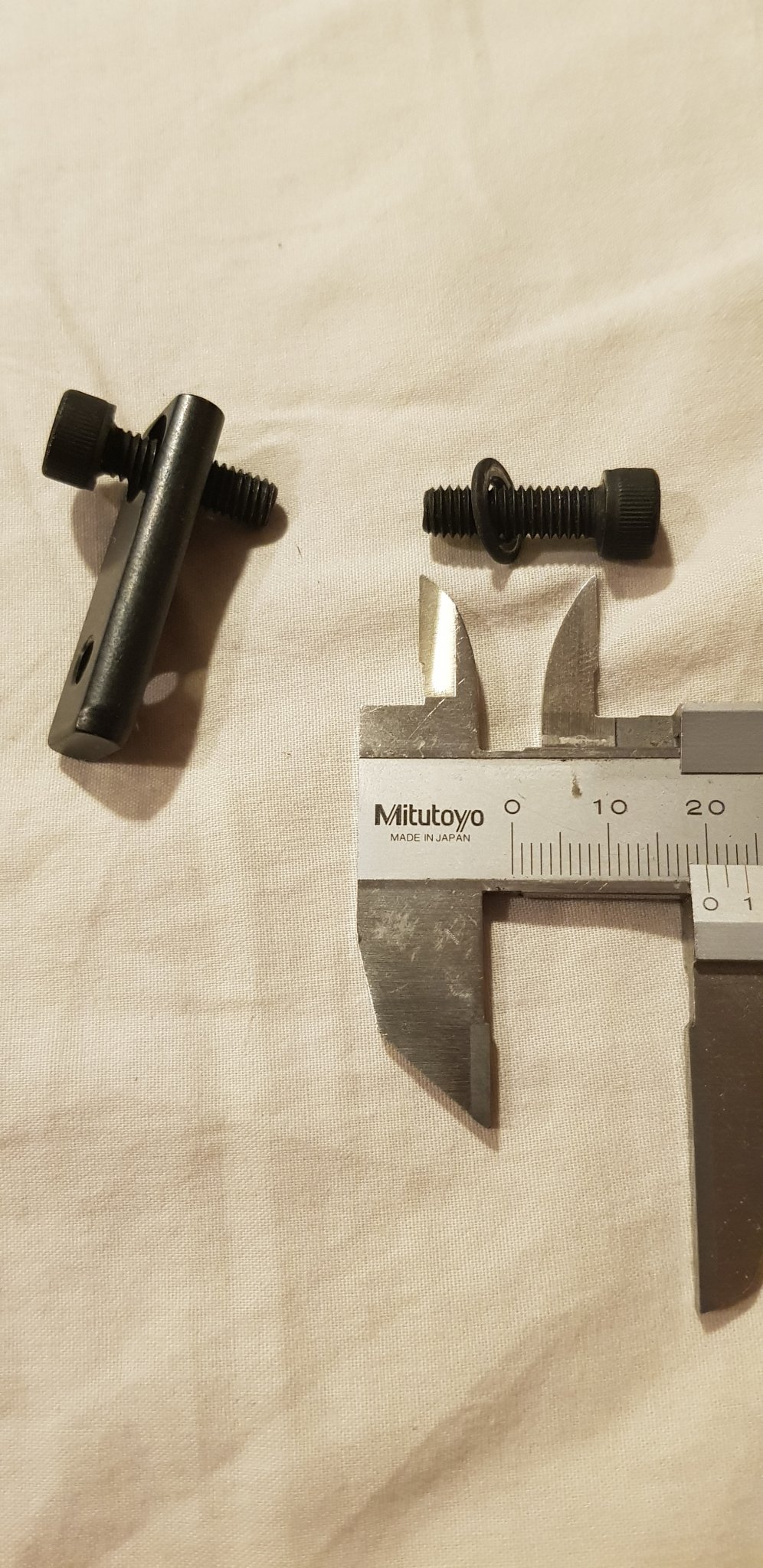

MC6S M6×25 12.8 To be specific.

Last edited:

SAS_Sniper

Sergeant
Full Member
Minuteman
May 16, 2009
422
175
38
Europe
Newton meters… oh you Brits.

It was Inch Pounds when Whitworth created it all. Or Brunel. Or Lord Armstrong. Or Henry Royce.

Ok ok… I’m being a uppity Colonial.

How about we call it Dram-furlongs and be done with it?

Sirhr
😂😂 ... I m from Italy... I 'm not biased..

  • Haha
Reactions: 308pirate

TapRackBang

Private
Full Member
Minuteman
Apr 19, 2014
112
78
They are definitely metric, my TRG came with a set of metric Allen wrenches.


SquarePizza

Sergeant
Full Member
Minuteman
Jan 9, 2012
457
111
41
NY
Its actually good that I saw this thread. I have a used TRG with both the KRG folder and stock rear, however I seem to be missing the part on the stock rear that the top action screw threads into. I am guessing it is that flat piece of metal shown on the left above?


CerebralDistortion

Private
Full Member
Minuteman
Oct 8, 2017
312
269
Its actually good that I saw this thread. I have a used TRG with both the KRG folder and stock rear, however I seem to be missing the part on the stock rear that the top action screw threads into. I am guessing it is that flat piece of metal shown on the left above?
I dont know about the KRG stock since I only have the KRG folder attached to my TRG, but that piece of metal is what is used to "pinch"/attach the rear stock to the rail.


SquarePizza

Sergeant
Full Member
Minuteman
Jan 9, 2012
457
111
41
NY
I dont know about the KRG stock since I only have the KRG folder attached to my TRG, but that piece of metal is what is used to "pinch"/attach the rear stock to the rail.

Then that is the piece I am missing to use my factory rear stock. Now I just gotta find a source for one.


TapRackBang

Private
Full Member
Minuteman
Apr 19, 2014
112
78
In all seriousness have you tried emailing SAKO directly? You could even use Google translate to ask it in Finnish.


Jrb572

Full Member
Supporter
Full Member
Minuteman
Supporter+
Dec 7, 2008
2,129
639
Missouri
In all seriousness have you tried emailing SAKO directly? You could even use Google translate to ask it in Finnish.
Sako is horrible about answering emails. Or at least they are for me. It’s been months since I asked a question about a quad barrel with no response.

Try here. I think they are Sakos/ beretta US repair facility in the Midwest. They have helped me find parts before. https://www.midwestgunworks.com/ssearch.html?Search=Sako


TapRackBang

Private
Full Member
Minuteman
Apr 19, 2014
112
78
Yeah not surprising just a random idea.

Would also add Euro Optic they have great CS and that is where I bought my TRG from years ago.


CerebralDistortion

Private
Full Member
Minuteman
Oct 8, 2017
312
269
M6 x WHAT THREAD ?
It would be listed as something like M6 x 1.0 x 25mm long
12.8 is the bolt strength
Could be M6 x 1.0 or M6 x 1.25....???
BTW, without seeing more of the pic it certainly looks like the bolt you have there is 20mm long, not 25
Unless specified, standard. M-thread, this size, std or fine. Fine is specified.
Yes.
No.
MC6S screws length are defined by free shank length. Typo? Pic should provide more than enough info...


308pirate

Gunny Sergeant
Banned !
Minuteman
  • Apr 25, 2017
    21,766
    33,441
    If you lost your action screws (!!??!!) look up an exploded diagram and order new ones from Beretta USA. They have excellent customer service.

    I hear horror stories about dealing with the mothership. When I bought my 686 Sporting from Cole Gunsmithing they told me to talk to them first (they are a Beretta-authorized service center) and that they would deal with the mothership if needed. I was told that was MUCH easier for the customer.

    @samupin If I was you I would call the three service centers that deal with Beretta Group-made rifles and ask for the screws: https://www.beretta.com/en-us/customer-service/find-a-service-center/
    • Bolsa Gunsmithing
    • Midwest Gun Works
    • Gunsmithing LTD

    • Like
    Reactions: sirhrmechanic

    enichols

    Private
    Full Member
    Minuteman
    Nov 18, 2010
    315
    222
    Southern CA
    I hear horror stories about dealing with the mothership. When I bought my 686 Sporting from Cole Gunsmithing they told me to talk to them first (they are a Beretta-authorized service center) and that they would deal with the mothership if needed. I was told that was MUCH easier for the customer.

    @samupin If I was you I would call the three service centers that deal with Beretta Group-made rifles and ask for the screws: https://www.beretta.com/en-us/customer-service/find-a-service-center/
    • Bolsa Gunsmithing
    • Midwest Gun Works
    • Gunsmithing LTD
    What @308pirate said. I had an issue with my TRG's trigger. Tried emailing Sako several times, and left several messages with Beretta. No response to any of my messages.

    I live relatively close to Bolsa Gunsmithing (authorized repair center), so I called them with my issue. Dropped the TRG off with them and it was fixed in a couple of days.

    • Like
    Reactions: 308pirate

    sirhrmechanic

    Command Sgt. Major
    Full Member
    Minuteman
    What @308pirate said. I had an issue with my TRG's trigger. Tried emailing Sako several times, and left several messages with Beretta. No response to any of my messages.

    I live relatively close to Bolsa Gunsmithing (authorized repair center), so I called them with my issue. Dropped the TRG off with them and it was fixed in a couple of days.
    Somewhere I have a card from the Sako/Beretta Rep. Met him at PRE. If you are having trouble, let me know and I can try and dig his card or e-mail out. Good guy. Former SF. He is the 'gets things done' type.

    It's always 'who you know ;-)

    Cheers,

    Sirhr

    • Like
    Reactions: enichols

    enichols

    Private
    Full Member
    Minuteman
    Nov 18, 2010
    315
    222
    Southern CA
    Somewhere I have a card from the Sako/Beretta Rep. Met him at PRE. If you are having trouble, let me know and I can try and dig his card or e-mail out. Good guy. Former SF. He is the 'gets things done' type.

    It's always 'who you know ;-)

    Cheers,

    Sirhr
    Thank you Sir, much appreciated! My TRG has been flawless since having the trigger issue fixed, but would not mind having the contact in any case.


    samupin

    Private
    Minuteman
    Apr 26, 2022
    2
    2
    USA
    Oh gosh...may apologies for the much belated response...I have been stuck out of the country and just getting back....
    I greatly appreciate everyone's response on here!!!!
    I will look into the responses after I get my stuff out of storage.....
    Amazing gratitude for your help!!!
    Many Thanks!!!

    @enichols - will contact Bolsa
    @sirhrmechanic ---- yes, if you have the contact for the SAKO, please message me
    @308pirate - will contact one of the three smiths
    @CerebralDistortion - where is that part diagram from; telephone number to order the fasteners (SP# is S5740265)
    @TapRackBang
    @Jrb572 - yes its a bad response from SAKO or Bretta :(
    @SquarePizza
    @Johnerz
    @n2ishun
    @silentheart - yes i'll take a photo when I can get my baby back


    CerebralDistortion

    Private
    Full Member
    Minuteman
    Oct 8, 2017
    312
    269
    Oh gosh...may apologies for the much belated response...I have been stuck out of the country and just getting back....
    I greatly appreciate everyone's response on here!!!!
    I will look into the responses after I get my stuff out of storage.....
    Amazing gratitude for your help!!!
    Many Thanks!!!

    @enichols - will contact Bolsa
    @sirhrmechanic ---- yes, if you have the contact for the SAKO, please message me
    @308pirate - will contact one of the three smiths
    @CerebralDistortion - where is that part diagram from; telephone number to order the fasteners (SP# is S5740265)
    @TapRackBang
    @Jrb572 - yes its a bad response from SAKO or Bretta :(
    @SquarePizza
    @Johnerz
    @n2ishun
    @silentheart - yes i'll take a photo when I can get my baby back

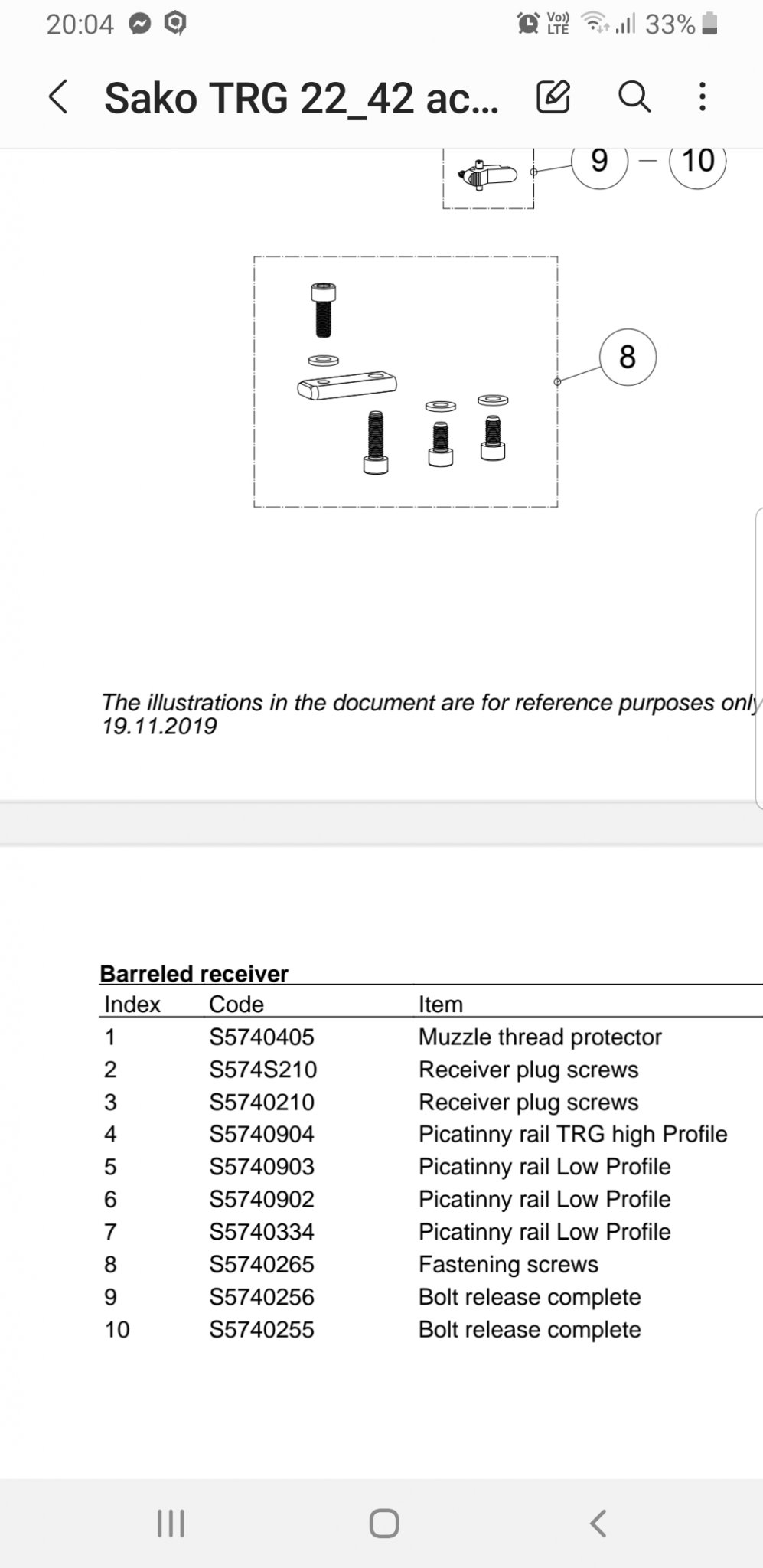

    Part diagram is from sako.fi support section. Spare part and accessories brochures are available for download (not always complete though).

    If you want to call and order, contact your local Beretta dealer (possibly Beretta online but I doubt it).
