IMR 4350

Snuby642

Two Star General
PX Member
Minuteman
  • Feb 11, 2017
    5,351
    6,381
    Is there any use for the IMR 4350 other than 243, and the 6 mm variants.

    Nothing found for 223, 308, 6.5g.

    Did a quick look in 3 books and Hogden site.


    RRG

    Private
    PX Member
    Minuteman
    Apr 5, 2013
    139
    73
    Gonzales, La.
    IMR 4350 has been my go to powder for 270 Winchester for years. Also, it worked well 6.5 Creedmoor and 270 wsm for me.
    55 grains in the 270 win with a 130 grain bullet out of a 22” barrel gets me 3050 FPS avg.

    • Like
    Reactions: EN2722 and Snuby642

    502Chevelle

    Sergeant
    PX Member
    Minuteman
    Jul 1, 2014
    1,013
    1,840
    Charlotte NC
    ^^^^^ This. Also, IMR and H are slightly different. Very close, but still different. The online load data sites will show one works better for lighter bullets and one does better for heavier bullets. Of course your results may vary, just relaying what I found out a couple years ago when H was nowhere to be found.

    • Like
    Reactions: VP47PPC

    Alpine 338

    Lumberjack
    PX Member
    Minuteman
    Jun 26, 2010
    1,857
    899
    NW Colorado
    It worked really well for me in my 260 Rem with 142-SMK's using Federal brass and 210M's. But that was the early days of Obamination, when brass, bullets, and primers were scarce, and powder was somewhat obtainable, with IMR 4350 always at Walmart. Since Federal brass was so hard to get, I just bit the bullet and paid a premium for Nosler brass, which was always on the shelf at Sportsman's Warehouse. With that brass, it preferred H4350, so that's what I stuck with.


    DamagedGuds

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 2, 2019
    242
    91
    GA
    Is there any use for the IMR 4350 other than 243, and the 6 mm variants.

    Nothing found for 223, 308, 6.5g.

    Did a quick look in 3 books and Hogden site.

    I use IMR 4350 for my 6.5 CM loads. It's in the Hornady book. If you'd like I can post a picture of the data.

    • Like
    Reactions: Snuby642

    DamagedGuds

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 2, 2019
    242
    91
    GA

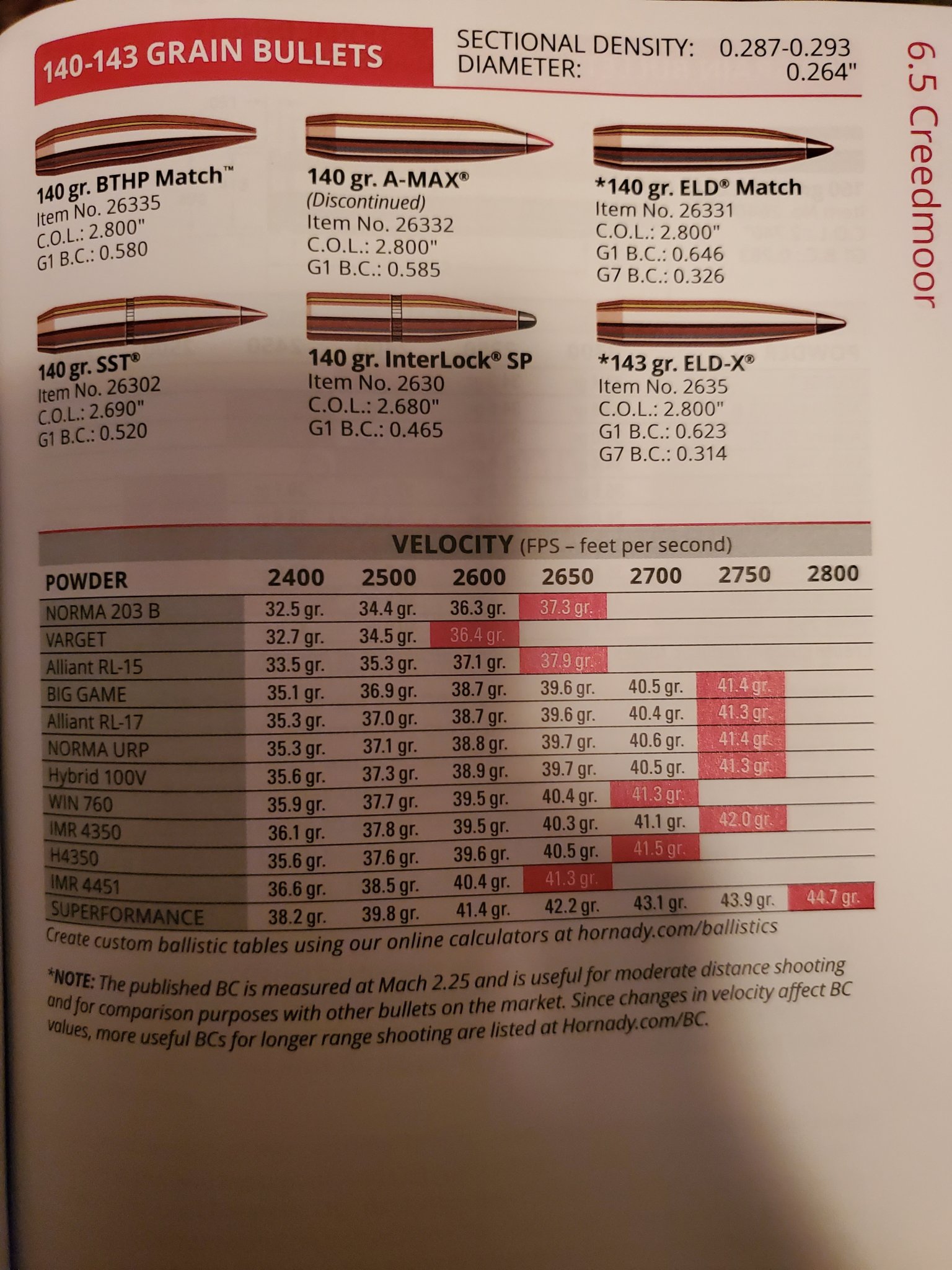

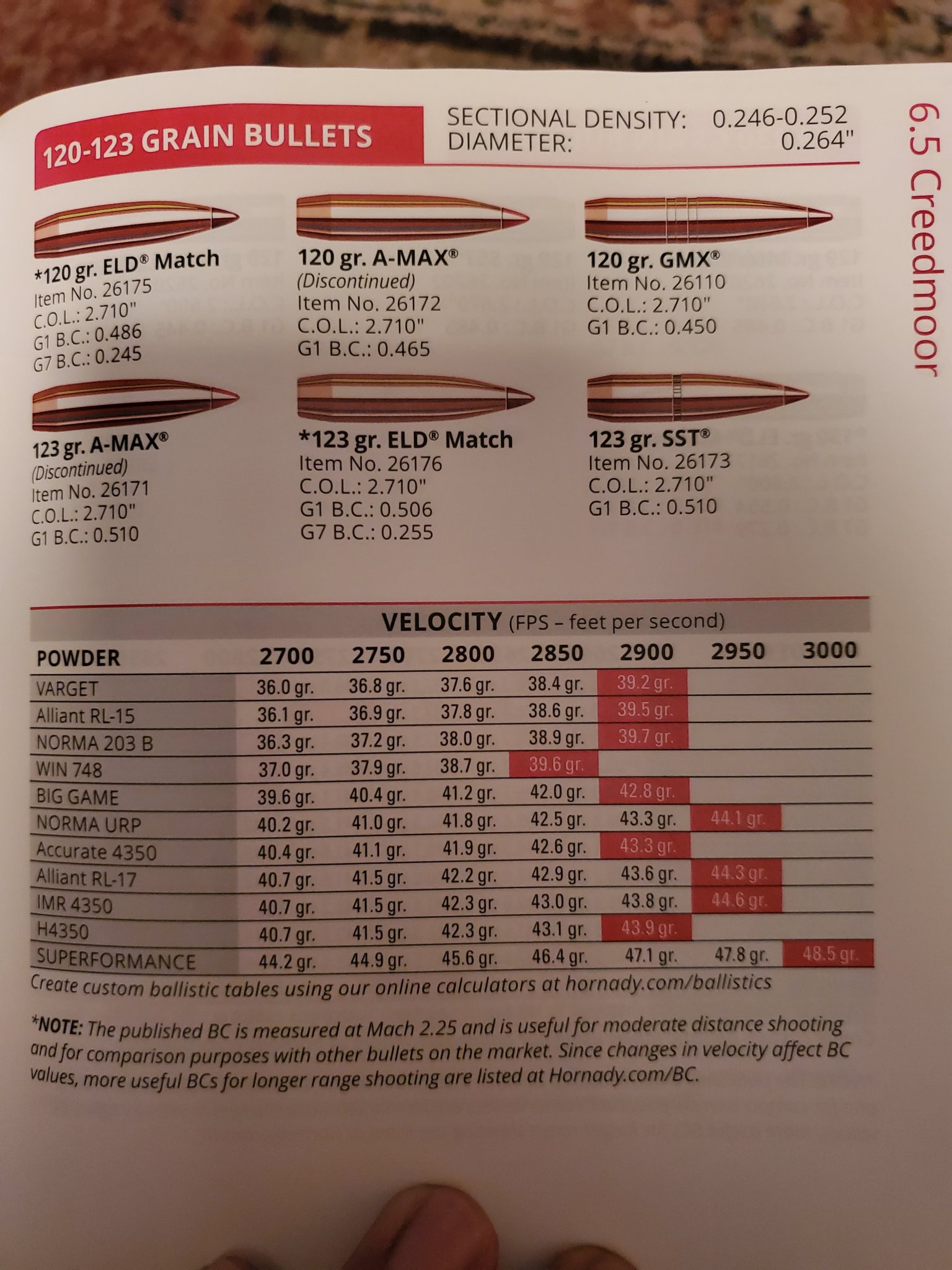

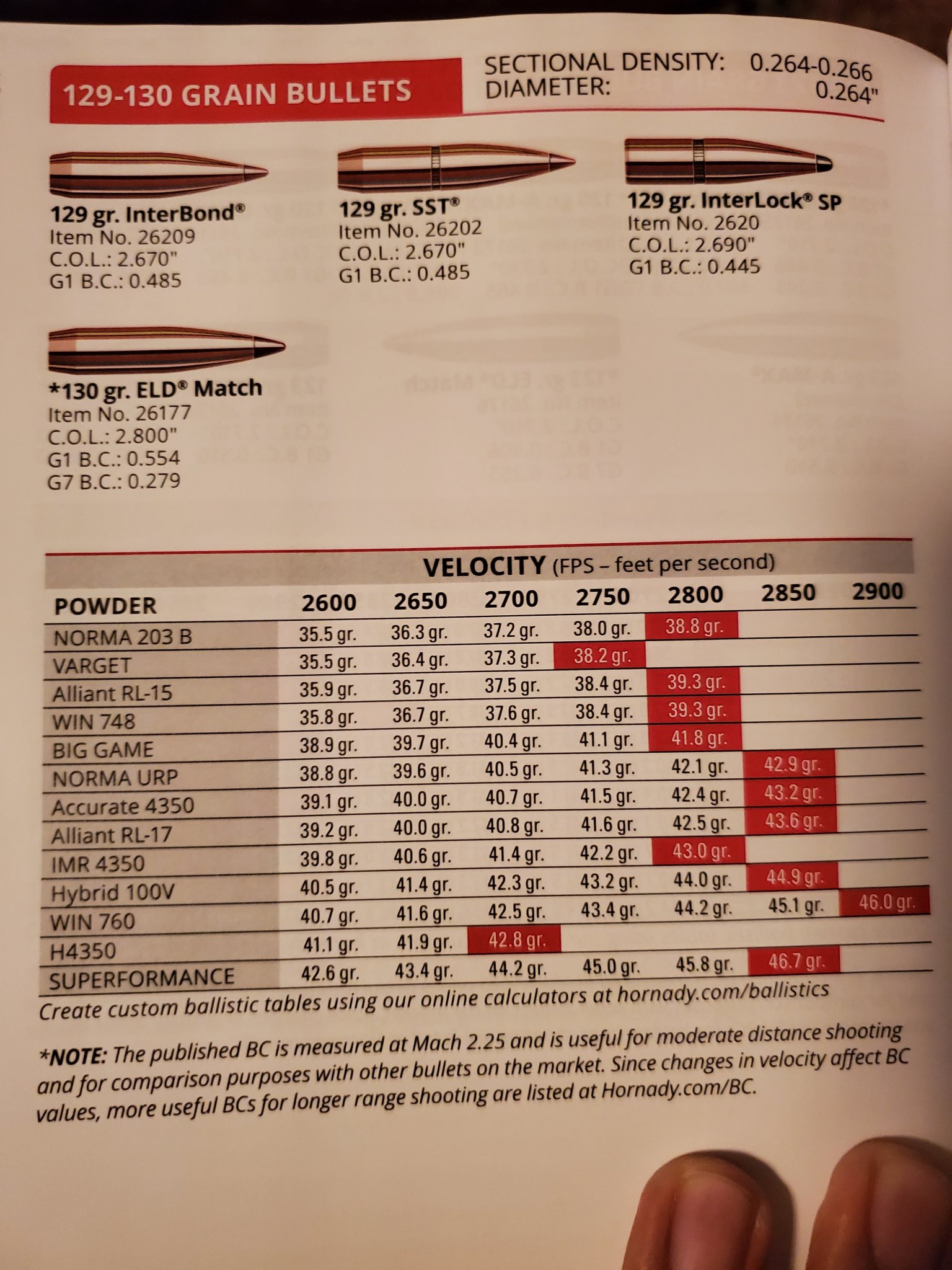

    Tried to post other pics but they were too big. These should work though.


    Attachments

    • 20200329_231200.jpg
      429.9 KB · Views: 141
    • 20200329_231400.jpg
      405.1 KB · Views: 129
    • 20200329_231908.jpg
      412.6 KB · Views: 126
    • Like
    Reactions: rancher5

    snbyiggidy1

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 15, 2018
    296
    274
    Brownsville, Oregon
    ^^^ that is the exact data I am using. Trying it out in my 6.5 CM loads. Working on the start of load development for it now. Have some rounds loaded up ranging from 40.2g to 42g. Using Hornady 140 ELD. Will post up my velocities in the near future. Probably will be about a week before I can get out and get that done.

    As for using it in .223 I considered that exact thing along with loading it for my .224 Valkyrie bolt action I am working on. I couldn’t find any info on .223 other than what has already been mentioned about it being too slow burning. In the Valkyrie I found a few that had tried but with poor results. Going to try CFE223 and IMR8208 XBR instead which both of those have load data for both the .223 and .224.


    DamagedGuds

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 2, 2019
    242
    91
    GA
    I think the IMR 4350 works great. These are my numbers for 140 ELDMs

    Grains - 41.6
    Velocity - 2830
    Primer - CCI BR2
    SD - 7-8
    Avg ES has been 15 and below
    Ogive to Head - 2.266 (measured with my OAL gauge)

    • Like
    Reactions: Kpchurch

    snbyiggidy1

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 15, 2018
    296
    274
    Brownsville, Oregon
    Good to know. I am hoping for great results. Going to give the 10 round ladder test that Scott Satterlee discusses. Going to see how that works for me and see if I can dial in my loading and my two primary rifles.


    Cascade Hemi

    Major Hide Member
    PX Member
    Minuteman
    Feb 9, 2019
    1,054
    846
    PNW
    IMR4350 is faster burning than H4350. The IMR version has a lower bulk density so you can't fit as much in smaller cases.


    D_TROS

    Flag-Sword-Cross
    PX Member
    Minuteman
    Aug 19, 2010
    2,081
    1,489
    North Denver, CO
    Love this powder. always cheaper and eaiser to find than H powder.

    have personally used in
    6BR 6x47 6.5x47 6.5GWI 7-08 308 7WSM 300WM

    a little larger kernal than H equiv but easy to find and burns great. nvr a problem. Internet says temp insensitive but havnt noted a prob ever. switched to VV powder for smaller cases but still have plenty of it.

    GL
    DT

    Last edited:
    • Like
    Reactions: Huskydriver

    lightman

    Sergeant
    PX Member
    Minuteman
    May 18, 2009
    1,230
    393
    63
    England, ar
    IMR 4350 is a rather "dated" powder that still works well in a lot of cartridges. Too many to name but here are a few that I use it in. 22-250, 243, 257 Roberts, 6.5-284, 270, 280, 30-06, 300 WM. There are probably lots more. Its a little slow to use in a semi-auto.

    Its been around long enough that its no longer sexy but it just plain works.


    pmclaine

    Gunny Sergeant
    PX Member
    Minuteman
  • Nov 6, 2011
    22,043
    33,537
    53
    MA
    IMR 4350 is a rather "dated" powder that still works well in a lot of cartridges. Too many to name but here are a few that I use it in. 22-250, 243, 257 Roberts, 6.5-284, 270, 280, 30-06, 300 WM. There are probably lots more. Its a little slow to use in a semi-auto.

    Its been around long enough that its no longer sexy but it just plain works.



    Pretty sure I got a box of Pre WWII 30-06 Match Ammo from Frankford Arsenal listing 4350 as the powder.


    ubettcha

    Private
    PX Member
    Minuteman
  • Dec 23, 2017
    1,123
    5,648
    In the 6.5creedmoor and 120-123's it runs 2910 and plain shoots well. Below is 300 yds shot by my friend who has Parkinsons.


    Attachments

    • 6.5 300 CE.jpg
      6.5 300 CE.jpg
      251 KB · Views: 32
    • Wow
    Reactions: Darayavaus

    foxtrotter

    Private
    PX Member
    Minuteman
    Apr 25, 2017
    4
    0
    4350 WWII surplus was sold by Hodgden back when. He also sold 4831 and some others. Later supplies were labeled with the H. H4350 is not the same as 4350


    Navigator

    Private
    Minuteman
    Aug 29, 2004
    63
    4
    48
    Ohio/U.S.

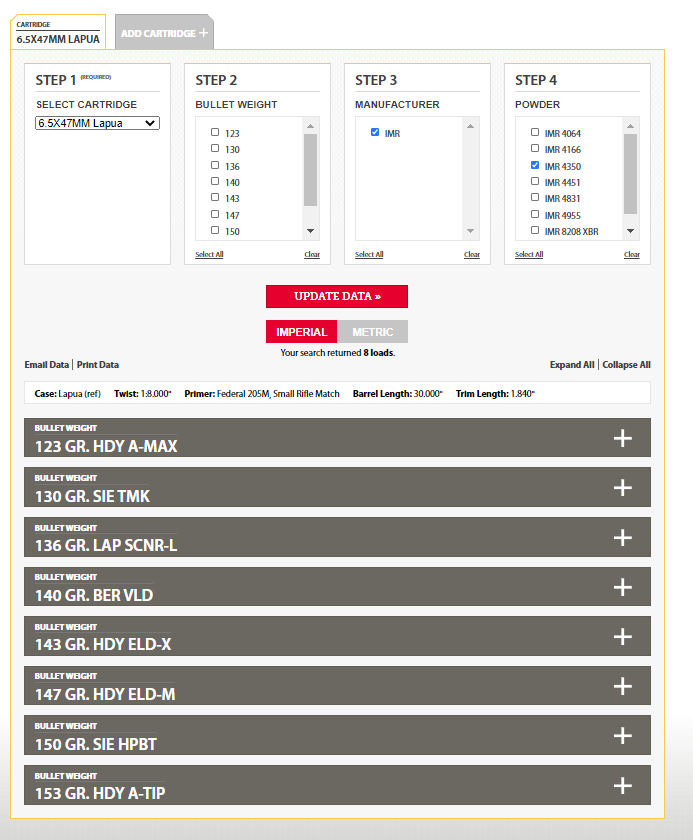

    Does anybody have a recipe for this in 6.5x47? I have 16lbs of it and would like to have something to use it in.
    Thanks,
    Jerod


    Mr Tibbs

    Sergeant of the Hide
    PX Member
    Minuteman
    Aug 17, 2020
    171
    42
    IMR-4350 is used in 7MM Rem Mag from 100 Grs all the way up 175 Gr


    Snuby642

    Two Star General
    PX Member
    Minuteman
  • Feb 11, 2017
    5,351
    6,381
    Could you just use the large primer brass ?

    Is there a case volume difference between large and small primer brass you use ?


    Snuby642

    Two Star General
    PX Member
    Minuteman
  • Feb 11, 2017
    5,351
    6,381
    I have not tested large vs small primer but I know some on here have.

    Pretty sure I have read about it here.

    I'll fool with a couple of search strings.


    Snuby642

    Two Star General
    PX Member
    Minuteman
  • Feb 11, 2017
    5,351
    6,381
    On my first search I came accross something I forgot to ask.

    Was the small primer brass new ?

    As in were both sets of brass fire formed or virgin?


    FCS

    Gunny Sergeant
    Commercial Supporter
    PX Member
    Minuteman
    Jun 3, 2005
    2,145
    459
    ABQ, NM
    Went to range today with 6.5 creedmoor using 140 grain Custom Comp Nosler
    loaded 10 rounds small rifle primer and 10 rounds large primer
    with 41.8 grains IMR 4350 COAL 2779 changed from usual 2820..
    shot the large rifle primer first..No signs of pressure, shot dead on 3 in one hole at 100 yrs.
    then CCI small rifle primer noticed small shroom look to primer 1st two shots then 3rd shot blew hole straight through primer smoke everyplace and pucker factor sucked pants right up in there..
    no other pressure signs No problem with large primers.. Could I have seated them to low and caused to much pressure for small primers??
    ANY ..ANY HELP would be appreciated for these are going to be my competition loads in FEBRUARY for the Tennessee 600 yard shoot..
    THANKS TO ANYONE IN ADVANCE
    CCI small rifle primers, need a little more information.
    Did you use:
    CCI 400
    CCI 450
    CCI BR4
    CCI 41
    I’m going to guess CCI 400, which would explain pierced primer as cup for 400s isn’t quite as tough is cups used for others.


    Wiillk

    Sergeant of the Hide
    PX Member
    Minuteman
    May 18, 2020
    203
    191
    Always keep a few pounds of it around. (Of course we use it in Brenda Lea’s .243). It can work in cases as large as .25-06 though slower powders work much better. It is a powder that has real versatility. Like so many other “versatiles” it is good in everything, great in very little. I continue to use it in our .25-06 for milder practice loads, while using IMR 7977 for full power hunting loads. Sierra 117 SBT’s and IMR 4350 give excellent accuracy in that rifle.


    orkan

    Primal Rights, Inc.
    Commercial Supporter
    PX Member
    Minuteman
    Oct 27, 2008
    3,557
    1,732
    South Dakota, USA
    It's possible that H4350 is the single most versatile powder to ever be created.

    Quite amazing just how many cartridges in how many component combinations it will provide worthwhile results with. 6BR, 22BR, 6BRA, 6BRX, 6Dasher, 22-250 and its AI variants, 243win and all variants, 6.5creedmoor and all variants, 308win and nearly all variants, a massive swath of short magnums and mid magnums. 280AI and a massive swath of similar cartridges.

    It's quite a powder.


    FCS

    Gunny Sergeant
    Commercial Supporter
    PX Member
    Minuteman
    Jun 3, 2005
    2,145
    459
    ABQ, NM
    All boils down to CCI 400 not being up to the job.
    Loaded plenty of H4350 w/GM205M or BR4 w//o issue in 6.5x47 and 6.5 Creed small primer brass.

    Been discussed a time or 3 in the past, link to a thread about differences.

    Primers are hard to find, gotta use what you have / can find.
    Isn’t a brass, bullet or propellant issue, just a primer issue.

    CCCI 450s or BR4, FED GM205M / GM205MAR or Rem 7 1/2, will be a non issue with piercing.
    Starline is less case capacity than Hornady, not enough difference to cause pierced primer but to get same velocity, need to drop charge weight vs Hornady.

    IMR 4350 has usually needed larger charge weight to get same velocity, slightly slower burning vs H4350. At least from lot #s I’ve used.

    IMR4350 is a very useful powder for a lot of cartridges.
    223 & 6.5 Grendel, not so much.
    SAAMI chamber 308, heavy bullets and able to load longer OAL then IMR4350 is useful.

    • Haha
    Reactions: Snuby642

    Aftermath

    Recoil Fetishist
    PX Member
    Minuteman
  • May 14, 2013
    443
    456
    Idaho
    Pushes a 140 VLD at 3250 out my Charlie Robertson 280 Ackley Improved. This rifle is a 0.25MOA rifle when I can do my part.


    Snuby642

    Two Star General
    PX Member
    Minuteman
  • Feb 11, 2017
    5,351
    6,381
    With the lack of supplies and our recent communist takeover I have been in a pissy mood.

    I will not deleat my post in shame nor blame drinking nor dark of nite.

    Rather I will apologize for being an ass, upset with current events and having trouble cutting it the fuck loose.

    My bad.

    • Like
    Reactions: AKMarty and orkan

    orkan

    Primal Rights, Inc.
    Commercial Supporter
    PX Member
    Minuteman
    Oct 27, 2008
    3,557
    1,732
    South Dakota, USA
    I've used H4350 before all this Gov fake BS came to be..
    Was getting hole in hole accuracy..now I'm using IMR 4350 which is an awesome powder but I cant get my accuracy back..some people don't like all the questions but it's how to figure shit out and If they don't like it don't read the post I guess but that's me venting lol but any how just trying to get back on point with this powder if anyone has some good luck with 6.5 and IMR really appreciate any info on it..I've herd of it great in 7mm and 7-08
    Some barrels simply do not like certain powders.


    orkan

    Primal Rights, Inc.
    Commercial Supporter
    PX Member
    Minuteman
    Oct 27, 2008
    3,557
    1,732
    South Dakota, USA
    Got it ..yeah I have a foot bit of StaBall65 also cant get a good load on.
    But true as with bullets the barrel she likes what she likes..
    If you're trapped into using a specific powder, switching bullets will often allow you to get something workable.


    JOE62

    Private
    Minuteman
    May 30, 2018
    99
    29
    Went to range today with 6.5 creedmoor using 140 grain Custom Comp Nosler
    loaded 10 rounds small rifle primer and 10 rounds large primer
    with 41.8 grains IMR 4350 COAL 2779 changed from usual 2820..
    shot the large rifle primer first..No signs of pressure, shot dead on 3 in one hole at 100 yrs.
    then CCI small rifle primer noticed small shroom look to primer 1st two shots then 3rd shot blew hole straight through primer smoke everyplace and pucker factor sucked pants right up in there..
    no other pressure signs No problem with large primers.. Could I have seated them to low and caused to much pressure for small primers??
    ANY ..ANY HELP would be appreciated for these are going to be my competition loads in FEBRUARY for the Tennessee 600 yard shoot..
    THANKS TO ANYONE IN ADVANCE
    Use the CCI 450. The cup is thicker and harder.
    IMR 4350 makes tiny little clover leaves in my 300 Win mag with 150 grain bullets, is my go to for 30-06 and get good accuracy in my 6.5 Creedmoors. Also worked good in my 7mmRM. It may not be fancy but it works.

    Last edited:

    NoDopes

    Supporter
    Supporter
    Minuteman
    Dec 6, 2020
    52
    34
    North Texas
    Maybe this is totally obvious, but switching powders, you can't assume the node will be at the same velocity and seating depth.
    A full workup would be required again.
    Especially true for changing brass (i.e. blowing primer on same load)


    JOE62

    Private
    Minuteman
    May 30, 2018
    99
    29
    I measure my bullets base to ogive and weight sort them along with weight sorted brass. Once you go down the rabbit hole, there’s no getting out.

    • Like
    Reactions: NoDopes

    JOE62

    Private
    Minuteman
    May 30, 2018
    99
    29
    I skim turn my case necks to get the thickness consistent. Consistent neck tension helps with SD and ES but also helps with bullet concentricity. I used to convert Lapua 308 brass to 6.5 Creedmoor before they started making it. Had reduced case capacity though.
