Is .224 Valkyrie going to die out?

Islander

Sergeant of the Hide
PX Member
Minuteman
  • Nov 2, 2018
    345
    291
    Cody, WY
    Just bought a box of the 88 ELD’s. I’ve been testing the Sierra 77 and 95. Hopefully it will warm up a bit and I’ll give the Hornady bullets a try. I’ve had some great 4 shot groups and then pulled the fifth, lol.


    DacianMH

    Halmagenius
    Minuteman
    May 8, 2018
    95
    37
    Fort Worth, TX
    Curious what everyone thinks the fate of the .224 Valkyrie will be between it's problematic start with the 90 grain ammo problems and now the 6 ARC being the new AR flavor of the year.

    It looks like JP is getting out of the .224 Valkyrie game. They are no longer list .224 supermatch barrels as an option on their website, or as an option for any of their builds, and some retailers are blowing barrels out pretty cheap.

    I personally grew to love it. My expectations are a little more reasonable though. I only routinely shoot 100y to 800y now-a-days and I shoot it a lot so good barrel life and long range capability has kept this one alive for me. I mainly shoot 80gr ELDM, 88gr ELDM, 85.5gr Berger, and 90gr SMK. I reload so I’ve come out on top when it comes to cost. I shoot it exclusively in a Bighorn Origin bolt action setup with HS Precision DBM and it does well for me. Even on smaller to mediumish game it’s done well with the right bullet. I went through the growing pains with improper twist rates and chambers until I finally settled on the right combo for me. The 6arc has no appeal to me, I shoot a 6GT and 6.5 Creedmoor then skip straight to 300 WSM if I need large game capability. I still shoot a grendel but with 100gr ELDM, 107gr Sierra TMK and 108gr Lapua Scenars exclusively and keep the heavier 6.5’s for the Creedmoor.

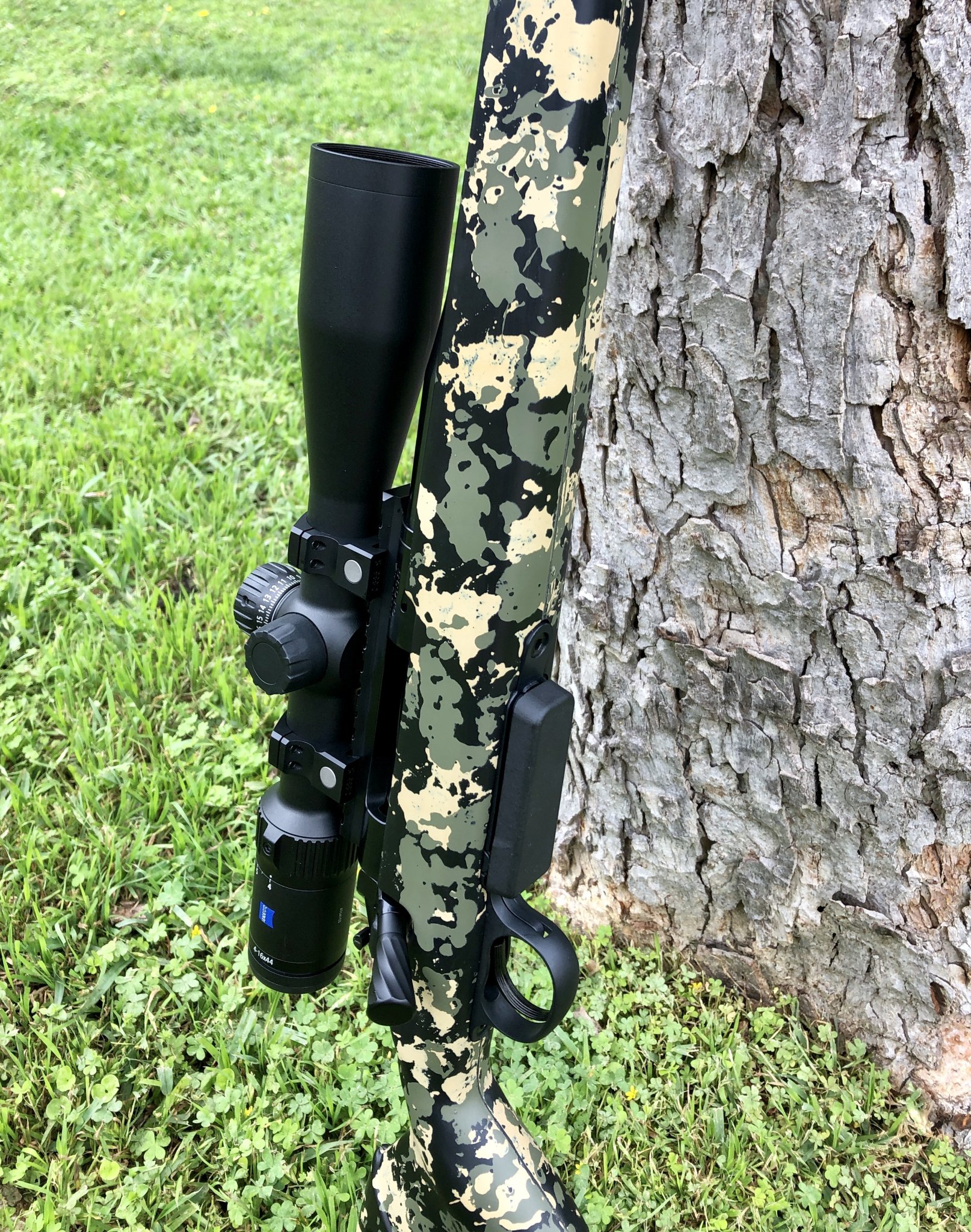

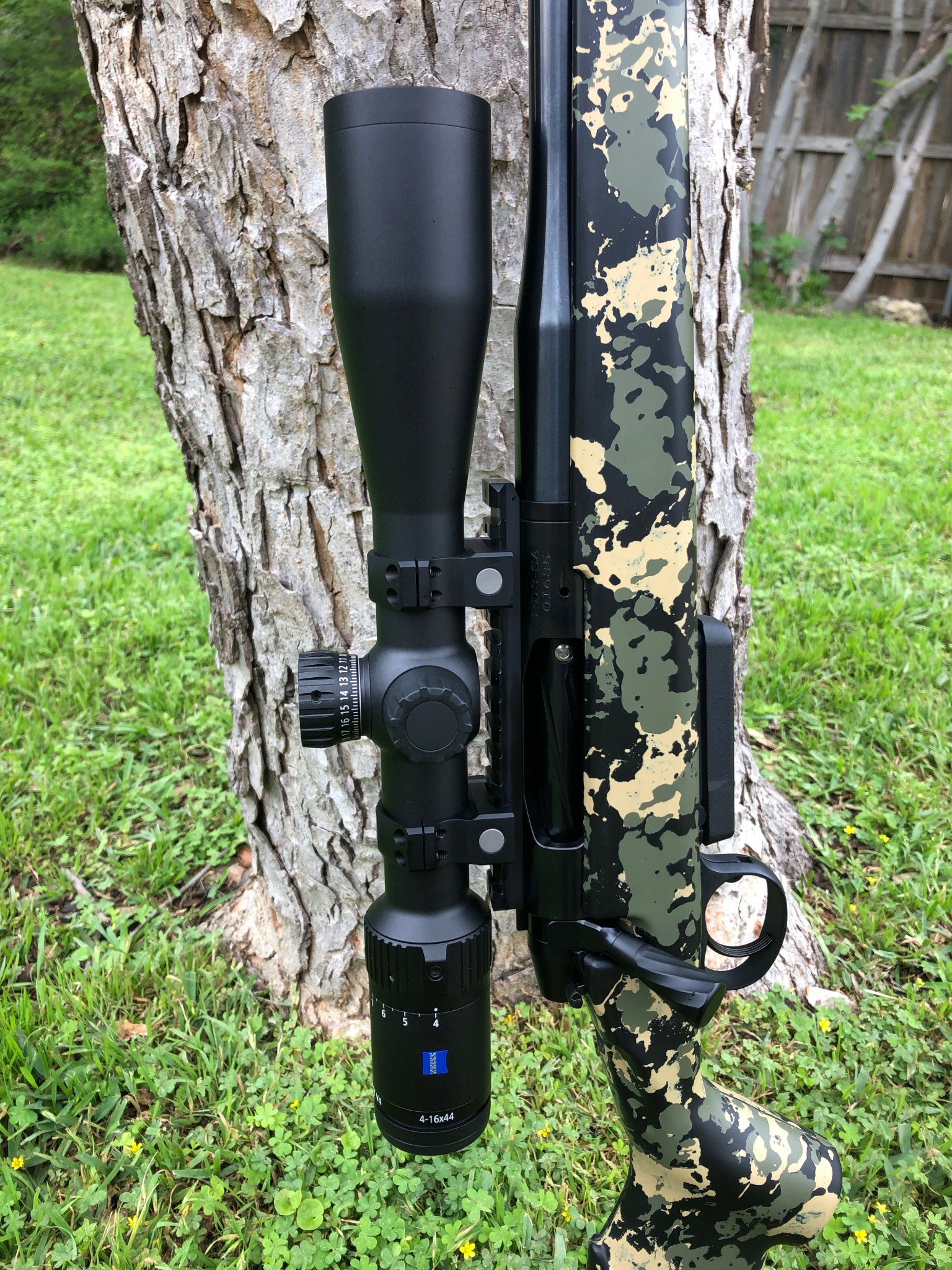

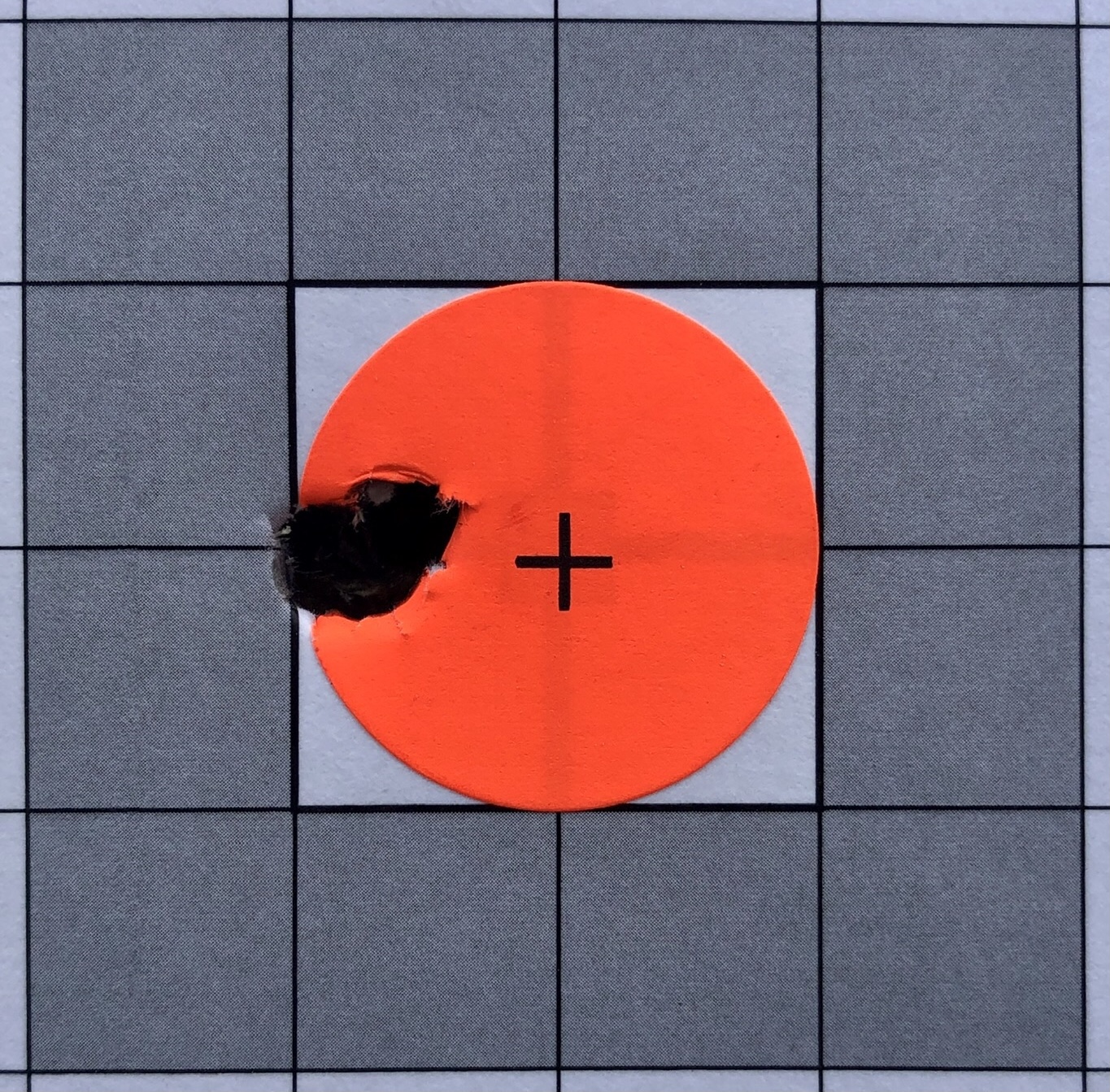

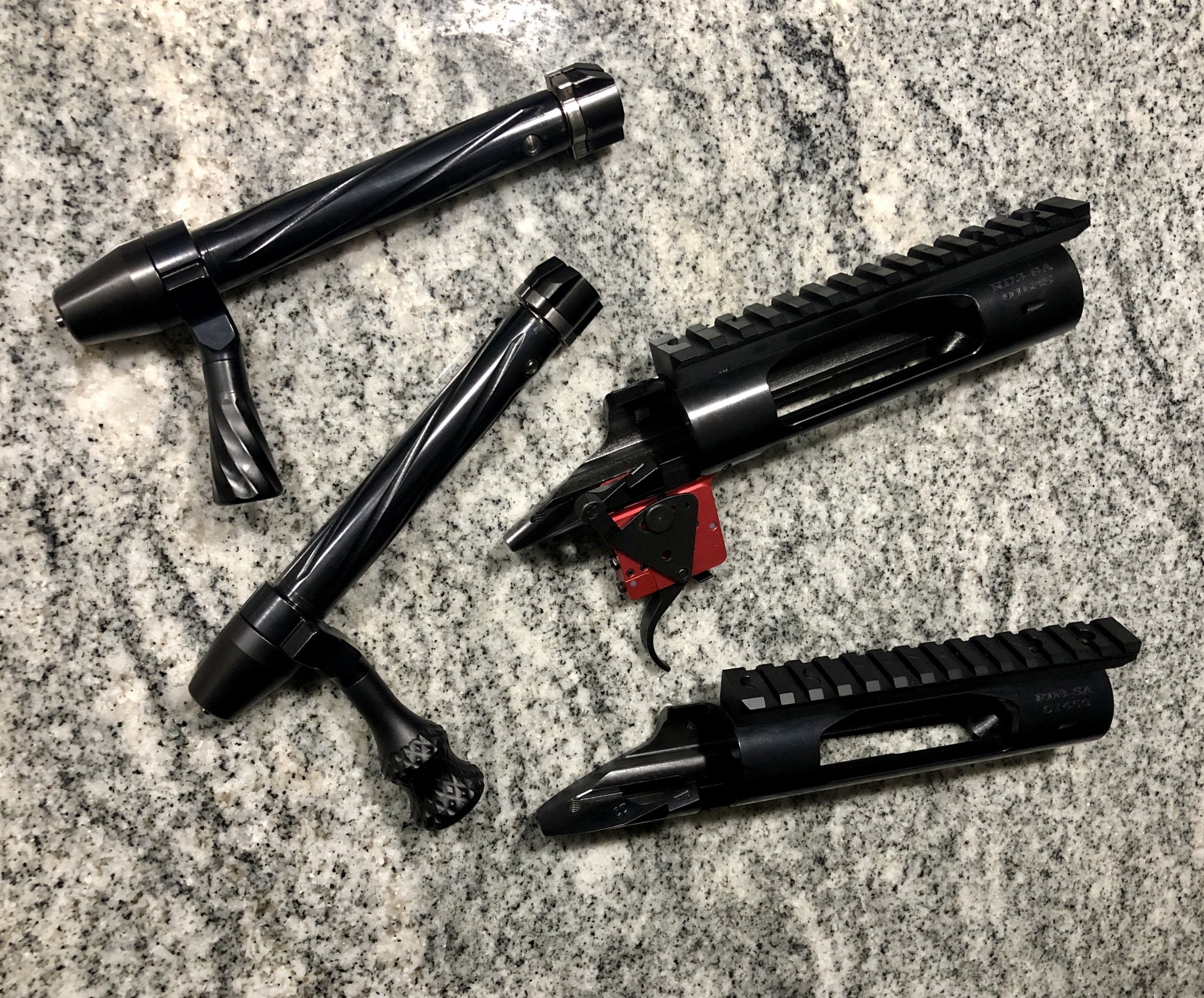

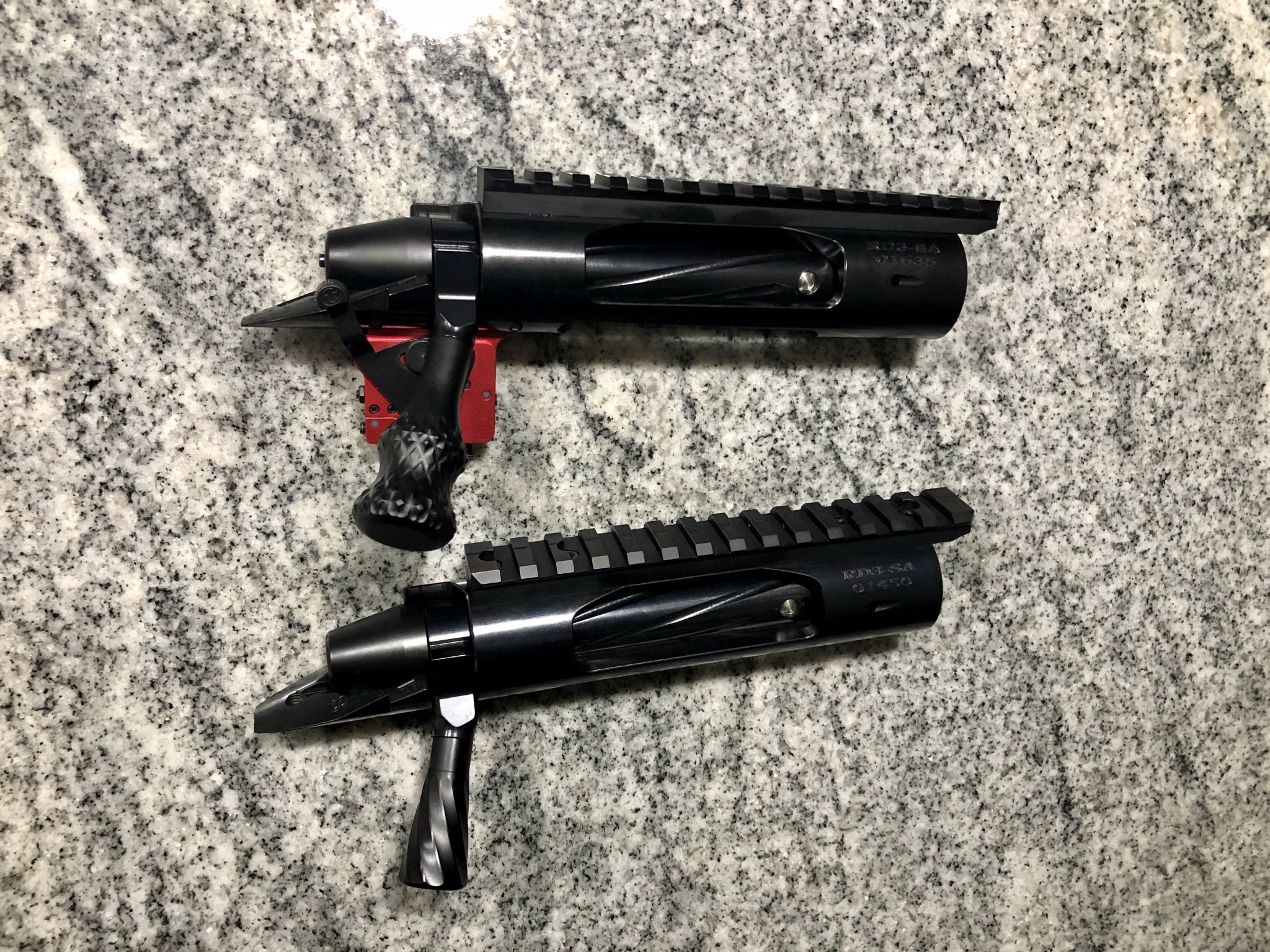

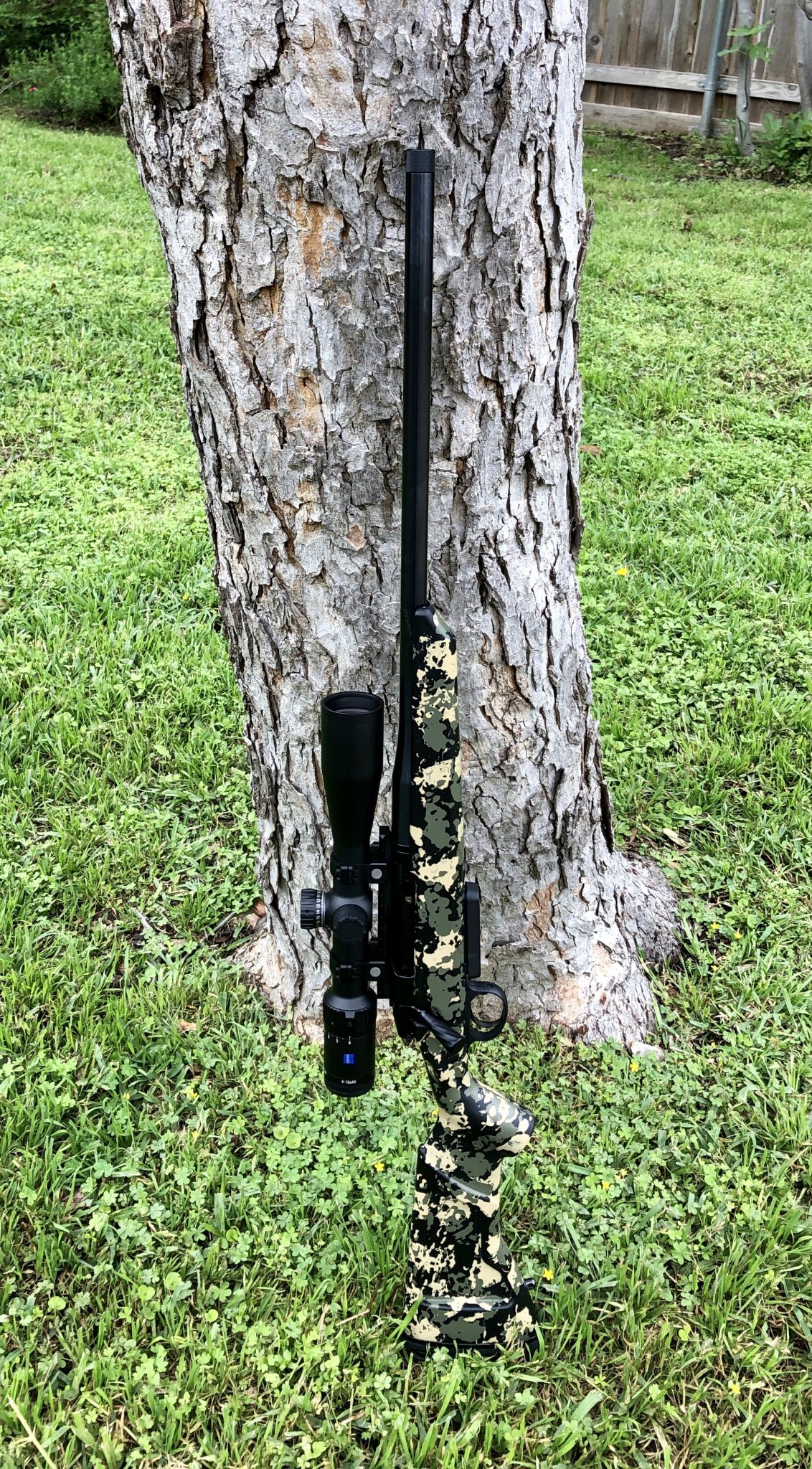

    here’s a couple groups with my setup.


    Attachments

    • 37E9EA51-10D4-4210-BE63-B5802633BEA2.jpeg
      408.7 KB · Views: 14
    • A6951066-059D-4D04-8D80-8CB1EAA7D9C5.jpeg
      819.6 KB · Views: 19
    • 3B54D129-9E28-4CE3-A15B-A00462D75D60.jpeg
      1 MB · Views: 21
    • 4619F5FE-B83C-42DD-957D-2E2CE9E25FAD.jpeg
      824.4 KB · Views: 20
    • 57602E5F-3271-4D69-B0AE-1C8B79180F88.jpeg
      1,016.8 KB · Views: 20
    • 01F1D8C8-512A-4C24-BB36-C667E9DEA98B.jpeg
      844.6 KB · Views: 18
    • BE0AF5D5-AAE2-48E7-9DA0-FB4200CA9048.jpeg
      927.3 KB · Views: 18
    Last edited:

    Rlb40x

    Private
    PX Member
    Minuteman
    May 2, 2012
    155
    97
    54
    Both of mine worked well out of the gate.
    The first was a 22” Shilen 6.5 twist and its a consistent hammer. I’ve made 1st round hits on P Dogs out to 750yds. Go to powders are RL 17, Win760 and BLC-2 with 90 and 95 SMKs. It also nearly matches my 6.5 Creedmoor dope to 1000. I accidentally used my creedmoor dope card with it once and it was working with 95 SMKs at 2650 FPS.
    I put a second one together and went with light weight parts for hunting.
    It’s not a hammer, but still sub MOA. I used an 18” BSF barrel for its weight. It’s a 7 twist and doesn’t like the 90s. The 90s average about 1 inch sometimes a touch over, I wasn’t planning on shooting 90s for this one so I wasn’t disappointed.
    It does shoot the 75 grain factory TMJs into .75 MOA consistently. It shoots the Federal 60 ballistic tips between .4-.7. I built it for a day time coyote hunting rifle. It’s not close to my Shilen barreled gun when it comes to group size but still plenty good for coyotes inside 500yds.
    It’s also the only thing in stock at near normal prices. I’ve been snatching up 200 rd cases of the federal 75s TMJ for $129. Picked up 7-8 cases recently.
    I’m vested pretty good in this round since it came about 3.5 years ago and didn’t have the problems some other guys had so I’m riding it out. My hunting Valkyrie I don’t load for “time constraints “ and the factory federal 60s do the job just fine, I’ve never had a “Runner” yet, all DRT.
    Some of you guys that are loading, try RL17 and plain ole WIN760 and see what happens.


    DacianMH

    Halmagenius
    Minuteman
    May 8, 2018
    95
    37
    Fort Worth, TX
    Both of mine worked well out of the gate.
    The first was a 22” Shilen 6.5 twist and its a consistent hammer. I’ve made 1st round hits on P Dogs out to 750yds. Go to powders are RL 17, Win760 and BLC-2 with 90 and 95 SMKs. It also nearly matches my 6.5 Creedmoor dope to 1000. I accidentally used my creedmoor dope card with it once and it was working with 95 SMKs at 2650 FPS.
    I put a second one together and went with light weight parts for hunting.
    It’s not a hammer, but still sub MOA. I used an 18” BSF barrel for its weight. It’s a 7 twist and doesn’t like the 90s. The 90s average about 1 inch sometimes a touch over, I wasn’t planning on shooting 90s for this one so I wasn’t disappointed.
    It does shoot the 75 grain factory TMJs into .75 MOA consistently. It shoots the Federal 60 ballistic tips between .4-.7. I built it for a day time coyote hunting rifle. It’s not close to my Shilen barreled gun when it comes to group size but still plenty good for coyotes inside 500yds.
    It’s also the only thing in stock at near normal prices. I’ve been snatching up 200 rd cases of the federal 75s TMJ for $129. Picked up 7-8 cases recently.
    I’m vested pretty good in this round since it came about 3.5 years ago and didn’t have the problems some other guys had so I’m riding it out. My hunting Valkyrie I don’t load for “time constraints “ and the factory federal 60s do the job just fine, I’ve never had a “Runner” yet, all DRT.
    Some of you guys that are loading, try RL17 and plain ole WIN760 and see what happens.
    I’m curious about the win 760 I have a few lbs of that.


    Mxracer532

    Private
    PX Member
    Minuteman
    Mar 6, 2013
    256
    55
    WA State
    Both of mine worked well out of the gate.
    The first was a 22” Shilen 6.5 twist and its a consistent hammer. I’ve made 1st round hits on P Dogs out to 750yds. Go to powders are RL 17, Win760 and BLC-2 with 90 and 95 SMKs. It also nearly matches my 6.5 Creedmoor dope to 1000. I accidentally used my creedmoor dope card with it once and it was working with 95 SMKs at 2650 FPS.
    I put a second one together and went with light weight parts for hunting.
    It’s not a hammer, but still sub MOA. I used an 18” BSF barrel for its weight. It’s a 7 twist and doesn’t like the 90s. The 90s average about 1 inch sometimes a touch over, I wasn’t planning on shooting 90s for this one so I wasn’t disappointed.
    It does shoot the 75 grain factory TMJs into .75 MOA consistently. It shoots the Federal 60 ballistic tips between .4-.7. I built it for a day time coyote hunting rifle. It’s not close to my Shilen barreled gun when it comes to group size but still plenty good for coyotes inside 500yds.
    It’s also the only thing in stock at near normal prices. I’ve been snatching up 200 rd cases of the federal 75s TMJ for $129. Picked up 7-8 cases recently.
    I’m vested pretty good in this round since it came about 3.5 years ago and didn’t have the problems some other guys had so I’m riding it out. My hunting Valkyrie I don’t load for “time constraints “ and the factory federal 60s do the job just fine, I’ve never had a “Runner” yet, all DRT.
    Some of you guys that are loading, try RL17 and plain ole WIN760 and see what happens.

    I just got a 1-7 Saturn barrel and upper for a AR build. I plan on this being my night hunting setup for coyotes. Some days later in the season when I expected doubles.
    My brother built a Valkyrie last yr (palmetto everything basically so budget) and I'll be damned if that thing isn't an absolute tack driver. Most accurate AR I have ever seen.
    If I remember correctly he shoots 90g Berger Full bores.


    LRRPF52

    Sergeant
    PX Member
    Minuteman
    Mar 13, 2012
    1,054
    651
    SLC, Utah
    I saw a lot of ammo for it and a factory AR-15 chambered in it at a local gun store 2 weeks ago. They had a .300 BLK AR-15 with a PRI 6.8 mag in it, which caught my eye. I asked the sales clerk why that 6.8 mag was in there, and he mumbled something about it as if it was meant to be.

    I took a look at the other AR-15 left on the shelf (everything else was of course gone), and it was an 18” .224 Valkyrie. I told him that PRI 6.8 mag belongs in the Valkyrie since that’s the parent case. “Oh.."

    They had several stacks of different factory loads for it as well, priced at $11.99 per box. Most of the customers and the clerks had never heard of .224V. I was thinking of buying the rifle just to pull the barrel and pipe it with something more common as the panic ensues.

    • Like
    Reactions: lash

    Namekagon

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 22, 2018
    289
    364
    Wausau, WI
    I'm surprised that nobody on here (that I've seen, I skimmed the thread) is using the Valkyrie for 55gr bullets for hunting. Thats why i built mine, to get more knockdown power out of an AR for predators. Bang-flops are much preferred in the dark, and the AR doesn't hit like a 22-250 does. Neither does the Valkyrie, but its closer, and mine shoots sub MOA with a JP barrel.

    • Like
    Reactions: Constructor

    RTV

    Rock the Vote
    PX Member
    Minuteman
    Nov 30, 2019
    215
    112
    i think all the AR15 specialty cartridges with the exception of maybe 300 BO are going to die out if/when the new 6.8mm Cartridge the NGSW program is cooking up becomes available.

    i know i am more excited for that than anything they have been trying to cram into the AR15 the last few years and just winding up with a less reliable system overall.

    • Like
    Reactions: Constructor

    Mxracer532

    Private
    PX Member
    Minuteman
    Mar 6, 2013
    256
    55
    WA State
    I'm surprised that nobody on here (that I've seen, I skimmed the thread) is using the Valkyrie for 55gr bullets for hunting. Thats why i built mine, to get more knockdown power out of an AR for predators. Bang-flops are much preferred in the dark, and the AR doesn't hit like a 22-250 does. Neither does the Valkyrie, but its closer, and mine shoots sub MOA with a JP barrel.

    This is exactly why I am doing mine. If they would make 75g bullets that are actually Varmint bullets it would be awesome. But I do plan on trying lighter bullets for coyotes and leaving the long range stuff to my 7SAUM.

    • Like
    Reactions: Namekagon

    Namekagon

    Sergeant of the Hide
    PX Member
    Minuteman
    Mar 22, 2018
    289
    364
    Wausau, WI
    I know that 55gr vmax in my 22-250 were cruising at 3600. They were merciless when they hit. Valkyrie is giving 3300 for 60's according to Federal, though I'm sure thats for a 24" barrel and mine's a 20". Haven't had time to load any yet, but I would think 55's would be close to that 3300 in my gun.


    Mxracer532

    Private
    PX Member
    Minuteman
    Mar 6, 2013
    256
    55
    WA State
    I know that 55gr vmax in my 22-250 were cruising at 3600. They were merciless when they hit. Valkyrie is giving 3300 for 60's according to Federal, though I'm sure thats for a 24" barrel and mine's a 20". Haven't had time to load any yet, but I would think 55's would be close to that 3300 in my gun.
    Mine is also a 20". 1-7 so hopefully it shoots the light bullets just as well.


    Constructor

    Private
    PX Member
    Minuteman
    I'm surprised that nobody on here (that I've seen, I skimmed the thread) is using the Valkyrie for 55gr bullets for hunting. Thats why i built mine, to get more knockdown power out of an AR for predators. Bang-flops are much preferred in the dark, and the AR doesn't hit like a 22-250 does. Neither does the Valkyrie, but its closer, and mine shoots sub MOA with a JP barrel.
    With all of the talk on the forums about long range it makes many think that everyone shoots 1000 yds but the long range crowd isn't as big as it seems. The defensive crowd (pistols) is the largest followed by hunters but hunters aren't so quick to think the latest whiz bang is needed to hunt the animals that they have been hunting their whole life with some other 70-100 year old cartridge.
    ETA I've been shooting a 5.56x42(6.8 necked down to .224) since 2007. It is apx 100fps faster than a Valkyrie, shoots a 55 Nosler 3480-3520 out of a 20" barrel. Good yote round but not needed for pdogs since I don't try to hit them at 400yds.

    Last edited:

    reubenski

    First Sergeant
    PX Member
    Minuteman
    Jun 8, 2008
    4,372
    4,015
    41
    Colorado Springs, CO
    i think all the AR15 specialty cartridges with the exception of maybe 300 BO are going to die out if/when the new 6.8mm Cartridge the NGSW program is cooking up becomes available.

    i know i am more excited for that than anything they have been trying to cram into the AR15 the last few years and just winding up with a less reliable system overall.
    Life is what happens while you're making plans. SOCOM has been trying to field a 338 for 12 years, a 6.5CM upper for 5yrs. Meanwhile the. 224V and 6ARC were introduced and I built a 22 Grendel. Round and round we go...


    acudaowner

    Old Salt
    PX Member
    Minuteman
    Dec 26, 2018
    4,259
    2,933
    some day everything will die out and get replaced by something newer and more expensive . I'll keep my 224 while its not my favorate gun its still nice enough that I would want to keep using it for many years to come .

    • Like
    Reactions: Bullspotter

    346ci

    Sergeant
    PX Member
    Minuteman
  • Mar 26, 2010
    1,209
    160
    NC
    From all the signs I'm seeing, .224V still has good priced ammo available out there. You can't say that about other AR calibers.


    tarheel7734

    Quiet Professional
    PX Member
    Minuteman
  • May 25, 2014
    149
    122
    Asheville NC
    There is nothing hard about installing a 6.8 barrel/bolt and getting it to run 100% as a 5.56 would.

    Many deer and hogs have been taken with the 6.8, one of the best if not the best rounds in the AR15 platform for hunting.

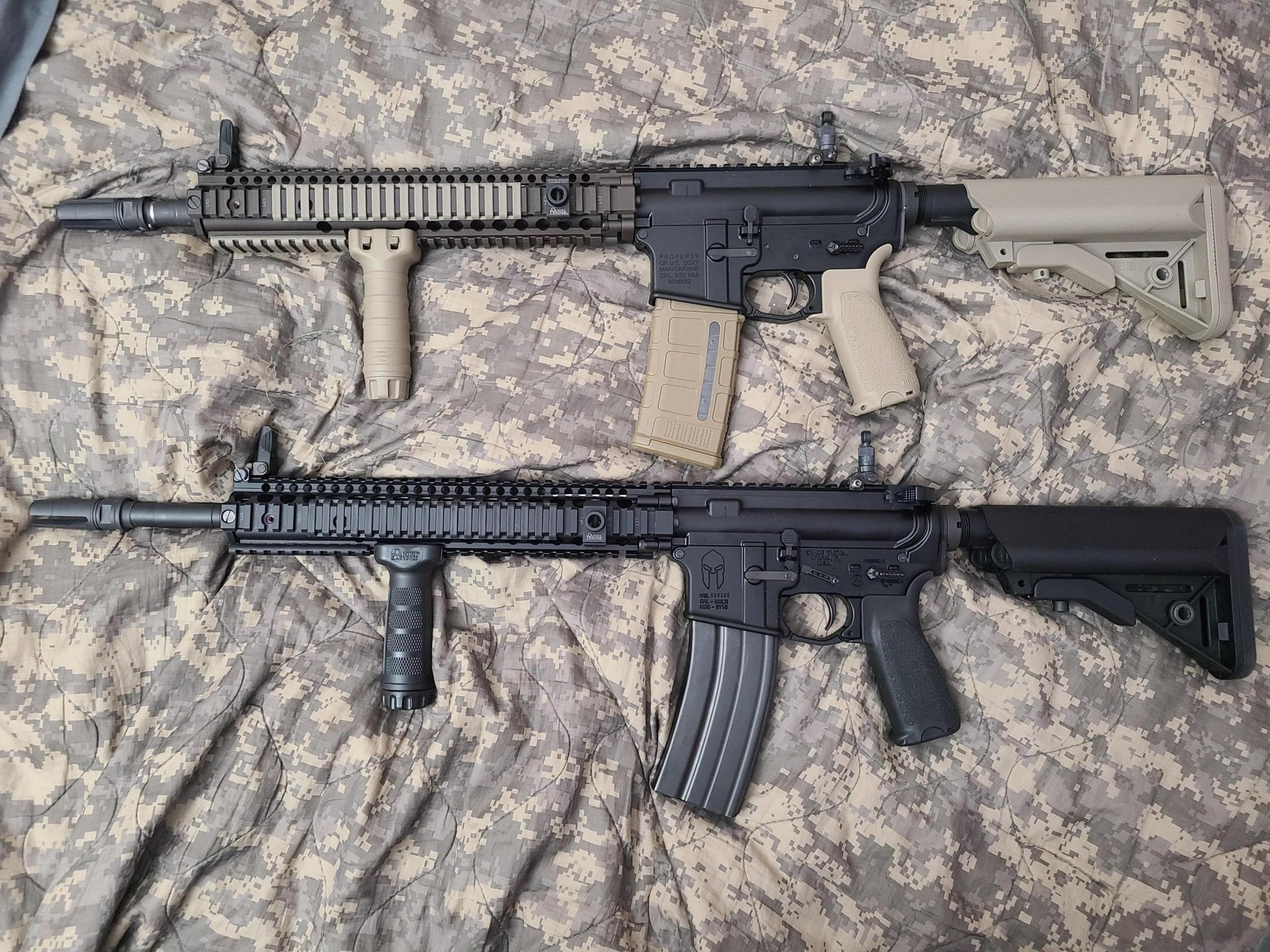

    I agree completely. I just sold my 6.8 because I really needed cash. I loved that rifle and was a piece of cake ti build. Built it like a block ii but all black.


    Attachments

    • 7f2g8AH.jpg
      756.4 KB · Views: 6

    fdavidparker

    Private
    PX Member
    Minuteman
    Sep 12, 2012
    37
    10
    I though about trying to build a precision ar15 that shoots good groups at 1000 or longer with an economical ar15 cartridge (valkarie, 6mm ARC or .223). The more I looked at the build, it became obvious that I aught to focus on inside 800 yards and stick to my bolt guns and their optimized cartridges for 1000 yards and beyond. AR15 cartridges just don't hold up for long distance shooting. So, why would a Valkarie be better than .223 inside 800 yds. In my mind, it's not. Should be a wildcat.


    NCHillbilly

    Libertata Aut Morte
    PX Member
    Minuteman
  • Jul 7, 2012
    832
    956
    The occupied states of America
    I though about trying to build a precision ar15 that shoots good groups at 1000 or longer with an economical ar15 cartridge (valkarie, 6mm ARC or .223). The more I looked at the build, it became obvious that I aught to focus on inside 800 yards and stick to my bolt guns and their optimized cartridges for 1000 yards and beyond. AR15 cartridges just don't hold up for long distance shooting. So, why would a Valkarie be better than .223 inside 800 yds. In my mind, it's not. Should be a wildcat.
    Compare exterior ballistics of a 77gr .223 at 2750 vs an 80gr valkyrie at 2900 and it becomes obvious. Even 88gr pills at 2800+ are an improvement. Not saying it hammers like a 300wm, but it carries more energy and flies flatter than a .223. I can't speak for the 6mm arc. Haven't built or shot one of them (yet).

    • Like
    Reactions: Constructor

    lash

    Swamp Rat
    PX Member
    Minuteman
    Sep 28, 2012
    6,806
    7,798
    61
    Central Florida
    I though about trying to build a precision ar15 that shoots good groups at 1000 or longer with an economical ar15 cartridge (valkarie, 6mm ARC or .223). The more I looked at the build, it became obvious that I aught to focus on inside 800 yards and stick to my bolt guns and their optimized cartridges for 1000 yards and beyond. AR15 cartridges just don't hold up for long distance shooting. So, why would a Valkarie be better than .223 inside 800 yds. In my mind, it's not. Should be a wildcat.
    In your mind it may not be, but in reality is is better in an AR for within 800 yards.

    This is not to say that it is the absolute best AR cartridge nor that it is even better for longer ranges than others might be, but it is most certainly a better choice for shooting 600-800 than .223 in the same platform.

    • Like
    Reactions: Constructor

    Constructor

    Private
    PX Member
    Minuteman
    In your mind it may not be, but in reality is is better in an AR for within 800 yards.

    This is not to say that it is the absolute best AR cartridge nor that it is even better for longer ranges than others might be, but it is most certainly a better choice for shooting 600-800 than .223 in the same platform.
    Agree, If shooting long range with an AR15 the Valkyrie or 6mmARC are the best 2 choices, they run very close in drop and drift depending on bullet choice.


    sparky702

    Private
    Minuteman
    May 12, 2020
    54
    45
    My draw to the valkyrie was the 90 grain fusion . seldom do I shoot at deer over 200 yds . it's just the nature of the land I own . So I bought a psa 20 inch upper with a 1/6.5 twist . the fusions group very well right at 1 moa . I was surprised at how well it shoot's the 75 grain federal , the 60 grain nosler's and 88 grain hornady . This was my first season hunting with the valk and I got my chance . I shot a decent size buck he had a good size body but his rack sucked . any way it was a 100 yds down hill shot with the 90 grain fusion I hit him right in the seem just above the elbow and dropped him in his tracks . I liked the fact that the low recoil helped me stay on the scope I saw the impact and watched him drop . so the rifle performed exactly like I wanted . the bullet took out about a 2 inch piece of rib and exited the other side with a 3 inch hole . I doubt it will replace my 20 inch 5.56 I shoot in prs gas gun matches but I didn't buy the upper for that particular game , I am going to load some 77 grain matchkings just because I cant leave well enough alone .

    • Like
    Reactions: lash and Islander

    Islander

    Sergeant of the Hide
    PX Member
    Minuteman
  • Nov 2, 2018
    345
    291
    Cody, WY

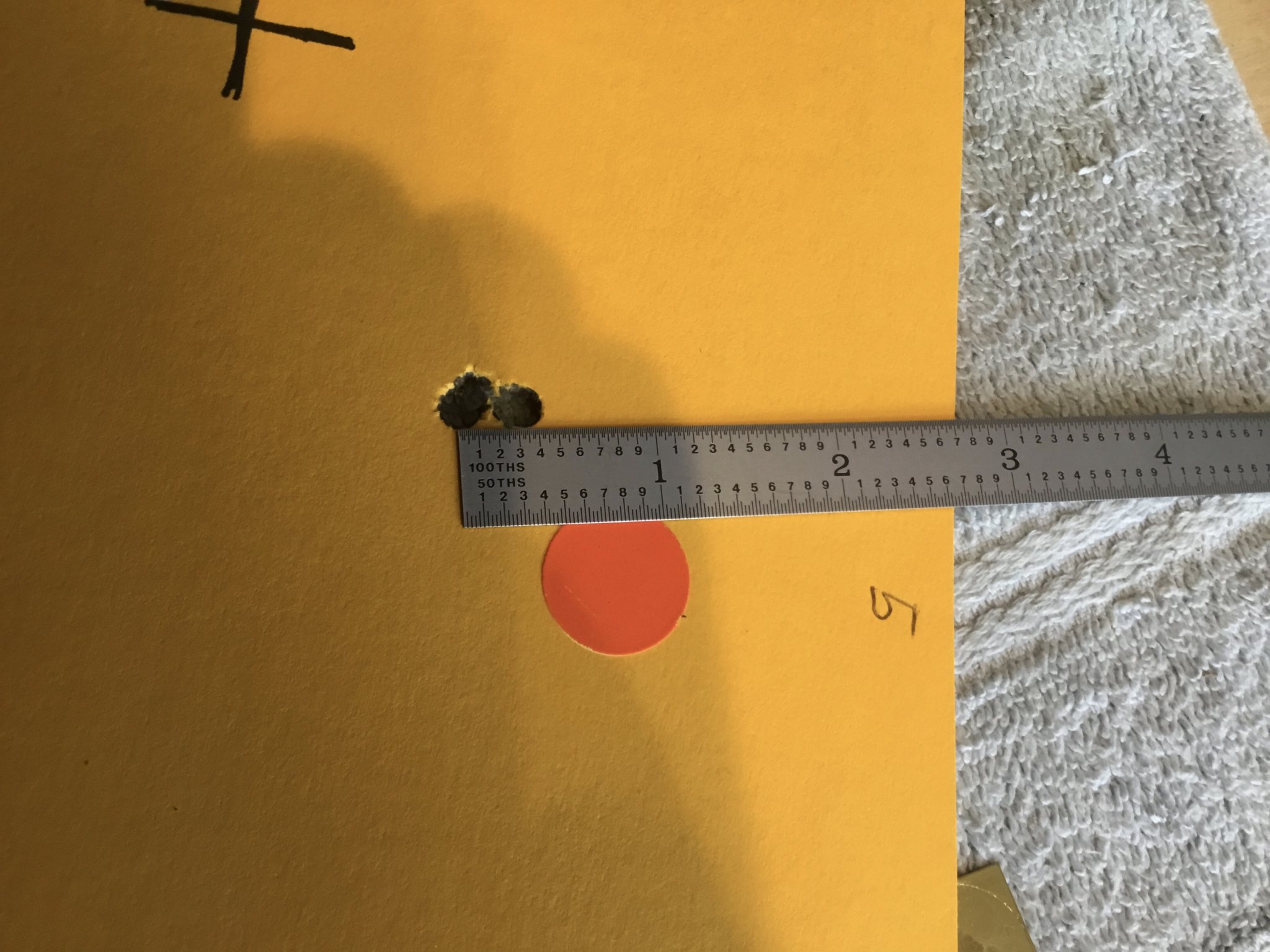

    Did some more load work this morning. My Shilen barrel seems to love the Hornady 88 ELD’s. Five shots at 100 yds.


    Attachments

    • 9E6366EB-0F30-4ECC-9624-818019F8827C.jpeg
      374.9 KB · Views: 11

    Islander

    Sergeant of the Hide
    PX Member
    Minuteman
  • Nov 2, 2018
    345
    291
    Cody, WY
    Got the Sierra 95’s a little tighter as well. Time to see what they will do greater than 100 yds.


    Attachments

    • DCCC9F28-2864-43A6-A69D-98C29096DE0C.jpeg
      272.8 KB · Views: 8

    mensajd

    Quod Erat Demonstrandum
    PX Member
    Minuteman
    Feb 17, 2017
    83
    32
    Did any of the recent Nosler sponsored cartridges actually become successful?

    The Valkyrie had early teething problems, in part due to a bad batch or reamers: http://www.224valkyrieforum.com/forums/index.php?topic=75.0 With the correct reamer, the early accuracy issues seem to be resolved, but it's hard to recover from a bad initial reputation.

    Last edited:

    LRRPF52

    Sergeant
    PX Member
    Minuteman
    Mar 13, 2012
    1,054
    651
    SLC, Utah
    I'm thinking it was the .222 magnum. Big difference.

    The primary small bore case they were working with at ArmaLite was the .222 Remington, which had been introduced in 1950. The Army Infantry Board kept moving the goal posts for the steel helmet perforation requirement, since the Ordnance Department had doubled-down on the .30 caliber as the only suitable bore diameter for an infantry rifle. There was a minority group of engineers and military thinkers that actually dated back to the 1800s who wanted to experiment more with smaller bores with very high velocity wounding mechanisms, which was seen as a radical approach to infantry rifle chamberings.

    Spring, 1957
    Remembering General Wyman’s favorable bent toward the AR-10 design, ArmaLite had also begun work on a scaled down version of the rifle. But this design, credited to John Peck, also uses the same small barrel extension as the AR-11. After the failure of the AR-11’s barrel extension in testing, work is discontinued on Peck’s design. Robert Fremont and L. James Sullivan are eventually tasked with starting from scratch in scaling down the AR-10 to .222 Remington.

    Concurrently, Earle Harvey of Springfield Armory designs a lengthened .222 Remington case to meet the new 500 yard requirement. Remington loads 10,000 unheadstamped .224 Springfield cartridges: 9,500 with 55 grain projectiles and 500 with the 68 grain “M1 ball homologue.” Albert J. Lizza designs a rifle around the cartridge, using the best features of Harvey’s 7.62mm NATO T25 and T47 rifle prototypes, along with items inspired by the T22 (a full-auto variant of the M1 Rifle) and the T44 (pre-M14). It also appears that a T25 may have been converted to chamber the cartridge. Once Dr. Carten learns of Harvey and Lizza’s development, all further work on the .224 Springfield is ordered to cease. Ironically, Dr. Carten cannot claim that Springfield Armory is not in the weapon building business as he did two years earlier with Aberdeen. However, Carten is busy shepherding the T44 rifle into what is now known as the M14. No competition for resources (or attention) could be brooked.


    May, 1957
    After a visit to Fort Benning, Stoner begins to tweak the .222 Remington round to fit the Infantry Board’s penetration requirements. First, Stoner and Sierra’s Frank Snow modify the .224″ 68 grain “M1 ball homologue” to 55 grains by shortening the bearing length and the boattail, while maintaining the original 7-caliber ogive and 9-degree boattail. The new projectile is also produced by Sierra. Robert Hutton uses Speer’s Ballistic Calculator to estimate the muzzle velocity need to provide the desired performance at 500 yards. The results indicate a muzzle velocity of 3,300 fps with the 55 grain bullet will be required. Hutton begins load development with IMR 4198, IMR 3031, and an unnamed Olin ball powder. Using a Remington Model 722 with a 22″ Apex bull barrel and a Lyman 25x scope, Hutton successfully perforates US helmets at 500 yards during a public demonstration. However, testing also indicates that the .222 Remington cannot achieve the required velocity without excessive chamber pressure. Stoner contacts Winchester and Remington about increasing the case capacity; Remington accepts the request. (This refusal is hardly surprising since Winchester had their own SCHV rifle and cartridge in the works.) The resulting cartridge is designated the .222 Special.

    George Sullivan files a patent application for the forearm assembly used on the early AR-10 and AR-15 prototypes.

    5.56 Timeline


    One thing that is interesting about the AR-15 development is that once DoD/WH/USAF inertia counter to the Army Ordnance Board’s attempts to sabotage the AR-15 hit escape velocity, one of the Ordnance Board engineers wanted to totally redesign it around a 6mm or .257 BTFMJ with a higher BC than what was possible with .224” bullets. This would have required slightly enlarging the receivers and mag well in all directions, since the proposed cartridge would have a larger base diameter, longer COL, and more case capacity to keep the pressures down while being able to meet the steel helmet perforation requirement and provide more bullet mass as a wounding mechanism, as well as a barrier-defeat solution.

    That effort was seen as another attempt to sabotage the AR-15 in order to allow them to fix all the production problems with the M-14, and at least get the AR-15 killed for the Army.

    They pressed ahead with the .222 Remington Special instead, later type-classifying it as the 5.56x45mm M193 and M196 (tracer).


    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,141
    1,782
    58
    Ingleside, Tx
    The primary small bore case they were working with at ArmaLite was the .222 Remington, which had been introduced in 1950. The Army Infantry Board kept moving the goal posts for the steel helmet perforation requirement, since the Ordnance Department had doubled-down on the .30 caliber as the only suitable bore diameter for an infantry rifle. There was a minority group of engineers and military thinkers that actually dated back to the 1800s who wanted to experiment more with smaller bores with very high velocity wounding mechanisms, which was seen as a radical approach to infantry rifle chamberings.

    Spring, 1957
    Remembering General Wyman’s favorable bent toward the AR-10 design, ArmaLite had also begun work on a scaled down version of the rifle. But this design, credited to John Peck, also uses the same small barrel extension as the AR-11. After the failure of the AR-11’s barrel extension in testing, work is discontinued on Peck’s design. Robert Fremont and L. James Sullivan are eventually tasked with starting from scratch in scaling down the AR-10 to .222 Remington.

    Concurrently, Earle Harvey of Springfield Armory designs a lengthened .222 Remington case to meet the new 500 yard requirement. Remington loads 10,000 unheadstamped .224 Springfield cartridges: 9,500 with 55 grain projectiles and 500 with the 68 grain “M1 ball homologue.” Albert J. Lizza designs a rifle around the cartridge, using the best features of Harvey’s 7.62mm NATO T25 and T47 rifle prototypes, along with items inspired by the T22 (a full-auto variant of the M1 Rifle) and the T44 (pre-M14). It also appears that a T25 may have been converted to chamber the cartridge. Once Dr. Carten learns of Harvey and Lizza’s development, all further work on the .224 Springfield is ordered to cease. Ironically, Dr. Carten cannot claim that Springfield Armory is not in the weapon building business as he did two years earlier with Aberdeen. However, Carten is busy shepherding the T44 rifle into what is now known as the M14. No competition for resources (or attention) could be brooked.


    May, 1957
    After a visit to Fort Benning, Stoner begins to tweak the .222 Remington round to fit the Infantry Board’s penetration requirements. First, Stoner and Sierra’s Frank Snow modify the .224″ 68 grain “M1 ball homologue” to 55 grains by shortening the bearing length and the boattail, while maintaining the original 7-caliber ogive and 9-degree boattail. The new projectile is also produced by Sierra. Robert Hutton uses Speer’s Ballistic Calculator to estimate the muzzle velocity need to provide the desired performance at 500 yards. The results indicate a muzzle velocity of 3,300 fps with the 55 grain bullet will be required. Hutton begins load development with IMR 4198, IMR 3031, and an unnamed Olin ball powder. Using a Remington Model 722 with a 22″ Apex bull barrel and a Lyman 25x scope, Hutton successfully perforates US helmets at 500 yards during a public demonstration. However, testing also indicates that the .222 Remington cannot achieve the required velocity without excessive chamber pressure. Stoner contacts Winchester and Remington about increasing the case capacity; Remington accepts the request. (This refusal is hardly surprising since Winchester had their own SCHV rifle and cartridge in the works.) The resulting cartridge is designated the .222 Special.

    George Sullivan files a patent application for the forearm assembly used on the early AR-10 and AR-15 prototypes.

    5.56 Timeline


    One thing that is interesting about the AR-15 development is that once DoD/WH/USAF inertia counter to the Army Ordnance Board’s attempts to sabotage the AR-15 hit escape velocity, one of the Ordnance Board engineers wanted to totally redesign it around a 6mm or .257 BTFMJ with a higher BC than what was possible with .224” bullets. This would have required slightly enlarging the receivers and mag well in all directions, since the proposed cartridge would have a larger base diameter, longer COL, and more case capacity to keep the pressures down while being able to meet the steel helmet perforation requirement and provide more bullet mass as a wounding mechanism, as well as a barrier-defeat solution.

    That effort was seen as another attempt to sabotage the AR-15 in order to allow them to fix all the production problems with the M-14, and at least get the AR-15 killed for the Army.

    They pressed ahead with the .222 Remington Special instead, later type-classifying it as the 5.56x45mm M193 and M196 (tracer).
    The .224 Special became the .222 magnum (apparently), which was the basis for the .204 Ruger.
    You are very correct, while the original design was centered around the .222, it soon moved on to what eventually became the 5.56x45 because it could not meet the ever changing requirements.
    Interesting development for sure.


    LRRPF52

    Sergeant
    PX Member
    Minuteman
    Mar 13, 2012
    1,054
    651
    SLC, Utah
    The .224 Special became the .222 magnum (apparently), which was the basis for the .204 Ruger.
    You are very correct, while the original design was centered around the .222, it soon moved on to what eventually became the 5.56x45 because it could not meet the ever changing requirements.
    Interesting development for sure.
    Outside of the .30 Carbine wildcats necked down to .224”, there were at least 3 different .224” cartridges associated with the SCHV at the time:

    Left: The already established and in-production .222 Remington
    Center: The .222 Remington Special prototype cartridge that became .223 Remington and 5.56x45
    Right: The T65 .224 Springfield which became the .222 Remington Magnum



    Springfield SCHV Infantry Rifle in .224 Springfield





    All of the SCHV cartridges in this category were based on the .222 Remington with cases lengthened to meet the Army’s steel helmet perforation requirement while managing the chamber pressure.

    .224 Springfield/T65 (.224 Rem Mag) is a 2.280” COL cartridge, so it would have required a slightly larger magazine internal length that would need specs for allowance of tolerance variation in mass production.

    In hindsight, they could have exceeded the 500yd steel helmet perforation test by sticking with .222 Rem and putting a sleek secant ogive with boat tail projectile in it, but muzzle velocity would have been reduced if the bullet would have weighed more than the 68gr flat base they were working with initially.

    Coming back full circle to the Valkrie, it’s interesting that at least one of the engineers proposed a cartridge based on the .25 Remington but using a more modern Spitzer bullet with a nice boat tail and higher BC. This would give them the case capacity to drive velocity without pushing pressure too crazy, and enough projectile mass to play with the shape to optimize energy retention at 500yds to perforate the steel helmet. He basically proposed a .22-.25 Rem SPC with longer COL in the early 1960s, but it never went anywhere.

    The medium rimless cartridge line-up from the turn of the Century included .25 Remington, .30 Remington, and .32 Remington in the Remington Model 8 semi-automatic rifle, (which the AK gets its safety/selector from).

    Fast-forward several decades and the case for those cartridges was revived with the 6.8 Remington SPC, a .30 Remington case cut down and necked-down to .277” to fit into the AR-15 magazine well. I really think there was a missed opportunity to go with a .257” bore with that case in the AR-15, and while there are wildcats that do exactly that, none of them are well-known or picked up by any major company.

    Remington Model 8s in .25 Rem, .30 Rem, .32 Rem., and .35 Rem (.35 Rem has larger case head of .458”):




    So there is quite a history behind the evolution to .224 Valkyrie but for cartridges with different purposes. You would think that the industry would be more receptive to it, but the troubled start of getting it to shoot accurately in AR-15s does not bode well.

    If you look at this and many other threads or videos, you’ll see shooters who have bolt guns chambered in it that shoot lights-out, while a lot of the AR-15s just don’t seem to hold a group well in many cases. I know there was extensive effort from JP and other respected shops who invested tens of thousands of dollars trying to get it to shoot consistently with no-joy.

    I think one of the biggest problems is trying to set the chamber up for the loaded factory ammo spread from Federal, ranging from the 60gr Nosler Ballistic Tip all the way up to the 90gr SMK. With a conventional freebore, they put the leade in the middle of where it should work ok for all of these bullets, and spec’d the reamer that way.

    Then you have the after-market where a laundry list of shops who think they can do it better, with entry-level barrel prices sold en-masse, start cranking out product without having really vetted their process in complying with SAAMI and the bullet requirements of the 90gr SMK in particular.

    • Like
    Reactions: Islander

    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,141
    1,782
    58
    Ingleside, Tx
    Outside of the .30 Carbine wildcats necked down to .224”, there were at least 3 different .224” cartridges associated with the SCHV at the time:

    Left: The already established and in-production .222 Remington
    Center: The .222 Remington Special prototype cartridge that became .223 Remington and 5.56x45
    Right: The T65 .224 Springfield which became the .222 Remington Magnum



    Springfield SCHV Infantry Rifle in .224 Springfield





    All of the SCHV cartridges in this category were based on the .222 Remington with cases lengthened to meet the Army’s steel helmet perforation requirement while managing the chamber pressure.

    .224 Springfield/T65 (.224 Rem Mag) is a 2.280” COL cartridge, so it would have required a slightly larger magazine internal length that would need specs for allowance of tolerance variation in mass production.

    In hindsight, they could have exceeded the 500yd steel helmet perforation test by sticking with .222 Rem and putting a sleek secant ogive with boat tail projectile in it, but muzzle velocity would have been reduced if the bullet would have weighed more than the 68gr flat base they were working with initially.

    Coming back full circle to the Valkrie, it’s interesting that at least one of the engineers proposed a cartridge based on the .25 Remington but using a more modern Spitzer bullet with a nice boat tail and higher BC. This would give them the case capacity to drive velocity without pushing pressure too crazy, and enough projectile mass to play with the shape to optimize energy retention at 500yds to perforate the steel helmet. He basically proposed a .22-.25 Rem SPC with longer COL in the early 1960s, but it never went anywhere.

    The medium rimless cartridge line-up from the turn of the Century included .25 Remington, .30 Remington, and .32 Remington in the Remington Model 8 semi-automatic rifle, (which the AK gets its safety/selector from).

    Fast-forward several decades and the case for those cartridges was revived with the 6.8 Remington SPC, a .30 Remington case cut down and necked-down to .277” to fit into the AR-15 magazine well. I really think there was a missed opportunity to go with a .257” bore with that case in the AR-15, and while there are wildcats that do exactly that, none of them are well-known or picked up by any major company.

    Remington Model 8s in .25 Rem, .30 Rem, .32 Rem., and .35 Rem (.35 Rem has larger case head of .458”):




    So there is quite a history behind the evolution to .224 Valkyrie but for cartridges with different purposes. You would think that the industry would be more receptive to it, but the troubled start of getting it to shoot accurately in AR-15s does not bode well.

    If you look at this and many other threads or videos, you’ll see shooters who have bolt guns chambered in it that shoot lights-out, while a lot of the AR-15s just don’t seem to hold a group well in many cases. I know there was extensive effort from JP and other respected shops who invested tens of thousands of dollars trying to get it to shoot consistently with no-joy.

    I think one of the biggest problems is trying to set the chamber up for the loaded factory ammo spread from Federal, ranging from the 60gr Nosler Ballistic Tip all the way up to the 90gr SMK. With a conventional freebore, they put the leade in the middle of where it should work ok for all of these bullets, and spec’d the reamer that way.

    Then you have the after-market where a laundry list of shops who think they can do it better, with entry-level barrel prices sold en-masse, start cranking out product without having really vetted their process in complying with SAAMI and the bullet requirements of the 90gr SMK in particular.
    Those are some sexy Model 8's!
    Yes, very interesting how things come full circle.
    Look at the performance of the 6.5x55 and 7x57 and the modern equivalents that are the darlings now.
    I always thought the .250-3000 would be a nearly ideal combat rifle cartridge.
    FWIW, I built a .22 nosler bolt gun (I had a .223 rem sitting around) with a 7 twist barrel that is very accurate with the 80 grainers, wouldn't shoot the 88 ELDM's worth a shit, and I could push them fairly hard out of that nosler ( I got 3100 fps with the 80's easily). Those damn long for .22 cal bullets seem to be really finicky.


    LRRPF52

    Sergeant
    PX Member
    Minuteman
    Mar 13, 2012
    1,054
    651
    SLC, Utah
    I really like the .250 Savage case as well. Kinda pushes you outside of the AR-15 though with the .473” case head, and steers towards a 2.500” COL cartridge that requires magazines as fat as 7.62 NATO mags, with COL in between 5.56 and 7.62 NATO.

    When I run the numbers, does it make itself worthwhile to do all the development of the magazine to reach the performance levels that are midway between any of the current micro and short action cartridges?


    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,141
    1,782
    58
    Ingleside, Tx
    I really like the .250 Savage case as well. Kinda pushes you outside of the AR-15 though with the .473” case head, and steers towards a 2.500” COL cartridge that requires magazines as fat as 7.62 NATO mags, with COL in between 5.56 and 7.62 NATO.

    When I run the numbers, does it make itself worthwhile to do all the development of the magazine to reach the performance levels that are midway between any of the current micro and short action cartridges?
    The juice isn't worth the squeeze anymore. My feeling is this:
    All of the modern guns like the AR are machined on cnc machines. The dimensions can be changed.
    Folks always try to fit something in the AR15 platform or the AR10 platform. Maybe the answer is a new platform somewhere in between.
    Of course, you could then use the .30 rem case, longer than the spc, shorter than the 7.62x51. Say around 46 mm pushing a 115 grain 6.8 or .25 cal bullet.


    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,141
    1,782
    58
    Ingleside, Tx
    So you think he designed it for the 222 magnum and then downsized it to the 223 because the military wanted faster velocities?
    No. When did I say that?
    I was mistaken in regards to the AR15.
    However, I was correct that the .222 magnum was under development at the same time, it was for a competing design.
    If you would have read further, you would have seen that.


    Constructor

    Private
    PX Member
    Minuteman
    No. When did I say that?
    I was mistaken in regards to the AR15.
    However, I was correct that the .222 magnum was under development at the same time, it was for a competing design.
    If you would have read further, you would have seen that.
    That was my whole statement "he designed it for the 222."
    You said I was wrong that he designed the AR15 for the 222 magnum and there was a big difference.
    Everyone knows he designed it for 1 cartridge but the military wanted more velocity so he changed it to the 223(5.56x45) to reach their target velocity.

    Last edited:

    Rlb40x

    Private
    PX Member
    Minuteman
    May 2, 2012
    155
    97
    54
    Did some more load work this morning. My Shilen barrel seems to love the Hornady 88 ELD’s. Five shots at 100 yds.
    My Shilen barreled Valkyrie shoots groups like this as well with 90 and 95 SMKs.
    It’s hard to do it every time, but the potential is there.
    When I Chump a shot, my groups open up to 1/2”.
    It’s the most accurate gas gun I’ve ever had.

    • Like
    Reactions: Islander

    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,141
    1,782
    58
    Ingleside, Tx
    That was my whole statement "he designed it for the 222."
    You said I was wrong that he designed the AR15 for the 222 magnum and there was a big difference.
    Everyone knows he designed it for 1 cartridge but the military wanted more velocity so he changed it to the 223(5.56x45) to reach their target velocity.
    Well, then, you have a problem with comprehension.
    Re-read my post, I clearly said "I'm thinking".
    It was not a declarative statement, it was a statement that I believed (erroneously) but it clearly wasn't a statement of fact.
    There IS a tremendous amount of difference between the performance of the .222 and the .223/5.56 and even more so the .222 Magnum.


    Constructor

    Private
    PX Member
    Minuteman
    Well, then, you have a problem with comprehension.
    Re-read my post, I clearly said "I'm thinking".
    It was not a declarative statement, it was a statement that I believed (erroneously) but it clearly wasn't a statement of fact.
    There IS a tremendous amount of difference between the performance of the .222 and the .223/5.56 and even more so the .222 Magnum.
    I know there is a difference and that is why I said the AR15 was originally designed for the 222. I didn't bring up the 222 mag, you did. If you hadn't brought up a cartridge that had nothing to do with the AR15 we wouldn't be having this conversation.


    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,141
    1,782
    58
    Ingleside, Tx
    I know there is a difference and that is why I said the AR15 was originally designed for the 222. I didn't bring up the 222 mag, you did. If you hadn't brought up a cartridge that had nothing to do with the AR15 we wouldn't be having this conversation.
    Again, I've admitted I was wrong in regards to the 222 magnum. what the fuck more do you want, you're the one that keeps harping on it.


    LRRPF52

    Sergeant
    PX Member
    Minuteman
    Mar 13, 2012
    1,054
    651
    SLC, Utah
    My Shilen barreled Valkyrie shoots groups like this as well with 90 and 95 SMKs.
    It’s hard to do it every time, but the potential is there.
    When I Chump a shot, my groups open up to 1/2”.
    It’s the most accurate gas gun I’ve ever had.
    Could you post more details about your build?

    Receiver set
    Barrel
    Extension
    Twist rate
    Barrel length
    Gas system length
    Who chambered it and with what reamer
    Gas block type and fitting method
    BCG
    Stock/spring/buffer
    FCG
    Optic Mount
    Optic


    CarbonMTN

    Smallbore
    PX Member
    Minuteman
    Feb 21, 2012
    293
    87
    31
    NV
    Answer me this, maybe I'm still new to shooting and just don't understand.

    My Tikka (1:8 twist) chambered in 223 with factory 75GR PPU Match ammo did .74 MOA @ 100. As I am slowly buying stuff for reloading hoping to get that even smaller but for "cheap" ammo did pretty good. Why cant the valkyrie do the same with the same bullet/ twist?

    Why does the Valkyrie have a problem stabilizing bullets, Why is it super jump sensitive, and why are people pushing the twist rates so fast for a little bullet; Wont these 1:6xx Twist just RPM the jacket right off?

    Some of the Palma shooters take the 80GR 223 and shoot 1000 yards in comp with 1:7 twist. why doesn't 1:7 work with the Valkyrie

    I wanna make a 224V in a bolt gun but with all these problems I dont want to

    Last edited:

    Constructor

    Private
    PX Member
    Minuteman
    Answer me this, maybe I'm still new to shooting and just don't understand.

    My Tikka (1:8 twist) chambered in 223 with factory 75GR PPU Match ammo did .74 MOA @ 100. As I am slowly buying stuff for reloading hoping to get that even smaller but for "cheap" ammo did pretty good. Why cant the valkyrie do the same with the same bullet/ twist?

    Why does the Valkyrie have a problem stabilizing bullets, Why is it super jump sensitive, and why are people pushing the twist rates so fast for a little bullet; Wont these 1:6xx Twist just RPM the jacket right off?

    Some of the Palma shooters take the 80GR 223 and shoot 1000 yards in comp with 1:7 twist. why doesn't 1:7 work with the Valkyrie

    I wanna make a 224V in a bolt gun but with all these problems I dont want to
    An 8 twist will stabilize up to an 80gr ELD if the muzzle vel is around 2900. I've heard the new 85 Berger will also stabilize.
    The 7 twist will work in a Valk unless you try to shoot the 95 SMK. Button rifled barrels twist rate is not perfect some may be 6.75 and some may be 7.25 that could be why some 7 twist barrels work and some do not.
    You have to find the sweet spot for jump for each bullet, some like to be jammed, some shoot at .010-.020 off and some shoot fine at .050-.060 off.
    Not many bullets will come apart these days, the thin jackets on the Bergers were fixed 20 years ago. I have some 75gr Amax that would come apart over 3000fps but I think that was due to the tip and now Hornady has fixed that. I've run 30gr VG up to 4400 and 40gr vmax over 3800 in a 6.5 twist and they didn't come apart.
    Lastly I believe some of the problems were due to reamers, some cut good chambers and some did not.

    • Like
    Reactions: Rocketvapor

    Rlb40x

    Private
    PX Member
    Minuteman
    May 2, 2012
    155
    97
    54
    Could you post more details about your build?

    Receiver set
    Barrel
    Extension
    Twist rate
    Barrel length
    Gas system length
    Who chambered it and with what reamer
    Gas block type and fitting method
    BCG
    Stock/spring/buffer
    FCG
    Optic Mount
    Optic
    That’s a bunch.
    Standard receiver squared
    S&W lower
    Jared trigger.
    Shilen 6-5 twist Ultra match. 24” long .875 DIA
    D tech chamber
    Rifle gas standard block
    Adjustable gas key on a basic bolt carrier head spaced bolt.
    JP silent spring
    Mag pul PRS stock
    S&B 5-25 Police marksman. Burris rings.
    Thunder Beast 30 cal direct thread.

    • Like
    Reactions: LRRPF52

    Pwoens

    1:16
    PX Member
    Minuteman
  • Jun 8, 2013
    167
    64
    Truly is a great round BUT I wouldn’t be surprised if it fades away, unfortunately :(
