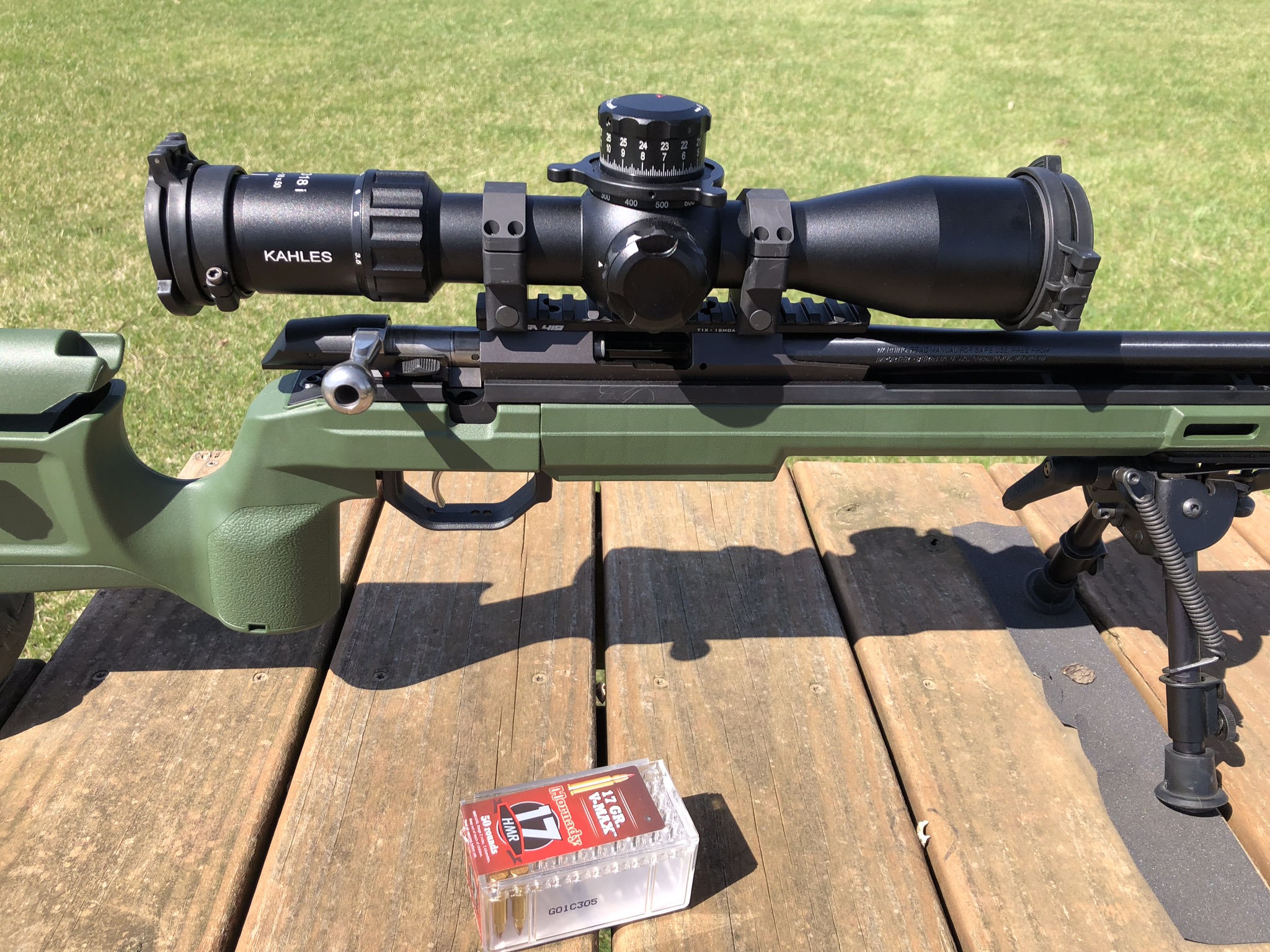

Does this count? T1x critter getter in 17HMR.
- Thread starter Rockdoc173
- Start date
Posted other places but it fits here too.
Stainless barrel is my hunting .25cm barrel, painted barrel is my hunting 6cm barrel.
Stainless barrel is my hunting .25cm barrel, painted barrel is my hunting 6cm barrel.

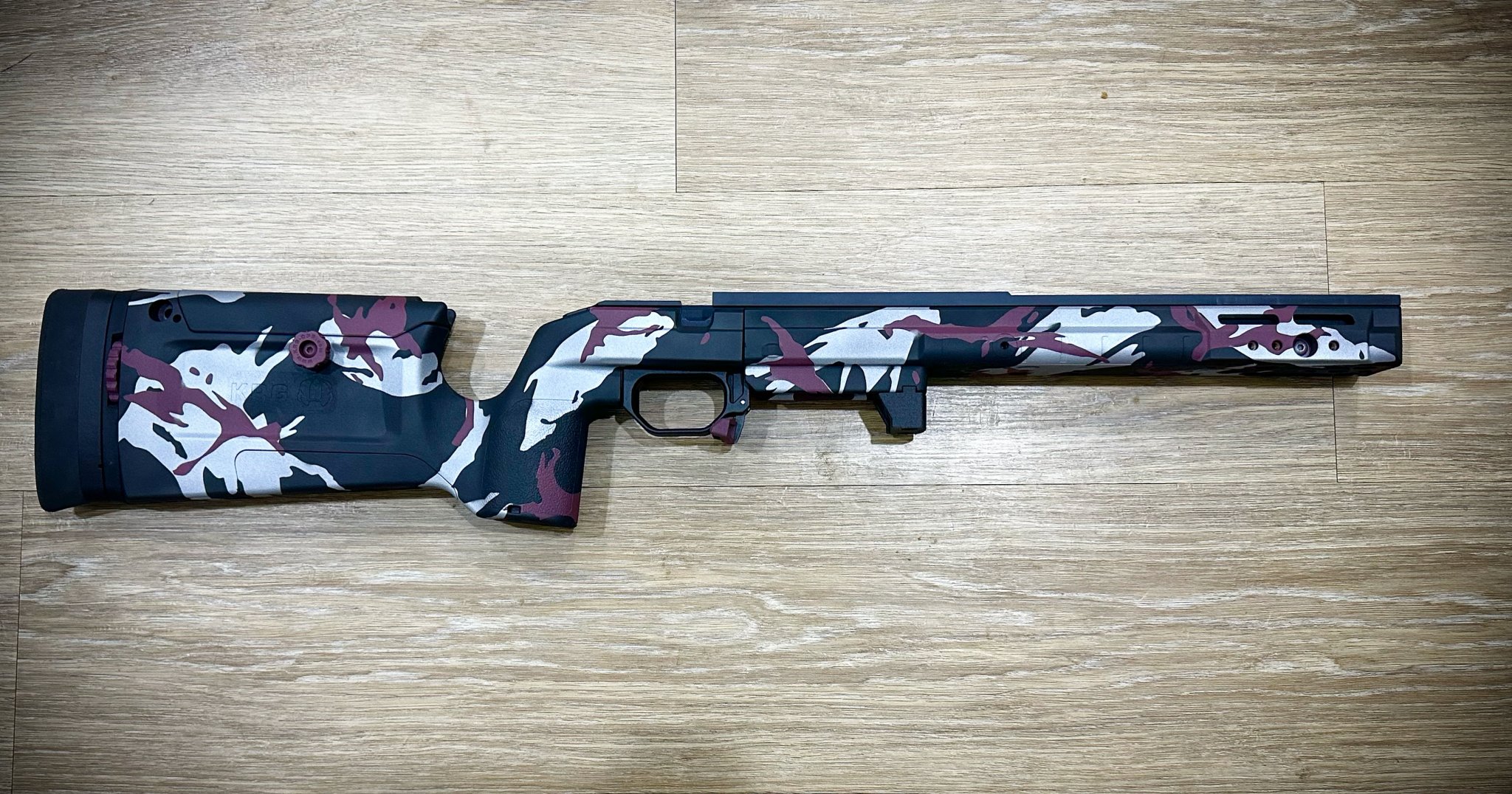

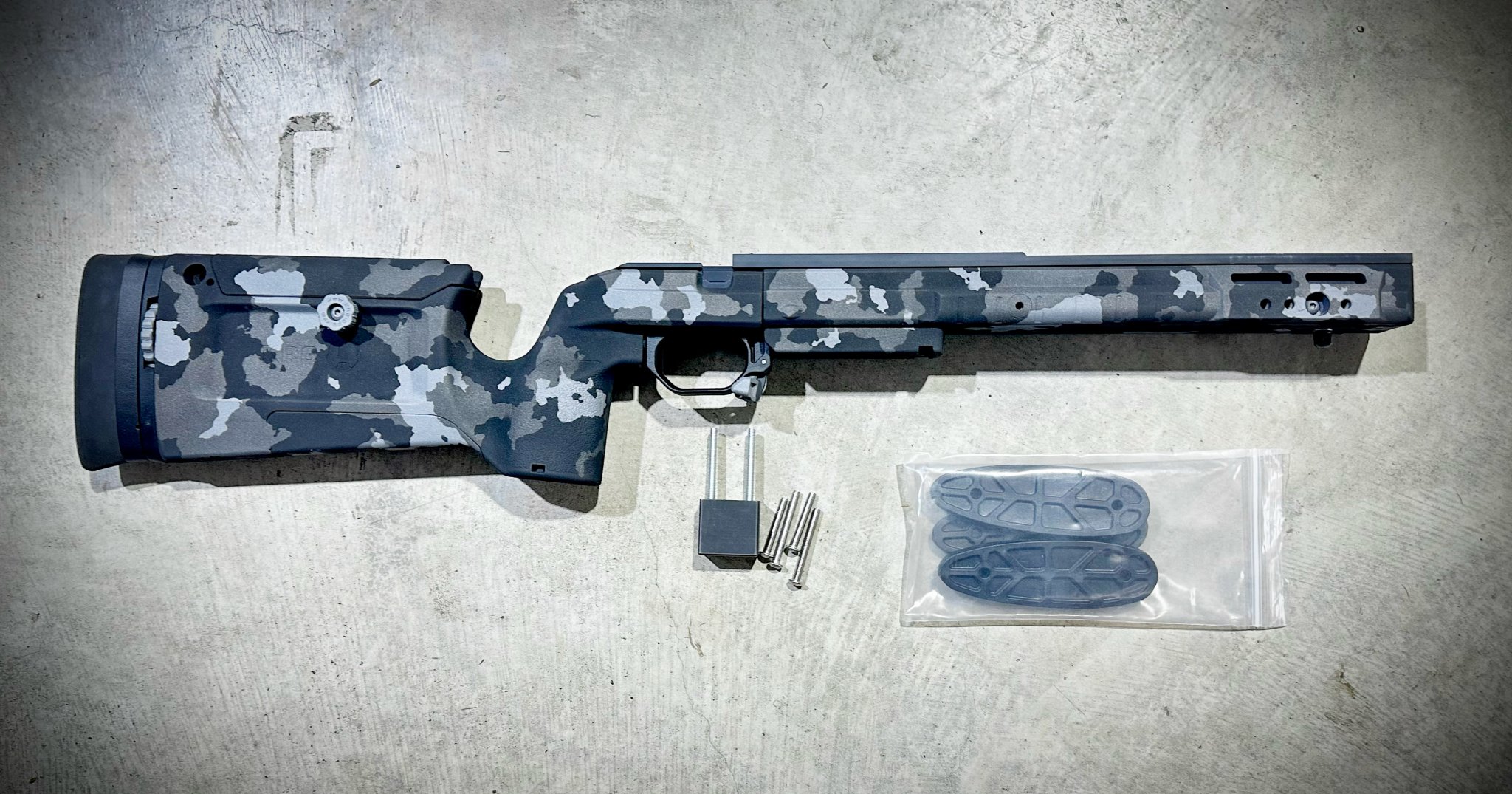

Who in the US does the neat paint jobs?

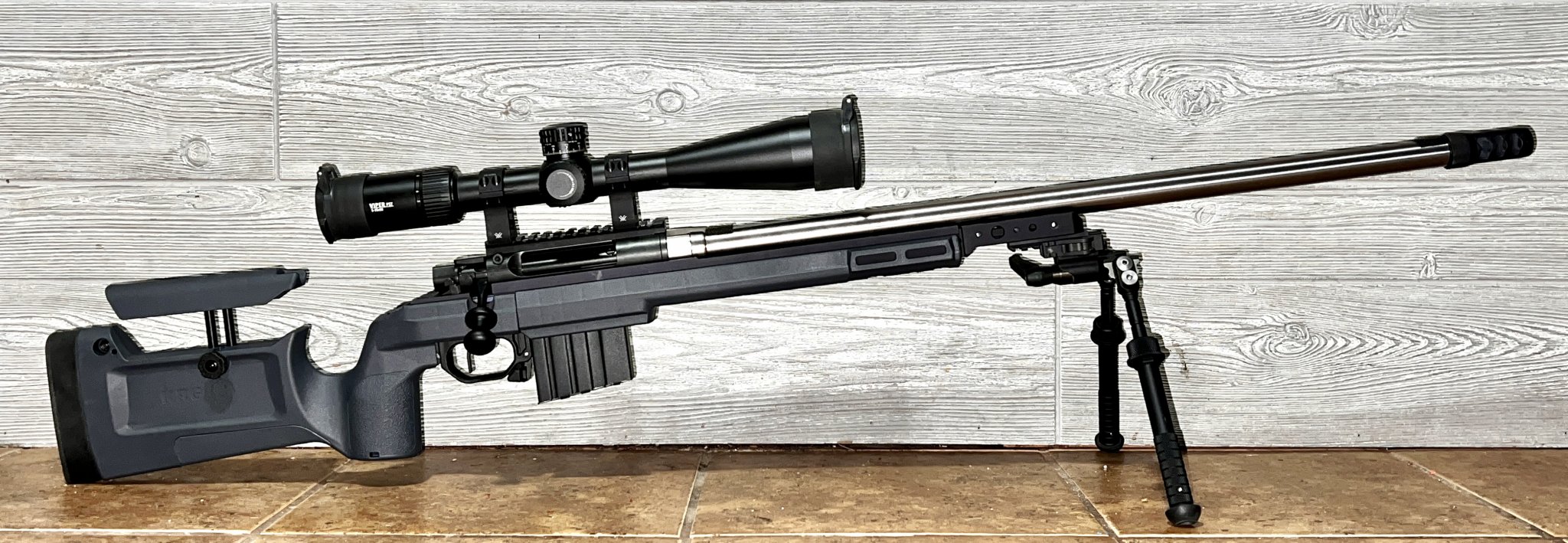

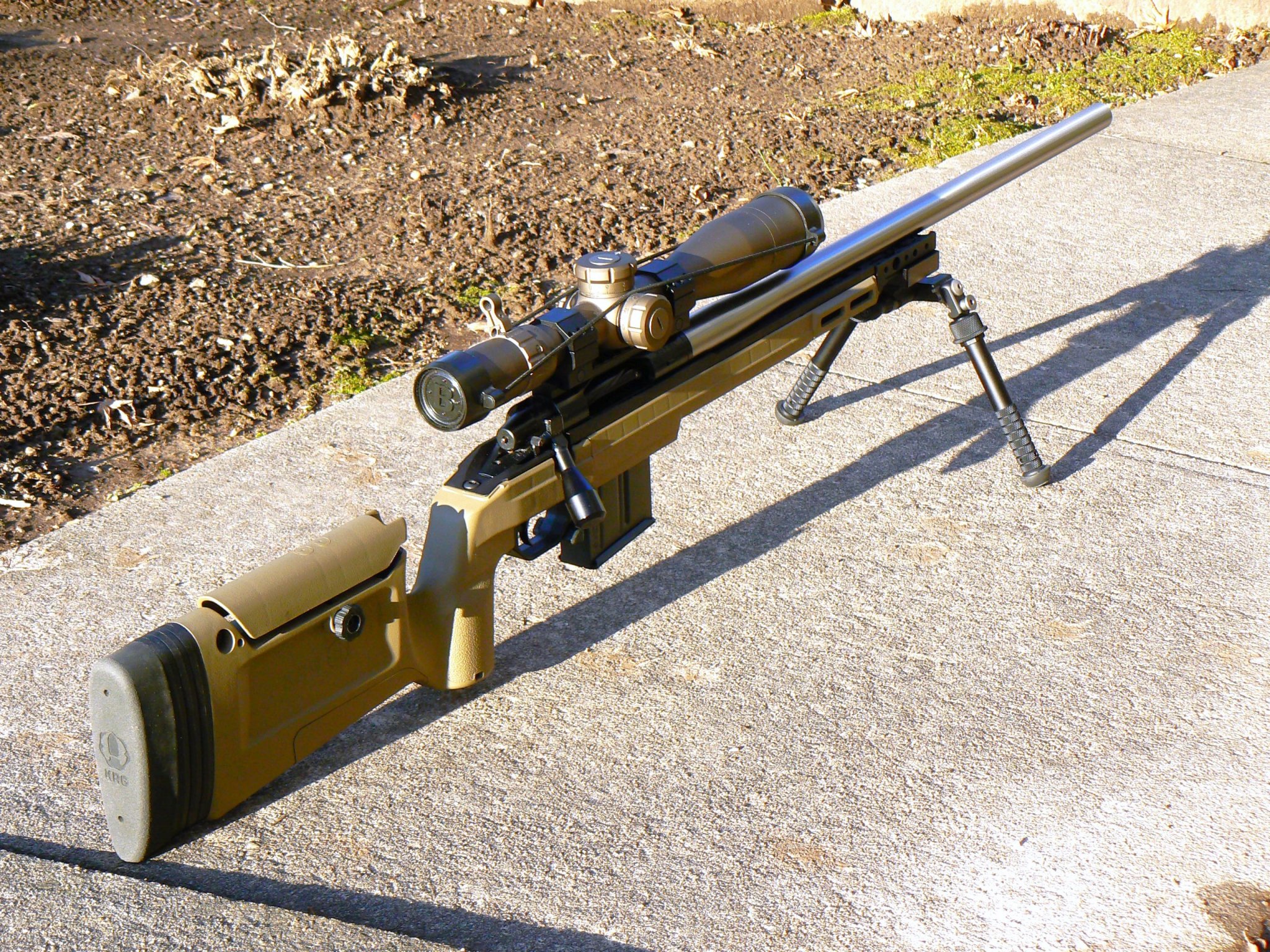

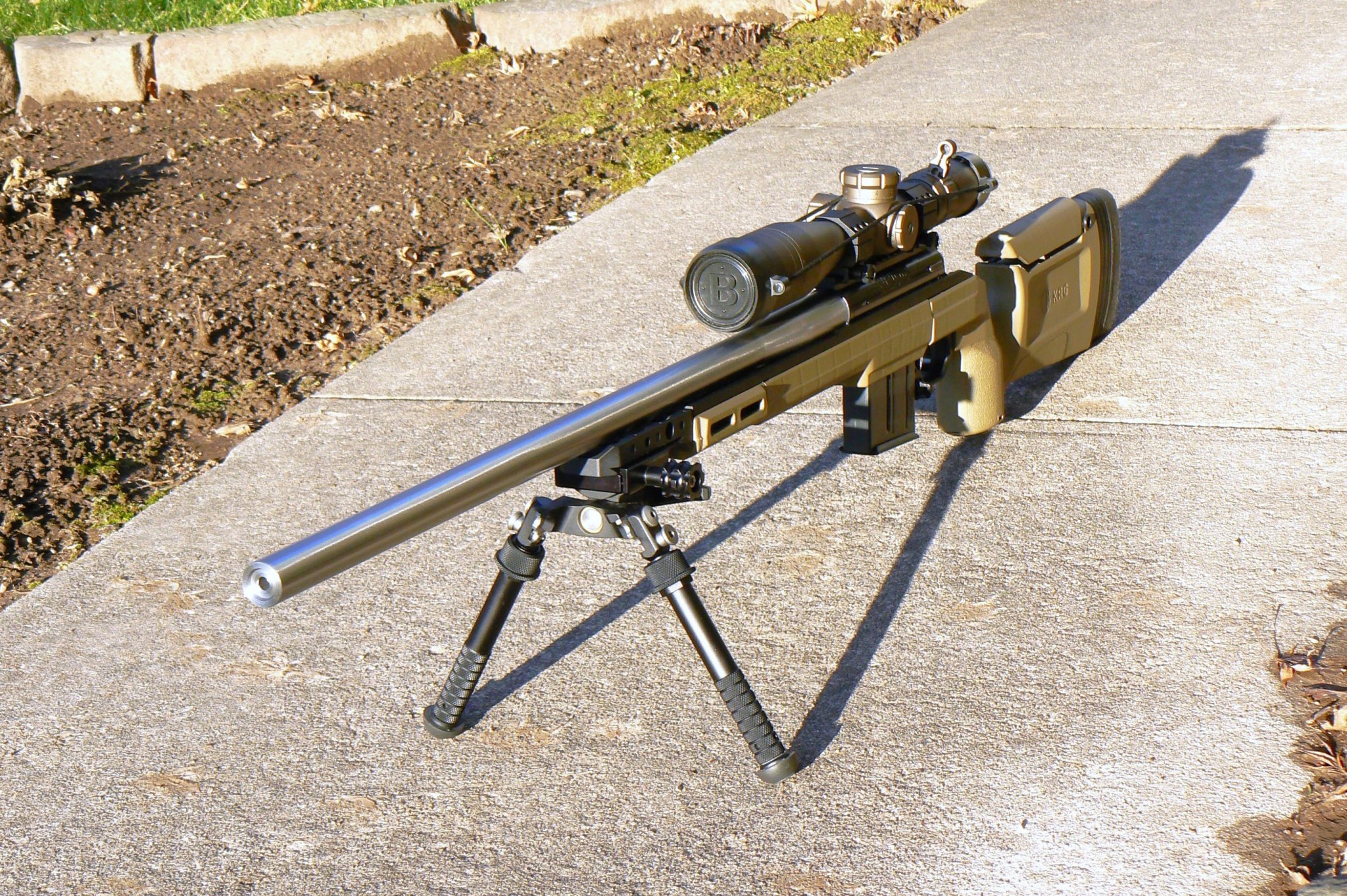

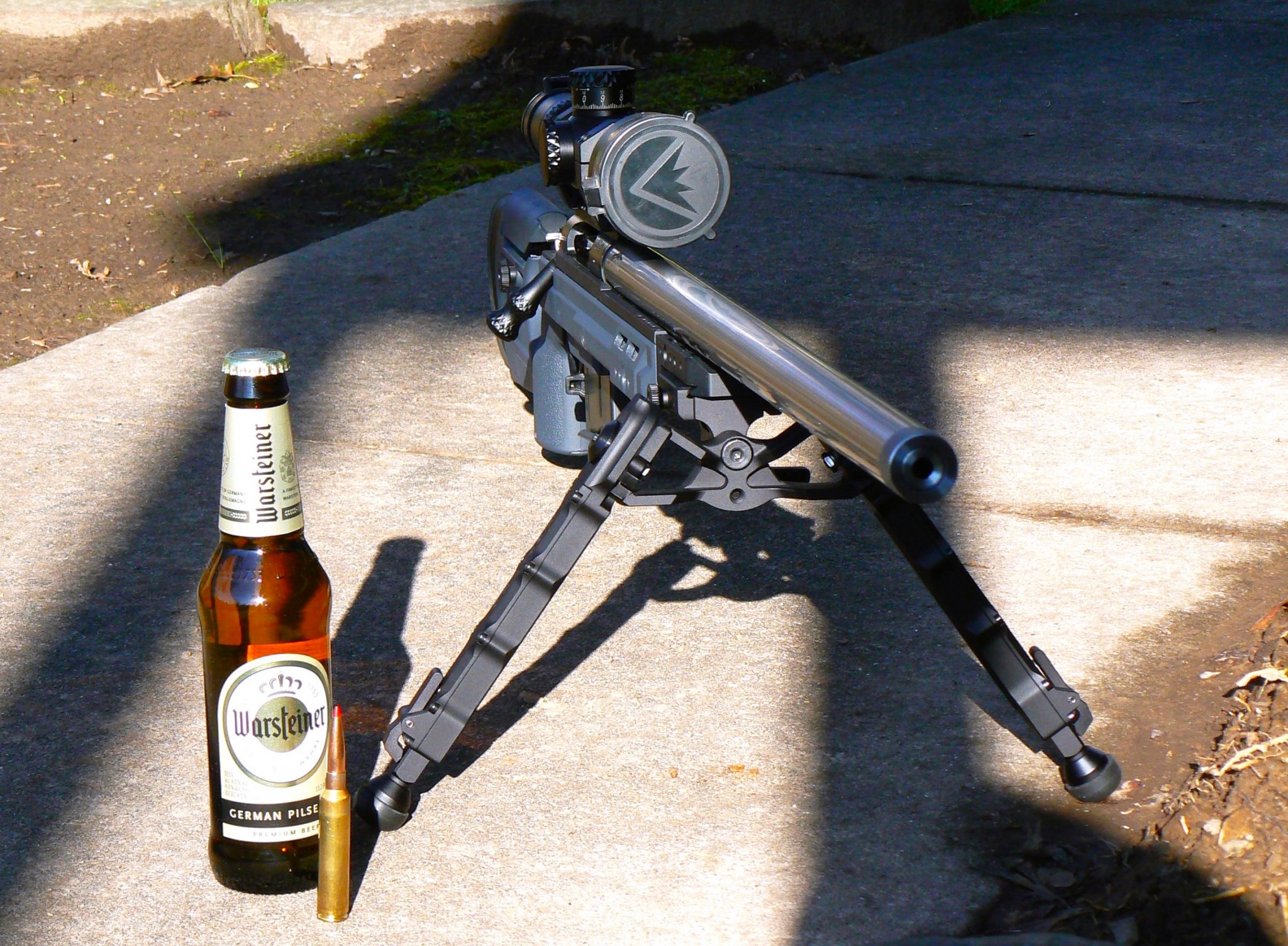

Archimedes got some new clothes,,,
ARC Archimedes action, X-Caliber M24/40 barrel - .308 Win, 26" 1:10 twist, Area 419 Hellfire brake, Vortex PST Gen II 5-25 MRAD scope.
KRG Bravo chassis in Stealth Gray with spigot mount, Atlas CAL bipod
ARC Archimedes action, X-Caliber M24/40 barrel - .308 Win, 26" 1:10 twist, Area 419 Hellfire brake, Vortex PST Gen II 5-25 MRAD scope.
KRG Bravo chassis in Stealth Gray with spigot mount, Atlas CAL bipod
What are you barrel contours?
The 6cm is a med palma and the 25cm is a sendero contour
It took me two years to fire the first round on this project but it was worth the wait.
7mm-6.5 PRC
Archimedes SA LH w/ 0.535 BF and 45MOA rail (I can go to 2k with this setup)
Krieger MTU 28” 8.5 tw
KRG Bravo with Gen 2 enclosed forend
B&A TS Pro
Cerakote barreled-action (AI dark earth)
Atlas PSR w/ RRS SC-ARC (not pictured)
MDT 7SAUM mags
A419 Hellfire 30cal
PMII w/ P4F
Badger rings
Accuracy 1st level
Tenebrex caps

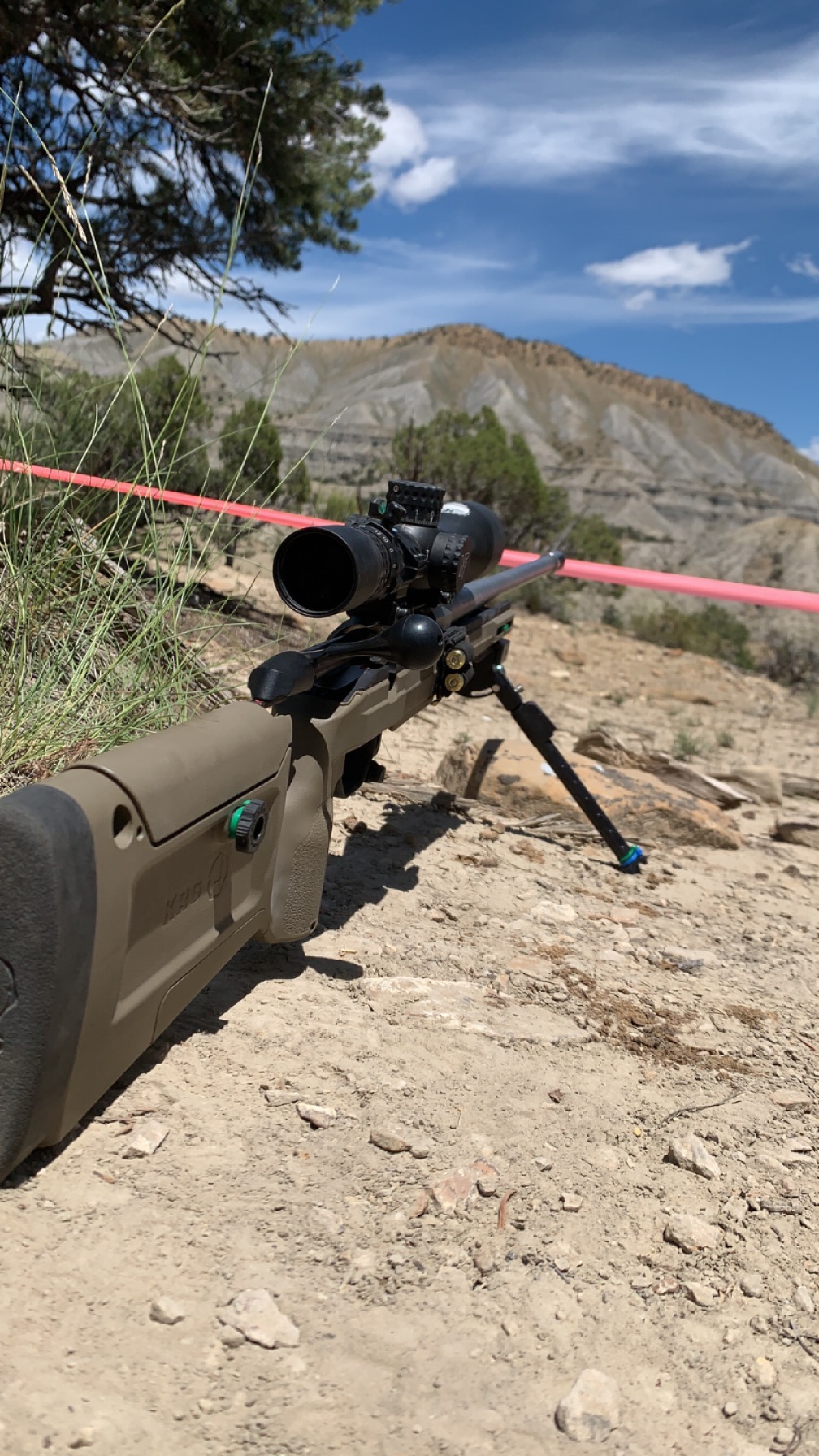

7mm-6.5 PRC
Archimedes SA LH w/ 0.535 BF and 45MOA rail (I can go to 2k with this setup)
Krieger MTU 28” 8.5 tw
KRG Bravo with Gen 2 enclosed forend
B&A TS Pro
Cerakote barreled-action (AI dark earth)
Atlas PSR w/ RRS SC-ARC (not pictured)
MDT 7SAUM mags
A419 Hellfire 30cal
PMII w/ P4F
Badger rings
Accuracy 1st level
Tenebrex caps

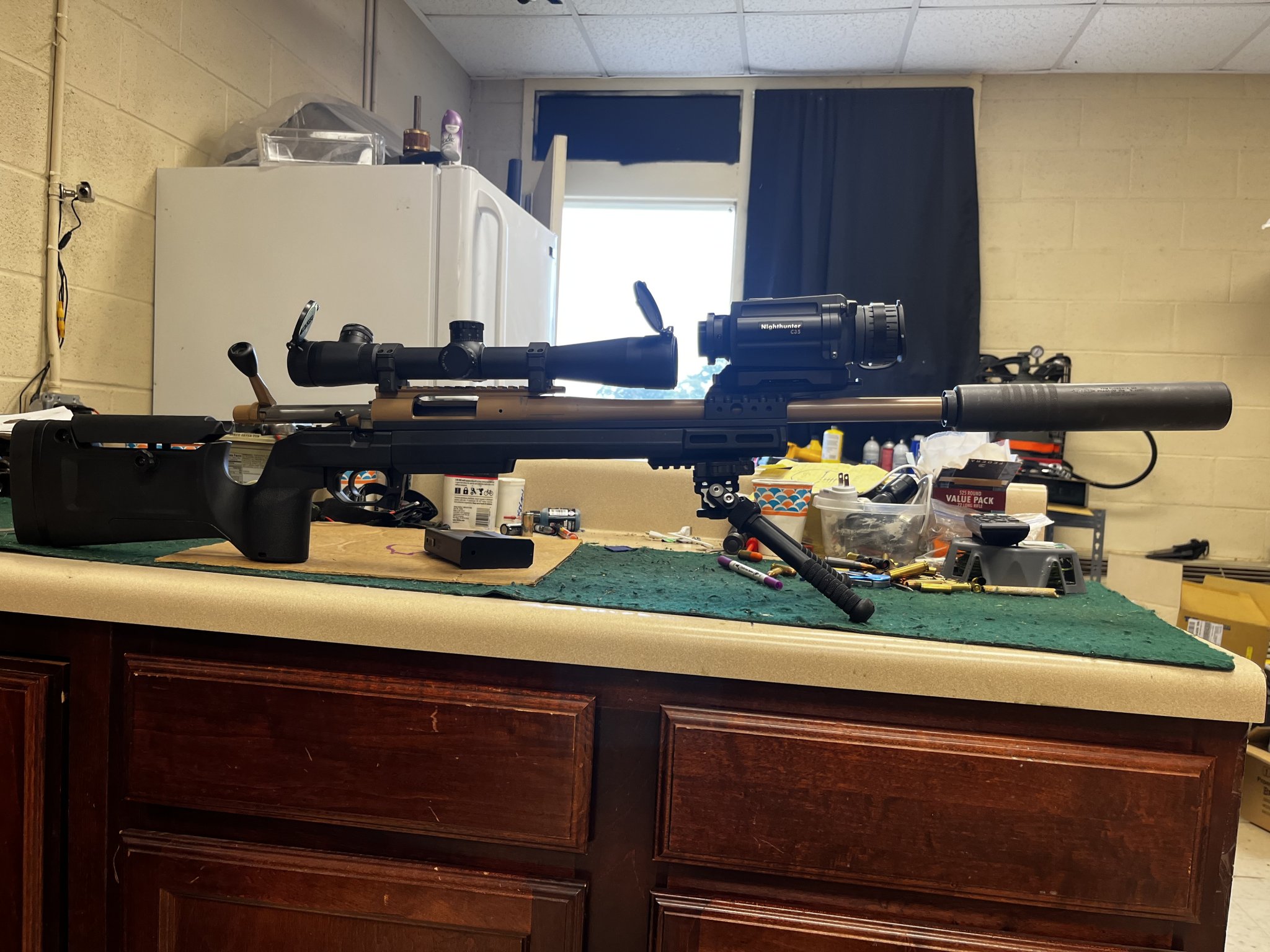

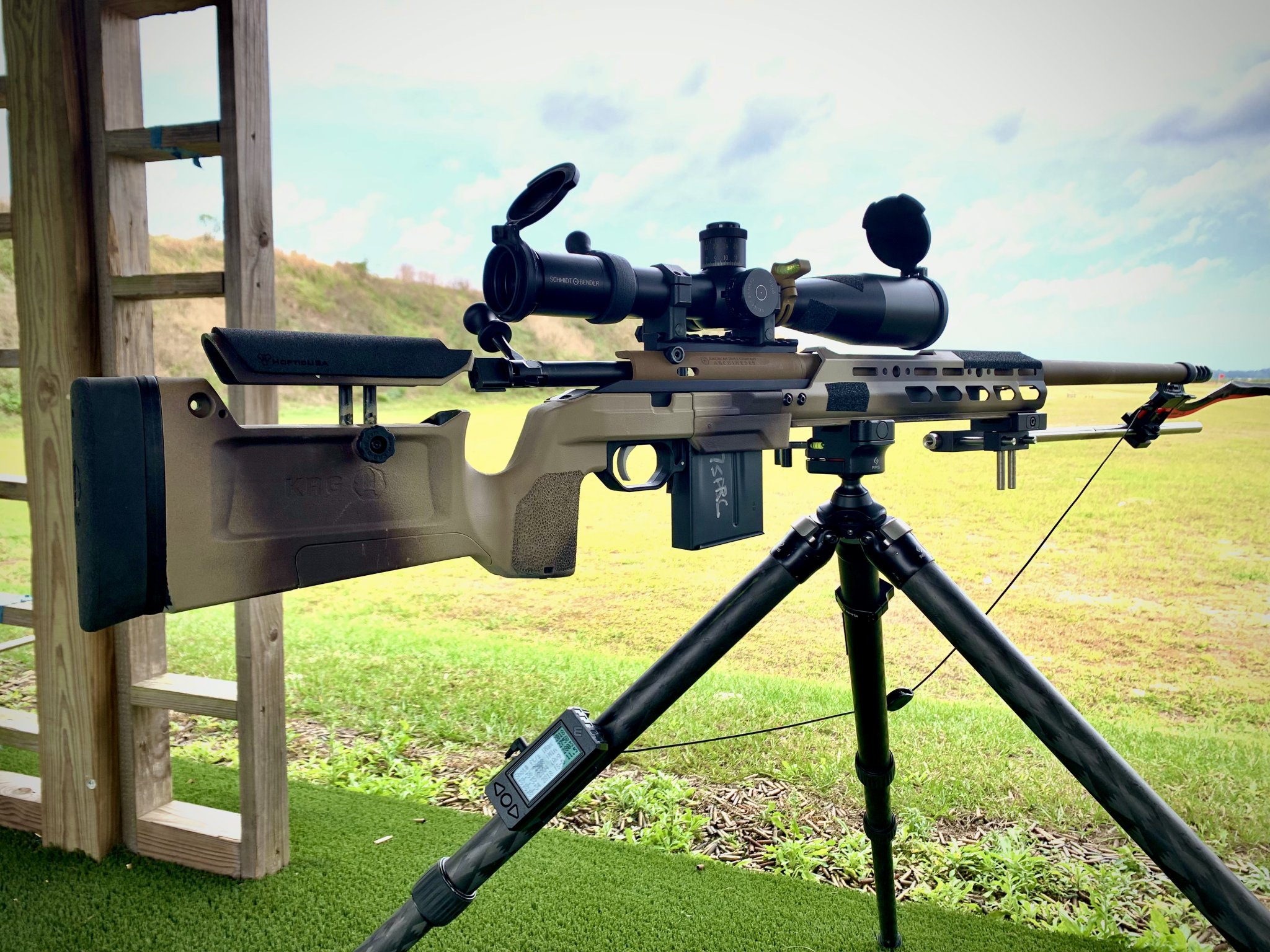

That MagnetoSpeed mount looks pretty solid. Who's the manufacturer?
MK Machine. It is, I run this on several rifles and the mount / ARCA combo makes it really convenient and reliable
I use that same Mount works great I removed the heavy steel rod an bought a piece of 5/8 fiberglass rod. It lighter and plenty stiff and long enough for my suppressor.
I was going to try a 6061 rod but it had quite a bit of movement in it since I was using most of the 2'. In the end, I just ordered a 12" section from MK, screwed it together, and have never looked back. It's way more stable. YMMV
Did you purchase already painted or paint yourself? Looks great.
I see a lot of the cheek pieces in this thread have a soft material adhered. Is that a fabricated product for sale?
There are several out there. HopticUSA makes a stick on version as does AnarchyOutdoors. Wiebad makes a pad. I have a couple of the Hoptic's and they have been great.
how do you decide if you go with the hook intent piece or the straight part on the bottom of the buttstock?
I got a bag rider and the hook cover. You’ll just have to spend time at the range and dry firing at table at home to see what you like.
I’ve found the hook is perfect if I’m not using a rear bag. I “hook” my finger in the indent to steady the stock. I mostly use a rear bag off the bench so I’m trying the flat bag rider. Honestly I don’t see much advantage with the bag rider vs the standard configuration.

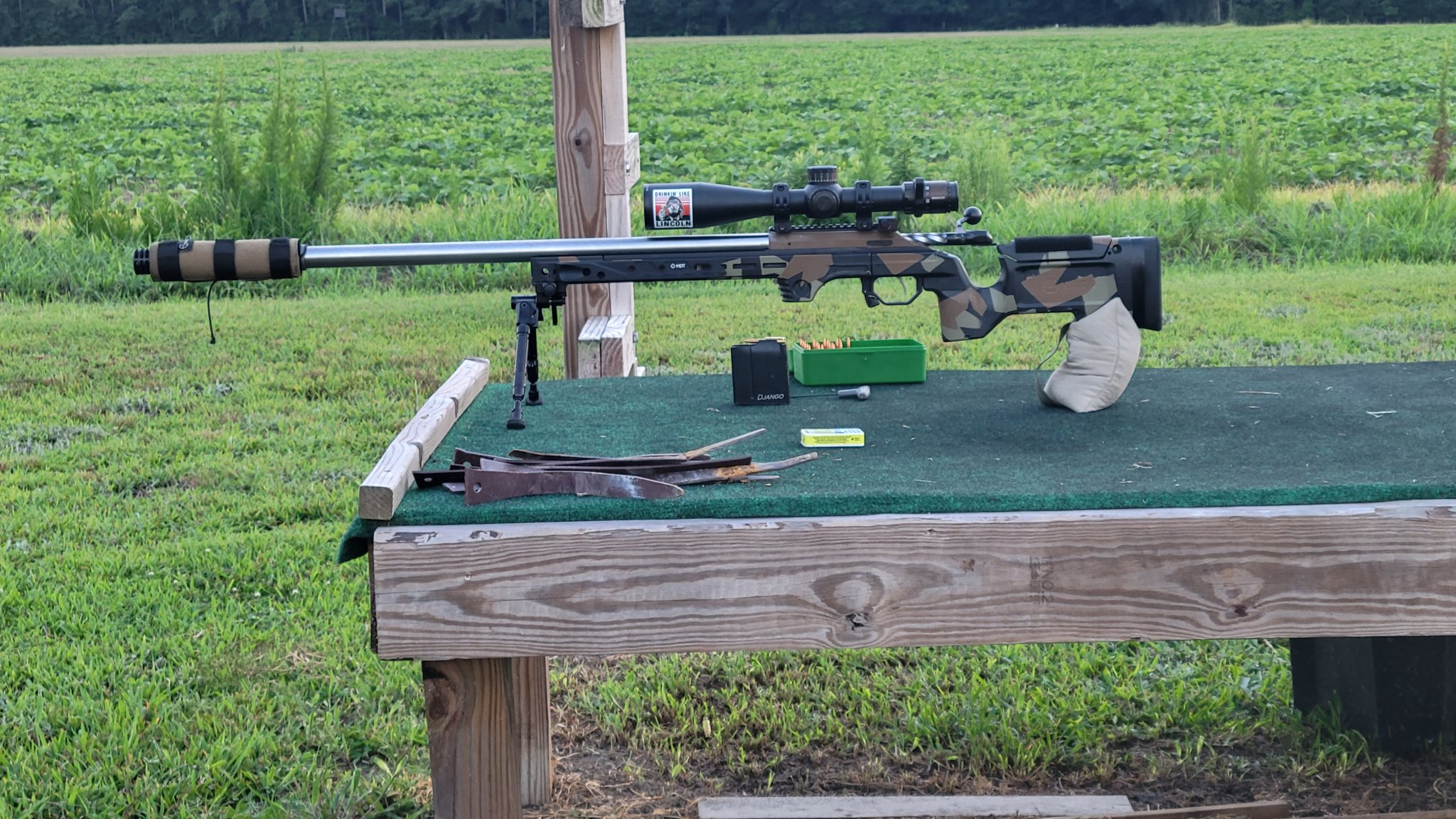

Here is mine. With a defiance tenacity and kreiger barrel in 7mm-08 Ackley

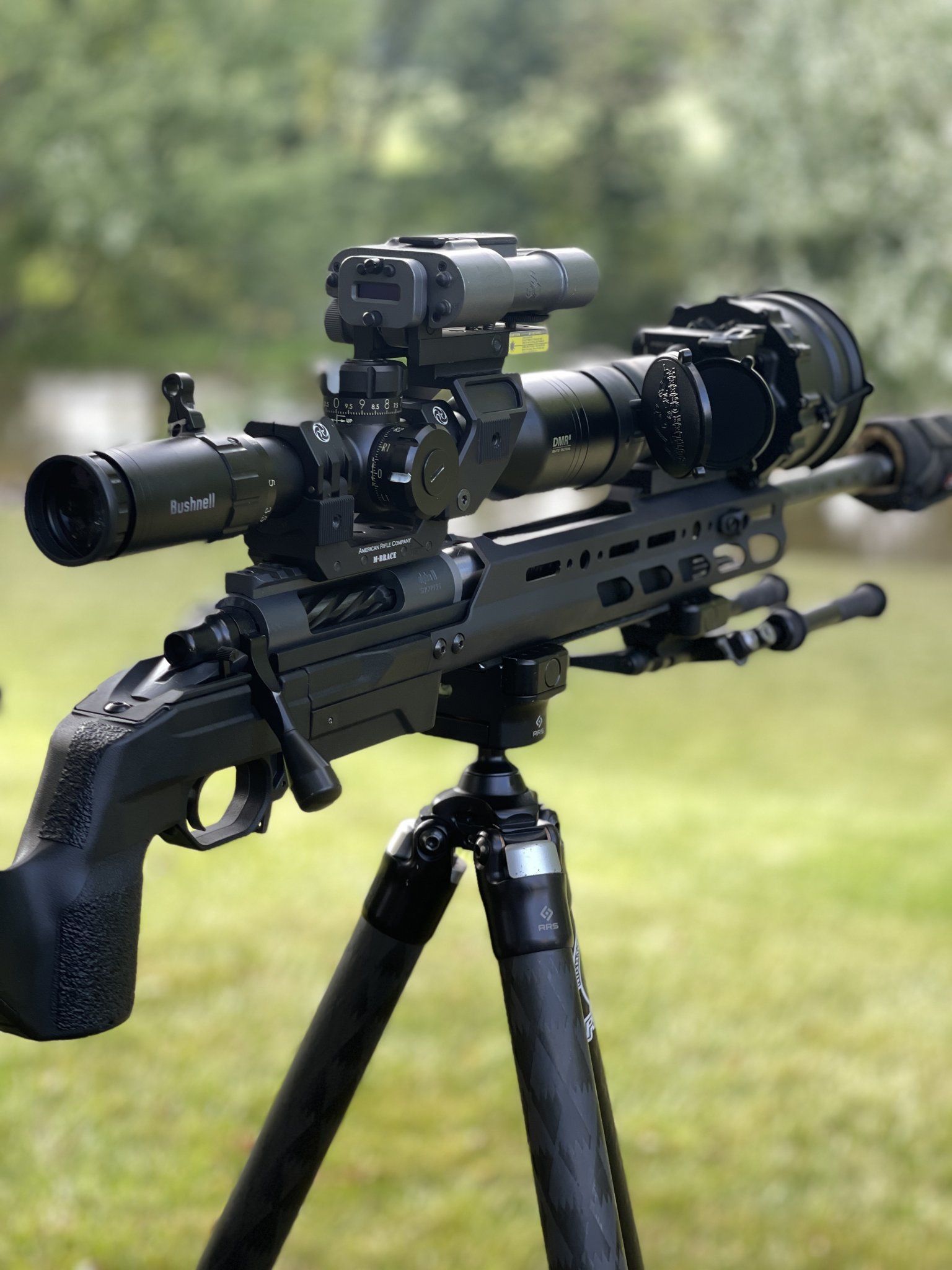

What clip on unit is this?
Nope
- Nov 3, 2010
- 8,601
- 17,374
Finally picked up a Bravo to play with. Probably won’t keep it long. It looks good, but now I have feed issues they weren’t present with the rifle in a Manners. Kinda sad cause I wanted it to work real bad. Had to find some higher rings as well for the clip on, but that was expected

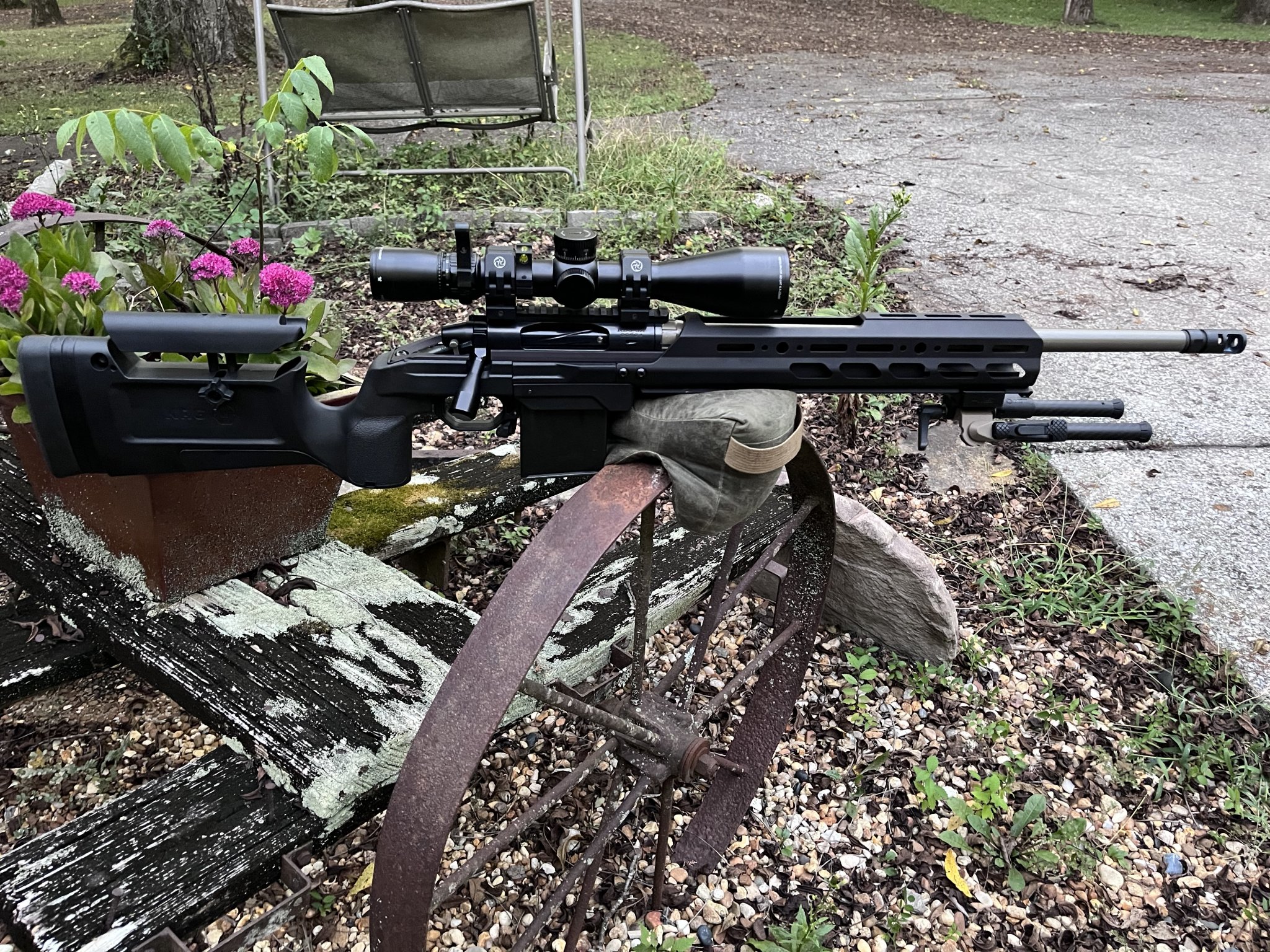

Black Friday minimalist bravo + whiskey 3 aluminum foreend and arca spigot
Have you tried adjusting the mag well? There is a screw you loosen (barrel action out of the chassis) on top of the trigger guard that adj the mag well.
- Nov 3, 2010
- 8,601
- 17,374
I have not, will look into that though. Thank you
The magwell (forend) and the trigger guard both adjust so you get the perfect fit. That’s gotta be the problem.
I would get the magwell tight first then adjust the trigger guard.
- Nov 3, 2010
- 8,601
- 17,374
I’ll get into that this afternoon hopefully. Really like the way the bravo feels and I don’t have to get another stock inlet for an efr.
Adjust it with a mag inserted, makes it easier to get perfect fit first time. Also stand rifle on butt and squeeze forearm and buttstock junction together while you tighten the tang screw to 40in lbs after you torque the two action screws.. This will ensure a tight junction and prevent sag where the two pieces meet and also keep your mag adjustment from slipping.
TM6
TM6
Both the Bravo/W3 Polymer Forends are 14" in length, 9" from recoil lug to tip. The standard Arca Spigot adds ~ 4". KRG also sells an Aluminum Forend and an enclosed forend but I do not know lengths on those. Vision use to sell an aluminum forend that I believe was 17" in length.
