In March I purchased a Ruger RPR in 6.5 PRC. I have recently purchased the Hornady O.A.L. Gauge and a 6.5 PRC modified case so I could measure the bullet jump. The Hornady reloading data states that cartridge max O.A.L. should be 2.955 when using the 147gr ELD match bullets. The longest measurement I could get when measuring my chamber is 2.835. When comparing ogive measurements, a factory cartridge measured .104” longer than my modified case and bullet setup.
I am having a hard time believing that this gun is forcing a factory load into the lands .104”. I have to be missing something simple but I can’t figure it out. Any help would be appreciated.
Thanks,


918v

Volumetric Meterer
Belligerents
Jul 15, 2007
3,589
1,139
219
Miserable CA
It’s not just you that is having a problem with this. Another guy found out that if he shoved the bullet into the throat real hard he was able to get a better more accurate reading.


Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
I will try to apply more pressure when measuring and I will update with my results.
Thanks for the advice.

  • Like
Reactions: Sport67

Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
You are confusing base to ogive measurements with cartridge overall lenght.

Your hornady gauge and modified case measure distance to the lands at the point your bullets ogive touches it.

Do not cram it in there it should just touch.

Use a bullet comparitor to measure a loaded case to see how far to the ogive.

Oal is base to tip of bullet, and is good for mag lenth loading.
Hornady has videos.

  • Like
Reactions: 308pirate

Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
I went downstairs and set everything up again and remeasured my chamber as well as a factory load.
I measured O.A.L. on a factory round (2.950”) and compared it to the O.A.L. of my modified case setup. (2.835) A difference of .115” I them measured case head to ogive on a factory cartridge and got (2.358) Then I measured case head to ogive on my modified case set up. (2.256) My measurements tell me that a factory round is being forced into the lands .102”. I am having a hard time believing this. Below are pictures I took when taking measurements.

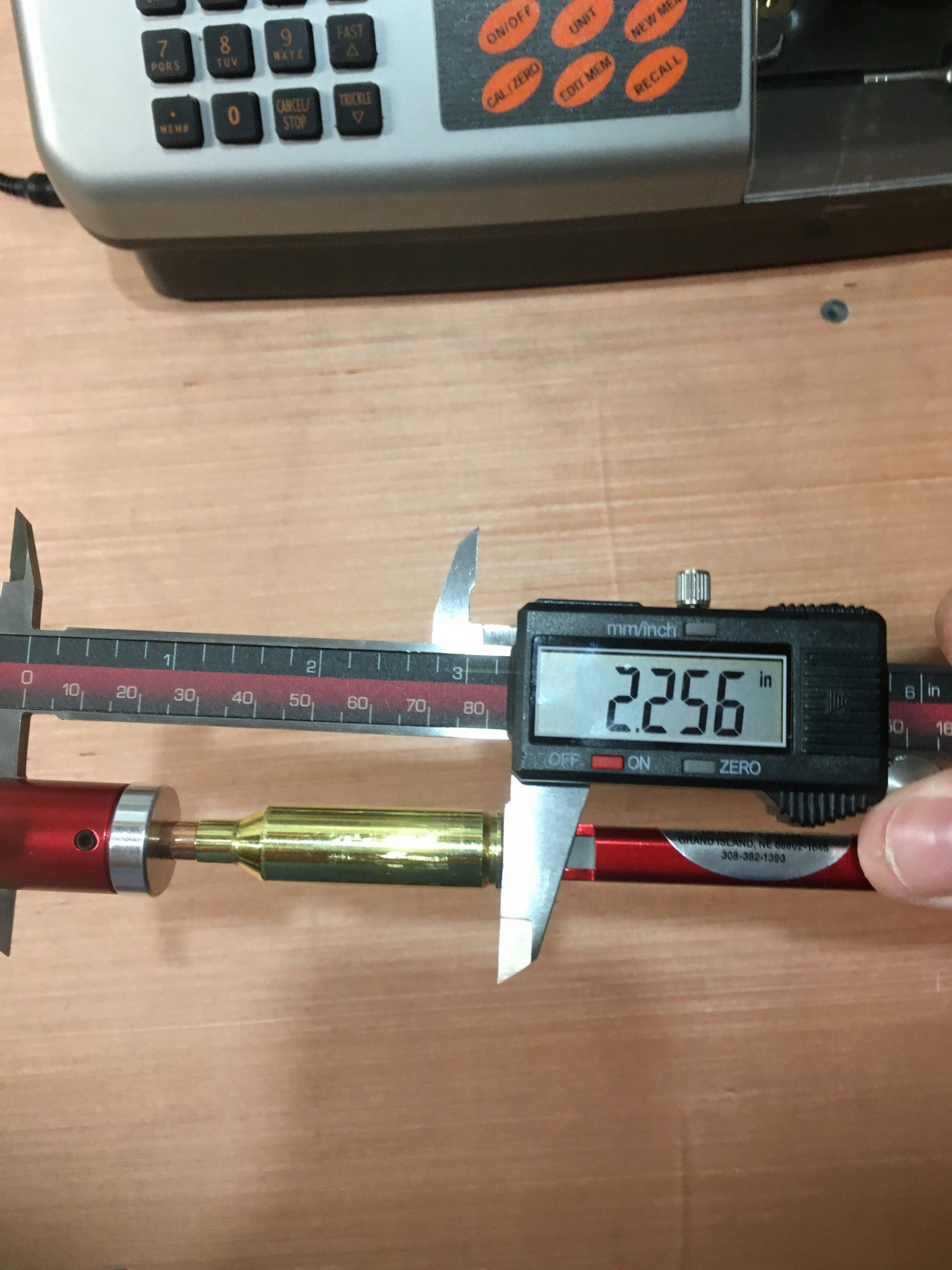

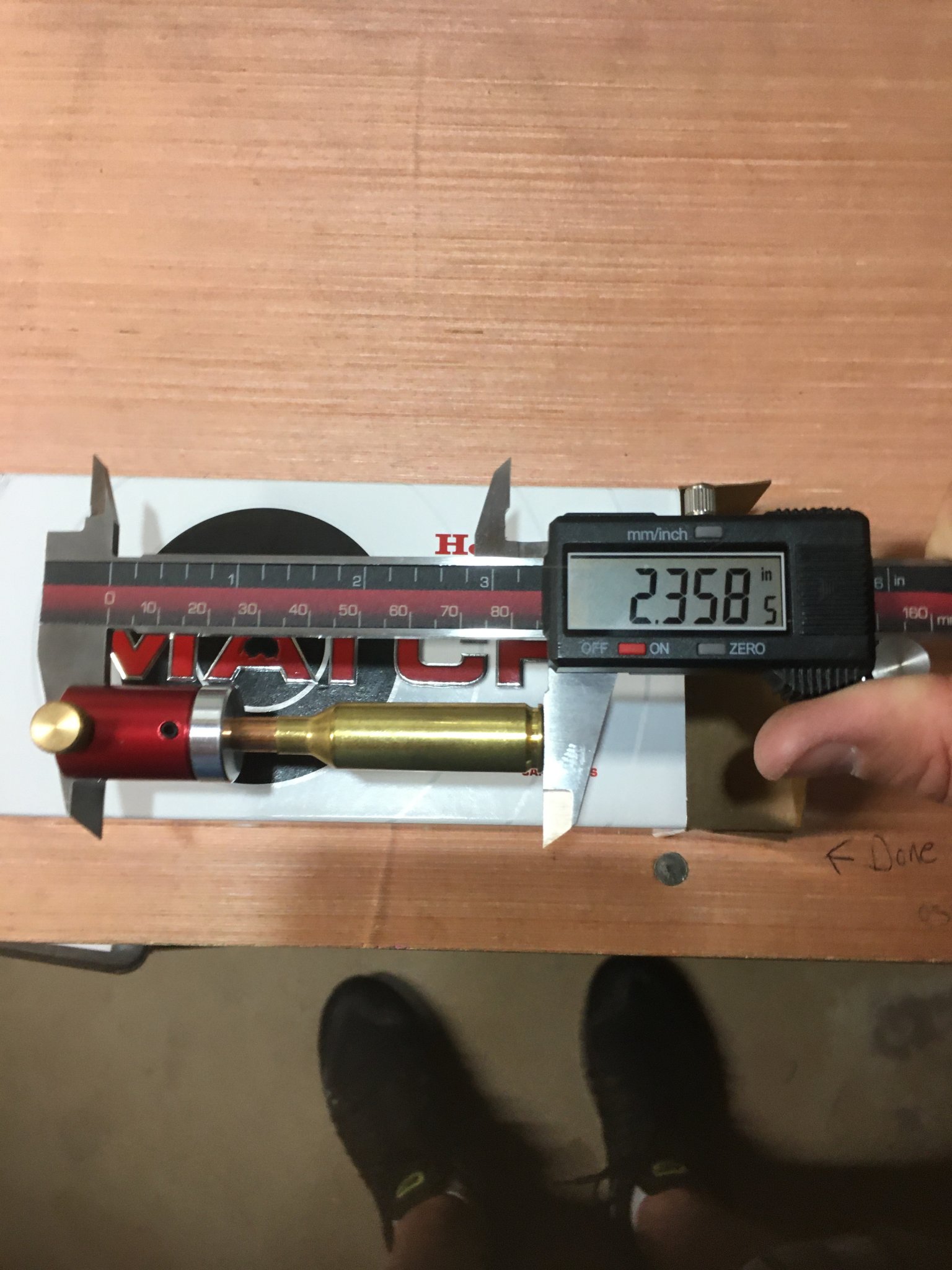

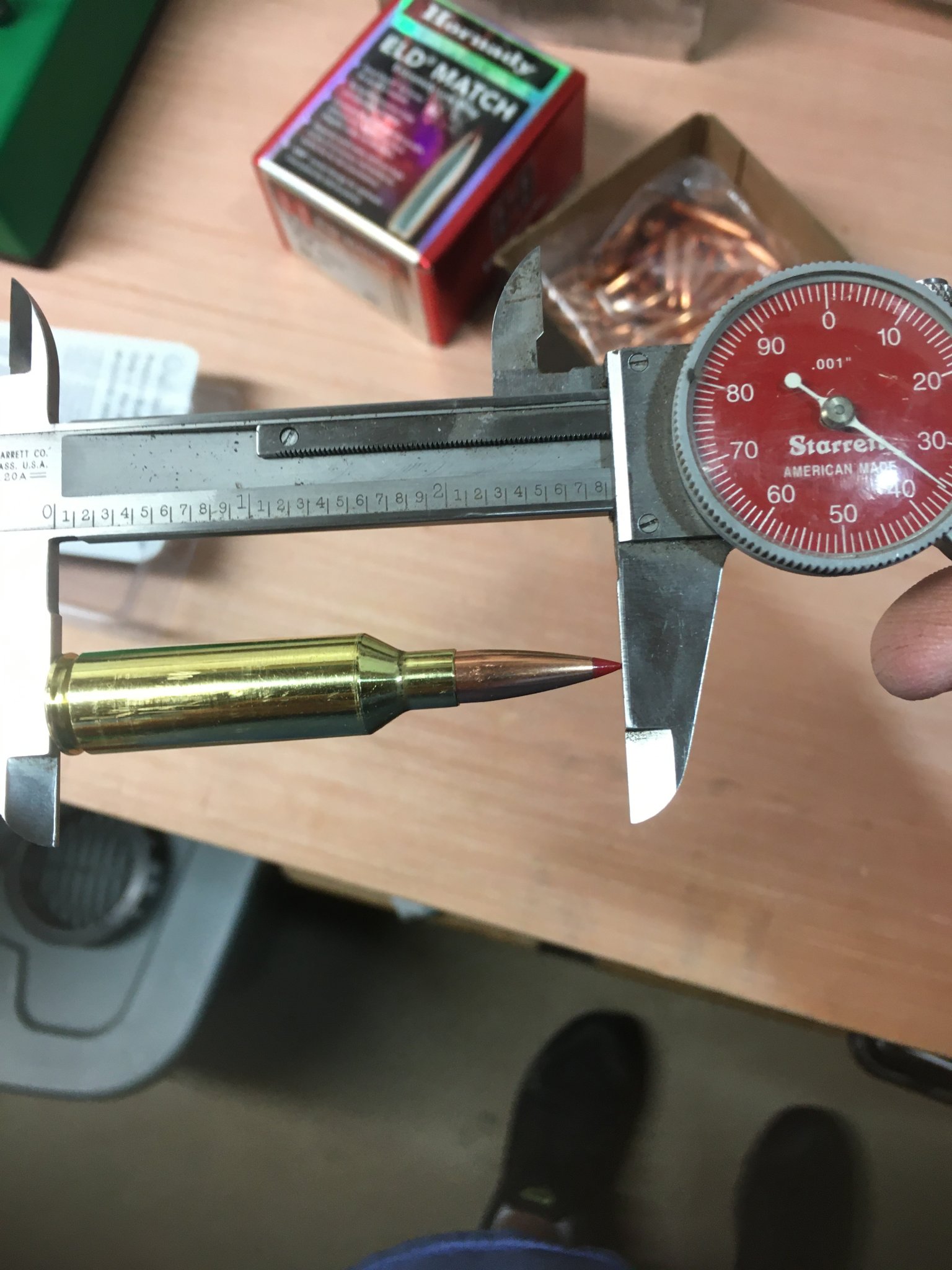

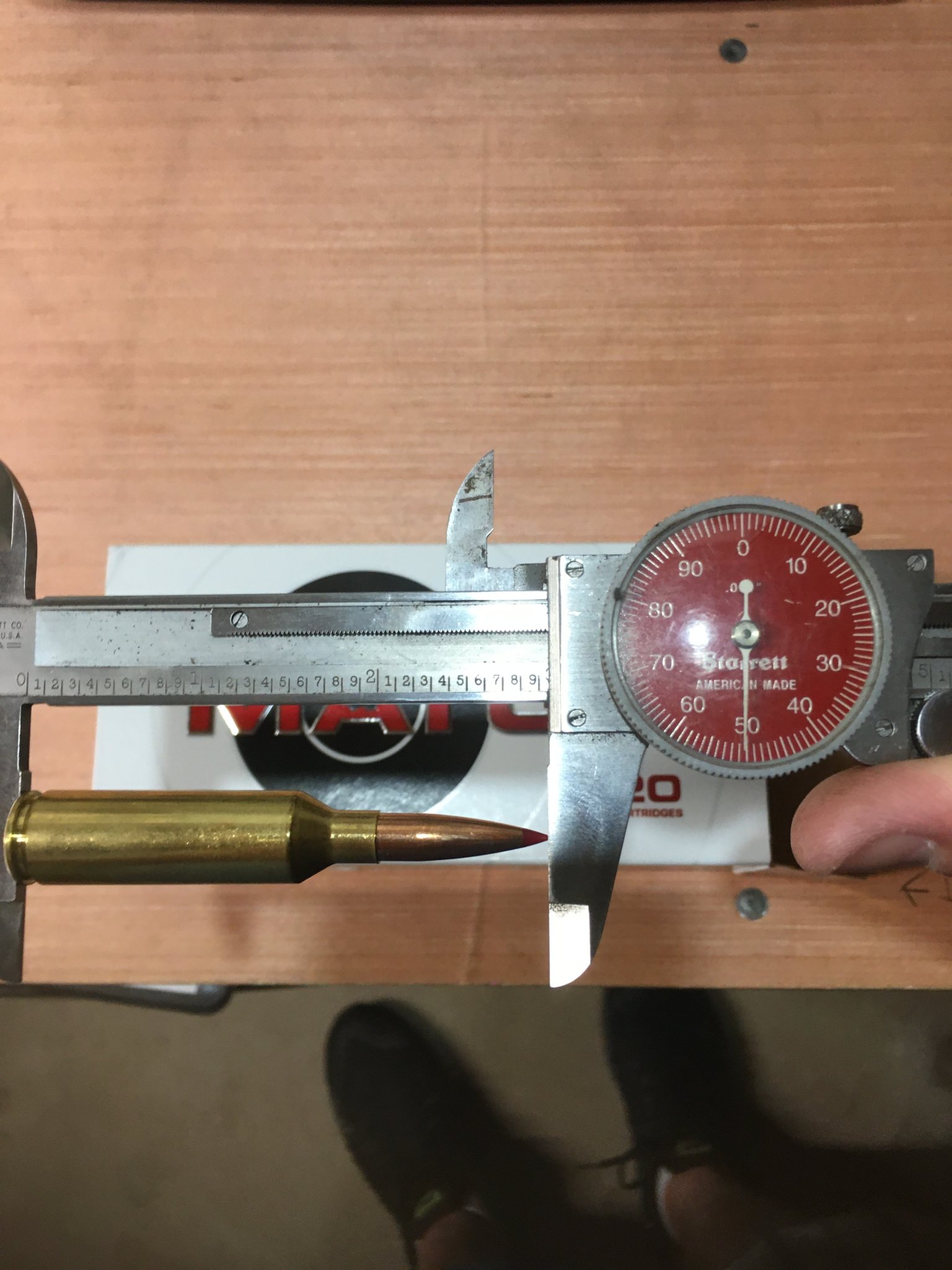

5D6D33C1-F463-4EAA-AF8A-157662017E43.jpeg256F4E1F-5B71-4C9A-8F8D-1D36B440EBBD.jpeg8FA3015E-7B9D-4447-81B3-A479324788E1.jpeg89C4D921-8A96-4D9E-98E0-CF0273BB4A58.jpeg


Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
You have to use the same bullet.

Different bullet vary greatly in ogive location.


Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
I remember some thing about hornady messing up a factory load.

Check thier website. I could not find a press release on it but several websites said hornady screwed up.

I think there is a post on the hide, looking.


918v

Volumetric Meterer
Belligerents
Jul 15, 2007
3,589
1,139
219
Miserable CA
If your factory load chambers at 2.950” and you can close the bolt easily, then the Hornady tool is wrong. You cannot possibly jam a bullet that much.


918v

Volumetric Meterer
Belligerents
Jul 15, 2007
3,589
1,139
219
Miserable CA
Do this: Size a case and seat the bullet to something where the bullet is barely in the neck. See if it chambers and you can close the bolt. You won’t be able to. Then start seating that bullet deeper in .005” increments until you can close the bolt easily. That will be your working max coal.

A FL sized case has a lot of grip on the bullet and can overcome geometry problems during chambering.


Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
His tool, a starret caliper is off by 0.100, not likely.

Last edited:

Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
Do this: Size a case and seat the bullet to something where the bullet is barely in the neck. See if it chambers and you can close the bolt. You won’t be able to. Then start seating that bullet deeper in .005” increments until you can close the bolt easily. That will be your working max coal.

A FL sized case has a lot of grip on the bullet and can overcome geometry problems during chambering.
I have sized case ready to go. I will go through the operations you have listed and report back my findings.
Thanks, Josh


Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
Which hornady ogive tool datum size are you using? Mine is not near so cant check.


Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
I have sized case ready to go. I will go through the operations you have listed and report back my findings.
Thanks, Josh
I did as you suggested. The bolt finally closed on an O.A.L. of 2.968. Measuring from case head to ogive was 2.383. This tells me that a factory load, (using the same 147gr Hornady bullet sets off the lands by .025”. This is a number that I feel better about. Thank you all for your comments and help. 😁

  • Like
Reactions: Snuby642 and 918v

Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
I print the page from saami for each caliber I reload and put it in my loading binder.

In case I get a wierd measurement I can look it up for a reference quickly.

Let us know how your load works out.


DownhillFromHere

Aim > Impact > Take a Nap
Belligerents
Minuteman
Nov 30, 2017
752
693
99
I also found the Hornady tool to be problematic. Over time, I've evolved this approach which gives repeatable measurements within a thousandth.

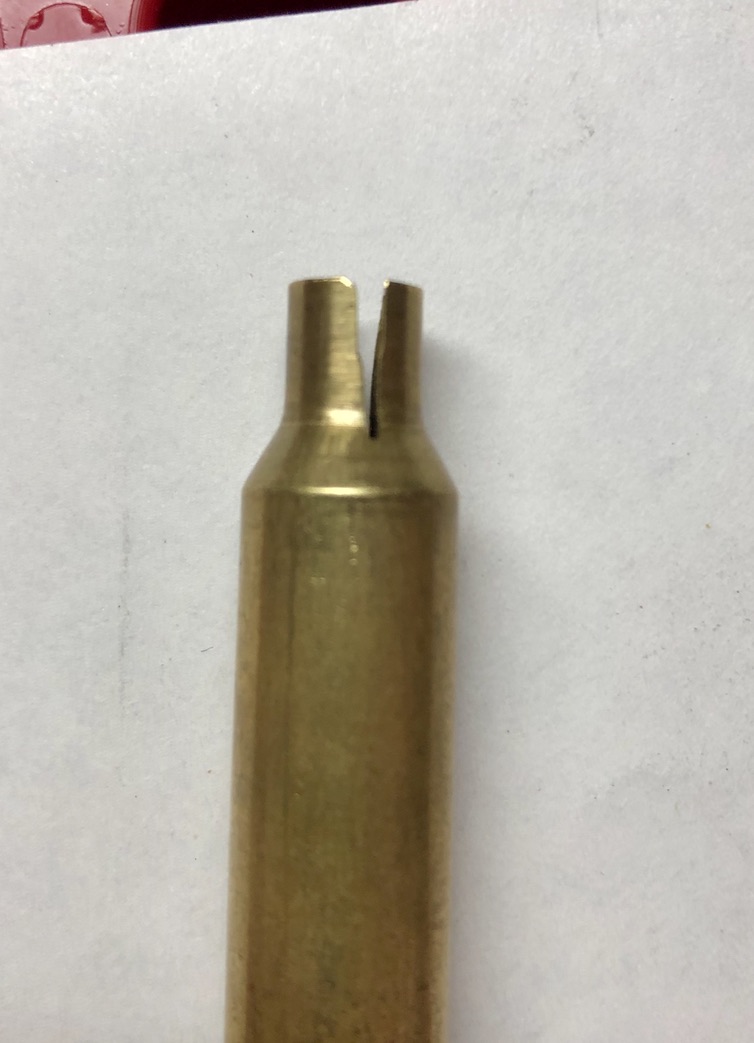

  1. Using a Dremel cutting wheel or similar, cut a slot in the neck of a resized case (both sides) down as far as barely into the shoulder (photo). This case will hold a bullet firmly for purpose but allow it to slip.
  2. Push the bullet of choice into the neck. If desired, use your seating die to start it as straight as possible.
  3. Push it into the chamber with your fingers (not the bolt). You should feel the cartridge stop cleanly when it reaches headspace depth.
  4. Push the cartridge out with a cleaning rod. This will be more consistent than pulling out a Hornady modified case.
  5. Repeat steps 3 and 4 a couple of times until very, very little pressure on the rod is required to start pushing the cartridge out. You now have a cartridge whose bullet is touching but not jammed into the lands. Repeating the insert/push-out process three times or so will yield a high level of concentricity.
  6. Take the CBTO reading with your comparator tool and record it. Record the COAL if you want it.
I "resize" my split cases every so often to get the most consistent pressure on the bullet pressed into the lands.

Now you can fiddle with seating depths with a reliable baseline.

It's worthy of noting that CBTO will vary with different bullets. This struck me as odd... seemed to me that the distance from the cartridge base to the "point" of the ogive where the bullet touches the lands would be independent of the bullet type. But it isn't; checking four different bullets (140, 147gr Hornady ELD-M, 139gr Lapua Scenar, 140gr Berger Hybrid) yielded four different CBTOs with a spread of 0.028 inches.

Make sure your seating stem is pushing on the bullet well below the meplat. Some of the long VLD bullets are so pointy that older stems engage the bullet right on the point and can yield inconsistent CBTO/COAL measurements.



Mr Tibbs

Private
Minuteman
Aug 17, 2020
52
10
12
Josh might I recommend that you take a piece of brass that was fired in YOUR rifle, take it to a gunsmith and have it drilled and tapped (9/32nd drill bit) & a 5/16x36 tap. The brass you bought from Hornady wasn’t fired in your rifle. A modified case that has been fired in your chamber will be more consistent.

Last edited:

Gustav7

Son of a Gun...
Hessian
Belligerents
Minuteman
Jul 18, 2019
866
486
69
Ohio (OH)
Josh might I recommend that you take a piece of brass that was fired in YOUR rifle, take it to a gunsmith and have it drilled and tapped (9/32nd drill bit) & a 5/16 tap. The brass you bought from Hornady wasn’t fired in your rifle. A modified case that has been fired in your chamber will be more consistent.
Whats the TPI on the tap?


Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
Josh might I recommend that you take a piece of brass that was fired in YOUR rifle, take it to a gunsmith and have it drilled and tapped (9/32nd drill bit) & a 5/16x36 tap. The brass you bought from Hornady wasn’t fired in your rifle. A modified case that has been fired in your chamber will be more consistent.
I took a fired casing from my rifle and sent it to Hornady and had a custom modified case built. This is the modified case I am using in the pictures.
Should I have run the modified case through my sizing die before I used it to measure?


308pirate

Gunny Sergeant
Belligerents
Apr 25, 2017
12,228
15,665
219
I did as you suggested. The bolt finally closed on an O.A.L. of 2.968. Measuring from case head to ogive was 2.383. This tells me that a factory load, (using the same 147gr Hornady bullet sets off the lands by .025”. This is a number that I feel better about. Thank you all for your comments and help. 😁
Cartridge overall length (from base to tip) is irrelevant when comparing it to the distance from breechface to start of the rifling. Your references to that number keep confusing you and confusing this thread.

I use a much simpler Sinclair OAL tool and get repeatable results.


Mr Tibbs

Private
Minuteman
Aug 17, 2020
52
10
12
I took a fired casing from my rifle and sent it to Hornady and had a custom modified case built. This is the modified case I am using in the pictures.
Should I have run the modified case through my sizing die before I used it to measure?
Josh the modified case should not be ran through your sizing die, that case is snap shot (picture)of your chamber if you will.


918v

Volumetric Meterer
Belligerents
Jul 15, 2007
3,589
1,139
219
Miserable CA
Cartridge overall length (from base to tip) is irrelevant when comparing it to the distance from breechface to start of the rifling. Your references to that number keep confusing you and confusing this thread.
It’s relevant if you’re trying to see why your perceived max coal is .120” shorter than SAAMI.

  • Like
Reactions: Josh1978 and db2000

db2000

Sergeant of the Hide
Belligerents
Minuteman
Mar 27, 2020
405
169
49
FWIW, using the same Hornady OAL tool and factory case (not shot in my rifle) in my Christiansen MPR 6.5 PRC w/ Berger 156 EOL (OG 0.895), I measure 2.408 base to the lands and am limited by the mag loading BTO 2.237. I could probably go to 2.250 but that's about it. That seems like a lot of jump. I've measured this several times. I use firm pressure on the case in the chamber and that with the bullet touching the lands but not sticking in them when I remove the rig. I will try the advice above from 918v and report back later.

With BTO of 2.237 COAL is 2.940 fyi


Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
Josh the modified case should not be ran through your sizing die, that case is snap shot (picture)of your chamber if you will.
I didn’t think that I should size that modified case. I just can’t seem to figure out why I get crazy measurements when I use the Hornady tool.


Mr Tibbs

Private
Minuteman
Aug 17, 2020
52
10
12
Josh may I suggest that you go to YouTube, there’s video from Panhandle Precision (Sam) CBTO which may help you


Josh1978

1 Mile
Belligerents
Minuteman
May 19, 2020
227
158
49
41
KS
So I decided I would set my rifle back up and check it again. I used the same tools as before. I took multiple measurements and continued to get 2.369” measuring from case head to ogive. Comparing it to a factory bullet that measures 2.359 I figured out that the bullet sets off the lands about .010”. This is something I can live with. I have no idea why I was getting off the wall measurements before.
I am just happy that I am getting better measurements. I want to thank you all for the help and education!
Josh

  • Like
Reactions: Snuby642

Snuby642

Old Salt
Belligerents
Feb 11, 2017
4,889
5,830
219
A lot of people complain about the hornady tools especially that one.

Once you get the feel for it, works fine.

Good luck on your loads.
