New room setup

Adkhunter3

Sergeant of the Hide
Minuteman
  • Jun 16, 2020
    264
    78
    Earth
    Just built a new reloading room and my layout is only big enough for 2 presses. I’m currently running two Single stage rock chuckers. I was thinking about getting rid of them and getting a T7 turret press then adding a Dillon 550 down the road. I planned on doing my long range stuff on the T7 in conjunction with my chargemaster and doing 223 and shorter range rounds on the Dillon. My buddy just suggested keeping one of the rockchuckers and going straight to the Dillon 550 basically loading everything on that and using the rockchucker as a backup. Any input would be appreciated.


    acudaowner

    Two Star General
    Full Member
    Minuteman
    Dec 26, 2018
    7,361
    5,709
    I wish you lot's of luck on finishing your reloading space I am still lost on what I want after spending days upon days looking through custom made gun rooms I always see tons of great idea's there are just so many choices on directions one could go it's easy to be side tracked .

    • Like
    Reactions: Adkhunter3

    Taylorbok

    Private
    Full Member
    Minuteman
    Nov 16, 2017
    317
    194
    Sask, Canada
    I run all sizing operations on a Dillon 750. (Deprime, Size, prime, expand). for all my cartridges. I then seat bullets on an Ammo Master-2 (saves me from scooping bullets in with my RUM) I was going to buy a Zero press for seating but still would be scooping bullets for my RUM plus I'm planning a bigger case one day .

    I would recommend this set up for sure. I get great accuracy and consistency out of my Dillon ammo and saves me a pile of time

    Last edited:

    rustyinbend

    GySgt USMC 1976-1992
    Full Member
    Minuteman
  • Dec 9, 2018
    2,313
    2,215
    Bend, Oregon

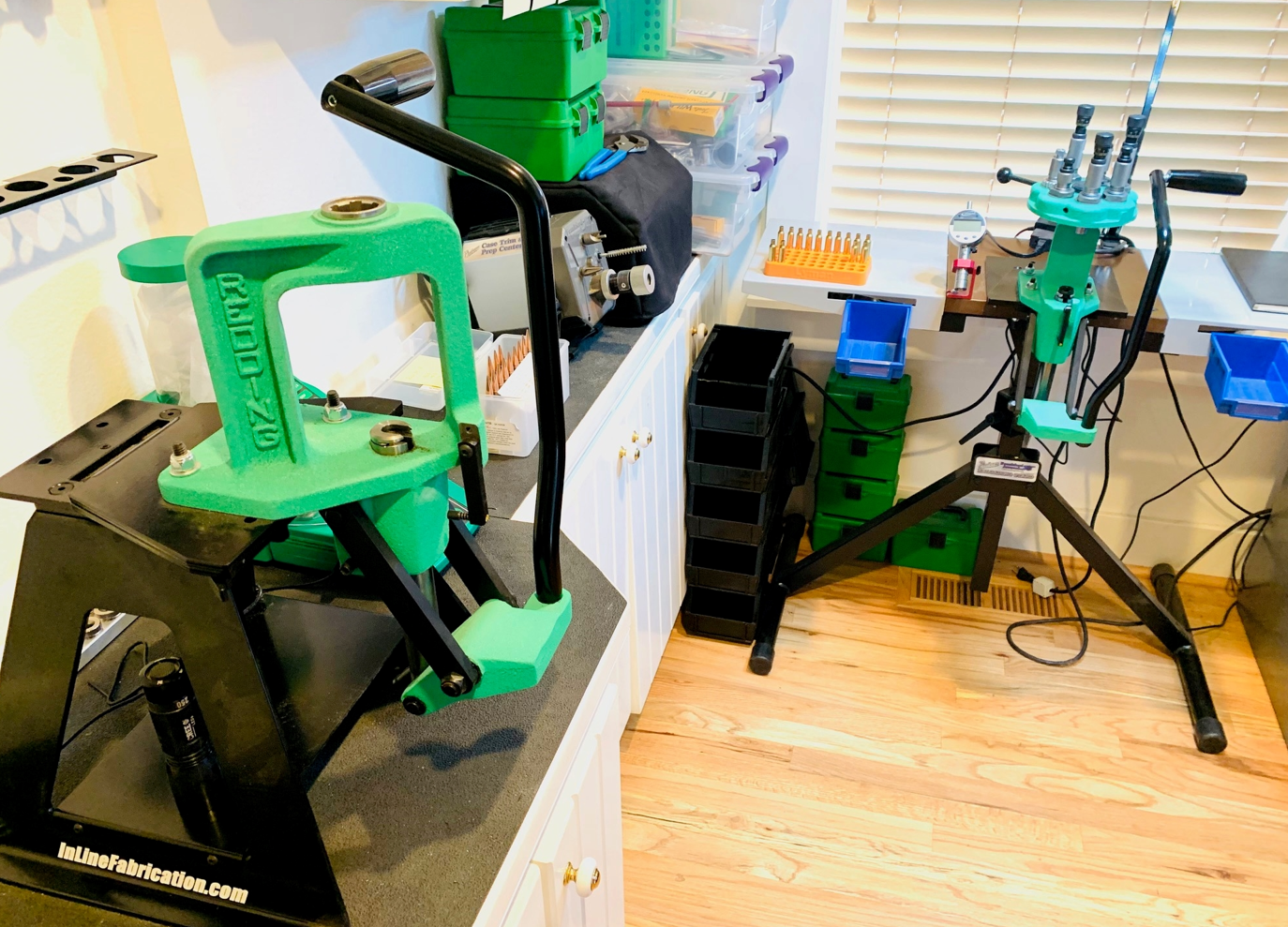

    I have a T7 on a foldable bench, and a Redding Big Boss 2. Both are on the quick-change systems from Inline Fabrication so that I can move them around, and also use other tools with the InlineFab mount (like my trimmer. It's absolutely the way to go.



    Mudflap621

    Gunny Sergeant
    Full Member
    Minuteman
    Supporter+
    Sep 7, 2020
    651
    474
    I agree with ur buddy. I’d get the 550 first and you might find you end up running most everything on it. If it doesn’t do it for you than anti up for the turret.


    NORCAL50

    Not a Private
    Full Member
    Minuteman
    Feb 1, 2021
    100
    62
    California
    When I shoot long range I always resort to my Forster single stage because of how accurate the ammunition is that comes out of it. When I shoot my AR, I go straight to my Dillon. If I were to get a turret in place of my single stage, even the T7, I'd probably just use my Dillon instead because IMO it probably produces just as accurate ammo when setup for it. Even F-Class John loads his precision ammo on it.

    So that's a vote for single stage + progressive.


    Adkhunter3

    Sergeant of the Hide
    Minuteman
  • Jun 16, 2020
    264
    78
    Earth
    When I shoot long range I always resort to my Forster single stage because of how accurate the ammunition is that comes out of it. When I shoot my AR, I go straight to my Dillon. If I were to get a turret in place of my single stage, even the T7, I'd probably just use my Dillon instead because IMO it probably produces just as accurate ammo when setup for it. Even F-Class John loads his precision ammo on it.

    So that's a vote for single stage + progressive.
    So precision ammo can be done in a Dillon but you said you use it how I envisioned using it for shorter range type shooting. Is it harder to make it happen on a Dillon for accurate long range ammo? What’s the typical accuracy you can get with the Dillon? I guess I just thought the T7 would be equal to a rock chucker. I do like the idea of saving a lot of time so I’m very open to the Dillon.


    Mudflap621

    Gunny Sergeant
    Full Member
    Minuteman
    Supporter+
    Sep 7, 2020
    651
    474
    Many people are running the Dillon for their precision ammo and making just as accurate ammo as a single stage.

    Many others will do all their case prep on the Dillon and seat on a single.

    If you already have an autotrickler I feel that you could be very productive on the Dillon. I recently picked up a second chargemaster just so it cut down waiting on the powder throw as that was the weak link in my operation.

    I currently size all my brass on my MEC than trim. After that everything else is done in one operation on the Dillon(Prime,Mandrel,powder,seat). As stated I run the Armonov toolheads which free float each die individually. I regularly see around .001-.0015 variance in my cbto.


    Taylorbok

    Private
    Full Member
    Minuteman
    Nov 16, 2017
    317
    194
    Sask, Canada
    I recently picked up a second chargemaster just so it cut down waiting on the powder throw as that was the weak link in my operation.
    I thought about doing the same but decided to order a v4 instead, I should gain accuracy and speed with the new set up over my chargemaster lite


    Mudflap621

    Gunny Sergeant
    Full Member
    Minuteman
    Supporter+
    Sep 7, 2020
    651
    474
    I thought about doing the same but decided to order a v4 instead, I should gain accuracy and speed with the new set up over my chargemaster lite
    I’m about to order one as well but looks to be quite a ways out. The second chargemaster lite was a cheap and quick solution for theyime being.


    Taylorbok

    Private
    Full Member
    Minuteman
    Nov 16, 2017
    317
    194
    Sask, Canada
    I’m about to order one as well but looks to be quite a ways out. The second chargemaster lite was a cheap and quick solution for theyime being.
    I've heard they are about 8 months wait rumor is that they never catch up date just keeps pushing back, they say if you never get your name on the list you'll never get one.


    D1gger

    GDI
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Nov 12, 2017
    444
    318
    Staunton, VA
    Another vote for Inline Fab mounts. I have 2 presses, a 550 and a Rockchucker, but 1 press station. I don't load my precision rounds on the Dillon, but just my preference, no other reason. I also have the Inline Fab storage mounts. Really cleans up the bench.


    CK1.0

    \m/ SLAYER \m/
    Full Member
    Minuteman
    Supporter+
    Sep 2, 2020
    1,288
    1,323
    IMHO having a progressive and a single stage is awesome if one can swing it. I run a Dillon for high volume stuff and do all my precision stuff on the single stage.



    NORCAL50

    Not a Private
    Full Member
    Minuteman
    Feb 1, 2021
    100
    62
    California
    So precision ammo can be done in a Dillon but you said you use it how I envisioned using it for shorter range type shooting. Is it harder to make it happen on a Dillon for accurate long range ammo? What’s the typical accuracy you can get with the Dillon? I guess I just thought the T7 would be equal to a rock chucker. I do like the idea of saving a lot of time so I’m very open to the Dillon.
    The Rock Chucker and Redding T7 I'm sure both create very accurate ammo, and I would agree with you that yeah the turret is probably equal to it. It's an awesome press.

    I don't know the accuracy I get with my Dillon because I use my single stages for that, but from what I've heard, Armanov Free-floating Die Toolhead + Weigh Charges off Press and you have ammo ready for F-Class (minus brass quality + prep).

    So I'm not knocking the T7. But if people are making a Dillon work for F-Class, (personally) I might as well just do things the faster way + put the money spent on the T7 towards the progressive if I couldn't have my single stage anymore.

    If you want to hear it from someone with more credibility than me (granted this is a 750):

    Last edited:
    • Like
    Reactions: Mudflap621

    Choid

    Anti Bodyfat Activist
    Full Member
    Minuteman
    Feb 13, 2017
    5,458
    3,671
    Many people are running the Dillon for their precision ammo and making just as accurate ammo as a single stage.

    Many others will do all their case prep on the Dillon and seat on a single.

    If you already have an autotrickler I feel that you could be very productive on the Dillon. I recently picked up a second chargemaster just so it cut down waiting on the powder throw as that was the weak link in my operation.

    I currently size all my brass on my MEC than trim. After that everything else is done in one operation on the Dillon(Prime,Mandrel,powder,seat). As stated I run the Armonov toolheads which free float each die individually. I regularly see around .001-.0015 variance in my cbto.
    I size on a turret, then do everything else on a 550. I actually have all short action cartridges down to one toolhead on my 550, with a mandrel die in station one, where I switch out the mandrel depending on the cartridge, a powder station in #2, which I do either using a hopper or an Autotrickler, again depending on the cartridge, and then a SAC universal seater in station three where I just dial the micrometer to length, again depending on the cartridge. And I agree on the floating toolheads. I haven't tried the Armonov, but I am assuming they are just like the whiddens.

    Then I have a million other toolheads for rando cartridges, but I seem really organized when loading short action.


    Choid

    Anti Bodyfat Activist
    Full Member
    Minuteman
    Feb 13, 2017
    5,458
    3,671
    The Rock Chucker and Redding T7 I'm sure both create very accurate ammo, and I would agree with you that yeah the turret is probably equal to it. It's an awesome press.

    I don't know the accuracy I get with my Dillon because I use my single stages for that, but from what I've heard, Armanov Free-floating Die Toolhead + Weigh Charges off Press + Honed Shellplate Bottom + Thrust Bearings for shellplate and you have ammo ready for F-Class (minus brass quality + prep).

    So I'm not knocking the T7. But if people are making a Dillon work for F-Class, (personally) I might as well just do things the faster way + put the money spent on the T7 towards the progressive if I couldn't have my single stage anymore.

    If you want to hear it from someone with more credibility than me:

    All of that makes sense other than honing the shellplate bottom. Unless I am understanding the machine incorrectly, there is no advantage or disadvantage in doing so. The only thing would be if you needed to get your sizing die down lower than the stock shellplate would allow, but then you might as well hone the bottom of your sizing die.


    ICU22250

    Perfectionist
    Supporter
    Full Member
    Minuteman
  • Feb 13, 2017
    1,491
    477
    WV
    When I shoot long range I always resort to my Forster single stage because of how accurate the ammunition is that comes out of it. When I shoot my AR, I go straight to my Dillon. If I were to get a turret in place of my single stage, even the T7, I'd probably just use my Dillon instead because IMO it probably produces just as accurate ammo when setup for it. Even F-Class John loads his precision ammo on it.

    So that's a vote for single stage + progressive.
    John sold his dillon and now uses a Zero press, correct me if I am wrong.


    NORCAL50

    Not a Private
    Full Member
    Minuteman
    Feb 1, 2021
    100
    62
    California
    John sold his dillon and now uses a Zero press, correct me if I am wrong.
    He did. I should have clarified thank you. They make very accurate presses for single turret and progressive. I guess my point is more, it's easier to make a quality single stage than a turret or progrerssive, and the price will reflect that. So, that's my reason to have a single stage. And, between a T7 & Dillon, I consider the ammo they make to be the same quality, and any differences in the ammo quality negligible so in that instance I'd just use the Dillon b/c it has so much more speed. Perhaps all turret presses was a hasty generalization.

    Last edited:

    impactaddict

    Full Member
    Full Member
    Minuteman
    Feb 14, 2017
    464
    525
    Texas Hill Country
    John sold his dillon and now uses a Zero press, correct me if I am wrong.
    It certainly looks that way. I drank the 750XL kool aid and I'm loving it so far. Its certainly capable of making some great ammo, as FCJ used it for a while to make match loads. Cortina is rumored to use one as well but maybe he's on that Zero train now too, I dont know.

    OP is interested in running progressive for bulk loading a turret for precision stuff - to save space. I will argue that a 750XL is certainly capable of doing both tasks extremely well with some minor bolt-on modifications. It looks like a lot of reloading lore we used to think was important doesn't matter as much as we once thought; hence why loading precision rounds on a progressive works...with the right equipment.

    That said, the Zero looks like an amazing piece of reloading gear.
