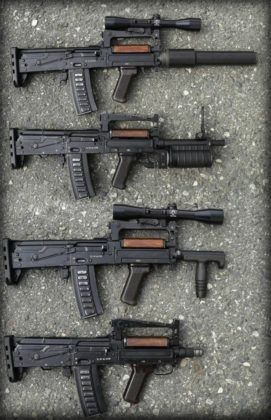

    My next project is the OTs-14 Groza. The OTs-14 Groza (ОЦ-14 "Гроза") is a Russian selective fire bullpup rifle chambered for the 7.62x39 round and the 9x39 subsonic round. It was developed in the 1990s at the TsKIB SOO(Central Design and Research Bureau of Sporting and Hunting Arms) in Tula, Russia.
    The weapon is colloquially known as OC-14 or OTs-14 "Groza". The OTs-14-4A "Groza-4" has one derivative, the TKB-0239 (ТКБ-0239), also known as OTs-14-1A "Groza-1", chambered for the 7.62x39 round. The Groza saw limited use in 1999 in the first anti terrorist campaign in Chechnya, however they quickly fell out of favor and are no longer produced.
    groza ots-14 a.jpg

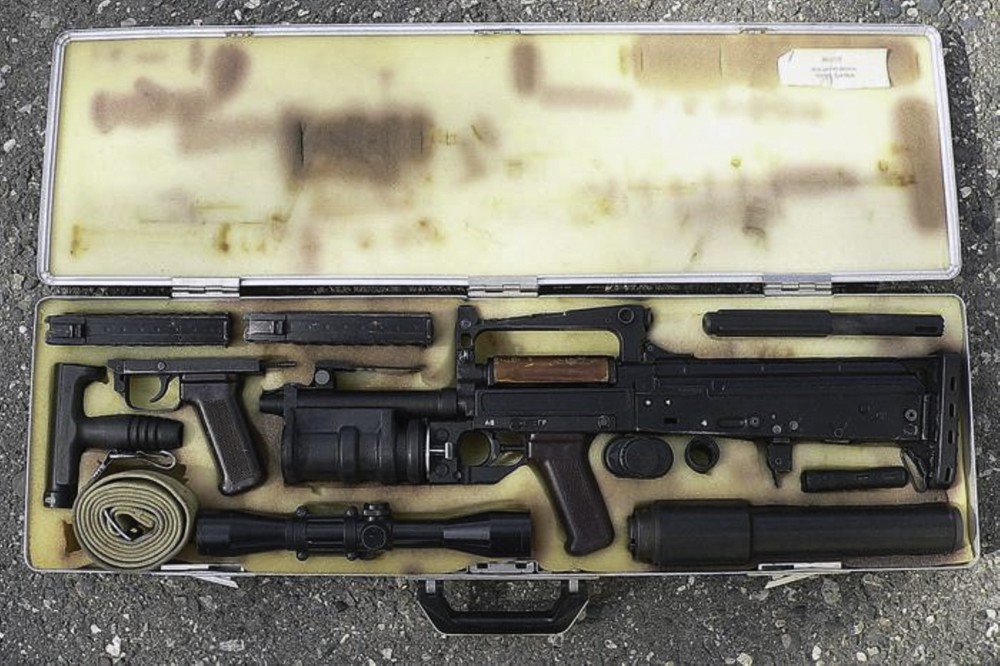

    The weapon fires from a closed bolt and has a hammer-type firing mechanism. It has a unitary trigger; a three-position combination fire mode selector switch / manual safety on the left side of the receiver sets whether it fires either the rifle or the grenade launcher or places it in "safe". The assault rifle is equipped with iron sights contained in the carrying handle that consist of an adjustable rear aperture sight on a tangent leaf with range graduations from 50 to 200 m, and a forward post. The grenade launcher is aimed using a folding leaf sight. The weapon will also accept several optical sights, including the PSO telescopic sights which mount directly onto the carrying handle or, as on early models, onto a bracket on the left side of the receiver housing. The OTs-14-4A also has a night sight dovetail rail that will accept all standard night vision optics.


    330px-%D0%A1%D1%82%D1%80%D0%B5%D0%BB%D1%8C%D0%B1%D0%B0_%D0%B8%D0%B7_%D0%9E%D0%A6-14.jpeg

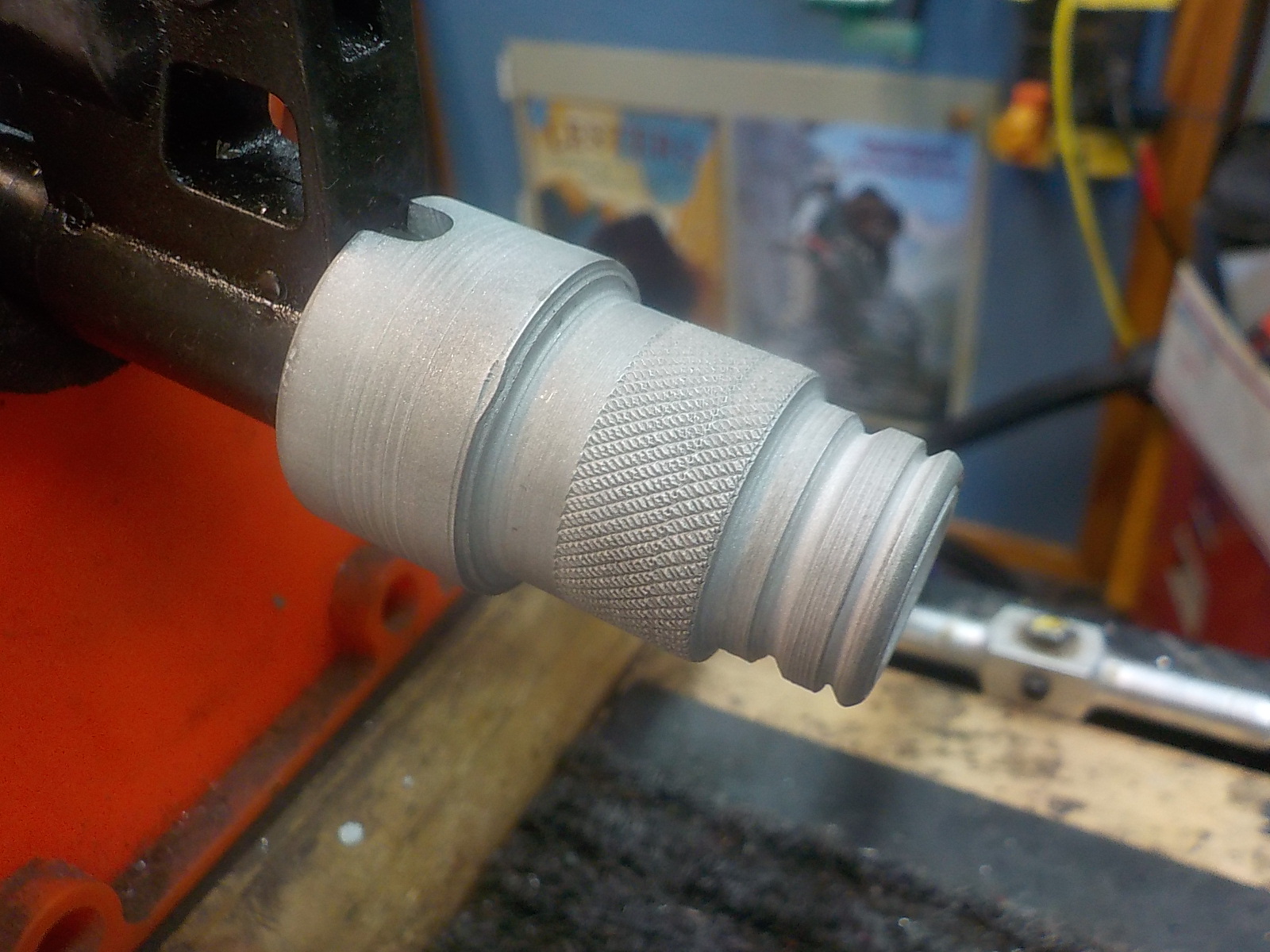

    Parts are on hand. I will convert a "hellpup" pistol into a Groza by changing it to a bullpup configuration. I'll do this by fabricating the forward fire controls from an 80% receiver. I'll fabricate the carrying handle from either a solid billet or sheet steel and turn the muzzle device on my lathe...or just use a krinkov brake. I'll probably SBR this just to avoid any problems.


    Anb618

    In Valor, there is Hope.
    Supporter
    Full Member
    Minuteman
    Dec 18, 2017
    1,324
    2,804
    Threads like this are my favorite part of the SH community. Wish I had the skills, resources, and time to do stuff like this.

    Of course, if I spent less time on SH, I’d have more time to develop the skills to do stuff like this, so it’s a bit of a double-edged sword.

    Regardless, I can’t wait to see the project unfold. I assume yours will be 7.62x39?

    • Like
    Reactions: buffalowinter

    buffalowinter

    Rick Jones MAJ, SF (Ret)
    Full Member
    Minuteman
  • Mar 17, 2014
    2,519
    8,935
    104
    Llano, TX

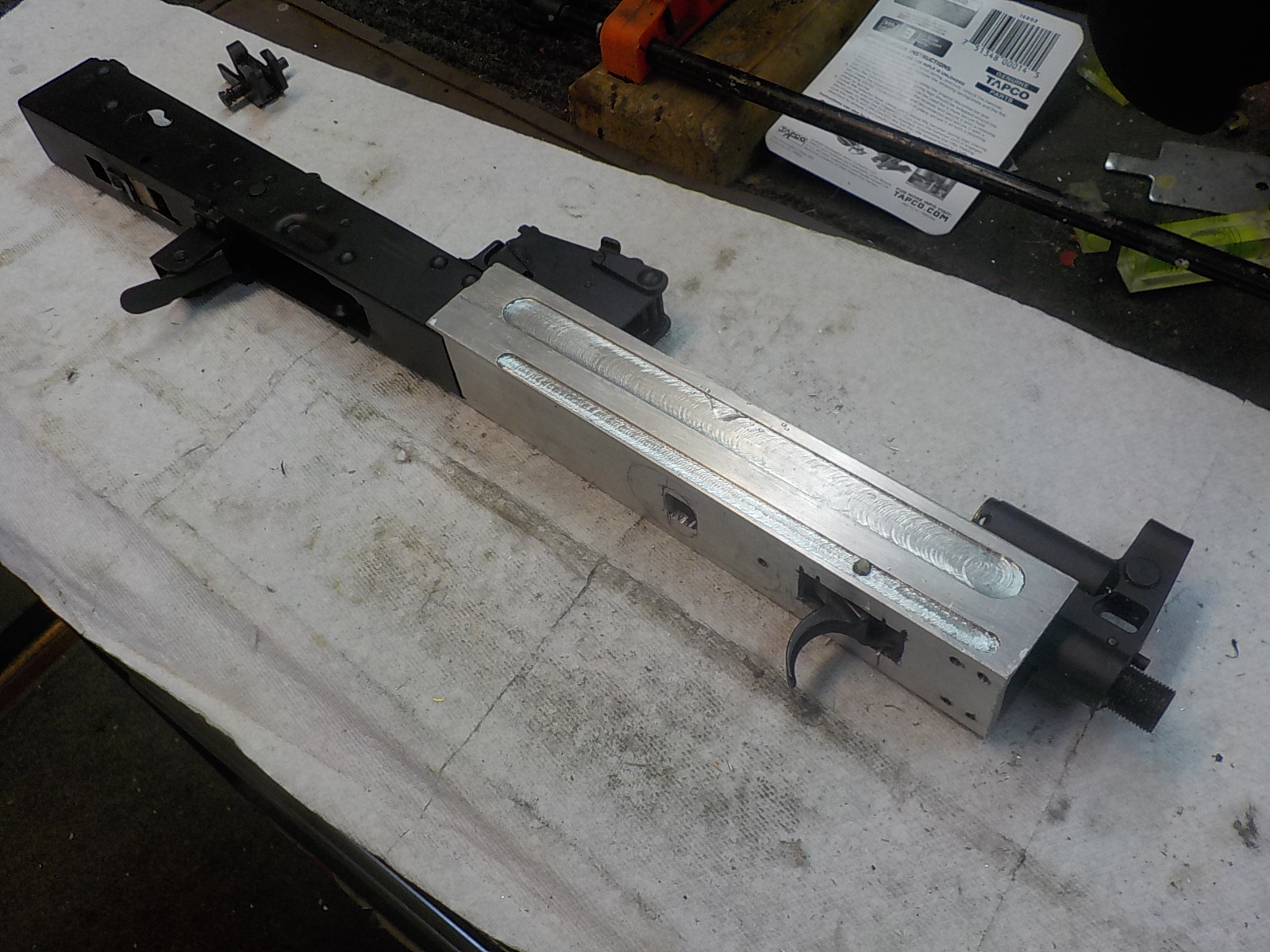

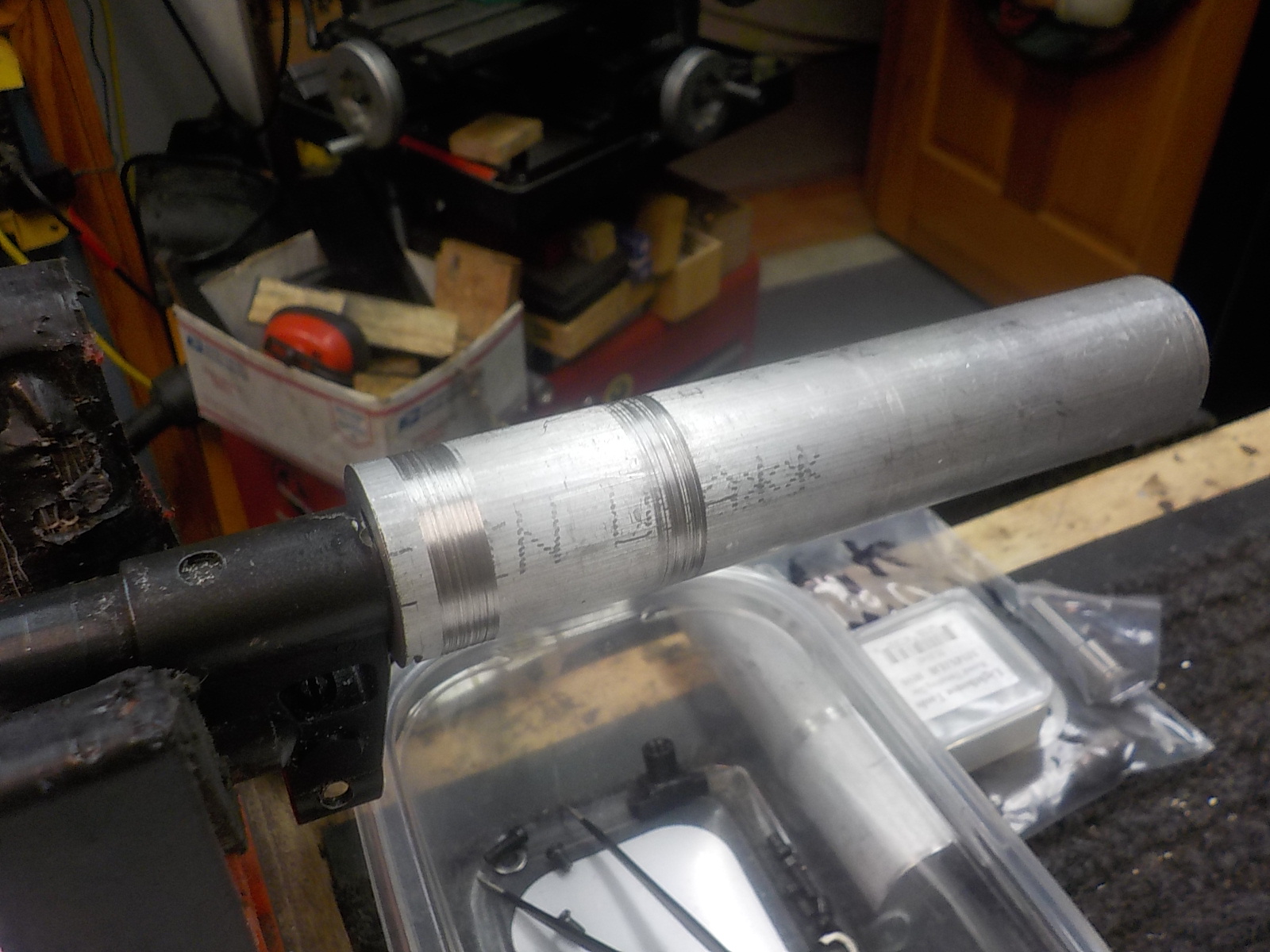

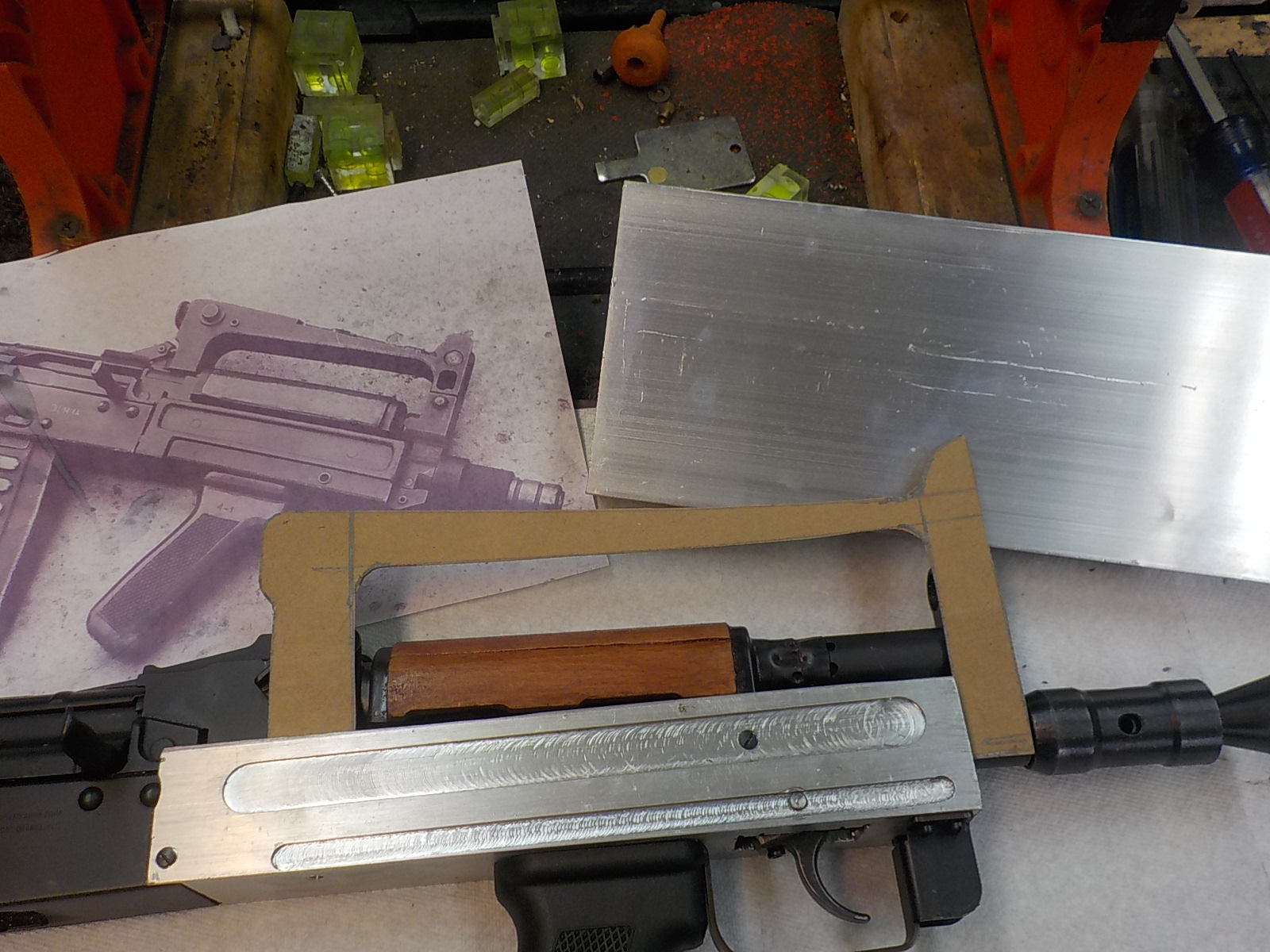

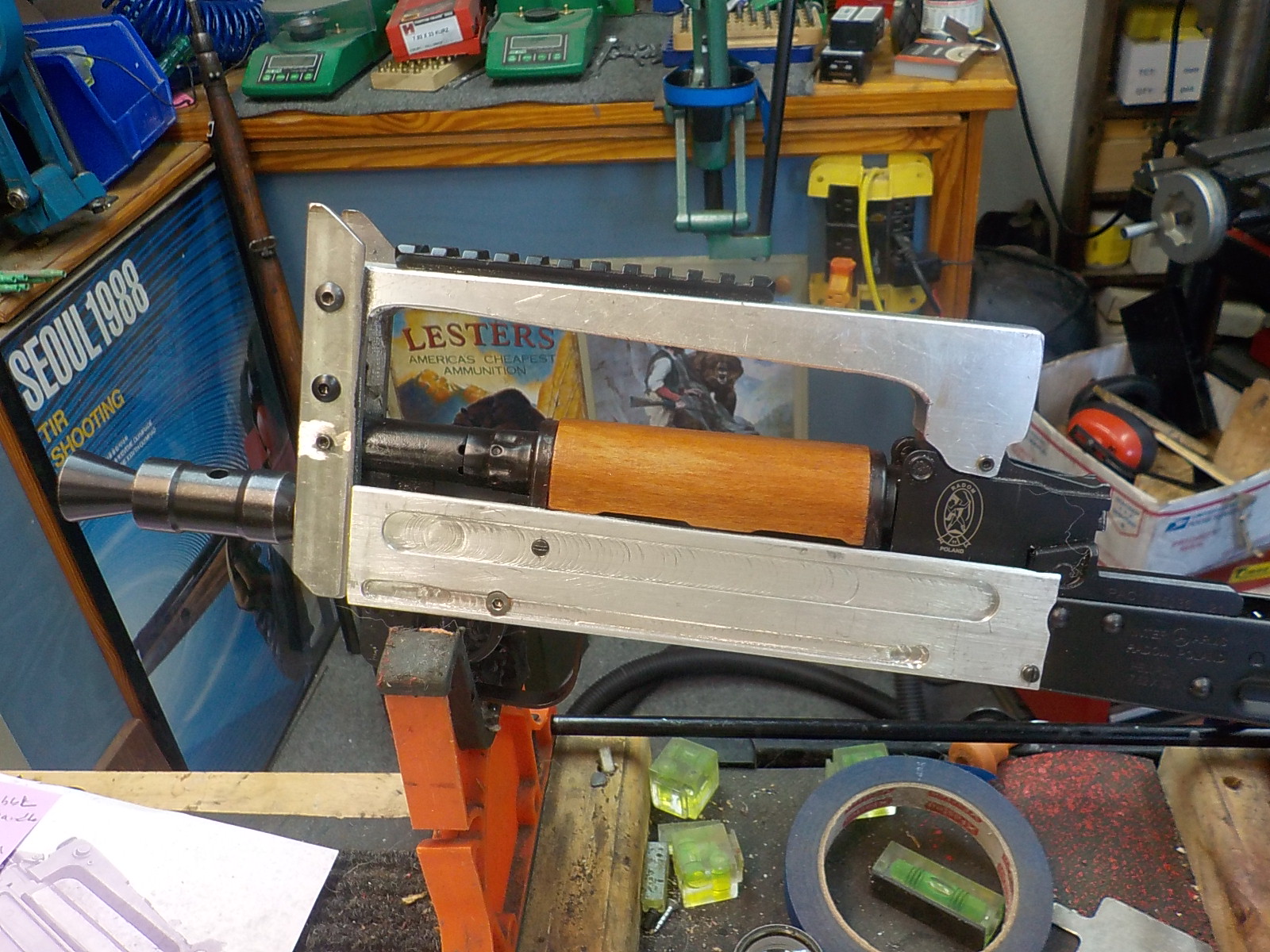

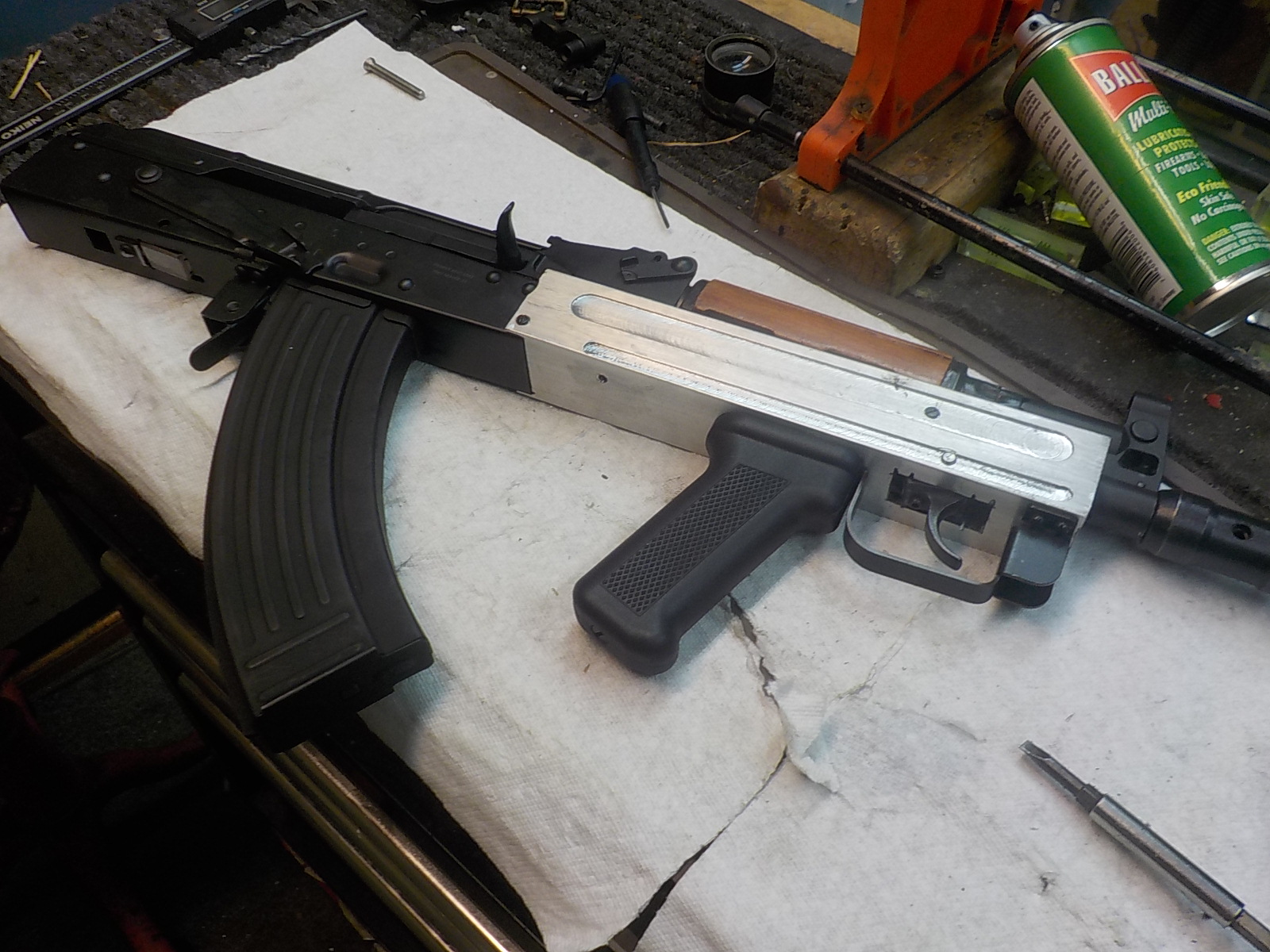

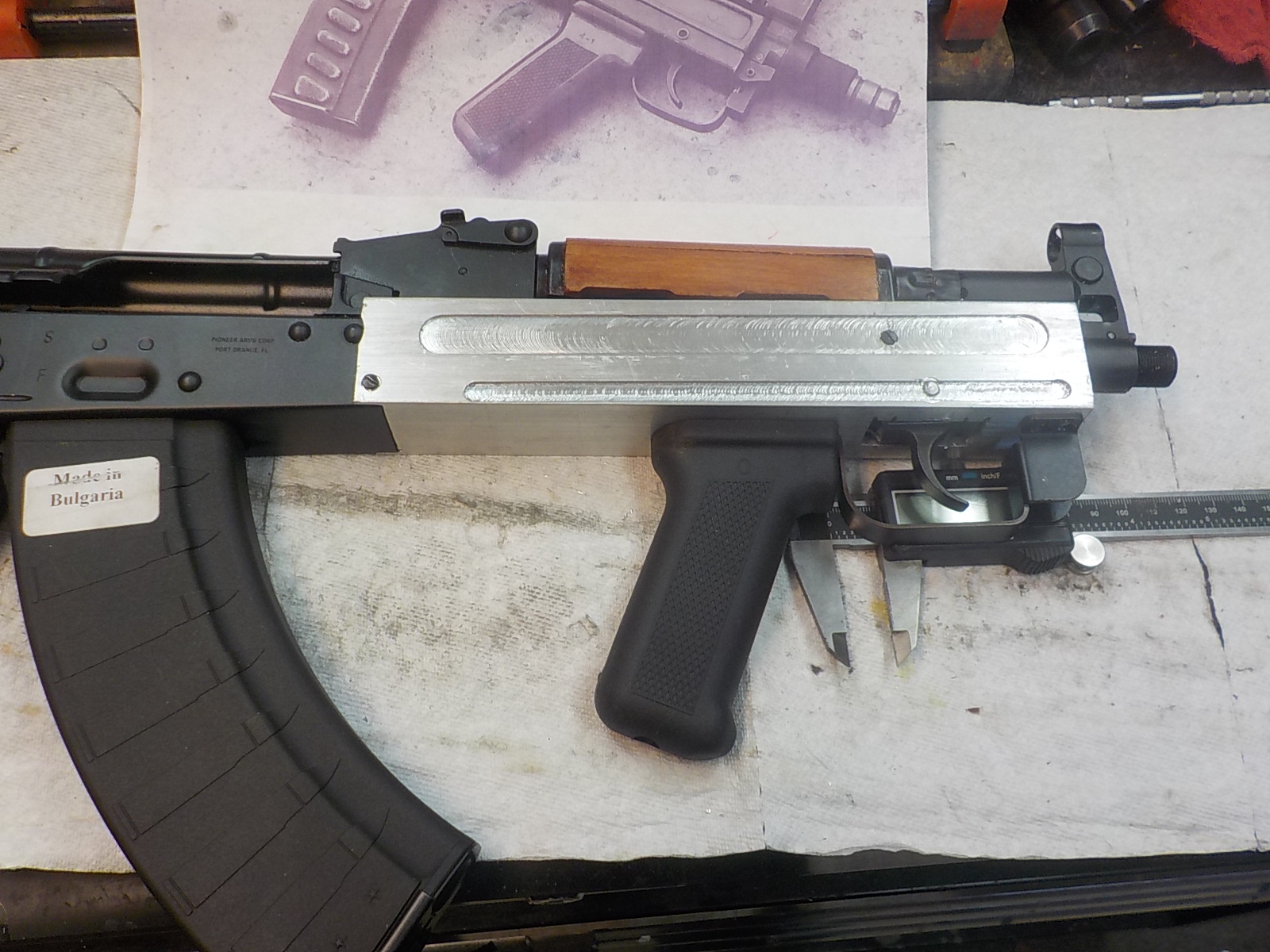

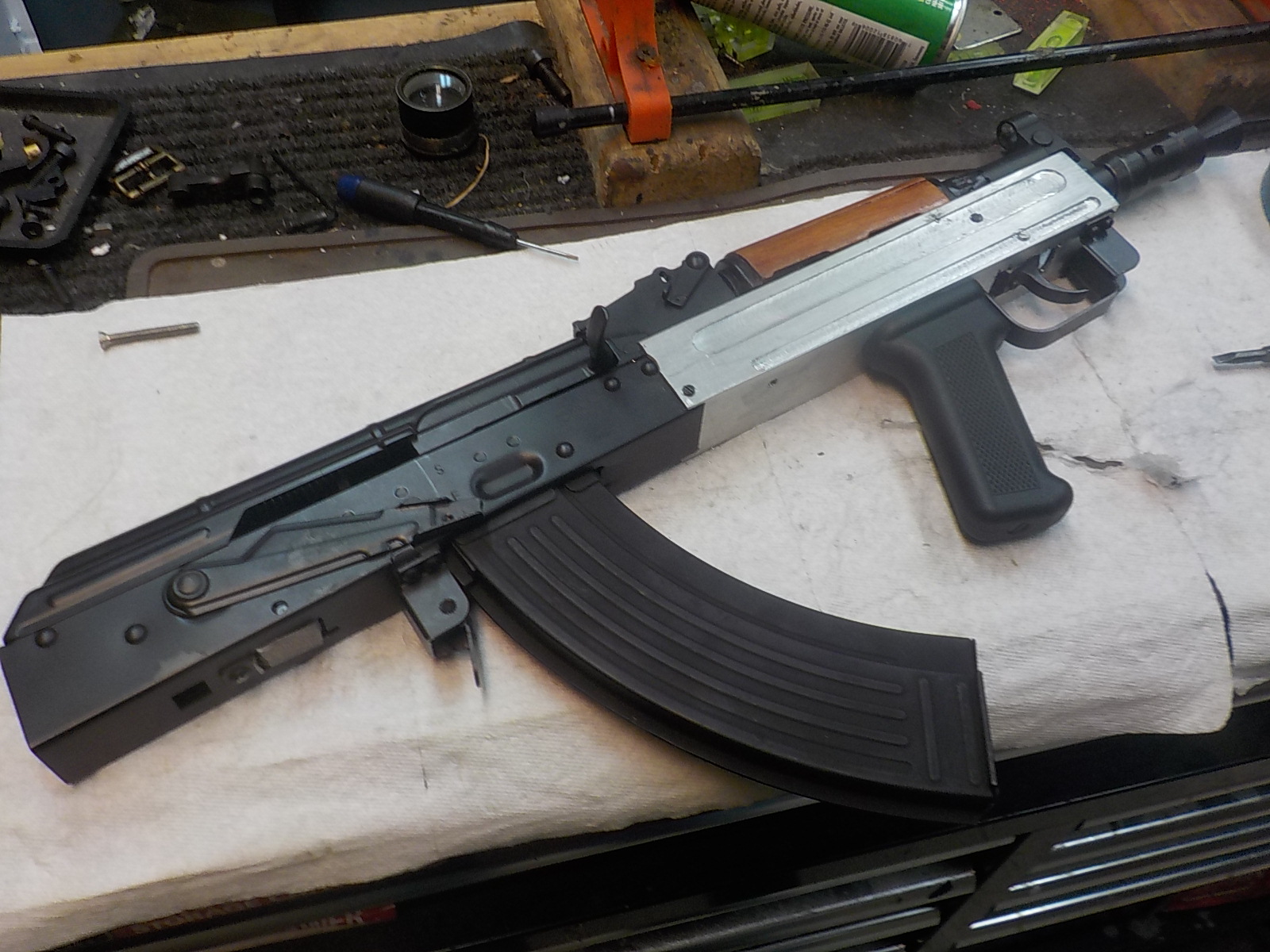

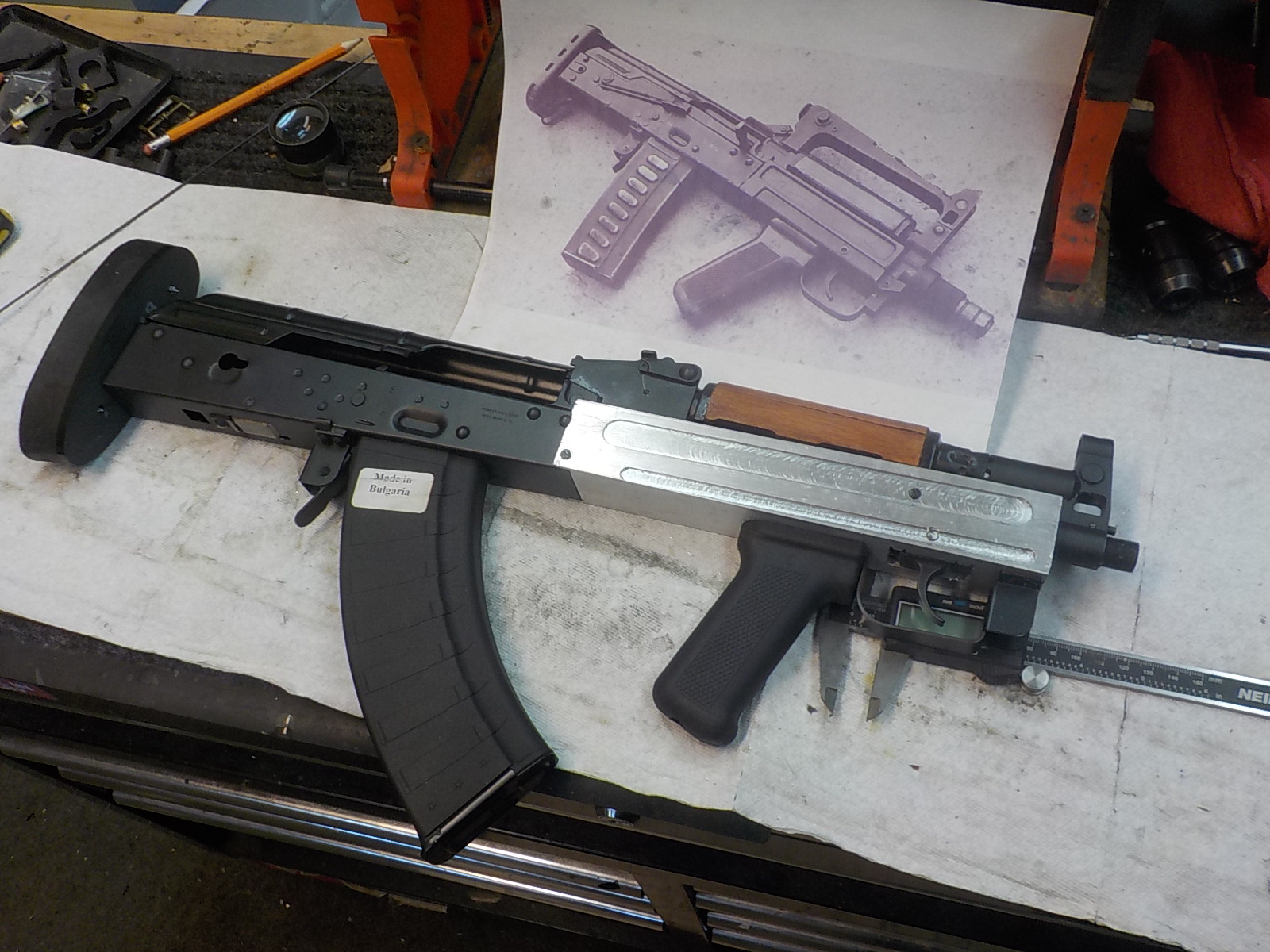

    Coming together. Fore-end, trigger, trigger guard, grip are done. Rear and front fire control is done, have to work on linkage. Need to work on carry handle/sight assembly, Muzzle brake, and buttplate (but can't attach until form one comes back. Decided to not use the 80% lower and fabricate a forend from Aluminum tubing.


    mocked up


    Last edited:

    Hetzer

    Private
    Supporter
    Full Member
    Minuteman
  • Feb 28, 2017
    164
    77
    JoCo, Kansas
    I'm curious how the fcg works on such a thing. I never paid attention to how bullpups work.


    buffalowinter

    Rick Jones MAJ, SF (Ret)
    Full Member
    Minuteman
  • Mar 17, 2014
    2,519
    8,935
    104
    Llano, TX

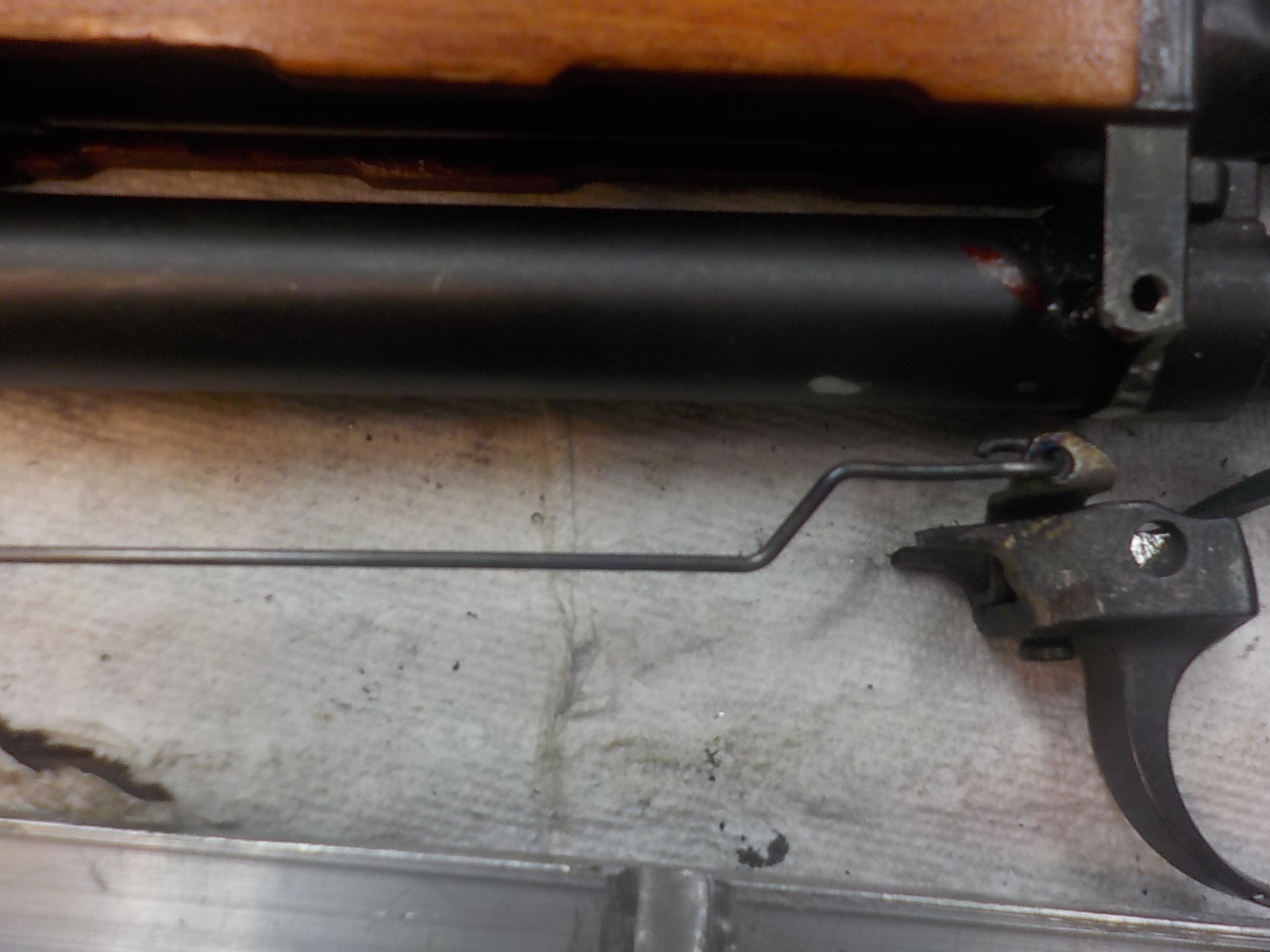

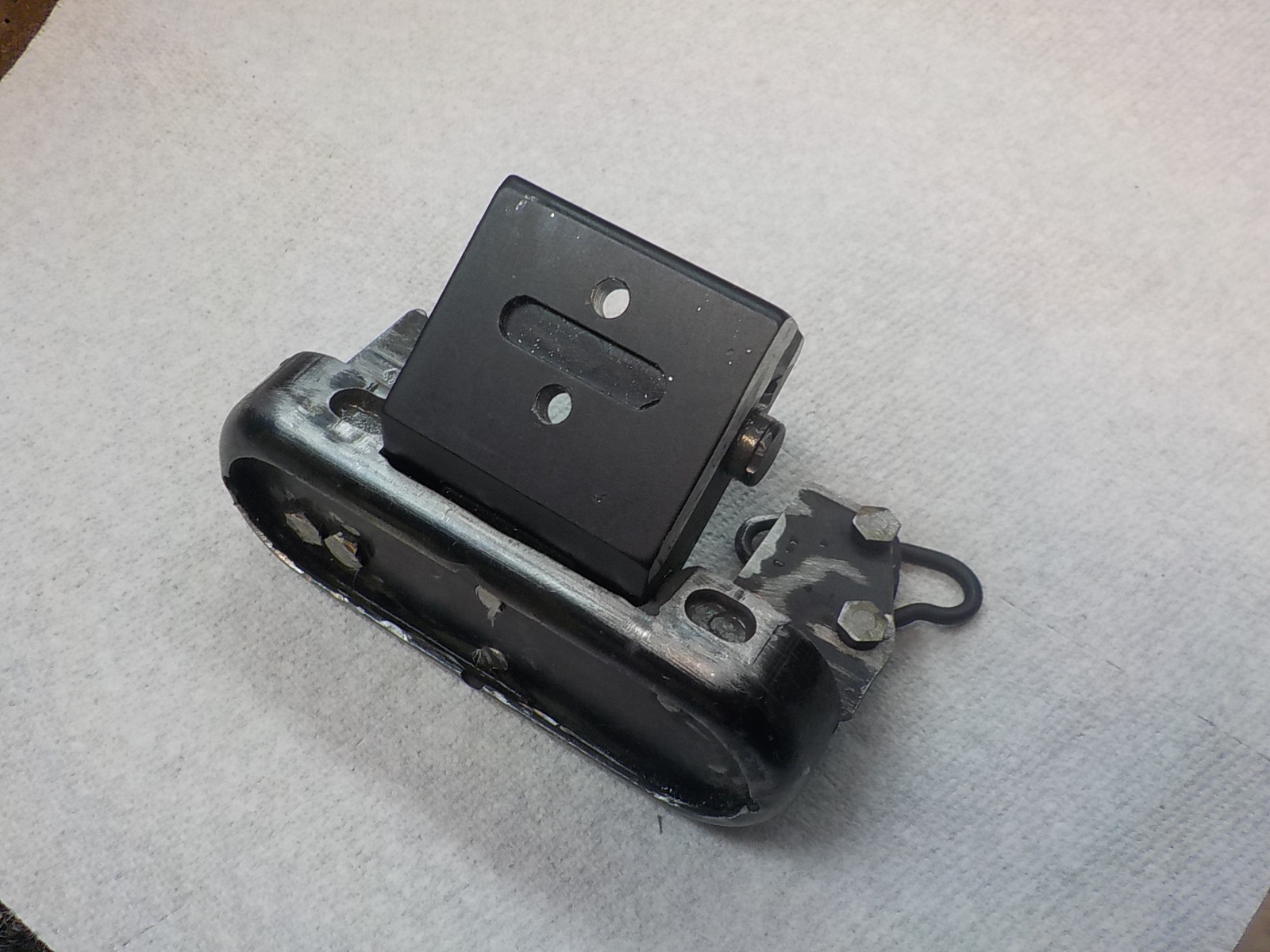

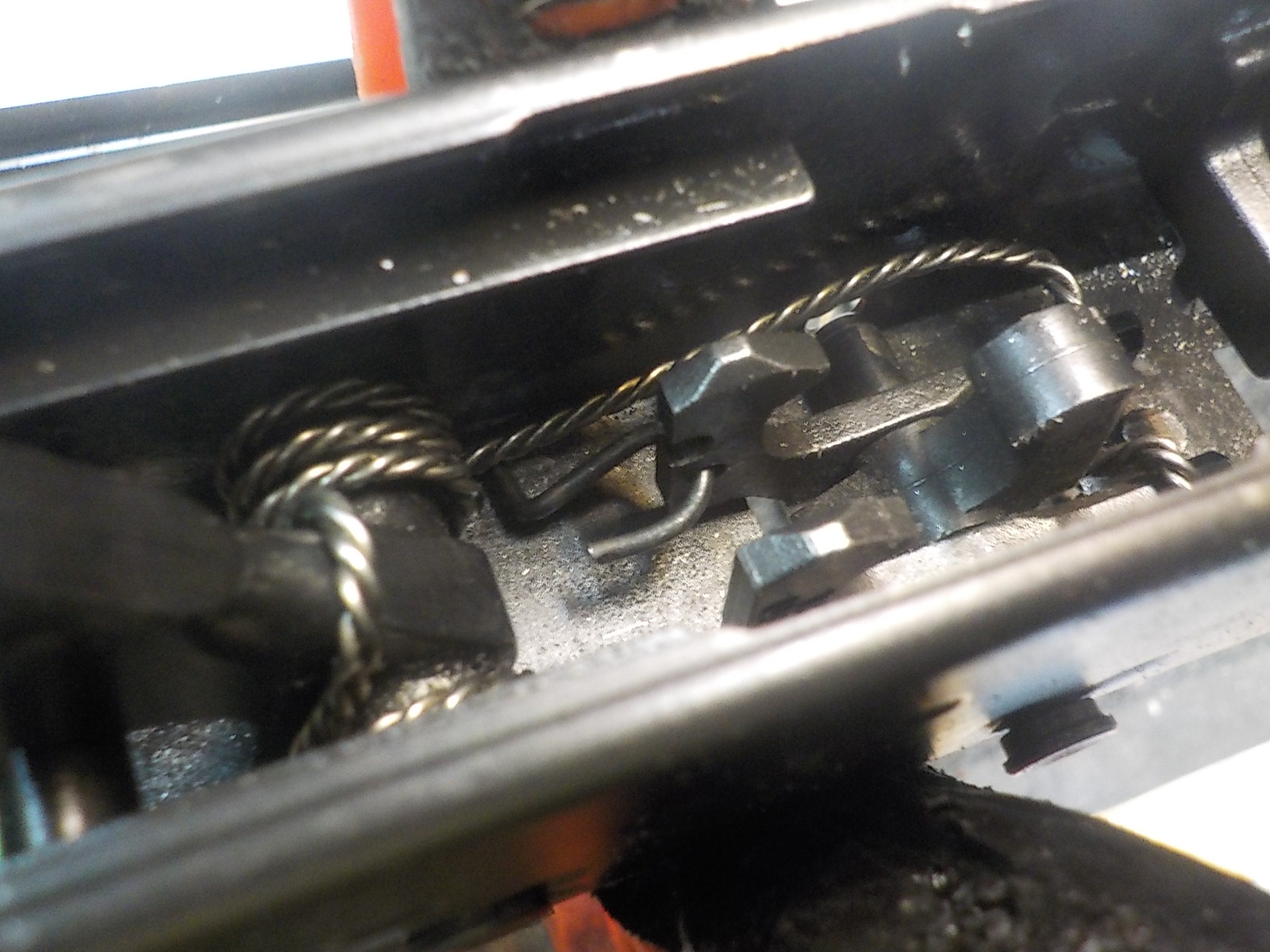

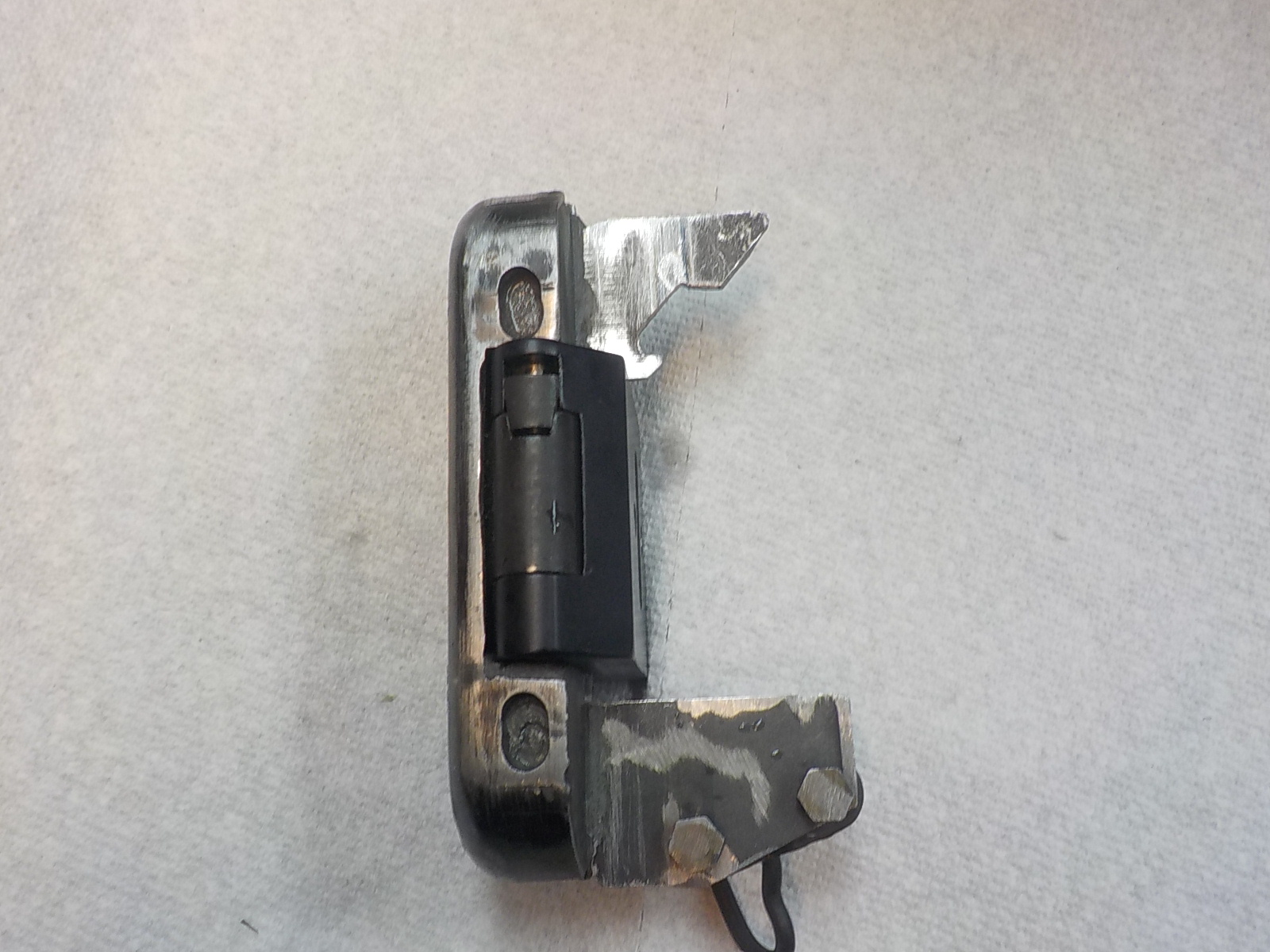

    Finished the linkage and test fired today. Pain in the ass as I anticipated but it works fine. Totally weird and unfcomfortable to fire. If you're not gettin hit by the charging handle you're busy concentrating on not blowing your supporting hand off. Unlike the original, I'll probably put some type of fore-grip on it. All that's left is more of less cosmetic. Carry handle with sight, muzzle brake, and buttplate once the form 1 comes (No fore-grip till the form 1 either).














    Last edited:

    pmclaine

    Gunny Sergeant
    Full Member
    Minuteman
  • Nov 6, 2011
    29,803
    54,185
    54
    MA
    Yeah but can he define the word "woman"?

    That's where the brains are needed.

    • Haha
    Reactions: canman

    buffalowinter

    Rick Jones MAJ, SF (Ret)
    Full Member
    Minuteman
  • Mar 17, 2014
    2,519
    8,935
    104
    Llano, TX
    Now for the Cerakote. I am going to do a "Battle Worn" finish.

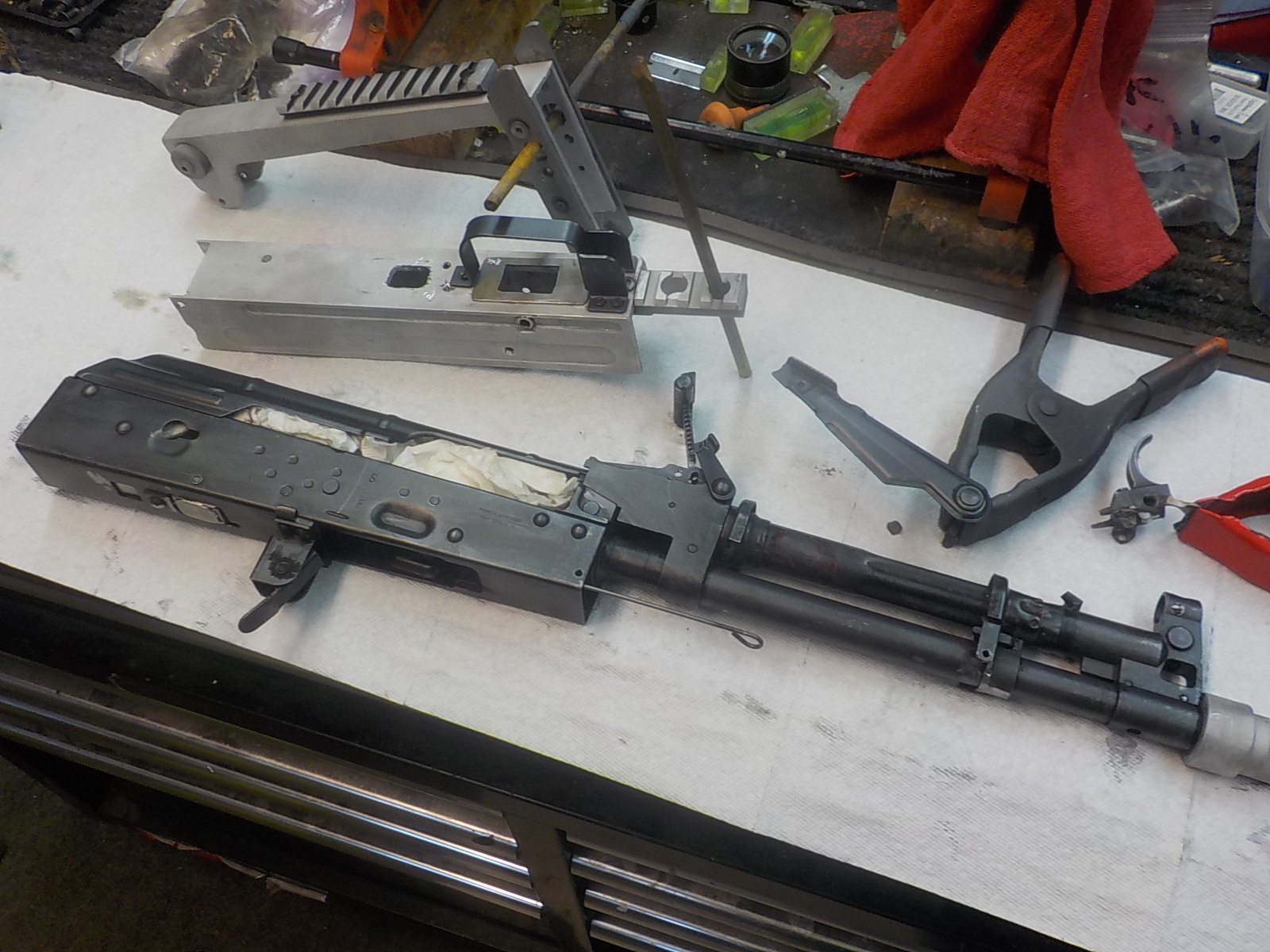

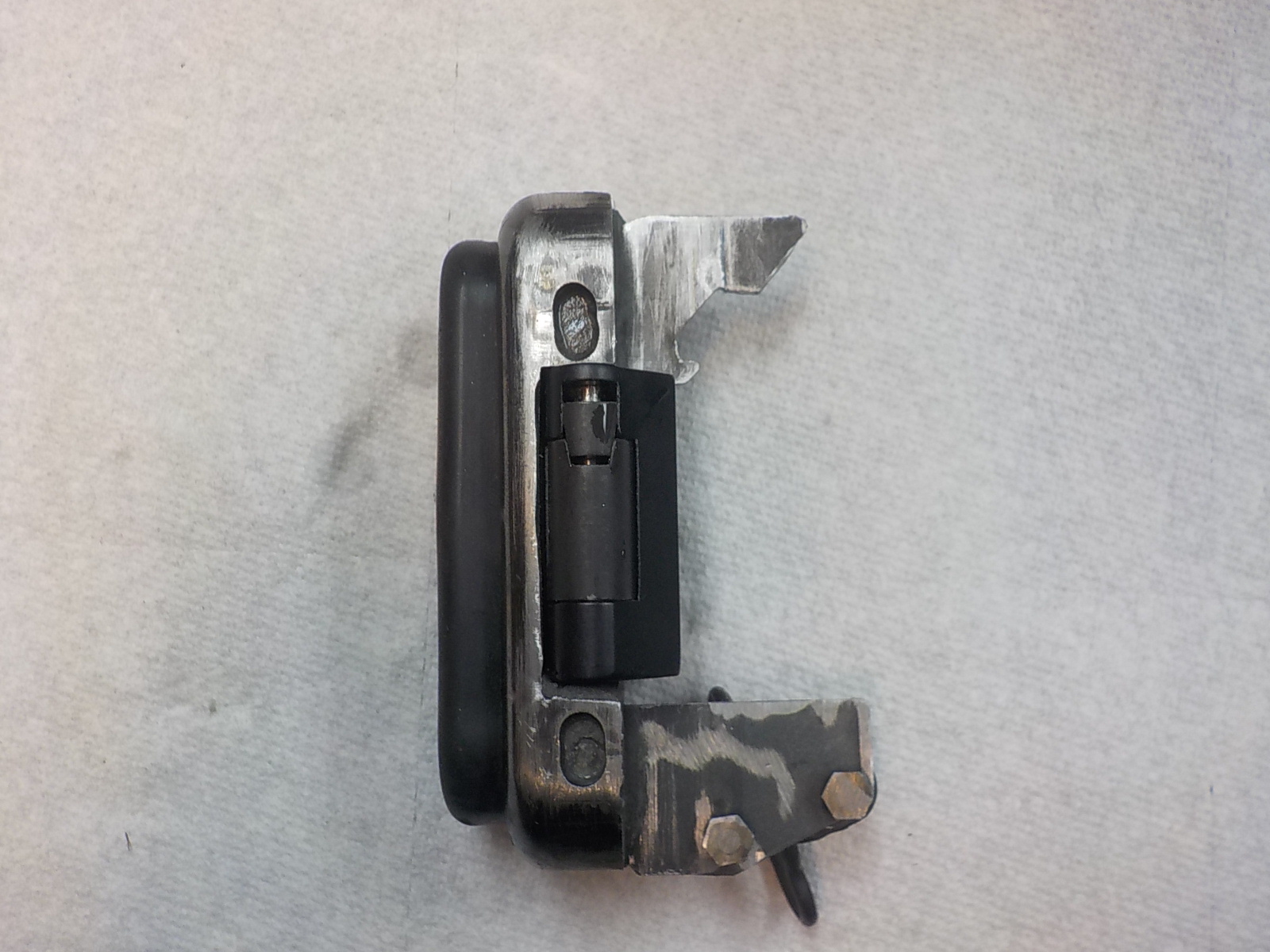

    Step one is metal prep (Note the lower part of the modified two piece trigger linkage):

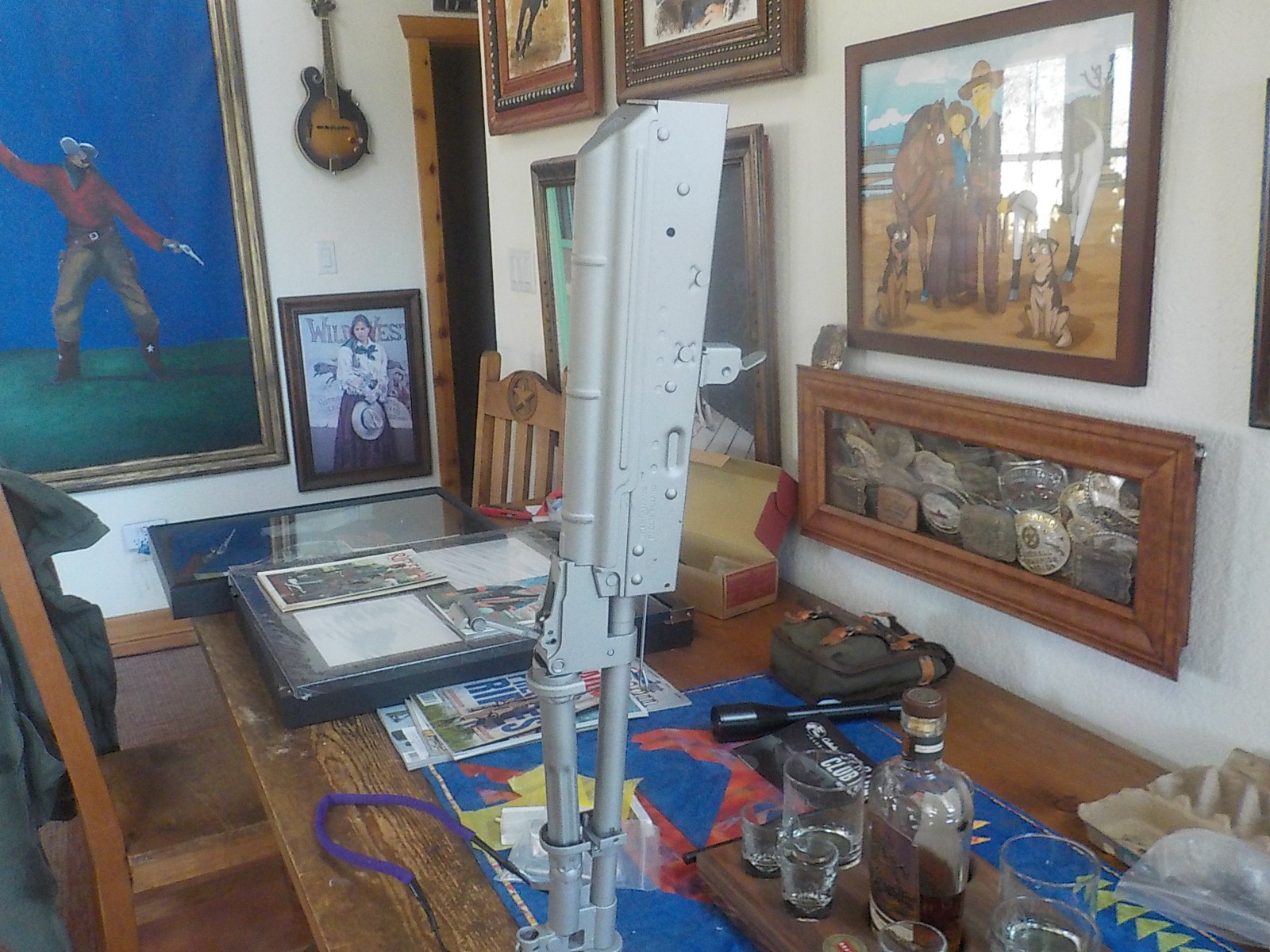

    Next is the base coat of my proprietary "Bare Metal" finish.



    Finally I will apply the top coat of Graphite Black. While the coat is still wet, I run a rag over the high portions to reveal the base coat of "Bare Metal". I keep doing this until I get the effect I want.

    And, in a totally unrelated topic, here is a pic of me with my MP5KSD with Laser Sight circa 1987. (NFA Registered)



    And Zeus, my Czech Shepherd.

    Last edited:

    buffalowinter

    Rick Jones MAJ, SF (Ret)
    Full Member
    Minuteman
  • Mar 17, 2014
    2,519
    8,935
    104
    Llano, TX

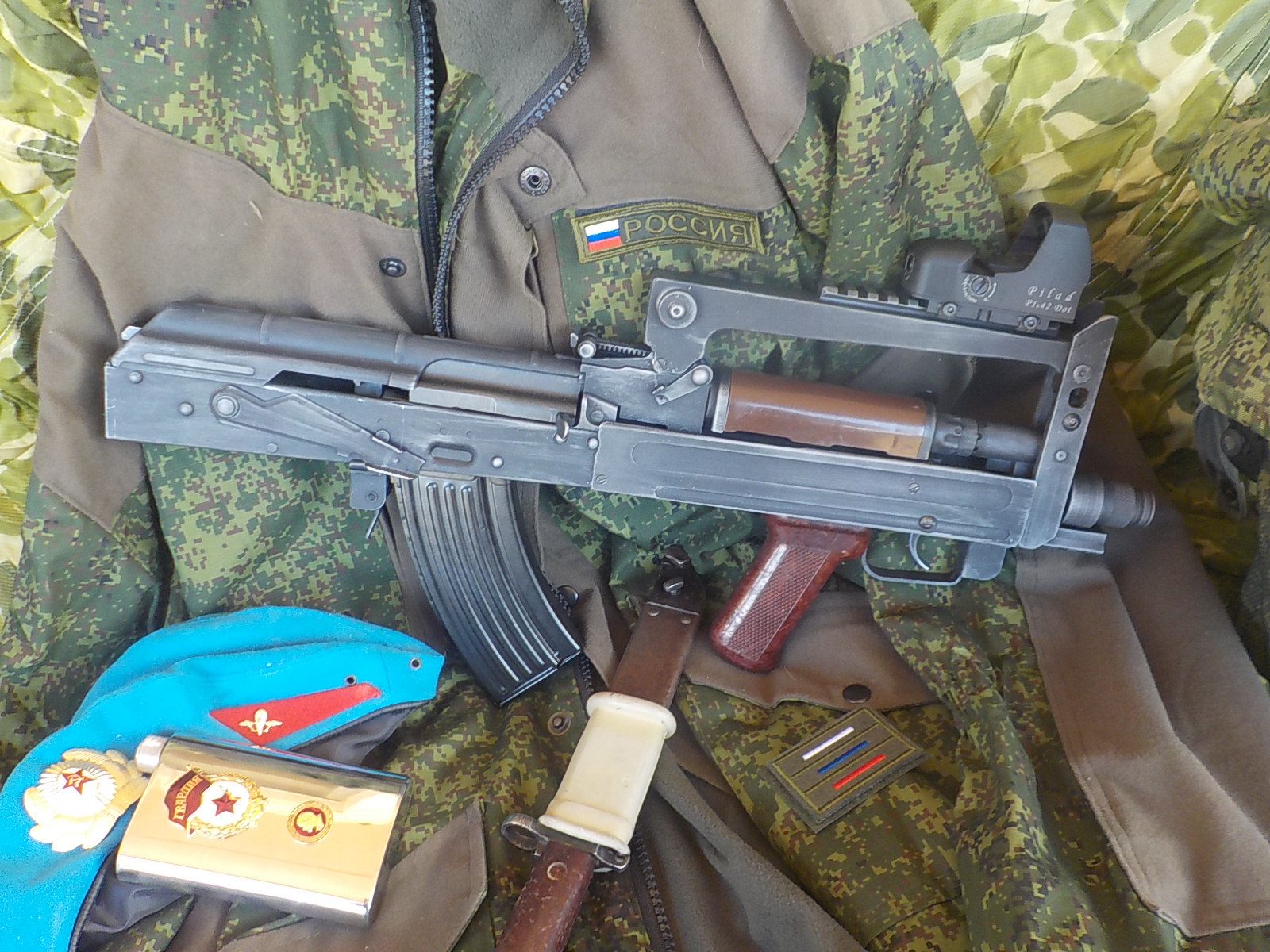

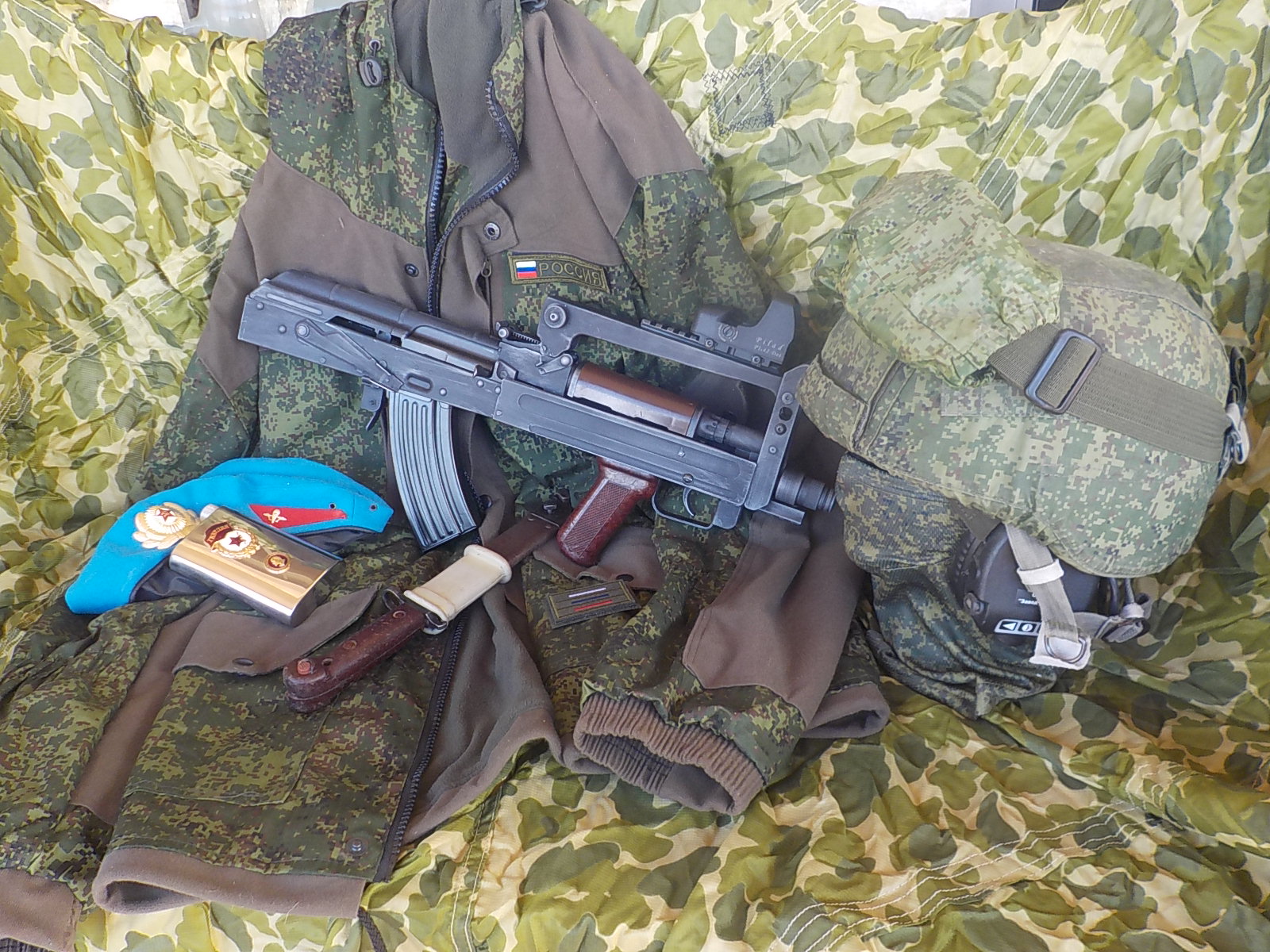

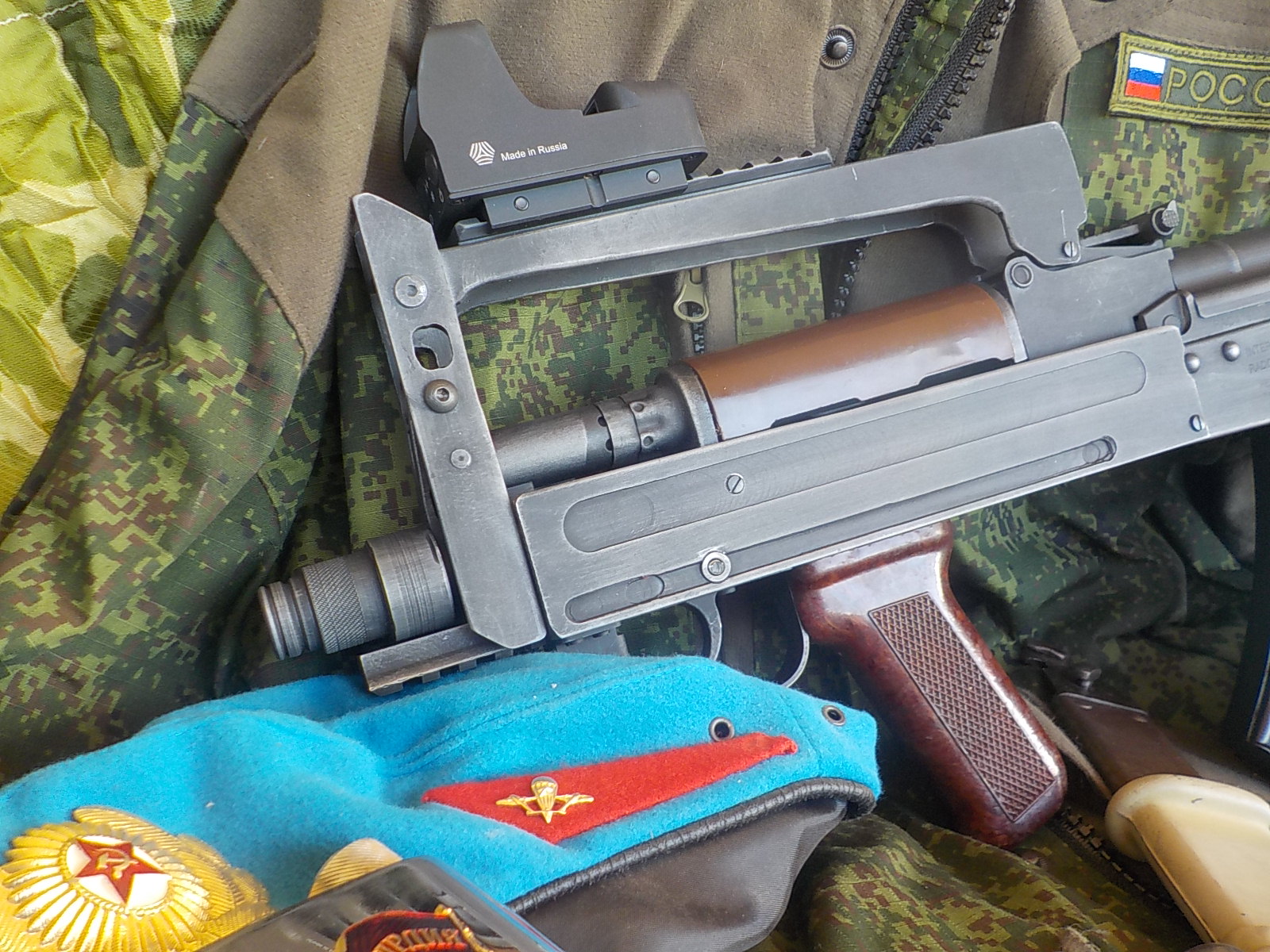

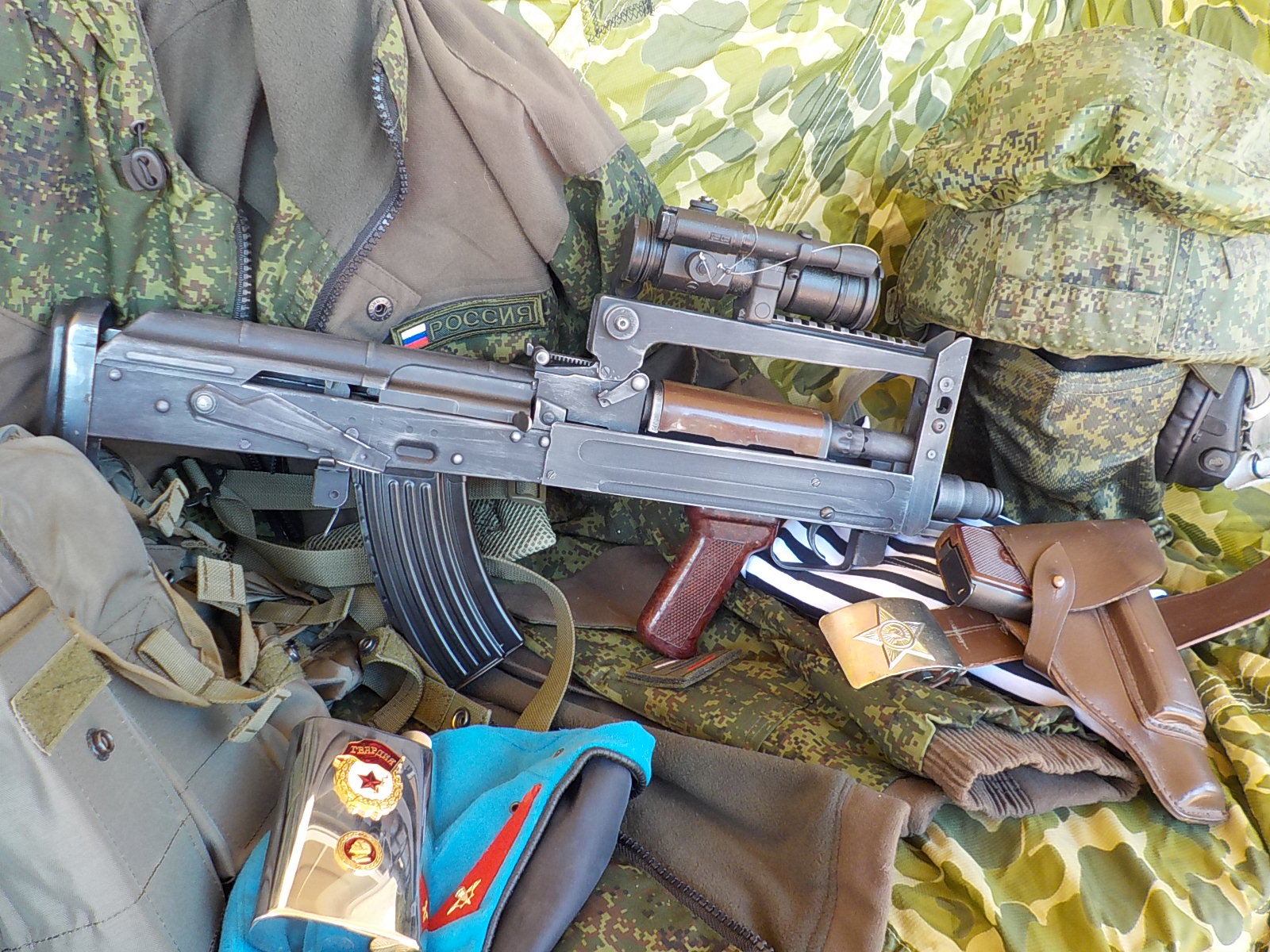

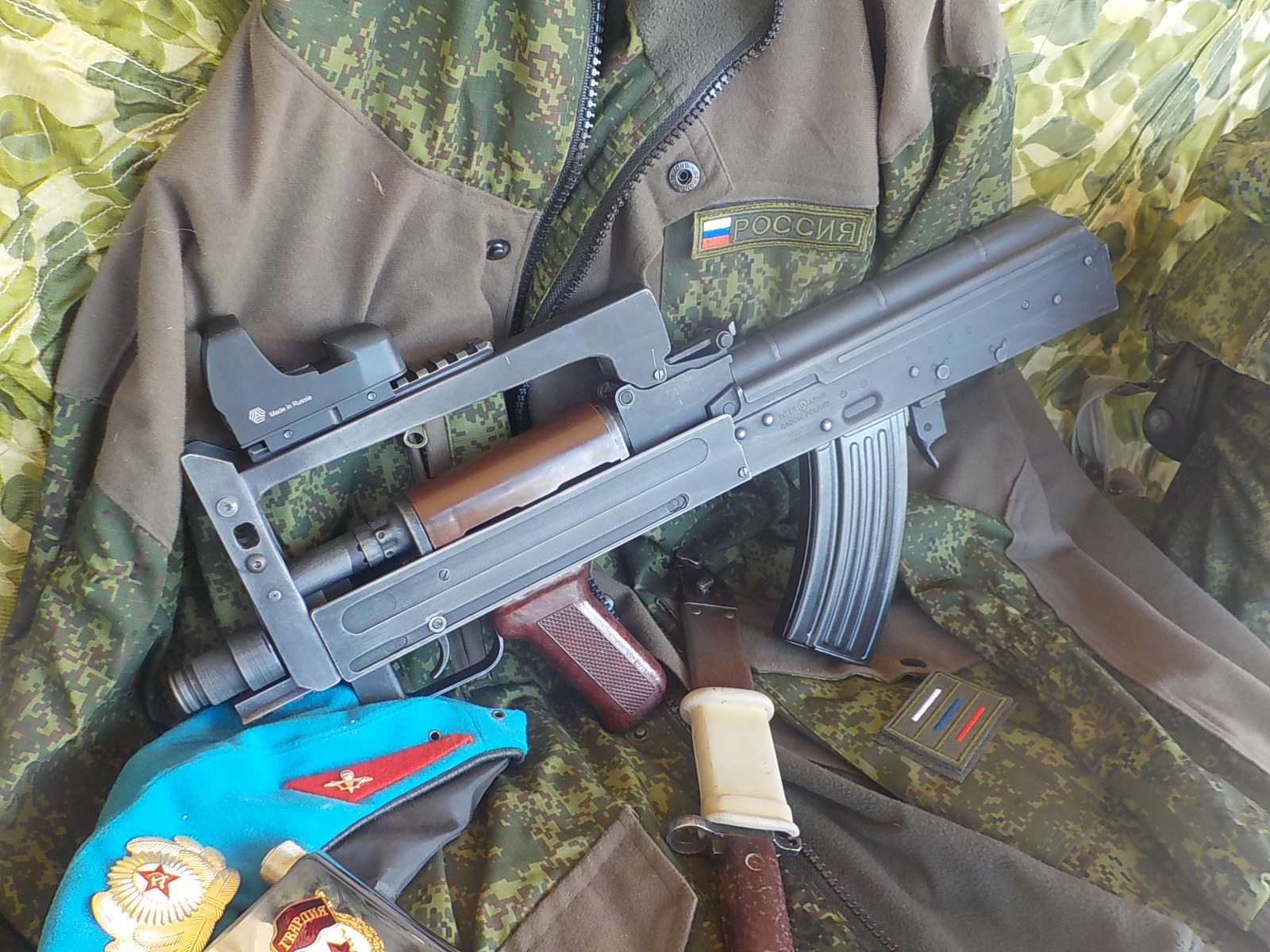

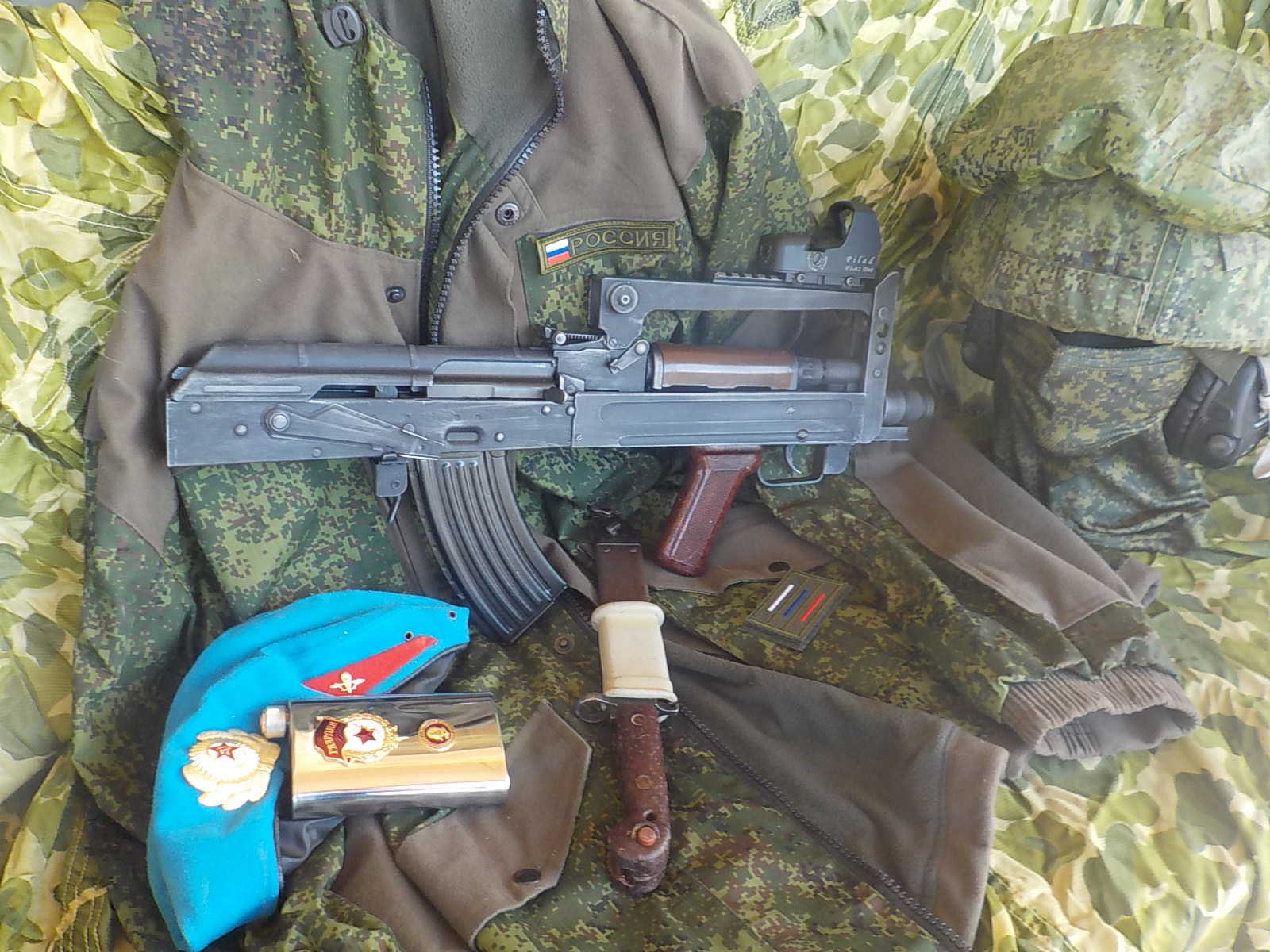

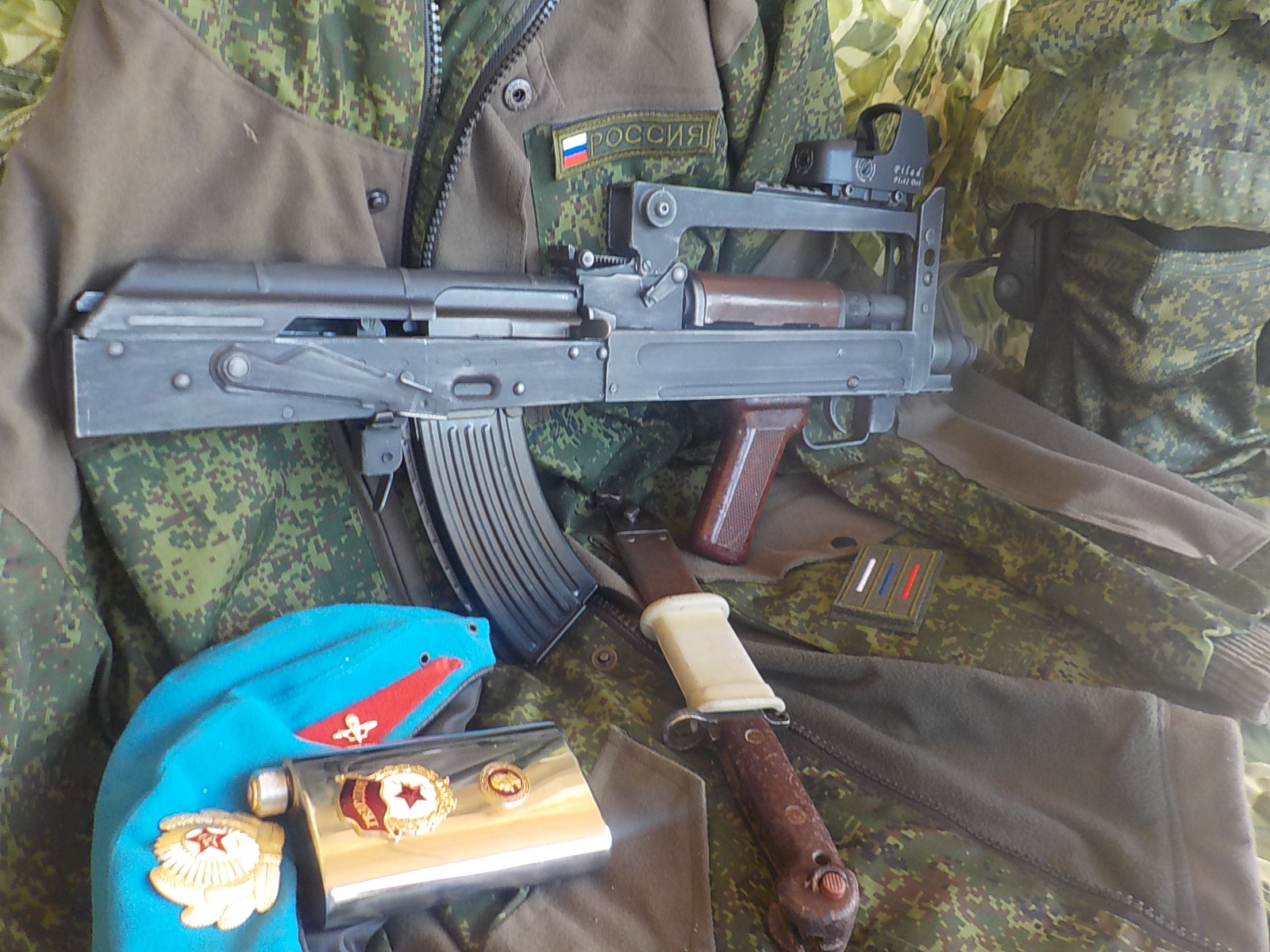

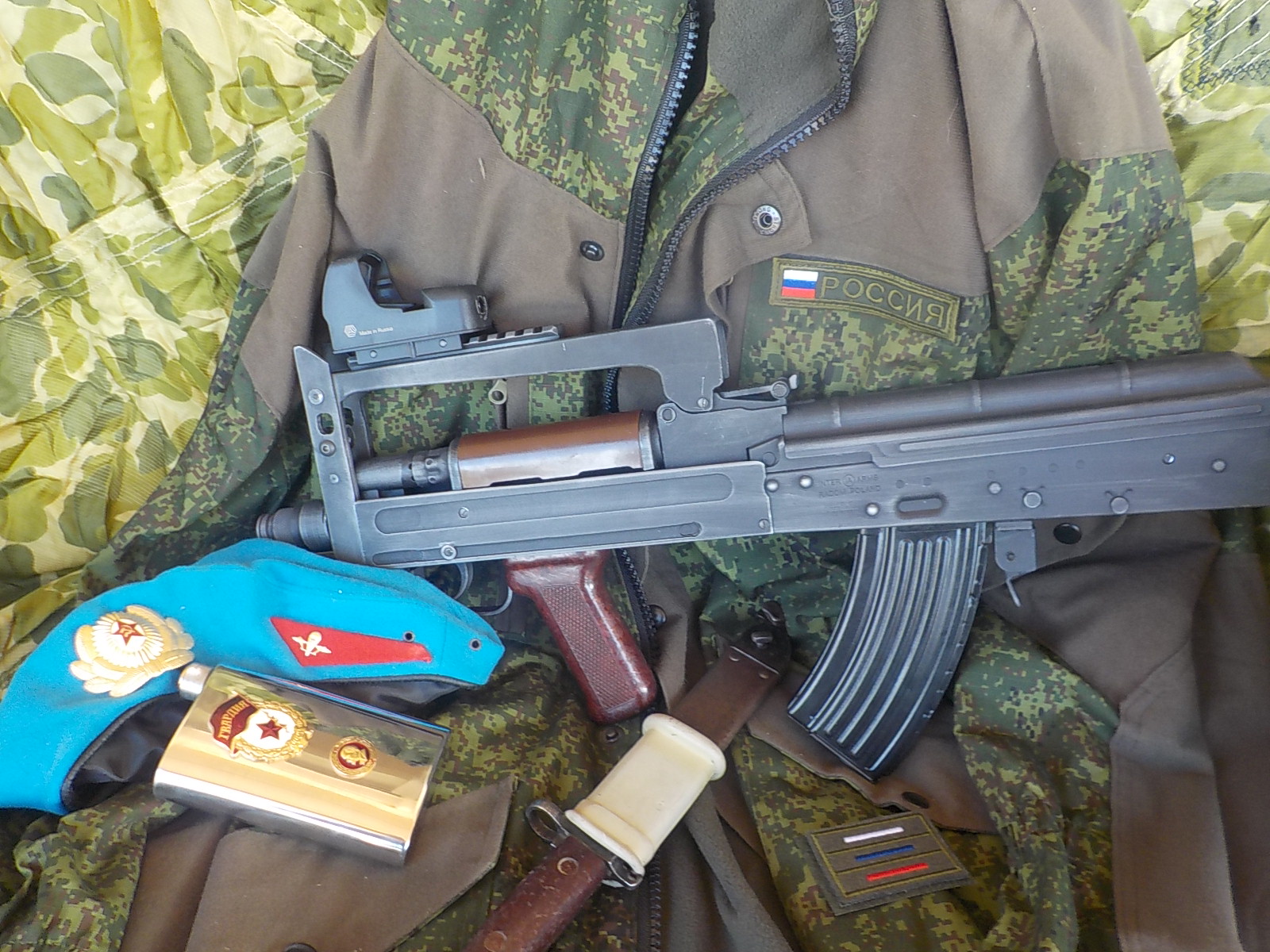

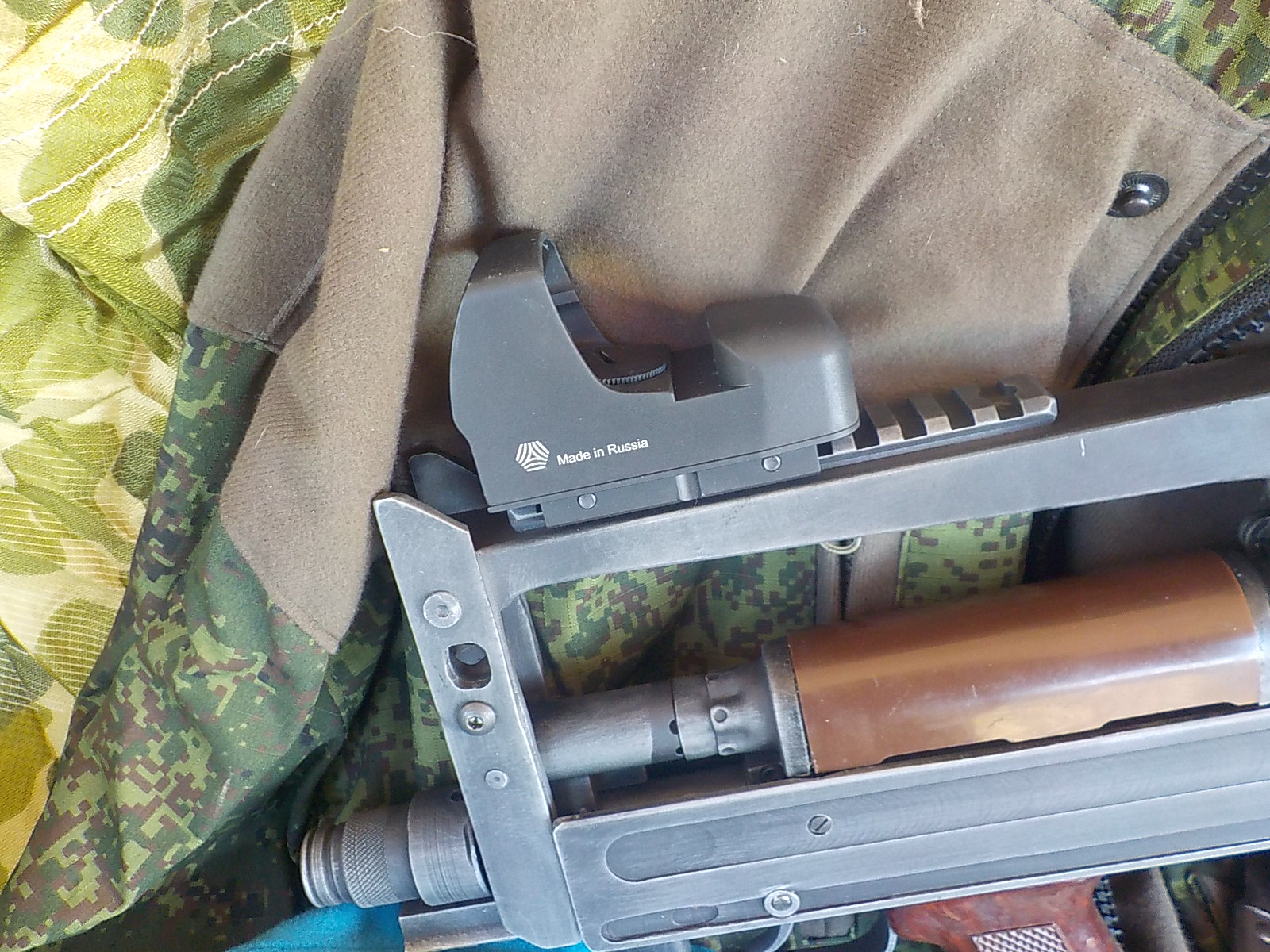

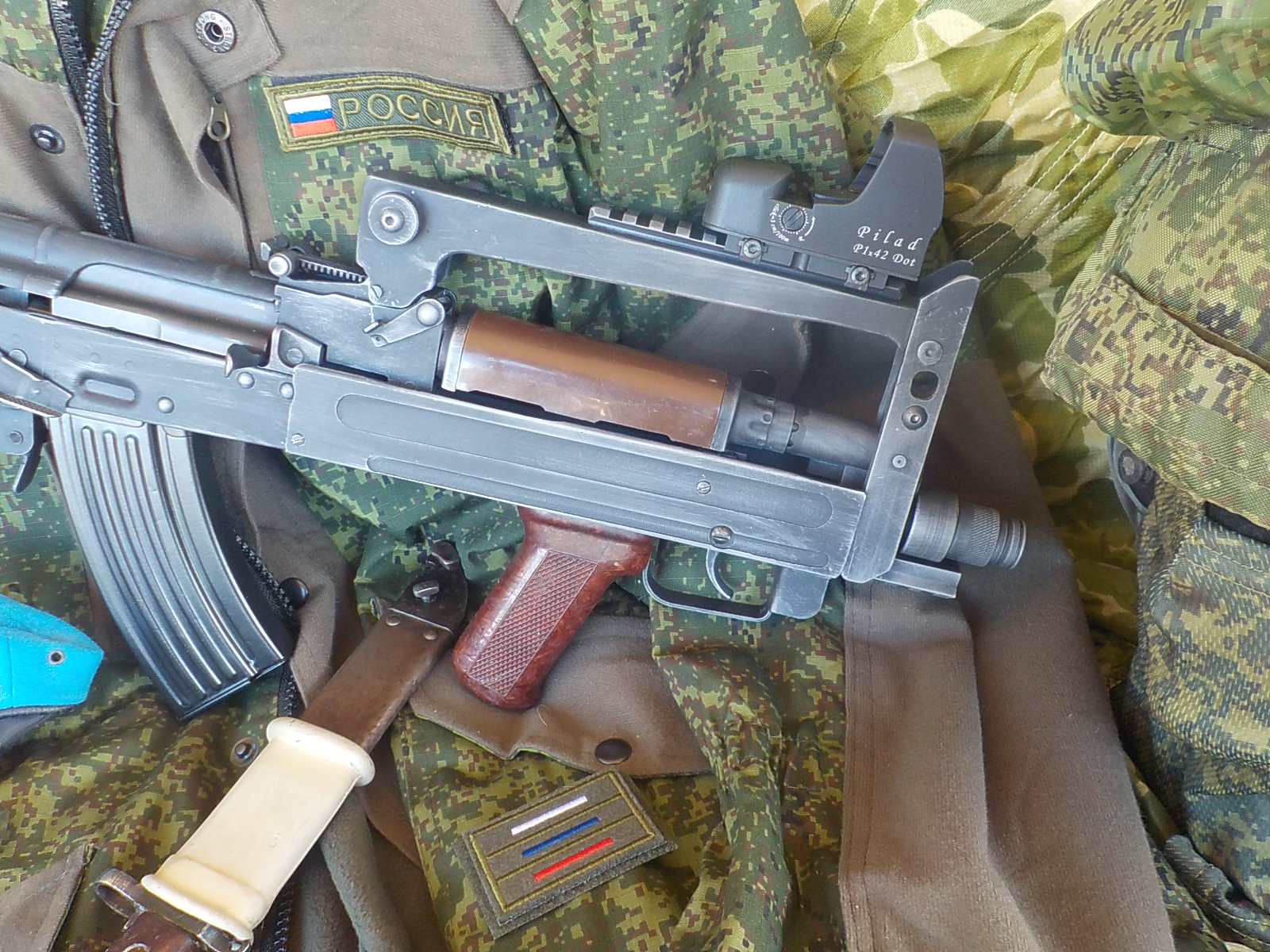

    Finished product with the exception of the butt plate which will go on when the form 1 is approved. Shown with Russian Pilad red dot and "Ratnik" (Warrior) uniform blouse and ballistic helmet. I also added a short Picatinny rail in front of the trigger guard.
















    hlee

    Sergeant
    Full Member
    Minuteman
  • Jul 14, 2012
    8,042
    10,511
    44
    TX
    So, now that it is complete and you have fired it, any thoughts on why it went out of favor?

    My guess is that with that shorty barrel and no fore grip, it was a perforated left hand waiting to happen...


    buffalowinter

    Rick Jones MAJ, SF (Ret)
    Full Member
    Minuteman
  • Mar 17, 2014
    2,519
    8,935
    104
    Llano, TX
    It is not pleasant to shoot. Easy to blow a hole in your left hand and it actually has a fairly stiff recoil. If you look at the video, I'm 6'2 and 200 pounds using an aggressive forward shooting stance and it's pushing me pretty good. With the bolt recoiling straight into your shoulder without any butt plate, or even stock, to absorb some of that impact, it is a heavy recoiling weapon. On the other hand, it is a very compact gun shooting a .30 caliber rifle cartridge.
