Origin vs TL3 Prefit

[anginaprinzmetal]

Looked around but couldn't find a straight answer. Would a Proof prefit barrel for /Zermatt-BigHorn TL3/SL3 work on an Origin action ? Thanks



[gotcoffee]

Yes with a HLR Recoil lug.



[anginaprinzmetal]

Thanks a lot. Would it be a problem the fact that the HLR recoil lug is .100" thinner?



[spife7980]

Thanks a lot. Would it be a problem the fact that the HLR recoil lug is .100" thinner?

That .1 thinner is exactly why it’s required.

The tl3 short action tenon is .1 shorter than all of zermatts other offerings because of the aw mag cut option.

If you want to use a short action tl3 barrel in an origin you need the thin lug.



[Supersubes]

Ill add that when you use the HLR lug, the index of the barrel will be off. So the etched markings near the breech will be dicked up.



[anginaprinzmetal]

Ill add that when you use the HLR lug, the index of the barrel will be off. So the etched markings near the breech will be dicked up.

Talking as a true OCD... But someone who knows his shit...

Seriously, thanks a lot gentlemen.



[Zermatt Arms]

Ill add that when you use the HLR lug, the index of the barrel will be off. So the etched markings near the breech will be dicked up.

This shouldn't be true if the lug is .150" exactly.

At 20 TPI, .100"(amount of material removed) = 2 complete revolutions.



[Supersubes]

This shouldn't be true if the lug is .150" exactly.

At 20 TPI, .100"(amount of material removed) = 2 complete revolutions.

I have two more to put together in the coming week and i’ll take pics. None of the half dozen or so to date have indexed properly. Headspace is dead on though.



[gotcoffee]

I just bought an origin and TL3 proof barrel with the HLR recoil lug. Just waiting to be delivered. Will see how mine turns out.



[Supersubes]

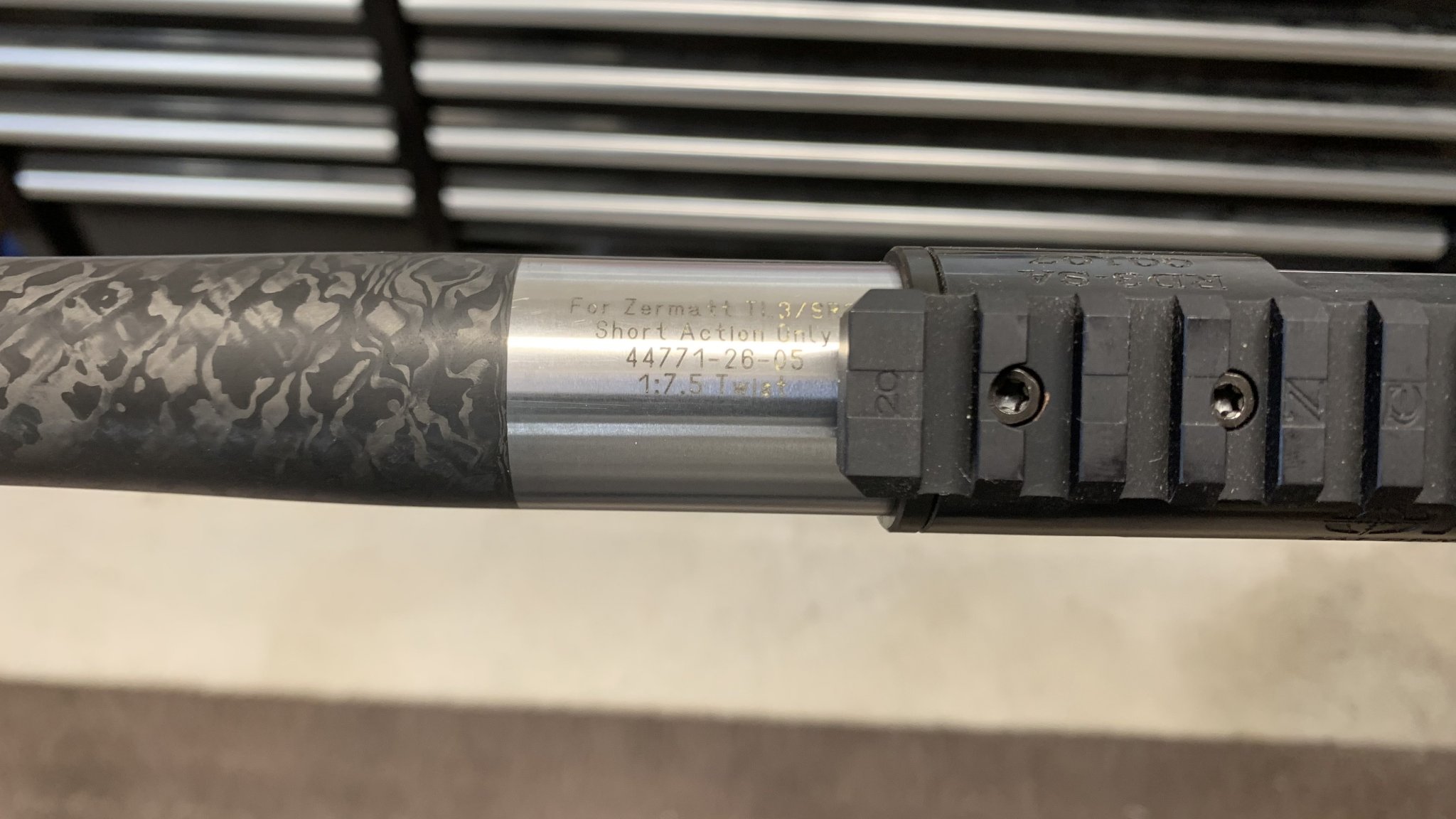

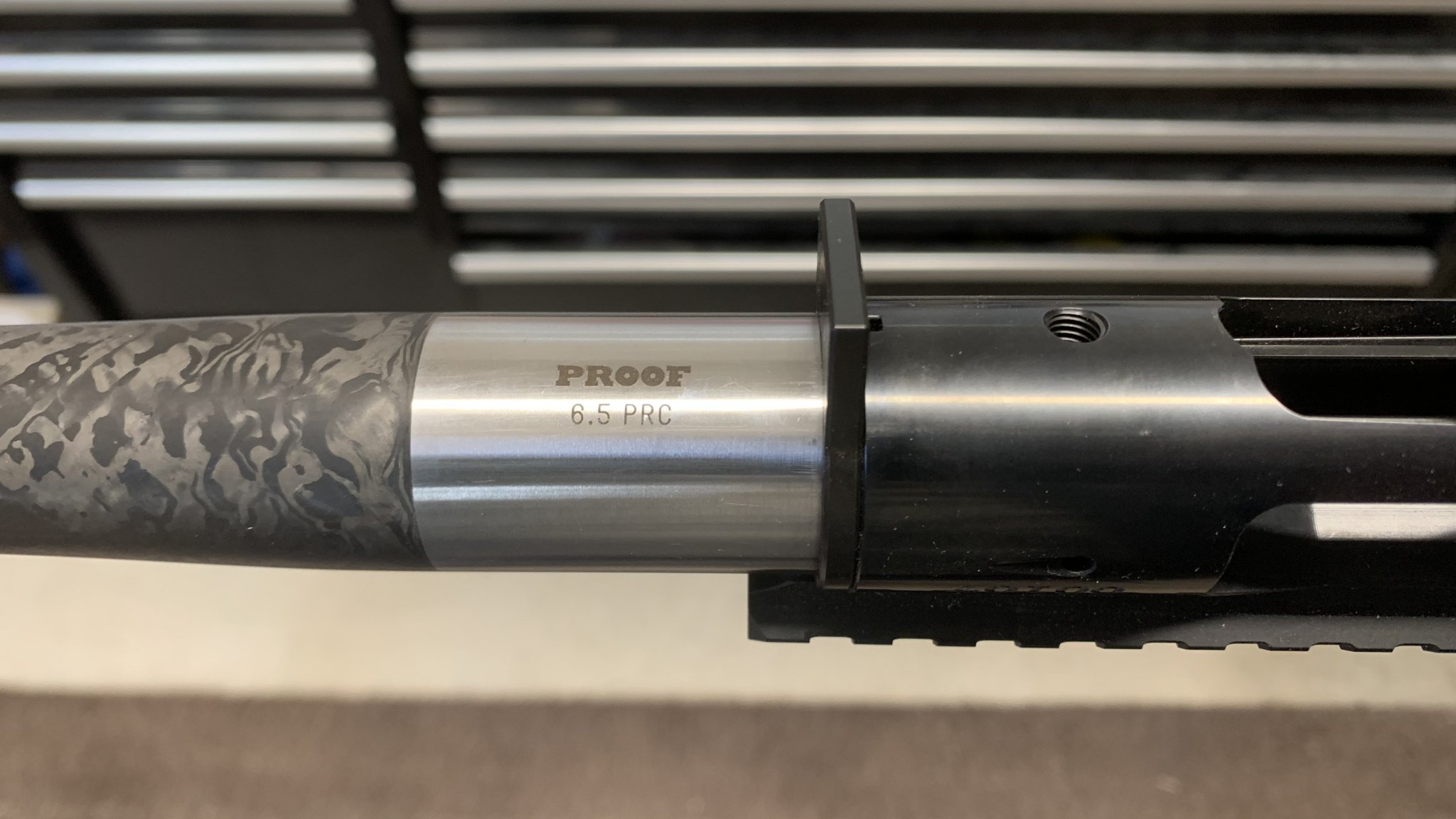

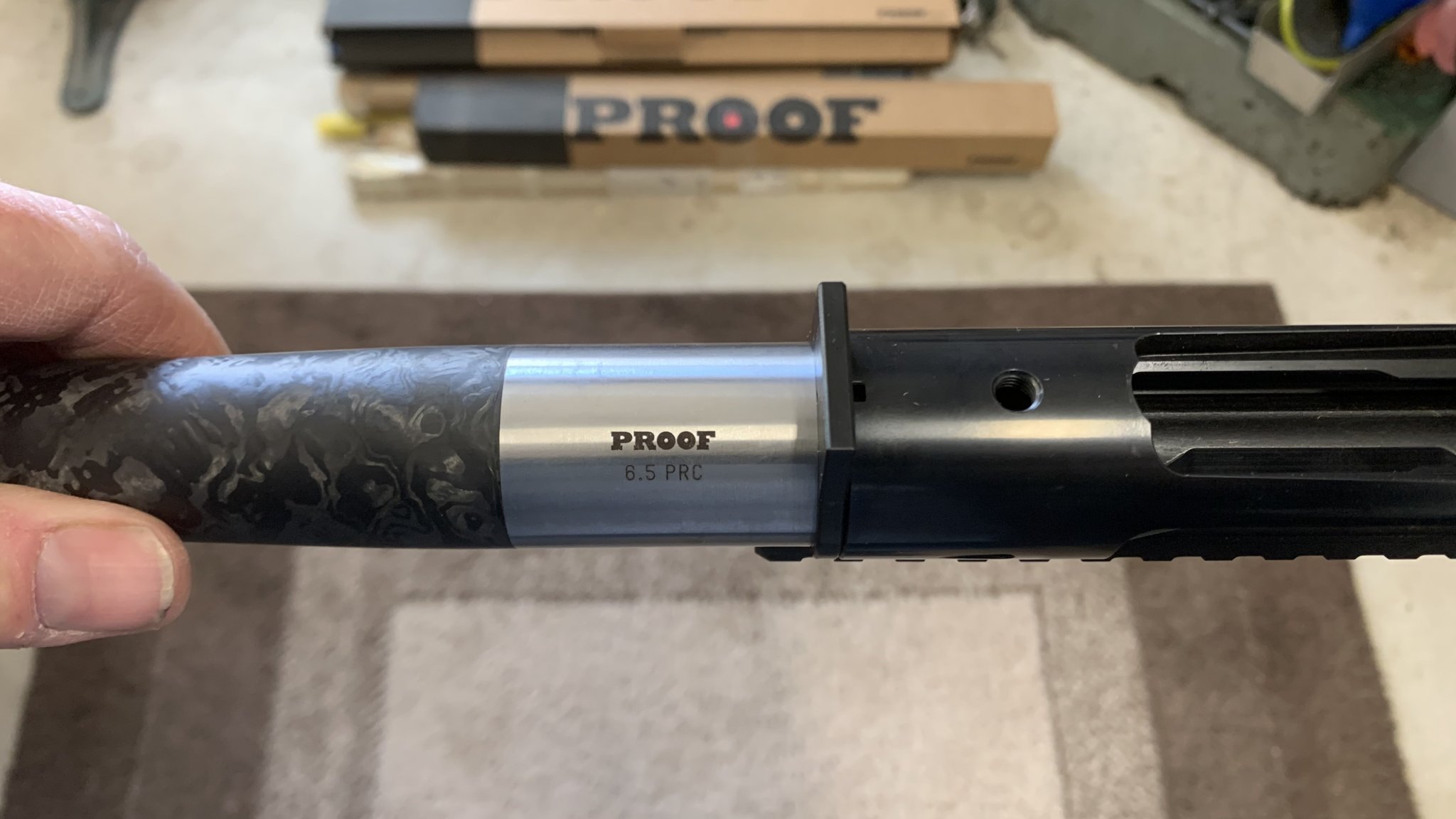

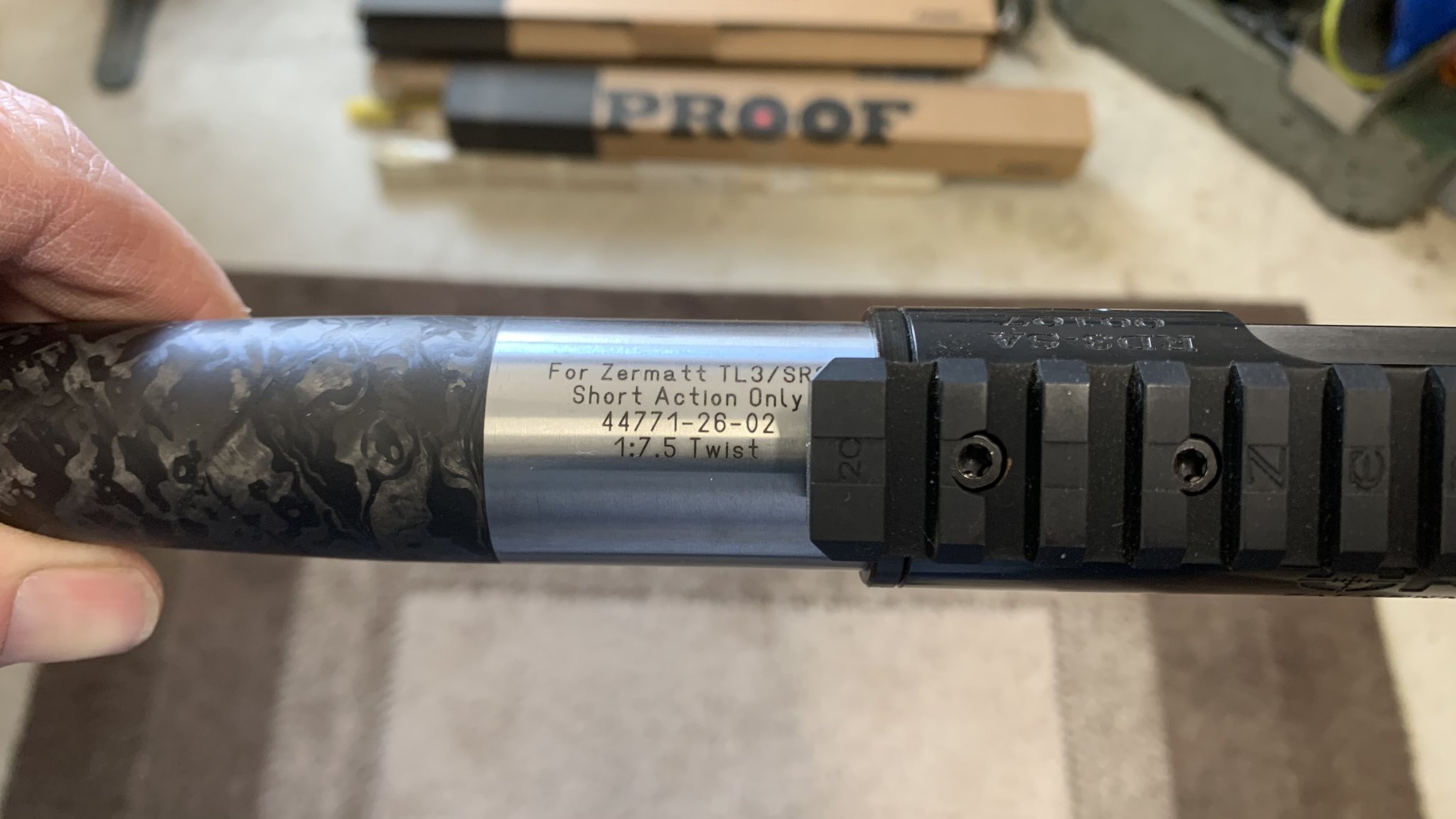

My personal origin was all lonely, so here it is with two customer prefits. Unmodified proof TL3 prefit on an Origin with a HLR lug. Fully seated but not torqued. Note the different serial numbers on the barrels.



[Zermatt Arms]

My personal origin was all lonely, so here it is with two customer prefits. Unmodified proof TL3 prefit on an Origin with a HLR lug. Fully seated but not torqued. Note the different serial numbers on the barrels.

View attachment 7594610View attachment 7594611View attachment 7594612View attachment 7594613

Ah, yeah my bad. Forgot the thread start is 180* different on the Origin from the TL3.

We're working on our third Monday over here.



[Supersubes]

Ah, yeah my bad. Forgot the thread start is 180* different on the Origin from the TL3.

We're working on our third Monday over here.

All good, thank you for being on the forum!
