PTG 40x repeater action

Rem.243

Supporter
Supporter
Full Member
Minuteman
May 29, 2018
401
27
Has anyone gotten one yet? Looks like the have a single shot and a repeater version

Im curious to know how well they shoot and what mags are used. I do know they have a bad rep on customer service but just curious on how the action performs.

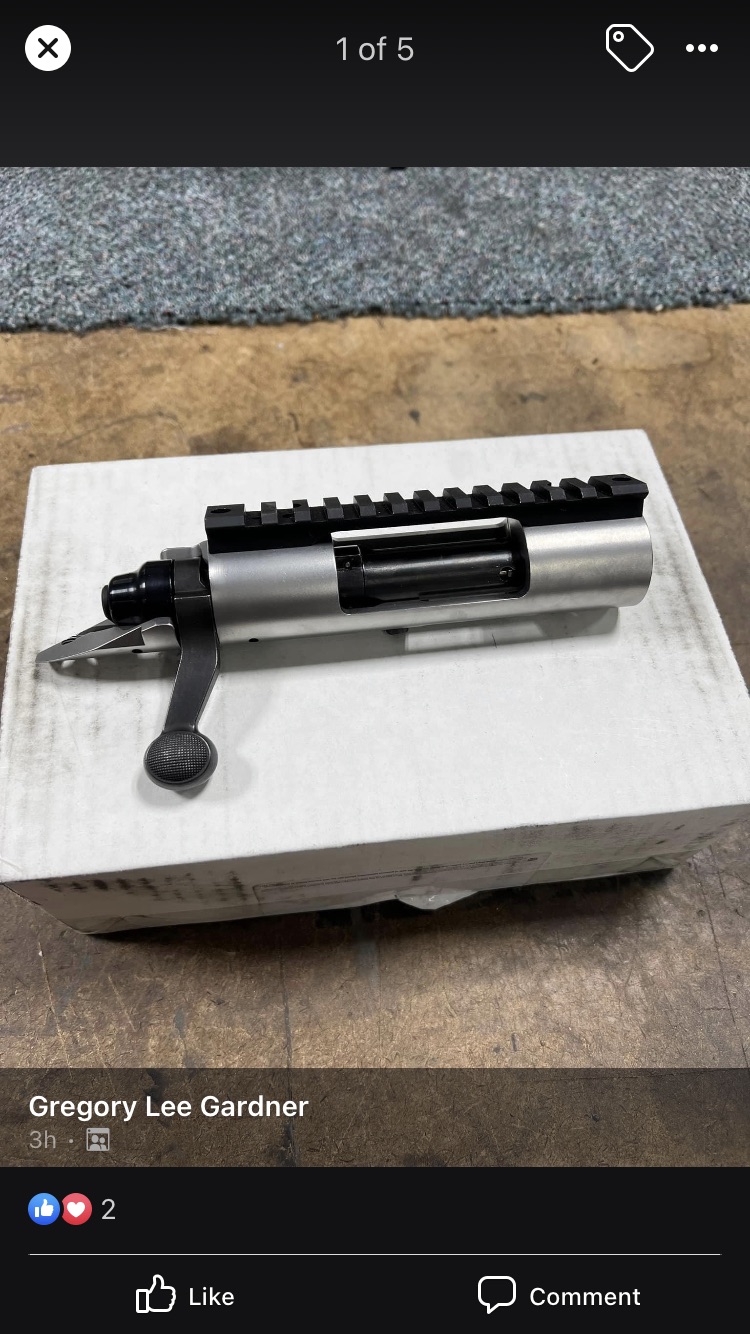

A guy on FB posted some pictures of the action ge received and it looks pretty good


Attachments

  • 7C641FF7-8DA4-41EE-BD05-BE3CDE764BAF.jpeg
    250.4 KB · Views: 197
  • Love
  • Like
Reactions: sinister and Sc0-

Cowpokey

MSgt, USAF Ret
Full Member
Minuteman
  • May 1, 2020
    2,731
    12,207
    Bel Air, MD
    If those are significantly better and/or significantly less expensive than Vudoo or RimX, go for it.


    Rem.243

    Supporter
    Supporter
    Full Member
    Minuteman
    May 29, 2018
    401
    27
    I dont know if they are significantly better or not as i havent found any information on them yet. As far as price they are cheaper than rimx and vudoo

    From my opinion it looks like a 40x with an Bush/Elrod conversion for vudoo mags and they added a side bolt release as well. So maybe an improved version of the original 40x? (Side bolt release looks like one on the stiller lonestar)

    • Like
    Reactions: sinister

    Rem.243

    Supporter
    Supporter
    Full Member
    Minuteman
    May 29, 2018
    401
    27

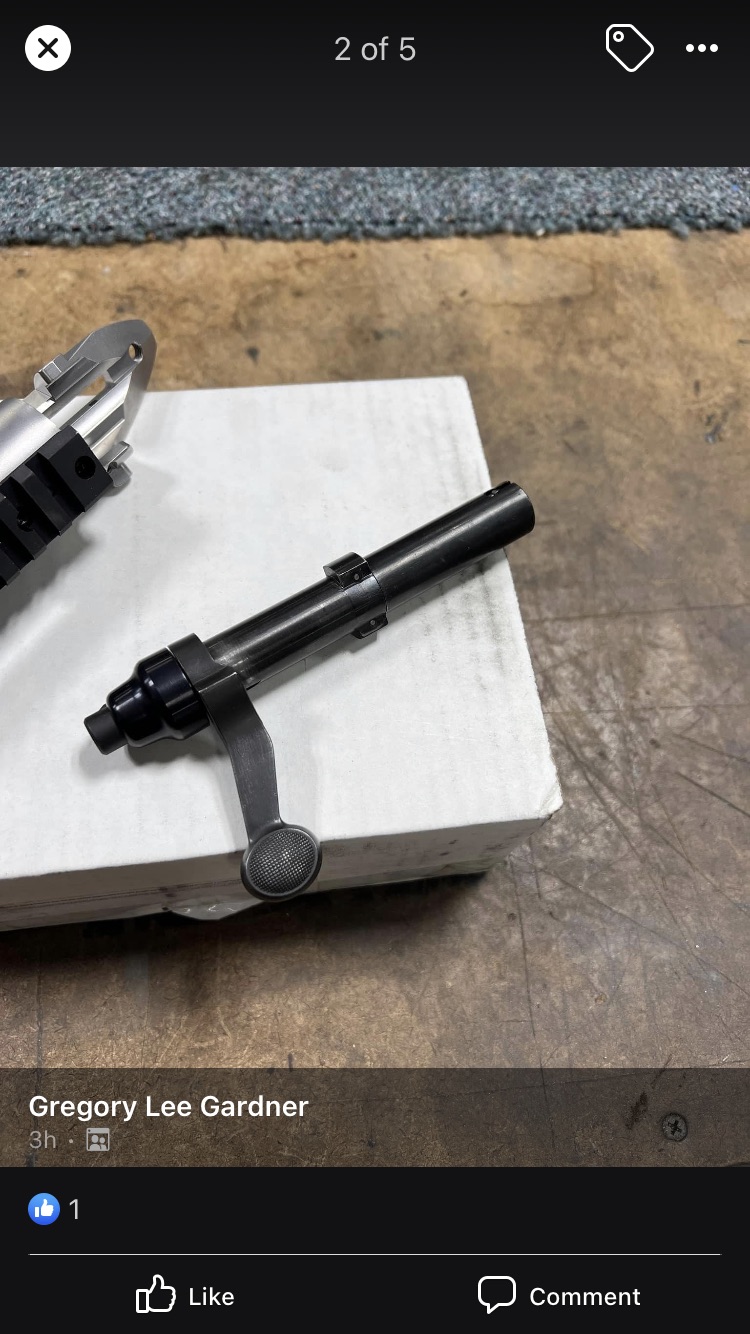

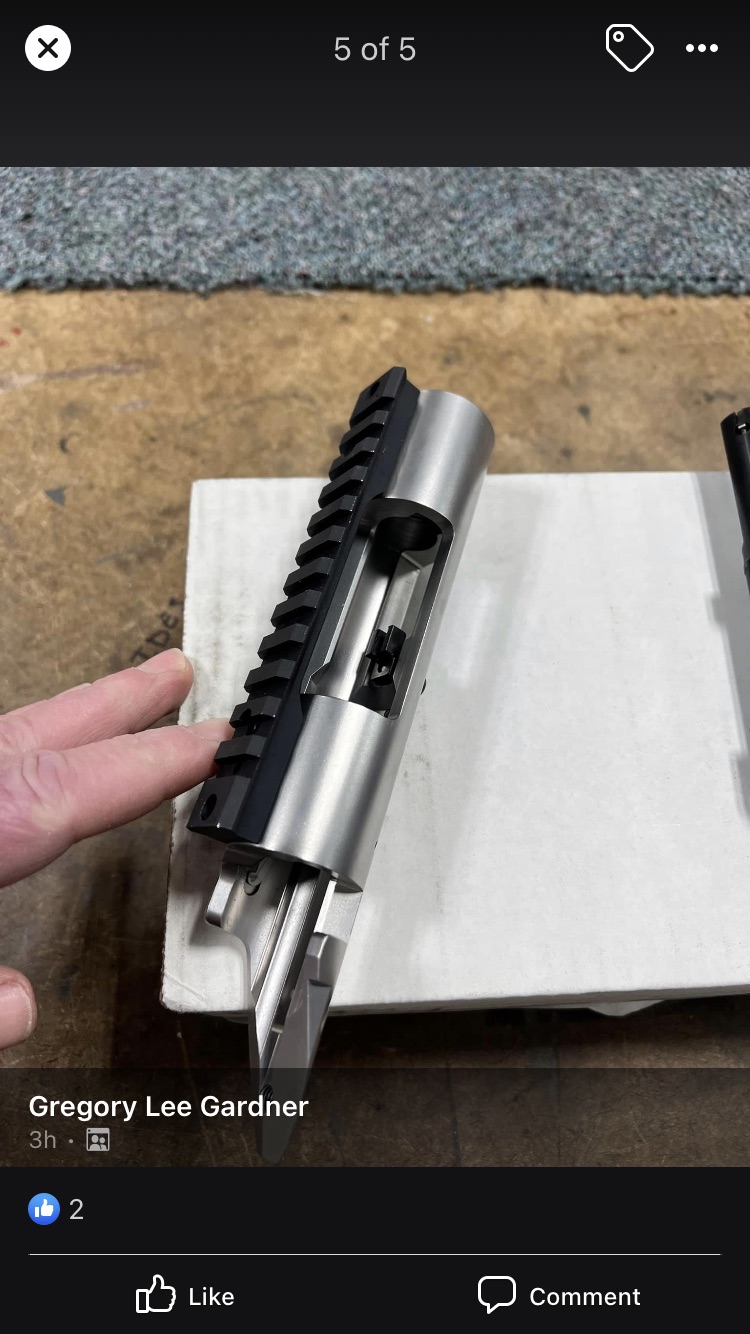

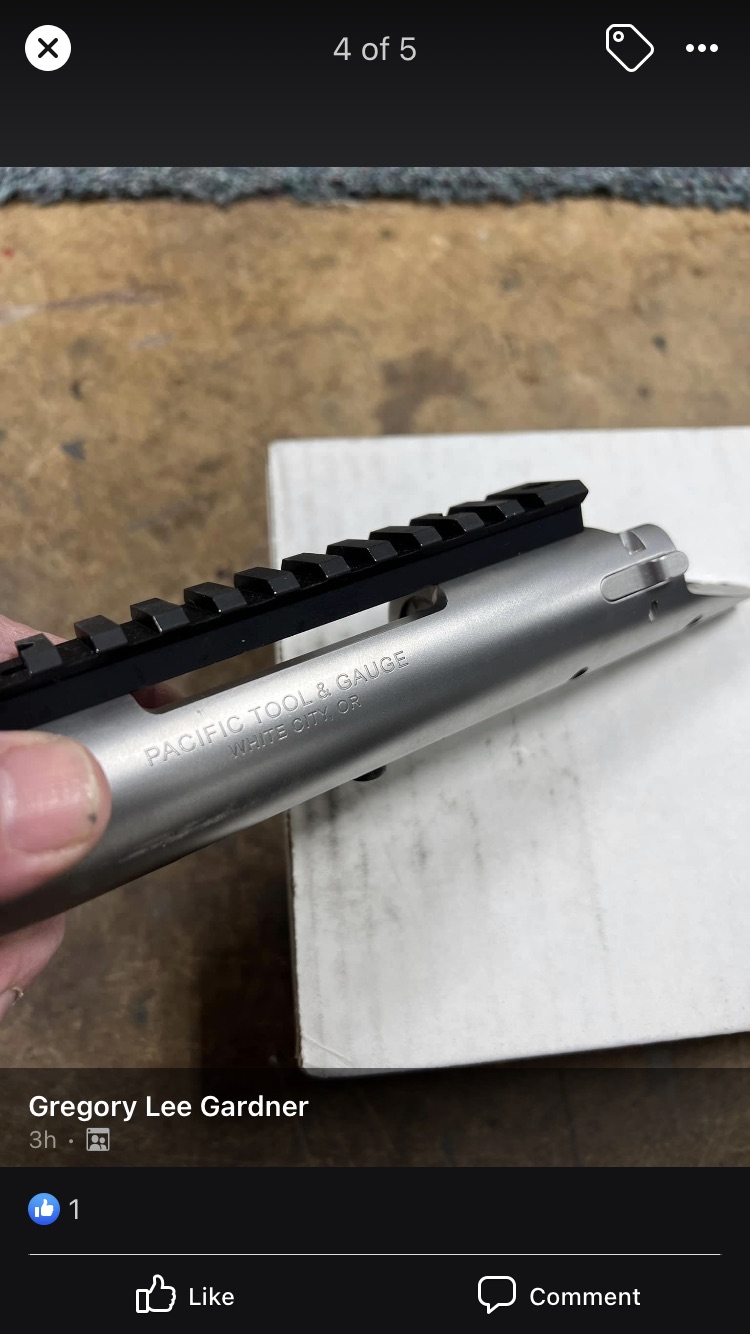

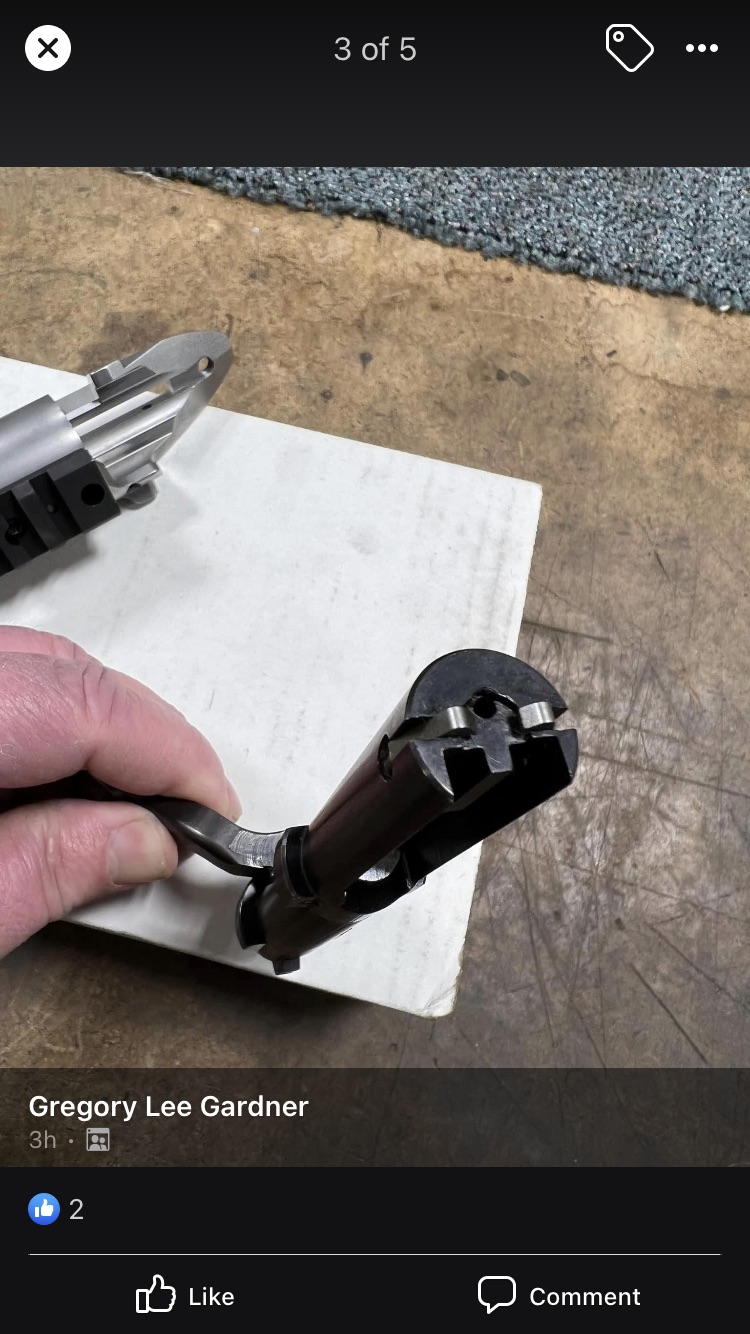

    Here are some additional pictures


    Attachments

    • 582610C0-167A-46D3-81A5-52F020E2161F.jpeg
      225.7 KB · Views: 237
    • 9FFB3280-C9EC-40F3-BCAD-80DF4C41EAEA.jpeg
      220.9 KB · Views: 233
    • 38D9F1B2-0166-4222-A97C-418FF7300221.jpeg
      143.6 KB · Views: 242
    • A6820548-223A-4997-AEB7-65C4E70E765A.jpeg
      189.7 KB · Views: 234
    • Love
    Reactions: sinister

    Swaim13

    Sergeant of the Hide
    Full Member
    Minuteman
    Supporter+
    May 12, 2018
    227
    96
    Peoples Republic of Maryland
    I am seeing the ptg 40x repeater as 967.40 on ptgs website. The rimx is 1150 and the vudoo is 1320 per their websites. Tbh I would spend the extra and not deal with ptg. Once you add a barrel by a local Smith for the 40x, you are around 1600. At that price, I would go for the rimx or duece which will end up being right about the same price. The vudoo is only roughly ten percent more. The customer service from rimx and vudoo are both worth the money.


    pballkm21

    Private
    Minuteman
    Supporter+
    Nov 16, 2021
    55
    55
    Long Island, NY
    I am seeing the ptg 40x repeater as 967.40 on ptgs website. The rimx is 1150 and the vudoo is 1320 per their websites. Tbh I would spend the extra and not deal with ptg. Once you add a barrel by a local Smith for the 40x, you are around 1600. At that price, I would go for the rimx or duece which will end up being right about the same price. The vudoo is only roughly ten percent more. The customer service from rimx and vudoo are both worth the money.
    At that price you are absolutely correct - vudoo is the way to go for that minimal difference after everything needed etc.


    68hoyt

    Private
    Full Member
    Minuteman
    Sep 17, 2011
    251
    88
    54
    How are these repeater and single shot actions , there were discussions before on a couple of different forums that were not favorable


    flatland1

    Sergeant
    Full Member
    Minuteman
    Jul 7, 2005
    1,774
    1,099
    71
    Western Kansas
    Hard to really tell from the photos posted whether that action had been modified to work as a repeater. The feed tray for single loading appears the same as my original 40X, which has to be removed, the magazine cut-out made, and the ejector modified to work with the Vudoo magazine. The extractor/pusher also need modded to work in a repeater in order to feed correctly & work smoothly with the V22 mags. I sent two CMP actions (one a 40X, the other a 40XB) to jelrod for the repeater conversions, but since I did the barrel work when they came back to me, Jonathan couldn't do his full extractor/pusher tuning while he had the actions because they neither one had barrels mounted at the time. It took me a considerable amount of time to finalize that tuning, and in so doing, I went too far in metal removal on a couple of extractors, and had to buy new ones from Gun Parts Corp and start over. Because the springs that power both the extractor & pusher are longer than the later shortened ones that VGW started supplying with their V22 actions, it was much more difficult to remove & replace the extractor & pusher in the 40X actions that it is today to do the same thing in a V22 action. Had I known to shorten and how much to shorten these springs back before VGW worked that issue out, I'd have had a lot less trouble while finalizing the shape of those parts in my two 40Xs.

    After I'd bought my 1st V22 action, other owners were reporting ejection issues, so Paul got to work (maybe with help from Mike, IDK), and designed some changes in the shapes of the extractor/pusher, radiused the noses of the dinky little pushrods that the springs push against the foot of the extractor/pushers, and shortened the springs that power them. Paul sent me a baggie of extra parts, and texted me a video of where to make changes to the shapes of the parts, and after that help, it took me maybe 15-20 min to remove, modify, and replace these parts in my bolt. I'd only just started to have a few ejection issues with my rifle after 500+rds through it before making the changes, and these mods have given me 100% reliable extraction/ejection for the four or more years since. A guy with jelrod's experience & skill might not have any problem getting the PTG action to function reliably as a repeater, but for the rest of us, it would seem to me to make a lot more sense to just go with a V22 to begin with...


    flatland1

    Sergeant
    Full Member
    Minuteman
    Jul 7, 2005
    1,774
    1,099
    71
    Western Kansas
    The magazine cut-out looks similar to the one that Mike Bush sent me drawings for, to use with his prototype V22 mags. I've never been around a Bergara rifle or magazine, so don't have much of a clue as to how close to the V22 mags they might be. But if you're able to get good, reliable feeding & ejection with those PTG-sourced actions, it's hard to argue with success...

    • Love
    Reactions: sinister

    68hoyt

    Private
    Full Member
    Minuteman
    Sep 17, 2011
    251
    88
    54
    LaShagal ,would , would you post a picture of the bolt , it’s not a regular 40x 22 bolt ?


    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN

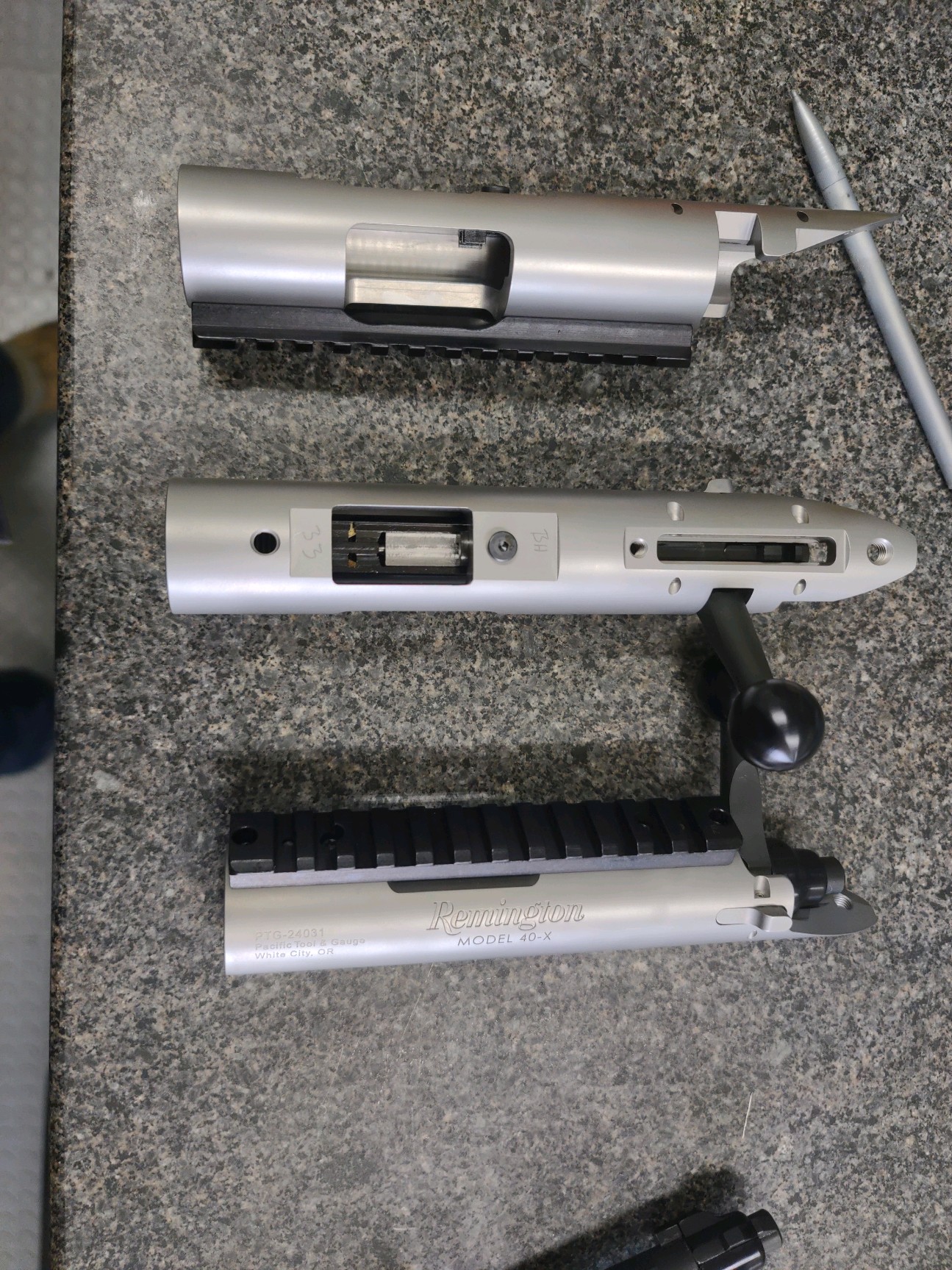

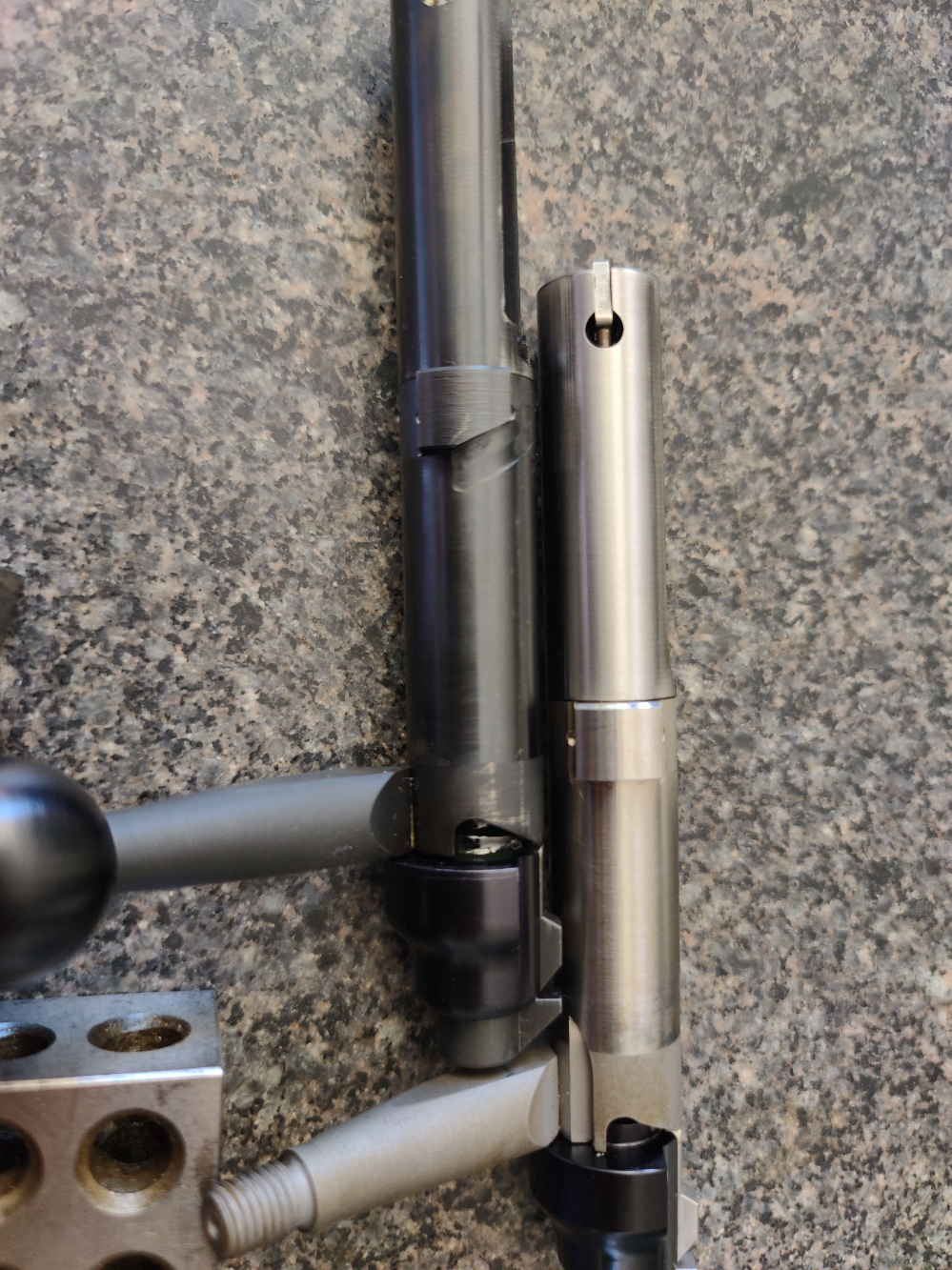

    How do they differ? The cocking ramps are machined onto the lugs instead of into the receiver, there is no notch under the bolt handle. The action is just as smooth as a rem 40x, the bolt head is supported in the FWD ring,but there is no Spring/Filler in the LHS lug race...so brass occasionally finds its way over there. I'm as pleased as punch with them. All the HORROR stories about PTG, and guys telling me I'd just thrown my money away...They're really well made and at a price point that's hard to argue with.


    Slobhunter2

    Private
    Minuteman
    Jun 13, 2022
    11
    22
    Tn
    I'd love to have a rblp lonestar, but the negative reviews of PTG are keeping me from ordering one.


    68hoyt

    Private
    Full Member
    Minuteman
    Sep 17, 2011
    251
    88
    54
    LeShagal, have you purchased one of the single shot /lonestar actions ? If so how was it ?


    jsel10

    Private
    Full Member
    Minuteman
    Jun 5, 2014
    139
    84
    Man, I've heard all the horror stories about ptg but I'm really considering tempting fate on one of these at the sale price.


    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN
    We're these actions blueprints and ready to go?
    if you can re-barrel a 700/40x..... aside from the extractor cuts, these are a walk in the park. I dunno where all the ptg hate comes from? We spend with them regularly and with the exception of some odd long lead items (guages, wrenches, reamers) that took forever to get, we've never had an issue.

    the only thing i wish was different was the port length....I'd like to make a .17hmr-.22lr barrel changer

    • Like
    Reactions: sinister

    Rem.243

    Supporter
    Supporter
    Full Member
    Minuteman
    May 29, 2018
    401
    27
    if you can re-barrel a 700/40x..... aside from the extractor cuts, these are a walk in the park. I dunno where all the ptg hate comes from? We spend with them regularly and with the exception of some odd long lead items (guages, wrenches, reamers) that took forever to get, we've never had an issue.

    the only thing i wish was different was the port length....I'd like to make a .17hmr-.22lr barrel changer
    i completely agree with you i would prefer the larger port like the original 40x not sure what made them switch the port size… the original images i posted seemed to have had the larger port

    • Like
    Reactions: Pomyluy

    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN

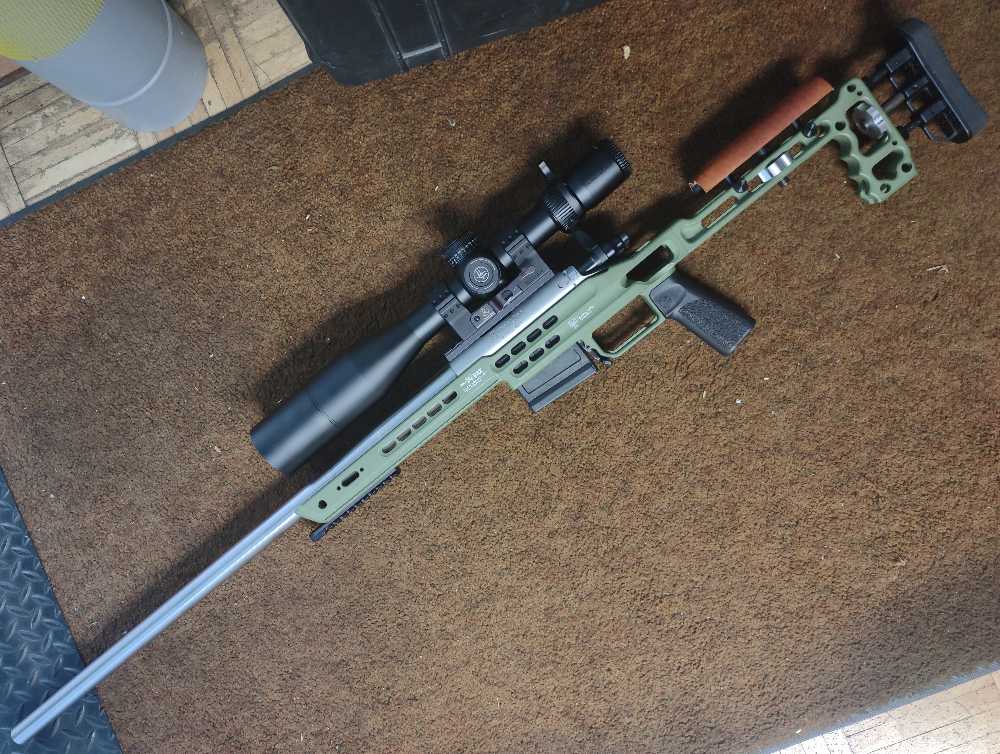

    For the $$$ i'm not complaining! At the current price there's a LOT of value there!
    When you consider what old whipped out CMP Remington 40x single shots are bringing, $600 for a New, AICSmag compatible, 40x repeater.....is a heck of a bargain! (+ you can buy them in stainless!!!)

    • Like
    Reactions: sinister

    Turbo2

    Banhammer
    Banned !
    Minuteman
    May 24, 2022
    49
    42
    Anywhere
    i completely agree with you i would prefer the larger port like the original 40x not sure what made them switch the port size… the original images i posted seemed to have had the larger port
    Flex is what changed from the original design. That large port wasn't a good thing and would cause flex in the action.


    DanGroves

    Private
    Supporter
    Full Member
    Minuteman
    Feb 18, 2017
    188
    227
    Wyoming
    if you can re-barrel a 700/40x..... aside from the extractor cuts, these are a walk in the park. I dunno where all the ptg hate comes from? We spend with them regularly and with the exception of some odd long lead items (guages, wrenches, reamers) that took forever to get, we've never had an issue.

    the only thing i wish was different was the port length....I'd like to make a .17hmr-.22lr barrel changer
    Sounds like you have cut some barrels to fit these? If so, are the tenon dimensions the same as a 40X rimfire?

    • Like
    Reactions: Rem.243

    Rimdenter

    Gunny Sergeant
    Full Member
    Minuteman
    Feb 27, 2021
    586
    487
    Texas
    How much does action flex really matter for a rimfire?
    I work with .0005 ten thousandths regular .00005 5 ten hundred thousandths flex would have to be measured in a lab. Translate .00005 flex in a action equals .0012 at the end of a 24" barrel or .090 thousandths at 50 yards! The main concern is repeated flex or twist .000005 millonths flex equals .009 thousandths at 50 yards!

    • Like
    Reactions: Pomyluy

    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN
    Flex is what changed from the original design. That large port wasn't a good thing and would cause flex in the action.
    The humor here astounds me.
    Most likely an economy move, Reducing the linear inches of machining=faster cycle time=cheaper to make.
    The original 40x rimfires were just regular SA 700 receivers diverted from the line (again economy, it was just easier to use the port size they were tooled up for and manufacturing en-masse)

    "Flex" you guys slay me!


    Rimdenter

    Gunny Sergeant
    Full Member
    Minuteman
    Feb 27, 2021
    586
    487
    Texas
    The humor here astounds me.
    Most likely an economy move, Reducing the linear inches of machining=faster cycle time=cheaper to make.
    The original 40x rimfires were just regular SA 700 receivers diverted from the line (again economy, it was just easier to use the port size they were tooled up for and manufacturing en-masse)

    "Flex" you guys slay me!
    Your right Flex was alittle broad based.
    Molecular distortion is the correct term.
    Attributes during steel processing, rough machining, thermal processing ,final machining and installation control distortion and can be used to tune or eliminate distortion.
    Disclaimer most manufactured components are engineered for a predetermind life span or quality rating under GOV. Safety or product guidelines.
    Ackromyn ( you get what you pay for )

    Last edited:
    • Haha
    Reactions: Turbo2

    Turbo2

    Banhammer
    Banned !
    Minuteman
    May 24, 2022
    49
    42
    Anywhere
    Your right Flex was alittle broad based.
    Molecular distortion is the correct term.
    Attributes during steel processing, rough machining, thermal processing ,final machining and installation control distortion and can be used to tune or eliminate distortion.
    Disclaimer most manufactured components are engineered for a predetermind life span or quality rating under GOV. Safety or product guidelines.
    Ackromyn ( you get what you pay for )
    No the correct term is flex absolutely. The 40x and even rear lock up actions you can see the crosshairs move when locking the bolt. That is flex , that's why you see a lot of shooters moving to the rails to mount across the loading port. It reduces or eliminates that flex in the scope.


    Rimdenter

    Gunny Sergeant
    Full Member
    Minuteman
    Feb 27, 2021
    586
    487
    Texas

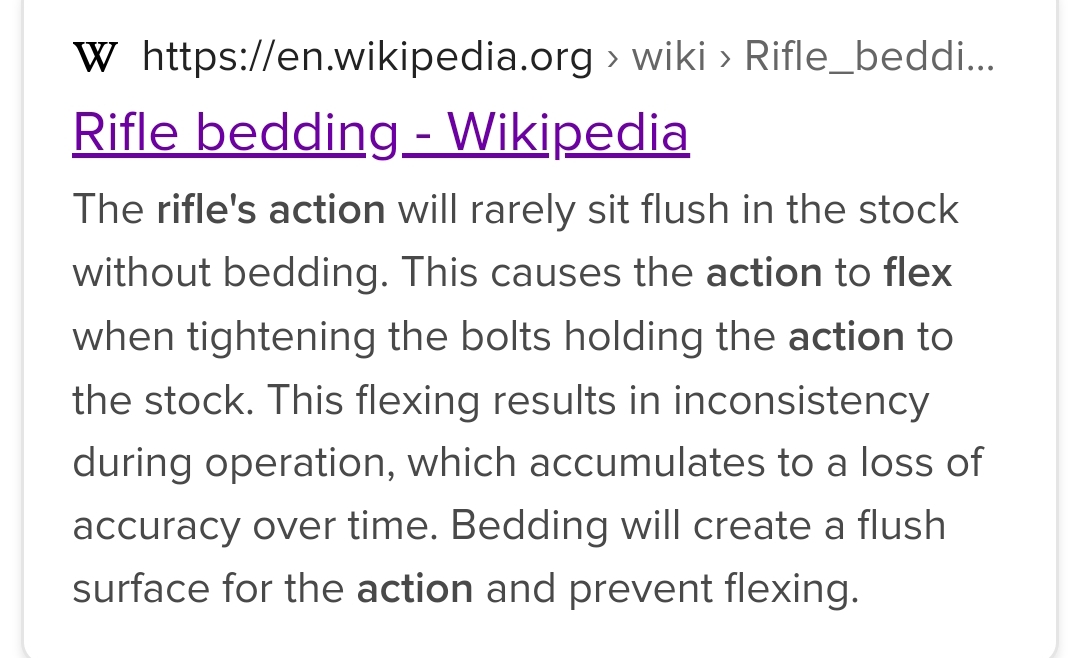

    Well I guess you could be right according to Wiki. I was analyzing it from a metallurgy stand point.


    Attachments

    • 20220713_121554.jpg
      190.2 KB · Views: 22

    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN
    @LeShagal Sounds like you have cut some barrels to fit these? If so, are the tenon dimensions the same as a 40X rimfire?
    Nearly identical....only because the original 40x varied a bit gun to gun. compared to the gauge I have for my 3 40xr rifles the PTG tenon is about .005" shorter. However it is worth noting, The 4 PTG actions we received are all identical (threads are timed, so barrels interchange gun to gun)
    No the correct term is flex absolutely. The 40x and even rear lock up actions you can see the crosshairs move when locking the bolt. That is flex , that's why you see a lot of shooters moving to the rails to mount across the loading port. It reduces or eliminates that flex in the scope.
    My god you guys are serious...How about you wikipedia wonders take this speculative pseudo-engineering thought exercise elsewhere??


    Rimdenter

    Gunny Sergeant
    Full Member
    Minuteman
    Feb 27, 2021
    586
    487
    Texas
    Nearly identical....only because the original 40x varied a bit gun to gun. compared to the gauge I have for my 3 40xr rifles the PTG tenon is about .005" shorter. However it is worth noting, The 4 PTG actions we received are all identical (threads are timed, so barrels interchange gun to gun)
    Just curious just what is your machining back ground ?
    Mines 43 years in machining ,associate in metallurgy 22 years Mil defense manufacturing with 8 years in The Boeing Naval pathway program primarily exotic metals for DOD development with a combined 23 years Tool and dye work?


    TapRackBang

    Private
    Full Member
    Minuteman
    Apr 19, 2014
    114
    80
    Two questions- what magazine does the PTG receiver use and does anyone make a prefit barrel for it?


    flatland1

    Sergeant
    Full Member
    Minuteman
    Jul 7, 2005
    1,774
    1,099
    71
    Western Kansas
    Looks to me as though the repeater uses V22 magazines, though LeShagal said in his reply that he's been using Bergara magazines if the four repeater actions he bought and built into custom rifles. Guys have asked if anyone is making pre-fit barrels for the V22 as well, and the answer is that it's not practical due to having to perfectly time the extractor slots - same is true of the PTG action.


    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN

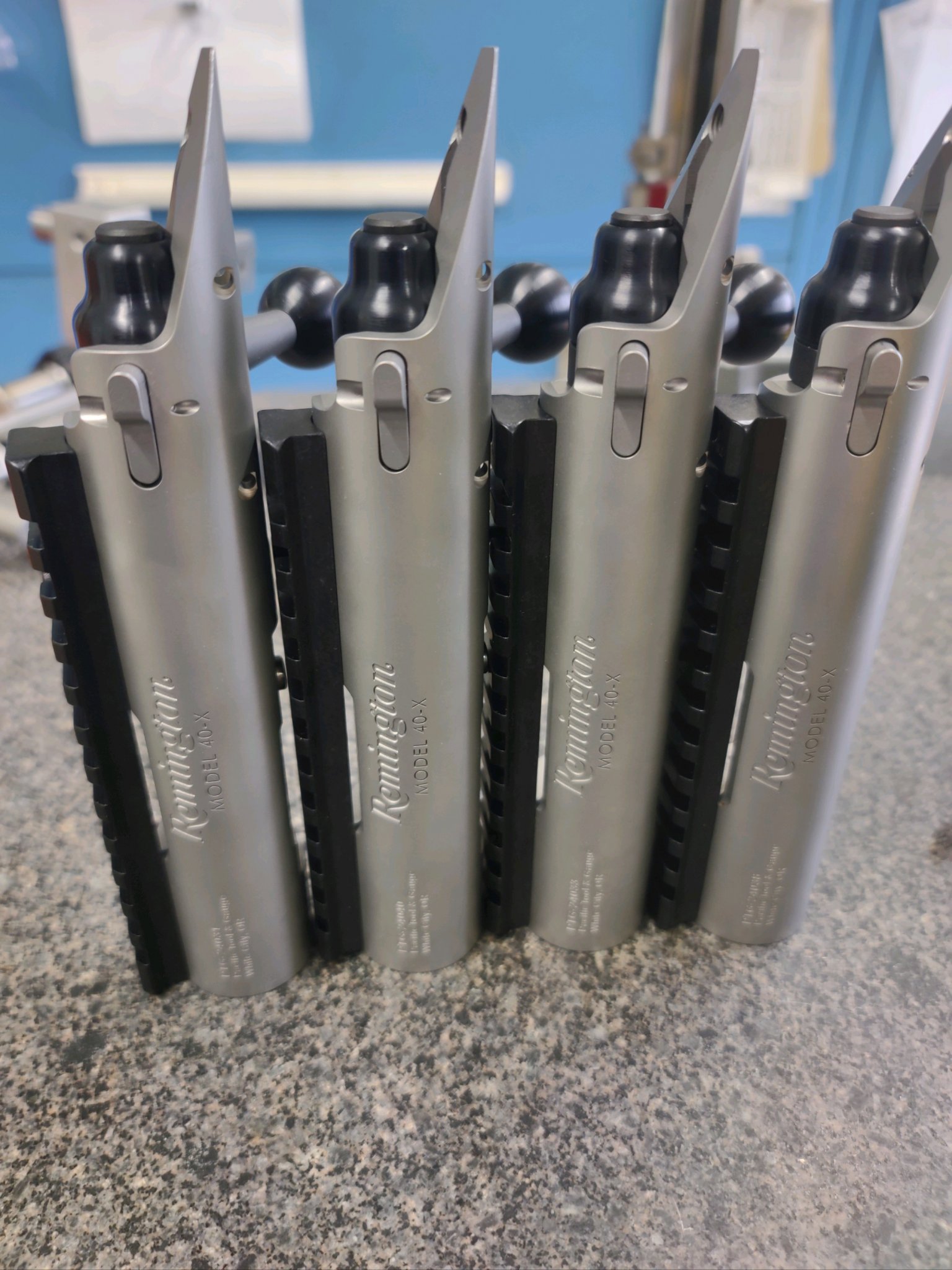

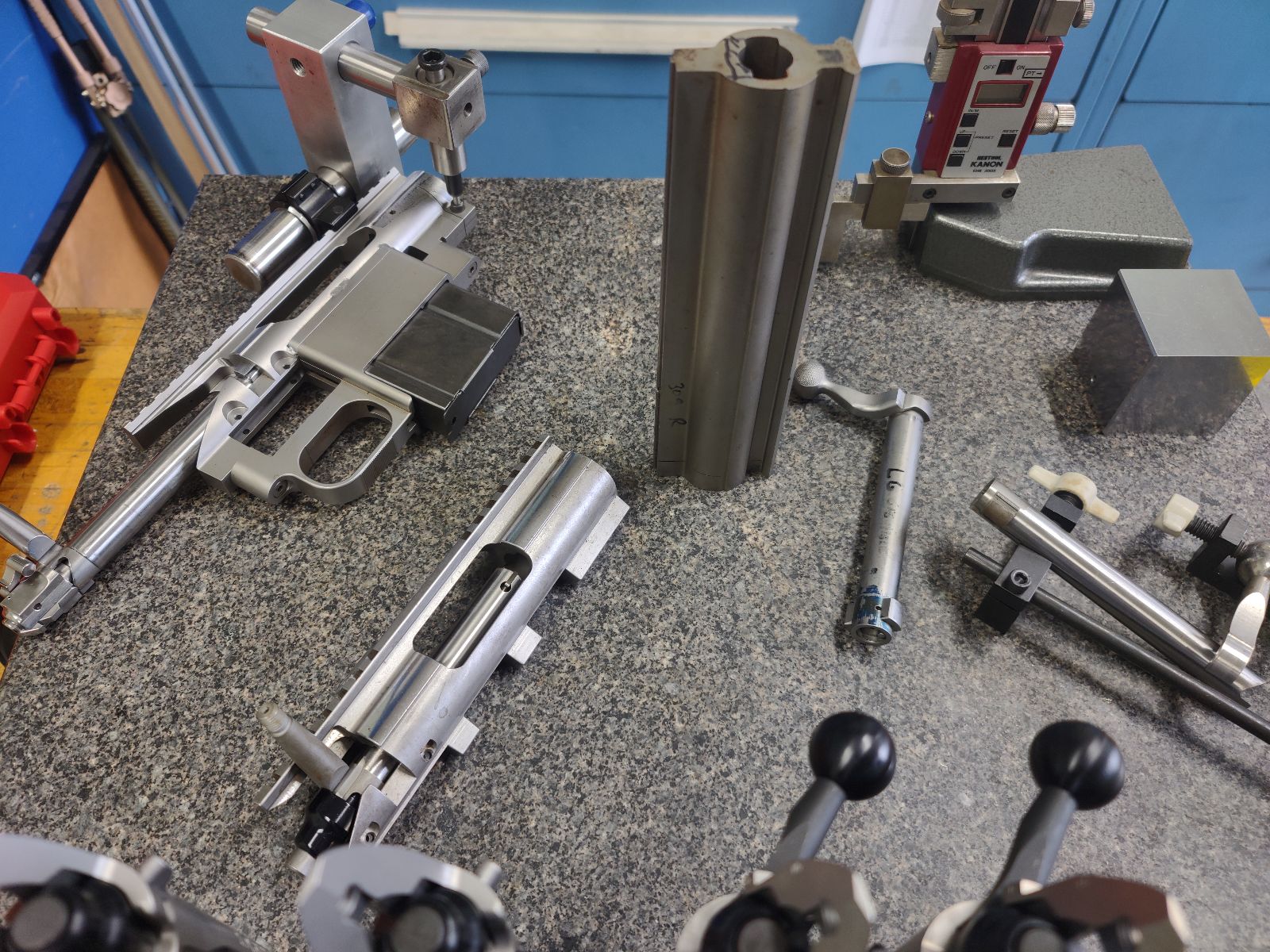

    Guys have asked if anyone is making pre-fit barrels for the V22 as well, and the answer is that it's not practical due to having to perfectly time the extractor slots - same is true of the PTG action.

    The aforementioned four PTG actions have CNC Timed threads. It would APPEAR that the PTG actions could support Prefit barrels (not unlike a B14r). If there's sufficient interest that's something we'd be willing to offer.
    I mentioned to another member in a PM, Given the options on the market (and a killer house made action) I think the SS PTG actions are a SCREAMING deal for the $$$


    Attachments

    • 85de8297-46ca-4a66-86d6-a44c29e2d603.jpg
      432.3 KB · Views: 83

    lapuaBR

    Private
    Full Member
    Minuteman
    Nov 9, 2009
    15
    11
    48
    midwest
    I received the very first PTG 40x repeater action from Dave several months ago. I checked it all out and it was actually true in all dimensions that i could measure. within .0003 anyway. I had some issues with the extractors on my particular action but i had some that ended up working properly in my parts bin. After the extractors were replaced i had some issues with feeding from vudoo magazines. I was under the impression from Dave that a proprietary magazine system was in the works? Perhaps not? I got busy and never did follow up much with Dave. I ended up putting the rifle away to visit another day. I didn't try the Bergara magazines and i appreciate whoever shared this info above. I have a couple in the shop at the moment so ill give them a go. I chambered a shilen ratchet for mine and it did shoot well. Pin strike looked good, location and depth. Ill follow up once i try these Bergara magazines.
    Lee Gardner Precision


    DanGroves

    Private
    Supporter
    Full Member
    Minuteman
    Feb 18, 2017
    188
    227
    Wyoming
    Looks to me as though the repeater uses V22 magazines, though LeShagal said in his reply that he's been using Bergara magazines if the four repeater actions he bought and built into custom rifles. Guys have asked if anyone is making pre-fit barrels for the V22 as well, and the answer is that it's not practical due to having to perfectly time the extractor slots - same is true of the PTG action.
    Has anybody determined if Vudoo magazines function properly in this action?


    claybrich

    Private
    Minuteman
    May 31, 2019
    35
    14
    Texas
    I placed an order for a 40x repeater back in the beginning of July, and I have yet to receive it. I am being told they have ran into issues, and we’re getting new extractor, tensioner, and springs.


    LeShagal

    Private
    Minuteman
    Jul 5, 2021
    20
    35
    IN
    Issues? ours are problem free.
    We use B14R mags without issue.
    Please post copy of your email from PTG,
    We just ordered another stainless and a blued repeater like a week ago for customer builds....I'll be eager to see what's been changed.


    68hoyt

    Private
    Full Member
    Minuteman
    Sep 17, 2011
    251
    88
    54
    Claybrich,
    Let us know what they say ,
    LeShagal ,
    How long do they normally take to fill an order ? Did you ever get a single shot receiver ?


    WittyOwl

    Internet opinions are worth what you pay for them.
    Minuteman
    Dec 16, 2022
    20
    22
    NE Pennsylvania

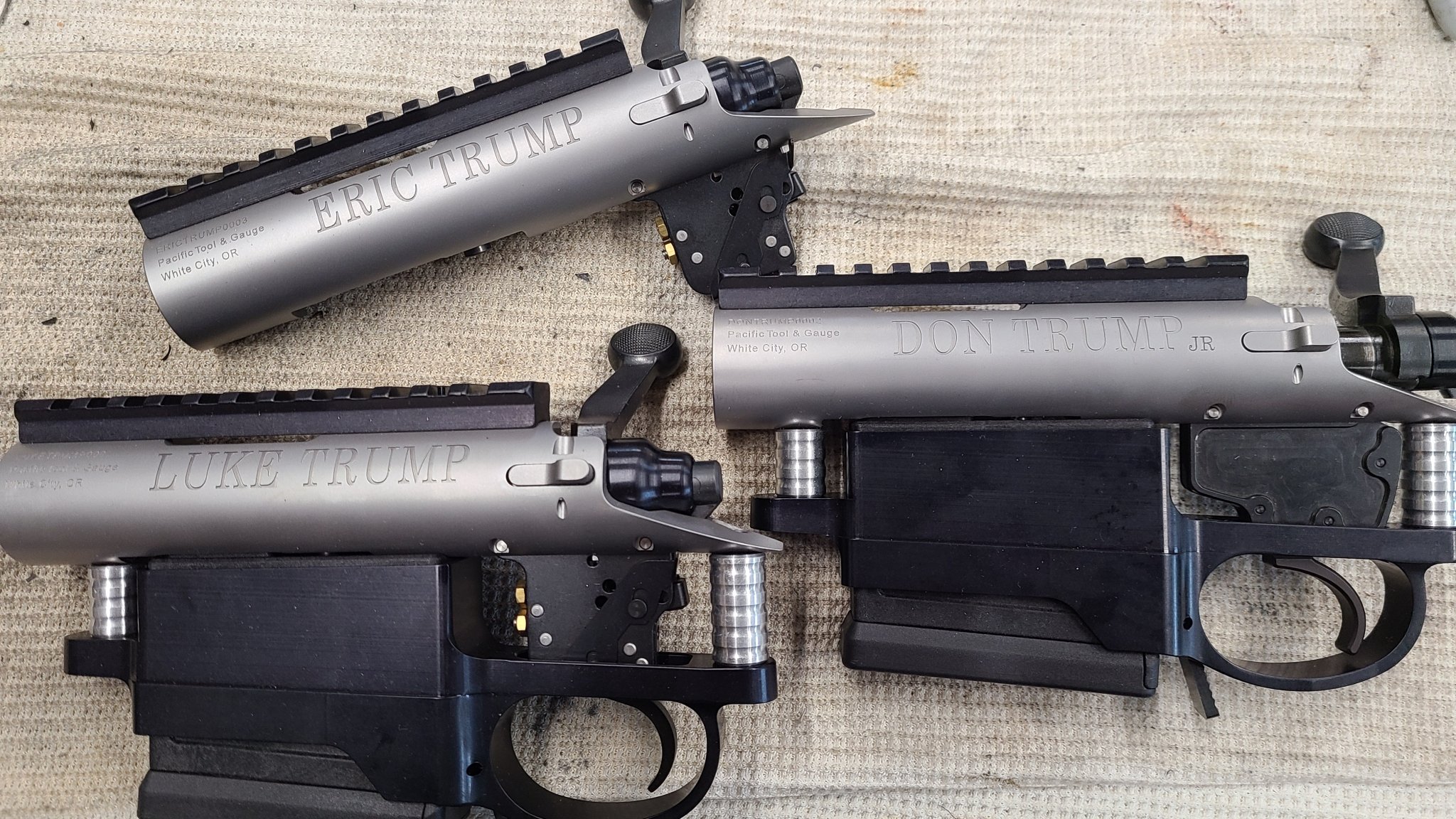

    These look like pretty nice actions for the $. Since they duplicate the function of a 40x with the modern immenity of a real mag, hard to go wrong. These should be finished up this weekend.


    Attachments

    • 20221217_124142.jpg
      590.2 KB · Views: 46

    68hoyt

    Private
    Full Member
    Minuteman
    Sep 17, 2011
    251
    88
    54
    Owl
    The right one has the PTG Kenyon style trigger ? Does it require the cocking piece to be ground at a 90* contact area like Kenyons trigger ?
