RCBS Seating die bends brass??

trauma1

Sergeant
Full Member
Minuteman
May 23, 2012
721
30
[No message]


Attachments

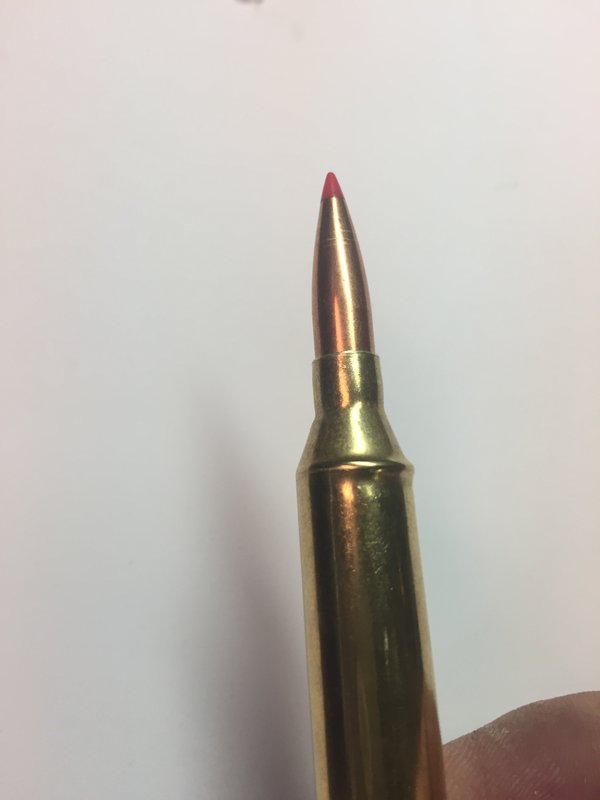

  • photo77773.jpg
    22.3 KB · Views: 1

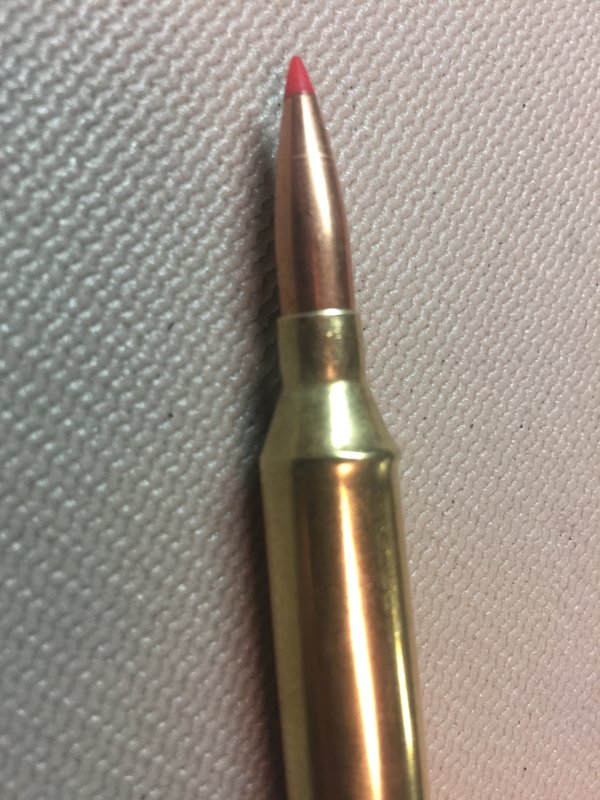

  • photo77774.jpg
    90.3 KB · Views: 0

Milo 2.5

The Dalai Lama of the Reload
Full Member
Minuteman
Aug 7, 2014
2,792
2,008
Gillette, WY
You either did not chamfer the case mouth, or have an ungodly amount of neck tension.


MtnCreek

Unreconstructed
Full Member
Minuteman
Jan 6, 2012
10,282
19,666
Turn the seater out till it doesn't touch the case mouth.


lash

Swamp Rat
Full Member
Minuteman
Sep 28, 2012
7,567
9,875
62
Central Florida
Do you know how much neck tension you have on those? Have you measured your necks before and after loading?

Has the brass been annealed?

You haven't really provided any information on the loading process, so it makes it hard to diagnose from a couple of pictures. What is your loading process and what are you measuring before and afterwards?


steve123

Lt. Colonel
Full Member
Minuteman
Mar 16, 2008
9,141
1,631
none of your business
Turn the seater out till it doesn't touch the case mouth.

Yep,

OP, take a case, put it in shell holder, screw down die till it touches, now back off half a turn, lock ring and retighten. Adjust seating depth at will, lock that too.

If that fails take your inertia bullet puller to a picture of a RCBS product and bash away.

Last edited:

trauma1

Sergeant
Full Member
Minuteman
May 23, 2012
721
30
Thanks guys.
New winchester brass
chamfer
i dis have it down too far. Thanks


MtnCreek

Unreconstructed
Full Member
Minuteman
Jan 6, 2012
10,282
19,666
Same here. There's a reason it was obvious to some here. I screwed up a bunch of 223 where it was not visible, but was very much apparent after releasing the bolt and smacking the FA a few times. Locks them up pretty good...


steve123

Lt. Colonel
Full Member
Minuteman
Mar 16, 2008
9,141
1,631
none of your business
Heck, that's nothing.

Wait till you get a case stuck in a die, that's a fun one.

My first time reloading when I was 14 the RCBS shellholder and RCBS 220 swift die wouldn't work to bump the shoulder. I was stumped, what on earth could I be doing wrong??? Gunsmith had it figured out in a minute and took a few thou off the shell holder. I showed up late as he was closing the doors, so that was nice of him to help the kid.



BobinNC

Gunny Sergeant
Full Member
Minuteman
Jan 31, 2009
4,693
40
70
Goldsboro, NC
I crunched brass just like that too, back in 1974, and for the same reason it happened to you OP. Don't feel bad, welcome to the club......
