Gunsmithing Recutting a barrel for a different action

aviumvenator

Private
Supporter
Full Member
Minuteman
Jan 26, 2012
156
46
South of Red Lake
I have a REM 260 barrel and barrel nut on a Remington action. I picked up a qc Zeus and want to get a 260 barrel for it. Rather than buy new I thought about having the current barrel recut for the Zeus action since it only has 200 rounds on it. Is this possible? Is this something worth considering or should I just order a new barrel?

Thanks...


Old Man with Gun

Gunny Sergeant
Full Member
Minuteman
Feb 4, 2019
724
877
The machine work, if possible, could cost more in the end. Sell the barrel if trying to save money. The threads match, but I dont think it will just swap out.

Last edited:

Steel head

Feral kitten
Full Member
Minuteman
  • Aug 3, 2014
    18,172
    58,200
    Washington
    You could thread it in and glue the nut permanently but you have one major issue.
    I believe the Zeus is a flat faced tenon like a savage and you’re 700 barrel will have a bolt nose relief cut.
    It could be possibly faced and then work depending on stickout and relief depth.
    That’s a pretty simple cut.


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,024
    6,280
    Southeastern, Pennsylvania
    You could thread it in and glue the nut permanently but you have one major issue.
    I believe the Zeus is a flat faced tenon like a savage and you’re 700 barrel will have a bolt nose relief cut.
    It could be possibly faced and then work depending on stickout and relief depth.
    That’s a pretty simple cut.


    Edit
    I'm wrong, Zeus is 16tpi.....I thought it was 20tpi like a bighorn or savage small shank...

    Last edited:

    Steel head

    Feral kitten
    Full Member
    Minuteman
  • Aug 3, 2014
    18,172
    58,200
    Washington
    I dont think that's gonna work...isn't a ReMage 16tpi and Zeus 20tpi threads?

    Edit
    I'm wrong, Zeus is 16tpi.....I thought it was 20tpi like a bighorn or savage small shank...
    Yea
    16UN
    I’m pretty sure the bolt nose cut is about .150 and that’s an acceptable case head stick out on a flat faced tenon.
    So just cutting it back flat may work.

    Kinda interesting they run 700 threads but a flat face tenon.

    • Like
    Reactions: Dragoon300

    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,024
    6,280
    Southeastern, Pennsylvania
    Yea
    16UN
    I’m pretty sure the bolt nose cut is about .150 and that’s an acceptable case head stick out on a flat faced tenon.
    So just cutting it back flat may work.

    It may. If he has a friend or Smith willing to mod it on the cheap it may be worth it...

    But if paying a few Benjamin's to do this, probably better just getting a new barrel cut...


    Steel head

    Feral kitten
    Full Member
    Minuteman
  • Aug 3, 2014
    18,172
    58,200
    Washington
    It may. If he has a friend or Smith willing to mod it on the cheap it may be worth it...

    But if paying a few Benjamin's to do this, probably better just getting a new barrel cut...
    Yes, but it is a super simple cut and you wouldn’t need to spend a lot of time indicating it in.
    It’s probably a minute of cutting including a coffee break and Making it pretty.
    More time to indicate it in within reason unless you get one of those miracle days.


    aviumvenator

    Private
    Supporter
    Full Member
    Minuteman
    Jan 26, 2012
    156
    46
    South of Red Lake
    Thank you for all of the information. I just measured the barrel on the rem in front of the barrel nut and it is 1.065. The barrel on the Zeus in front of the action is 1.233. Am I correct in assuming the barrel on the rem does not have enough material for a shoulder?

    • Like
    Reactions: Dragoon300

    Steel head

    Feral kitten
    Full Member
    Minuteman
  • Aug 3, 2014
    18,172
    58,200
    Washington
    Your going to have to use a barrel nut with that remage barrel

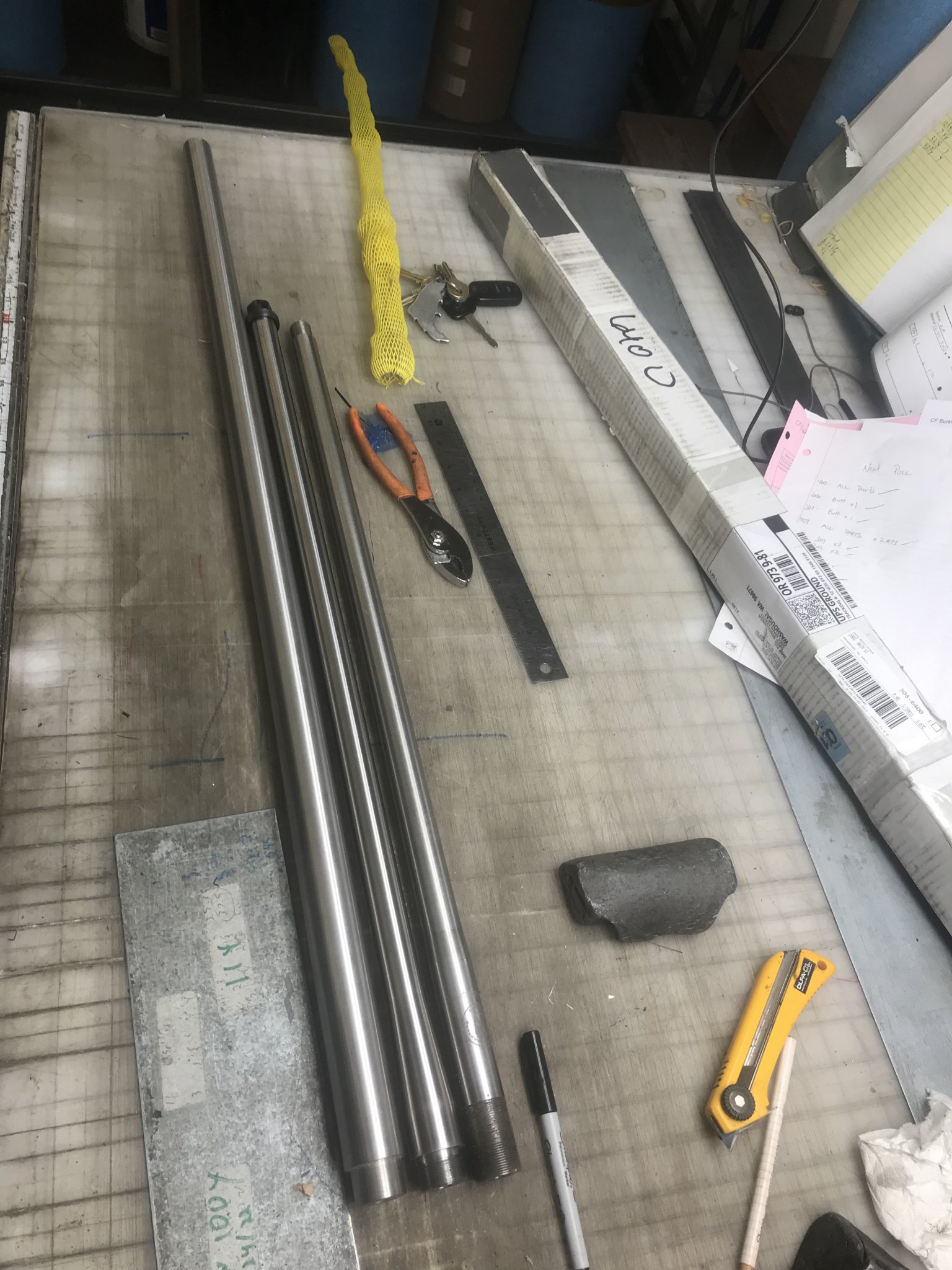

    Here you can see a shouldered barrel and barrel nut barrel side by side.
    The nut is basically an adjustable shoulder.


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,024
    6,280
    Southeastern, Pennsylvania
    Thank you for all of the information. I just measured the barrel on the rem in front of the barrel nut and it is 1.065. The barrel on the Zeus in front of the action is 1.233. Am I correct in assuming the barrel on the rem does not have enough material for a shoulder?

    Correct...the rem barrel cannot be a shouldered barrel on the Zeus...as we stated above...it will need to be a nut barrel just like on your Rem but machining will be needed to work with the zeus. The nut is the shoulder...


    aviumvenator

    Private
    Supporter
    Full Member
    Minuteman
    Jan 26, 2012
    156
    46
    South of Red Lake
    Ok...I see now where the glue comes in. It would be a cool project if I had the tools and skills but I don’t so time to order another barrel.

    Thanks again for the knowledge.

    • Like
    Reactions: padom

    FuhQ

    Private
    Full Member
    Minuteman
  • Aug 26, 2013
    2,706
    1,977
    Alabama
    I have a REM 260 barrel and barrel nut on a Remington action. I picked up a qc Zeus and want to get a 260 barrel for it. Rather than buy new I thought about having the current barrel recut for the Zeus action since it only has 200 rounds on it. Is this possible? Is this something worth considering or should I just order a new barrel?

    Thanks...
    I've cut down a good barrel from a Remington 700 threads down to smaller metric Browning A-Bolt II threads. Worked perfect. Barrel shoots amazing, and zero issues. As long as the outside diameter of the new threads is smaller than the tenon diameter at the bottom of the old threads, you should be fine.

    Worst case scenario, you chop the old threads off, and thread a little bit farther forward on the tenon, and then recut the chamber. If you have a smith willing to do that for a very reasonable fee, then It will be cheaper than a new barrel.

    So, to answer your question, YES, it can be done... If it will be cheaper than buying a new barrel, then it's worth it, if it won't be, it might be best to sell the old barrel in-tact and then recoup some of the cost of a new barrel blank.


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,024
    6,280
    Southeastern, Pennsylvania
    I've cut down a good barrel from a Remington 700 threads down to smaller metric Browning A-Bolt II threads. Worked perfect. Barrel shoots amazing, and zero issues. As long as the outside diameter of the new threads is smaller than the tenon diameter at the bottom of the old threads, you should be fine.

    Worst case scenario, you chop the old threads off, and thread a little bit farther forward on the tenon, and then recut the chamber. If you have a smith willing to do that for a very reasonable fee, then It will be cheaper than a new barrel.

    So, to answer your question, YES, it can be done... If it will be cheaper than buying a new barrel, then it's worth it, if it won't be, it might be best to sell the old barrel in-tact and then recoup some of the cost of a new barrel blank.

    I think you misread this thread, the threads are the same, thats not the issue here....its the tenon face difference that doesnt work. And as we stated needs to be machined to work AND he wanted a shoulder which also cant be done because the shank is 1.06 for a nut barrel........ He has to use a nut and machine the tenon face flat to work with a Zeus. The threads are not the issue.


    Dragoon300

    Private
    Minuteman
    Jul 11, 2018
    94
    108
    Cutting the breach face is simple.
    Why not use the barrel nut?
    Should work, shouldn't it?


    DR&M

    Dyk Rifle & Machine
    Supporter
    Commercial Supporter
    Minuteman
    Supporter+
  • Nov 12, 2020
    94
    64
    Colorado
    This can be done by chucking up the barrel, cutting down the shank to proper Zeus tenon length then re-cutting the chamber to proper depth.

    I typically charge more for this because it's a bit more inconvenient than a new barrel, but in this case, since you don't have to cut all the threads off and machine a new shank it won't be too bad.

    Cutting the breach face is simple.
    Why not use the barrel nut?
    Should work, shouldn't it?

    This won't work. The Remington bolt has a recessed lug. The zeus bolt won't be able to go into battery due to the recess cut for the remington bolt.

    Edit:

    Is the Zeus a quick change? What is the recoil lug thickness on the Remmy?

    • Like
    Reactions: Dragoon300

    aviumvenator

    Private
    Supporter
    Full Member
    Minuteman
    Jan 26, 2012
    156
    46
    South of Red Lake
    This can be done by chucking up the barrel, cutting down the shank to proper Zeus tenon length then re-cutting the chamber to proper depth.

    I typically charge more for this because it's a bit more inconvenient than a new barrel, but in this case, since you don't have to cut all the threads off and machine a new shank it won't be too bad.



    This won't work. The Remington bolt has a recessed lug. The zeus bolt won't be able to go into battery due to the recess cut for the remington bolt.

    Edit:

    Is the Zeus a quick change? What is the recoil lug thickness on the Remmy?
    It is a quick change. The lug is .2


    b6graham

    MMPRL
    Full Member
    Minuteman
    Supporter+
  • Jul 29, 2014
    6,793
    5,835
    Boston
    i know at least one person has done this to a remage/zeus combo by cutting down the bolt nose recess i believe is all he did

    • Like
    Reactions: padom
