Reveal between barrel and stock tutorial

[tunacan]

I dont know if this has been covered, but here is my take on how to "clean" up the reveal between your barrel and stock

I recently rechambered a gun with a smaller contour barrel and I had a large, uneven gap between the barrel and the stock. I know this is only aesthetic, but I like my guns shooting and looking good.

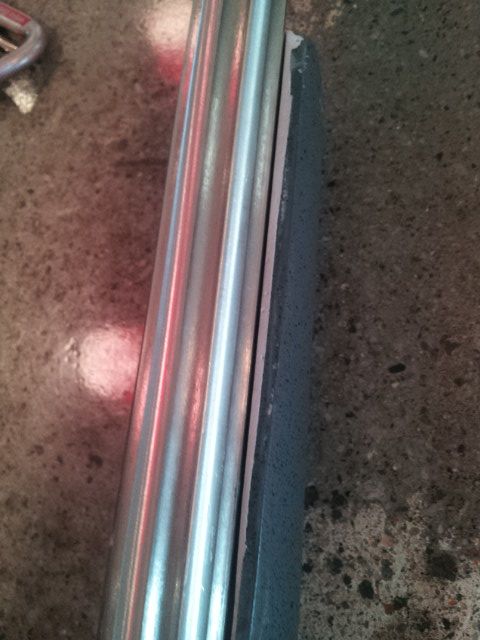

I simply got some 20 mil tape and put 2 layers lengthwise on the bottom half of the barrel

http://www.amazon.com/Orbit-Sprinkl...F8&qid=1395623125&sr=1-1&keywords=20+mil+tape

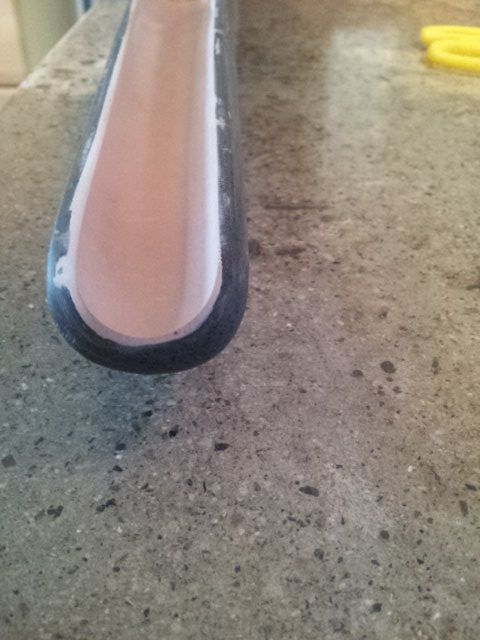

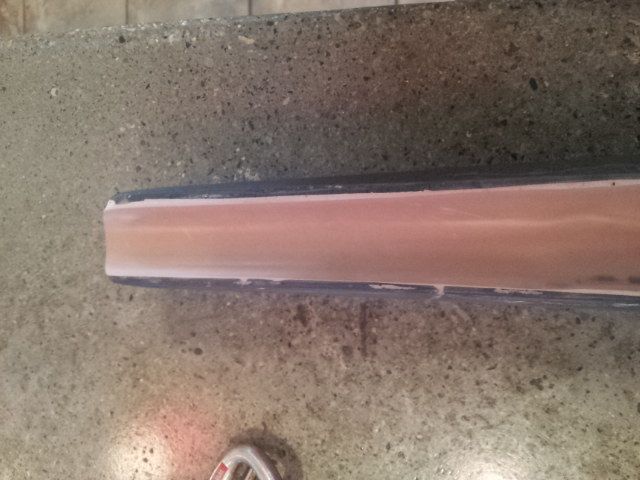

Next I got some Walmart bondo, mixed it applied generously to my stock channel.

I then put my barreled action in the stock and tightened it down.....30 minutes later and a little cleanup and it is ready for paint.

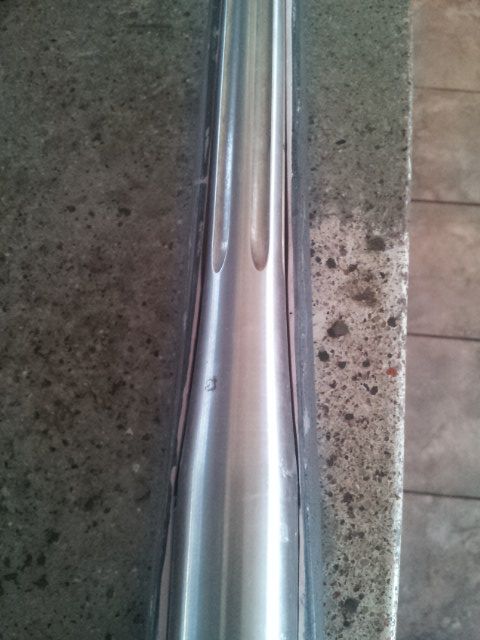

What you have when you're done is a perfectly free floated barrel with a very even reveal

I thought this would be useful for someone.



[DroidSniper]

Very nicely done indeed!



[Ranger413]

Nice job. I usually end up opening channels for larger barrels but this is a good solution for the reverse. I wonder how much rigidity this would add. And, would a JB Weld or Marine Tex make it more rigid? Just thinking aloud in reference to flimsy stocks.
