Sherman 7 MAX

nick338

Private
PX Member
Minuteman
Feb 21, 2013
884
551
Tagging in. 7 MAX with a 195 Berger at 3000 fps on a medium action sounds interesting. Might have to bite the bullet and buy a reamer.


nick338

Private
PX Member
Minuteman
Feb 21, 2013
884
551
He has his own head stamped brass made by ADG. Don't hold your breath on Lapua ever making it.

  • Like
Reactions: hseII

BCX

Major Hide Member
PX Member
Minuteman
Mar 18, 2018
1,918
897
Need to compare 7 Saum AI 40 capacity.


Potsy

Sergeant of the Hide
PX Member
Minuteman
Sep 14, 2019
141
116
I've looked at it. It's one of those calibers that I can't figure out why I need a barrel for my Origin (I can only shoot to 1,000 yards), and yet I still want one..........

  • Like
Reactions: JesseB81

Odysseus1911

Piled higher and Deeper
PX Member
Minuteman
Feb 14, 2019
316
502
Arkansas
Was really thinking about doing a 7mm LRC, (338 Lapua short improved necked down to 7mm and 84 gr. capacity). There was a 300 LRC, too, but can't find a single post with performance data on either one after Swamplord announced reamers and brass were available last December. He must have let that project die for some reason and apparently nobody else built one. Too bad, should have been a fantastic cartridge.

While the performance may be a little less than the LRC should have been, I at least know the 7 sherman max will be supported by lots of data and regular updates (like all Sherman's other projects) so I'll know what performance to expect before buying in. May go this route.

  • Like
Reactions: CStroud and BCX

BCX

Major Hide Member
PX Member
Minuteman
Mar 18, 2018
1,918
897
ADG brass is good stuff. Weights are close and come w a nice case. No damaged necks, prime, chamfer and load.

  • Like
Reactions: hseII

BCX

Major Hide Member
PX Member
Minuteman
Mar 18, 2018
1,918
897
AMP pilot # 95 for the Sherman Max case should be available in a few weeks per Alex from AMP!


BCX

Major Hide Member
PX Member
Minuteman
Mar 18, 2018
1,918
897
I loaded a few test rounds, testing in the morning. I did notice how easy the primers seated on once fired brass w a mild fire form charge. ADG brass is nice but the primer pockets are NOT tight like Lapua. I hope she holds tight.


Steel head

Feral kitten
PX Member
Minuteman
  • Aug 3, 2014
    13,519
    35,379
    Washington
    I loaded a few test rounds, testing in the morning. I did notice how easy the primers seated on once fired brass w a mild fire form charge. ADG brass is nice but the primer pockets are NOT tight like Lapua. I hope she holds tight.
    My primers were never super tight but I’m shooting brass tomorrow on it’s 17th firing.
    Priming feel was still excellent on them.


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    I hope your correct. Only reason i mentioned it was another member said a primer almost fell out. You should have flattened primers long before one ejects itself.


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    What speed are you seeing w the Berger 190 on 7 SAUM?


    Steel head

    Feral kitten
    PX Member
    Minuteman
  • Aug 3, 2014
    13,519
    35,379
    Washington
    I hope your correct. Only reason i mentioned it was another member said a primer almost fell out. You should have flattened primers long before one ejects itself.
    I agree.
    I’ve definitely had a few flat primers in that brass.


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    First time using N570. Huge kernels. 70 Grains filled the case nicely but leaves a lot of air gap in between kernels. Seated the bullet and no crunch.


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    12 inch drop tube w 70 grains worked. I do like the idea of a electric toothbrush, beats tapping the base down on a table.

    Last edited:
    • Like
    Reactions: b6graham

    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897

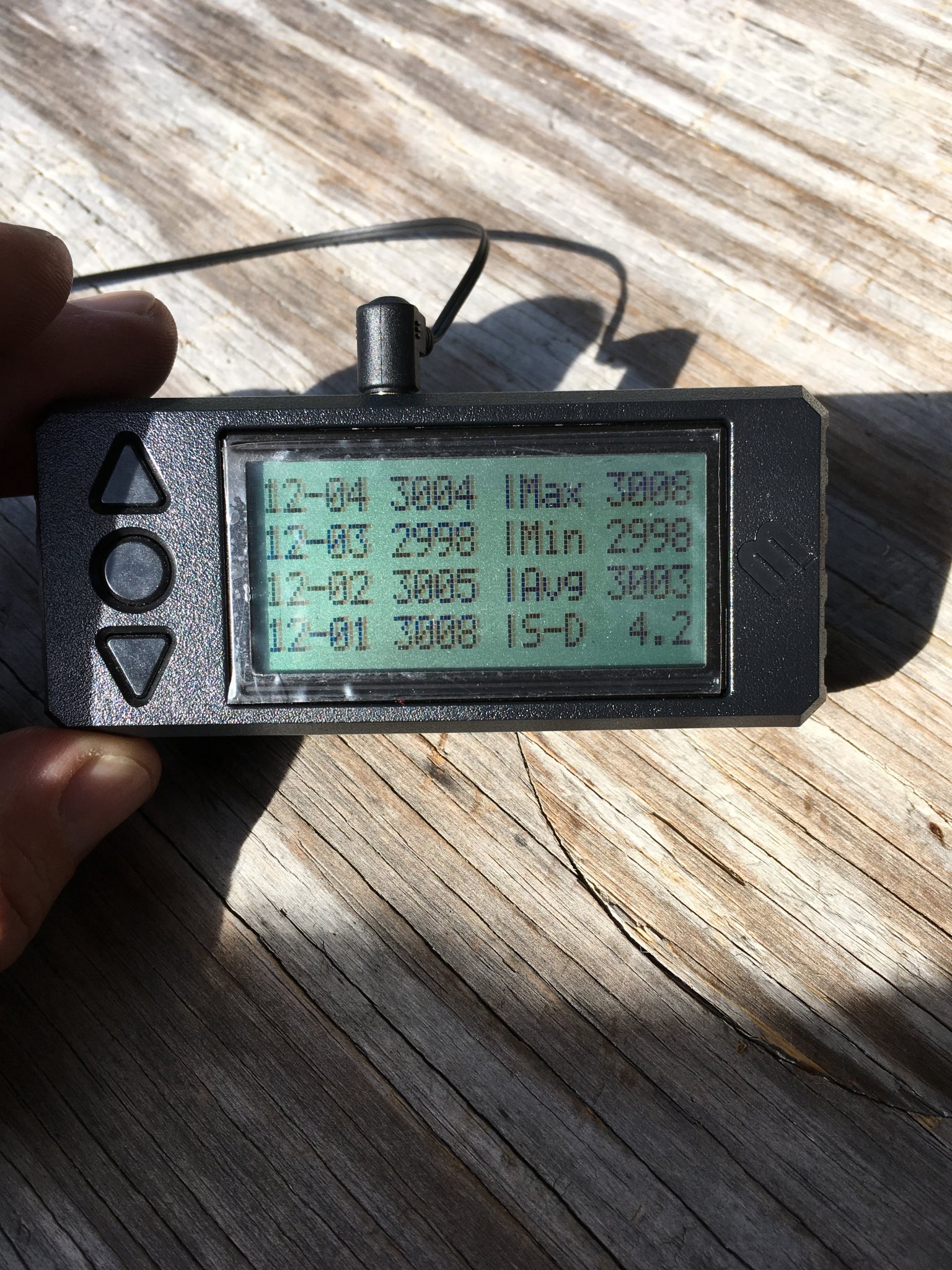

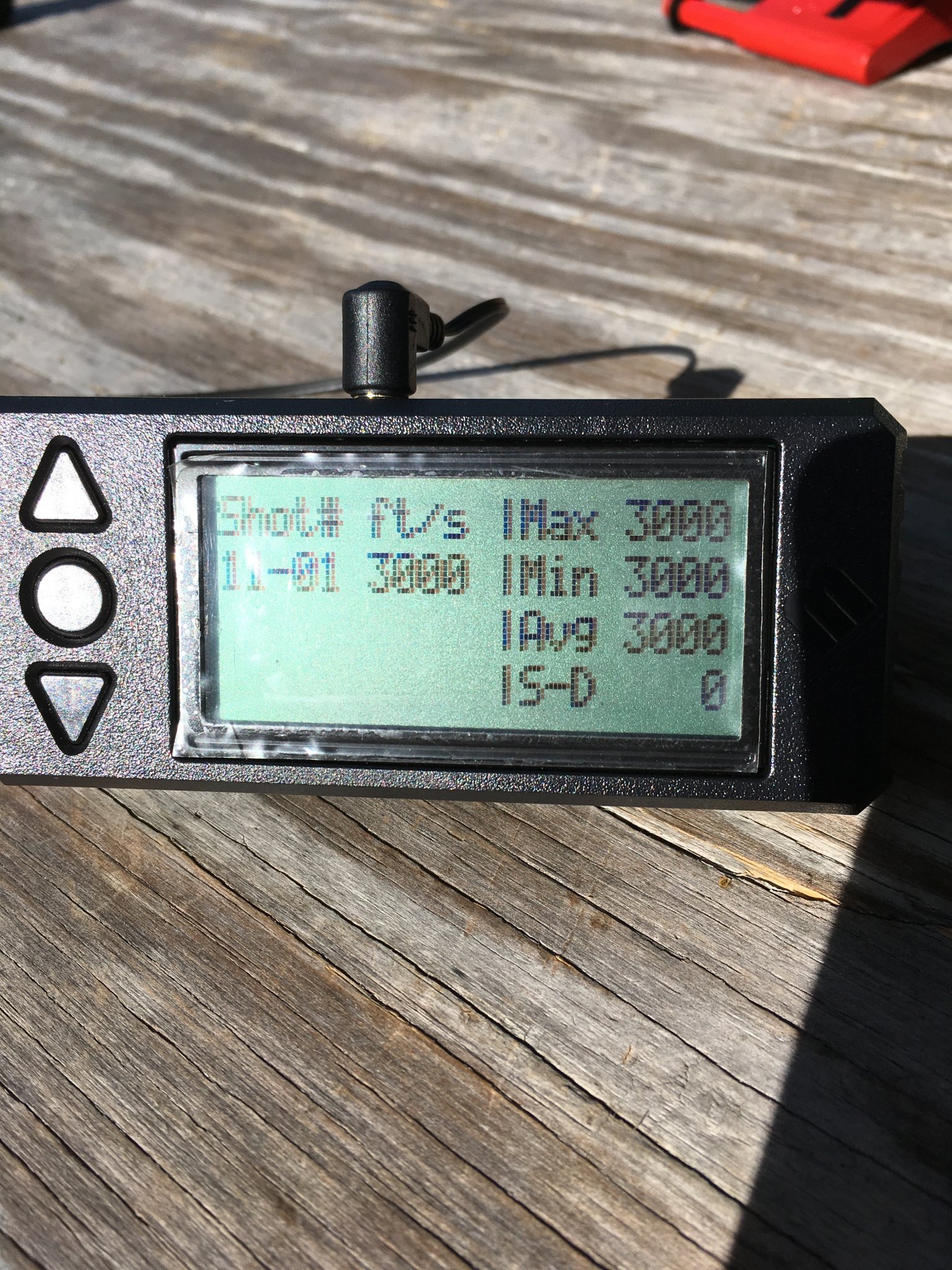

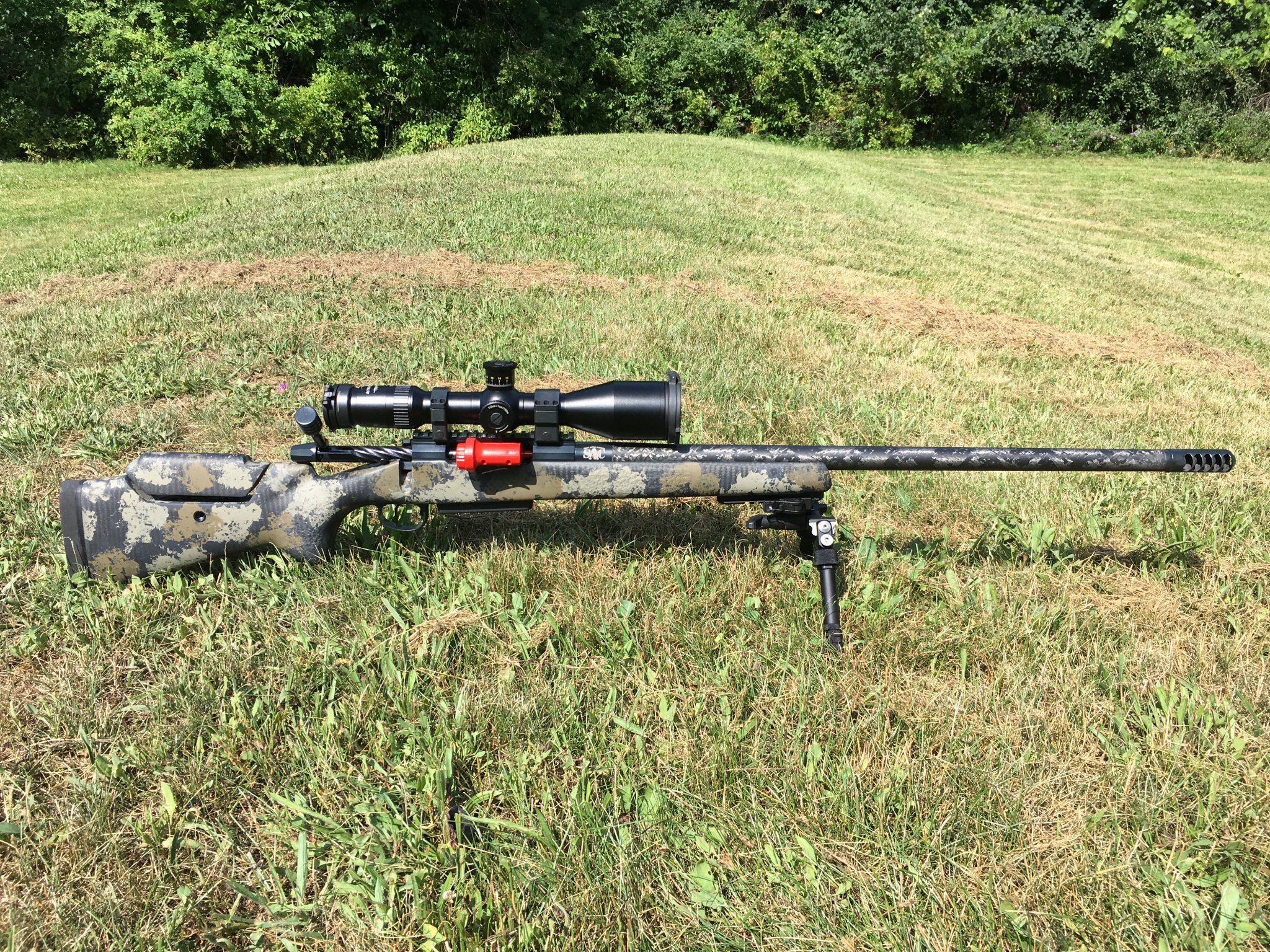

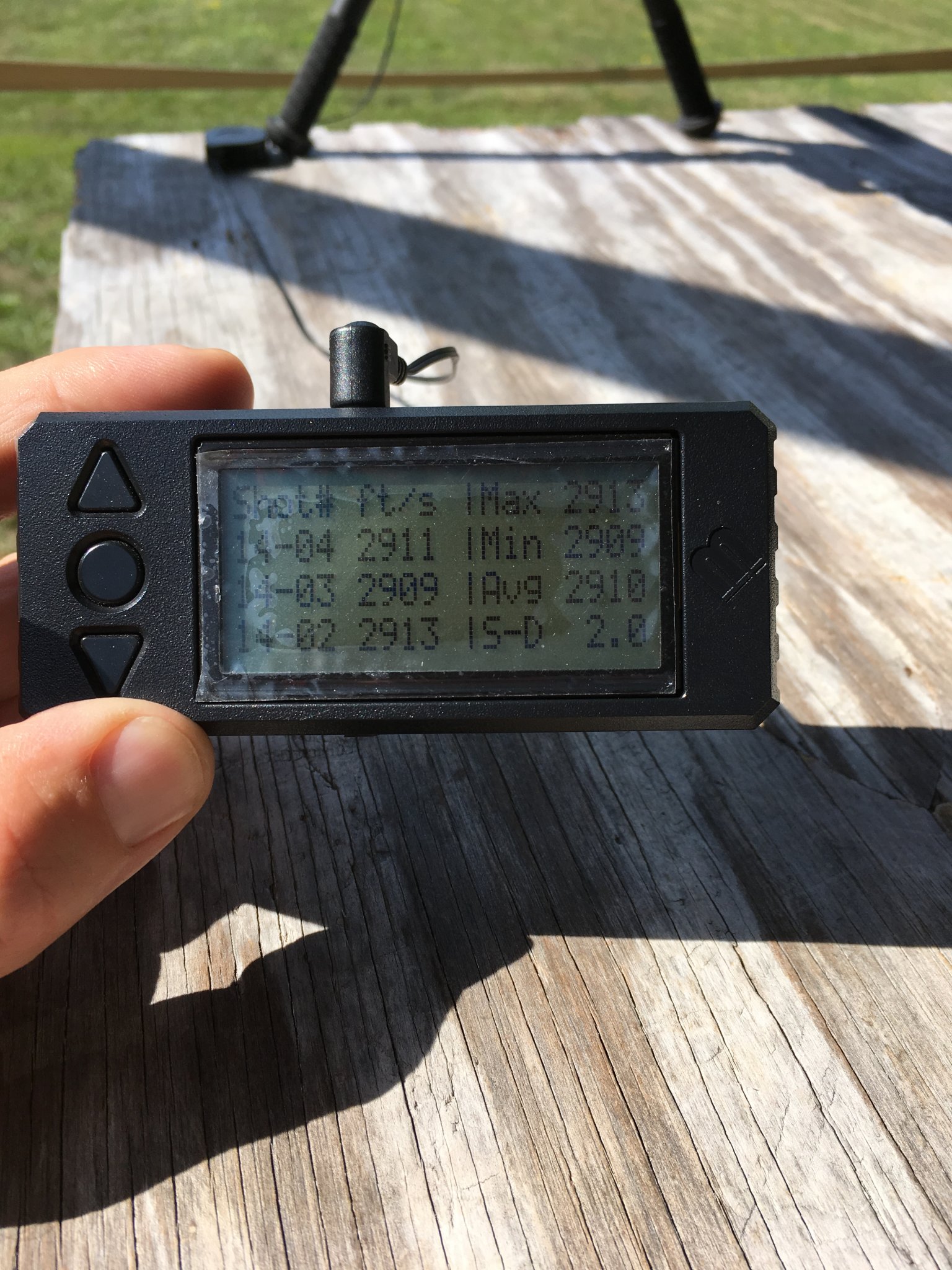

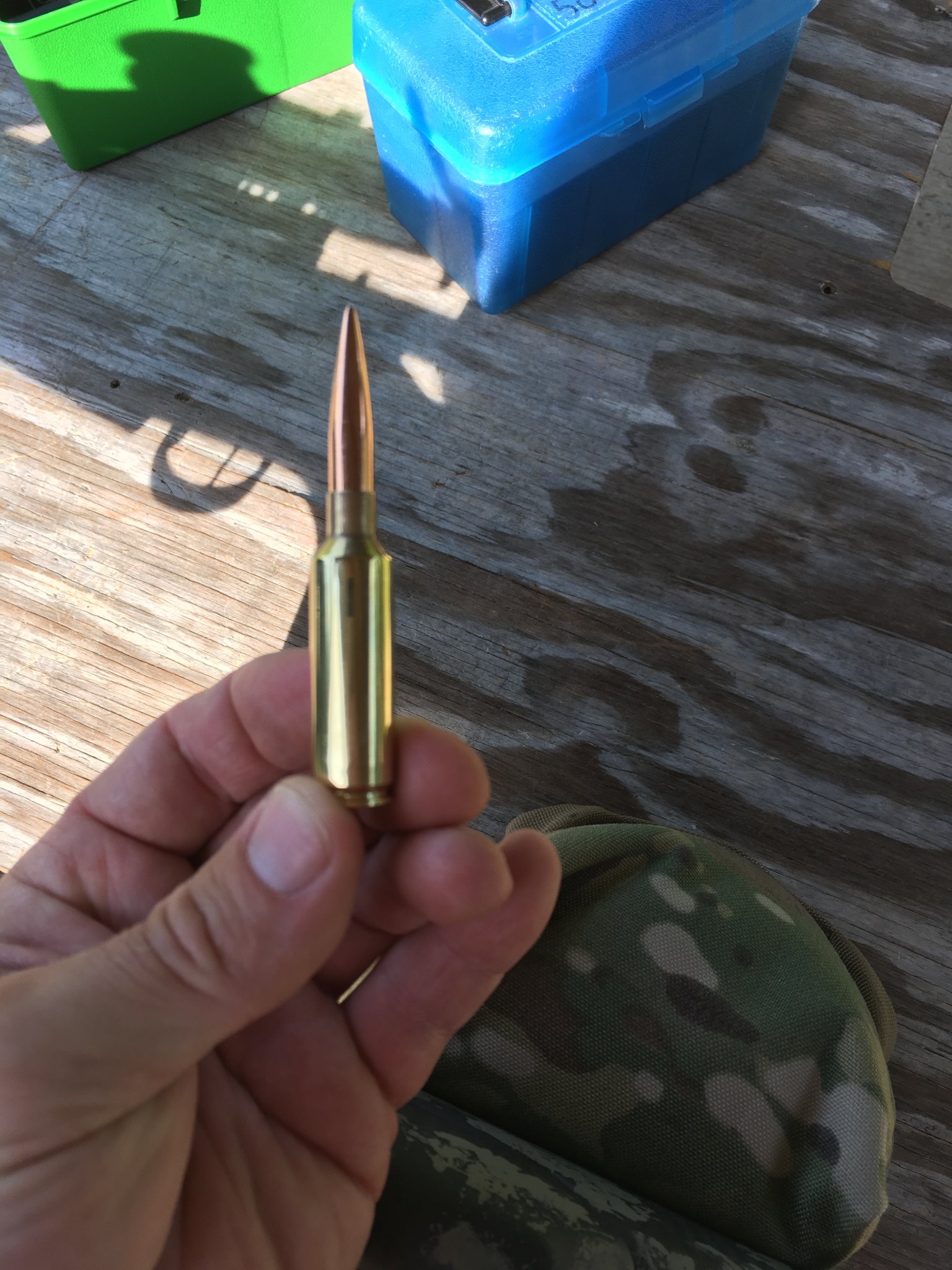

    Little morning testing w Berger 190 w 70 grains N570. Primers held no problem, no flat primers but a light ejector mark which may go away when my Amp pilot comes available. Will measure case head expansion later and compare to the lower charge weights. 4D4EB728-2A5E-47AF-A4E8-DEC0F9A936BD.jpegF87B72FF-FB7B-4D7C-8B8B-979037696962.jpeg5DEEA762-0B72-415B-A4B0-B86D45E88912.jpegA91029E7-C60C-4306-B95B-0266DD1DFFA5.jpeg


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    Going to take these 2 loads to 1k tomorrow morning.


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    CCI 200 w RL-26 to fire form and FED 215 M w N570 to work up a load.

    • Like
    Reactions: SIDS01

    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    I still like the idea of a 28 Nosler throated long w 190 A-Tips. Maybe next years project on a Surgeon 1086 and Bartleins new 400MODBB.


    30cal user

    Sergeant
    PX Member
    Minuteman
    Dec 20, 2008
    637
    88
    39
    SE, LA
    I have been developing my 7/300 wsm with the berger 190 and the son of a bitch just likes to be in that 2830-2880 mv range with H1000, RL 25, and RL 26, but only 62-65 gr in 30” bbl....quickload says N570 would be faster and your results prove this, I have no n570....nice looking rifle and results, congrats

    • Like
    Reactions: BCX

    Steel head

    Feral kitten
    PX Member
    Minuteman
  • Aug 3, 2014
    13,519
    35,379
    Washington
    I have been developing my 7/300 wsm with the berger 190 and the son of a bitch just likes to be in that 2830-2880 with H1000, RL 25, and RL 26......quickload says N570 would be faster and your results prove this, I have no n570....nice looking rifle and results, congrats
    That’s the speeds my 7 saum likes.
    I can go faster but why?

    • Like
    Reactions: BCX

    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    I have a long way to go before i settle on a load. Barrel should speed up a bit. Only had 50 down the tube this morning. Both those loads kept all bullets touching at 100. Will get some 1k testing in tomorrow and might take it to Ohio next weekend to play at the mile.


    SIDS01

    Private
    PX Member
    Minuteman
    Feb 13, 2017
    155
    102
    I've been shooting a 7/300 wsm for a few years as my ELR practice gun. I've been using 180s because I bought a big pile of them cheap and they've been effective to the last target on our range at 2300 yards. Its a short action and I load the 180s for that gun at 2.950" to mag feed.

    I just finished another rifle in 7/300wsm and throated it to take the 190 Atips at 3.250". I was just going to start with the H4831 I use with the 180s, but after running your N570 load through QL, I think I'll start there. The case capacities are nearly the same, and it looks like the combination of a heavier bullet loaded longer gets the stars to align for N570. So thanks for that info as well.

    Yes, I'll start with a pressure ladder that's several grains low and work up.

    • Like
    Reactions: BCX

    SIDS01

    Private
    PX Member
    Minuteman
    Feb 13, 2017
    155
    102
    Im throated longer than the Sherman 7 MAX reamer so work up.
    With your data, I'll be able to start with a pressure ladder for N570 using large rifle magnum primers rather than doing 1 for both large rifle and large rifle magnum. I get the best results with H4831 using large rifle primers.

    With my 300wm, the lowest velocity spreads came from large rifle primers if single base powders (H1000) were used, but they'd completely shit the bed with double based powders (R26, R33, N570).

    With a 338 Lapua case capacity, the large rifle magnum primers worked best for both types of powder.

    • Like
    Reactions: BCX

    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    Tested both those loads at 1K this morning. The 68 gr N570 was the winner. Went 10 for 10 pretty much touching on a half moa round target prone from a hunting rifle. Love it....time to load some for Ohio and the 1 mile target. We will see how it holds up to my 338 LM AI w 300 Berger's.

    • Like
    Reactions: b6graham

    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897

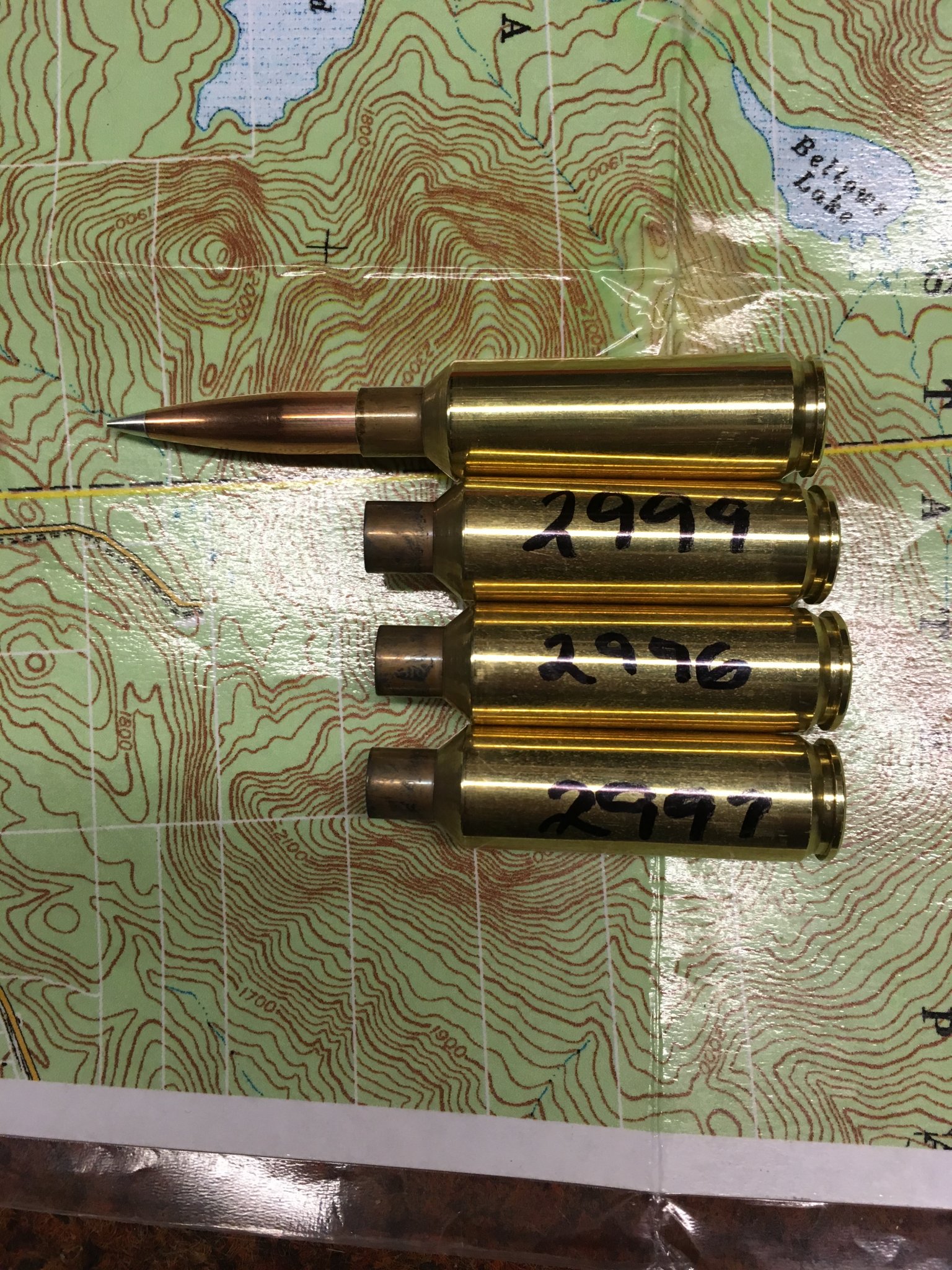

    Played w the 190 A-tip and N-570 this morning. No pressure signs! Just shy of the magical 3k mark. 3 charge weights all shot in the .3’s. Testing at 1k this weekend. 6D6DDF58-EE51-4C73-81B7-581843FE26D1.jpeg


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897

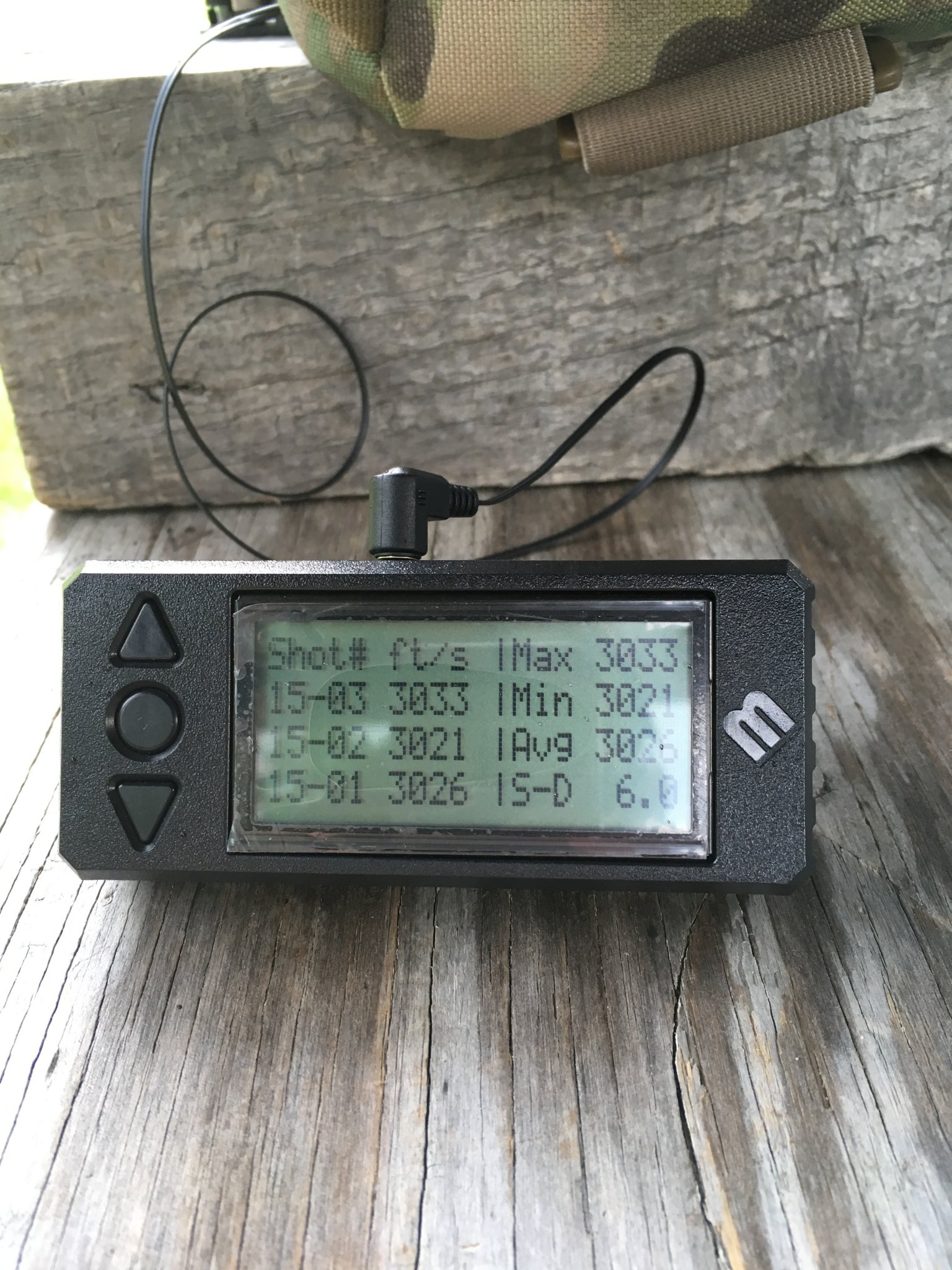

    190 A-tip N570 still no pressure signs. Going to go a little hotter. I think I can max out at 3050 fps 😎... didn’t measure powder w my usual sequence. BDDFD55A-E0E3-4433-ADE4-0CF3879F0637.jpeg


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897

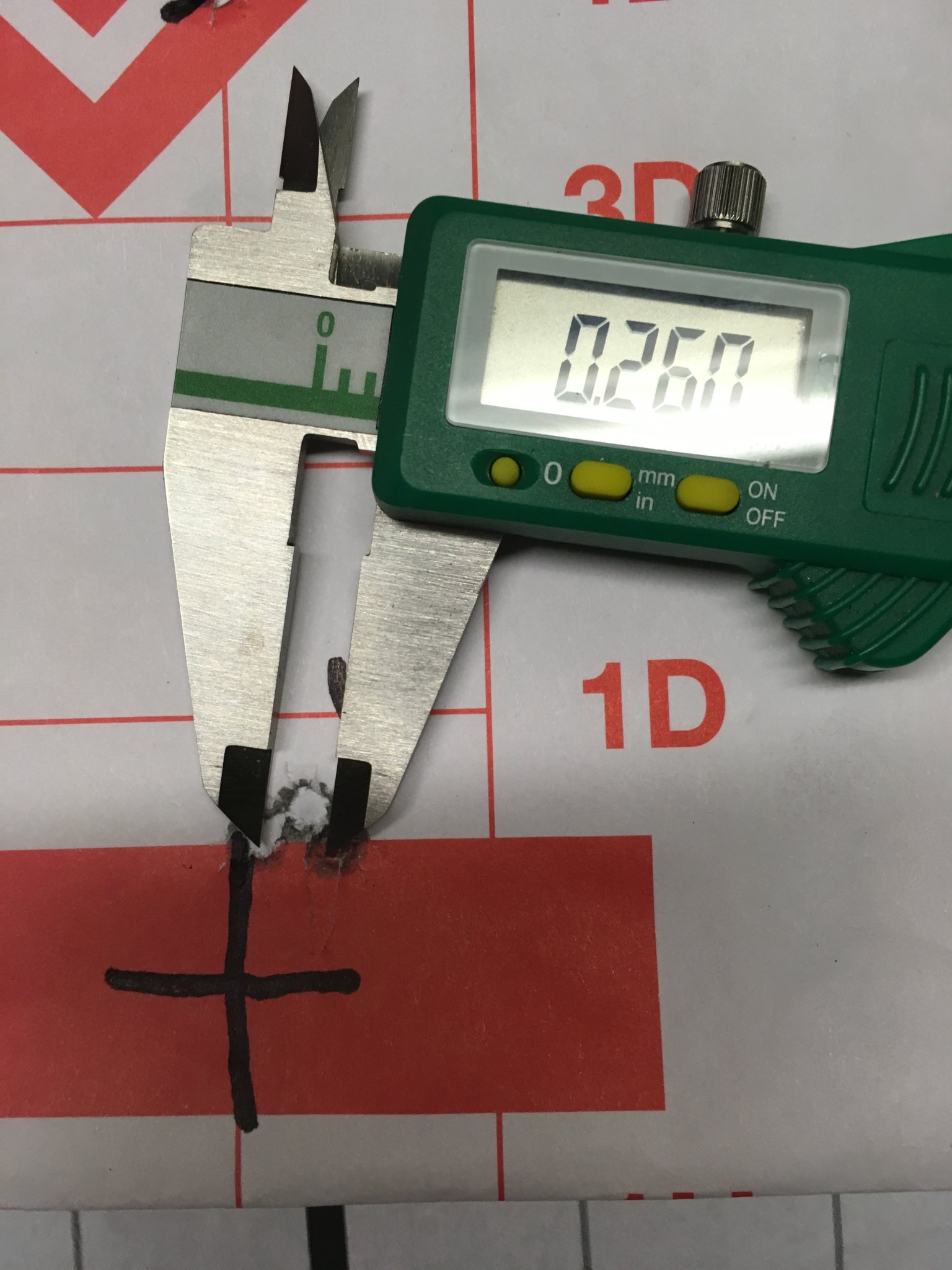

    These 190 A-tips are very forgiving. All powder charges have produced groups in the .2-.4s being the largest. Just received my Amp pilot so time to get serious w load development.


    Attachments

    • D20A5C18-012B-43F7-BB93-95A9D60567A5.jpeg
      327.1 KB · Views: 19

    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    The 190 A-tip is out shooting the Berger 190 now that I worked a load. My .25 moa A-tip load is still holding .25 moa at 300. 190 A-tip at 3k fps!!!!! Excuse the canted crosshairs LOL. 8C5D9D9D-1F12-4D9D-B5E4-67CFC1132A78.jpegD


    BCX

    Major Hide Member
    PX Member
    Minuteman
    Mar 18, 2018
    1,918
    897
    Ran the 190 A-Tip w N570 up to 70 gr... which is about max in my rifle. Light ejector marks, no heavy bolt lift. No change in velocity w 69.8-70 gr N 570 yielded 3033 FPS in 26 inch barrel @ 40 degrees. Settled on 69.1 N570 which gives me 3000 FPS w the best accuracy. Smacked a small rock at 881 yards to ck my cold bore shot for POI and the report says it hits w authority.

    • Like
    Reactions: bghunter338

    Painless300

    Sergeant
    PX Member
    Minuteman
    Dec 2, 2013
    907
    324
    Rome, GA
    BCX the 7Max looks like a perfect Elk round with the 180 Bergers. Wonder how they would perform with a shorter 22" barrel suppressed?

    • Like
    Reactions: BCX
