Timney bolt release removal question?

[Klay23]

When I remove it to install in my terminus, do I need to put the screw that held the little plate back in to run properly or just sit it to the side if I ever need it again. It’s the Timney Calvin elite 2 stage, the blue one. Thank you in Advance



[Curahee19]

That’s funny I actually just did this on Friday to my Calvin elite and installed it with the screw back on and it was shooting fine



[Klay23]

Hmmm. So screw back in ? I’ve dry fire function tested mine without the screw and it runs fine. Just curious what is correct?



[ZY100]

It is not needed. It just holds the bolt release. I leave them off since it is one less thing to come loose.



[waterman86]

Thanks for the info. I can’t find anything about this on their site. Putting a Timney Hit in my 6.5 and moving the TT primary to my hunting rifle.



[AznTactical]

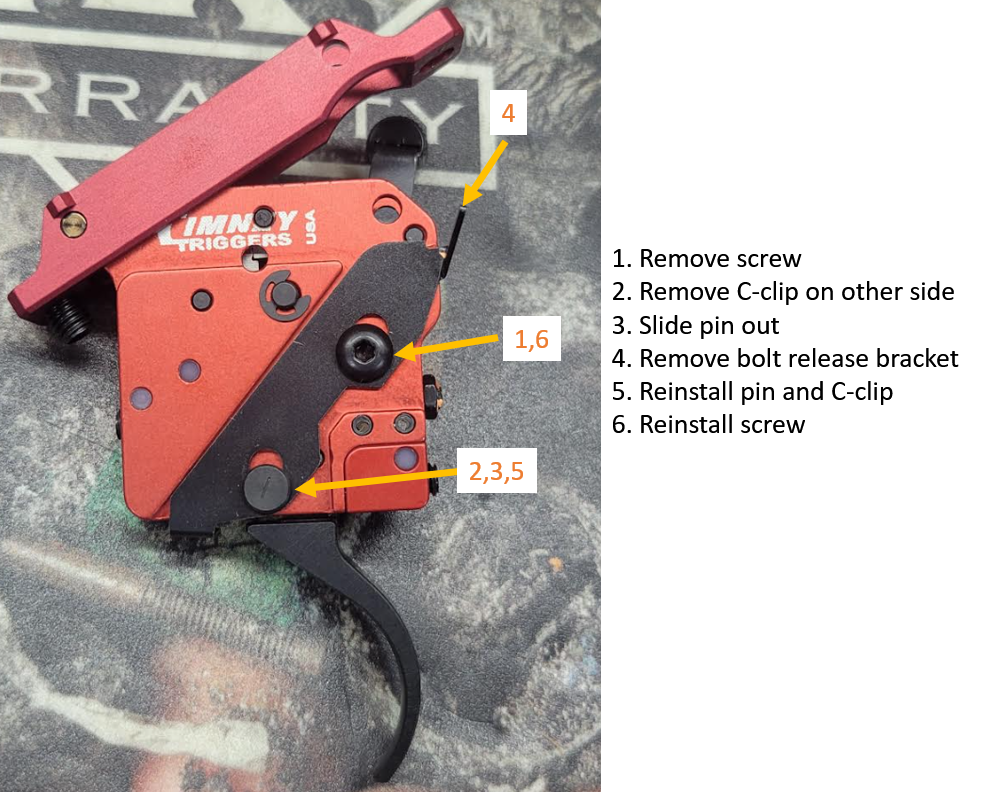

So this right?



[ZY100]

Pretty much.

Just WRT #3 I use a punch of similar diameter to follow the pin out. Keeps the trigger and housing holes aligned.

Then its easy to slide the pin back in pushing the punch out for step #5.

But you have the right idea.
