TriggerTech 2 stage Diamond - Safety Check -- KRG BRAVO Chassis

SN13

Impatient
PX Member
Minuteman
Feb 26, 2009
359
233
West Palm Beach, FL
So i picked up the Diamond 2stage (Green).

Installed, adjusted, set the safety... Pulled hard... "click"... uh oh... I panicked a bit.

Took it apart, realized there was a little mark on the aluminum chassis and the safety lever. They were touching.

I had to grind a little notch in the Aluminum rail to allow the safety lever to fully engage rearward. Then, no issues.

Soooooo.

If you install this trigger in a KRG Bravo, set the safety, pull the trigger stiffly and see if you get a click. If so, grind a little slot for the safety lever.


K-wal

Private
Minuteman
Oct 23, 2019
20
5
I am just running into the same issue with a TriggerTech 2 stage special and a KRG Whiskey 3 gen 6.


chrome

Private
PX Member
Minuteman
  • Aug 21, 2005
    1,405
    2,006
    SoCal
    Smarter people will chime in but this is probably more due to an aggregation of various tolerances from action, trigger, and stock causing fit issues.

    My personal experience:

    KRG W3 + Vector action + TT = needed to relieve some of the stock to fit it all in

    JJ Allen + Vector + TT = No issues

    KRG W3 + Nucelus + TT = No issues

    KRG Bravo + RimX + TT = No issues


    BisSilent

    Trailer Park Engineer
    PX Member
    Minuteman
    Jun 15, 2020
    217
    229
    single stage DIAMOND 💎 Southpaw in Manners PRS1 gen2 mini-chassis requires some clearencing!!!


    Just Chuck

    Supporter
    Supporter
    PX Member
    Minuteman
  • Aug 16, 2018
    286
    190
    Colorado
    TT 2 stage in Bergara B14 6.5cm, firm pull on trigger with safety on and it will fire. Need to do some checking on this.

    Advice?


    K-wal

    Private
    Minuteman
    Oct 23, 2019
    20
    5
    You’ll need to remove your action from the stock and check for interference with the safety lever. You should see some sort of wear mark. I used a dremel to make a small relief cut for my safety. Doesn’t take much.

    • Like
    Reactions: Just Chuck

    chrome

    Private
    PX Member
    Minuteman
  • Aug 21, 2005
    1,405
    2,006
    SoCal
    You’ll need to remove your action from the stock and check for interference with the safety lever. You should see some sort of wear mark. I used a dremel to make a small relief cut for my safety. Doesn’t take much.

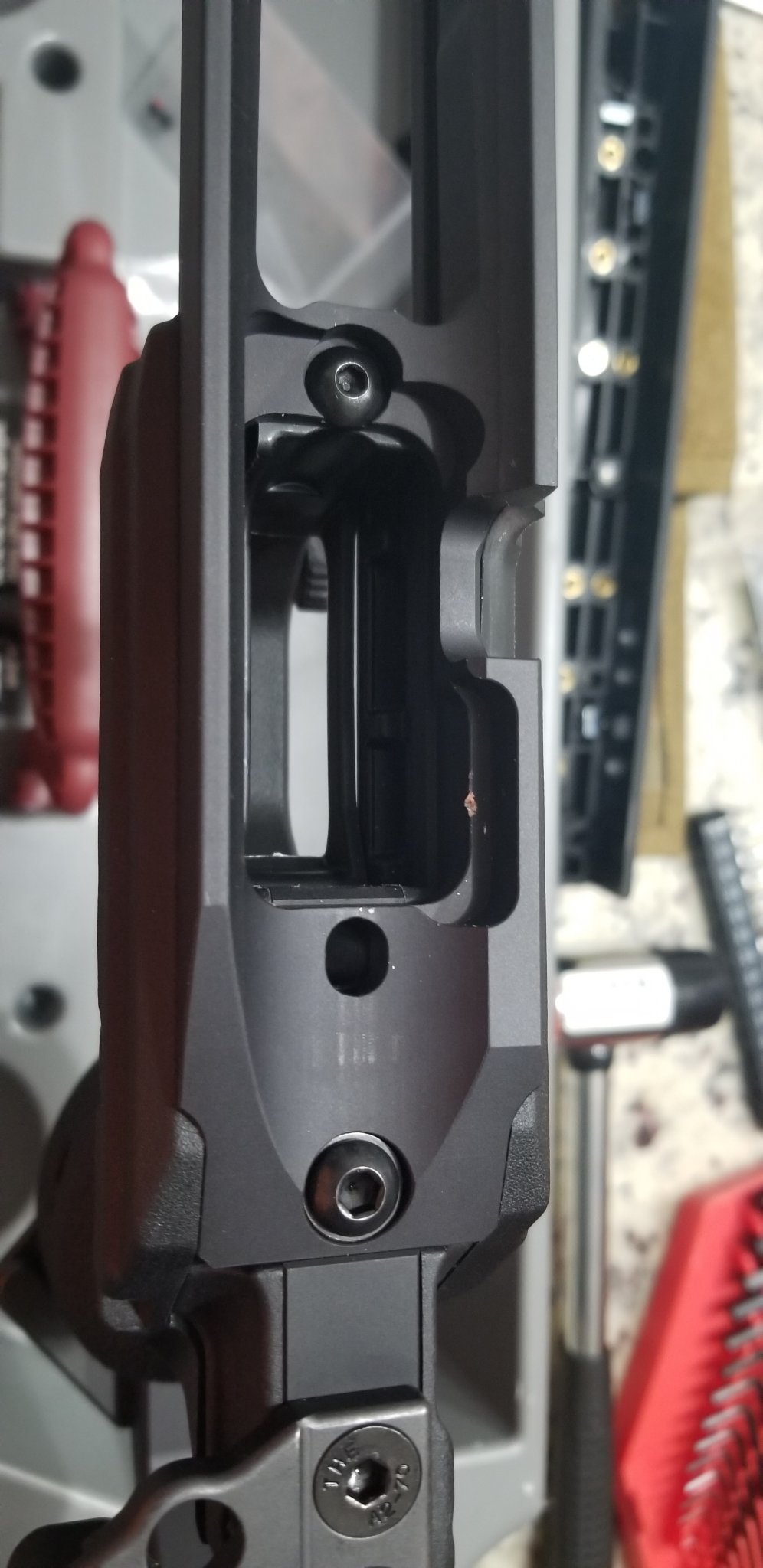

    ^good advice above. The wear mark will probably look something like this, notice the silver gouge caused by the safety (this was my KRG W3 and TT setup, when it wouldn't initially fit and required relief):


    • Like
    Reactions: Just Chuck

    Just Chuck

    Supporter
    Supporter
    PX Member
    Minuteman
  • Aug 16, 2018
    286
    190
    Colorado

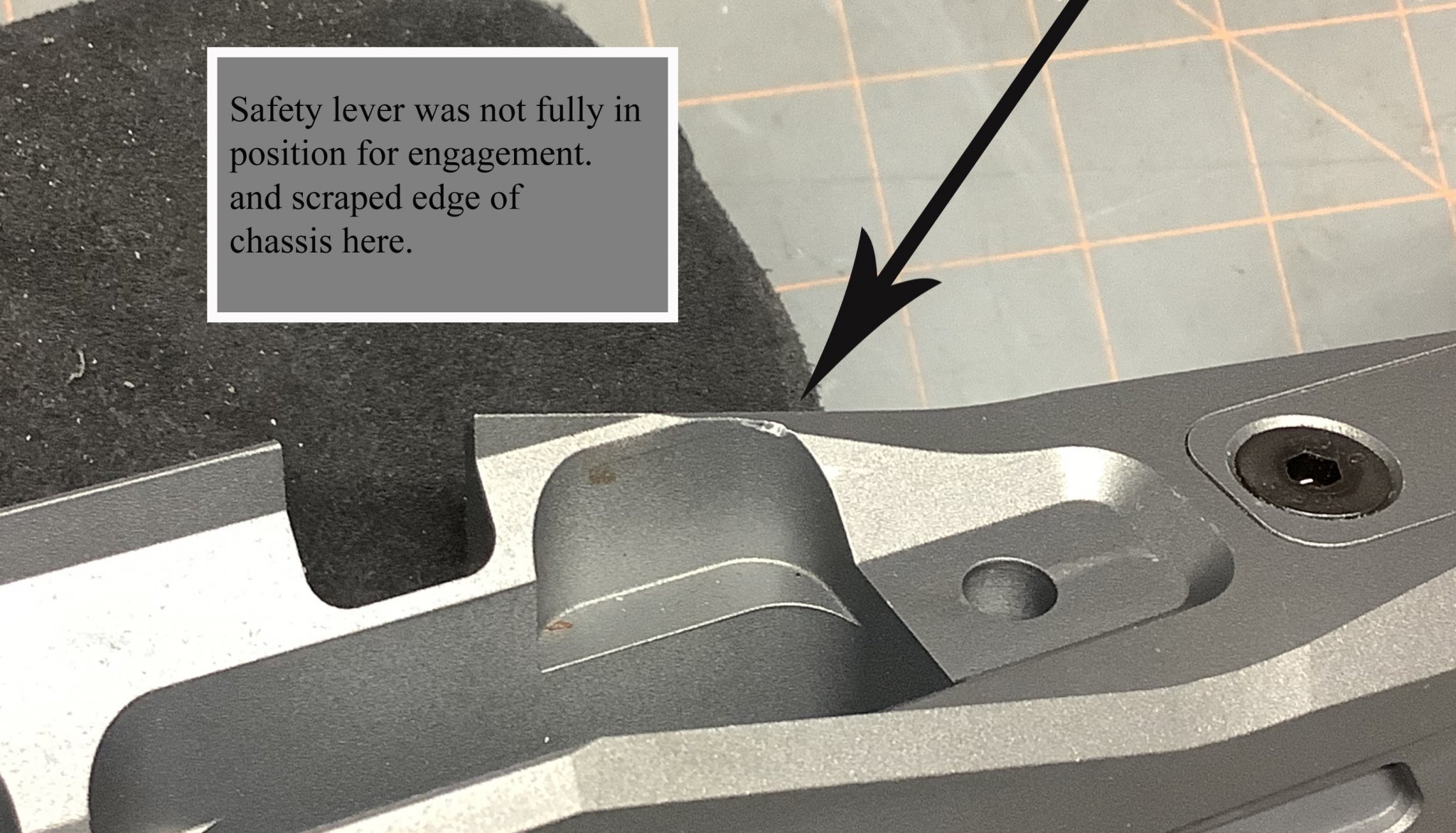

    Here's what I saw on my Bergara. I did check the safety operation outside of chassis and it was 100% correct. Thanks for the input - I'll make it safe now.



    Dthomas3523

    Hall Monitor
    Staff member
    Moderator
    Supporter
    PX Member
    Commercial Supporter
    PX Member
    Minuteman
  • Jan 31, 2018
    10,591
    15,011
    South Texas
    Yep. Can happen on many triggers. Have had it happen with a diamond single stage in a kmw sentinel.

    Yet another small thing people don’t realize they paid for in the past when everyone bought rifles from smiths.


    elmuzzlebreak

    Gunny Sergeant
    PX Member
    Minuteman
    Oct 15, 2018
    630
    228
    @SN13 , I had the same issue with one of my KRG W3 chassis when combined with a curtis axiom. I asked trigger tech about it and sent them photos plus a video. My chassis also has a raw spot where the safety level would contact. They said this is due to the safety lever not having enough clearance with the chassis. Filing away some of the material away will fix the problem.

    Did not have to do any clearance work with my impact in a w3 however.


    SN13

    Impatient
    PX Member
    Minuteman
    Feb 26, 2009
    359
    233
    West Palm Beach, FL
    I made this post as a Heads Up because I knew it would show up more and more with the new TT 2stage being in demand.

    Glad it helped others.
