Vector prefit....dosent prefit.

Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
Recently purchased a hand tight vector prefit off someone off the hide. Just want to make sure this isnt a mistake I'm making. Watch plenty of videos on how to install the barrels.

When I put the barrel on hand tight it will not chamber a round. I actually will only chamber around if I unscrew the barrel almost three full turns.

A few questions...

1. Can someone take calipers to a vector prefit hand tight barrel and tell me what your reading is from the chamber end of the barrel to the shoulder.

2. Is there anything else that could have caused this?


AIAW

★★★★★
Belligerents
Aug 16, 2001
5,853
4,983
219
Central Texas
You are chambering new, unloaded brass right? If not, headspace gauges wouldn’t be a bad idea.


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
I cannot get the bolt fully forward and definitely can get the bolt down. Unless the shouldered prefits sometimes require shims. And alot of shims at that. I think the barrel may be cut wrong.


Mordamer

Professional Know It All
Belligerents
May 11, 2010
1,155
653
219
Hooker, OK
I cannot get the bolt fully forward and definitely can get the bolt down. Unless the shouldered prefits sometimes require shims. And alot of shims at that. I think the barrel may be cut wrong.
Sounds like it isn't made for your action. Maybe it is for a different Curtis action or one of the other actions on the market that commonly use prefits. Does it have a flat after the threads where the Vector set screws would tighten down on?

  • Like
Reactions: Fylamaw

Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
Sounds like it isn't made for your action. Maybe it is for a different Curtis action or one of the other actions on the market that commonly use prefits. Does it have a flat after the threads where the Vector set screws would tighten down on?

The thread clearly stated vector barrel. And was actually selling the barreled action with an extra barrel. I bought the extra barrel.


midwestoffroad

Private
Belligerents
Minuteman
May 22, 2017
183
130
49
46
Medford, MN

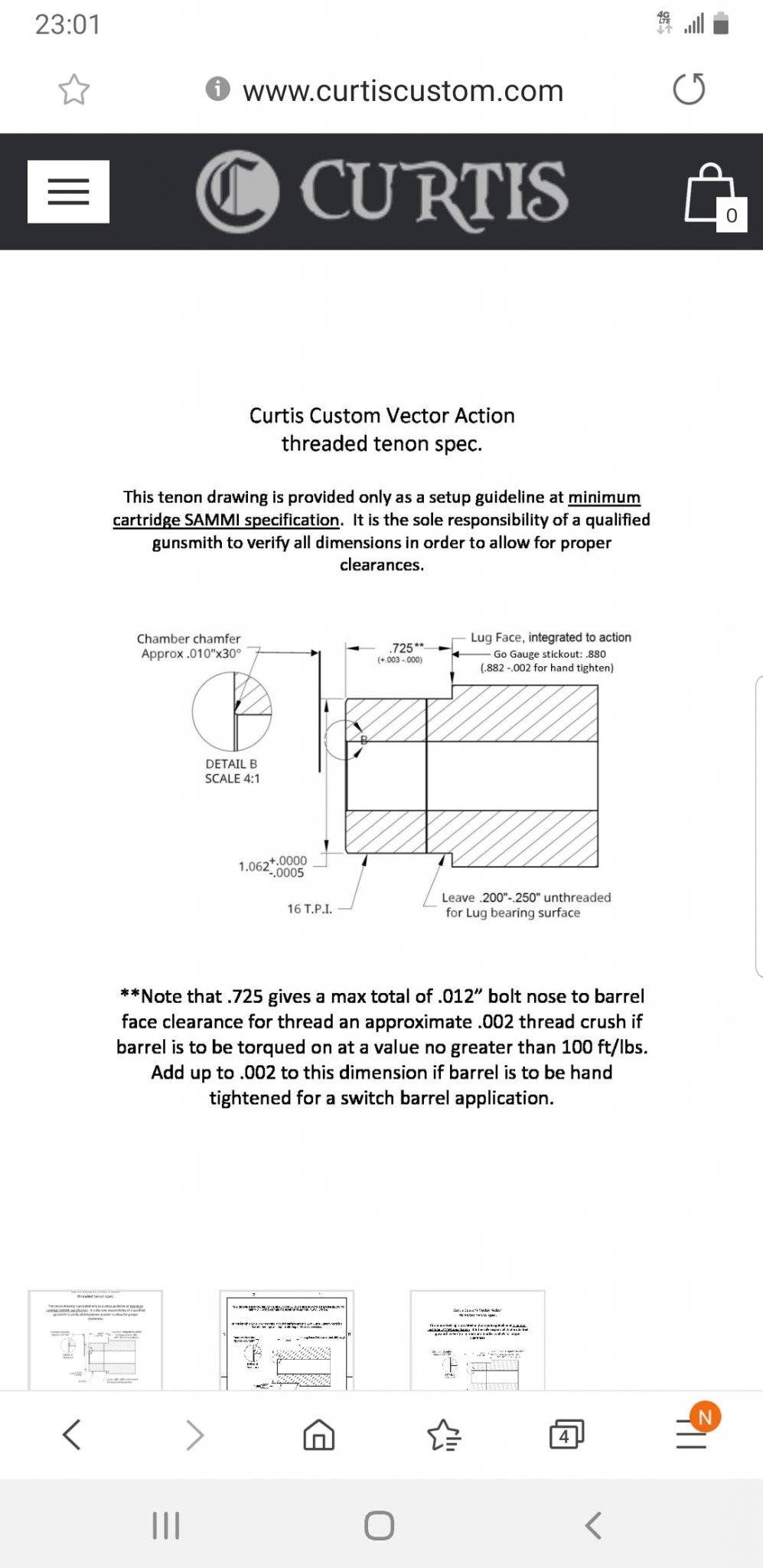

Axiom.would be .680 and vector is .725 from face to shoulder.

I'd start with a factory spec sized case or pull the bullet from a factory round depending on cartridge you could just be experiencing a short free bore


Threadcutter308

Outlier
Belligerents
Feb 13, 2017
7,329
12,336
219
Camano Island, Washington
With all due respect to others, 3 revs (+/-) is .0625" x 3 = .1875", which would be the gap between the front of the action and the shoulder of the barrel trunion. I seriously doubt your brass is that far out of spec. I would agree that you should get a set of headspace gauges. However, I think they're just going to confirm that the prefit barrel prep is wrong for your action.


M338

Private
Belligerents
Jul 2, 2011
258
172
49
41
Australia
What caliber is it?
My 6mm creed won’t chamber factory Hornady ammo because I have a shorter freebore,maybe this is the case with your barrel.


Terry Cross

Dingleberry
Belligerents
Mar 15, 2003
1,264
1,409
219
Alexandria, LA 71303
www.kmwlrs.com
Recently purchased a hand tight vector prefit off someone off the hide. Just want to make sure this isnt a mistake I'm making. Watch plenty of videos on how to install the barrels.

When I put the barrel on hand tight it will not chamber a round. I actually will only chamber around if I unscrew the barrel almost three full turns.

A few questions...

1. Can someone take calipers to a vector prefit hand tight barrel and tell me what your reading is from the chamber end of the barrel to the shoulder.

2. Is there anything else that could have caused this?
If you are roughly 3 full turns before bolt will lock on a round, that is roughly 0.150 - 0.187" of difference. That is a butt load and way out of bounds for differences in brass/headspace. Either the caliber is incorrect or the barrel is for a different action.

./


AIAW

★★★★★
Belligerents
Aug 16, 2001
5,853
4,983
219
Central Texas
Multiple people here have told you to not use loaded rounds. If you are hitting the lands with the factory ammo at it's OAL then that defeats the point. Ideally you'd own headspace gauges.

These threads are become way too common and literally fucking retarded when you give people advice and it gets totally ignored. Don't ask for help here if you aren't going to follow the suggestions.


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
Multiple people here have told you to not use loaded rounds. If you are hitting the lands with the factory ammo at it's OAL then that defeats the point. Ideally you'd own headspace gauges.

These threads are become way too common and literally fucking retarded when you give people advice and it gets totally ignored. Don't ask for help here if you aren't going to follow the suggestions.

Not getting ignored but without a gage I wont be able to do anything until i go out friday. If anyone has any input before then doesn't hurt to talk about it.


spife7980

Luchador
Belligerents
Feb 10, 2017
7,792
5,754
219
Central TX
Not getting ignored but without a gage I wont be able to do anything until i go out friday. If anyone has any input before then doesn't hurt to talk about it.
What is friday going to tell you if you still dont have a head space gauge?

Youve been given the tenon measurements. You havent said how yours compares.

You havent said where the factory loaded ammo (which is a piss poor gauge) is interfering with the chamber.

Last edited:
  • Like
Reactions: 1moaoff

AIAW

★★★★★
Belligerents
Aug 16, 2001
5,853
4,983
219
Central Texas
Not getting ignored but without a gage I wont be able to do anything until i go out friday. If anyone has any input before then doesn't hurt to talk about it.
I understand that, but there really isn't much else that anyone can suggest until you provide us with some return info. We genuinely want to help you but there is little that we can suggest in these cases.

Without gauges or a bullet puller you could just rip a bullet out of a case with a pair of pliers, empty the powder and then try it out.

  • Like
Reactions: Bradu

cageli

Sergeant
Belligerents
Apr 12, 2014
534
115
49
WA
It happens. I bought a brand new 6dasher barrel, made by PVA, from one hide member. He did not open or try it. The barrel is also clearly marked as 6dasher. But later on, I was able to confirm the chamber is for 6x47 Lapua. :rolleyes:


Threadcutter308

Outlier
Belligerents
Feb 13, 2017
7,329
12,336
219
Camano Island, Washington
Not getting ignored but without a gage I wont be able to do anything until i go out friday. If anyone has any input before then doesn't hurt to talk about it.
Multiple people here have told you to not use loaded rounds. If you are hitting the lands with the factory ammo at it's OAL then that defeats the point. Ideally you'd own headspace gauges.

These threads are become way too common and literally fucking retarded when you give people advice and it gets totally ignored. Don't ask for help here if you aren't going to follow the suggestions.
Agreed................But, at least he's being Uber polite. The ones that piss me off are the ones that don't listen, then end up being shitheels/argumentative...........In spite of multiple, experienced people, all saying the same thing.


Downtown

Full Member
Belligerents
Mar 1, 2013
962
578
99
Well, I guess Adam B definitively ended this thread. Can't ask for a better answer then that.

  • Like
Reactions: AIAW

AIAW

★★★★★
Belligerents
Aug 16, 2001
5,853
4,983
219
Central Texas
Agreed................But, at least he's being Uber polite. The ones that piss me off are the ones that don't listen, then end up being shitheels/argumentative...........In spite of multiple, experienced people, all saying the same thing.
Very true. I rather help him on the path to solving his issue, then become his buddy afterwards!

Well, I guess Adam B definitively ended this thread. Can't ask for a better answer then that.
Pretty much. When the owner of the barrel speaks up you've pretty much got the best info you can get!

I literally called it on post #2, explained it on post #8. But see my point - if we knew that the OAL was the issue (which it is) due to it being short-throated for VLD's then it's over. We helped someone, and it was quick. Step by step deductive logic.

  • Like
Reactions: midwestoffroad

spife7980

Luchador
Belligerents
Feb 10, 2017
7,792
5,754
219
Central TX
That is correct.
So it isnt cut wrong, its just not cut how you thought it would have been.

A bit more info from the sellers side would have helped prevent the situation before it became a situation (to you) but its also not really his fault as you seem to not have inquired either. You bought what you did and now youre have what you have. Time to start loading or look for a different factory ammo thats appropriate for the chamber.


CStroud

Sergeant of the Hide
Hessian
Belligerents
Minuteman
Jun 26, 2018
459
282
69
40
Mississippi
I had a prefit spun up for the 108 hornady's, and was getting the same thing you were, with the bolt not closing. I ended up shooting the factory federal 6mm ammo, and everything was fine.


Adam B

Gunny Sergeant
Belligerents
Mar 7, 2005
2,211
254
189
43
grand rapids, michigan
www.adamboynton.com
So it isnt cut wrong, its just not cut how you thought it would have been.

A bit more info from the sellers side would have helped prevent the situation before it became a situation (to you) but its also not really his fault as you seem to not have inquired either. You bought what you did and now youre have what you have. Time to start loading or look for a different factory ammo thats appropriate for the chamber.
I have literally had dozens of rifles chambered with this reamer and never had an issue. Apparently the ogive of the hornady 105 and 108s is dramatically different and needs a different reamer.


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
Very true. I rather help him on the path to solving his issue, then become his buddy afterwards!



Pretty much. When the owner of the barrel speaks up you've pretty much got the best info you can get!

I literally called it on post #2, explained it on post #8. But see my point - if we knew that the OAL was the issue (which it is) due to it being short-throated for VLD's then it's over. We helped someone, and it was quick. Step by step deductive logic.

Yes I do appreciate it. And I read every post and think on it but i also work 70 hours a week and when I'm home, wifey already complaining I'm on the phone too much. I get my one day every other week at the range, which I make good use of. Trying to get any information I can before then helps so I'm not spending that day troubleshooting. Figured it out so thanks to everyone.

One reason why people may react the way they do. I mean hell, glass and all this rig has 7k in it and maybe another 3k worth of stuff specifically for this set up ( barrel, LRF, bags, mat, case ect) I bet you I've read 60 threads front to back about anything I could find related to what I'm using, watched every youtube video, ect. Not once did I see anything about checking freebore to your ammo unless it was a wildcat or more obscure chamber. One of those situations where you dont know what you dont know. Weve all been there. I can honestly say, it's really frustrating.

  • Like
Reactions: spife7980 and AIAW

M338

Private
Belligerents
Jul 2, 2011
258
172
49
41
Australia
Yes I do appreciate it. And I read every post and think on it but i also work 70 hours a week and when I'm home, wifey already complaining I'm on the phone too much. I get my one day every other week at the range, which I make good use of. Trying to get any information I can before then helps so I'm not spending that day troubleshooting. Figured it out so thanks to everyone.

One reason why people may react the way they do. I mean hell, glass and all this rig has 7k in it and maybe another 3k worth of stuff specifically for this set up ( barrel, LRF, bags, mat, case ect) I bet you I've read 60 threads front to back about anything I could find related to what I'm using, watched every youtube video, ect. Not once did I see anything about checking freebore to your ammo unless it was a wildcat or more obscure chamber. One of those situations where you dont know what you dont know. Weve all been there. I can honestly say, it's really frustrating.
Yeah it’s all live and learn.It’s an easy fix if you have a local gunsmith he can just throat it longer for factory ammo or you can seat your factory ammo a touch shorter.


Bradu

Full Member
Belligerents
Aug 24, 2011
2,854
927
219
IL
I have literally had dozens of rifles chambered with this reamer and never had an issue. Apparently the ogive of the hornady 105 and 108s is dramatically different and needs a different reamer.
The Sako trg I bought used came with a 6 creedmoor barrel and I found that out when I thought I would grab a box of ammo when I didn't have time to reload. I will see if I saved a cartridge that I chambered, I couldn't believe how far it set the bullet back.


Cascade Hemi

Gunny Sergeant
Belligerents
Minuteman
Feb 9, 2019
715
570
99
PNW
I have literally had dozens of rifles chambered with this reamer and never had an issue. Apparently the ogive of the hornady 105 and 108s is dramatically different and needs a different reamer.
I had a barrel chambered with that reamer too, I found it to be unreasonably short. If I were the OP I'd either send it back or have another smith pilot ream the throat. For whatever it is worth, factory loaded Hornady 108ELDM is about .090" too long.


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
No ones willing to ream it because its been melonited. So weve established hornady wont work. Will SMK? Or just federal berger?


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
Probably going to keep it at this point between shipping it back and what not. If I can make it work with factory loads itd be fine.


CStroud

Sergeant of the Hide
Hessian
Belligerents
Minuteman
Jun 26, 2018
459
282
69
40
Mississippi
Federal Gold Medal 105 Hybrids. I had pretty stout lands marks on the Hornady 108's, and the bolt would have closed if I forced it ( I did not), but the Federal ammo chambered and shot fine. YMMV.


littlepod

Newbie
Online Training Access
Belligerents
Oct 16, 2012
1,973
1,099
219
Kirkland, WA
Was there a resolution to this thread? I just ordered a 6cm vector hand tight prefit, and I have the options of choosing freebore. If I'm planning on running factory ammo, most likely Hornady 108s or Prime 107s, should I just go with the SAAMI spec .183?


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
348
54
34
Freestate
Resolution was i spent 5k+ on reloading equipment and supplies...lol I was looking for an excuse anyway. I think this should go for everyone but if you're not reloading get the saami

  • Like
Reactions: littlepod

Cascade Hemi

Gunny Sergeant
Belligerents
Minuteman
Feb 9, 2019
715
570
99
PNW
Was there a resolution to this thread? I just ordered a 6cm vector hand tight prefit, and I have the options of choosing freebore. If I'm planning on running factory ammo, most likely Hornady 108s or Prime 107s, should I just go with the SAAMI spec .183?
Yes, OP has a .275 neck diameter and .097 freebore. I would think anything over .150 freebore and .278 neck will work. Or just ask for SAAMI and move on.

  • Like
Reactions: littlepod

Rob01

Super Mod
Staff member
Jul 9, 2001
10,802
2,458
219
NC
Was there a resolution to this thread? I just ordered a 6cm vector hand tight prefit, and I have the options of choosing freebore. If I'm planning on running factory ammo, most likely Hornady 108s or Prime 107s, should I just go with the SAAMI spec .183?
Yes definitely the SAAMI .183 for factory and if loading the 108s. With that free bore the factory ammo is about .020” off the lands which is great for the ELDs.

  • Like
Reactions: littlepod
