Rifle Scopes  What am I missing with my scope rings

WestCoastGhost

“Anything accurate makes me tick”
Minuteman
Sep 2, 2020
36
11

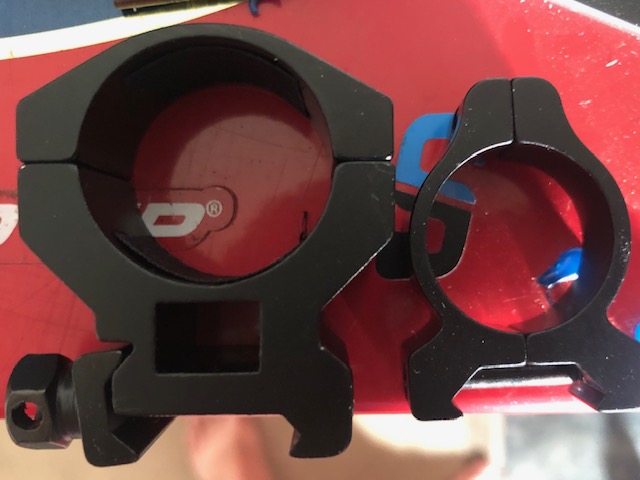

Howdy SnipersHide. Noob rifleman here. I just ordered a new scope for my Weatherby Vanguard. The new scope rings don’t seem to fit on my rail. Is there more than one type of rail? What do I need to get? Old scope was 1”, new scope Is a 30mm, the issue is where they connect to the rail- they look a little different....


Attachments

  • D387BFF7-305D-46B4-8C99-AA0AAE480326.jpeg
    85.5 KB · Views: 53

Gee Kay

Skippy the Bush Kangaroo
PX Member
Minuteman
  • Oct 8, 2019
    860
    1,198
    Land Downunder
    there are 3 types of rails. dovetail, weaver and picatinny. weaver and picatinny essentially are the same other than their different measurement specs. dovetail are usually part of the receiver.



    Last edited:

    WestCoastGhost

    “Anything accurate makes me tick”
    Minuteman
    Sep 2, 2020
    36
    11
    I just got some Weaver Rings but the bolt running through for the clamp function is too big to fit in the slot on the rail! Has anyone else run into this issue? I may have to post up some photos tonight


    Team RCBS & Bushnell

    Commercial Supporter
    Commercial Supporter
    PX Member
    Minuteman
  • I just got some Weaver Rings but the bolt running through for the clamp function is too big to fit in the slot on the rail! Has anyone else run into this issue? I may have to post up some photos tonight
    Picatinny work on both Picatinny and Weaver bases, but Weaver only work on Weaver - Because of the bolt width.

    Reversed it - It's Weaver work on both Picatinny and Weaver bases, but Picatinny only work on Picatinny - Because of the bolt width.

    Last edited:
    • Like
    Reactions: WestCoastGhost

    SN13

    Impatient
    PX Member
    Minuteman
    Feb 26, 2009
    359
    233
    West Palm Beach, FL
    The cross bolt in the slot of the rail doesn't fit?

    Read up here: https://www.targetbarn.com/broad-side/picatinny-rails-vs-weaver-rails/

    The Picatinny rail is very similar to the Weaver design, but they do not exactly interchange. The Weaver mounting rails have slots that are .180” wide and do not necessarily have a consistent spacing between the grooves. Picatinny slots are .206” wide with a center-to-center groove width of .394”.

    • Like
    Reactions: WestCoastGhost

    WestCoastGhost

    “Anything accurate makes me tick”
    Minuteman
    Sep 2, 2020
    36
    11
    The cross bolt in the slot of the rail doesn't fit?

    Read up here: https://www.targetbarn.com/broad-side/picatinny-rails-vs-weaver-rails/

    The Picatinny rail is very similar to the Weaver design, but they do not exactly interchange. The Weaver mounting rails have slots that are .180” wide and do not necessarily have a consistent spacing between the grooves. Picatinny slots are .206” wide with a center-to-center groove width of .394”.

    That is an awesome write up! I think I might try taking a file to the scope rails I got on- the cross bolt wont fit the rail. Exactly like RCBS says!

    Once again-thank you guys!


    10ring'r

    Old, Fat, Grumpy, Gimpy and have no F's to give!
    PX Member
    Minuteman
  • Apr 9, 2019
    2,076
    2,901
    Wisconsin
    That is an awesome write up! I think I might try taking a file to the scope rails I got on- the cross bolt wont fit the rail. Exactly like RCBS says!

    Once again-thank you guys!
    You might want to be very, very, careful with that file. Mounts/rings are "precision" for a reason. JMHO. Mac

    • Like
    Reactions: Vodoun daVinci

    WestCoastGhost

    “Anything accurate makes me tick”
    Minuteman
    Sep 2, 2020
    36
    11
    You might want to be very, very, careful with that file. Mounts/rings are "precision" for a reason. JMHO. Mac

    You scared me straight- I just ordered a new different set of rings. They say Weaver style, but so did the last set. :D

    • Like
    Reactions: 10ring'r

    chevy_man

    Major Hide Member
    PX Member
    Minuteman
  • Jan 25, 2019
    1,478
    1,206
    That is an awesome write up! I think I might try taking a file to the scope rails I got on- the cross bolt wont fit the rail. Exactly like RCBS says!

    Once again-thank you guys!


    I've done it with a file that I had safed off one side. Pulled a little out of both sides until the cross bolt would drop in.

    It's not exactly the best thing in the world, but it'll get you by.



    My guess is you bought Weaver brand piccatinny rings for your Weaver base. Buy all piccatinny bases from now on and either will fit.


    WestCoastGhost

    “Anything accurate makes me tick”
    Minuteman
    Sep 2, 2020
    36
    11
    I've done it with a file that I had safed off one side. Pulled a little out of both sides until the cross bolt would drop in.

    It's not exactly the best thing in the world, but it'll get you by.



    My guess is you bought Weaver brand piccatinny rings for your Weaver base. Buy all piccatinny bases from now on and either will fit.


    Me thinks you are correct! Yea a piccatinny rail would fix my problems :D
