What would cause this mark on case

dkamen2

Private
Minuteman
Mar 10, 2020
12
1
Hello

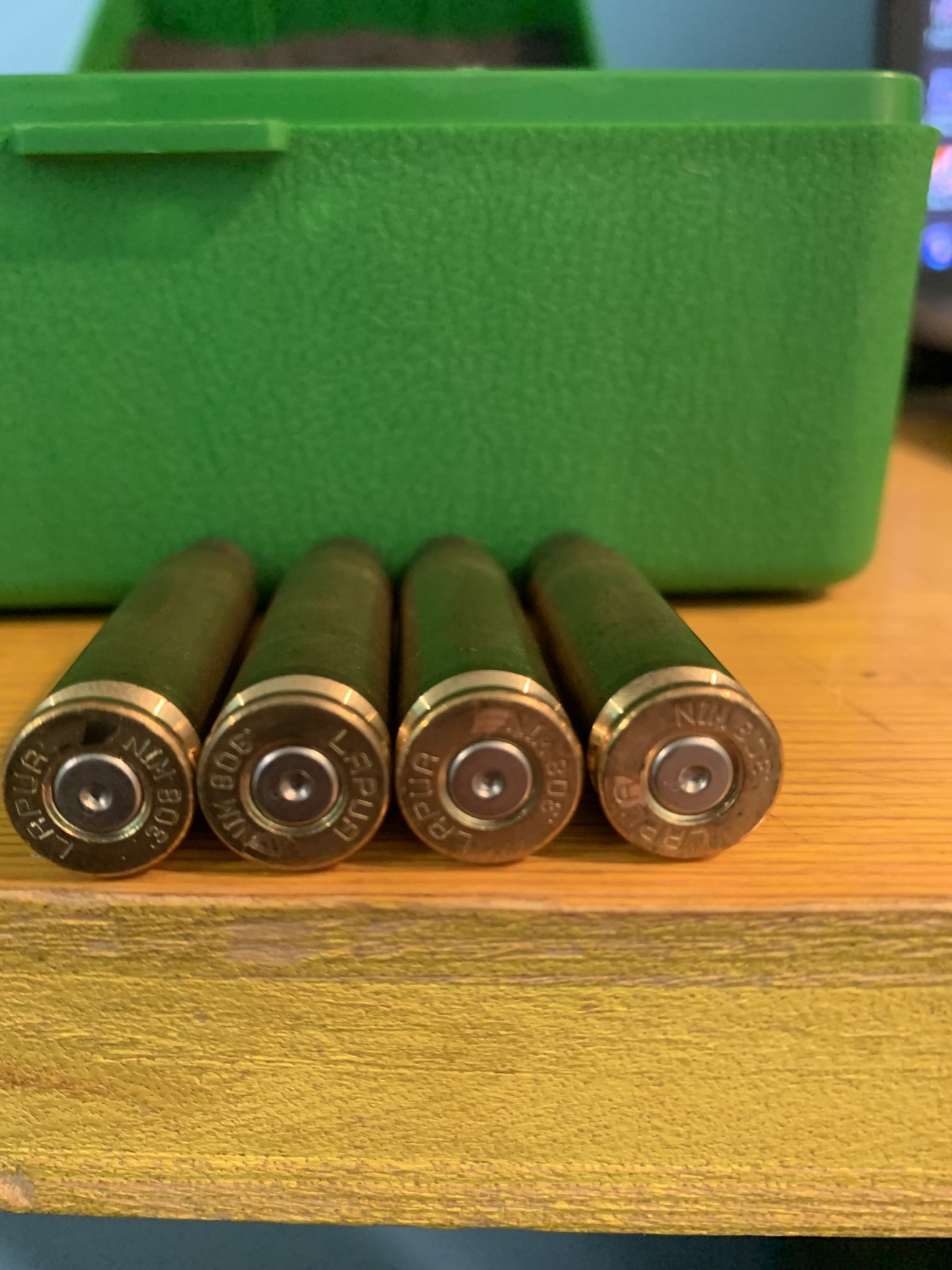

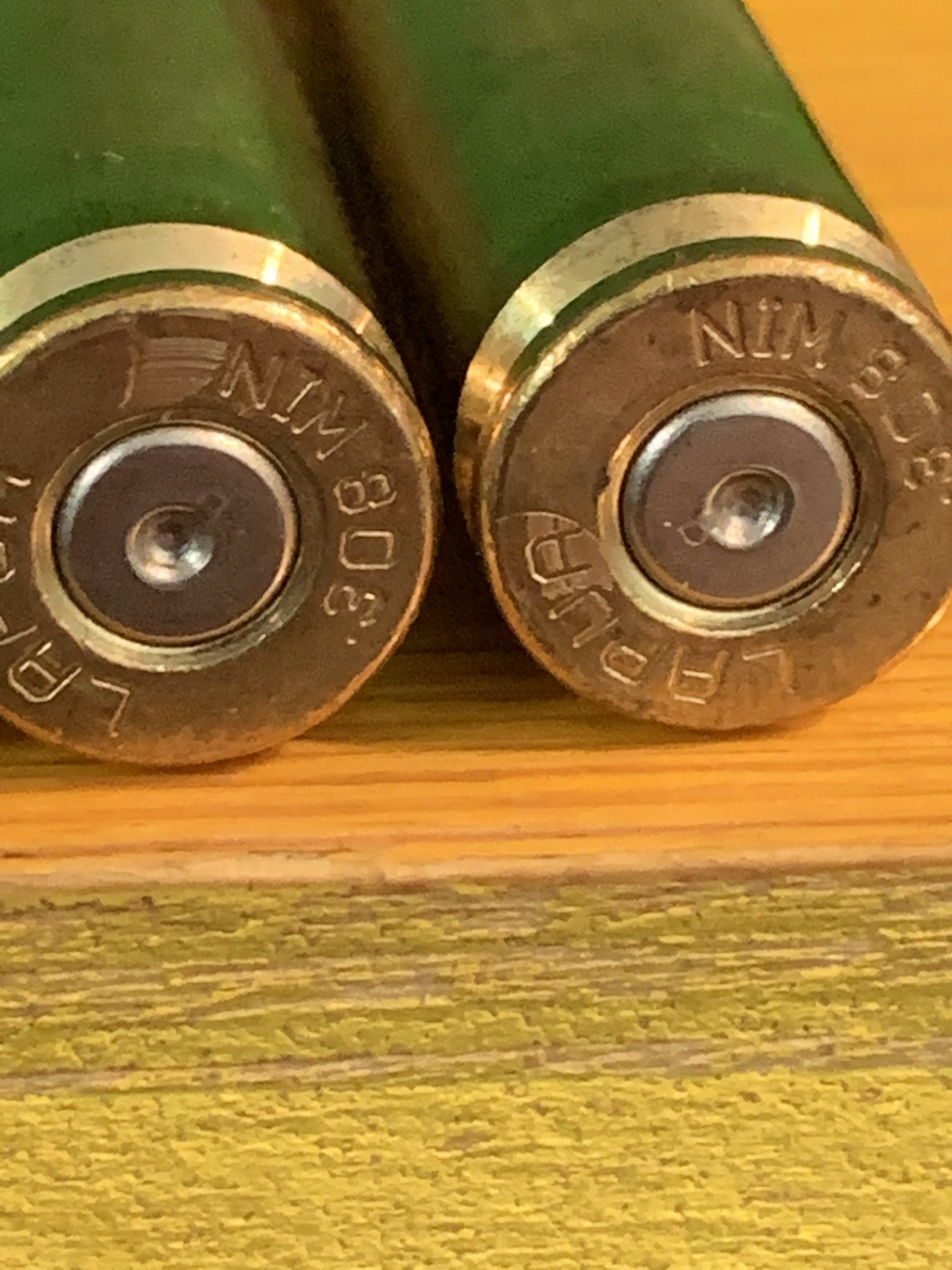

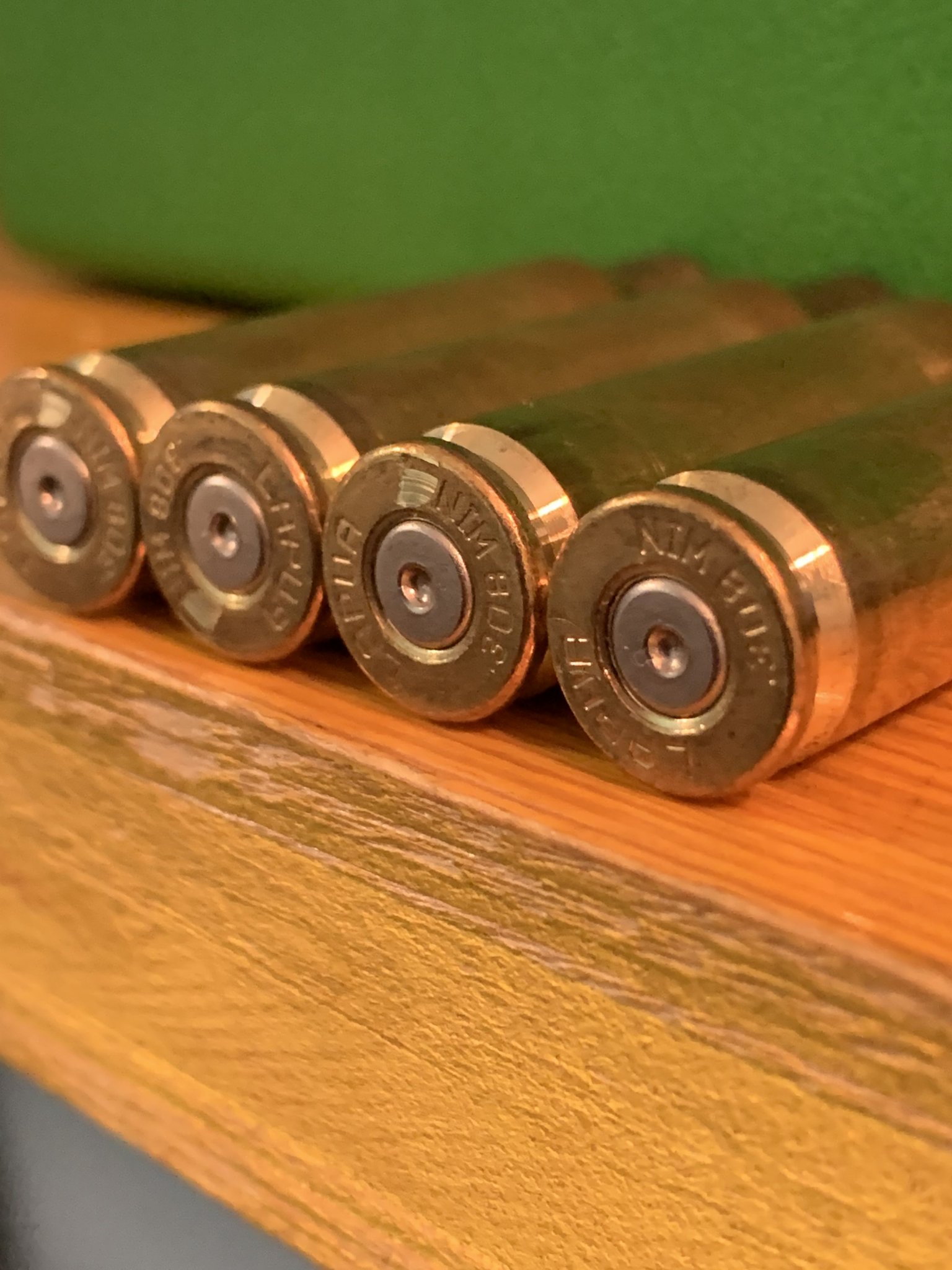

I have problem with marks on my lapua cases on 308 win, no stiff bolt on action or other signs of overpressure. I have around 800m/s with 175gr lapua scenar L bullets, N140 powder, 28inch barrel length. I have the same problems with factory ammo, more on pictures.


Attachments

DIBBS

Old Mountain Man-Tired occasionally Grumpy SOB
PX Member
Minuteman
Aug 21, 2008
1,609
675
Eastern WA
Which rifle, remington 700? Heavy spring on ejector causing ejector swipes on the cases possibly?

Last edited:

ACard

Online Training Member
PX Member
Minuteman
Online Training Access
Jul 15, 2020
135
101
Cowtown
Looks like extractor swipe. It is not uncommon to see. Being no gunsmith I cannot tell you why some rifles do that when not as a sign of pressure but I suspect it is a mechanical condition and not pressure if it also exhibits with factory ammo

  • Like
Reactions: dkamen2

308pirate

Gunny Sergeant
PX Member
Minuteman
  • Apr 25, 2017
    13,064
    17,083
    @dkamen2 The tip of the ejector leaves that mark as the bolt is rotated during opening. Why do you think it's a problem?

    Last edited:

    308pirate

    Gunny Sergeant
    PX Member
    Minuteman
  • Apr 25, 2017
    13,064
    17,083
    Looks like extractor swipe. It is not uncommon to see. Being no gunsmith I cannot tell you why some rifles do that when not as a sign of pressure but I suspect it is a mechanical condition and not pressure if it also exhibits with factory ammo
    Ejector, not extractor.

    The extractor does not touch the case there.

    • Like
    Reactions: Tokay444 and ACard

    ACard

    Online Training Member
    PX Member
    Minuteman
    Online Training Access
    Jul 15, 2020
    135
    101
    Cowtown
    Ejector, not extractor.

    The extractor does not touch the case there.
    Honestly that is a pair of words I have the most challenging time remembering which is which, has troubled me since I used to shoot clays! Thanks for the redirect.


    Eric32

    USAF
    PX Member
    Minuteman
    Aug 14, 2011
    969
    219
    Clarksville, TN
    If that is happening with factory ammo, i would look at the chamber next for a possible issue. At 2600 fps, 28 inch barrel for a 175gr bullet. Its hard to think thats its a over pressure issue with factory ammo as well.

    Maybe a bad chamber?


    hereinaz

    I have no idea why I get these new labels...
    Hessian
    PX Member
    Minuteman
  • Mar 7, 2018
    1,337
    813
    Arizona
    @dkamen2 The tip of the ejector leaves that mark as the bolt is rotated during opening. Why do you think it's a problem?
    The tip of the ejector is leaving that mark? I've never heard of the tip leaving a mark. That looks like a pressure problem to me.

    Looks like a classic half moon from overpressure of brass that flowed into the ejector hole. Pressure was high enough to push brass pretty far into the ejector pin hole on most of the brass. The bright smears are from when the bolt rotated past the locking lugs, before it hit the extraction cam. The bolt rotates but the brass does not because it is still stuck in the chamber before primary extraction. The rotating bolt scrapes the high spot in the brass that was pushed into the ejection hole. The smear doesn't always happen, and it looks like a couple were over pressure but didn't get the smear. At least, that's what I've seen. But, on my Nucleus action with mechanical extractor, the brass gets pushed into a slot, which then smears it if it were pushed in far enough.

    Primers flatten out most of the time in my rifle, though they didn't here.

    • Like
    Reactions: MinnesotaMulisha

    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    Internal pressure has exceeded the yield strength of the brass. Brass has flowed in to the ejector pin hole and is sheared off when the bolt is rotated. Reduce your load and it will go away
    I dont think that is overpressure, this is not hot load if i send bullets with 790-800m/s


    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    The tip of the ejector is leaving that mark? I've never heard of the tip leaving a mark. That looks like a pressure problem to me.

    Looks like a classic half moon from overpressure of brass that flowed into the ejector hole. Pressure was high enough to push brass pretty far into the ejector pin hole on most of the brass. The bright smears are from when the bolt rotated past the locking lugs, before it hit the extraction cam. The bolt rotates but the brass does not because it is still stuck in the chamber before primary extraction. The rotating bolt scrapes the high spot in the brass that was pushed into the ejection hole. The smear doesn't always happen, and it looks like a couple were over pressure but didn't get the smear. At least, that's what I've seen. But, on my Nucleus action with mechanical extractor, the brass gets pushed into a slot, which then smears it if it were pushed in far enough.

    Primers flatten out most of the time in my rifle, though they didn't here.
    I load couple ammo for test to 750m/s, the marks on cases are the same, i really dont know what happens... no flatten primers, no heavy bolt and the rifle are grouping very good, first picture on 300m, second picture 200m


    Attachments

    Missalot

    Private
    Minuteman
    Jan 28, 2019
    32
    36
    Just for kicks and giggles, load up a few rounds at the lightest powder load in your manual and see if you have the same marks. If it goes away, you know you have a pressure issue.

    • Like
    Reactions: dkamen2

    Average guy

    Online Training Member
    PX Member
    Minuteman
    Online Training Access
    Dec 25, 2018
    508
    344
    Try removing the ejector and check for burrs on both the ejector and the bore edge it fits in. Had a similar issue with a 700 Remington. After removing a very small burr problem solved.


    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    Try removing the ejector and check for burrs on both the ejector and the bore edge it fits in. Had a similar issue with a 700 Remington. After removing a very small burr problem solved.

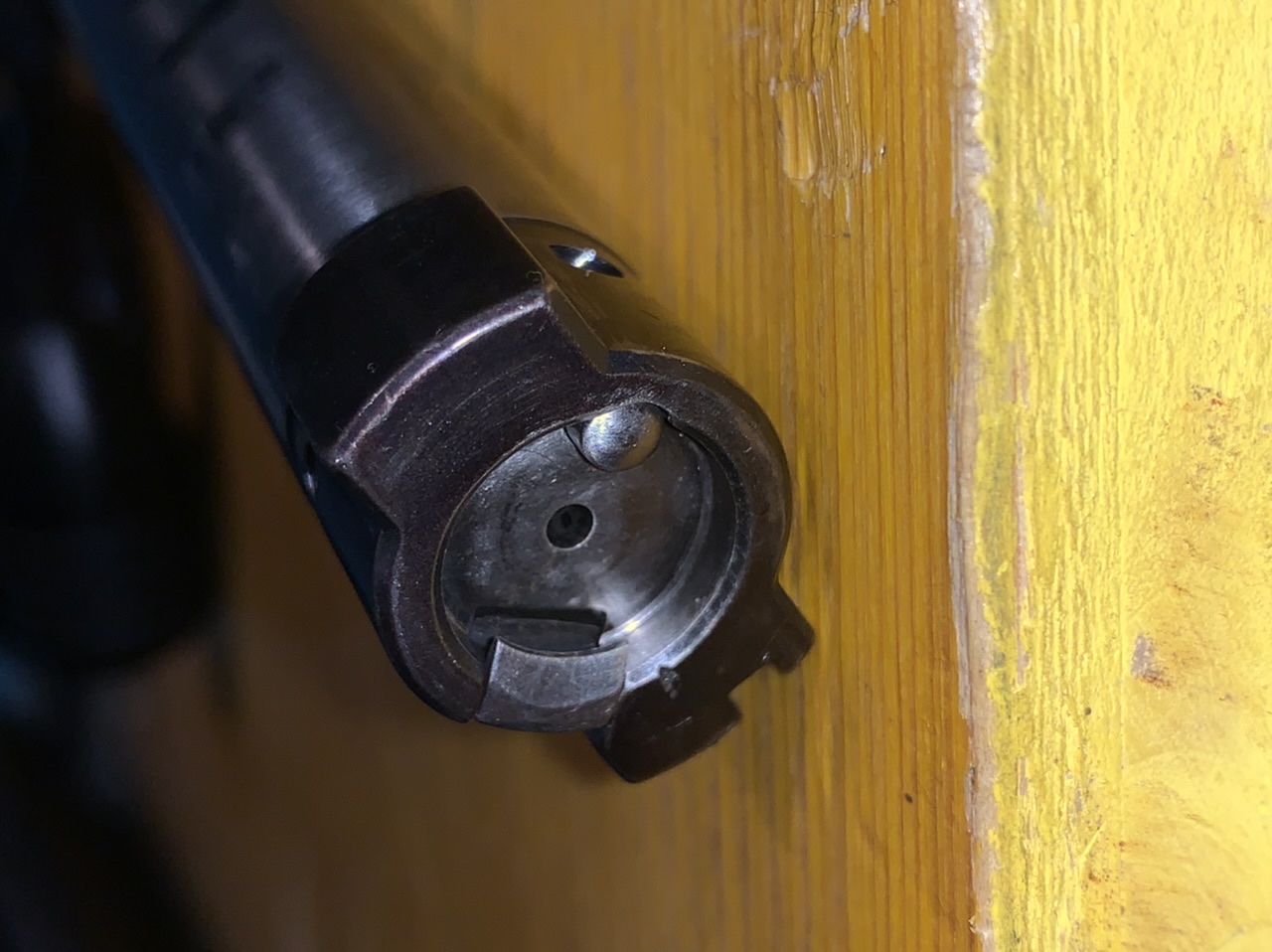

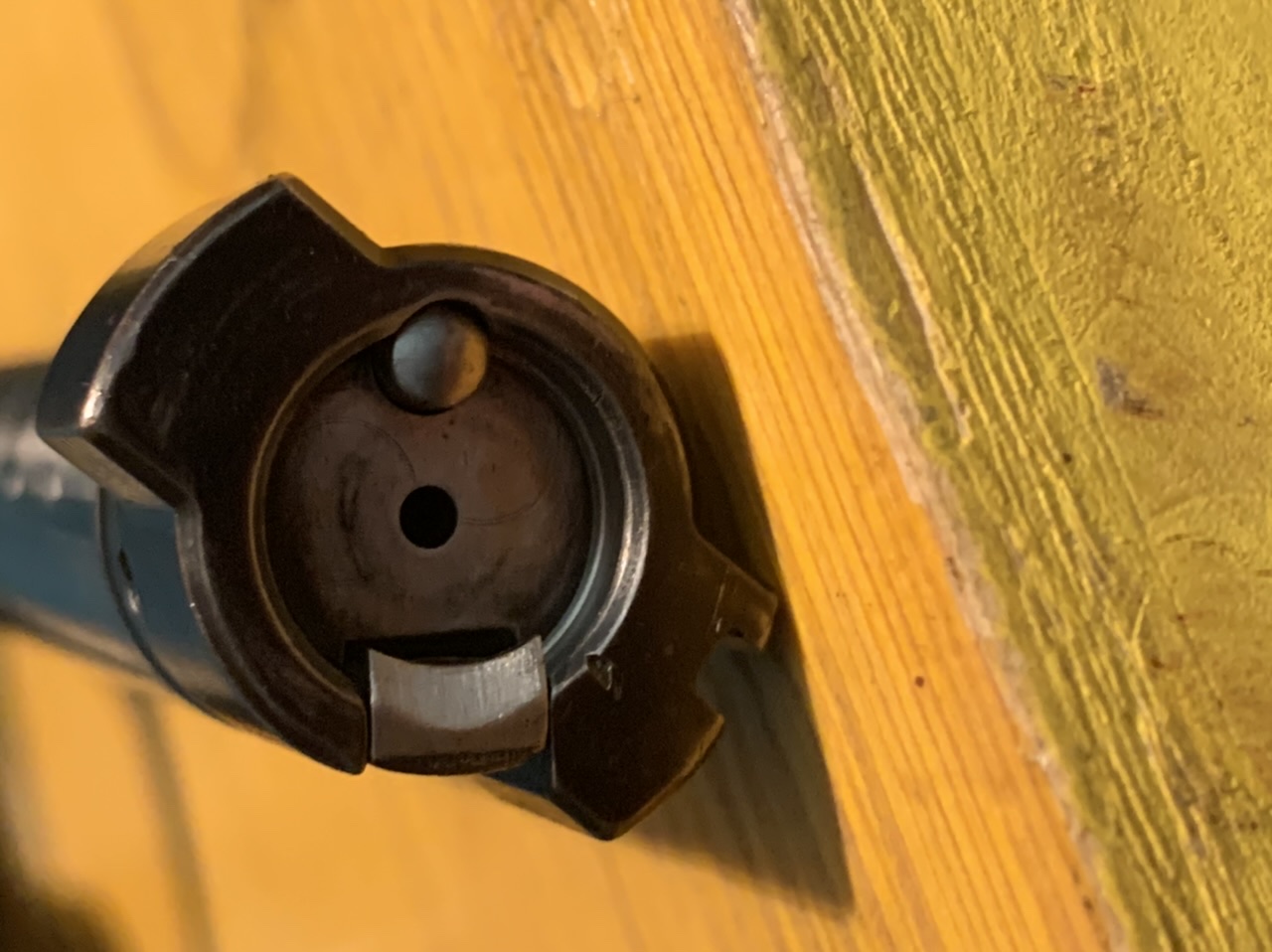

    I polish the whole surface a couple of days ago, but i did not see any bumps on surface. I must fire couple bullets and i will see if its beter


    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    Try removing the ejector and check for burrs on both the ejector and the bore edge it fits in. Had a similar issue with a 700 Remington. After removing a very small burr problem solved.
    I polish the whole surface a couple of days ago, but i did not see any bumps on surface. I must fire couple bullets and i will see if is

    • Like
    Reactions: Average guy

    hereinaz

    I have no idea why I get these new labels...
    Hessian
    PX Member
    Minuteman
  • Mar 7, 2018
    1,337
    813
    Arizona
    Did you polish before or after it left the marks?

    Does the half moon stand higher than the rest of the brass? Looks like at least one shows a half moon without the smear. Others show part of the mark without the smear. Using your fingernail is it higher?


    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    Did you polish before or after it left the marks?

    Does the half moon stand higher than the rest of the brass? Looks like at least one shows a half moon without the smear. Others show part of the mark without the smear. Using your fingernail is it higher?
    half moon is not higher then brass


    AKMarty

    Online Training Member
    PX Member
    Minuteman
    Online Training Access
    Jul 2, 2019
    258
    115
    AK
    If the moon shape on the brass matches the ejector on the bolt face that should point you in the right direction. Overpressure-possibly. Dirty chamber -also possible. I’ve had “slippery” brass show over pressure signs, both nickel plated as well as oil on the chamber wall.


    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    If the moon shape on the brass matches the ejector on the bolt face that should point you in the right direction. Overpressure-possibly. Dirty chamber -also possible. I’ve had “slippery” brass show over pressure signs, both nickel plated as well as oil on the chamber wall.
    The moon shape on brasses is the same as ejector


    hereinaz

    I have no idea why I get these new labels...
    Hessian
    PX Member
    Minuteman
  • Mar 7, 2018
    1,337
    813
    Arizona
    This is a curious thing.

    Have you done anything to your chamber? Does the ejector have a burr? How much did you take off when you polished the bolt face? Why did you polish the bolt face?


    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,022
    1,641
    58
    Ingleside, Tx
    Like dave Tooley said, it is a pressure sign.
    Could be several things.
    thick brass. I have seen thick brass cause over pressure on loads that should be mild.
    Short throat. Sometimes, mass produced rifles end up with short throats, causing pressure issues with loads that are saami length.

    • Like
    Reactions: dkamen2

    Ledzep

    Chancellor
    PX Member
    Minuteman
  • Jun 9, 2009
    2,969
    2,271
    NE
    Thick necks, Thick walls reducing volume, lubed cases or chamber, hot lot of powder, sharp corner or burr on ejector hole, tight bore, carbon ring, case doughnuts, short throat/jamming bullets, longer bearing surface on the bullet than what the load data was set for, Vitavouri powder exposed to moisture....


    dkamen2

    Private
    Minuteman
    Mar 10, 2020
    12
    1
    This is a curious thing.

    Have you done anything to your chamber? Does the ejector have a burr? How much did you take off when you polished the bolt face? Why did you polish the bolt face?
    No i didn t do anything to my chamber, this is happens from the beginning when i buy new rifle. I polish bolt face just because i saw if there was any bad surface or somethink like that.


    hereinaz

    I have no idea why I get these new labels...
    Hessian
    PX Member
    Minuteman
  • Mar 7, 2018
    1,337
    813
    Arizona
    The marks are definitely not from the pin itself.

    Something is causing brass to flow into the ejection hole and then it is getting scraped before primary extraction starts.

    If the loads are mild, then there is something else going on that causes that phenomenon. Primers are still round, so it is a sign that other issues might be going on.

    Try factory loads, and if they do it, then it has a problem and should go to someone.


    fdkay

    Gunny Sergeant
    PX Member
    Minuteman
    Nov 27, 2009
    5,022
    1,641
    58
    Ingleside, Tx
    The marks are definitely not from the pin itself.

    Something is causing brass to flow into the ejection hole and then it is getting scraped before primary extraction starts.

    If the loads are mild, then there is something else going on that causes that phenomenon. Primers are still round, so it is a sign that other issues might be going on.

    Try factory loads, and if they do it, then it has a problem and should go to someone.
    OP stated the problem also occurs with factory ammo.

    • Like
    Reactions: hereinaz

    Niznac

    Private
    PX Member
    Minuteman
    Feb 15, 2017
    17
    2
    Poor primary extraction?

    Could any gunsmiths elaborate if that can cause ejector swipes even though pressure is normal?

    I have a 6.5-284 rem700 that was "trued" and there is a gap between the bolt handle and the receiver. From what I have been able to read up on is that when the bolt lugs are trued or lapped that increased the distance between the bolt handle and receiver thus losing the "primary extraction" of the case during initial bolt lift. In this case having the bolt re-timed is the remedy.

    Others thoughts on this?

    I am in the exact same situation and just have not sent the action in to have the bolt re-timed or looked at by a reputable smith yet.


    emonda7

    Private
    Minuteman
    Dec 20, 2019
    12
    5
    Have you check the OAL on the ammo? Saw a case of this "brass abuse" just this week at the range where I RO. Turned out the Fiocchi loads (.308/150 grn) the shooter had just bought were seated too long and the projectiles were jamming into the lands.

    • Like
    Reactions: Average guy

    spife7980

    Luchador
    PX Member
    Minuteman
    Feb 10, 2017
    8,599
    6,858
    Central TX
    Poor primary extraction?

    Could any gunsmiths elaborate if that can cause ejector swipes even though pressure is normal?

    I have a 6.5-284 rem700 that was "trued" and there is a gap between the bolt handle and the receiver. From what I have been able to read up on is that when the bolt lugs are trued or lapped that increased the distance between the bolt handle and receiver thus losing the "primary extraction" of the case during initial bolt lift. In this case having the bolt re-timed is the remedy.

    Others thoughts on this?

    I am in the exact same situation and just have not sent the action in to have the bolt re-timed or looked at by a reputable smith yet.
    Not being able to pull the case out of the chamber due to lack of mechanical leverage is not the same thing as brass material flowing into other cavities. Could have similar symptoms in that brass is hard to get out but the extractor wont cause high enough pressures to deform metal.


    Supersubes

    Two Star General
    PX Member
    Minuteman
    Sep 6, 2006
    5,387
    4,451
    Rural Nevada
    Poor primary extraction?

    Could any gunsmiths elaborate if that can cause ejector swipes even though pressure is normal?

    I have a 6.5-284 rem700 that was "trued" and there is a gap between the bolt handle and the receiver. From what I have been able to read up on is that when the bolt lugs are trued or lapped that increased the distance between the bolt handle and receiver thus losing the "primary extraction" of the case during initial bolt lift. In this case having the bolt re-timed is the remedy.

    Others thoughts on this?

    I am in the exact same situation and just have not sent the action in to have the bolt re-timed or looked at by a reputable smith yet.
    There needs to be some gap there, but it is possible to remove too much material from the lugs, and lug abutments in the receiver, to remove any primary extraction. Most remington’s are already limited in that area. Like spife said though, won’t cause ejector marks.


    2aBaCa

    Humans are amusing
    PX Member
    PX Member
    Minuteman
    Jan 27, 2019
    3,026
    3,029
    Behind enemy lines Northern Commiefornia
    It doesnt really look like pressure pushing material into the hole. more like there is a bur or sharp edge on one side of the ejector hole scraping on extraction.

    If it were me I would take the ejector out and hit the hole edges with something like 320 sand paper or small abrasive stone.


    hereinaz

    I have no idea why I get these new labels...
    Hessian
    PX Member
    Minuteman
  • Mar 7, 2018
    1,337
    813
    Arizona
    It doesnt really look like pressure pushing material into the hole. more like there is a bur or sharp edge on one side of the ejector hole scraping on extraction.

    If it were me I would take the ejector out and hit the hole edges with something like 320 sand paper or small abrasive stone.
    Easy enough to do. I assumed there was no no burr after he polished the bolt face. But, I can imagine how a burr could do that.
