Winchester M70 reloading

gunship

Private
Hessian
PX Member
Minuteman
Nov 7, 2007
38
3
26
Fort Bragg, NC
Ive got a .30-06 1943 M70 headed my way, built as a sniper repro with a douglas medium-heavy barrel. I know a few of y’all have similar rifles and am looking for some reloading recipes.

I was thinking 175 gr BTHP of some brand over some 8208 XBR, thinking to make it similar to my .308 loads. That train of thought was quickly derailed after reviewing some published data. I look forward to hear what everyone’s experience is loading for similar rifles.


sandwarrior

Sergeant
Hessian
PX Member
Minuteman
Apr 21, 2007
6,232
1,547
in yooperland
M118 LR duplicate load of 43.0g RL 15 and 175g SMK HPBT, CCI BR lg rifle primer.
That would be about as right on as I can remember! Then again CRS sets in from time to time, so I can't quote the actual load in grains, but I know damn good and well it's just over 40 gr. of RE-15...your .308 may vary, but it'll work if you load up to that.


buffalowinter

Rick Jones MAJ, SF (Ret)
PX Member
Minuteman
  • Mar 17, 2014
    1,695
    4,631
    102
    Llano, TX
    I deleted my post as the reload info I gave was for .308 not 30-06. The good news is, if you used that load, it would just be light.

    • Like
    Reactions: sandwarrior

    gunship

    Private
    Hessian
    PX Member
    Minuteman
    Nov 7, 2007
    38
    3
    26
    Fort Bragg, NC
    @buffalowinter i may have caused some confusion by mentioning .308. The only reason I brought it up was because my thoughts were to use the same powder for simplicities sake. What’s the max COAL that will fit for .30-06?


    whatsupdoc

    Major Hide Member
    PX Member
    Minuteman
  • Dec 12, 2017
    1,250
    1,332
    3006 is easy to load for for a bolt gun, what powders do you currently have?


    gunship

    Private
    Hessian
    PX Member
    Minuteman
    Nov 7, 2007
    38
    3
    26
    Fort Bragg, NC
    The only boltgun I’ve loaded for accuracy is a .308 700. Everything else has just been plinking/bulk ammo. Current on hand powders are short because of a recent move but will be restocked soon and I have no issue adding new powders to my stock. I haven’t seen the shortage here that I’ve heard described. Powders on hand right now consist of:

    IMR 4166
    IMR 4831
    IMR 3031 (my favorite powder)
    IMR 8208 XBR (My pet load powder for .308)


    Shootnwrench

    Sergeant of the Hide
    PX Member
    Minuteman
    Online Training Access
    Feb 25, 2020
    120
    113
    Soldotna AK
    My data for 175 Sierra

    22” M70 classic factory barrel

    175 SMK
    H4350
    F210
    3.285

    55.5 = 2610fps
    59 = 2813

    Hodgdon shows 55-59 at 3.300col


    pmclaine

    Gunny Sergeant
    PX Member
    Minuteman
  • Nov 6, 2011
    20,836
    30,437
    52
    MA
    I bought a bunch of IMR4350 with intents to reload for my M70 USMC sniper repro and 1903s just havent got to it yet....tagging in.

    • Like
    Reactions: RMB

    Lange Carabine

    One of the chosen few
    PX Member
    Minuteman
    Dec 13, 2011
    213
    222
    52
    salkahatchie swamp, sc
    I've been shooting Hornady 168's over 46.5gr of IMR 4895 in my '57 Winchester M70 Target.
    Came into 750 M72 bullets recently with plans to load some M72 Match rounds but havent been able to source anymore IMR 4895. May end up giving W 760 a try.

    Last edited:

    wrightjr

    Private
    Minuteman
    Jul 5, 2018
    34
    11
    S. Ga
    In my Rem 700 30-06 a 175 gr SMK and 56.5 gr of IMR 4831 shoot well, not what you asked for but could possibly help.


    gunship

    Private
    Hessian
    PX Member
    Minuteman
    Nov 7, 2007
    38
    3
    26
    Fort Bragg, NC
    Ive definitely got a good starting point. Ill pick the rifle up tomorrow I think, and hopefully shoot it this weekend or next.


    wrightjr

    Private
    Minuteman
    Jul 5, 2018
    34
    11
    S. Ga
    I hope you enjoy it, nothing like getting a load worked up and it shooting well to pay off for your hard work. Enjoy, one of these rifles is on my list too one day.


    Random Guy

    Private
    PX Member
    Minuteman
    May 16, 2012
    513
    779
    50

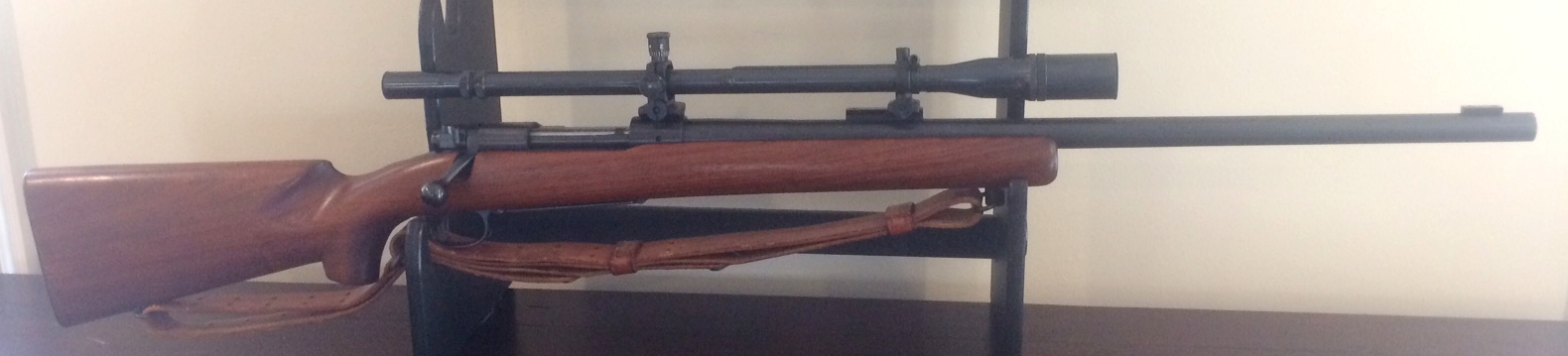

    Ive got a .30-06 1943 M70 headed my way, built as a sniper repro with a Douglas medium-heavy barrel. I know a few of y’all have similar rifles and am looking for some reloading recipes
    I have same set-up. Good loads with 175 SMK or 173gr LC FMJBT thus far include: 168 Sierra TMK or 175gr SMK bullet with 53.5gr of H4350 in LC Match brass with Fed GMM primer at 3.340". (That load is not suitable for an M1). Also recently tried some of the old LC 173gr FMJBT bullets with 46.5grs of I-4895 in LC match brass with Fed GMM primers at 3.330", which showed some promise during a recent trip where I tested 10-rd groups. My 2cts.


    Attachments

    Last edited:

    NineHotel

    Private
    PX Member
    Minuteman
    Dec 12, 2017
    283
    117
    Morrison CO

    Keep in mind there is lots of caution around 30-06 match loading due to the fact that the Garand cannot handle powders that burn slower than 4064 without danger of bending the op rod.

    Max velocity with the 175 in a longer barrel would be achieved with 4350, again sticking in the IMR family.

    Check w PMclaine here - he bought a case of this stuff from me about a year ago and has done some testing.

    EDIT - I see he hasn't tested yet.....

    BTW I've got a 26" 30-06 M70 that I've shot 155s, 175s, and 200s out of. I just loaded 155s with 4895. Hopefully I'll get it to the range soon.

    I've also got a 50s era M70 30-06 with factory donut barrel I need to get up and going; I'll try to get it out for the same testing.

    Last edited:
    • Like
    Reactions: pmclaine

    gunship

    Private
    Hessian
    PX Member
    Minuteman
    Nov 7, 2007
    38
    3
    26
    Fort Bragg, NC
    @Random Guy Your load is the what I am most likely going to try and duplicate. The army has me running, but 1st chance I get I will be shooting some surplus ammo as a baseline then rolling from there.


    sandwarrior

    Sergeant
    Hessian
    PX Member
    Minuteman
    Apr 21, 2007
    6,232
    1,547
    in yooperland
    Like @buffalowinter I quoted a .308 load. Starting load for .30-06 is 52 gr. of H4350 behind a 175 gr. bullet. Top out is supposed to be 56 gr. But, it depends on your throat erosion. If none, stop there.

    Added: As pointed out above, using loads worked up with slower powders meant for a bolt action will damage your Garand. Work up with 4895 or 4064 for the Garand.


    gunship

    Private
    Hessian
    PX Member
    Minuteman
    Nov 7, 2007
    38
    3
    26
    Fort Bragg, NC
    I appreciate the warnings about running the slower powders through a garand. I have always known that but it is great to reinforce it. I don’t normally shoot reloads through the garand, but I will make sure to keep them separate.


    gunship

    Private
    Hessian
    PX Member
    Minuteman
    Nov 7, 2007
    38
    3
    26
    Fort Bragg, NC
    I found a good stock of H4350 and IMR4831 locally, so its time to get started. I am kind of putting it off for a RCBS chargemaster lite from the PX here though.
