Rifle Scopes ZCO HTR subtensions

[BurtG]

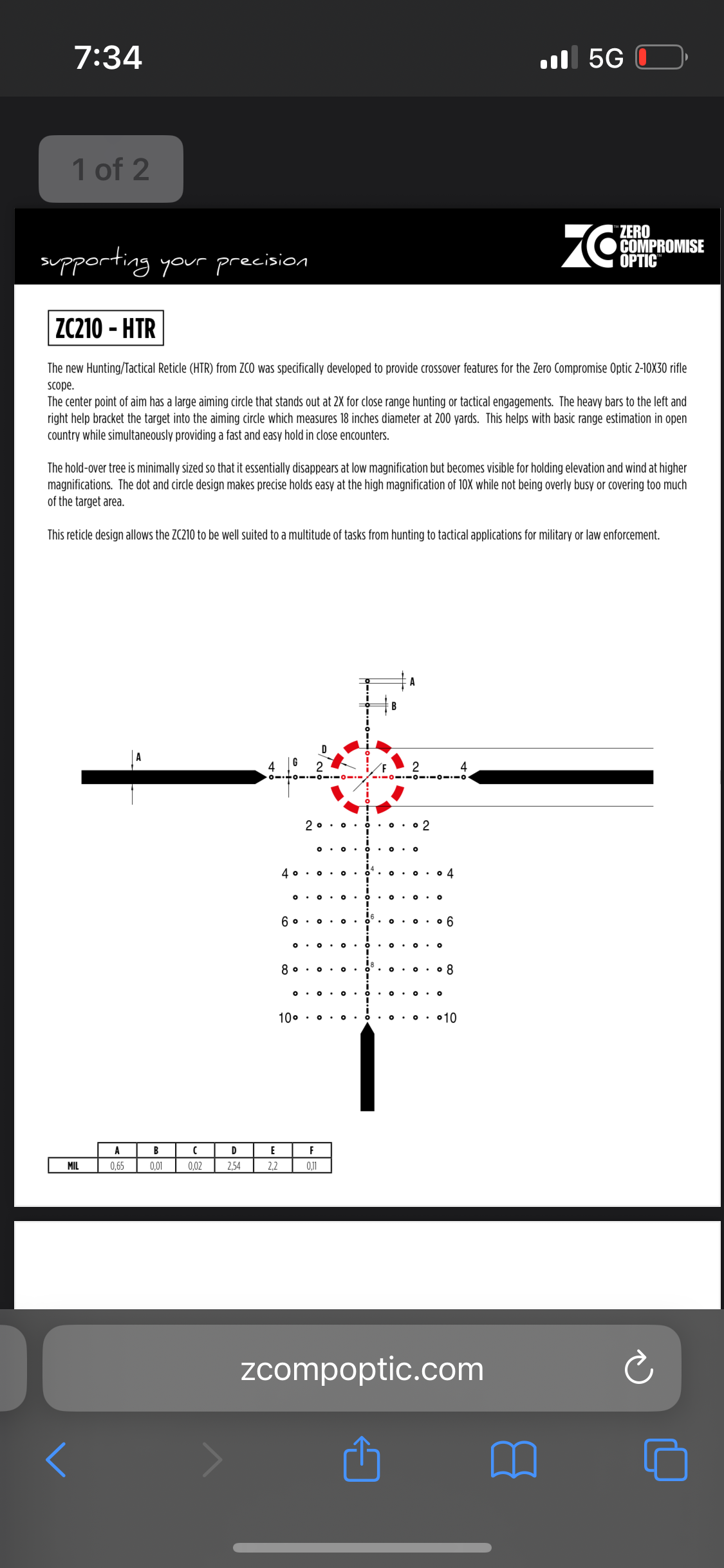

https://www.zcompoptic.com/images/downloads/Reticle%20HTR%20ENG.pdf

Anyone know what the following subversions are ?

@CSTactical



[CSTactical]

Let me see if I can find out

Richard



[roostercogburn98]



[roostercogburn98]

Didn’t help any did it



[CSTactical]

.2 mil



[Jack's Dad]

I doubt that F is .2



[roostercogburn98]

I doubt that F is .2

F is .11 according to the chart.

Tractorkiller was looking for some different data



[BurtG]

F is .11 according to the chart.

Tractorkiller was looking for some different data

There’s a bunch of missing subtensions they should have made a chart like the mpct 3



[roostercogburn98]

There’s a bunch of missing subtensions they should have made a chart like the mpct 3

I agree.

@CSTactical is the circle 18 inches at 200 yards measured inside or outside? I’m assuming outside cause the measurement lines go there, but there is nothing in writing to confirm



[CSTactical]

I agree.

@CSTactical is the circle 18 inches at 200 yards measured inside or outside? I’m assuming outside cause the measurement lines go there, but there is nothing in writing to confirm

I will find out



[BurtG]

I will find out

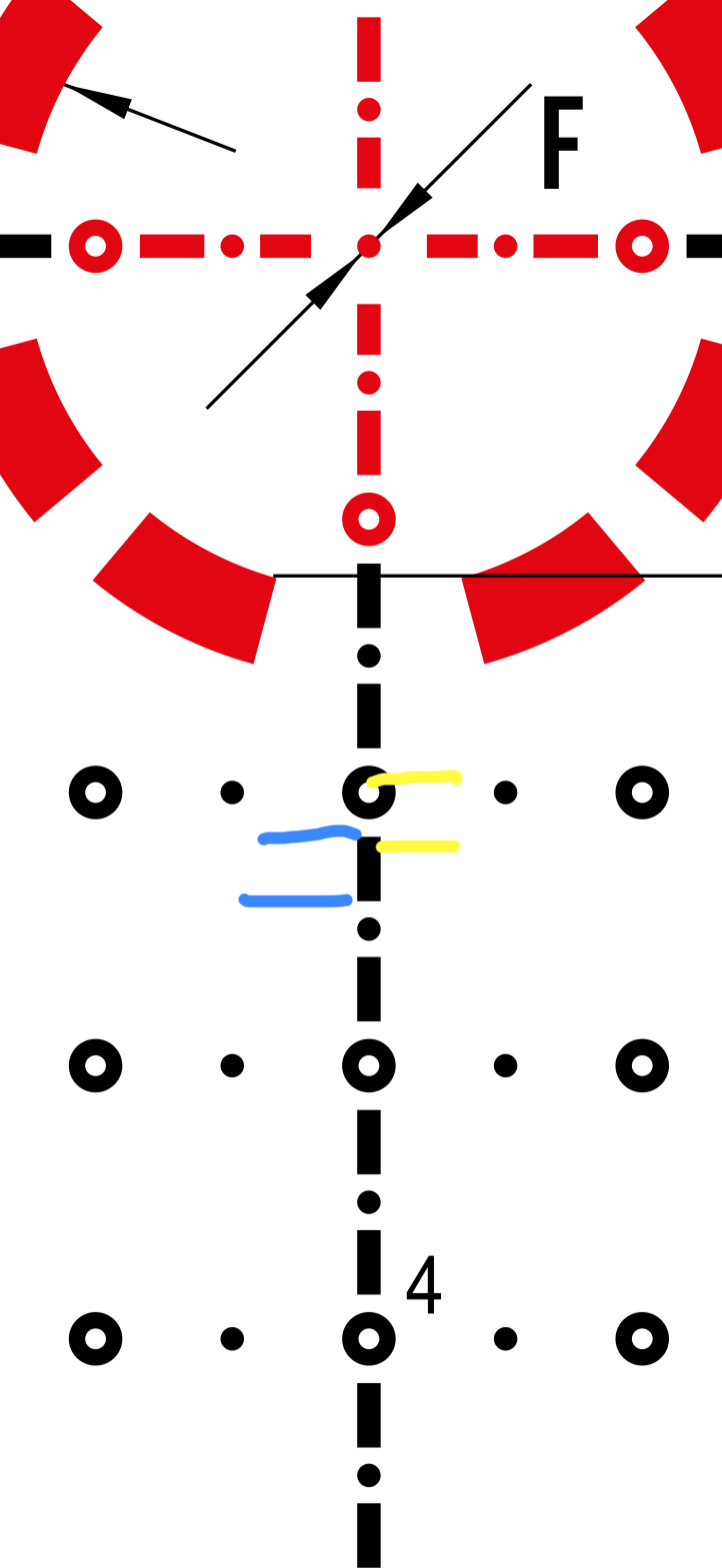

See about the first bar from the center dot too.



[Secant]

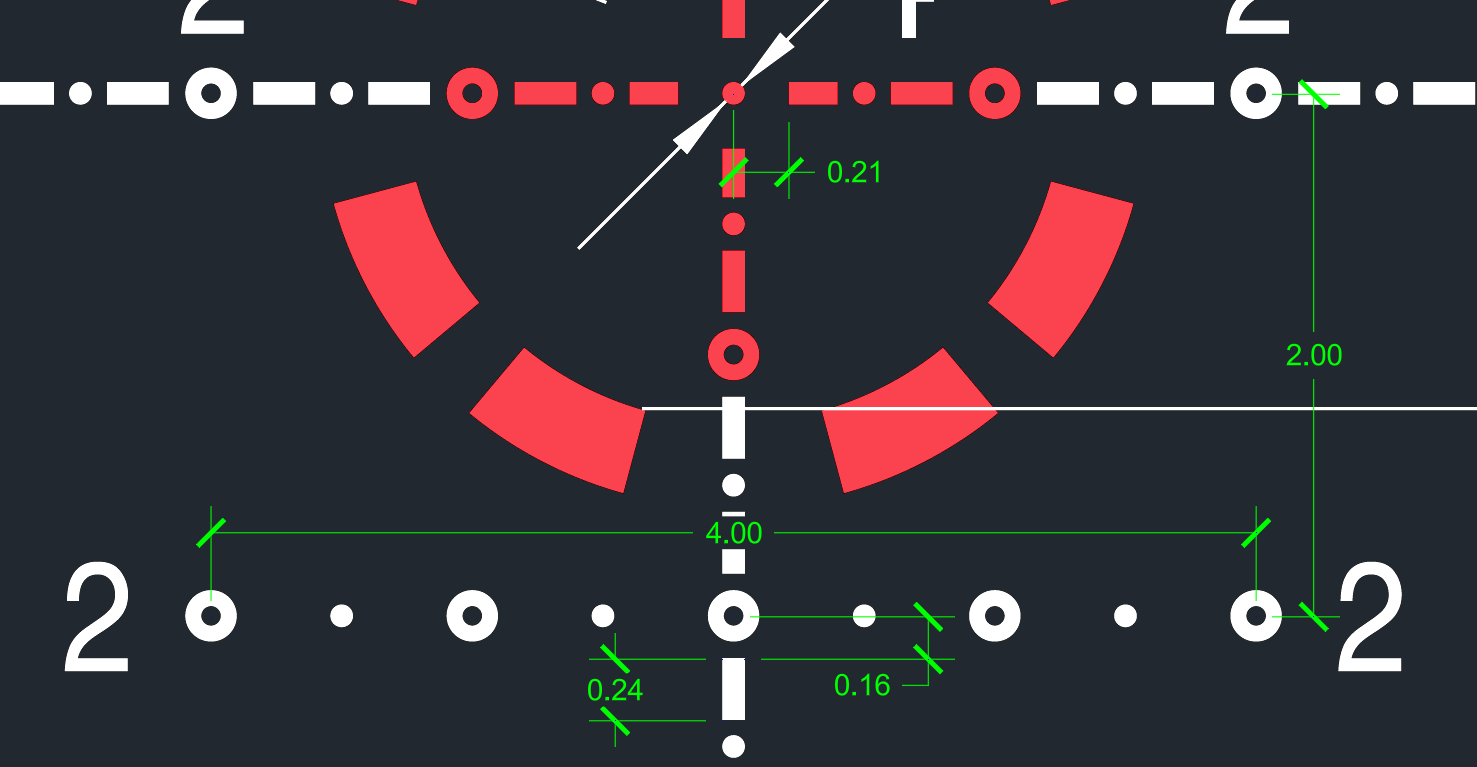

Scaled their PDF diagram, but take it or leave it



[Secant]

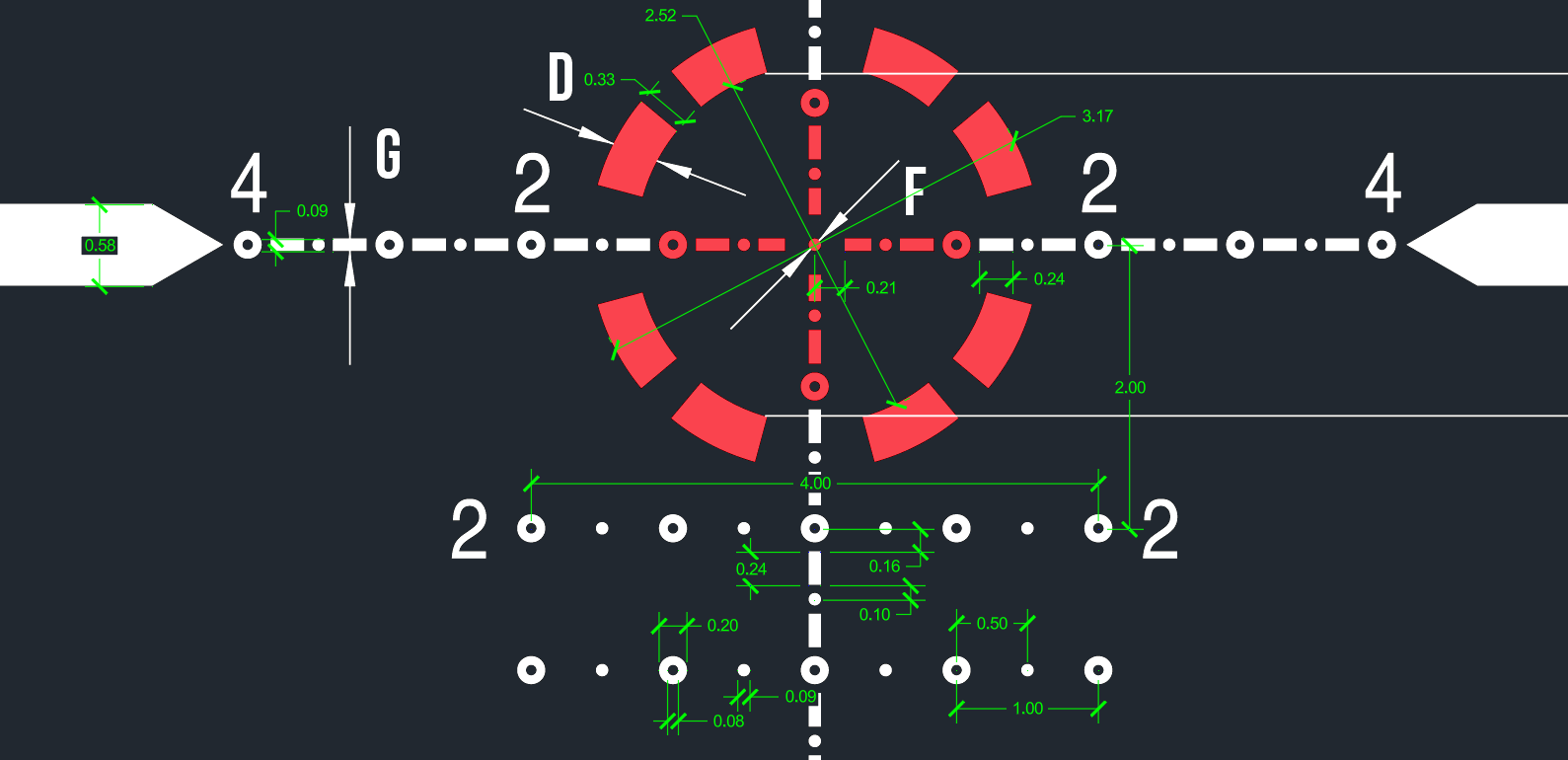

Spot checking a couple places shows some discrepancies. Likely line weight errors when plotting from ZCOs design software to PDF and potentially a minor amount during import. But there appears to be other errors in ZCOs diagram, so hard to say overall.

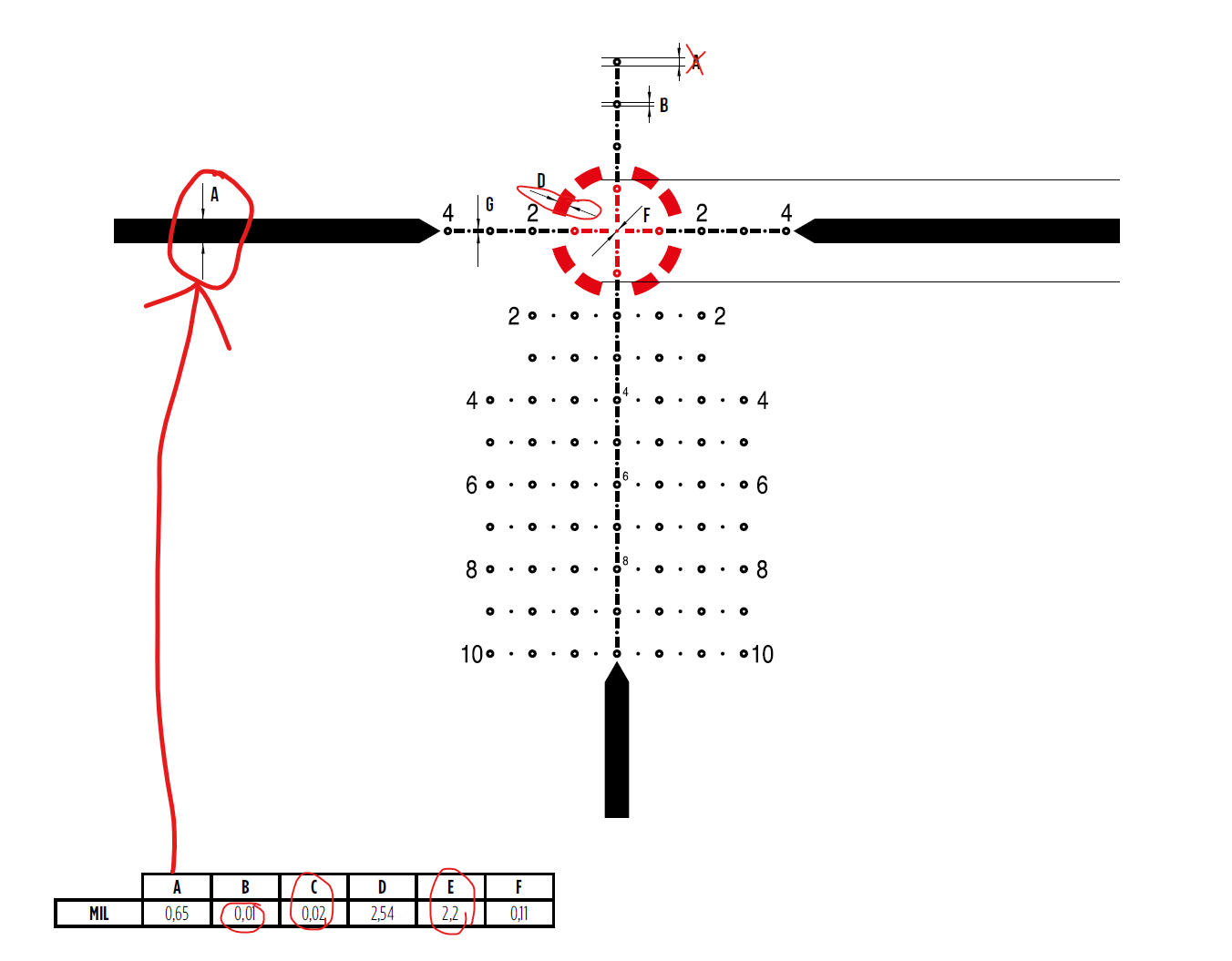

For instance, my "A" dimension is 0.58 mils and their table reads 0.65 mils. I think it's obvious the other "A" dimension on the ZCO diagram is mislabeled. I don't know where C or E is on the ZCO diagram. It's not completely clear what the intent of the "D" dimension is from how ZCO is drawing the dimension arrows, but from my dimensions, I assume they are trying to show the inside diameter of the larger red circle (my dimension is 2.52 and the ZCO dimension for D is 2.54)? I think ZCOs listed B dimension of 0.01 is a fat finger and maybe intended to be 0.10 (but my dimension shows 0.08)? I'm seeing a line thickness of 0.09 mils, but dimension "G" is not listed on ZCOs diagram.



[BurtG]

I feel like this “easy “ job
Got handed to the new or incompetent guy and you see the results of that
