Spuhr mounts prone to cracking?

capp325

Private
Minuteman
May 8, 2018
31
13
12
I hope I'm not opening a can of worms, but I've noticed a couple of members reporting that their mounts cracked in exactly the same spot: along the relief cuts for the ring mounting screws.

Example 1

Example 2 (post #15)

Are those isolated incidents or is this a known issue with Spuhr? The fact that the cracks are in the exact same location suggests a design flaw.


Badfinger

Major Hide Member
Belligerents
Minuteman
Aug 11, 2013
1,691
2,698
219
68
Dayton, OH Area
I wouldn't say "prone" and we don't know the history of the mounts. #1 looks like it's mounted over a shim like you would use to go from 30mm to 34mm. They could have been over torqued, dropped, porosity in the casting, whatever. These are the only reports I've heard of and I've never had a failure of any kind.

Last edited:
  • Like
Reactions: viking78

capp325

Private
Minuteman
May 8, 2018
31
13
12
Only being half a smartass here, but are we asking if two cases over five years is “prone?”
Those are the two that I could find with a quick search. I don’t know if there are others. That’s why I’m asking the question.


Kiba

Major Hide Member
Belligerents
Jan 13, 2011
1,272
263
189
Central Valley, CA
Spuhr revised the ring screw spacing a couple of years ago to leave more material around the outermost screws, possibly for this exact reason. Both of the pics you linked to are of the "gen 1" design (identified by the totally flat ring caps.) The "gen 1" ring caps get rather thin near the edges of the counterbores for the 4x outer ring screws which probably serves as a nice crack propagation point.

The "gen 2" revised mounts moved the outer ring screws in towards the center ring screw a bit to leave more material around the 4x corner ring screws, and they can be identified by a milled "trench" cut connecting the two middle ring screws. I've seen those pics of cracked "gen 1" ring caps before, can't recall ever seeing a cracked "gen 2" ring cap. Unforutnately you can't swap a gen 2 ring caps onto a gen 1 mount as the screw spacing is different.

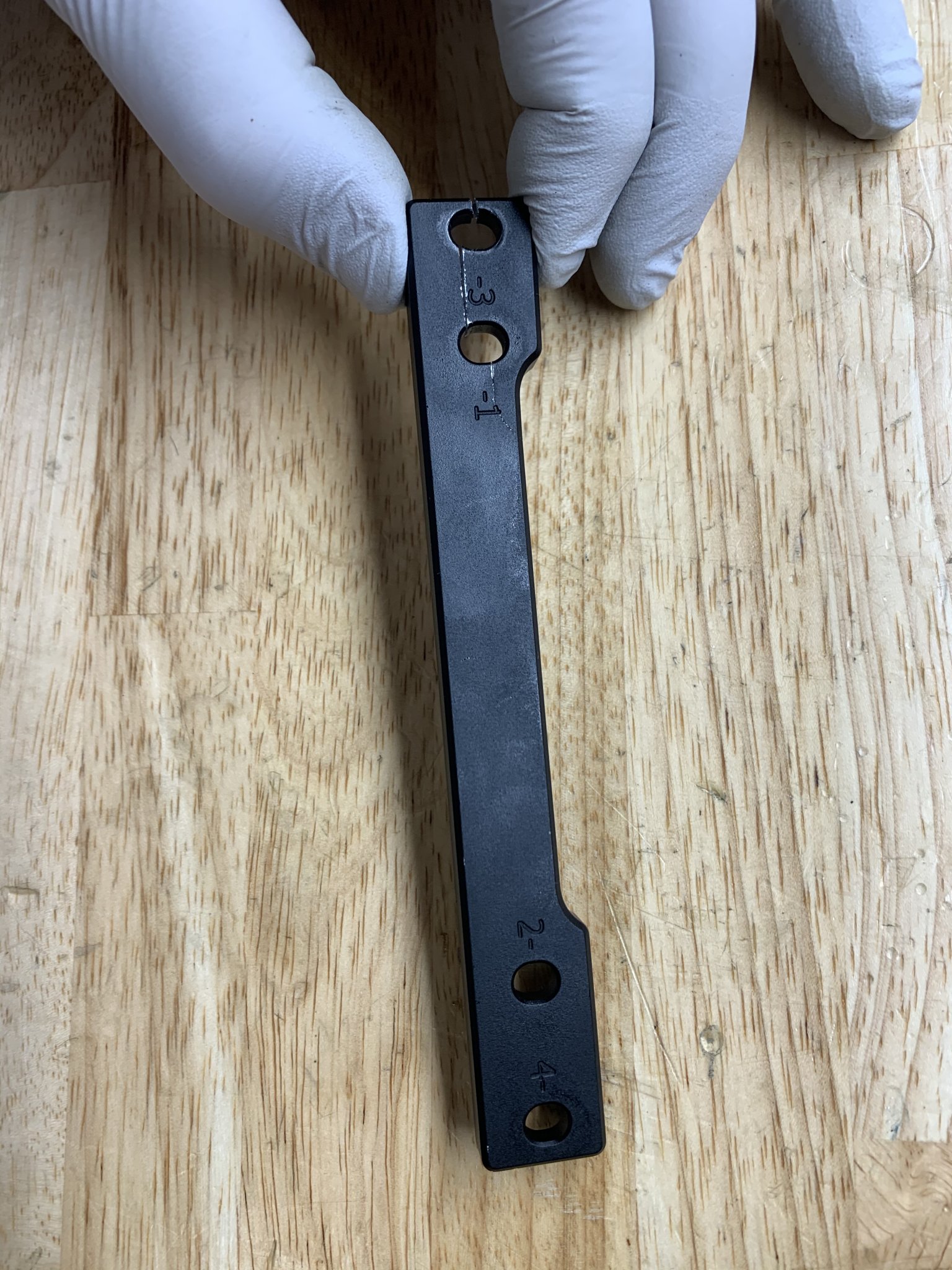

I've had problems with one of my Spuhrs cracking the picatinny rail clamp bar... it cracked twice actually. Got prompt warranty replacement clamp bars from Mile High both times. However I think the source of the problem may have been an out of spec picatinny base on that rifle because that same mount has been installed on another rifle for several years now and the clamp bar is still intact. On the "problem" rifle it cracked two clamp bars in less than two years.

Last edited:

supratt96

Sergeant
Belligerents
Dec 22, 2010
731
202
49
59
New Jersey, USA
I had a ring crack a couple years ago on one of my Spuhr mounts in the same spot as described. Spuhr sent me a new ring and did not seemed surprised about the crack. They seemed to know it was an existing issue.


redneckbmxer24

Merica!
Belligerents
Jan 15, 2005
7,140
2,590
219
Gulf Coast, FL
The early Spuhr's definitely had some issues with ring caps cracking, I had never seen or heard of a clamp bar cracking though. I personally had two Spuhr front ring caps (one on a 30mm, one on a 34mm) crack right across two of the screw holes on each and they were properly torqued. Spuhr updated the rings a few years back though and everything forward should be good to go, if you're having trouble then it's probably because you've got an older mount. Mile High will replace the caps if they crack though and I'm sure a cracked clamp bar would be replaced too so it's really a non issue.

  • Like
Reactions: BCX

texas_vet00

Sergeant
Belligerents
Feb 24, 2010
352
149
49
50
TX
Can someone post a V1 vs V2 photo showing the "more material around the outermost screws" please?

I think I have two of each but what the hell do I know...


M8541Reaper

Super Boot
Belligerents
Jul 23, 2011
1,796
2,772
219
Belgium
For those dismissing the OP, it is a legitimate question. As for those stating they own them and defending their durability, how much use do they get? Are they kept in a case/safe until they are pulled out for the range or are the used in the field? Legitimately asking as I’ve been considering trying a spuhr after over a decade of strictly using Badger (with no complaints).

Every quality brand has issues from time to time. That’s the nature of the beast. But you can’t state that a product is the best if it is only used 3-4 times a month and spends its life going safe/car/range/car/safe. Have you dropped it, slammed it around (besides on one or two props a year), fell on it, etc? That’s how you know if it’s quality kit.

On the flip side, you also have the end user factor to consider. Most dudes are more likely to blame the equipment and not themselves for when stuff goes wrong/breaks. ....despite them not following specs or proper maintenance requirements.


Kiba

Major Hide Member
Belligerents
Jan 13, 2011
1,272
263
189
Central Valley, CA
Can someone post a V1 vs V2 photo showing the "more material around the outermost screws" please?

I think I have two of each but what the hell do I know...

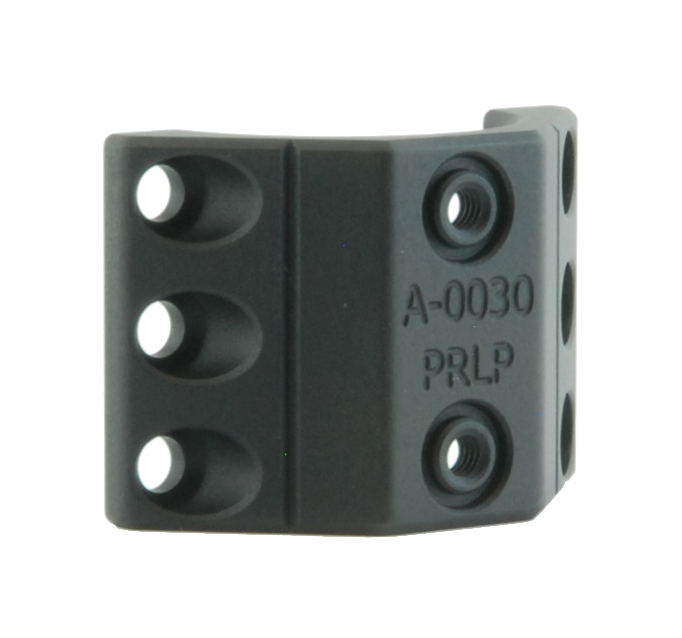

Gen 1

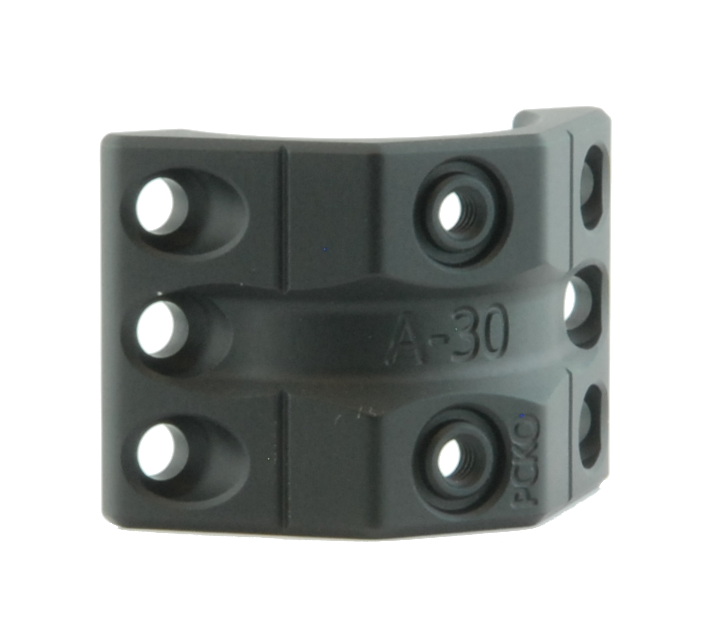

Gen 2


Note how the gen 2 moved the 4x outboard screws in towards the center a bit more leaving additional material at the outside webs, this makes them less susceptible to cracking.

Spuhr also revised and added additional material under the screws on the clamp bars a while back.

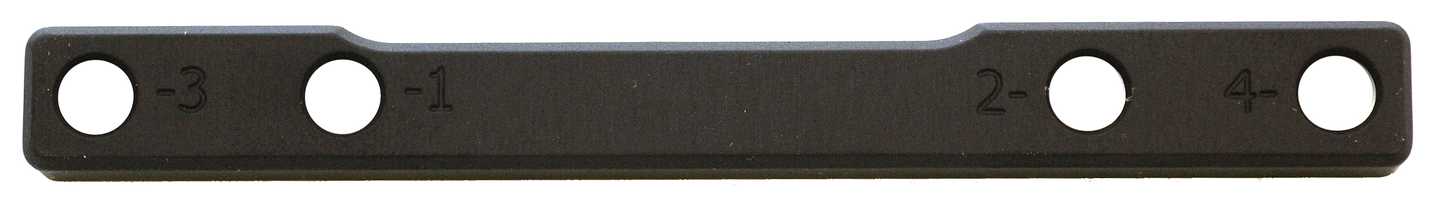

Older style flat clamp bar, I've cracked 2 of these at the outermost screw holes.

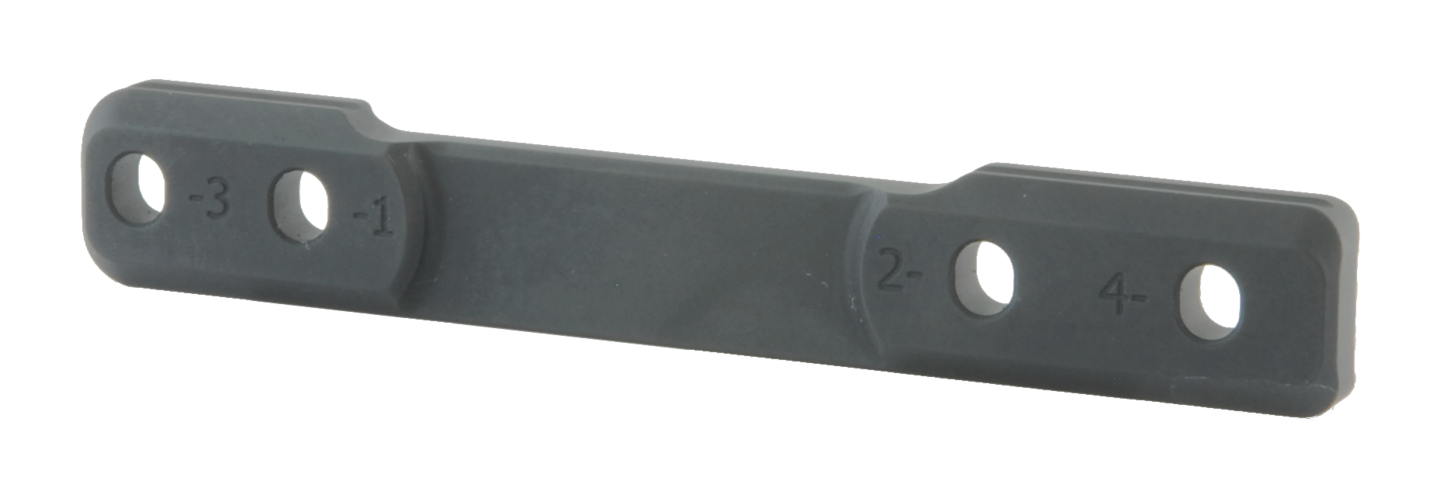

Newer clamp bar with extra material thickness under the screws. Besides the extra thickness, the outer 2 screws are no longer as close to the edge of the clamp bar.


Last edited:
  • Like
Reactions: Trek and Doitallgp

LawnMM

Harbinger of Sarcasm
Belligerents
Jul 5, 2009
3,438
3,104
219
Colorado
I think I've got three mounts and one set of rings for years and never had an issue. Two mounts are Gen 2 and the other plus the rings are Gen 1.

The rings are on my match gun and have seen the most use. No issues. If there was an issue, I've every faith Mile High would give me replacement parts walking in the door.

Buy with confidence.

  • Like
Reactions: Hardpan

Hollywood 6mm

Major Hide Member
Belligerents
Dec 9, 2013
2,383
1,597
219
Flori-duh.
I've got a first gen mount that had 2 cracks develop in one ring cap. They were torqued with Fix it Sticks and a 25 in/lb torque limiter after I had several screws walk loose. I contacted Mile High and they replaced both caps and all 12 cap screws at no charge.


Eostech

Private
Belligerents
Apr 13, 2014
151
132
49
Australia

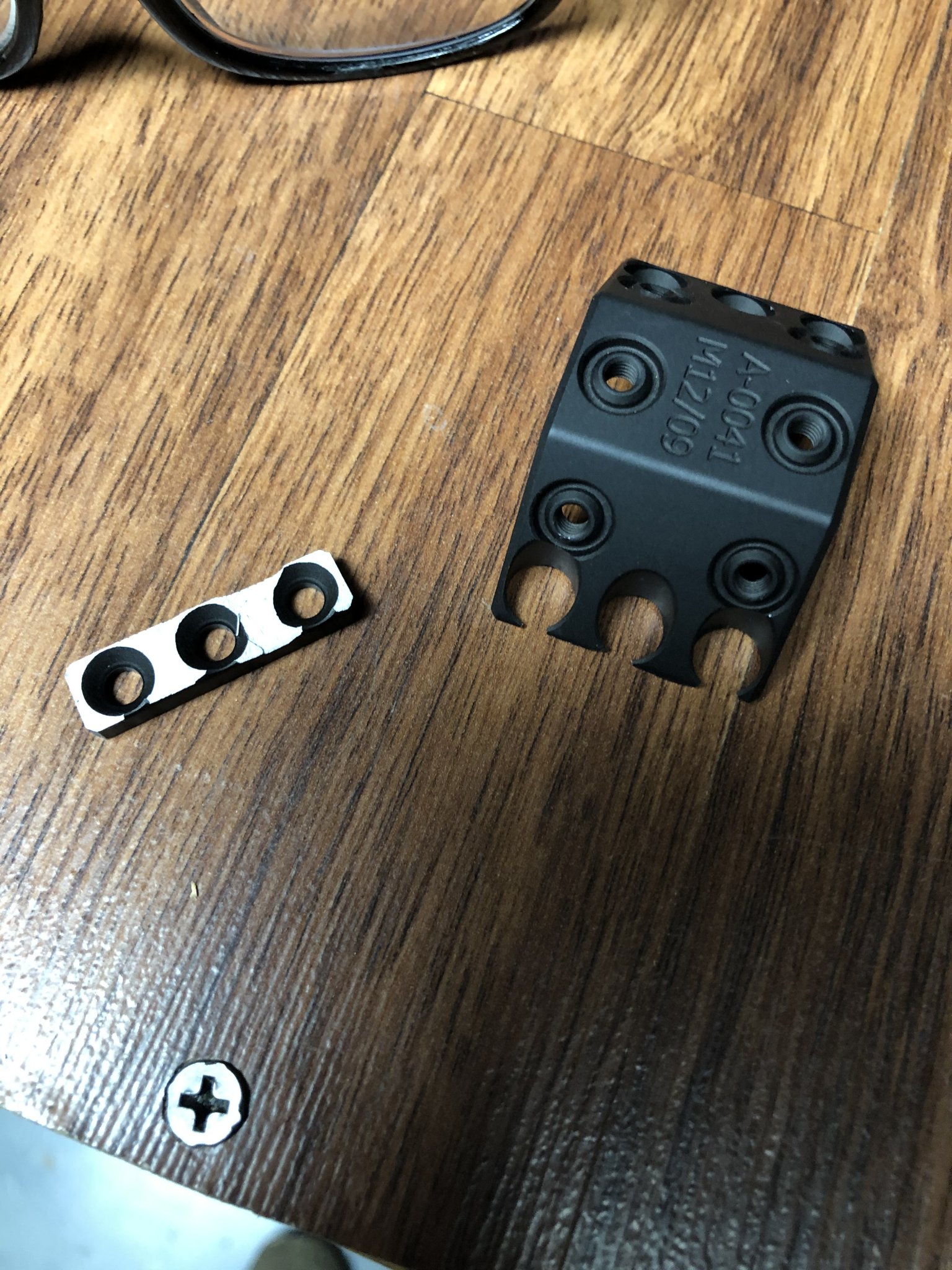

Two out of two gen 1 36mm mounts developed cracks and one ring even split. Those mounts were some of the first 36mm made and I think as the external dimension are the same as a 34mm the caps and sides were thinner (not 100% on this). At the time I think they said something about the batch of alloy, spuhr replaced both no trouble. I'd have to drag up the emails to check what they said 100% because it was a while ago, should have pictures of the failures though.


SBT GMG

Private
Minuteman
Feb 5, 2020
44
14
12
Now I'll have to run and check mine! I've had a few and used a few on customers builds, no problems so far that I'm aware of. One of my .308s with a Spuhr gets used pretty hard, its twin .300WM doesn't- I train mostly with the .308 to save $ and barrels. Knowing people, some of this issue may be due to folks not using a torque wrench, but who knows. There was a recall on my motorcycle years ago on the rear wheel hub, and that was the problem- it was designed for a very specific torque and people overtorqued the lug bolts, cracking the hubs. BMW had to put moron resistant hubs on the bikes, basically. I never had a problem. I have several torque wrenches and use them. Frequently.
Yes, Mile High is outstanding to deal with. Love those guys! My only complaint with them is that I have to drive through Denver to get there. I'd rather knaw a finger off than drive through Denver.


Doitallgp

Private
Minuteman
Oct 11, 2017
3
0
2
Gen 1

View attachment 7258261


Gen 2

View attachment 7258262

Note how the gen 2 moved the 4x outboard screws in towards the center a bit more leaving additional material at the outside webs, this makes them less susceptible to cracking.

Spuhr also revised and added additional material under the screws on the clamp bars a while back.

Older style flat clamp bar, I've cracked 2 of these at the outermost screw holes.

View attachment 7258268

Newer clamp bar with extra material thickness under the screws. Besides the extra thickness, the outer 2 screws are no longer as close to the edge of the clamp bar.

View attachment 7258269
Can confirm my replacement was noticeably more “durable looking”


SBT GMG

Private
Minuteman
Feb 5, 2020
44
14
12
I checked mine- the .308 has a "first gen", the .300 has "2nd gen" rings but the clamp rail looks like the original version. Both are in good shape. I'll be buying another one shortly for another build.


clubsportmark

Private
Belligerents
Sep 1, 2017
57
61
24
I have 6 or 7 sets of spuhr mounts. All of which I love and have also found their service second to none. When I accidentally torqued up my hunting spuhr Mount the same as the ISMS and knackered it, they kindly replaced it.

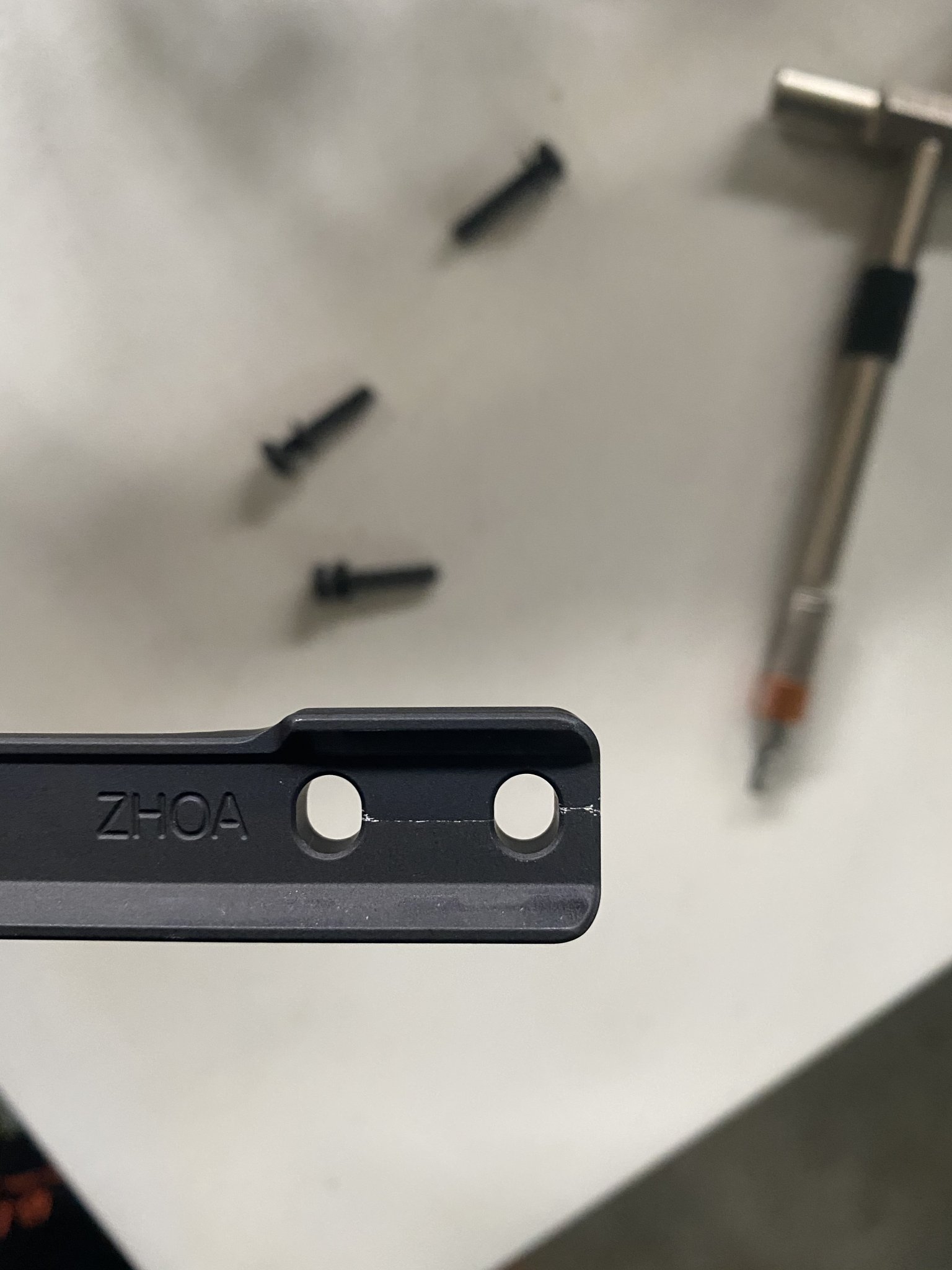

Anyway. To the point in hand, I noticed yesterday than on one of my clamp bars had cracked. Always torqued to 45 inch lbs, so not at fault there. It’s also kindly being replaced. However in checking others I noticed that the underside of one of mounts is different to the others. See pic. Now I wondered if anyone knew if this was a gen 1 / gen 2 thing or if different models have different designs?


Attachments

AXMC

triple-lug aficionado
Belligerents
Apr 24, 2017
113
41
34

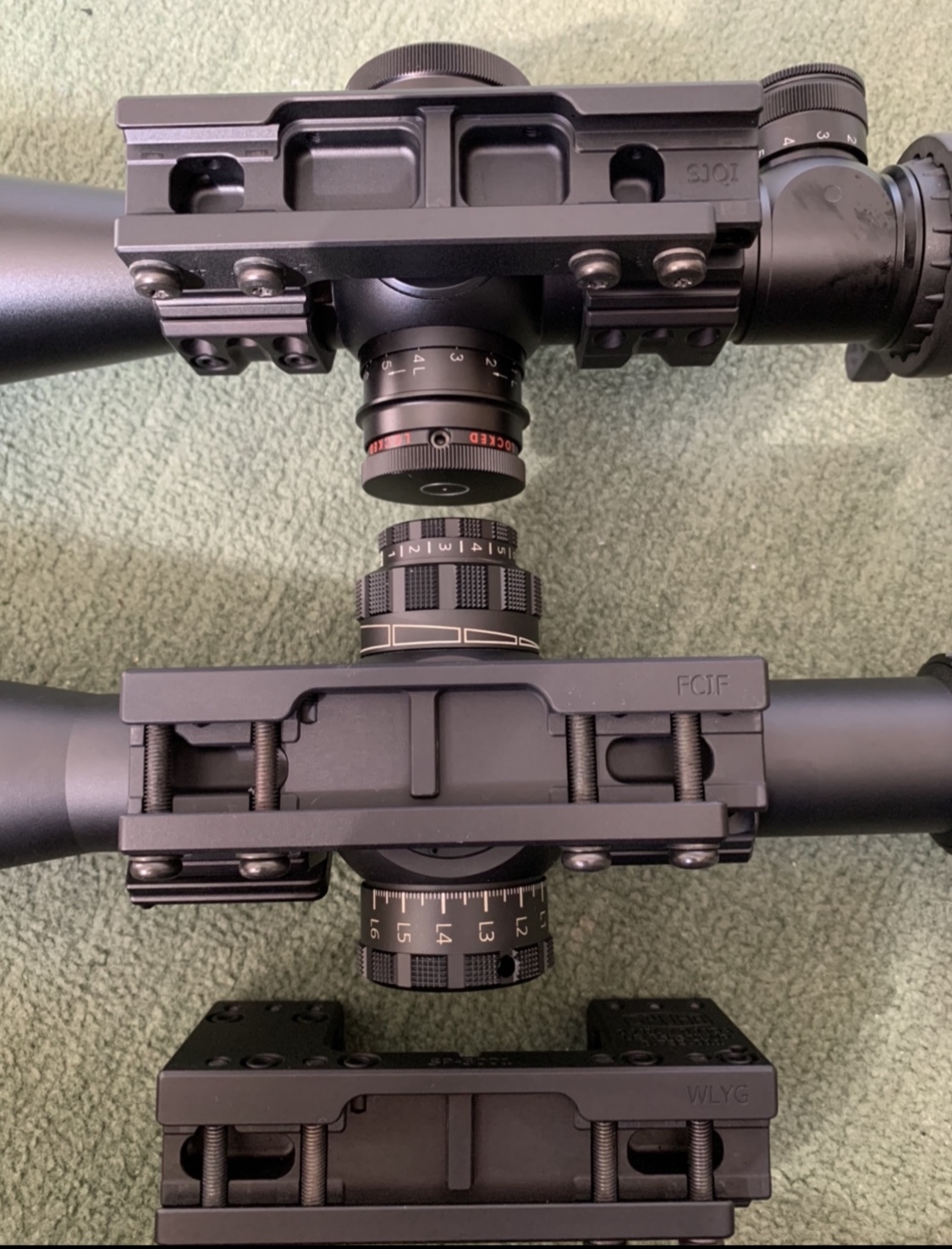

They are based on the height of the mount....your low mounts ending in 1 (3001, 4001, 3601, 4011, 4901 etc) will have the exposed clamp screws. The higher mounts (3006, 4006, 4002, 4602 etc ) will have enclosed clamp screws.
Hope this helps

  • Like
Reactions: clubsportmark

SBT GMG

Private
Minuteman
Feb 5, 2020
44
14
12
I have 6 or 7 sets of spuhr mounts. All of which I love and have also found their service second to none. When I accidentally torqued up my hunting spuhr Mount the same as the ISMS and knackered it, they kindly replaced it.

Anyway. To the point in hand, I noticed yesterday than on one of my clamp bars had cracked. Always torqued to 45 inch lbs, so not at fault there. It’s also kindly being replaced. However in checking others I noticed that the underside of one of mounts is different to the others. See pic. Now I wondered if anyone knew if this was a gen 1 / gen 2 thing or if different models have different designs?
Yes, it looks like the design of the Spuhr mount has evolved a bit over the years. Like you I own 2 different generations of mount. I noticed the relief grooves around the center of the rings on the later mounts, thinking that Spuhr was reducing the weight of the mount slightly, but didn't notice the change in bolt spacing.
Like any other quality product, I think Spuhr is updating the mount as experience is gained. Early on some people complained about the weight of the mounts, and the later mounts have more relief cuts to remove material where it isn't needed. A few people had cracking around the outer ring cap bolts, and those spacings were changed slightly. I believe the mounts are made from 7076, which is a really tough alloy, but all aluminum is subject to stress hardening. I doubt that vibration is an issue in this case, but it doesn't seem to be a common problem considering the number of these mounts being used. Spuhrs costomer service, as well as Mile Highs is excellent, so I'd think that your problem can be resolved. I continue to use Spuhr- as far as I can tell it's still the most reliable mounting system available.


Hardpan

Online Training Member
Online Training Access
Belligerents
Mar 1, 2013
494
207
49
CA
Gen 1

View attachment 7258261


Gen 2

View attachment 7258262

Note how the gen 2 moved the 4x outboard screws in towards the center a bit more leaving additional material at the outside webs, this makes them less susceptible to cracking.

Spuhr also revised and added additional material under the screws on the clamp bars a while back.

Older style flat clamp bar, I've cracked 2 of these at the outermost screw holes.

View attachment 7258268

Newer clamp bar with extra material thickness under the screws. Besides the extra thickness, the outer 2 screws are no longer as close to the edge of the clamp bar.

View attachment 7258269
I’ve cracked a gen 2, 45 inch lbs per Spuhr spec using a fix it sticks torque limiter. Mile High replaced it no questions asked. Got a gen 1 from them. I feel it doesn’t matter what gen it is, just the batch of metal used at the time.D0960D6C-88C7-4552-B709-43BACAECD203.jpeg


viking78

Private
Belligerents
Jul 6, 2011
1,028
1,708
219
FINLAND
I have also 3 Spuhr mounts, and I have never had any problems with the mounts, or the rings.
I use a torq driver, base clamp 5Nm and scope rings it depend of the scope manufacturer.
Kahles it was 2,4Nm and Vortex it´s 2Nm.
Follow the manual and you dont have problems.


Stoweit

Sergeant of the Hide
Hessian
Online Training Access
Belligerents
Jun 19, 2017
456
201
49
New England
Had a few, never had a problem, my favorite mount for a PRS style rifle.


longgunJR

Sergeant of the Hide
Belligerents
Minuteman
Apr 8, 2019
242
128
49
Central Texas
I wouldn't say "prone" and we don't know the history of the mounts. #1 looks like it's mounted over a shim like you would use to go from 30mm to 34mm. They could have been over torqued, dropped, porosity in the casting, whatever. These are the only reports I've heard of and I've never had a failure of any kind.
Woah woah woah!!!....

“Porosity in the casting” aren’t this milled from solid? Or a forging? If this are made from casted material they’re definitely overpriced if that’s the case.

Can any one confirm this?


SBT GMG

Private
Minuteman
Feb 5, 2020
44
14
12
I talked to the owner years ago, when I first noticed Spuhr in the US market.. Nice guy, very helpful. My understanding was that they are milled from 7076 bar stock.
