1 in 9 twist 20 inch Hbar and 77 gr bullets.

Davo308

Major Hide Member
Full Member
Minuteman
Feb 18, 2019
1,611
4,154
I have a 20 inch hbar chrome lined Delton upper, less than 500 rounds through it. 1 in 9 twist.

My shooting is typically done at 2k altitude and 70 degrees plus temps.

Eventually Id like to reload and figure a hot loading would do better with a 1 in 9 twist. Buffalo bore 77 gr loads are getting 2850 out of a 20 inch barrel for example.

I fired 2 boxes of 77 gr otm rounds at 100 yards and accuracy was about 2.5 moa. No key holing.

My question is can a 20 inch 1 in 9 twist adequately stabilize the 77 grain smk with my atmospheric conditions?


Gohring65

Defective insubordinate & Fry Cook
Full Member
Minuteman
  • Feb 13, 2017
    1,259
    1,008
    Ohio
    Your altitude and temps will definitely help. What’s your Sg?

    • Like
    Reactions: Davo308

    John Glidewell

    Rag Hole Precision
    Supporter
    Full Member
    Minuteman
    Apr 26, 2018
    953
    686
    Reno, NV

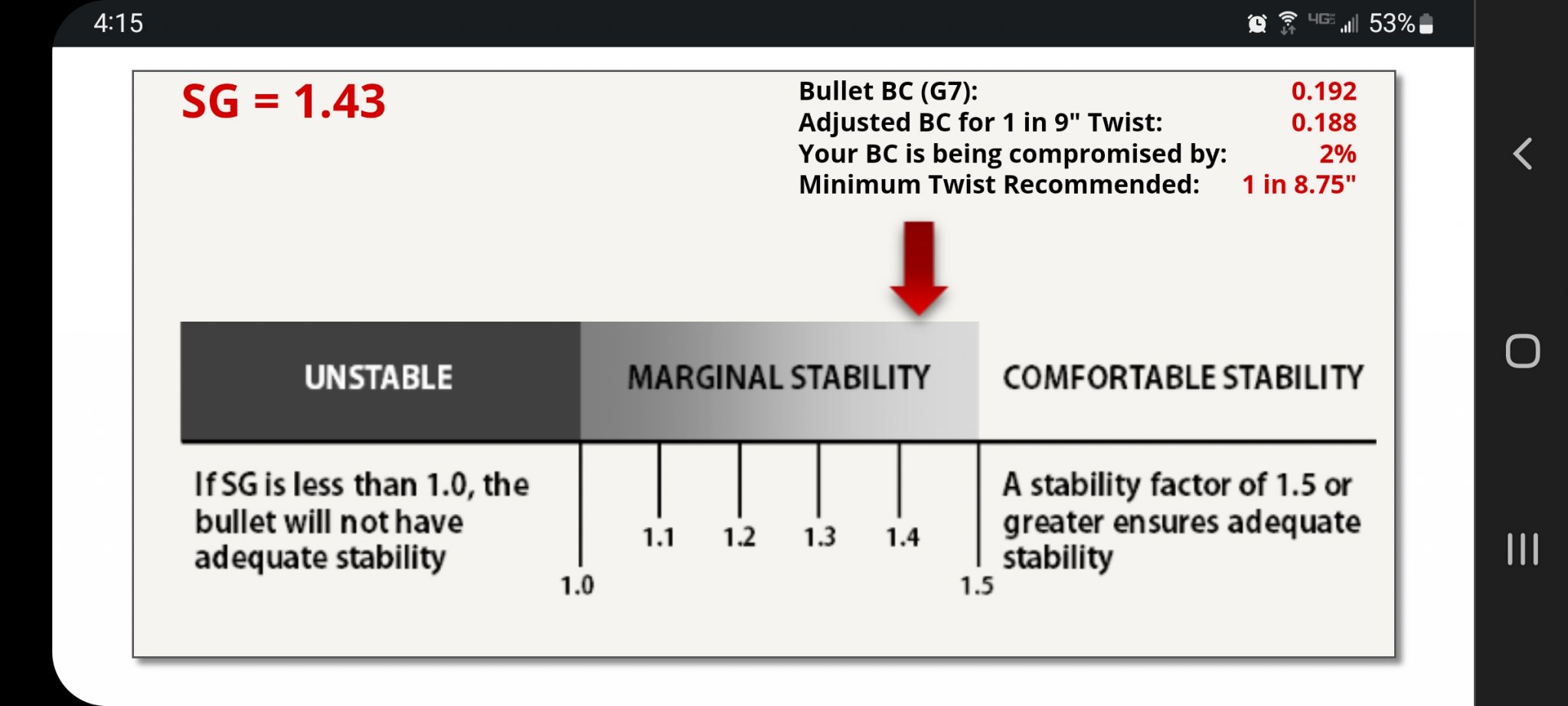

    I plugged a 77 otm in the Berger calculator. 2850 fps at 2000 altitude. Came back as marginal. I have a 9 twist and run 73s as it is very finiky with anything heavier. Mine shoots 73 BT bergers really well.



    Davo308

    Major Hide Member
    Full Member
    Minuteman
    Feb 18, 2019
    1,611
    4,154
    Stability factor
    At 2650 muzzle velocity...
    Sg: 1.78
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    At 2750 muzzle veloity...

    Sg: 1.81
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    At 2850 mv ( Buffalo bore spec)

    Sg: 1.83
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.


    Projectile length of 0.95 inches.


    Gohring65

    Defective insubordinate & Fry Cook
    Full Member
    Minuteman
  • Feb 13, 2017
    1,259
    1,008
    Ohio
    At 2650 muzzle velocity...
    Sg: 1.78
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    At 2750 muzzle veloity...

    Sg: 1.81
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    At 2850 mv ( Buffalo bore spec)

    Sg: 1.83
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    You’re good with those numbers.

    • Love
    Reactions: Davo308

    John Glidewell

    Rag Hole Precision
    Supporter
    Full Member
    Minuteman
    Apr 26, 2018
    953
    686
    Reno, NV
    Yes. I did multiple Temps. At 95 degrees it goes to a 1.52. Might be worth trying. Me, if I had 69s or 73s I would run those. 9 twist tops out (typically) at 75gr. But different bullets, barrels etc. Just my .02.

    • Like
    Reactions: Gohring65

    Gohring65

    Defective insubordinate & Fry Cook
    Full Member
    Minuteman
  • Feb 13, 2017
    1,259
    1,008
    Ohio
    Yes. I did multiple Temps. At 95 degrees it goes to a 1.52. Might be worth trying. Me, if I had 69s or 73s I would run those. 9 twist tops out (typically) at 75gr. But different bullets, barrels etc. Just my .02.
    I wasn’t swiping at you, I just wondered if you entered his temp or not. I figured you probably did, but wanted to satisfy my curiosity. I always ran the 68 bthp in my colt hbar 9 twist and did very well to 550 yards.


    John Glidewell

    Rag Hole Precision
    Supporter
    Full Member
    Minuteman
    Apr 26, 2018
    953
    686
    Reno, NV
    I wasn’t swiping at you, I just wondered if you entered his temp or not. I figured you probably did, but wanted to satisfy my curiosity. I always ran the 68 bthp in my colt hbar 9 twist and did very well to 550 yards.
    Not worries, did not take it as a swipe. I ran 73s at 2960, yes that was a bit warm, but it shot lights out. I ran that at a milk jug challenge and had impacts at 1k, 1200 and 9th round impact at 1500 yards. It was dying at 1500. Bryce ran his 223 as well and his 77gr stuck in the backer at 1500 after going through water filled milk jug. I think he was pushing the 77 at 2850.


    sakobob

    OAF in training
    Full Member
    Minuteman
    Aug 7, 2012
    496
    5
    ohio
    It's doing 2.5 moa at 100....the bullet isn't working in your barrel...plain and simple.
    Buy a 7 twist and be done with it , at today's ammo prices you'll have paid for a barrel by the time you figure out your 9 twist isn't happy with a 77gr


    Davo308

    Major Hide Member
    Full Member
    Minuteman
    Feb 18, 2019
    1,611
    4,154
    At 2650 muzzle velocity...
    Sg: 1.78
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    At 2750 muzzle veloity...

    Sg: 1.81
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.

    At 2850 mv ( Buffalo bore spec)

    Sg: 1.83
    The bullet will be well stabilized and yaw will be minimized. This is a good twist for maximum ballistic performance.


    Projectile length of 0.95 inches.

    Update berger calculator using 0.994 projectile length is still 0.51 stability factor at 2750 fps.


    bfoosh006

    Sergeant
    Full Member
    Minuteman
  • Jun 13, 2007
    1,400
    602
    PNW
    FWIW... I'd suggest making sure your barrels twist is truly 1n9.
    Lots of barrels can be faster or slower than the stated twist rate.
    It's doing 2.5 moa at 100....the bullet isn't working in your barrel...plain and simple.
    Buy a 7 twist and be done with it , at today's ammo prices you'll have paid for a barrel by the time you figure out your 9 twist isn't happy with a 77gr

    And this... is very true.

    • Like
    Reactions: Davo308

    Gohring65

    Defective insubordinate & Fry Cook
    Full Member
    Minuteman
  • Feb 13, 2017
    1,259
    1,008
    Ohio
    You should reload if you’re going after precision in a AR.


    Phil McGrath

    Private
    Full Member
    Minuteman
    Sep 26, 2007
    75
    47
    With a 1/9 tube it’s hit or miss with the 77’s. Those that I have seen that didn’t they did prefer the 75’s, so with that said your going to have too find out for yourself.

    • Like
    Reactions: Davo308

    Biggy

    Full Member
    Full Member
    Minuteman
    Jul 25, 2005
    459
    22
    New Knoxville ,Ohio
    IMHO and in barrel makers opinions, 77gr or above = 1 in 7 or 1 in 7.7 twist is best and 1 in 8 twist depending on the barrel length can be good to very good.


    Molon

    Sergeant of the Hide
    Full Member
    Minuteman
    Feb 26, 2020
    423
    996
    . . . 1 in 8 twist depending on the barrel length . . .

    It’s largely Internet myth that bullet stability increases with increasing barrel length. Technically, the gyroscopic stability factor does increase with increased barrel length, however the amount that it increases is miniscule and lost in the noise of other variables.

    As an example, the 55 grain bullet in M193 will have a gyroscopic stability factor of approximately 4.25 when fired from a 14.5” Colt M4 barrel. When the same M193 round is fired from the 5.75” longer barrel of the 20” Colt A2 barrel, the gyroscopic stability factor of the 55 grain bullet only increases to approximately 4.27.

    While the increased RPM due to the faster velocity will act to increase the bullet stability, the increased velocity also “increases the force applied to the nose of the bullet at the center of pressure and strengthens the overturning aerodynamic torque which actually makes the bullet less stable.”* These two opposing dynamics are the reason for the miniscule increase in gyroscopic stability factor.


    * From Applied Ballistcs For Long-Range Shooting by Bryan Litz


    The 0.58 MOA 10-shot group pictured below was fired from a semi-automatic AR-15 with a 1:8" twist barrel, using hand-loads topped with the Sierra 77 grain MatchKing.




    .....

    Last edited:

    Gohring65

    Defective insubordinate & Fry Cook
    Full Member
    Minuteman
  • Feb 13, 2017
    1,259
    1,008
    Ohio
    This was never intended to be a precision ar.

    Just a Jack of all trades with the realization that most. Of my ammo is xm193.

    I didn't even know about 77 grain smks till years later
    It’s hard to judge a rifles capability with one brand of factory ammo. You’re chasing your tail trying to figure out what’s wrong without using multiple brands of ammo. That’s where reloading can give you options.


    reubenski

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 8, 2008
    6,478
    7,058
    To
    It’s largely Internet myth that bullet stability increases with increasing barrel length. Technically, the gyroscopic stability factor does increase with increased barrel length, however the amount that it increases is miniscule and lost in the noise of other variables.

    As an example, the 55 grain bullet in M193 will have a gyroscopic stability factor of approximately 4.25 when fired from a 14.5” Colt M4 barrel. When the same M193 round is fired from the 5.75” longer barrel of the 20” Colt A2 barrel, the gyroscopic stability factor of the 55 grain bullet only increases to approximately 4.27.

    While the increased RPM due to the faster velocity will act to increase the bullet stability, the increased velocity also “increases the force applied to the nose of the bullet at the center of pressure and strengthens the overturning aerodynamic torque which actually makes the bullet less stable.”* These two opposing dynamics are the reason for the miniscule increase in gyroscopic stability factor.


    * From Applied Ballistcs For Long-Range Shooting by Bryan Litz


    The 0.58 MOA 10-shot group pictured below was fired from a semi-automatic AR-15 with a 1:8" twist barrel, using hand-loads topped with the Sierra 77 grain MatchKing.




    .....
    I'm glad you posted that. I don't understand why everyone thinks they need a 1:7" barrel to shoot 75/77gr bullets. That myth comes from mil barrels that need a 1:7" for steel and tungsten core bullets


    Phil McGrath

    Private
    Full Member
    Minuteman
    Sep 26, 2007
    75
    47
    This was never intended to be a precision ar.

    Just a Jack of all trades with the realization that most. Of my ammo is xm193.

    I didn't even know about 77 grain smks till years later

    In that case you can run with just about everything you want too, just know that the 77’s might not agree with your barrel.
