10/22 Accuracy build

Dynamik1

Civilian Contractor
PX Member
Minuteman
I suspect accuracy in a 10/22 comes down to much the same componentry as accuracy in an AR - or really any semi-auto rifle:
  • Favored ammo
  • Chamber cut
  • Barrel to Receiver squareness
  • Trigger
  • Receiver to stock rigidity
  • Bolt to Chamber lockup
But what do you believe has the most impact?
Assume everything is within factory spec, nothing is grossly out of spec.
Arguably, I think:
  1. Find the favored ammo;
  2. With a factory unit, getting the trigger lighter and more consistent should produce better results out of a spec factory barrel/bolt/receiver;
  3. A better trigger needs more stability in the receiver to stock marriage - pillars, bedding or an aftermarket stock would be the next best upgrade ;
  4. With a better trigger and a solid platform the next accuracy improvement would be a better barrel - presumably with a good chamber and square shoulder;
  5. Final piece to the puzzle with a good trigger, stock and barrel would be bolt performance - are there modifications to a factory 10/22 bolt or is a replacement the best option?
What say you? Am I on the right track here?

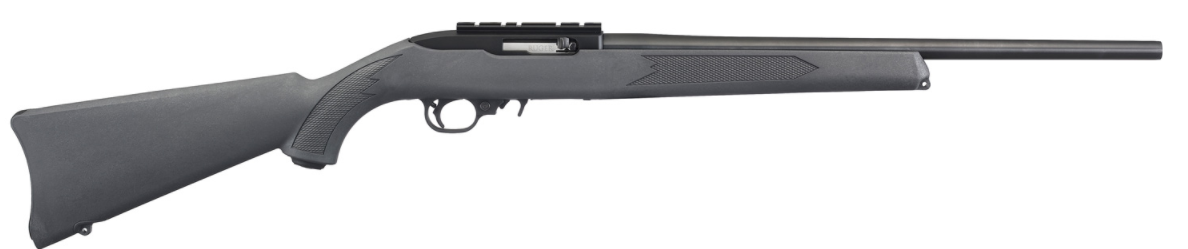

BTW - Newb 10/22 owner just bought a 31145 with 18.5" barrel. Not looking for benchrest accuracy but would like bugholes at 50Y, 1/2MOA at 100Y and 1 MOA out to 300Y

I intend to take a quais-scientific approach with this rifle as follows:
  1. Clean, lube, replace Weaver rail with DIP 25 MOA rail and Athlon Talos 4014 FFP scope then shoot to find it's favorite ammo flavor
  2. Brimstone Level 2 or Kidd Trigger Job kit
  3. Victor Titan, Boyds Pro Varmint, KRG Bravo 10/22 if it ever comes out or possibly Oryx
  4. Kidd or Feddersen barrel
  5. Kidd or Volquartsen bolt tuneup


Last edited:

MPrimo

Sergeant
PX Member
Minuteman
  • Nov 17, 2011
    746
    308
    55
    Orange, CT
    Kidd, Kidd and Kidd ... Barrel, bolt and trigger. But also expensive ...
    I have seen really good results with just a barrel upgrade to Green Mountain and a Timney trigger.
    I have said it before ... the Kidd 2 stage trigger is (to me) about as good as it gets.
    They are fun projects. I have done a few. Not sure true and repeatable .5 MOA @100 is a reasonable expectation but everyone should have a goal!


    Dynamik1

    Civilian Contractor
    PX Member
    Minuteman
    I have said it before ... the Kidd 2 stage trigger is (to me) about as good as it gets.
    Yeah - $289 is steep. Maybe they'll have a Black Friday blowout.

    Not sure true and repeatable .5 MOA @100 is a reasonable expectation but everyone should have a goal!
    Is there something about Rimfire that makes this true? It's surely possible with centerfire.


    nakoa01

    Sergeant of the Hide
    Hessian
    PX Member
    Minuteman
    Jul 2, 2018
    494
    138
    Kidd super grade and 2 stage trigger. Lapua center x.

    Or all Kidd except bartlein barrel and center x

    • Like
    Reactions: Dynamik1

    nakoa01

    Sergeant of the Hide
    Hessian
    PX Member
    Minuteman
    Jul 2, 2018
    494
    138
    For the accuracy your after and consistent dont fool with a 10/22 regardless of who makes it. unless maybe Joe Chicon. Buy a Vudooand center x and forget the rest. And even then your expectations are too steep except fornthe best shooters in the rimfire world


    Moose

    Sergeant
    PX Member
    Minuteman
  • Jul 3, 2005
    1,809
    705
    NJ
    I purchased my 1st 10/22 about 1974 and have built and owned a-lot of them.Now I just call Tony Kidd up and get a Super Grade barreled action with his trigger and it does not get better then that.

    • Like
    Reactions: devildawg2531

    IamJoHo

    PRS Noob
    PX Member
    Minuteman
  • Aug 26, 2019
    174
    45
    36
    Columbus, Oh
    www.facebook.com
    I would say if you want 1/2 moa your best bet would be a Vudoo or possibly one of the other more accurate bolt guns. Sticking with the 10/22 I would say a barrel and bolt from Kidd. Also their trigger.


    devildawg2531

    Private
    PX Member
    Minuteman
    Nov 30, 2013
    46
    6
    USA
    Don't think you will be able to get more accuracy from a 10-22 type than the Kidd rifles. I believe he guarantees at least 1/2 inch group or smaller at 50 yards


    supercorndogs

    Ham Fisted Gorilla
    PX Member
    Minuteman
    Feb 17, 2014
    6,268
    5,164
    Colorado
    10/22 is recoil operated so there is no bolt lock up.

    I put one of the light kid barrels on my 10/22 and it will shoot 1/2" at 50 with automatch.


    accurate obsession

    Private
    PX Member
    Minuteman
    Aug 8, 2017
    200
    173
    I have done what your about to do several times, couple were good one frustrating. It's a fun experience doing all the little tuning alterations to try and squeeze the most from them. But I swear if I were to want another mac-daddy comp auto I will just buy a complete build from Kidd or Tac-Sol, Kidd really.
    One of my better ones is an LVT 10/22 from Accusport, just did all the tuning mods, Kidd trigger(the best-barr none), threaded barrel, bedded action. It's mostly stock, I got lucky with that barrel. On the frustrating one Ruger had/has an issue where some of the barrel bores are not in good alignment with the casting channel, so I have all this high-end peripheral stuff attached to a sub quality receiver and the accuracy has never satisfied me.


    ToddM

    Philanthropist
    Hessian
    PX Member
    Minuteman
    Jul 1, 2008
    900
    260
    PA
    1/2" at 100 with any 22 is a very elite club, with a 10/22 may be near impossible on a repeatable basis. That said some of the guys that do nothing but live eat breath 10/22's are getting consistent 0.2-0.3" groups at 50yds. These are the guys that buy 10 custom spun 10/22 barrels from someone like lijia, bore inspect, slug, and shoot them all, pick the best one, and sell/return the rest. However the time and $ to accomplish said goal is just shy of total insanity IMO :)

    I've chased factory 10/22's before and usually you can end up spending almost as much $ in parts, and significantly more in ammo/frustration, and when you are done you still have a Ruger 10/22 :) I see three paths that minimise the pain of chasing a 10/22.

    Budget: Buy a used factory 10/22, put a green mountain barrel on it, toss in a trigger kit and upgraded bolt, bed the stock of your choice. If it won't shoot pretty well STOP and cut your losses. This is usually a great recipe for a nice field 10/22 for hunting etc.

    Build:
    Pic a custom receiver (Kidd, CST, Volquartsen, etc.)
    Kidd trigger
    Pick a bolt, CST/KIDD etc.
    A chassis with full length forearm that takes advantage of the rear tang (KRG, titan,
    Lijia barrel, or whatever flavor custom you like

    Buy full build or at least barreled action:
    Kidd, Clark, Joe Chacon, etc. You don't hear much about Clark anymore but they're the ones that originally started building heavy barrel 10/22's in the 80's. Add whatever chassis you like.

    Honestly I still feel there's area for improvement in the 10/22 receiver. Volquartsen for example used to do threaded barrels in a steel receiver, but they never did a rear tang action bolt. I'd love to see someone do a steel receiver, machined in pic rail, threaded barrel, and rear tang attachment.
