Does it shoot good?
Checking the bore would be the next step I would take. If no carbon build up in throat and first few inches of barrel then inspection of bore for diameter is needed.

Sounds like size die is not sizing brass enough? If case cannot expand at all this will make pressure higher ... expanding case act like a shock absorber ...same as water on rnd or in chamber causes an over pressure condition on upper end loads.

Hammers with 4166 at 2975 and RL 16 (slow, but I haven’t done much load dev).

The sizing die works fine for the 4166 and Rl16 cases.


The barrel shoots great with other powders no complaints, I just wanted to find a way to make varget work because I have a lot of it. After hearing the loads/velocity everyone is getting here, it’s making me scratch my head. Maybe I have a hot lot of Varget.


Raufoss

Sergeant
Full Member
Minuteman
Nov 23, 2010
505
206
36
Missouri
.006 neck clearance
.100 fb
No donut (bullet is not seated bast neck shoulder junction).

I will check for carbon ring tonight, but it has done this since new.
Adding an extra 0.001" to the freebore diameter (Not lenght) also help getting rid of any potential carbon ring issues.


padom

SuperMod
Staff member
Moderator
Supporter
Full Member
Minuteman
  • Mar 13, 2013
    11,321
    6,812
    Southeastern, Pennsylvania
    Been a while since I did any shooting with my 22BR, had a baby girl 12/27, wife was in hospital 2x with post pregnancy serious infection. Sleepless nights and slammed busy with work. Thank god thats behind us! haha. Shes 7 months now, everyone is good and getting more sleep these days. Finally a little time to play with some of these projects.

    So my custom 22BR reamer came from Manson a few months ago, been sitting in the shop. I have a Bartlein 1:7.5 HV .218 blank that PVA will be chambering this week with my new reamer. Tightened up the neck a little, 0.254 and 0.130 freebore. Also have a 22GT Osprey that Ill compare to the 22BR. So how much faster it is with same bullets and barrel life


    Ubaderb

    Sergeant of the Hide
    Full Member
    Minuteman
    Supporter+
    Oct 15, 2020
    131
    33
    Originally wanted to go GT but I might just do a BR. Problem is I’m loaded down with H4350. Seems like people are having alright results with it. Anyone having recent luck with 88s and H4350?


    towerofpower93

    Private
    Full Member
    Minuteman
    Jul 11, 2010
    557
    291
    39
    Never been a BR/BRA/BRX or GT guy, just a 6.5G and 6.5x47L, but the squat little cases with a .224 bullet sitting on top is starting to intrigue me.

    Please excuse the JV question, but what would the velocity look like when comparing say the 22 Grendel, 22 GT, 22 BR, and 22x47L?

    I know I wouldn't go with something as large as 22 Creed due to the barrel life, but what about the little guys from the Grendel on up? Does the 22x47L also get into barrel burner territory based on the case volume?

    Thanks


    reubenski

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 8, 2008
    7,462
    8,463
    To
    Never been a BR/BRA/BRX or GT guy, just a 6.5G and 6.5x47L, but the squat little cases with a .224 bullet sitting on top is starting to intrigue me.

    Please excuse the JV question, but what would the velocity look like when comparing say the 22 Grendel, 22 GT, 22 BR, and 22x47L?

    I know I wouldn't go with something as large as 22 Creed due to the barrel life, but what about the little guys from the Grendel on up? Does the 22x47L also get into barrel burner territory based on the case volume?

    Thanks
    I can't speak for all of those but for the 22 Grendel you're looking at 2800 - 2850 with 88's out of a 22" AR barrel. The 22 BR is doing about 2950 - 3000 out of the same barrel length. I'm betting the 22x47 is in between 22-250 and 22-250AI/ 6 Creed speeds.

    • Like
    Reactions: 260284

    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    26" 22gt, with 90s and H4350 I never found pressure working up to 3270fps, close tho, alpha brass was just starting to show the ejector slot from the bighorn bolt. I run it at 3100. Good accuracy at 3200 as well, but why burn the throat. I'd think the 22x47 would likely top out 3320-3350. 22creed, mine will push 88s just under 3400......from a 22" barrel. Due to the overbore, i bet a 26" would make near 3500, but jackets may fail. All my fast twist 224 barrels are 219 bore diameter, 8 twist I dont think it matters as much unless you're trying to push lighter bullets at mach speed. If I were to persue a br based variant, I'd go 22 bra with alpha brass. You lose very little to the dasher, but gain fair bit over br. Cases dont grow, they hold pressure very well, long neck is generous for various bullet lengths. I really like my 6bra, stupid accurate rifle.

    • Like
    Reactions: CaptArab

    ballisticdaddy

    Deplorable
    Full Member
    Minuteman
    Feb 14, 2017
    732
    302
    Colorado
    Just loaded a dummy round for my smith....Lapua 6BR brass resized with a cheap Redding full length sizing die, expanded with a .223 mandrel and seated a Berger 85.5 LRHT to 2.330" COAL. Can't wait to start load development for this little cartridge!


    • Like
    Reactions: KnowNothing256

    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,321
    6,812
    Southeastern, Pennsylvania

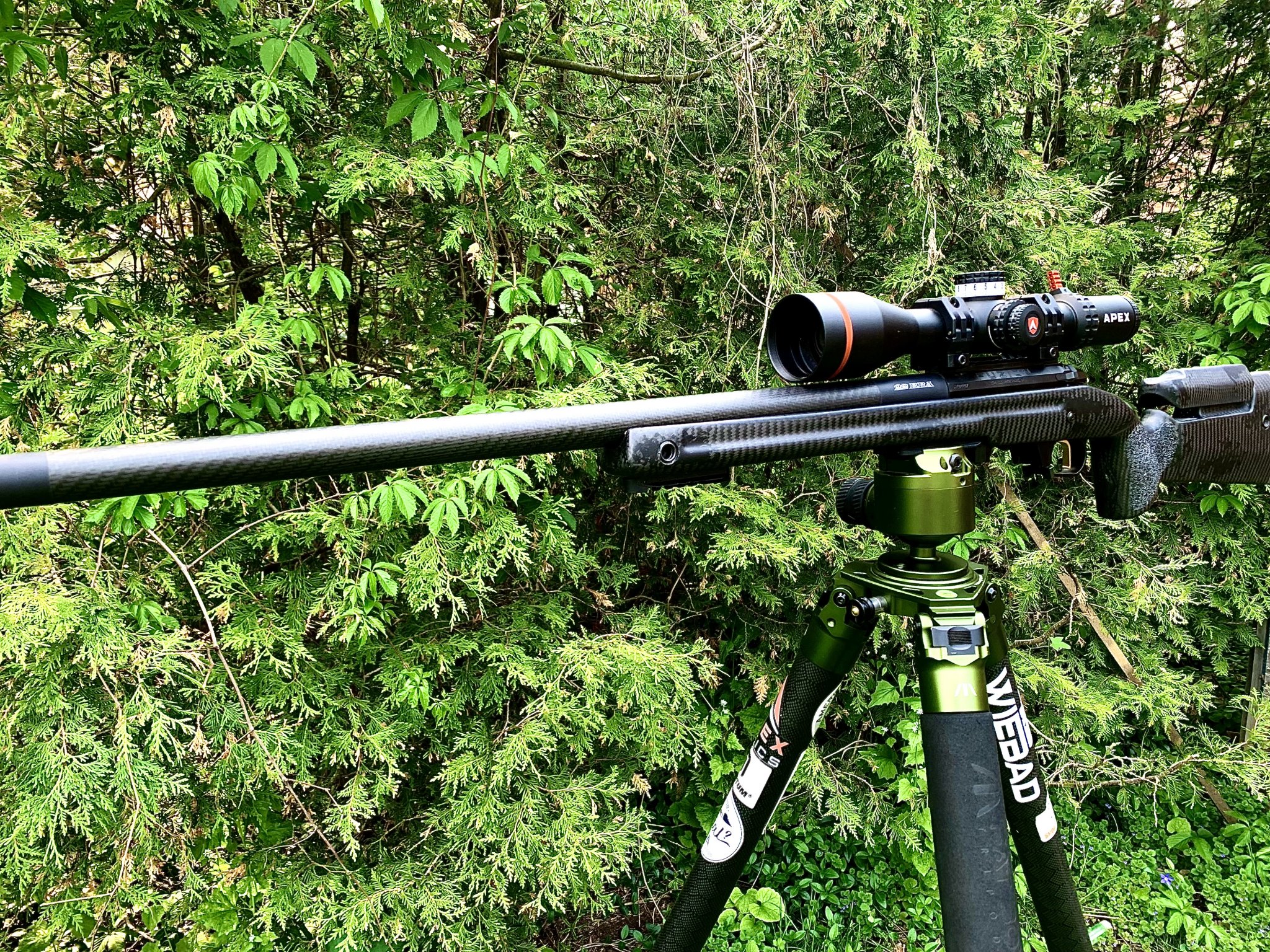

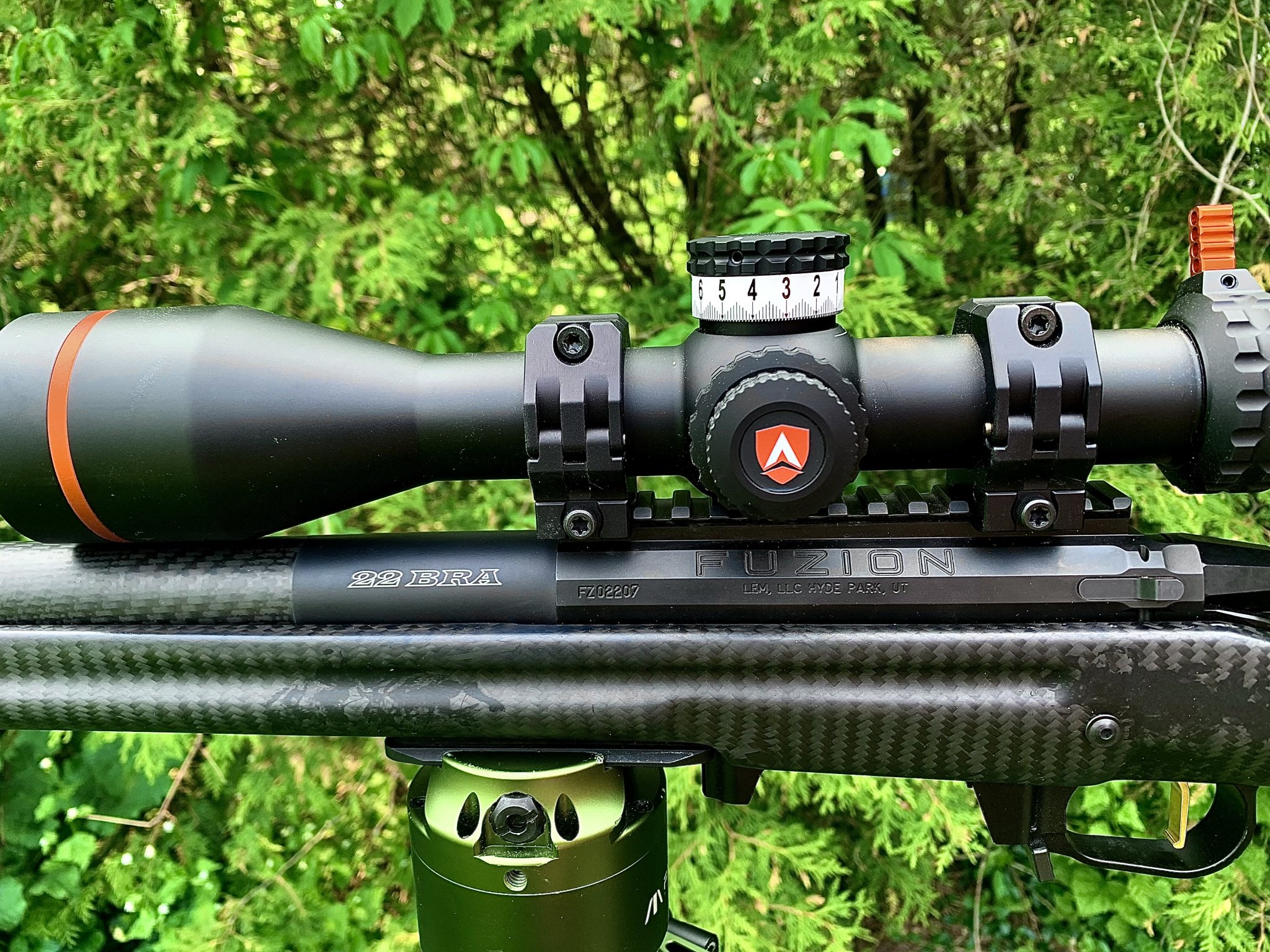

    Results from taking the new 22BR barrel out. 28" Bartlein 1-7.5 Heavy Varmint with my new 22BR reamer I had Manson make for me. 0.130FB and .255 neck on my TL3.

    Loaded up 100pc of brass with a mild load from my other 22BR barrel...29gr 4166, CCI 450, 1xLapua, 88 ELD 0.015 off lands.

    Chrono 10 shots 3020.... SD6





    After 6 shots zeroing I shot this 1st 5 shot group. Good start.



    0.274"




    300yd

    0.952"



    0.604"




    0.600"





    400yd

    0.707"




    1.296"








    Last edited:

    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    Results from taking the new 22BR barrel out. 28" Bartlein 1-7.5 Heavy Varmint with my new 22BR reamer I had Manson make for me. 0.130FB and .255 neck on my TL3.

    Loaded up 100pc of brass with a mild load from my other 22BR barrel...29gr 4166, CCI 450, 1xLapua, 88 ELD 0.015 off lands.
    Man that's so sweet. Good shooting! Makes me want to put a 22bra reamer together. Get away with a lil slower burn rate, run a tad bit more velocity. Plus I already have the dies for 6bra.


    Raufoss

    Sergeant
    Full Member
    Minuteman
    Nov 23, 2010
    505
    206
    36
    Missouri
    Results from taking the new 22BR barrel out. 28" Bartlein 1-7.5 Heavy Varmint with my new 22BR reamer I had Manson make for me. 0.130FB and .255 neck on my TL3.

    Loaded up 100pc of brass with a mild load from my other 22BR barrel...29gr 4166, CCI 450, 1xLapua, 88 ELD 0.015 off lands.

    Chrono 10 shots 3020.... SD6





    After 6 shots zeroing I shot this 1st 5 shot group. Good start.



    0.274"




    300yd

    0.952"



    0.604"




    0.600"





    400yd

    0.707"




    1.296"








    Good stuff! What's the color of that chassis?

    • Like
    Reactions: padom

    Trever

    Private
    Minuteman
    Jun 25, 2014
    12
    2
    Utah
    Since the dasher is in the br family, would this thread be helpful in load dev for a 22 dasher?


    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,935
    1,224
    One thing that cost me a few pieces of brass was insufficient outside chamfer. Once I put a good chamfer on, I did all my necking down in one step. Used a honed Forster die, went straight to my target neck OD (0.004" under loaded).


    NFshooter150

    Sergeant of the Hide
    Full Member
    Minuteman
    Aug 16, 2022
    201
    53
    Idaho
    Worked up 88 eld's with varget and reloder 16 in a 21" Shilen 1-7".

    Varget didn't seem to wanna shoot good anywhwere near like 16 but velocity was a little better.

    2,950 with a case load of 16.

    Need to chrony and check es/sd
    Have you ever tried n150?


    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    Anyone have a JGS 255nk 130 freebore(225 diameter) they'd be willing lend to Manzella Precision to chamber my new barrel? I'll pay a wear/tear fee and all shipping.

    Last edited:

    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    @padom are you neck turning on the new 254 nk chamber? Seems like most are using 255nk.

    Curious what loaded neck diameter you guys are getting with necked down unturned lapua? I figured it'd be around 0.250", speccing out a reamer for order right now.

    I don't have br dies, so I'm looking at Wilson or Harrels FL bushing dies. Might as well go with the a 6br die, as it's multi use over the 22br available from Wilson.


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,321
    6,812
    Southeastern, Pennsylvania
    @padom are you neck turning on the new 254 nk chamber? Seems like most are using 255nk.

    Curious what loaded neck diameter you guys are getting with necked down unturned lapua? I figured it'd be around 0.250", speccing out a reamer for order right now.

    I don't have br dies, so I'm looking at Wilson or Harrels FL bushing dies. Might as well go with the a 6br die, as it's multi use over the 22br available from Wilson.

    Nope and have plenty of clearance. I tightened my neck up a hair because of my fired vs loaded neck diameter difference. Leaves me .002 per side

    • Like
    Reactions: 4O6shootist

    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,321
    6,812
    Southeastern, Pennsylvania
    Nope and have plenty of clearance. I tightened my neck up a hair because of my fired vs loaded neck diameter difference. Leaves me .002 per side

    I just checked my print...my new reamer has a .255 neck not .254! My mistake...the PVA had a .256 neck...I tightened it up .001

    • Like
    Reactions: 4O6shootist

    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    I've found amp 6br aztec anneal code to be 152-155 depending on load psi, anyone use the aztec for 22br? Is it near 165/170 to heat the small necks up? Lapua 22cm turned is 175 aztec in my testing.


    ZY100

    Supporter
    Supporter
    Full Member
    Minuteman
    Oct 13, 2007
    682
    398
    VA
    I am getting an AZTEC code of 0155 for my 6BRA and 0158 for the 22BR.

    I anneal every firing and both shooting very well.

    Last edited:

    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    My PVA blank will be at my smith this week and done by end of October. Using a Prometheus action and XLR element chassis.

    • Like
    Reactions: Hussell

    ballisticdaddy

    Deplorable
    Full Member
    Minuteman
    Feb 14, 2017
    732
    302
    Colorado
    I am getting an AZTEC code of 155 for my 6BRA and 158 for the 22BR.

    I anneal every firing and both shooting very well.
    For every Aztec setting I have analyzed it comes back with a four digit code, screenshot from the AMP website is shown below...

    Screen Shot 2022-10-03 at 12.07.07 PM.png


    ballisticdaddy

    Deplorable
    Full Member
    Minuteman
    Feb 14, 2017
    732
    302
    Colorado
    200 pieces of brass necked down and picking up my barreled action on 10-19, can't wait to get some rounds down range!


    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    What are y'all trimming your brass length to?

    Doc


    ballisticdaddy

    Deplorable
    Full Member
    Minuteman
    Feb 14, 2017
    732
    302
    Colorado

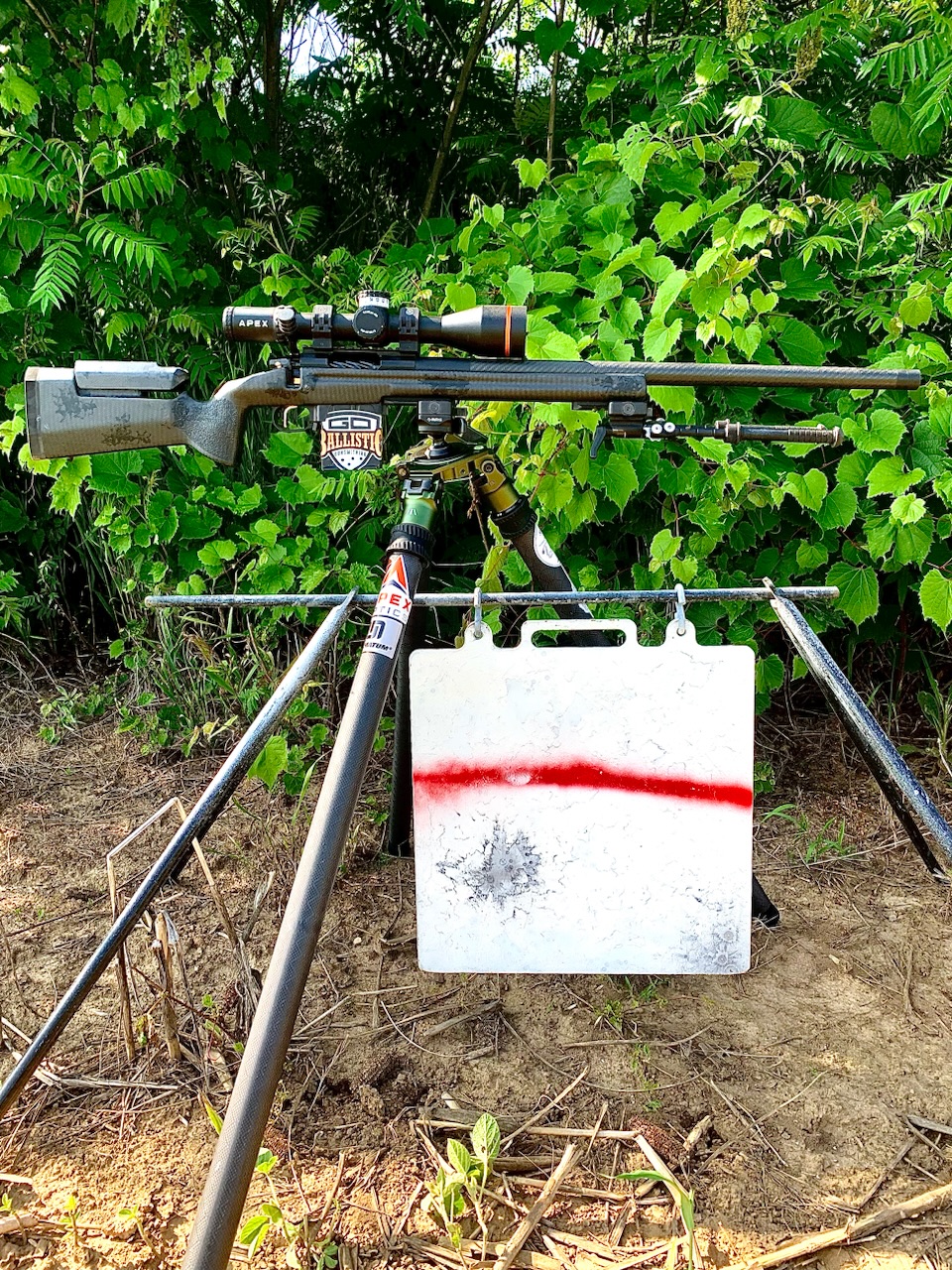

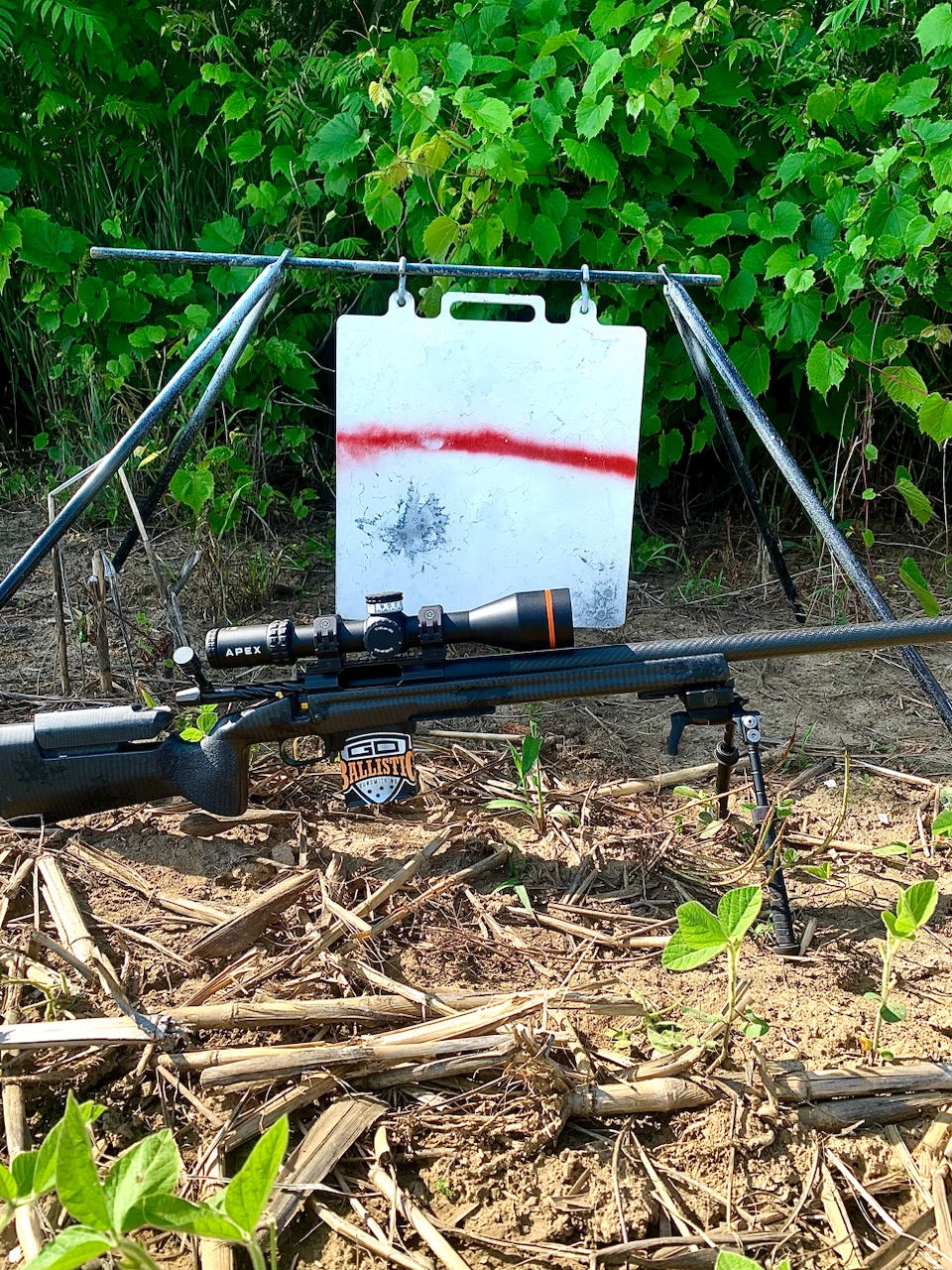

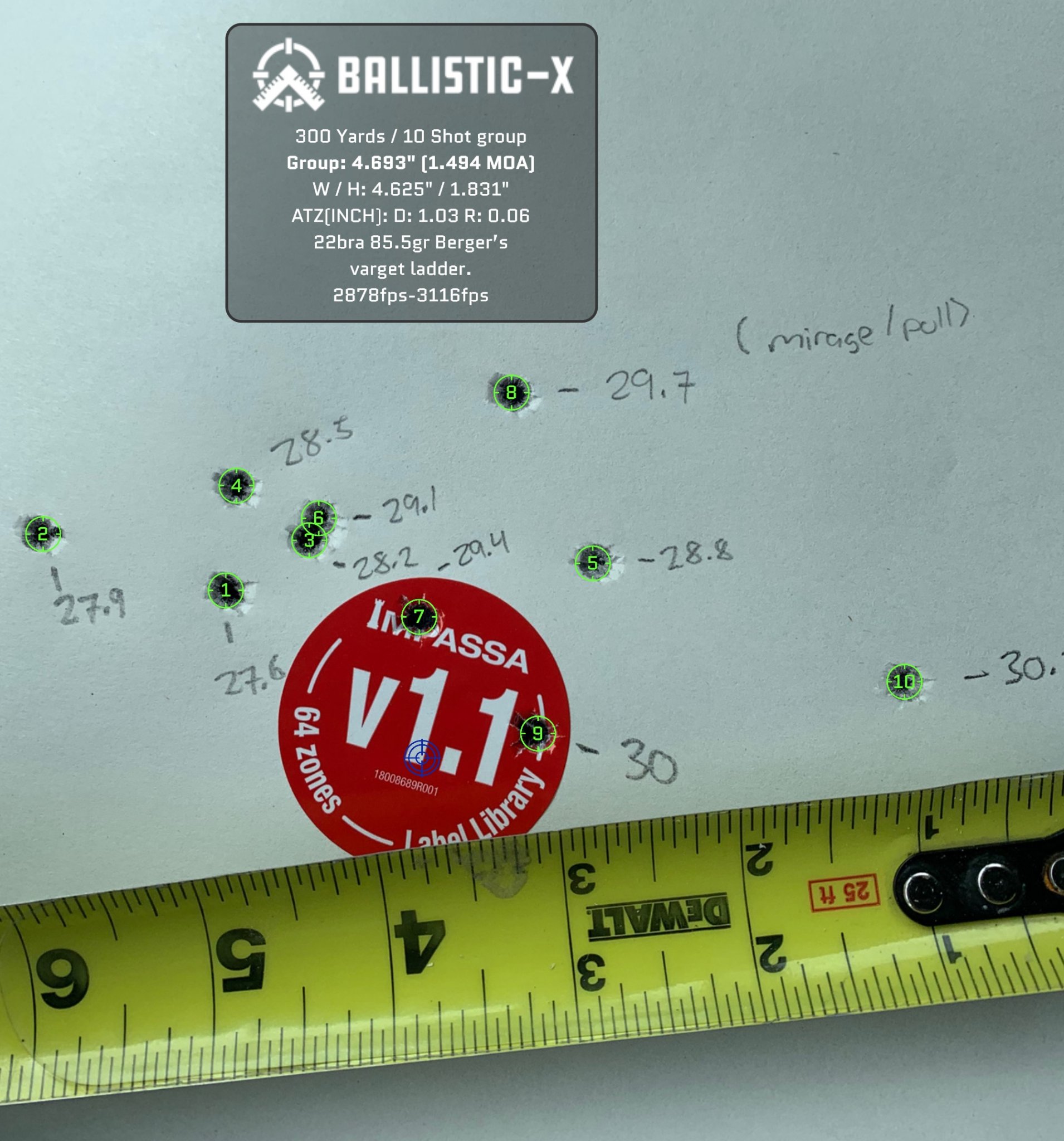

    Finally got some time to get some rounds down range, started with seating depth while the barrel speeds up. Starting load of 27.0 grains of Varget with the Berger 85.5 hybrid seated with .005 jump gave me 2,832 fps. Group shown below are shots 9-11 out of the Benchmark 1:7.5 twist in MTU contour finished at 26" and for those that believe shooting suppressed compromises accuracy........

    IMG_2632.jpg IMG_2635.jpg Ballistic-X-Export-2022-10-29 14:53:32.856598.jpg


    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    So, I loaded up from 27.6 to 30.4 of varget and an 88gr ELDM and got pressure to the point of popping primers at 30.1.

    Any clue.

    Group for 27.9gr



    Doc


    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    Doc68, any velocity readings on your loads?
    I will get velocities this week at the 27.9 loading. I don't do velocity until I get a good group.

    Sorry.

    Doc


    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    Anyone running lighter bullets? Shorter freebore? Just curious. Pondering a low recoil hunting round, 77tmk have an excellent reputation for killing deer even elk with proper placement. Would likely be a 20" pipe for supressor use.


    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    I'm gonna be loading up some 73gr ELDM today and gonna shoot. I have .050 freebore.

    Doc


    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    I'm gonna be loading up some 73gr ELDM today and gonna shoot. I have .050 freebore.

    Doc
    I'm unning the 75eldm from an 18" 22cm. Loads sub moa at 400y with no powder tune, just some seating depth tweaks. Running 3100fps. Shot two mulies yesterday morning. First was large body buck at 275y(2600fps impact), in the crease, did a 50y death sprint and piled up, massive lung trauma, deer bleed out profusely from the mouth before I got to him, no blood as I cut neck, it was all in the boiler room and on ground. Nickel entrance through a rib, exit was quarter size throug a rib. Next was a younger medium body buck, 475y(2250fps impact), strong crosswind, but my nephew who's never killed a deer, put the bullet at the neck shoulder junction, pencil entrance, quarter exit. That deer was lights out. I was impressed with bullet performance. This load is no pressure, and is only 40gr H4350 I feel another 150fps is on the table. I also only have 65 rounds down the pipe but has already speed up 50-60 from first 20 rounds.

    • Like
    Reactions: 260284

    260284

    Sergeant
    Supporter
    Full Member
    Minuteman
  • Feb 15, 2017
    2,049
    1,432
    55
    Kansas
    I'm unning the 75eldm from an 18" 22cm. Loads sub moa at 400y with no powder tune, just some seating depth tweaks. Running 3100fps. Shot two mulies yesterday morning. First was large body buck at 275y(2600fps impact), in the crease, did a 50y death sprint and piled up, massive lung trauma, deer bleed out profusely from the mouth before I got to him, no blood as I cut neck, it was all in the boiler room and on ground. Nickel entrance through a rib, exit was quarter size throug a rib. Next was a younger medium body buck, 475y(2250fps impact), strong crosswind, but my nephew who's never killed a deer, put the bullet at the neck shoulder junction, pencil entrance, quarter exit. That deer was lights out. I was impressed with bullet performance. This load is no pressure, and is only 40gr H4350 I feel another 150fps is on the table. I also only have 65 rounds down the pipe but has already speed up 50-60 from first 20 rounds.
    What twist is the barrel?


    4O6shootist

    F. J. B.
    Supporter
    Full Member
    Minuteman
    Supporter+
    Sep 5, 2021
    1,397
    809
    Montana
    What twist is the barrel?
    7tw osprey 219 bore at 18" I will likely run 88s for hunting at around 3000fps or so. Faster velocity makes em prone to over expansion for splashy results on game. My 22br reamer is ordered will be 0.140 freebore for heavies like the 90atip. My 22cm is freebore at 0.120 and works with 75s seated 37k off lands. They're well above neck shoulder junction. As throat wears away I'll likely switch to 77tmk as the bearing surface is quite a bit longer.

    Edit for grammar.

    Last edited:
    • Like
    Reactions: 260284

    ballisticdaddy

    Deplorable
    Full Member
    Minuteman
    Feb 14, 2017
    732
    302
    Colorado
    Finally got some time to get some rounds down range, started with seating depth while the barrel speeds up. Starting load of 27.0 grains of Varget with the Berger 85.5 hybrid seated with .005 jump gave me 2,832 fps. Group shown below are shots 9-11 out of the Benchmark 1:7.5 twist in MTU contour finished at 26" and for those that believe shooting suppressed compromises accuracy........

    View attachment 7986835 View attachment 7986837 View attachment 7986840
    Got the Labradar out this weekend and settled on charge weight of 29.1 grains of Varget which got me 2,992 FPS with ES of 9 and SD of 5.0

    • Like
    Reactions: Doc68 and 260284

    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    Well I found a load my rifle loves. 75gr eldM seated to lands and 28.9 of varget. Gonna get some velocities this week at some point. .4 MOA in 7 groups this past Sunday.

    Doc

    • Like
    Reactions: ballisticdaddy

    Doc68

    I don't care what you fucking think
    Full Member
    Minuteman
    Supporter+
  • Feb 17, 2014
    5,167
    11,403
    USA
    So my load with 28.9gr and 75gr ELD sitting on the lands and CCI450 primer with Lapua formed brass and shoulder set back .002 Sizing with a .249 bushing gives me .002 neck tension is 3189 average. 7SD with 27 ES.

    100yds for groups

    ETA: velocity/distance for groups.

    Pics of groups. Colored box is a 1/4". All groups are 5rds.


    Last edited:
    • Like
    Reactions: 260284

    KnowNothing256

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Jan 9, 2020
    1,935
    1,224
    So my load with 28.9gr and 75gr ELD sitting on the lands and CCI450 primer with Lapua formed brass and shoulder set back .002 Sizing with a .249 bushing gives me .002 neck tension is 2978 average. 7SD with 27 ES.

    Pics of groups. Colored box is a 1/4". All groups are 5rds.

    View attachment 7995705View attachment 7995706View attachment 7995707View attachment 7995708View attachment 7995709View attachment 7995710View attachment 7995711
    100 yards? And that colored square looks to be 1/2" if those are 22-cal holes.

    What's your use case? Did you try any jump?
