.375 Swiss P bullet

Mr.BR

Private
Full Member
Minuteman
Oct 5, 2017
2,214
2,633
Ruag is touting this design as some new BC gain in bullet design over a traditional hollow tip!? Looks like a traditional FMJ and ball used to stop the lead plug from filling the tip.

Anyone not following the scene .375 Swiss P is meant as a service cartridge to be shoot from actions with .338LM bolt face and mags , with .350g bullet it offers higher BC bullets and more energy on target at extended ranges.


https://www.edrmagazine.eu/ruag-ammotec-375-swiss-p-improved-performance-made-easy

Um-die-Toppraezision-zu-steigern-wurde-der-Schwerpunkt-des-.375-SWISS-P-Projektils-moeglichst-weit-in-den-hinteren-Bereich-des-Projektils-verlagert.-2048x1351.jpg

Last edited:

THEIS

Hi, Sincerely
Supporter
Commercial Supporter
Full Member
Minuteman
  • Hi,

    That BC is actually on the low side being it is a 350gr projectile though.

    I didn't take it as if they were attempting to push this as a BC upgrade but more of an energy upgrade without having to upgrade weapon systems.

    I will have to pull the CIP specs but it appears to be essentially a LM necked up to 375.

    I am interested in the hardened core version expected later this year :)

    Edited To Add:
    It appears the patent pending "Ball" is their way of reducing BC variations due to the lead core being uneven, I not sure.
    But in theory the ball could keep the lead core from creeping up further on 1 side compared to the other since the ball can only go so high towards the tip it essentially "seals" the lead core into being more evenly situated.

    I will check and see if can find the patent application to find exactly what they are claiming on their side.

    Sincerely,
    Theis

    Last edited:

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    It has a larger diameter rebated case , my take on it is that it .375 will offer more in terms of AP bullet design , in other aspects OAL is limiting to use of longer bullets

    *they claim defeating SK4 (german level IV) at 600m , in comparison the Chinese Level IV plate is stopping .338 250gr AP at cca 200m if my recollection is correct


    Notice that CIP approved date is 16.05.2018 so this was slowly cooking for quite some time.


    *

    Last edited:

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    Not yet , waiting for some more first-hand info on the round as they are making some highflying claims but you can see the numbers are out of a 30in barrel and they are comparing mostly to 250grain .338LM , but yes have an action in works for higher pressures and bolt trust than current chamberings, so it would be a shame not to make it with this chambering . Effective against body armor at 600+m is what got me interested.

    Last edited:

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    One way to go about .
    But Ruag offering line of ammo is just right for professional customers ,some of mine already use RUAG for number of calibers .


    W54/XM-388

    Online Training Member
    Supporter
    Full Member
    Minuteman
  • Oct 1, 2005
    10,397
    19,770
    Dallas, TX
    Hi,

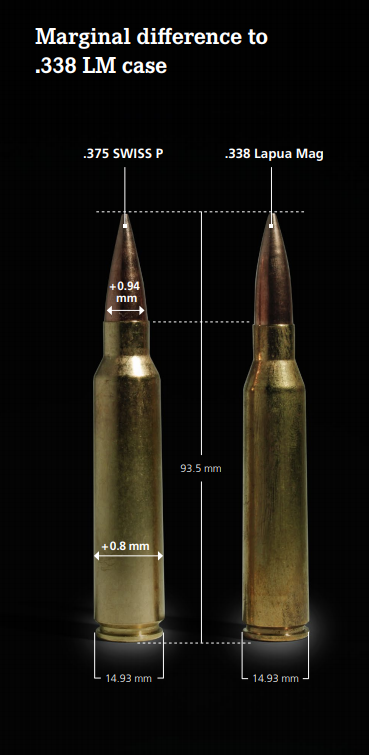

    Picture with case differences listed.
    View attachment 7590870

    Sincerely,
    Theis

    I'm assuming that depending on how the chamber is reamed, you could use the factory ammo which is a bit short and magazine feed it, or if you didn't mind single loading, you could run a longer VLD monolithic projectile?

    Badlands has a 350gr 375gr and 400gr in the .375 ICBM-2 which could be interesting, especially if you could load the rounds a bit hot.


    THEIS

    Hi, Sincerely
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Hi,

    I honestly have not even compared the cartridge drawings of XC and the 375 Swiss P because in reality the benefits of RUAGs 375 Swiss P go well beyond any case capacity benefits.

    1. I would be willing to bet that the number of rounds fired during just the T&E phase of the 375 Swiss P is more (aka more data) than all XC rounds ever loaded.

    2. The issue that pretty much no gov/mil/lea agency (Talking about adopting and utilization, not single unit/entity "testing") will be dealing with an XC of any size (without lots more "things" needing to be done with it) lends the 375 Swiss P to excel in that market space.

    3. The testing house of RUAG in Thun Switzerland is equipped with indoor and outdoor electronic target systems that keep track of accuracy, MV, deviations, etc etc that can not only be shown for the actual string of fire(s) for abc group number but can also overlay ALL of them onto a single screen for real data is another key benefit of the 375 Swiss P.....Its' data can be back up scientifically via real testing equipment.

    Sincerely,
    Theis

    Last edited:

    W54/XM-388

    Online Training Member
    Supporter
    Full Member
    Minuteman
  • Oct 1, 2005
    10,397
    19,770
    Dallas, TX
    I would assume RUAG will use the wide acceptance currently of the .338LM / .338NM / .300NM platforms to their advantage, saying how you can improve your firepower by xxx % with essentially changing barrels and ammunition and not have to swap the actual base weapons themselves (at least on the bolt operated stuff).


    THEIS

    Hi, Sincerely
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • Hi,

    That is exactly what RUAG designed it for. That is exactly what pretty much all their marketing information and documents state.

    Hoplite Arms will be getting sample 375 Swiss P ammo the day after RUAG USA gets their hands on it.
    We are also in discussions of submitting an import license for "experimental purposes" to get the armor piercing version when it becomes available.
    We have reamers and gauges on order from PTG via RUAG and will be sending Manson the information tomorrow to get them going on a set of reamers and gauges too.

    Sincerely,
    Theis


    Ledzep

    Chancellor
    Full Member
    Minuteman
  • Jun 9, 2009
    3,451
    3,123
    NE
    Hi,

    Just in case nobody has paid attention to it, lolol...

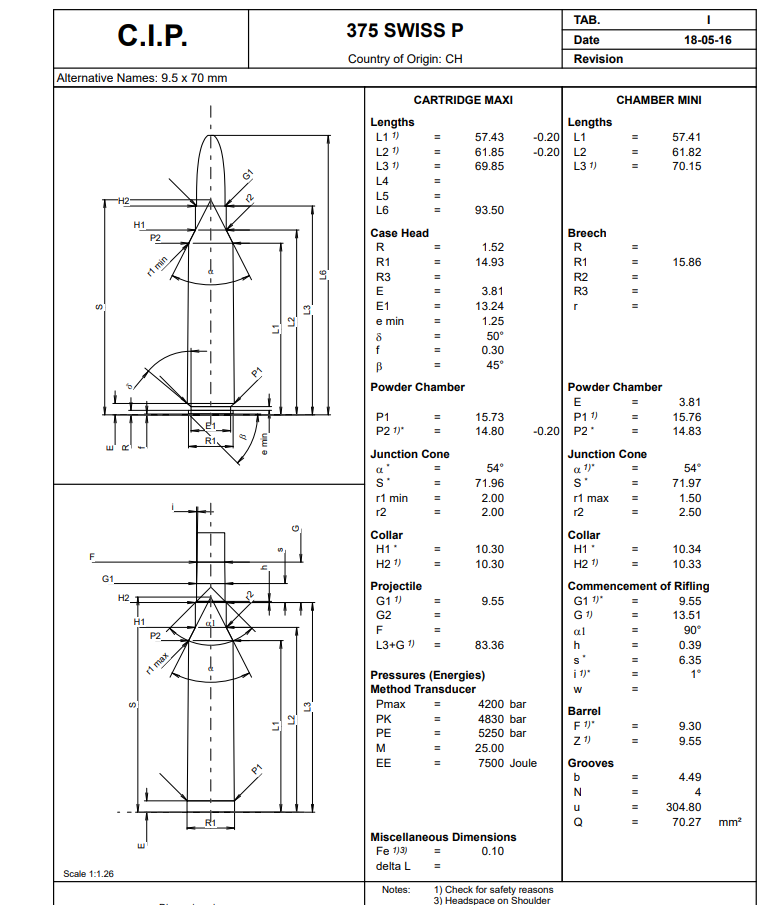

    NOTICE the date in top right of the CIP file....Predates most of the "Big" cases with LM boltface :)

    Sincerely,
    Theis
    There aren't 18 months in a year!

    ETA: On a serious note, looks like a European military thing more than a US commercial market thing. Going to look over the chamber/ammo fit, but stuffing the bullet way back in the case is... not always the best idea.

    ETA2: Chamber looks solid (A little bit of breathing room over bullet dia. in the free bore wouldn't hurt but whatever... Carbon rings clean out). Needs a longer magazine and bullets.

    Last edited:
    • Haha
    Reactions: Bradu

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    PGM Precision is already offering their MINI HÉCATE 2 sniper rifle in .375Swiss P Chambering

    • Like
    Reactions: THEIS

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    Not really, but in this case was just a question of when not if.

    *Add Voere to the list they offer the caliber in their X3, X4 and X5

    Kinda surprised PGM/F.N. is ahead of its Swiss clone B&T aka Euro Chinaman on this one.

    Last edited:

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    I guess B&T .... is kinda like if Forgotten Weapons was a firearms manufacturing business, spending much of their time and effort looking for long-abandoned European guns to resurrect, and the sniper rifles department is just a side hustle running on a project they dredged up when Unique went bust. :eek:


    Just Macca

    Mealteam 6
    Full Member
    Minuteman
    May 13, 2013
    473
    275
    Australia
    So is there higher pressures or increased bolt thrust over a 338LM? As already covered, I’m assuming a design goal was the use of preexisting 338LM/300NM rifles.

    • Like
    Reactions: LastShot300

    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    Increased bolt thrust due to larger case diameter, both .338LM and .375Swiss P spec 4200Bar pressure .

    Ammo will be available supposedly sometime April, the AP version is expected to be available from the end of 2021.
    Currently, PGM and Voere offer the new caliber in their rilfes. For the time being, the .375 Swiss P is intended only for military/LE users.

    Last edited:

    Geno C.

    Dirty Carnie
    Full Member
    Minuteman
  • Oct 24, 2007
    6,272
    14,562
    37
    Wautoma, WI
    Hi,

    We got the 215gr 30s in the 300NM to fit into CIP LM magazine :)

    I thinking the 285gr 338s on the Swiss P with staked primers, lol

    Sincerely,
    Theis
    There’s a lot of bullet ahead of the bearing surface of that 285. Without measuring, I would guess to seat mag length, the bearing surface would be below the neck. But that’s without measuring. It’s almost as long as the 350gr 375 bullet


    THEIS

    Hi, Sincerely
    Supporter
    Commercial Supporter
    Full Member
    Minuteman
  • @THEIS
    Check with Ruag Tampa. It might be a source for some of the 375 Swiss P.

    Hi,

    I get my samples the day they clear it from the FTZ. Delivery is set for 5 weeks.

    Been in contact with their Industry Director for the past few days, :)

    Nobody at the USA side has ever put their hands on it yet, lol

    Sincerely,
    Theis

    Last edited:

    W54/XM-388

    Online Training Member
    Supporter
    Full Member
    Minuteman
  • Oct 1, 2005
    10,397
    19,770
    Dallas, TX
    There’s a lot of bullet ahead of the bearing surface of that 285. Without measuring, I would guess to seat mag length, the bearing surface would be below the neck. But that’s without measuring. It’s almost as long as the 350gr 375 bulletView attachment 7593876

    How would the Badlands 350gr .375 projectile compare to those, would it be short enough for the .375 Swiss P in a magazine?


    Steel head

    Feral kitten
    Full Member
    Minuteman
  • Aug 3, 2014
    15,458
    42,685
    Washington
    How would the Badlands 350gr .375 projectile compare to those, would it be short enough for the .375 Swiss P in a magazine?
    It’s about .060 longer than the 285 so stuffed in to the max oal would be about 4” long minimum.
    Maybe Theis can design a 4.25 magazine for lapua boltface cartridges.

    • Like
    Reactions: BCX

    W54/XM-388

    Online Training Member
    Supporter
    Full Member
    Minuteman
  • Oct 1, 2005
    10,397
    19,770
    Dallas, TX
    It’s about .060 longer than the 285 so stuffed in to the max oal would be about 4” long minimum.
    Maybe Theis can design a 4.25 magazine for lapua boltface cartridges.

    Hi,

    That sounds better suited for the Phalanx with BMG magazine length :)

    Sincerely,
    Theis

    So the 350gr ICBM-2 may be out for mag feed, but maybe still work for single feed?
    Badlands shows that as 2.160″ long

    I wonder if the 300gr Bulldozer-2 would be short enough to fit in a magazine fed loading?
    Badlands shows them as 1.695″ long

    They also have a .275gr that they list as 1.595″ long

    Maybe they could make something custom if there was enough interest in a big lot of them?


    Geno C.

    Dirty Carnie
    Full Member
    Minuteman
  • Oct 24, 2007
    6,272
    14,562
    37
    Wautoma, WI
    So the ICBM-2 may be out for mag feed, but maybe still work for single feed?
    Badlands shows that as 2.160″ long

    I wonder if the 300gr Bulldozer-2 would be short enough to fit in a magazine fed loading?
    Badlands shows them as 1.695″ long

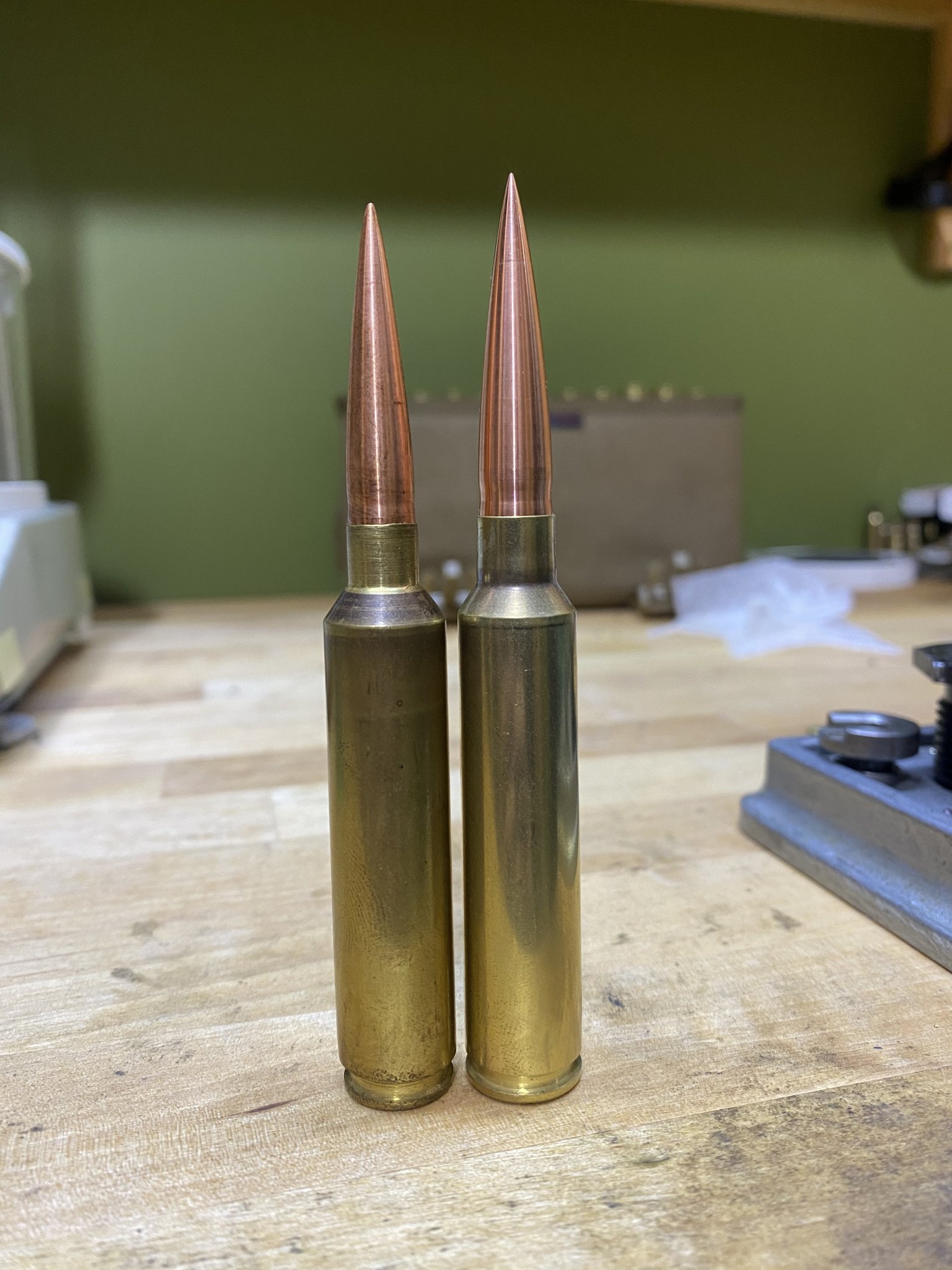

    That pic is the 285 on the left and 350 on the right. Both have a very long ogive. I don’t think they would work in a mag. Like trying to use a 90gr vld in a AR


    W54/XM-388

    Online Training Member
    Supporter
    Full Member
    Minuteman
  • Oct 1, 2005
    10,397
    19,770
    Dallas, TX
    That pic is the 285 on the left and 350 on the right. Both have a very long ogive. I don’t think they would work in a mag. Like trying to use a 90gr vld in a AR

    Thanks, I had misread the caption on the picture.
    The Bulldozer ones look to be shorter and fatter, which might work but I guess they don't quite have the BC of the ICBM ones.


    Geno C.

    Dirty Carnie
    Full Member
    Minuteman
  • Oct 24, 2007
    6,272
    14,562
    37
    Wautoma, WI
    The shorter ones were designed for the 375h&h. Not sure if they’re short enough to work or not


    W54/XM-388

    Online Training Member
    Supporter
    Full Member
    Minuteman
  • Oct 1, 2005
    10,397
    19,770
    Dallas, TX
    So it sounds like somebody(s) needs to buy a bunch of different solids and play crazy reloading day seeing what fits and doesn't...

    • Like
    Reactions: THEIS

    Geno C.

    Dirty Carnie
    Full Member
    Minuteman
  • Oct 24, 2007
    6,272
    14,562
    37
    Wautoma, WI
    It’s easier to just measure. The problem is the about of room from the case mouth to the mag wall isn’t a lot. In order to get a high ish BC the ogive needs to be long. As a single feed it would be ok, but mag fed limits it when it comes to solids.


    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    As i have no rounds on hand at the moment so am guestimating

    Round is designed around jacketed bullets, given the limited length available, only game for solids seems to be raising the MV not so much the BC, and finding some sort of a balance. But remember the LE/MIL crowd especially here in Europe will not be looking at small-scale manufactured ammo they will always look for ammo supplied by a major manufacturer like Ruag, Only solids Ruag will likely have in the lineup early on are the flat nose glass breakers aka Tactical line.

    At present, there is just one load with an FMJ / 22.7 g / 350 gr bullet

    • Like
    Reactions: lash

    Ledzep

    Chancellor
    Full Member
    Minuteman
  • Jun 9, 2009
    3,451
    3,123
    NE
    A guy might also figure if you can eject a loaded round.

    Will the larger body dia. require different magazines?


    MCHOG

    Sergeant of the Hide
    Full Member
    Minuteman
    Dec 6, 2018
    486
    769
    Atlanta, Georgia
    Weird timing. Just saw this where David Tubb necked up a .338 Lapua case for a 375 back at least in 2017 to shoot ELR with his Tubb Gun.



    Mr.BR

    Private
    Full Member
    Minuteman
    Oct 5, 2017
    2,214
    2,633
    I am sure there were a number of wildcats necked up to .375 since the original .338LM appeared but ,CIP standard factory ammo for LE/MIL market is in whole other league. There are possibly less than three such new sniper calibers that appeared in the past decade on the other hand i am pretty sure at least 3 wildcats were made in the past couple of weeks.

    • Like
    Reactions: Geno C. and THEIS
