45-70 1st Time Loading

SmithM21

Private
Minuteman
Jan 16, 2020
75
130
This is the first time I ever loaded 45-70. I did 3 different loads, (29 grs, 30 grs, & 31 grs), using 4198 and 405gr coated lead round nose flat point bullets. These are light loads for my US Springfield 1884 Trapdoor Cadet Rifle.

I only have one turret die plate so I had to put my Lee Crimp Die on my MEC Marksman for the crimp stage. No big deal but I do need to purchase several more Redding Turret Die Plates. The other side of the turret head has my 45 Colt dies.

My first several crimps seemed too tight so I backed it off a little and then set the bullet another .005 into the case. That put the crimp grove on the bullet 3/4 down into the 45-70 case. I still think the crimp is a little to tight but I will see how they shoot at the range. I put tiny dots on my brass to separate the loads incase I loose my documentation.

So far I have loaded 45 Colt and 45-70. on my T7. My next project on the T7 will be making some 300 BO rounds for my son's AAC SB Upper. I do have a chop saw with a 300 BO Jig and dies to convert 223 cases into 300 BO cases. . I have never made or loaded 300 BO so this will be another venture with a caliber that I have never reloaded before like the 45 Colt & 45-70.







  • Like
Reactions: sirhrmechanic

Mike Casselton

Non-Bidenary Trunk Monkey
Full Member
Minuteman
  • Nov 25, 2007
    8,302
    13,514
    Lithia, FL
    Powder coated 45-70 should be lipstick red.

    BTW, for single shot, you probably don't need to crimp them.


    DoctorBen

    Private
    Full Member
    Minuteman
    Dec 7, 2011
    166
    210
    36
    Cincinnati
    Heck, my recipe for 45-70 recipe just involved pouring something in until near full and hammering the bullet down till it looked close enough… still have the lead bricks for melting and casting!

    All joking aside, nice job!


    bobke

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Sep 17, 2010
    1,284
    482
    Hill Country, Texas
    Used to cast most everything I shot in larger bore revolver calibers, and rifle for several including a single cavity 330gr Gould hollow point for an older Marlin 45-70. Netted around 345-350gr in my alloy and water dropped to about 20 BHN. 31ish of IMR4198 and some poly buffer and a tissue wad to fill powder gap was money at 100yds with a Merit disc rear peep sight. Fun to shoot, light recoil, accurate and deadly. Hard hollow point would shed and leave a .458 270gr wadcutter behind to find its final destination. Still have the Marlin and the molds, and still use 4198 for all of my loading. Great project you’ve got going there.

    • Like
    Reactions: camocorvette

    AZgeek

    Private
    Full Member
    Minuteman
    Supporter+
    Sep 30, 2014
    683
    274
    Tucson AZ

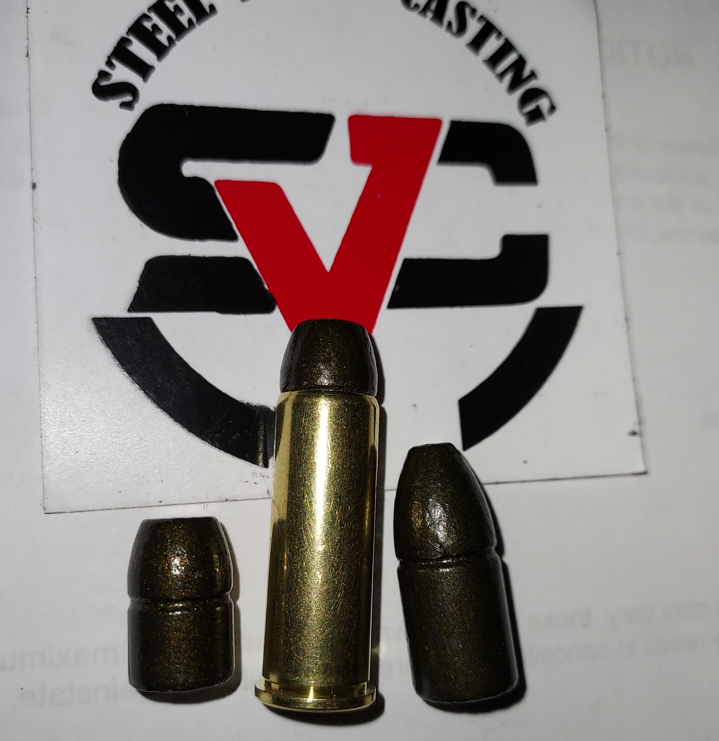

    I'm waiting, waiting and still waiting on a new Ruger Marlin 45-70. Based on my results with Steel Valley Castings .358 and .431 Hi-Tek coated bullets, I'll be trying their 405gr bullet in the new rifle. $68.00 shipped for 250 of them. Their 44 Mag 240 gr bullet (pictured left and middle) is my go-to round. Accurate and VERY good velocity. I can send you a few of the 405's to try since sadly I can't do anything with them at the moment.


    • Like
    Reactions: SmithM21

    bobke

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Sep 17, 2010
    1,284
    482
    Hill Country, Texas
    Have used Montana Bullet Works for years. Excellent quality and lots of options to dial in correct diameter and hardness for your rifle, pistol or revolver.


    SmithM21

    Private
    Minuteman
    Jan 16, 2020
    75
    130
    .45-70 is one of those really fun easy and satisfying cartridges to load. Nice job. Good powder choice too.

    Now if you want to learn to start casting….

    Sirhr
    One of my shooting buddies just retired and purchase casting equipment. I plan to join him and learn how to cast bullets. It will be a learning experience for the both of us.
