Almost Done with my AR10

[Willie16wild]

Its almost done. 6.5 Creedmoor. Just few more things to change. I think i might get a different buffer but dont know yet.

Anyone think the quite jp buffers are a better buffer? I never really looked into buffers till now. I also saw the hydraulic buffers. What do you think of the hydraulic buffers?



[Huskydriver]

Love my jp silent buffers no experience with the hydraulic ones. What caliber and what length gas system?



[Willie16wild]

Love my jp silent buffers no experience with the hydraulic ones. What caliber and what length gas system?

Rifle gas length, superlative adjustable gas block, and sorry i ment to post the caliber. Its 6.5 creedmoor.



[Huskydriver]

You running a sfp?



[Willie16wild]

Sfp? I am not sure what you mean.



[_Windrider_]

Its almost done. 6.5 Creedmoor. Just few more things to change. I think i might get a different buffer but dont know yet.

Anyone think the quite jp buffers are a better buffer? I never really looked into buffers till now. I also saw the hydraulic buffers. What do you think of the hydraulic buffers?

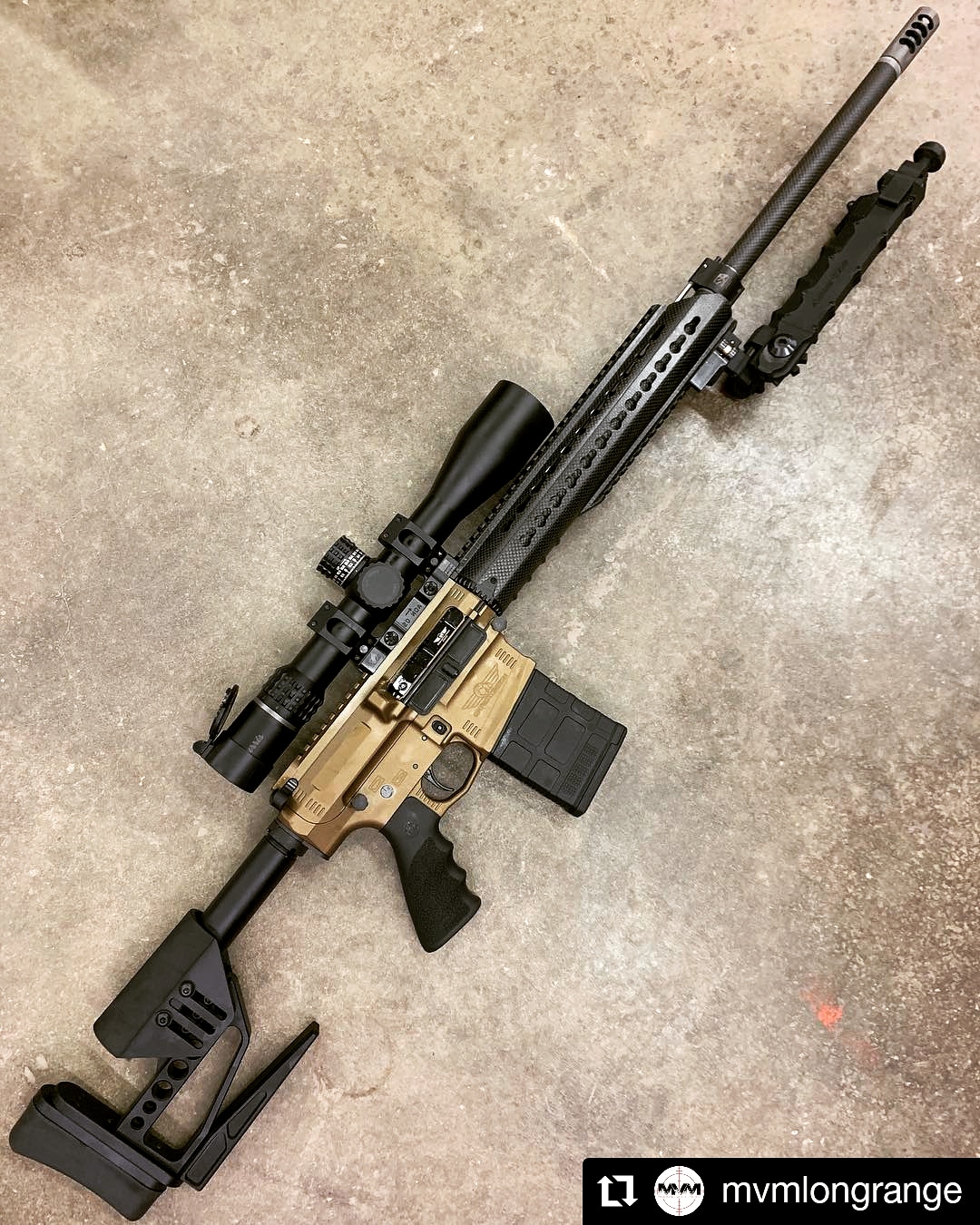

View attachment 7002377

I have a kynshot in an ar15. I like it. Haven’t tried one ina large frame yet.



[_Windrider_]

Sfp? I am not sure what you mean.

Second focal plane



[Willie16wild]

Ok its what i thought you ment. I thought you were talking about the gun it self. I have the burris xtr ii 4-20x50 H59. Its first focal plane. I will only buy ffp.



[Huskydriver]

Small firing pin I'm asking about your bolt



[Willie16wild]

My plan is to put my m5xi with h59 reticle, but i have not received it yet. With GDI scope mount that has 25moa. Very excited about the trying that mount out.



[_Windrider_]

Small firing pin I'm asking about your bolt

I was WAY off



[Willie16wild]

Small firing pin I'm asking about your bolt

Lol ok i got you. I am not actually sure cause i never looked at it while i have had it apart. This rifle is the ca-10 made by Christensen arms.

Only changes i have made to it is the adjustable gas block from superlative. It is making bad ejector marks on my brass where its stamped at. So i am trying to get rid of it. I thought a better buffer might help but don't know.



[Darqusoull13]

Lol ok i got you. I am not actually sure cause i never looked at it while i have had it apart. This rifle is the ca-10 made by Christensen arms.

Only changes i have made to it is the adjustable gas block from superlative. It is making bad ejector marks on my brass where its stamped at. So i am trying to get rid of it. I thought a better buffer might help but don't know.

The JP silent spring system will get rid of the sproing sound and really smooth out the cycle. Ususally the Heavy (JPSCS2-10H2) is recommended for 6.5 Creed due to the higher pressure.

Try the JP buffer and also turn down the gas until you just lock the bolt back, then open a click or 2 more and see how your brass looks.



[Maxduty]

I've got an Odin adjustable block on my .308 Ar and still get swipe marks on the rim. But it's punching 3/4 inch groups at 200 yards, so I'm going to stop messing with it. Mine will lock the bolt back with 168s, but fails to with 175s. I think it's tuned.



[DRAM40A1]

What buffer is currently installed? Heavier will definitely help eliminate the ejector swipes.



[BCP]

I would use a completely vanilla A2 308 buffer

Your adjustable gas block should tame the cycling quite well



[Maxduty]

What buffer is currently installed? Heavier will definitely help eliminate the ejector swipes.

Mine would appear the be the PSA10 carbine length buffer and spring. It's the factory ones they used on complete rifles.



[Willie16wild]

What buffer is currently installed? Heavier will definitely help eliminate the ejector swipes.

Pretty sure i have a carbine buffer. Thats what came installed with it.



[DRAM40A1]

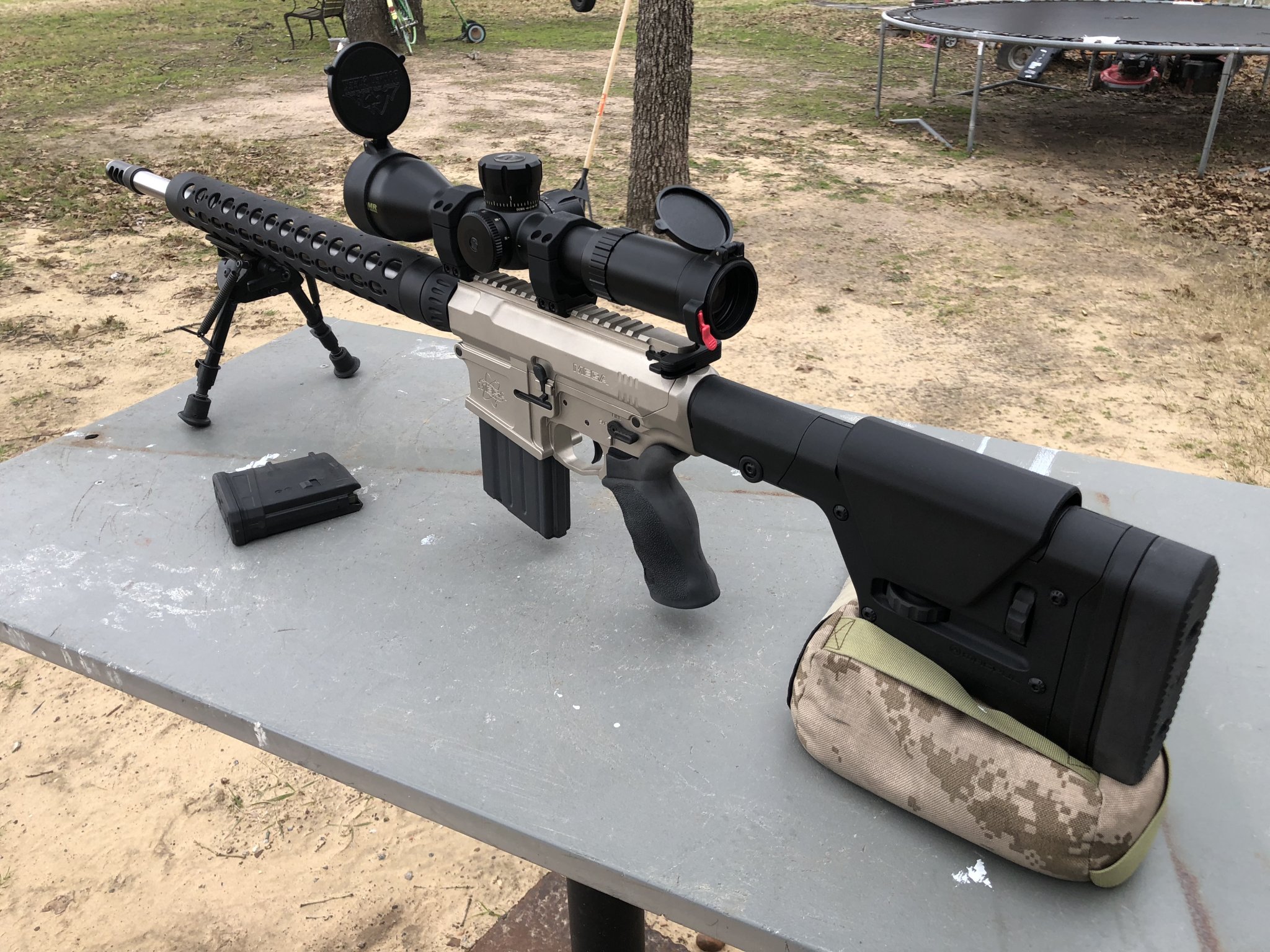

I’m running the JP SCS with two steel and one tungsten weight. This is the first SCS. I’ve been using XH Carbine buffer from heavybuffer.com
I like both but this JP is very smooth and you can change weights and springs to fine tune the rifle.



[thaifighter]

Very Nice! Which buttstock is that?



[wigwamitus]

And what is that "wedge" looking thingy hanging off the bottom of that buttstock !!??



[_Windrider_]

Very Nice! Which buttstock is that?

Magpul PRS Gen 3



[thaifighter]

Magpul PRS Gen 3

I was asking about the OP's, but thanks for the info!



[PinesAndProjectiles]

I was asking about the OP's, but thanks for the info!

Looks like an XLR with a bag rider.
