Here are those video links on AR15 troubleshooting from that other thread- I figure it can't hurt to have them here too.



carabina3030

Private
Minuteman
Oct 5, 2020
1
7

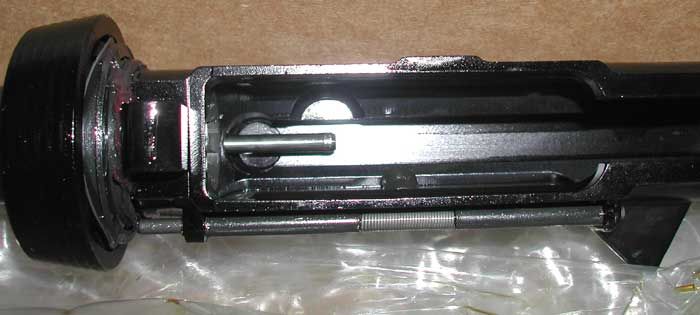

How far is your gas tube protruding into the upper? Does it end at the cam pin cutout like this one or is it shorter?

dWJlLmpwZw
Thanks dude your comment helped my dumb ass figure out why my new build wouldn’t cycle. Running an 18 in proof barrel in 6mm arc, it was advertised as rifle length gas system but turns out it’s rifle +1 so the rifle length gas tube I put in was too short. And yeah the barrel came with its own gas tube which was the right length, but I had to go and put in a different one I had on hand due to it being higher quality. Lol. It’s only my third build so didn’t notice anything was off with the length of the gas tube. Been reading through these forums for a week trying to figure out why this fucker won’t cycle, seen your comment, swapped out the gas tube and now it cycles flawlessly. Go figure. 🤦🏻


Shoebox

Private
Minuteman
Mar 23, 2022
48
21
Carolina Beach, NC
....just trying to contribute relevant info, it's up to you if you wish to use it. Keep in mind, an over-gassed system can also exhibit the same symptoms of an under-gassed system, i.e., the BCG out-racing the magazines feeding and activating the bolt catch speed. Good luck on your efforts.
So I did essentially the opposite of your suggestion, started with adjustable block fully open and closed it 2 clicks each 2 rounds (40 clicks fully open to closed). 2 different factory loads (Norma and Winchester m193) would cycle the next round but not lock back, until about 10 clicks from closed. Then it wouldn't cycle the next round. Wouldn't run H335 24.5gr reloads at all.

Definitely not overgassed. Next step is sending to BA for evaluation.


Paradox

Sergeant of the Hide
Full Member
Minuteman
Mar 22, 2022
235
71
New Jersey , USA
Hello all, I've been reading here for a while, but this is my first post. I've read several other threads with similar issues, but every situation is different, so I figured I'd ask about my own situation.

Currently equipped:
PSA upper and lower receivers
BA 18" Stainless .223 Wylde rifle-length barrel
Toolcraft nickel-boron BCG
Aero Precision stainless rifle-length gas tube
No name basic .750 gas block
Tubb flat buffer spring with 2-3 coils removed
Odin adjustable buffer, currently about 2 oz
Rise RA-140 trigger
Strike ambi mag release

I have what started out as a basic PSA 16" carbine-length 5.56/.223 AR. First upgrade after about a year was a Rise RA-140SST drop in trigger. I was never happy with the accuracy of the barrel, so I was leaning toward a Faxon or BA 20" rifle-length .223 Wylde. JoeBob's had a great deal on an 18" BA rifle-length stainless barrel, so I jumped on that, with a Kaw Valley gas block and JoeBob's stainless gas tube. I dimpled the barrel for the gas block using a Kaw Valley dimpling jig. Also swapped to a Toolcraft nickel-boron BCG at the same time.

First time firing it, regardless of ammo type, it was short stroking and not locking back on an empty mag. Gas was blowing out everywhere around the gas block. I contacted Kaw Valley, and they sent out a replacement gas block. This one seemed to seal properly, and factory Norma 55gr .223, Winchester 55gr 5.56, and Winchester 62gr 5.56 all cycled properly and would lock back empty, as would a CFE223 55gr FMJ @ 26.3gr load. However, 55gr FMJ over 22.4 H335 and 24.0 AR Comp that ran reliably with the original 16" barrel would not lock back, and the AR comp was hit or miss whether it would cycle a subsequent round reliably.

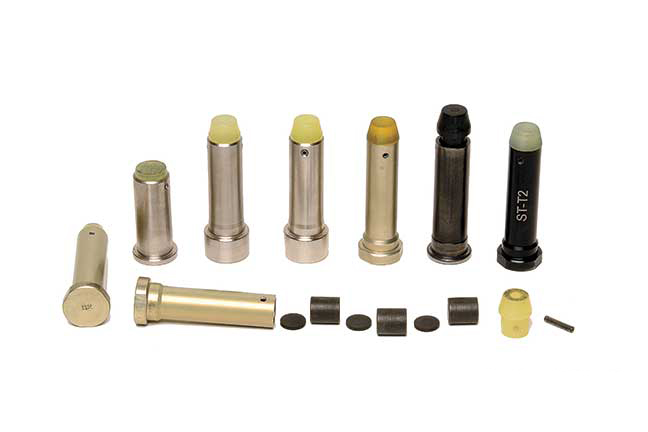

I swapped out the buffer spring and buffer for a Tubb flat spring and Odin adjustable buffer. Tried various weights from 1.5oz to 4.5 oz, with no change. I tried 2 different BCGs, with no change. Tested the BCG with bolt removed to check gas tube fit, no issue. Tested to make sure the gas block was aligned (though the dimpling jig ensured it would be, and removing the block I could see the holes matched up perfectly) by blowing air through with the barrel plugged. Gas key is tight and properly staked. Thoroughly lubed the bcg.

Around this time, I also tried new, hotter H335 loads, from 24.3-25.2gr, with no change to cycling at all.

Called Tubb to see if they have a lighter weight flat spring, and was advised to try cutting off 3 coils. Swapped out to a basic, no-name gas block my buddy sent me to try, with a new Aero Precision gas tube installed. The new gas block actually had a much tighter fit around the barrel journal than the Kaw Valley did, so I was encouraged. Tested these changes today at the range, but no real change.

No real change, although today at the range for some reason the bolt wouldn't reliably lock back on any ammo but the CFE223 reloads, and wouldn't even reliably lock back when I cycled the bolt via the charging handle on an empty mag. I also was able to chrono the ammo I shot today - factory loads were 3000-3100fps, H335 22.3gr was around 2700fps, AR Comp 24.0 gr @ 3000fps, and CFE223 26.3 @ 2800fps.

I am pretty certain there is no real problem with the lower, as I have a PSA 16" 300blk upper that I also shot the same days on it, and it cycled reliably no matter what changes I made to the spring or buffer.

At this point I am at a loss. The only other thing I can think to try is to have the gas port enlarged from the 0.093" it is now to something larger, maybe 0.100"? I will try spinning the bolt in the chamber to ensure it turns freely, but that's about the only thing I've read on other threads that I haven't tried. My LGS and the gunsmith at the range were stumped as well.

Does anyone have any other ideas of anything I'm missing?
Hello all, I've been reading here for a while, but this is my first post. I've read several other threads with similar issues, but every situation is different, so I figured I'd ask about my own situation.

Currently equipped:
PSA upper and lower receivers
BA 18" Stainless .223 Wylde rifle-length barrel
Toolcraft nickel-boron BCG
Aero Precision stainless rifle-length gas tube
No name basic .750 gas block
Tubb flat buffer spring with 2-3 coils removed
Odin adjustable buffer, currently about 2 oz
Rise RA-140 trigger
Strike ambi mag release

I have what started out as a basic PSA 16" carbine-length 5.56/.223 AR. First upgrade after about a year was a Rise RA-140SST drop in trigger. I was never happy with the accuracy of the barrel, so I was leaning toward a Faxon or BA 20" rifle-length .223 Wylde. JoeBob's had a great deal on an 18" BA rifle-length stainless barrel, so I jumped on that, with a Kaw Valley gas block and JoeBob's stainless gas tube. I dimpled the barrel for the gas block using a Kaw Valley dimpling jig. Also swapped to a Toolcraft nickel-boron BCG at the same time.

First time firing it, regardless of ammo type, it was short stroking and not locking back on an empty mag. Gas was blowing out everywhere around the gas block. I contacted Kaw Valley, and they sent out a replacement gas block. This one seemed to seal properly, and factory Norma 55gr .223, Winchester 55gr 5.56, and Winchester 62gr 5.56 all cycled properly and would lock back empty, as would a CFE223 55gr FMJ @ 26.3gr load. However, 55gr FMJ over 22.4 H335 and 24.0 AR Comp that ran reliably with the original 16" barrel would not lock back, and the AR comp was hit or miss whether it would cycle a subsequent round reliably.

I swapped out the buffer spring and buffer for a Tubb flat spring and Odin adjustable buffer. Tried various weights from 1.5oz to 4.5 oz, with no change. I tried 2 different BCGs, with no change. Tested the BCG with bolt removed to check gas tube fit, no issue. Tested to make sure the gas block was aligned (though the dimpling jig ensured it would be, and removing the block I could see the holes matched up perfectly) by blowing air through with the barrel plugged. Gas key is tight and properly staked. Thoroughly lubed the bcg.

Around this time, I also tried new, hotter H335 loads, from 24.3-25.2gr, with no change to cycling at all.

Called Tubb to see if they have a lighter weight flat spring, and was advised to try cutting off 3 coils. Swapped out to a basic, no-name gas block my buddy sent me to try, with a new Aero Precision gas tube installed. The new gas block actually had a much tighter fit around the barrel journal than the Kaw Valley did, so I was encouraged. Tested these changes today at the range, but no real change.

No real change, although today at the range for some reason the bolt wouldn't reliably lock back on any ammo but the CFE223 reloads, and wouldn't even reliably lock back when I cycled the bolt via the charging handle on an empty mag. I also was able to chrono the ammo I shot today - factory loads were 3000-3100fps, H335 22.3gr was around 2700fps, AR Comp 24.0 gr @ 3000fps, and CFE223 26.3 @ 2800fps.

I am pretty certain there is no real problem with the lower, as I have a PSA 16" 300blk upper that I also shot the same days on it, and it cycled reliably no matter what changes I made to the spring or buffer.

At this point I am at a loss. The only other thing I can think to try is to have the gas port enlarged from the 0.093" it is now to something larger, maybe 0.100"? I will try spinning the bolt in the chamber to ensure it turns freely, but that's about the only thing I've read on other threads that I haven't tried. My LGS and the gunsmith at the range were stumped as well.

Does anyone have any other ideas of anything I'm missing?
I will test this week and see if this is the issue. I just assumed with it all the way open it was still under gassed. I'll try factory ammo and close the block a step every 2 rounds and see if anything changes.


Shoebox

Private
Minuteman
Mar 23, 2022
48
21
Carolina Beach, NC
Well I think I've solved my issue.

Initially the new gas block was leaking, but once I got a properly fitting block, factory ammo would run, but most of my reloads would not.

I was resigned to drilling out my gas port, but then decided to try one last thing - using a small base sizing die. That never occurred to me because these loads always ran reliably in the previous barrel. Apparently the BA 223 Wylde barrel has much tighter tolerance. The rounds would chamber, but apparently would expand enough to interfere with extraction, slowing the bolt in the process.

I ordered an RCBS small base die, and resized and loaded 50 rounds with H335, 10 each at 23.9, 24.2, 24.5, 24.8 and 25.2 (similar to a previous round of testing I had done that wouldn't lock the bolt back). All the 23.9-24.5 rounds functioned perfectly, but I had a few fail to lock back at 24.8 and 25.2. It may actually be a little overgassed at those loads, I had a light buffer in it at 2.5 oz.

I'm going to load up some more, and some different powders, add some weight back into the buffer, and see how it does, but I'm optimistic.


McCrazy

Your tax $$$ no longer at work.
Full Member
Minuteman
  • Jun 4, 2008
    1,114
    189
    Texas
    I would also recommend checking the gas rings on your bolt to make sure they have a good seal.

    You can do this by extending your bolt from the BCG and then standing it on the bolt face vertically on a flat surface. The tension of the gas rings should keep the bolt in the extended position. If the bolt collapses, your gas rings are weak.


    Shoebox

    Private
    Minuteman
    Mar 23, 2022
    48
    21
    Carolina Beach, NC
    I would also recommend checking the gas rings on your bolt to make sure they have a good seal.

    You can do this by extending your bolt from the BCG and then standing it on the bolt face vertically on a flat surface. The tension of the gas rings should keep the bolt in the extended position. If the bolt collapses, your gas rings are weak.
    I've tried 2 different bolts. Both are relatively new.


    Shoebox

    Private
    Minuteman
    Mar 23, 2022
    48
    21
    Carolina Beach, NC
    Where does the round eject on first shot
    I loaded up some 73gr tipped match seconds from Midway with several loads of AR Comp. Finally got out to the outdoor range for the first time in a while. All cycled normally, except the lightest didn't lock the bolt back empty. But that's a huge step in the right direction, considering no AR Comp under 55gr FMJ would lock back at all.

    They all eject about 4 o'clock and 8 ft or so.


    Paradox

    Sergeant of the Hide
    Full Member
    Minuteman
    Mar 22, 2022
    235
    71
    New Jersey , USA
    I loaded up some 73gr tipped match seconds from Midway with several loads of AR Comp. Finally got out to the outdoor range for the first time in a while. All cycled normally, except the lightest didn't lock the bolt back empty. But that's a huge step in the right direction, considering no AR Comp under 55gr FMJ would lock back at all.

    They all eject about 4 o'clock and 8 ft or so.
    Its not gassing issues then, for
    Kicks if you have a spare bolt to try can bring light, carbine or rifle tube?


    Paradox

    Sergeant of the Hide
    Full Member
    Minuteman
    Mar 22, 2022
    235
    71
    New Jersey , USA
    Here are a couple informative links




    Paradox

    Sergeant of the Hide
    Full Member
    Minuteman
    Mar 22, 2022
    235
    71
    New Jersey , USA
    Its not gassing issues then, for
    Kicks if you have a spare bolt to try can bring light, carbine or rifle tube?



    Shoebox

    Private
    Minuteman
    Mar 23, 2022
    48
    21
    Carolina Beach, NC
    Its not gassing issues then, for
    Kicks if you have a spare bolt to try can bring light, carbine or rifle tube?
    I have tried 2 different BCGs, both of which work fine in my 300blk upper. Midway had an AR Stoner lightweight BCG on sale, so I picked one up, I'll try it next time.

    I have tried milspec carbine spring and buffer, and Tubb flat spring stock and with 3 coils cut, with adjustable buffer from 1.5 oz to 5.6 oz. It's not a buffer or spring issue.


    Paradox

    Sergeant of the Hide
    Full Member
    Minuteman
    Mar 22, 2022
    235
    71
    New Jersey , USA
    I have tried 2 different BCGs, both of which work fine in my 300blk upper. Midway had an AR Stoner lightweight BCG on sale, so I picked one up, I'll try it next time.

    I have tried milspec carbine spring and buffer, and Tubb flat spring stock and with 3 coils cut, with adjustable buffer from 1.5 oz to 5.6 oz. It's not a buffer or spring issue.

    Really odd only one that gave me issues were 308s amd cure was drowning in oil. Which you can also try, oil ot to death some. Even lay thin film of axle greese in the bcg rails. Some say the 15 csn be dry but i have a dozen now all from parts and all diff cals. Try and oil slick it. Worst that Can happen as you clean it I clean mine after every outing anyway including stripping the bowl all the way down, on a positive note there’s only a few things that create the problem so try not the stupid stuff first oil grease it’s even a good idea to get it set a readers and look at the bowl of clothes and see if it has any rough machining or birds or what not and see how well it slides for the upper when I have a deep PMS problem I took it to a gunsmith were sad for two weeks and did absolutely nothing said fuck it came home I don’t he’s silly ass possible solutions and low behold in an hour problem solved the reason I say it’s probably not a guessing problem is because that’s everyone’s first excuse and everyone loves to fuck with these gas blocks and everyone seem to think I need adjustables I don’t have one rifle in adjustable block and if you think about it it’s so simple it’s almost silly how they work try and receive the block look for Bluewell where is it might be leaking or actually what am I saying if you’re checking in 4 o’clock it’s not gassing, did you try the one around in the mag trick or utilize several magazines?


    Shoebox

    Private
    Minuteman
    Mar 23, 2022
    48
    21
    Carolina Beach, NC
    Really odd only one that gave me issues were 308s amd cure was drowning in oil. Which you can also try, oil ot to death some. Even lay thin film of axle greese in the bcg rails. Some say the 15 csn be dry but i have a dozen now all from parts and all diff cals. Try and oil slick it. Worst that Can happen as you clean it I clean mine after every outing anyway including stripping the bowl all the way down, on a positive note there’s only a few things that create the problem so try not the stupid stuff first oil grease it’s even a good idea to get it set a readers and look at the bowl of clothes and see if it has any rough machining or birds or what not and see how well it slides for the upper when I have a deep PMS problem I took it to a gunsmith were sad for two weeks and did absolutely nothing said fuck it came home I don’t he’s silly ass possible solutions and low behold in an hour problem solved the reason I say it’s probably not a guessing problem is because that’s everyone’s first excuse and everyone loves to fuck with these gas blocks and everyone seem to think I need adjustables I don’t have one rifle in adjustable block and if you think about it it’s so simple it’s almost silly how they work try and receive the block look for Bluewell where is it might be leaking or actually what am I saying if you’re checking in 4 o’clock it’s not gassing, did you try the one around in the mag trick or utilize several magazines?
    I appreciate you're trying to help but that reply hurt my brain. 😂

    I addressed all of that earlier in the thread.

    Overlubed, lightly lubed, 8 or 10 different mags, etc etc.


    Paradox

    Sergeant of the Hide
    Full Member
    Minuteman
    Mar 22, 2022
    235
    71
    New Jersey , USA
    I appreciate you're trying to help but that reply hurt my brain. 😂

    I addressed all of that earlier in the thread.

    Overlubed, lightly lubed, 8 or 10 different mags, etc etc.

    The reply system of this page is useless, that was for somewhere else, there are hundreds of similar ones lately, and got crossed in wrong box


    Elite_KG

    Sergeant
    Full Member
    Minuteman
    Oct 15, 2011
    791
    305
    LA
    After trying several mags and adjusting my buffer weight i had a 10” barrel that wouldnt lock back with super sonic ammo or even super sonic suppressed. The barrel manufacturer said I should be running a stock buffer spring and carbine buffer for the barrel port size. I was running the JP SCS Heavy that i use in all my pistols and 6.8 AR both suppressed and not. After some research I found this manufacturer was using a smaller gas port and wouldn’t guarantee function with my JP SCS. I also tried a JPSCS standard and tried all the spring weights in both. No luck. Finally drilled out the gas port to 0.100” believe (its been a while). Worst case is i run an adjustable gas block if its over sized. Well it ran perfectly in my original configuration both suppressed and not. It would run subsonic supressed, but not lock back in subs not suppressed. Im happy with the outcome.

    I rarely use an adjustbpable gas block or atleast not early on. I have more now, but I have SBR’s in 300BO that will run any configuration with no changes and without ADJ gas blocks. Buffer weight and spring combos in JO SCS silent bufffers. Food for thought. Maybe I got a little lucky.
