DIY ELFSTER'S ~$100 annealer!

predatornut

Sergeant
Full Member
Minuteman
Feb 9, 2009
297
10
44
North Dakota
I have parts on order for something very similar. I saw this a while back and started researching diy annealers, I came across a thread on AR15.com with some good ideas I am going to give a shot like a automatic feeder. It will add to the cost, but will still come in much less than a manufactured one.

Thank you for doing this video. I love playing with stuff like this!


K31Scout

Private
Full Member
Minuteman
Dec 19, 2010
48
19
47
MI
I saw that today and it looks like a good winter project. I subscribed to his channel; lot's of good videos and he gets a lot of info in less than 15 minutes per video.

  • Like
Reactions: elfster1234

jb1023

Full Member
Full Member
Minuteman
Dec 15, 2011
163
10
Colorado
I have almost all the parts except I can't figure out what he uses as the notched cylinder piece which feeds the brass one at a time down to the "on deck" ramp. Anyone have some thoughts they can share?


MinnesotaMulisha

They call me "Baby Ruth."
Full Member
Minuteman
  • Jul 30, 2013
    5,139
    8,168
    Solid Ground

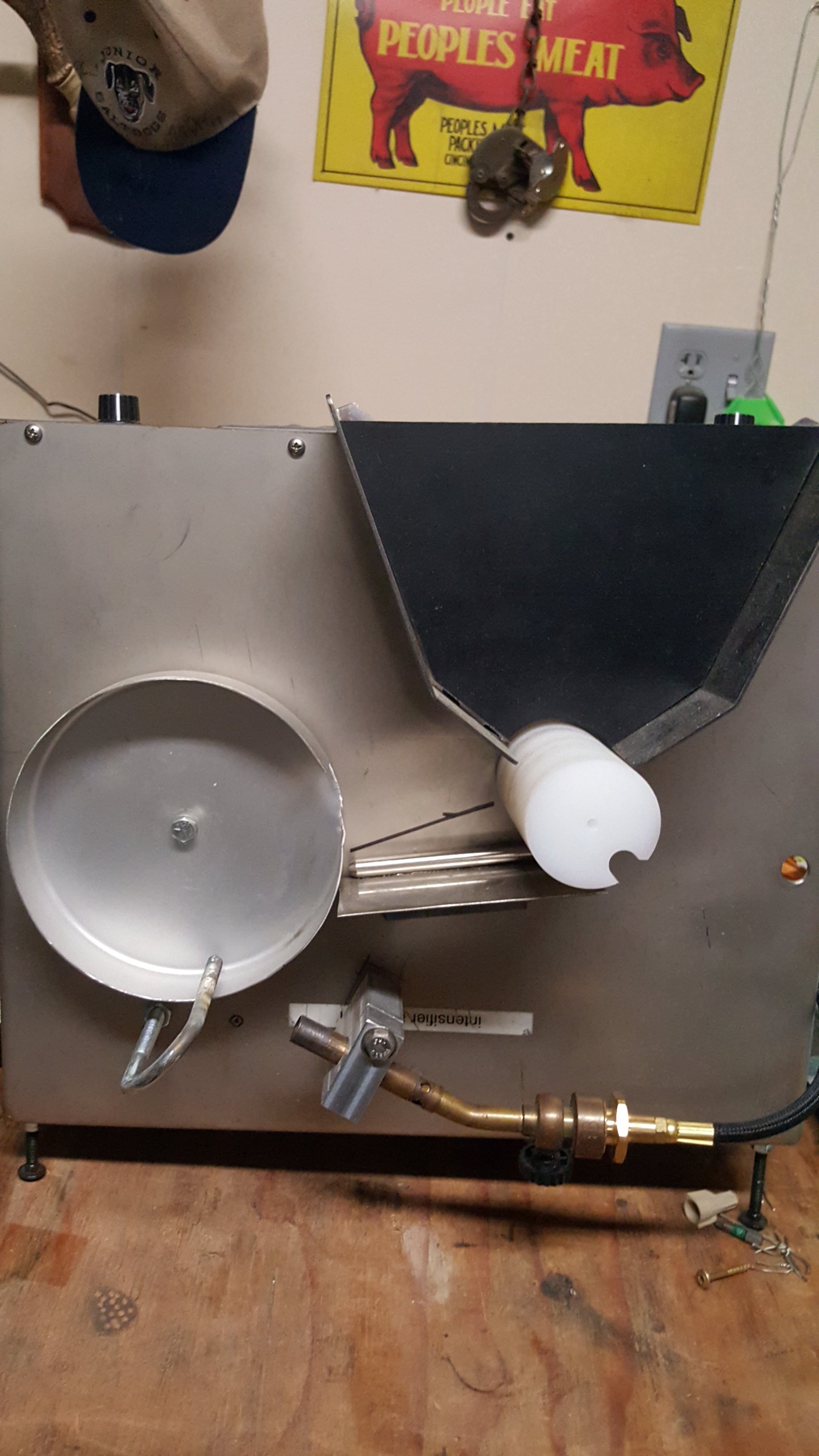

    I built one of these about a year and a half ago. Best $50 I've ever spent. I went with the automatic case feeder and it needs some tinkering every now and again to get it to work, but it makes life a hell of a lot easier.


    Attachments

    • 1517148599286996381917.jpg
      615.8 KB · Views: 62
    • Like
    Reactions: shootnrelease

    MinnesotaMulisha

    They call me "Baby Ruth."
    Full Member
    Minuteman
  • Jul 30, 2013
    5,139
    8,168
    Solid Ground
    I have almost all the parts except I can't figure out what he uses as the notched cylinder piece which feeds the brass one at a time down to the "on deck" ramp. Anyone have some thoughts they can share?

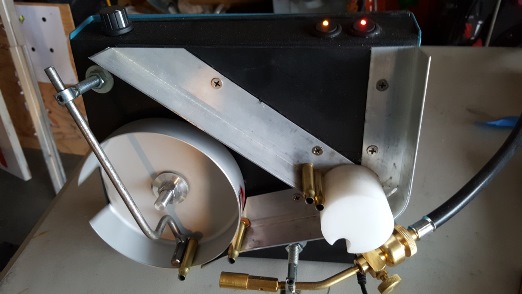

    I used a piece of 2.5 inch UHMW. I then took a .500" ball nosed end mill and ran it lengthwise to create a large groove just big enough for a piece of brass. It works great for cases with a .473" bolt face. I have yet to try any 6.8 SPC or .223 cases.

    • Like
    Reactions: jb1023

    jb1023

    Full Member
    Full Member
    Minuteman
    Dec 15, 2011
    163
    10
    Colorado
    Thanks MM and SR, and Elfster of course. Now with the rod piece figured out, as soon as I finish up this project at work I think I will start putting one together.

    • Like
    Reactions: elfster1234

    Bill k

    Private
    Minuteman
    Dec 19, 2017
    6
    0
    48
    Long Island New York
    I have almost all the parts except I can't figure out what he uses as the notched cylinder piece which feeds the brass one at a time down to the "on deck" ramp. Anyone have some thoughts they can share?
    I used a 2" hole saw thru some laminated plywood then notched it to fit the brass. I also read people using a 2" wooden dowel


    jb1023

    Full Member
    Full Member
    Minuteman
    Dec 15, 2011
    163
    10
    Colorado
    I used a 2" hole saw thru some laminated plywood then notched it to fit the brass.
    This is what I was planning on doing. I saw the prices of some "plastic" bar stock and decided this would be much more cost effective.


    sig2009

    Full Member
    Full Member
    Minuteman
    Feb 24, 2017
    594
    124
    FL
    I buy the propane cans at Home Depot for $4. No need to make anything.
