Yep, plug the borescope into your usb port, start photo booth and bob’s your uncle. Stupid simple, woulda been nice if it was in the chinglish instructions.
- Thread starter Samuel Whittemore
- Start date
My Rifle, a PVA building on TL3 Action on a Rock Creek 26" 308 Win barrel 9 twist, AICS AXMC Chassis which usually shoots .5- .4 MOA all day. I have about 120 shoots thru it.
This is my first time ever I shoot rifles.
It has a Timney two stage trigger set to 1,5lbs so I disassembled the chassis and set it to 12Oz.
I was shooting the same brass for the second time with the 335 bushing.
I noted the tension varies too much when I was seating te bullets, some I could take it out with my bare hand, so I placed a 334 bushing .
Now my groups has increase a lot, to .75- .8 MOA and I have a lot variables...
Barrel soot, chassis assembled incorrectly ( I torque it at 55LBS front screw and 45 LBS back screw), brass inconsistency, trigger weight change soI am trying to remove the variables.

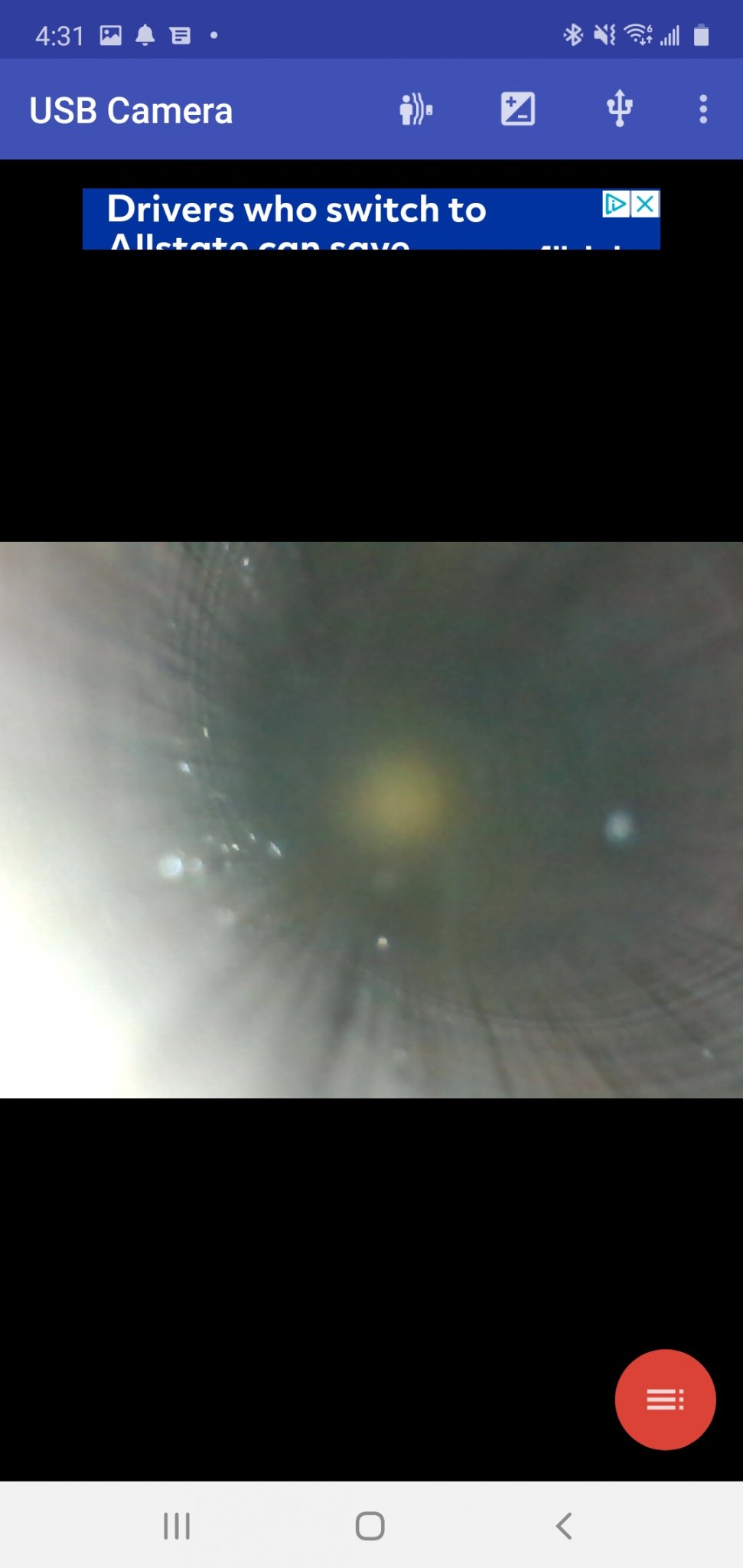

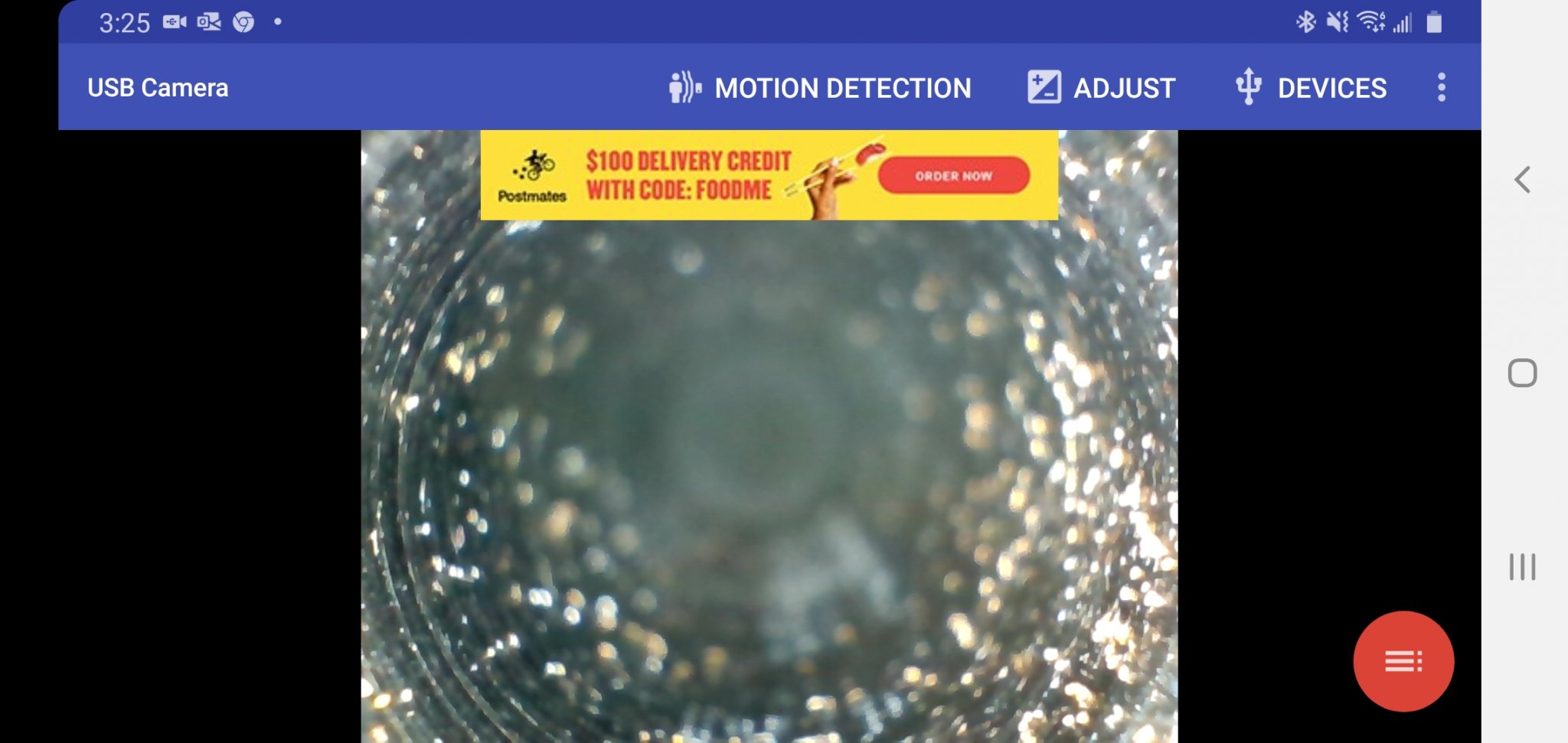

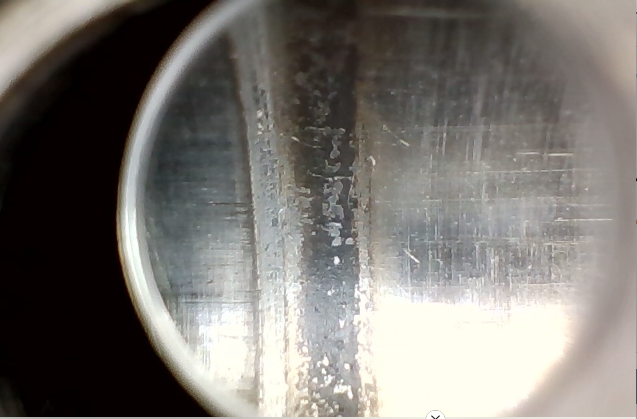

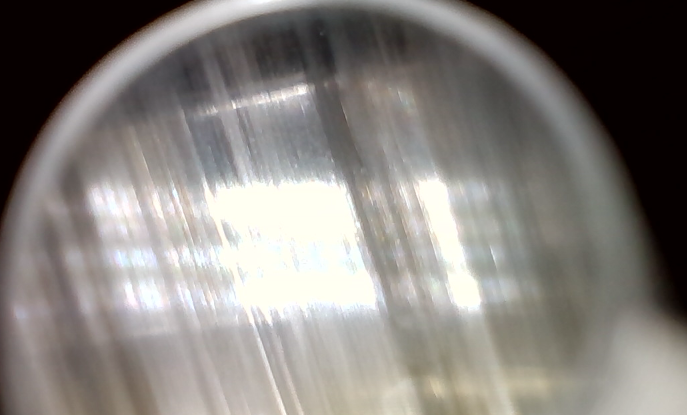

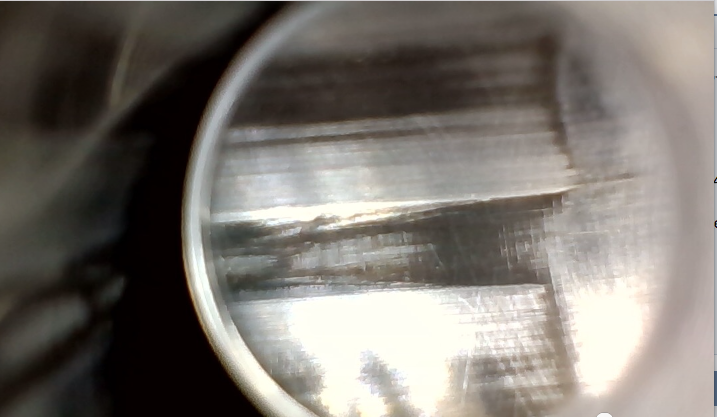

I annealed the Brass and check the measures again, cleaned the barrel which was very dirt and have this image:

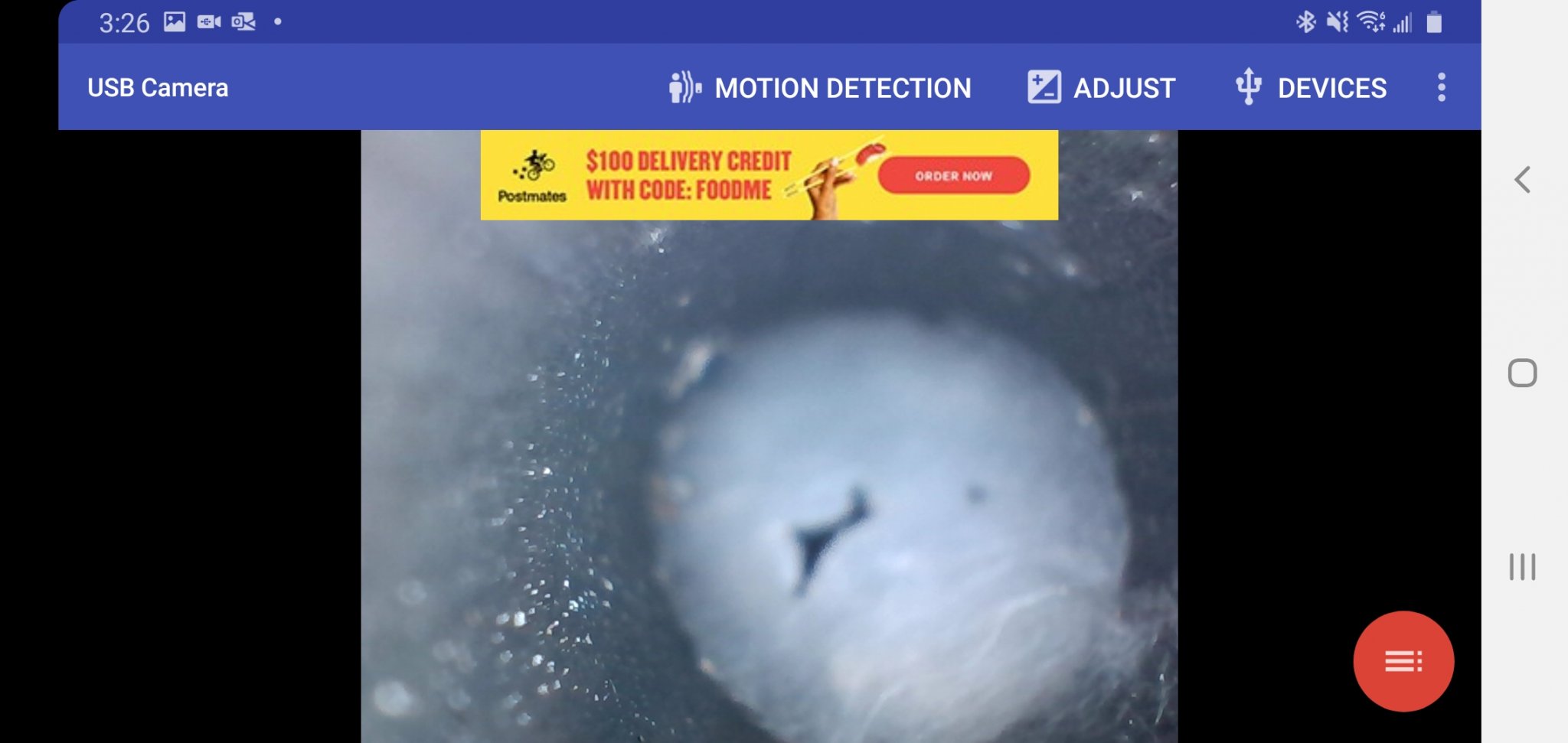

Is the first image a carbon ring?
Is it clean or does I need to remove it?
I watch a lot of tutorials and my patch leave the barrel very clean.
This is my first time ever I shoot rifles.
It has a Timney two stage trigger set to 1,5lbs so I disassembled the chassis and set it to 12Oz.
I was shooting the same brass for the second time with the 335 bushing.
I noted the tension varies too much when I was seating te bullets, some I could take it out with my bare hand, so I placed a 334 bushing .
Now my groups has increase a lot, to .75- .8 MOA and I have a lot variables...
Barrel soot, chassis assembled incorrectly ( I torque it at 55LBS front screw and 45 LBS back screw), brass inconsistency, trigger weight change soI am trying to remove the variables.
I annealed the Brass and check the measures again, cleaned the barrel which was very dirt and have this image:
Is the first image a carbon ring?
Is it clean or does I need to remove it?
I watch a lot of tutorials and my patch leave the barrel very clean.
Attachments
Wow, first time shooting a rifle and you consistently shooting .4 groups... good for you.
That does look like a carbon ring. Although it typically takes hundreds of rounds to form.
Do yourself a favor and change your trigger back to 1.5lb.
That does look like a carbon ring. Although it typically takes hundreds of rounds to form.
Do yourself a favor and change your trigger back to 1.5lb.
I haven't used it on a Macbook in some time but it was as easy as on Windows. There is a manual for the NT100 that simply says... 1.) Attach camera to the USB port; 2.) open "Photobooth"; click VIEW in upper left corner; select "Teslong Camera" or "USB 2.0 PC camera"...wait a few seconds, and it should display on your Mac. Also, you can just email [email protected] and Murphy will help you. I found the above at their site Teslong.com >> Support >> Manuals >> click on NT100 manual in the lower right section of the manual selections listed.
I need to make the Carbon Ring vanish, right?
I am going to set the trigger to 1.5 lbs as before.
I will try new brass again.
Here is my groups when developing the load.
I liked the Varget 44.2gn because were 4 shots at the same hole, and I faint the 5th.
Lapua Brass, SMK 168 bullets, 0.010 jump, BR2 primers,
Attachments

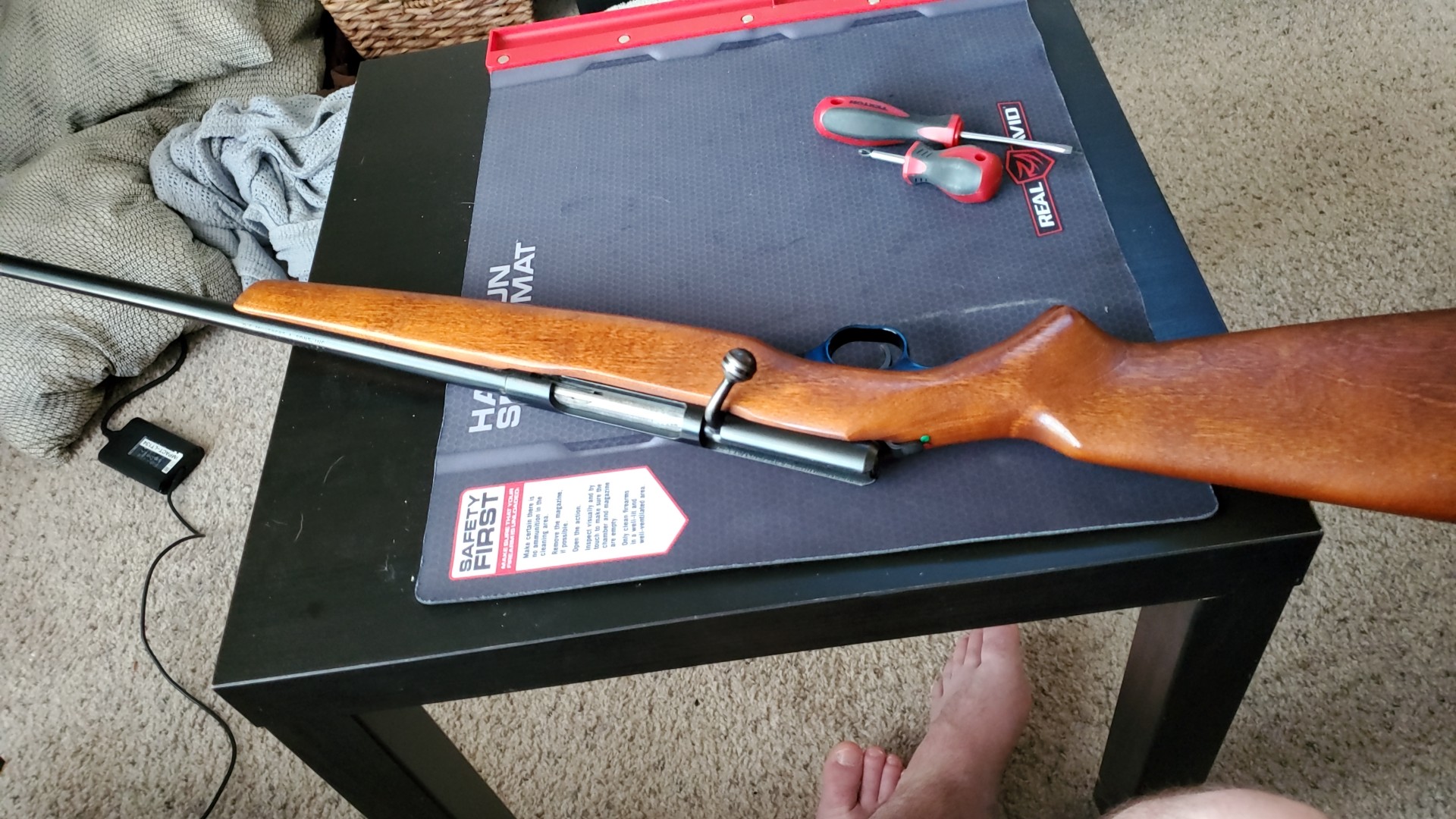

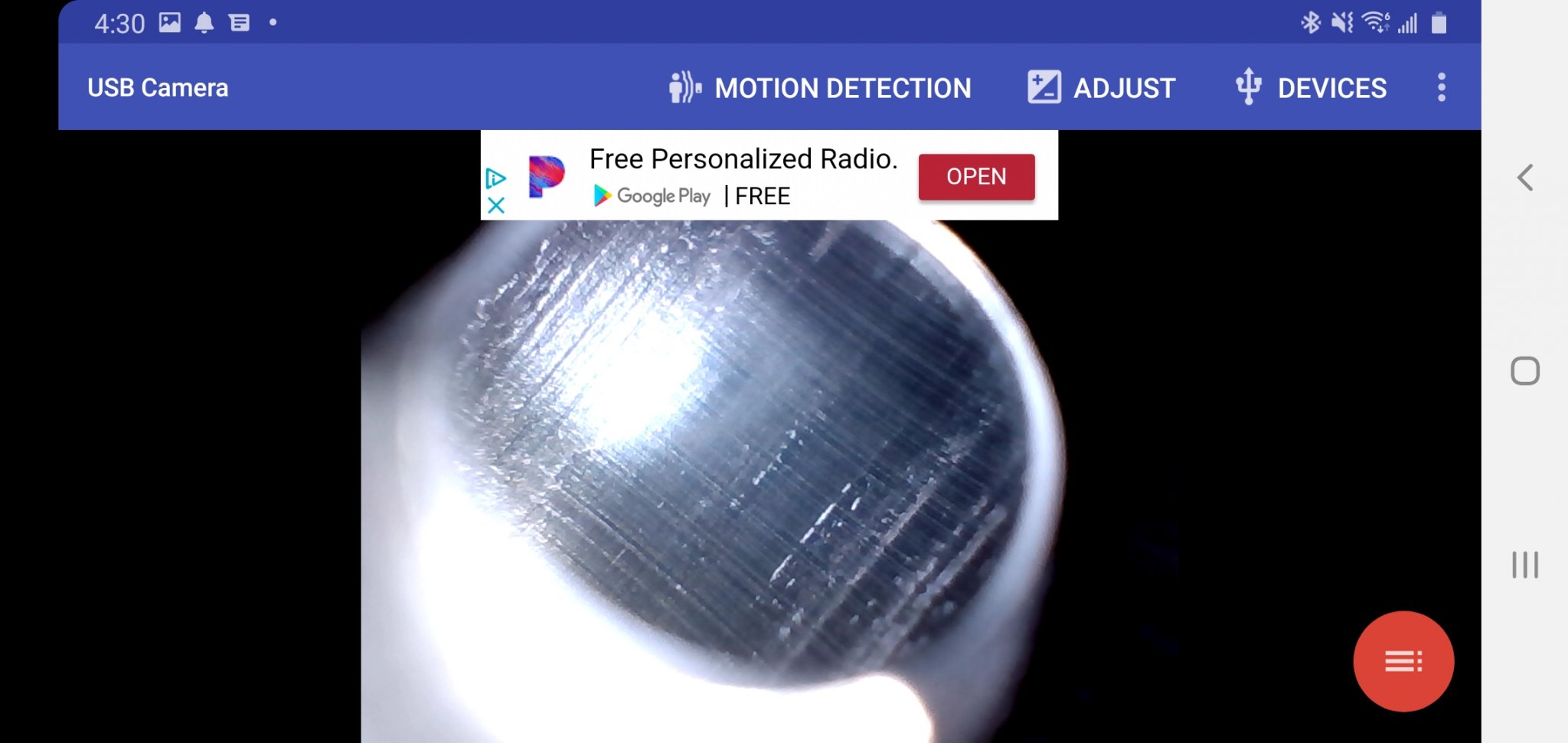

My father-in-law sent my wife his mom's old Mossberg 410 bolt shotgun that's been sitting in a shed for 20+ years without being touched. Thought it would be interesting to use the bore scope to see how bad the barrel really was.
And after some TLC
No rust in the barrel at all but there is some on the exterior of the barrel and action that I'm going to take off and reblue.
And after some TLC
No rust in the barrel at all but there is some on the exterior of the barrel and action that I'm going to take off and reblue.
Depending on how bad the rust is, you might not need rebluing, get the finest grade of steel wool, the kind you use for polishing and go gently. I worked on my wife's rifle and you can't even tell there ever was any rust.
Grabbed one of these a while back and just getting around to trying it. On my fire tablet camera is recognized but only a black screen shows. On windows 10 I plug it in but can't see anything but the computer's built in cam. I don't see anywhere to change to the usb cam? Any ideas? @Steel head or anyone else?
This is an old tablet I got from Verizon in a promotion years ago. Maybe thats the problem. I was going to give the tablet to my dad because he wants one of these borescopes. We’ll just try it I guess. Not too keen on getting the WiFi version to use on his actual phone with some shady app... maybe that’s just paranoia on our part.

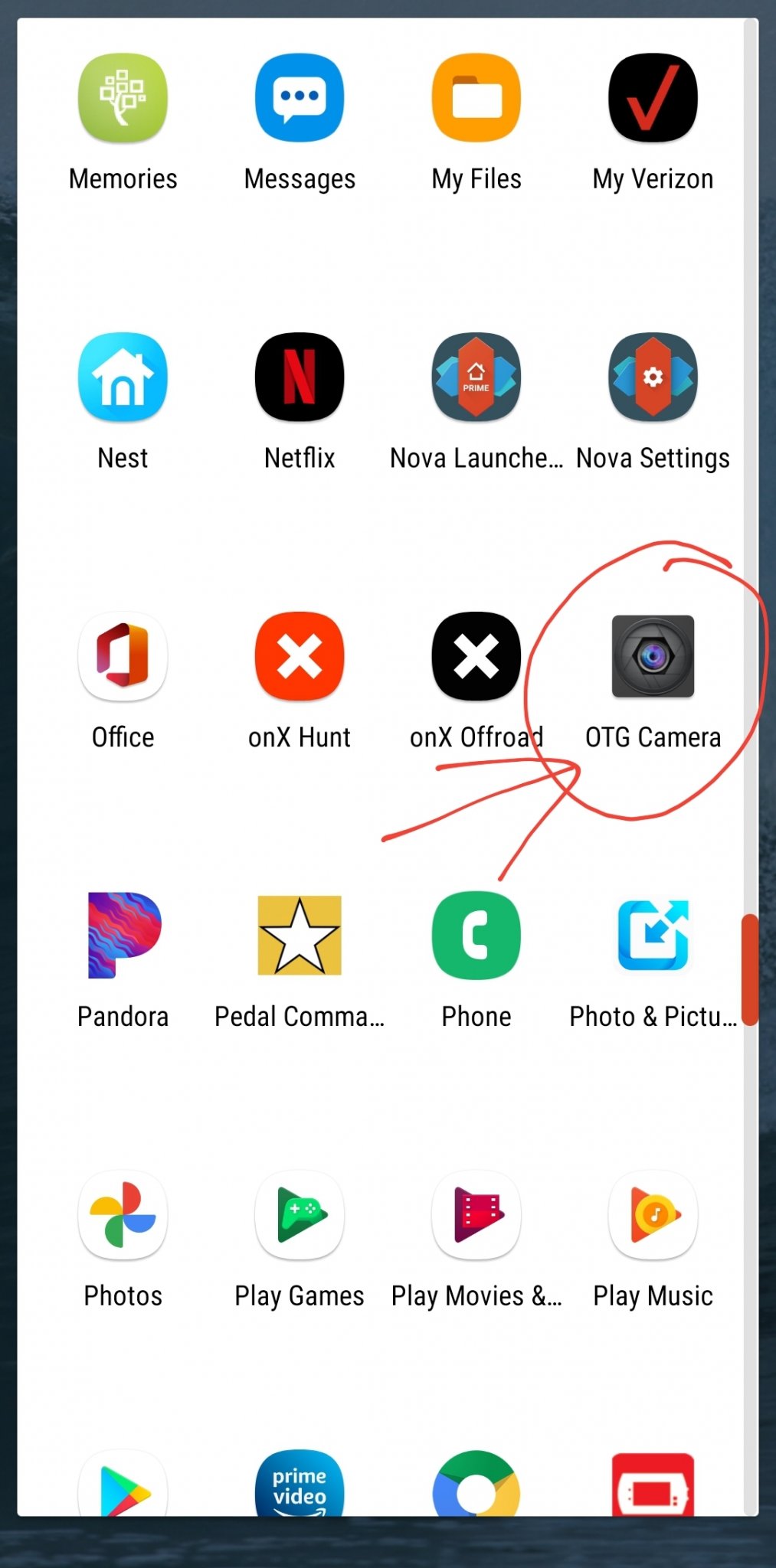

Dood.. it's right here
play.google.com

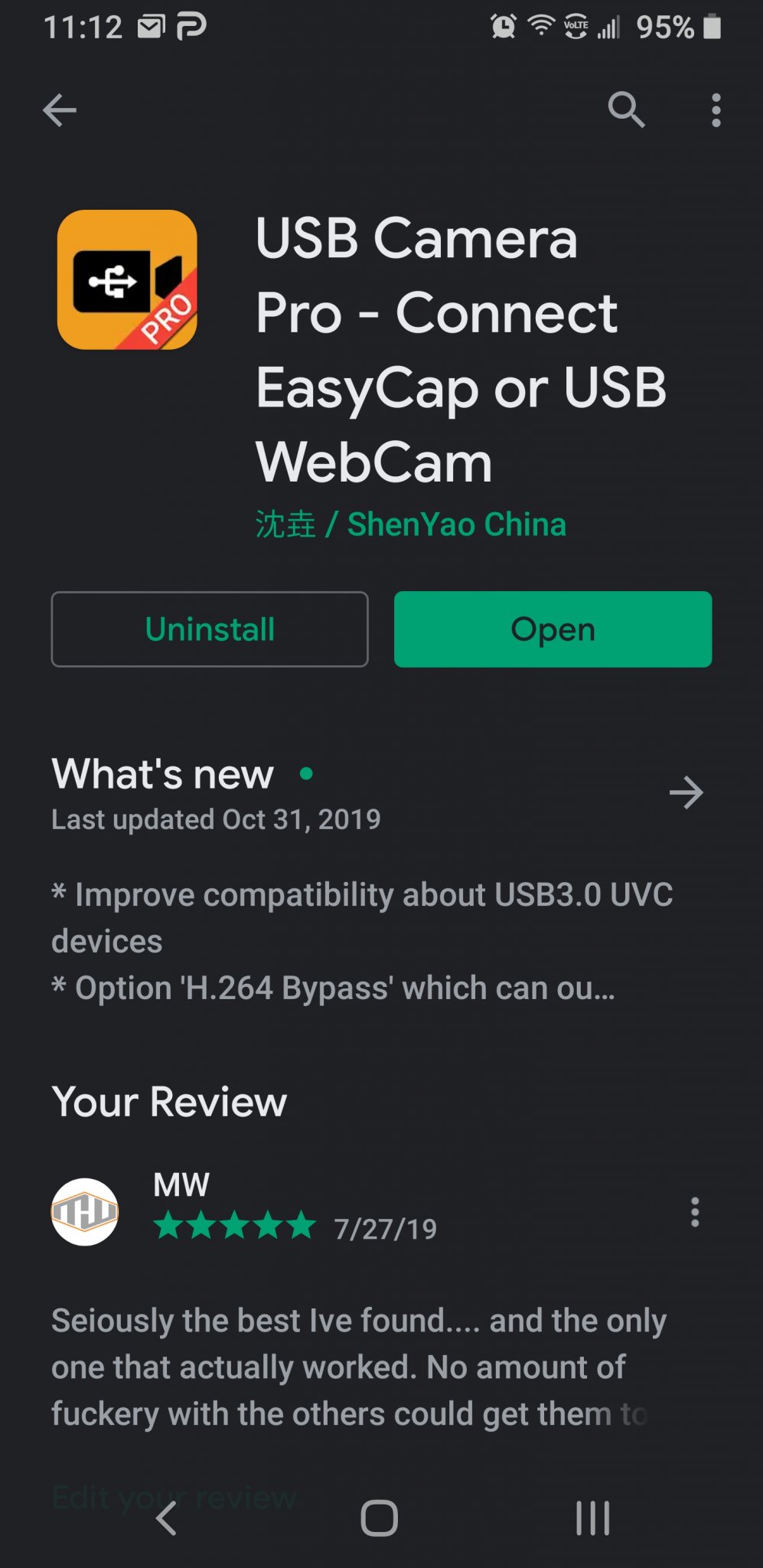

USB Camera Pro - Apps on Google Play
Connect EasyCap or UVC devices for recording and broadcast video/audio stream

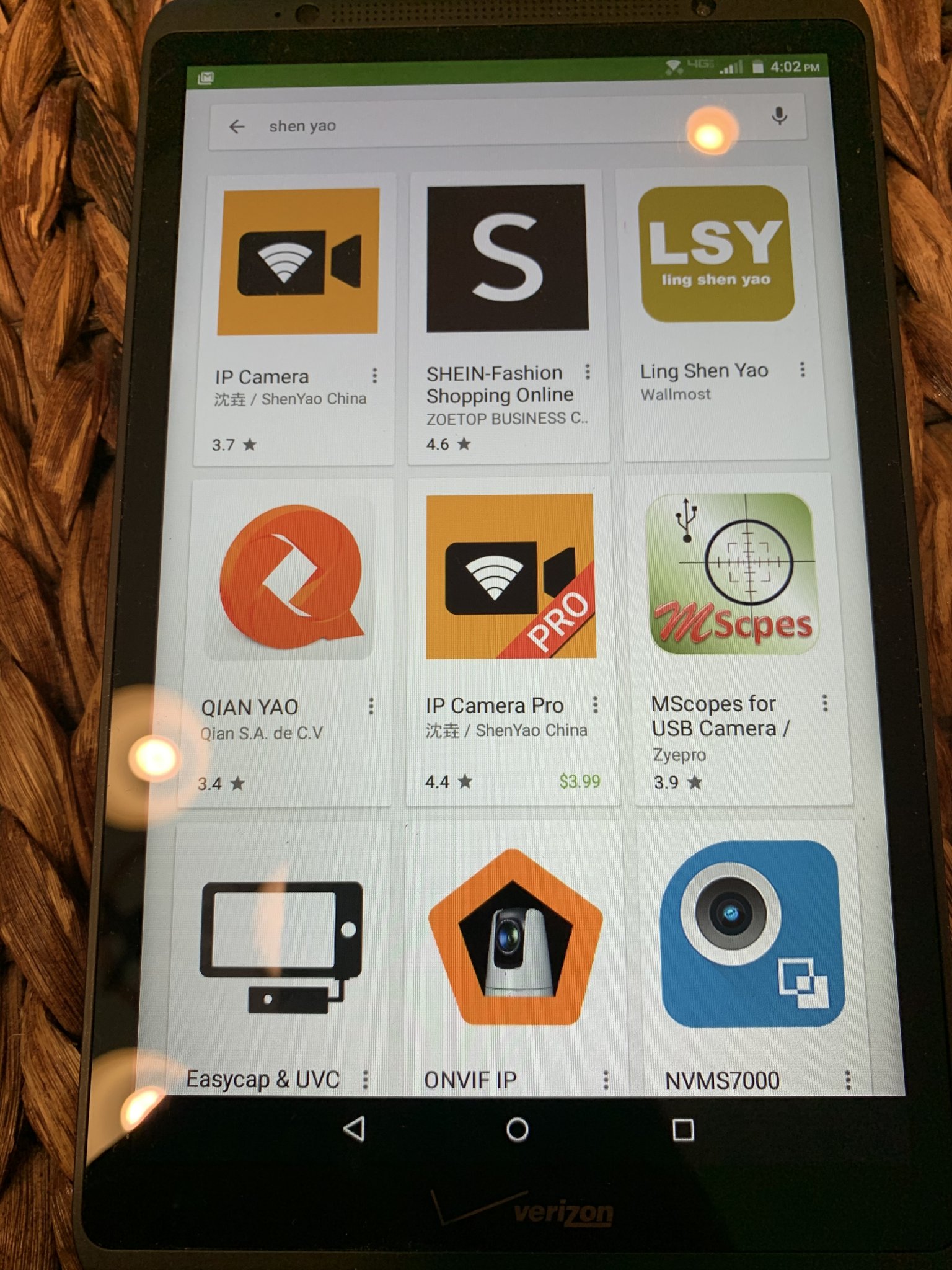

It’s literally not on this old tablet (Only Android device I have). It was the first time I turned it on in over 2 years. Google play services, whatever that is, failed to update. Took out the SIM card and it’s going to get some holes put into at the range. It was a slow piece of shit when it was new.Dood.. it's right here
USB Camera Pro - Apps on Google Play
Connect EasyCap or UVC devices for recording and broadcast video/audio stream
Circling back over a year later.... Just got my NEW and improved Teslong bore scope... the first one was the soft cable and using Android.
THIS one.... blew the doors off that!!!
Came with a stiff bore rod and a handy monitor plus everything I needed.
Worth the upgrade!
THIS one.... blew the doors off that!!!
Came with a stiff bore rod and a handy monitor plus everything I needed.
Worth the upgrade!
this one?

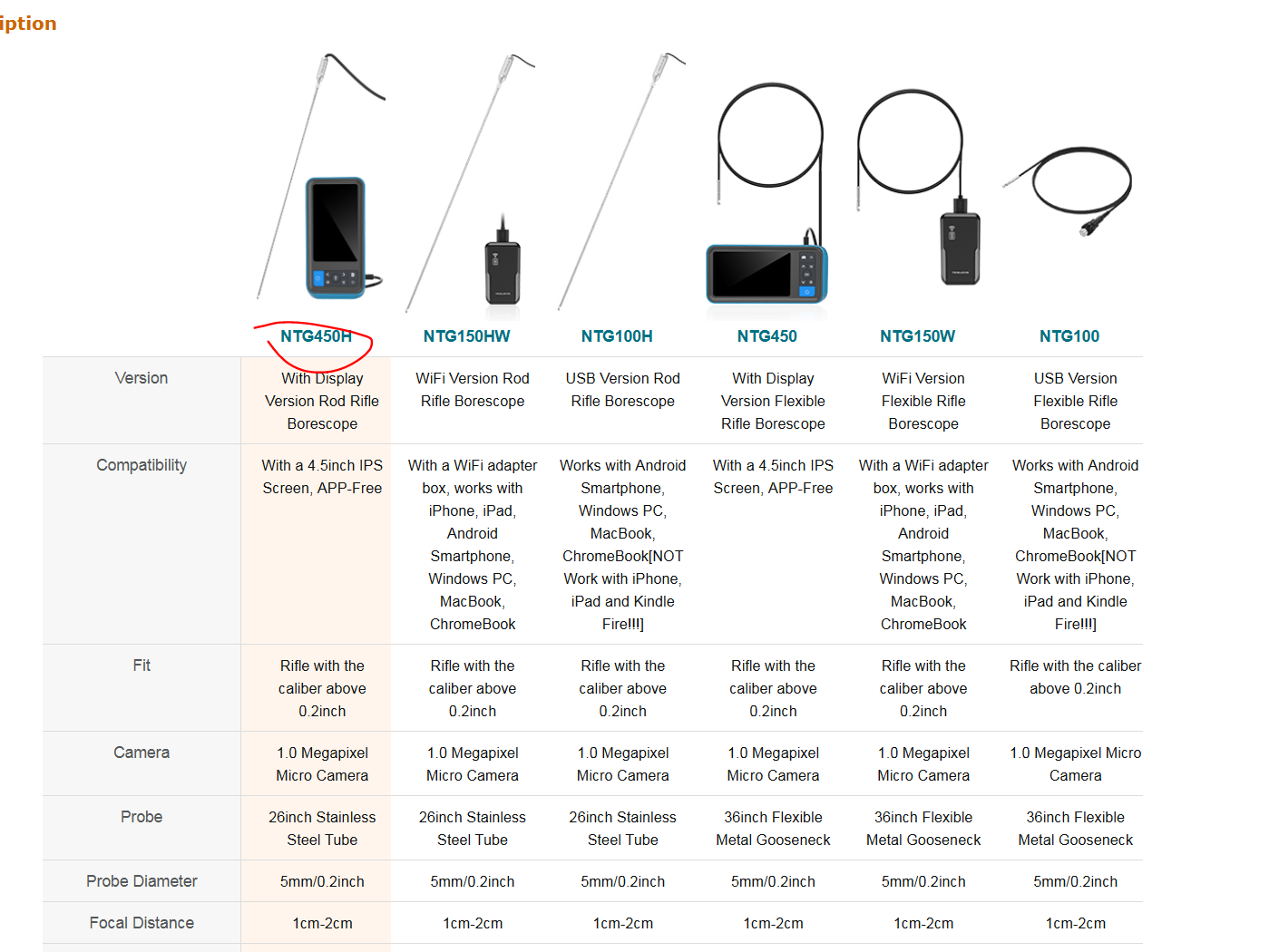

I got the NGT450H:
While I would have loved an actual case... I'm certianly not crabbing for this price!
It does come in a nice box, magnetic clasp thick box you can store it in
While I would have loved an actual case... I'm certianly not crabbing for this price!
It does come in a nice box, magnetic clasp thick box you can store it in
I like the unit think it works really nice and the cost is supper nice unless they jumped way up . 50.00 was a great deal the only bad thing I see Is what has been seen can't be unseen and its only a matter of time till someone gives you a live video feed to his lower gi instead of his barrel on his gun that would just stink , I joke I hope , but it reminds me of self diagnose of a ailment like my hypochondriac friend in school who had a different deadly disease ever other week , if you are unsure of what you are looking at or for you could totally over do it . I like checking mine after I clean just to make sure I did it correctly my local gun smith kept telling me quit over thinking it , put the toy down and shoot the gun it will tell you when something is wrong .
In states right in the directions "Not for Human Insertion!".. luckily I read the directions first.
Bahahaha
Each side individually? Or ya just passed it through all the way from one ear to the other? Was there any resistance? Bahahaha
I only smoke cigarettes with a warning about low birthrate.
- some comedian i can't remember.
The variable focus mirror aspect at the end of the camera should take care of your issue. With such a large caliber, you also might benefit from wrapping a few turns of electrical tape near the camera end to keep the scope centrally positioned in the barrel. Two separate wraps two inches apart would probably work well for you.
Good luck.Hat tip to the hide member who mentioned these:
So I’m wanting to get another teslong borescope but with a monitor or without having to plug into anything.......what do you all prefer, the flexible scope or non flexible?
The USB ones do not work with iOS, the wi-fi models do but can be a bit erratic to get and keep connected. The standalone models with their own display and now longer 26" probe are really the least hassle option.
This has been a great thread. Thanks.
My primary glass borescope is a high-end piece formerly used by a veterinarian, i can only guess where its been prior to me buying it.
Although Teslong can't quite compare it sure is way more comfortable to use and is good enough for most purposes.
You should see how the vet does a uterus check on a horse.
Always interesting to watch.
He'll end up elbow deep. At least.
It doesn't look like the USB one is available that way. They offer them for different models that use a BNC/DIN style connector but those cost almost as much as the entire rifle bore scope kits.

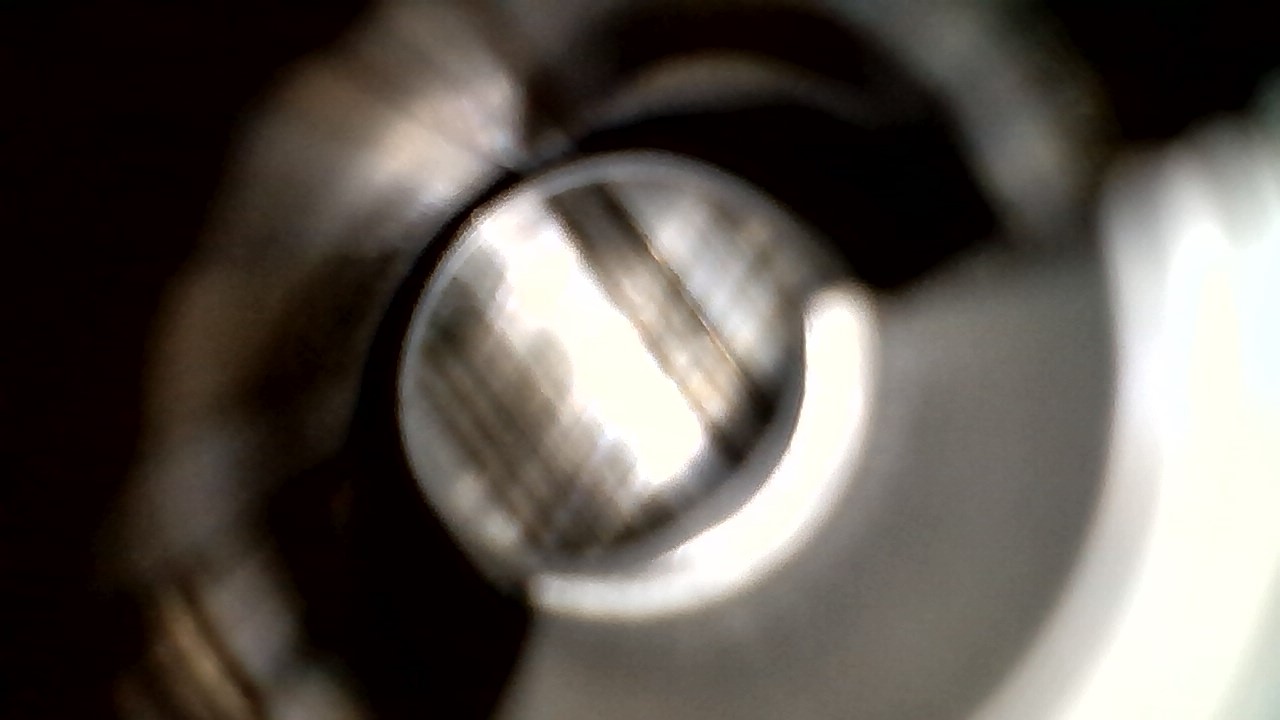

Did I get a bad copy? I can't get it in focus. Or is there some sort of adjustment that I am missing?
I tried full turn from all the way in to all the way out. It's still not catching the focus.
Recently bought the 4 lens set for different bore diamters....anyone else pick one up?
I have been thinking about it, .... you like?
It’s fixed focus, so you adjust the distance from the mirror. Try putting it inside the neck of a fired case, which will be close enough to the bore diameter for you to adjust it.
Actually...they are just sitting on my work bench...haven't even opened to box.
