Left hand threads question

egraham

Sergeant
Belligerents
May 15, 2008
378
29
34
45
Birmingham, AL
I was screwing the can on my Sig 226 this morning and thought about the origin of left hand threads. The only guns I have with LH threads are European.

is there any particular reason or advantages to being LH on suppressors?

I know that on weed eaters, circular saws, etc they serve a purpose but can’t understand why they would be better on a gun.

thanks.


epoletna

Sergeant of the Hide
Belligerents
Minuteman
Mar 19, 2020
109
36
34
Did I miss something in that article? I didn't see anything that said why LH threads are preferable. It did make a good case for the larger diameter of the 13.5 mm thread diameter, but no statement about left versus right. Or did I miss it?


LeftyJason

Thumbnail-les
Belligerents
Mar 8, 2017
1,144
1,558
219
33
Kaysville Utah
Did I miss something in that article? I didn't see anything that said why LH threads are preferable. It did make a good case for the larger diameter of the 13.5 mm thread diameter, but no statement about left versus right. Or did I miss it?
I don't think there is anything inherent about left hand vs right hand. The important factors is what goes along with the thread.

If you had this thread and changed it to a right hand thread it would work the same.

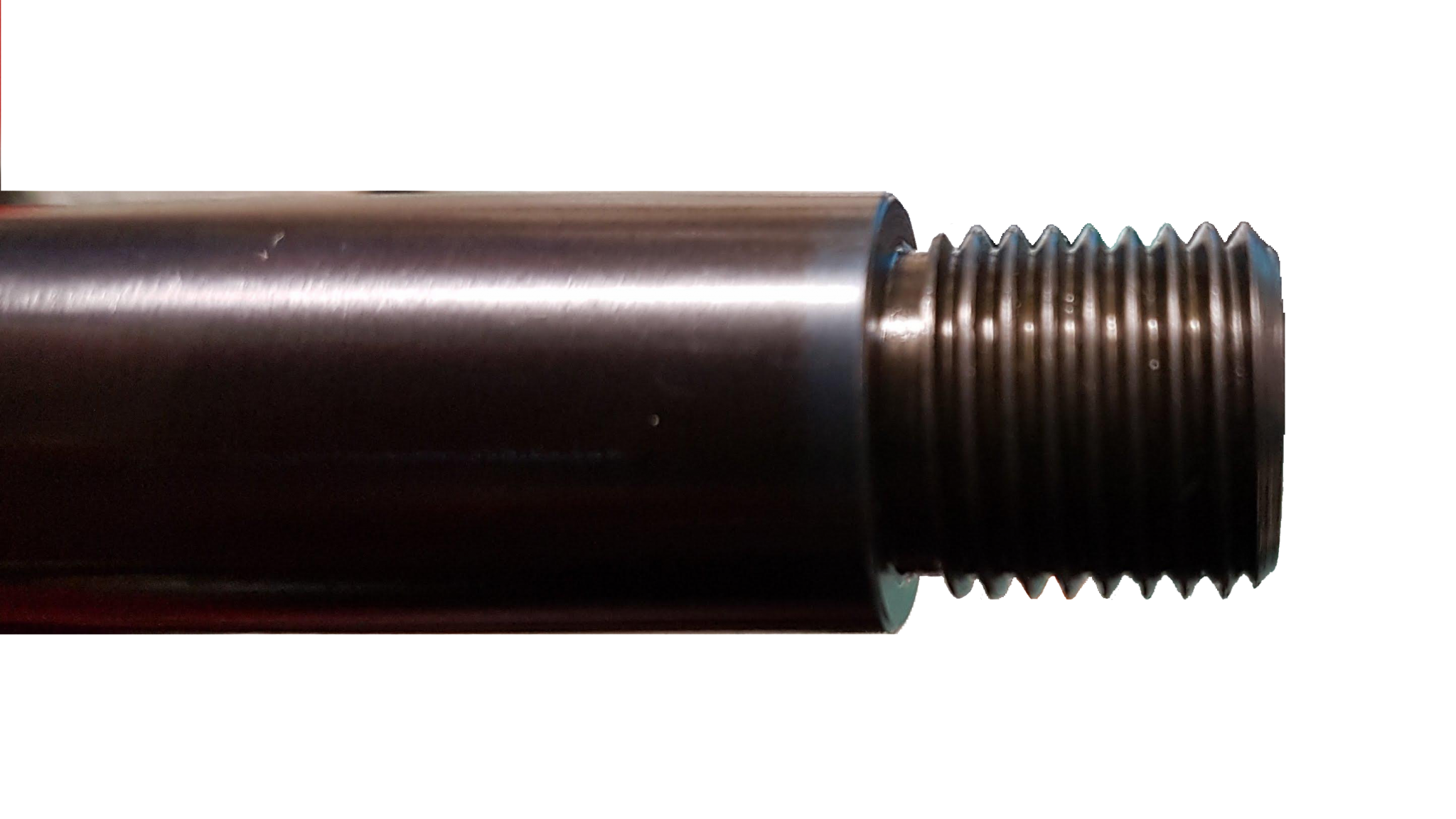

There are different ways of making threads "better". Having the relief at the back vs not makes it easier to machine (especially manual lathes) and have square shoulders. Don't go too small.

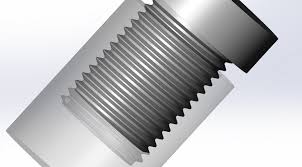

No reliefimages.jpeg

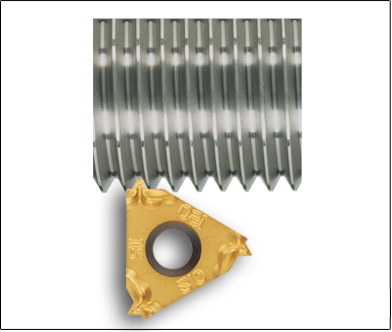

For consistency of cutting threads, using a "topping"or full profile insert is great. It already has the proper radiuses built in if you order the right one. If they are using cnc most likely in use already. Downside is you have to have one for each thread pitch (eg -28, -24,-18, or x1)

For easier starting / stronger threads go lower pitch. Having a area in front that is a cylinder also helps start straight but has to be designed in to work. Also chamfer the front thread.

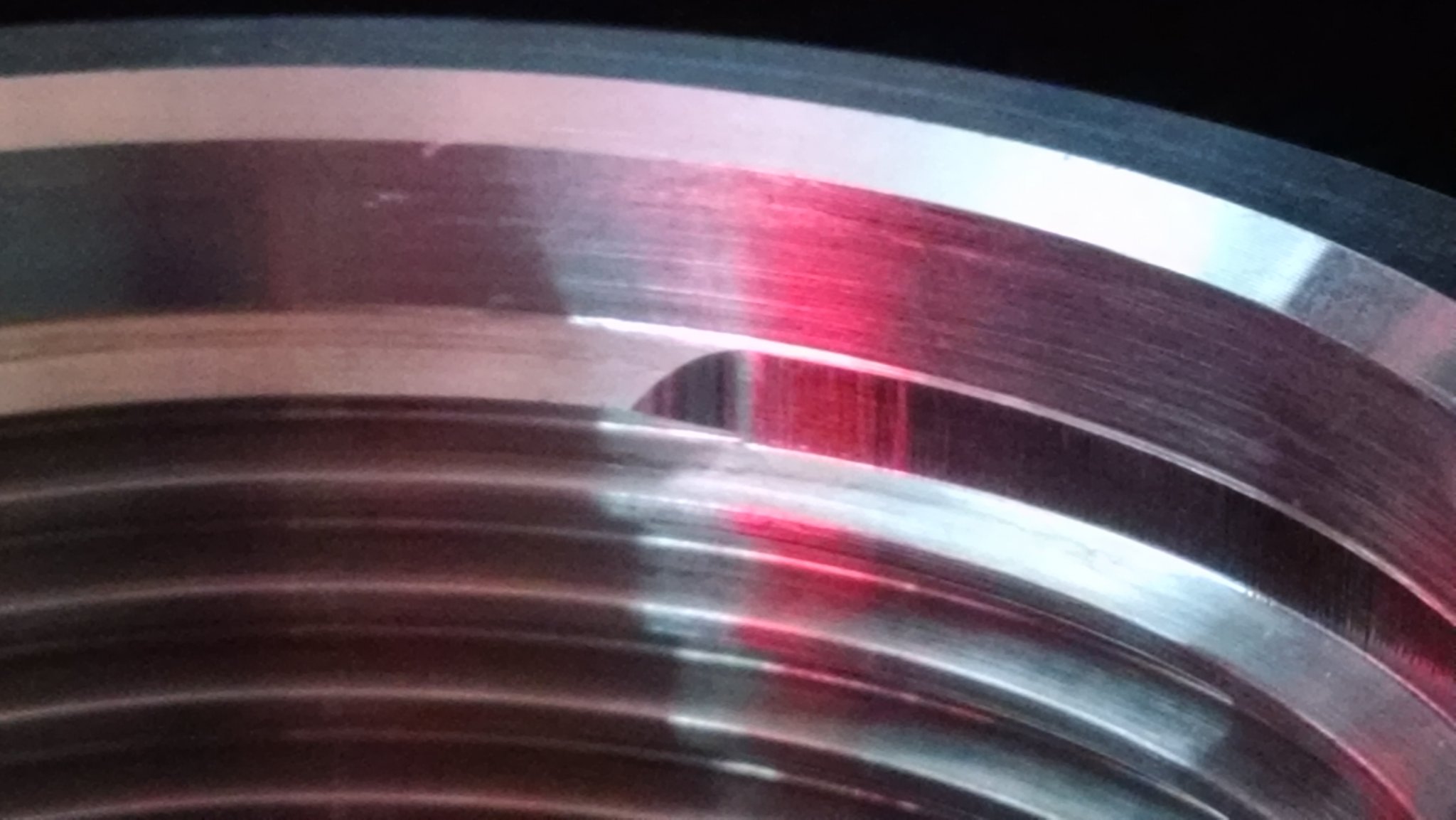

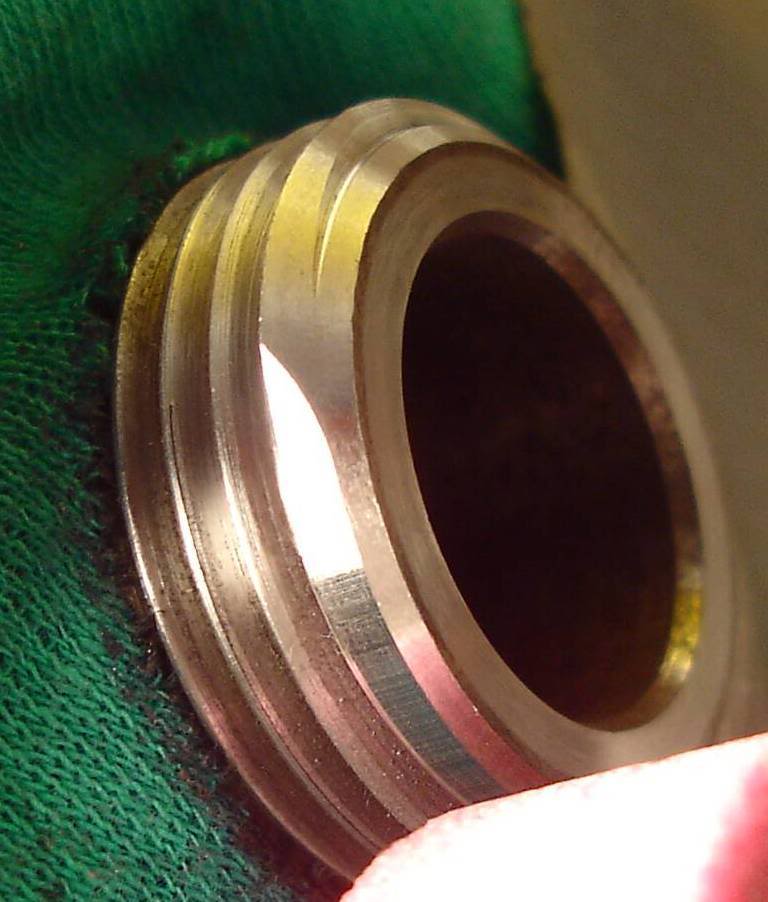

One thing that is used in oil and gas is known as a higbee thread or blunt start thread. Not needed in guns and a pain in the butt to cut. (CNC thread cut with a square groover the first thread on both ID and OD threads. Has to have consistent timing.)

  • Like
Reactions: HansohnBrothers

egraham

Sergeant
Belligerents
May 15, 2008
378
29
34
45
Birmingham, AL
Thanks. The only thing I don’t like is when you grab the suppressor to tighten down on the gun, the suppressor tube unscrews sometimes because those are right hand threads.


LeftyJason

Thumbnail-les
Belligerents
Mar 8, 2017
1,144
1,558
219
33
Kaysville Utah
I understand. I run a grinder at work and I sometimes grind threads. Most are right handed and some are left handed. You have to check every one with ring gages.


paco ramirez

Private
Belligerents
Mar 17, 2013
72
95
24
Thanks. The only thing I don’t like is when you grab the suppressor to tighten down on the gun, the suppressor tube unscrews sometimes because those are right hand threads.
Grab the piston housing instead of grabbing the tube when tightening it down. Since the piston cage should be locked into the piston housing it shouldn't unscrew no matter which way you turn it. Unless you're using something like an Octane or Tirant or similar where OD is 90-99% tube.


egraham

Sergeant
Belligerents
May 15, 2008
378
29
34
45
Birmingham, AL
Tirant 9 has a left hand threaded piston for my sig 226.

my octane stats on my Suomi which is 1/2 -28 so no issues there.

I just cleaned both cans. Octane is way easier to clean. Dump all the baffles, piston, fixed barrel spacer in a tumbler with stainless pins before work and when you get home dry off baffles and put back together
