Minox ZP5 turrets not aligned

generalzip

Sergeant
Belligerents
Jun 30, 2010
2,038
542
219
30
Houston, tx
It’s been pretty well established that the QC and turrets have greatly improved. Your story doesn’t tell the story anymore and no one wants to hear it anymore.
Would love to see the evidence you gathered for that claim. And if you don’t like it then skip
Past the post. No need to whine. Just sharing my experience with the OP.


Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
To the OP. Losen the set screws and tighten them back in small increments. Sometimes if one is tightened down too much first it can tilt the cap (like on the mk5s) and it will be off at some point in the rotation.

I had one that was a little off. I pushed the cap all the way down when tighting the screws and then it was lined up perfect. Could be something simple. Dial up a few mils losen screws and rezero it. Tighten and see what happens. I wouldnt just send it in just yet.
Great idea, I just got home and tried it
.. no dice. I'm hoping this cap does it for me.

I personally dont mind the trash talking. And I feel like I've read most of the ZP5 threads on here! That being said, I still have a lot of faith in minox. If they'll take care of me and my scope functions as designed then I'll be happy. I'm glad the guy is willing to give me some options before telling me to send my scope away to summer camp.

To those that own a ZP5, have you ever had problems with the set screws making flat spots on the spline? The reason I ask is that I have a few barrels for the gun I'm putting it on and I'm not looking for drama re zeroing semi often.


never_summer

Sergeant of the Hide
Belligerents
Oct 2, 2007
349
163
49
San Antonio, Texas
To the OP. Losen the set screws and tighten them back in small increments. Sometimes if one is tightened down too much first it can tilt the cap (like on the mk5s) and it will be off at some point in the rotation.

I had one that was a little off. I pushed the cap all the way down when tighting the screws and then it was lined up perfect. Could be something simple. Dial up a few mils losen screws and rezero it. Tighten and see what happens. I wouldnt just send it in just yet.
That’s interesting and I’ve never thought about trying this. I’ll give it a shot the next time I get to the range.

  • Like
Reactions: jwknutson17

tsp3355

Shooting Enthusiast
Hessian
Minuteman
Jan 18, 2020
37
32
24
COLORADO
I just checked mine which is a newer white box version 5-25. Mine stays in perfect alignment all the way to the top of the elevation range. I counted every click checking alignment every 5 clicks. I called Blaser twice before I bought mine to confirm whether or not the warranty is transferable (it is) and found them to be very responsive both times. If they aren't responding, I'd bet its COVID quarantine thing.


Gil P.

Blank
Belligerents
Aug 16, 2013
631
107
49
North Las Vegas, Nevada
I had a first batch ZP5, all the turrets lined up perfectly and the elevation turret felt great. The windage turret was a little mushy.

I recently sent it in for the turret upgrade and couldn't be happier. Elevation turret is firmer and the windage turret is now very good and tactile. The illumination turret also has very distinct detents. They weren't as distinct before.

There will always be a very vocal minority of people who get scopes that have issues from just about every brand.


CStroud

Gunny Sergeant
Hessian
Belligerents
Minuteman
Jun 26, 2018
525
328
69
40
Mississippi
Minox did have some turrets get by QC that were not engraved correctly. I got a replacement cap for one I had sold and it lined up fine after being replaced.


patriot07

Private
Belligerents
Oct 17, 2017
1,563
857
119
Dallas
It’s been pretty well established that the QC and turrets have greatly improved. Your story doesn’t tell the story anymore and no one wants to hear it anymore.
I will agree to disagree with you on that. QC on Minox equipment is poor, and QC on their repairs is even poorer.

OP - try some of the adjustments discussed. But I wouldn't hesitate to send it in - they're supposed to take care of these. You'll be without it for months and it may not come back repaired, but that's why I don't buy Minox. It will eventually be fixed, but don't get in a rush. For me, if I was spending $2k+, I'd want the scope's optomechanical systems to be operating perfectly. Outside bumps and bruises are acceptable on a used scope - optomechanical issues are not unless they were disclosed by the previous owner prior to payment/shipment.


stephewc

Private
Belligerents
Feb 22, 2013
54
5
12
Arcadia, CA
I will just add that the turrets on my ZP5 line up perfectly through the 14 MILs that I tested. I would give Blaser a call when you get a chance and just have it sent in for repairs. Like what others have mentioned, Blaser will send it to Germany so it'll be around 2 months before you get it back.


Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
The new turret is in the mail headed my way. Time will tell.

Also my windage and elevation turrets dont feel the same but that doesnt sound uncommon and I dont dial for wind so I'm not too worried. The detents for my illumination are ok ish (more like a bump in the road as opposed to a pot hole, no definitive stop) but I'll be looking through the optic to determine what setting I want so again not a huge deal.


Bradv86

Sergeant of the Hide
Belligerents
Minuteman
May 18, 2019
151
75
34
TX

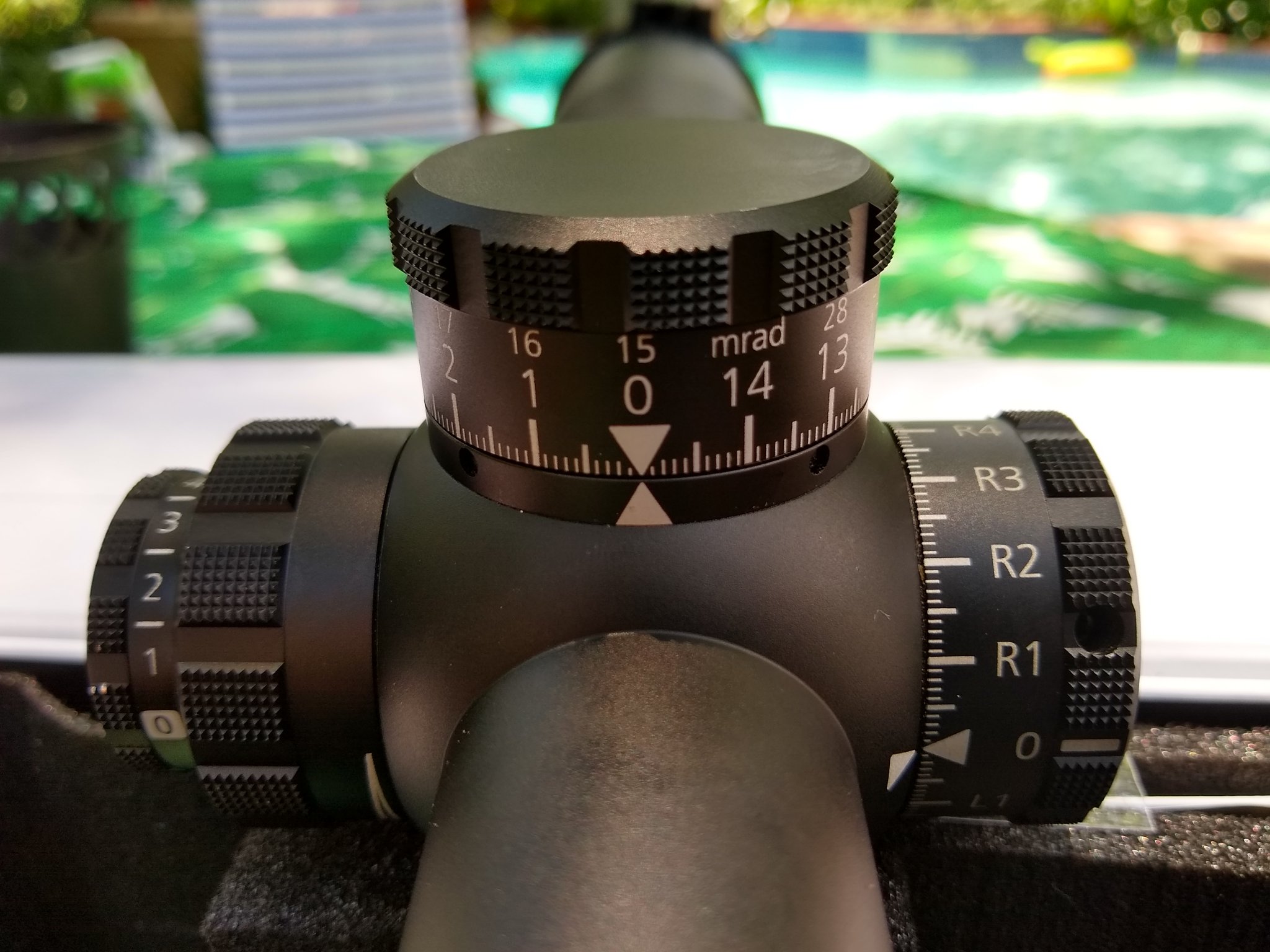

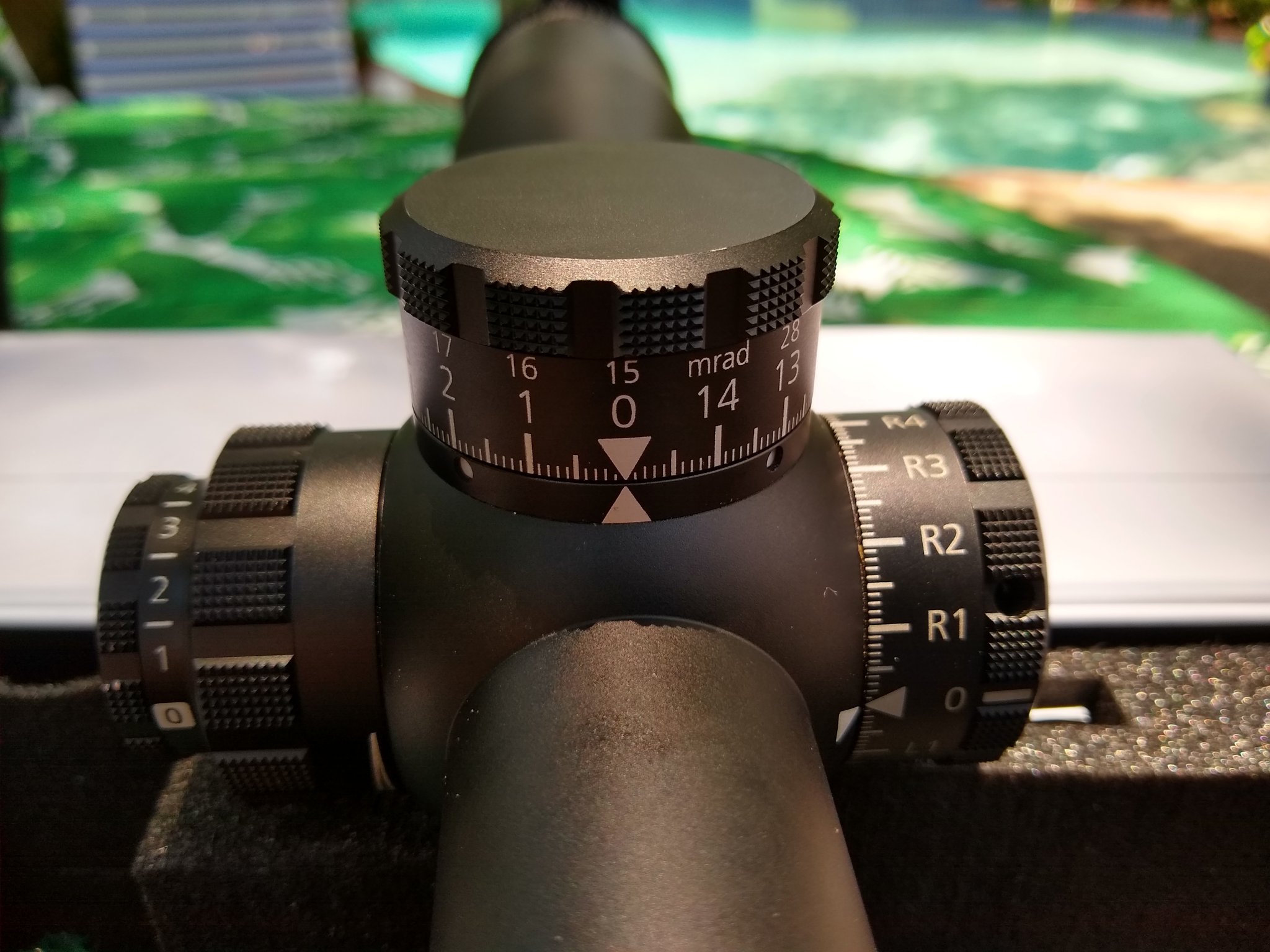

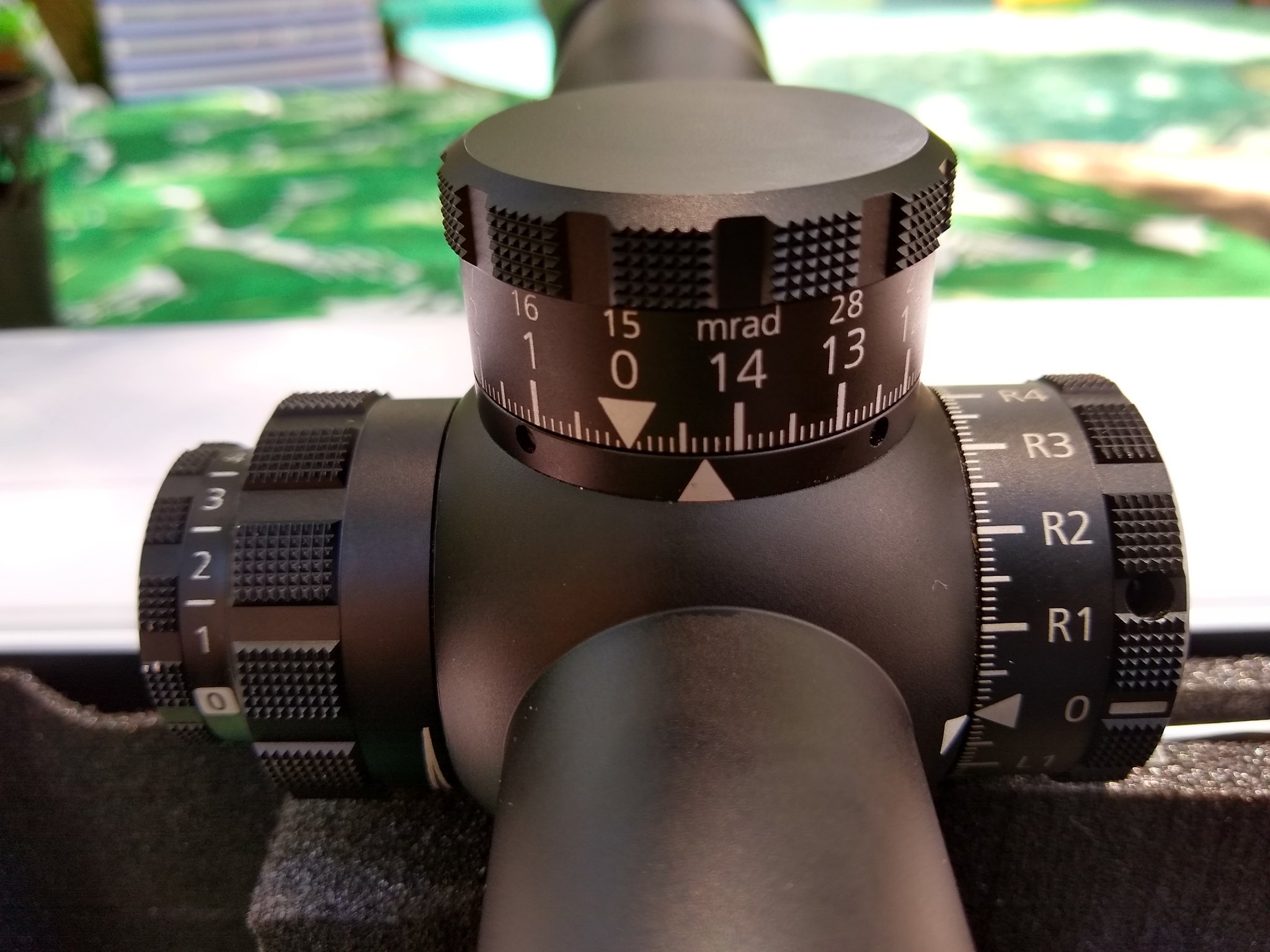

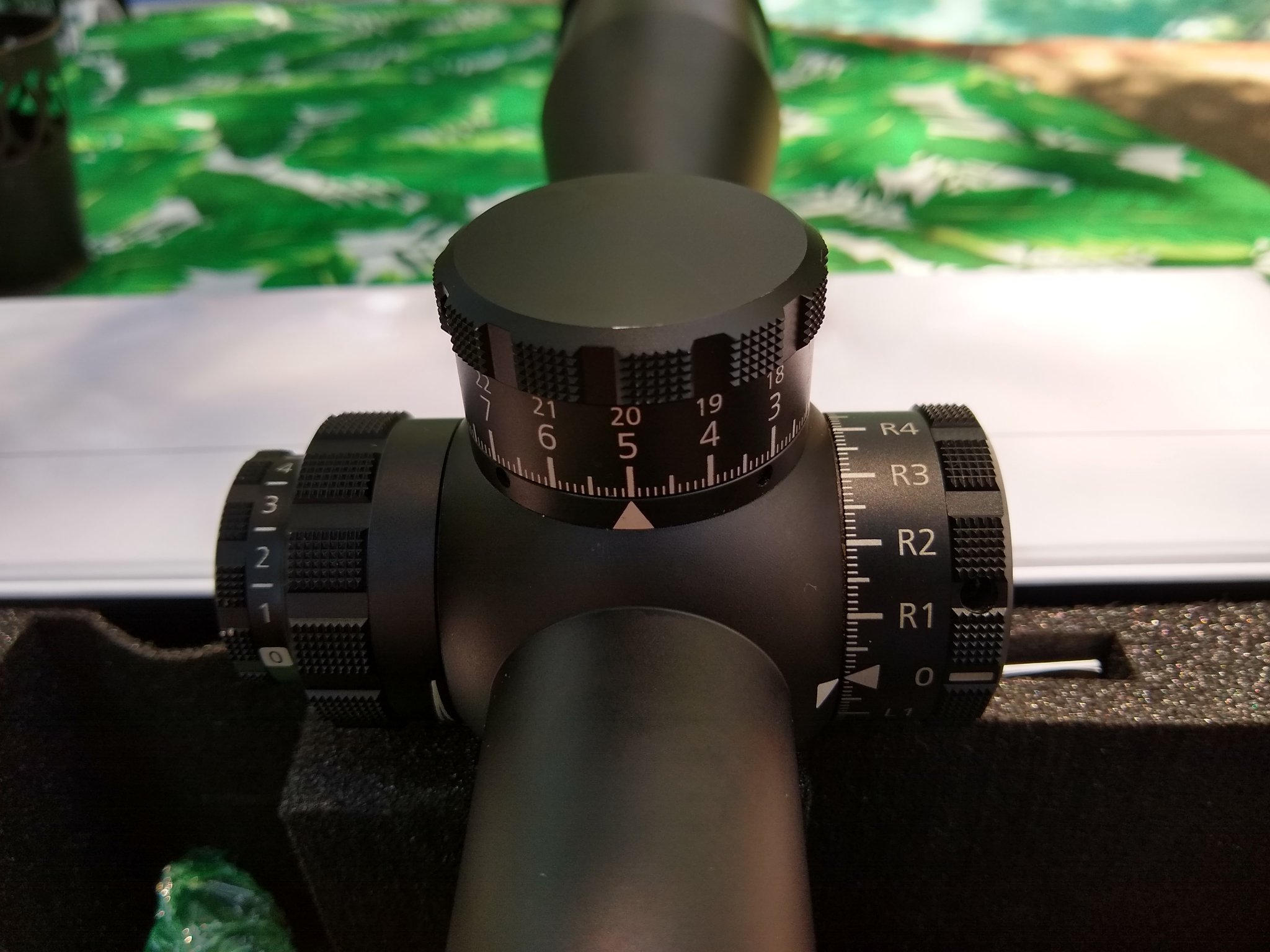

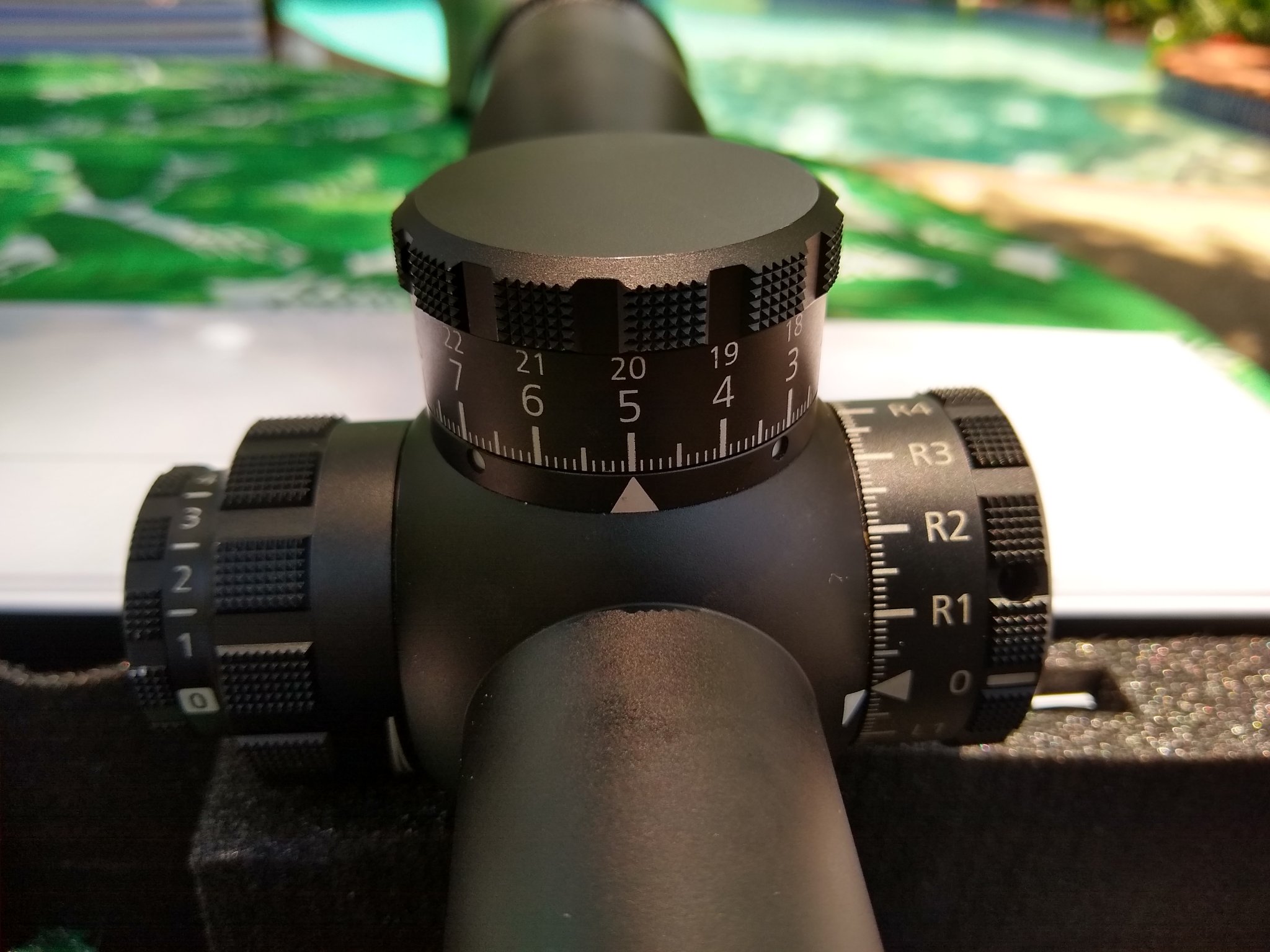

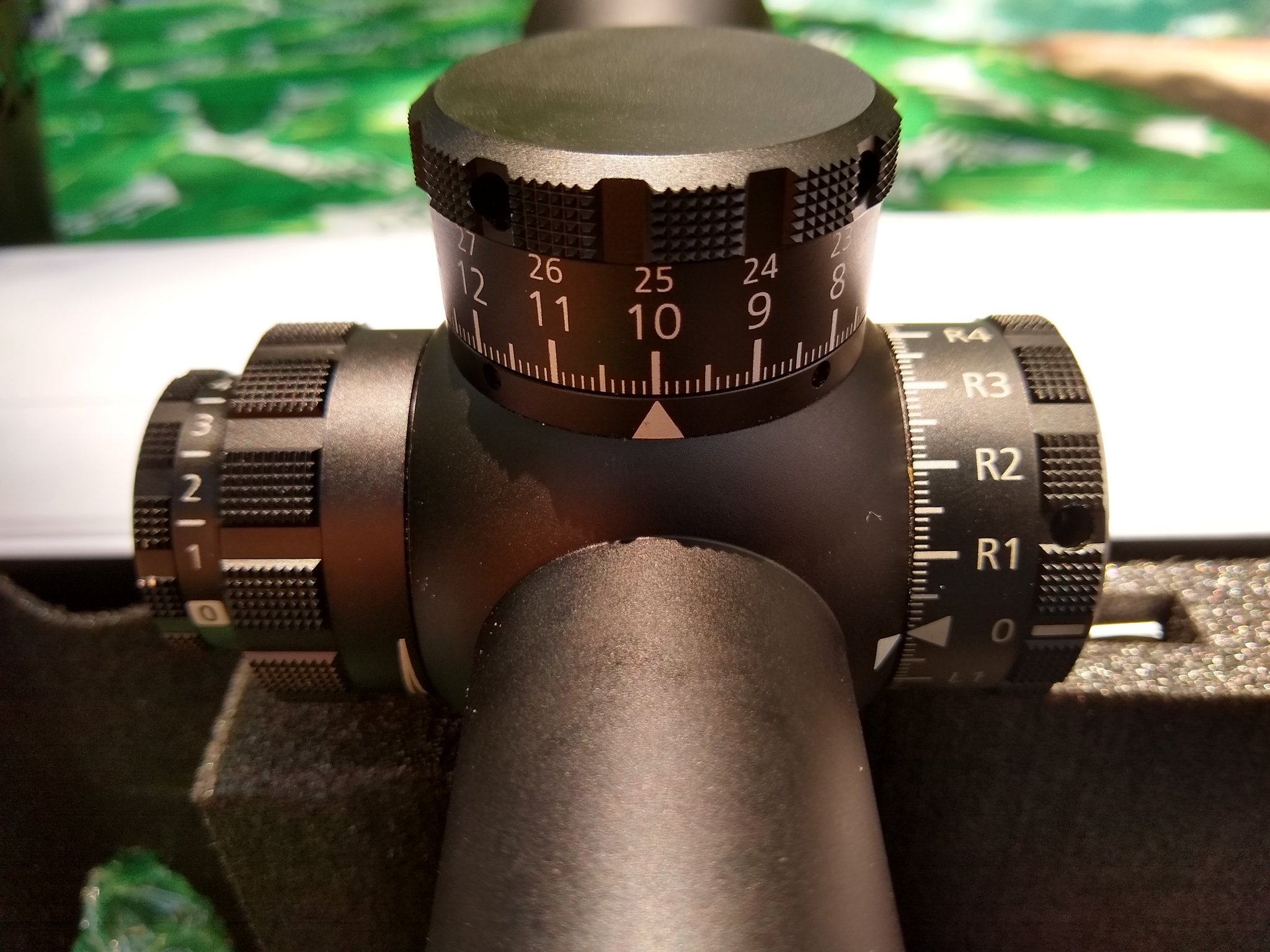

Finally got home to check my ZP5. White box version. Photos taken of alignment at 0, .7D zero stop, 5 mil, 10 mil, 15 mil (0 second rev), 20 mil. I have no alignment problems and this is what you should expect to have.

The elevation is extremely positive and I quite like the feel. The resistance into the second rev is a touch more stiff starting at 13.7 ending at 14.3 then back to normal.

The windage turret is a little less positive but not what I would call mushy. Not quite as loud as the elevation but I don't plan to dial wind that often.

My illumination knob feels similar to how you describe yours.


Attachments

  • Like
Reactions: delfuego

Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
Finally got home to check my ZP5. White box version. Photos taken of alignment at 0, .7D zero stop, 5 mil, 10 mil, 15 mil (0 second rev), 20 mil. I have no alignment problems and this is what you should expect to have.

The elevation is extremely positive and I quite like the feel. The resistance into the second rev is a touch more stiff starting at 13.7 ending at 14.3 then back to normal.

The windage turret is a little less positive but not what I would call mushy. Not quite as loud as the elevation but I don't plan to dial wind that often.

My illumination knob feels similar to how you describe yours.
Thank you. That helps a lot. I'll get it sorted out soon enough. Was able to shoot it yesterday and it did fine on everything I shot. And that was 860. It will be nice to have it right though.

  • Like
Reactions: delfuego

Tac Beard

Privy
Belligerents
Mar 9, 2014
95
61
24
50
This thread prompted me to finally run a tall target test with my ZP5. It passed with flying colors to 20 mils/36” at 50 yards.

The turrets feel great and line up everywhere throughout the full range of travel. I guess my only complaint is that there’s a tiny bit of play at each stop, as everyone else has noted. Doesn’t bother me or slow me down at all.


Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
This thread prompted me to finally run a tall target test with my ZP5. It passed with flying colors to 20 mils/36” at 50 yards.

The turrets feel great and line up everywhere throughout the full range of travel. I guess my only complaint is that there’s a tiny bit of play at each stop, as everyone else has noted. Doesn’t bother me or slow me down at all.
Totally agree, I was running the turrets as fast as I could accurately while walking the gun out on 5 targets and was extremely happy with how easy they were to index.

Thanks for the test results. I'll run mine once the turret cap shows up.

  • Like
Reactions: Tac Beard

wjm308

Send it!
Belligerents
Nov 30, 2012
4,065
3,002
219
Black Forest, CO
Thank you. That helps a lot. I'll get it sorted out soon enough. Was able to shoot it yesterday and it did fine on everything I shot. And that was 860. It will be nice to have it right though.
Hoping the new turret housing will do the trick. If you do need to send it in, I sent mine in back in March right before the Chinese Virus shut everything down, I was expecting massive delays but Minox had the scope back to me by mid May, went to Germany and back, got new set of turrets that are impressively better than the old ones - very little play and very distinct clicks. @canezach got to play with them and really liked them, a definite improvement over the “older” turrets that weren’t bad as they always landed true but just not as loud/distinct as the new ones and very little wiggle. The “new” turrets are closer in feel and sound to my old Kahles (which I loved) and my new ZCO!


Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
Hoping the new turret housing will do the trick. If you do need to send it in, I sent mine in back in March right before the Chinese Virus shut everything down, I was expecting massive delays but Minox had the scope back to me by mid May, went to Germany and back, got new set of turrets that are impressively better than the old ones - very little play and very distinct clicks. @canezach got to play with them and really liked them, a definite improvement over the “older” turrets that weren’t bad as they always landed true but just not as loud/distinct as the new ones and very little wiggle. The “new” turrets are closer in feel and sound to my old Kahles (which I loved) and my new ZCO!
If it comes to it... I'll wait to send it in till the riots stop. I'm hearing of a lot of smashed/looted packages.

P.S. I'm trying not to think of the ZCO I was saving for...

  • Like
Reactions: wjm308

Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
Turret just showed up! Installed it with no issues. And here are the results!

Only came with one set screw ( odd but fine) and markings look a bit more vibrant.
New cap on the left.

Zero stop is at -0.8 mils, old was -0.7 (again just fine)

And the important part!

Looks great!

Thanks guys for all the help! The minox boys were fast and now that I think of it there was no proof of ownership.


Bradv86

Sergeant of the Hide
Belligerents
Minuteman
May 18, 2019
151
75
34
TX
So nothing more than a misaligned laser printing and no real mechanical issues. Awesome deal and happy to see Minox is responsive.

  • Like
Reactions: Tac Beard

Jackomason

Poop-smith aka "Turd Herder"
Belligerents
Dec 26, 2013
715
460
69
Westcliffe Colorado
So nothing more than a misaligned laser printing and no real mechanical issues. Awesome deal and happy to see Minox is responsive.
Me too, not sure why the previous owner lived with it for a whole year... makes the whole scope look better when I know it's all right.

Very happy with minox over all.

  • Like
Reactions: Bradv86

wjm308

Send it!
Belligerents
Nov 30, 2012
4,065
3,002
219
Black Forest, CO
Turret just showed up! Installed it with no issues. And here are the results!

Only came with one set screw ( odd but fine) and markings look a bit more vibrant.

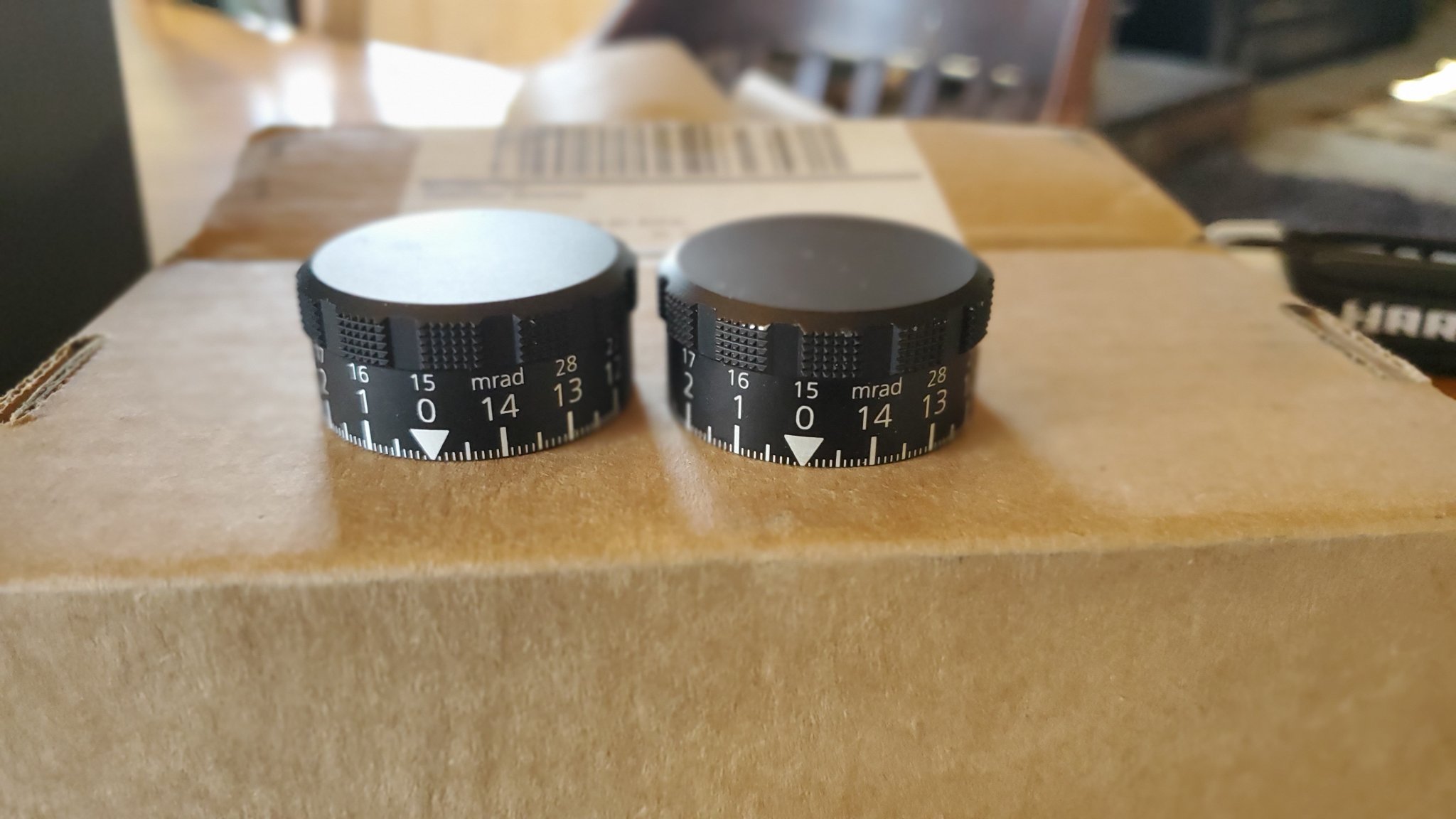

New cap on the left.
View attachment 7348336

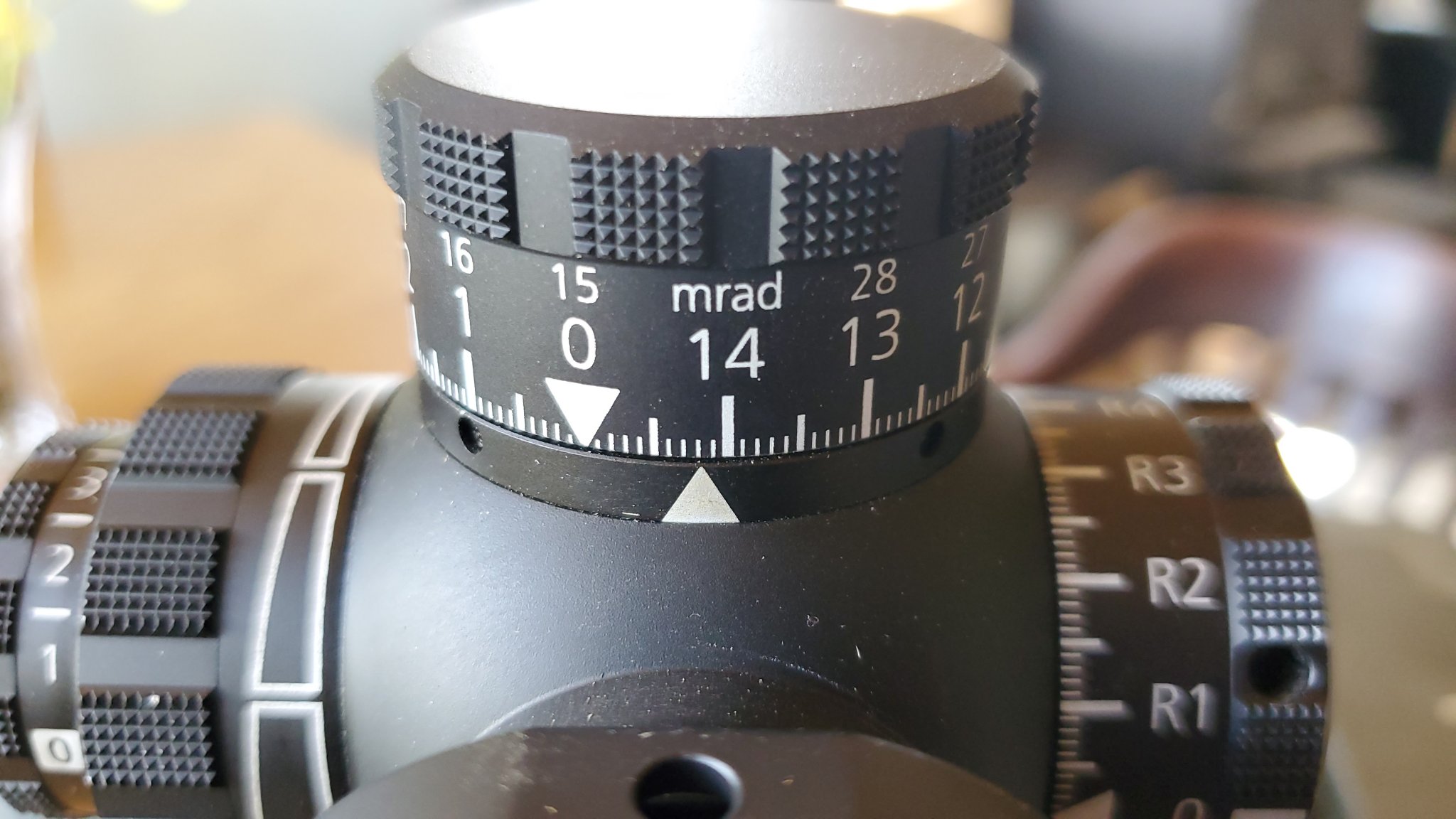

Zero stop is at -0.8 mils, old was -0.7 (again just fine)
View attachment 7348337

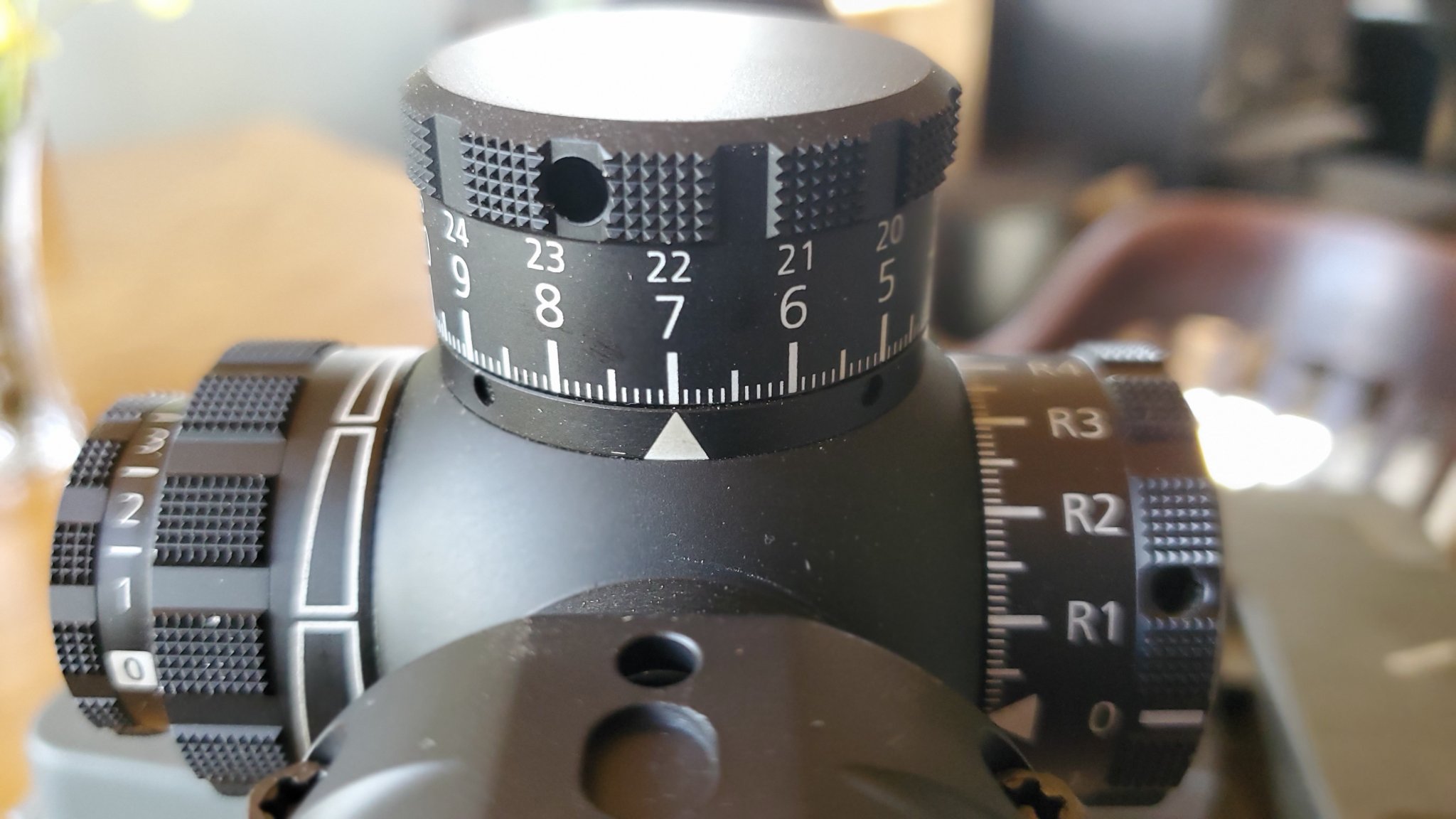

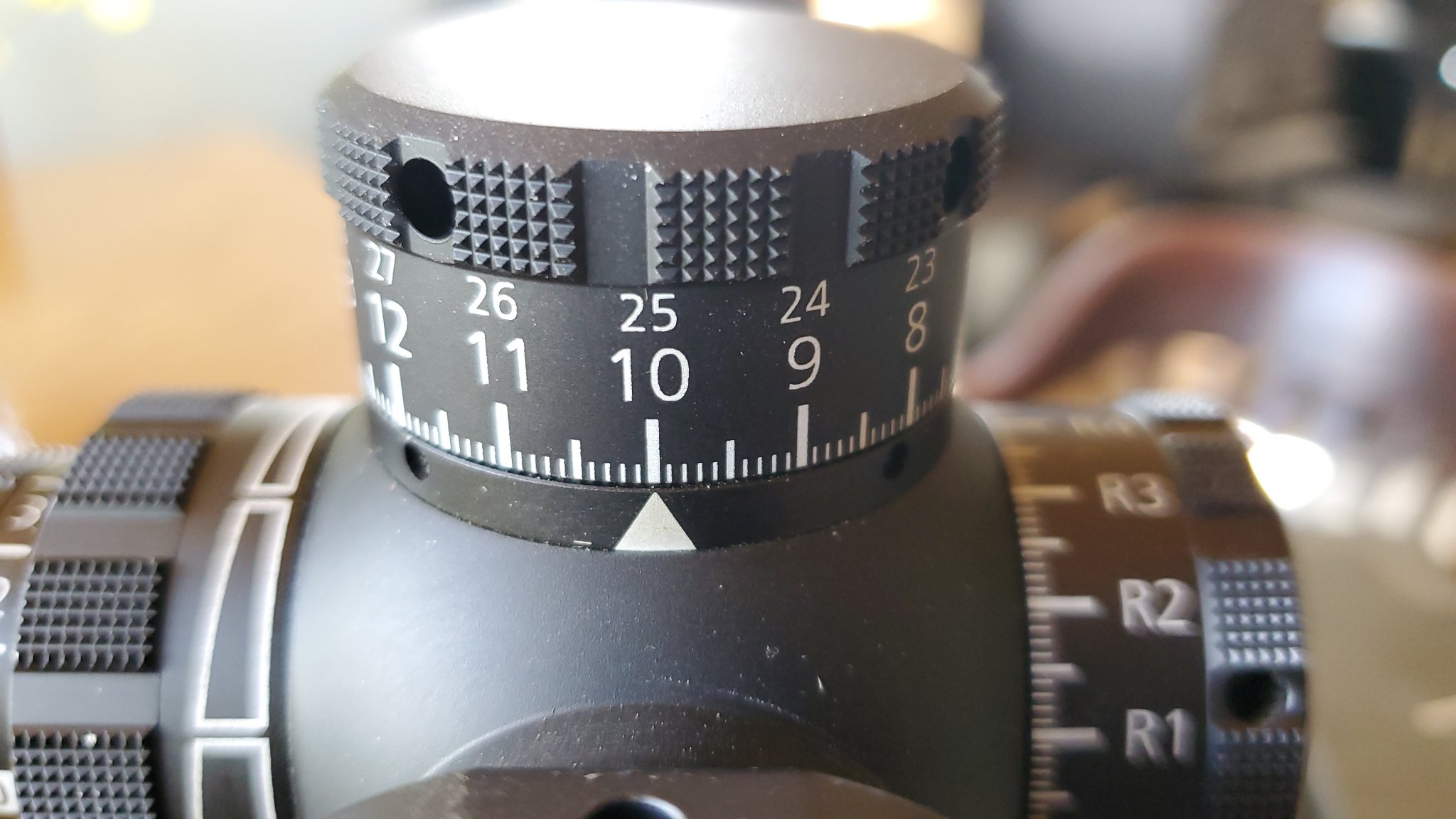

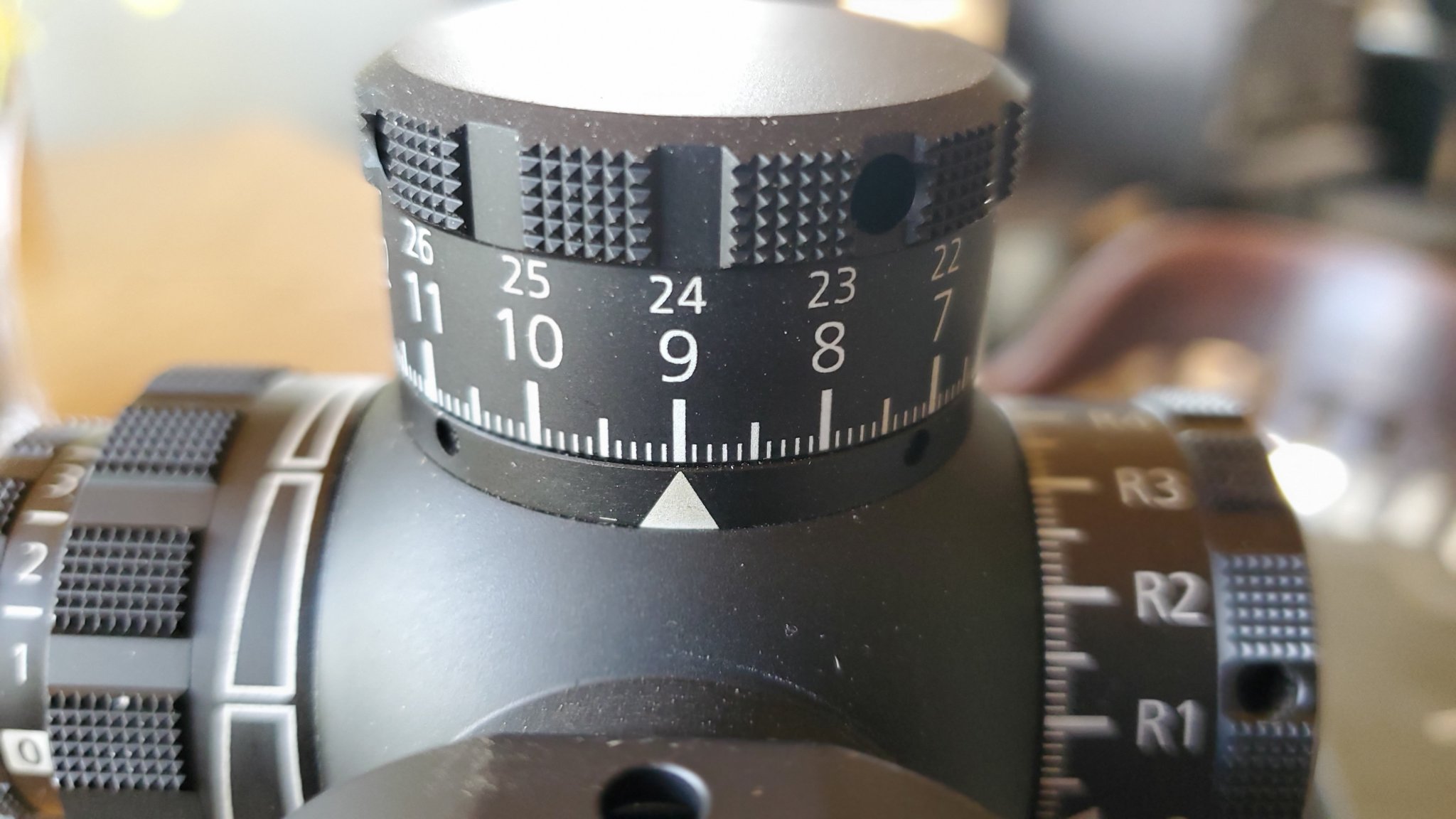

And the important part!
View attachment 7348339
View attachment 7348340
View attachment 7348341

Looks great!

Thanks guys for all the help! The minox boys were fast and now that I think of it there was no proof of ownership.
That's fantastic news, and thrilled it was simply a printed turret housing issue and not an issue with the internals!
