Do the extenders cause any image quality degradation? I'd think if you put another piece of glass in front of the primary glass it's going to have a negative effect but is it noticeable?
- Thread starter Covertnoob5
- Start date
I can only speak from anecdotal experience with Vector 21's and the 10x extenders. Never noticed any large amount of image or laser performance degradation.
However, we are talking a significantly more expensive unit (which in turn means different internals), and going from 7x to 10x with extenders.
However, we are talking a significantly more expensive unit (which in turn means different internals), and going from 7x to 10x with extenders.
A lot depends on the design. In the camera (lens) world, adding a 1.4x teleconverter to a professional lens only degrades the image slightly in modern design mirrorless lens systems. If Vectronix did their homework (and I assume they did) then likely these 1.4x extenders will offer minor degradation in quality, but we won't know for sure until they get into the field.
Jim will likely know more about this than me but I can say this, when putting a killflash on the Vortex Impact 4000 it does not affect the LRF unit effectiveness much to my surprise (I thought the metal honeycomb would have effected the laser a lot more than it does), I would be surprised if the extenders degrade the LRF effectiveness by very much if any but I would be curious if the manufacturer has done any calibrated testing on this? @Philip_at_Vectronix ?
The enhancers on the Vector IV/21 increase the range ability, by about 30%, though they have a much larger aperture. I'd expect the ranging to be minimally affected.
The range extenders slightly improve the LRF sensitivity. I did not ask Philip why this was, but that is what he said. I assumed they just have a slightly larger lens but I haven't checked that.
Yes, the Enhancers got more aperture, so they even enhance/improve a bit (!) the laser range performance. I am currently at IWA show in Germany so all (lots!) private messages I got will be answered after the show.
The only thing that keeps me from buying these right off the jump is I bought the Swaro El Range 8x32s a couple months ago and love them.
Comparing the two, I like the Vectronix display for both having a reticle for ranging and displaying the range and solution at the same time. That's nice, well done.
I am going to guess that the laser in the Vectronix is going to be superior. On the flip side of that, I will make the assumption the glass in the SWARO will still be top of the class.
Having AB is going to be huge for those that rely on it and that was my fear with the SWAROs however it's solver combined with it's onboard atmospherics has been more accurate than AB for me, likely because I can true their solver more easily. It's interesting because the Swaro app/solver seemed too "simple" to be as accurate as full featured AB, but that just isn't the case. It's spot on with it's solutions and that gives a lot of confidence. I have no doubt the Vectronix will do the same for those well versed in AB.
I really wanted the 8x32 SWAROs due to the size and weight. At 24 ounces they are significantly smaller and lighter than anything else, and that was important to me. The 8x42 Vectronix weigh nearly 50% more.
Finally the Swaro's have the tracking assistant which I haven't used yet but plan on getting familiar with before my hunt out west this year. It could come in handy being guided to within 10 meters or so of your last 3 ranges. Mostly this is a hunt feature, but nevertheless, worth something.
With that being said, these Vectronix look awesome, and I'm half tempted to buy the large 12x for use as a spotter bino. I am trying to talk myself into justifying owning both. I'll wait to see the real world reviews first but this seems to be a manufacturer that knows what the people want.
Comparing the two, I like the Vectronix display for both having a reticle for ranging and displaying the range and solution at the same time. That's nice, well done.
I am going to guess that the laser in the Vectronix is going to be superior. On the flip side of that, I will make the assumption the glass in the SWARO will still be top of the class.
Having AB is going to be huge for those that rely on it and that was my fear with the SWAROs however it's solver combined with it's onboard atmospherics has been more accurate than AB for me, likely because I can true their solver more easily. It's interesting because the Swaro app/solver seemed too "simple" to be as accurate as full featured AB, but that just isn't the case. It's spot on with it's solutions and that gives a lot of confidence. I have no doubt the Vectronix will do the same for those well versed in AB.
I really wanted the 8x32 SWAROs due to the size and weight. At 24 ounces they are significantly smaller and lighter than anything else, and that was important to me. The 8x42 Vectronix weigh nearly 50% more.
Finally the Swaro's have the tracking assistant which I haven't used yet but plan on getting familiar with before my hunt out west this year. It could come in handy being guided to within 10 meters or so of your last 3 ranges. Mostly this is a hunt feature, but nevertheless, worth something.
With that being said, these Vectronix look awesome, and I'm half tempted to buy the large 12x for use as a spotter bino. I am trying to talk myself into justifying owning both. I'll wait to see the real world reviews first but this seems to be a manufacturer that knows what the people want.
Last edited:
I played with pretty much all of them. And while the glass is really good, and most of the European devices, the general lack of integrated functionality has always driven me a bit crazy.
Given everything cost, you really want everything you can find… the glass isn’t quite as nice.
That’s why I’ve been surprisingly happy with the Sig10K.
This will be the first time that I think the features and the glass will be where I want them to be.
I really like the fact that, even if the batteries dead, you still can do some ranging using the reticle.
Given everything cost, you really want everything you can find… the glass isn’t quite as nice.
That’s why I’ve been surprisingly happy with the Sig10K.
This will be the first time that I think the features and the glass will be where I want them to be.
I really like the fact that, even if the batteries dead, you still can do some ranging using the reticle.
I’m curious to see how using an extender matches up against the same mag in a base optic. My gut feels like there’s going to be image degradation of some degree but that may be an inaccurate assumption.
Some modern scopes have 20 - 30+ lenses in them with little to no degradation. Next gen scopes have 3 objective lenses like the March Highmaster. When built properly with quality glass it can be a serious advantage.
With add-on systems like this, there is usually some image degradation. However, a lot of that is execution. If these are done well (and it sounds like they are based on what people who have seen them are saying), there does not have to be perceivable image degradation. Afocal multipliers seem to have gotten a lot better in the last couple of years, so I would not be surprised if these are really excellent.
ILya
Just throwing this out there for people that might not need all the bells and whistles (or reticles) but want a higher base mag and larger exit pupil.
I use the older version of the Leica 15x56 Geovid LRF binos. They have an exit pupil of 3.7mm. I shoot in bright daylight, mainly, so that doesn’t really matter to me.
I love those binos. Such a nice image.
Don’t let some vendors say they are optically subpar…they render images like Leica M rangefinder camera lenses, meaning not “flat” like Swaros.
The updated version goes out to 2000yds. $2k
My older unit ranges out to 1200yds, or 700-900yds in pdog shooting conditions. Long enough for my use. They shoot their laser out from between the lenses like their other bino LRFs.
I range and use a dope card, but it would be nice to have the solution in the bino…but I’d probably forget it going from bino to refinding the pdog in the scope lol (I use holdovers).
The VectorX looks superior in almost all ways, but it’s too bad they don’t have a base mag 15x-18x version, and a 56mm objective would be nice for those in lower light conditions (not me).

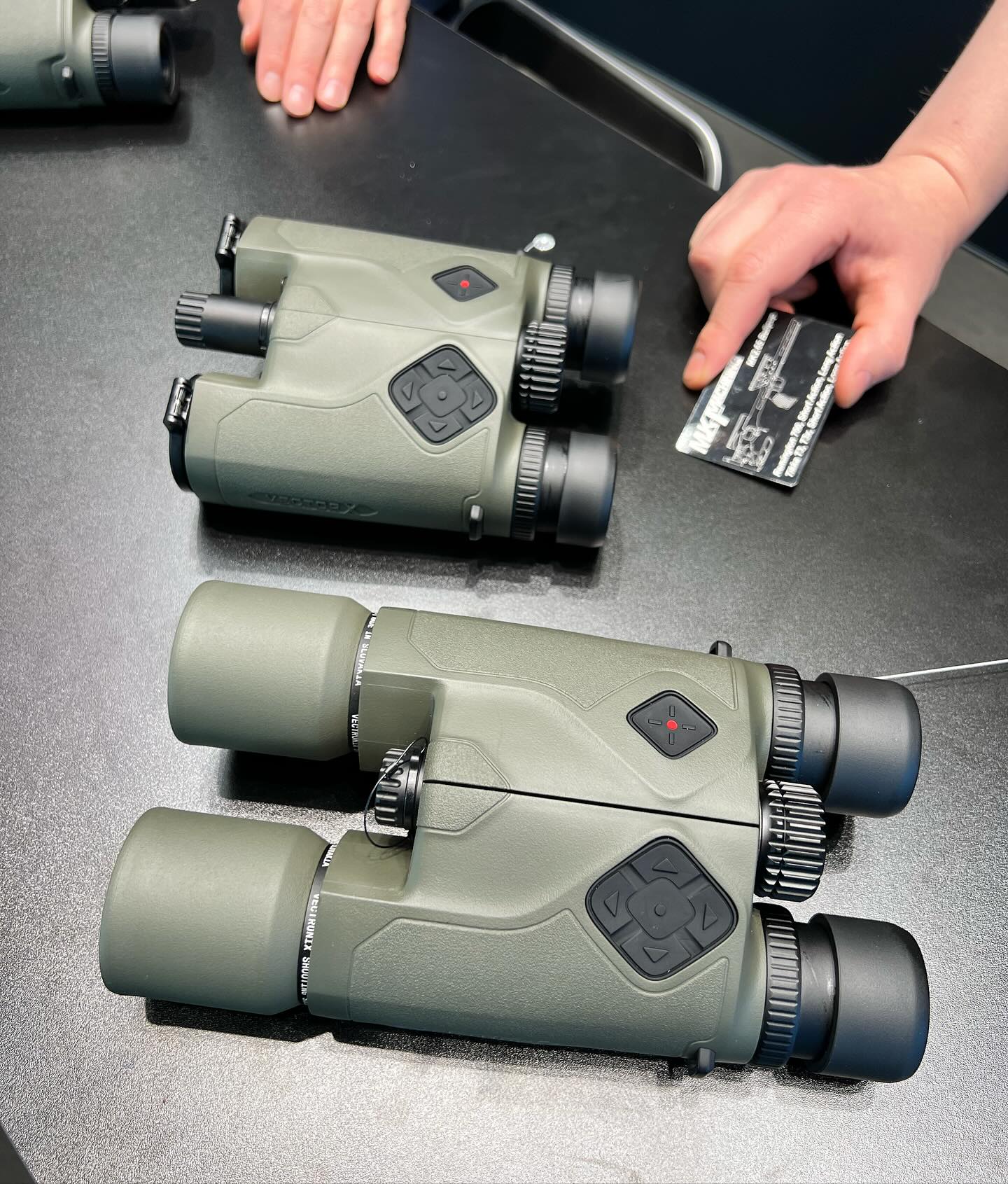

New version (right-hand round buttons):
Old version has rectangular left-hand buttons.
For plain high-mag binos, the 18x56 Maven b5 was tremendous.
I posted this last July. “Why doesn’t someone make a 15x binocular with an integrated range finder and a reticle? Seems to me like this cover all the bases and be great for prs competitions.and general field use. You could spot and range in one relatively compact device.” Looks like they pretty much listened.
I think you're thinking of PLRFs and the original Terripans. The Terripan Xs have been warrantied. When I had an issue with mine, Phillip walked me through a few troubleshooting steps and then just exchanged my unit for a brand new one.
Yes, specifically for retail customers. If you are non-MIL and you have a problem you are probably not gonna have a good time.
But, I think the 12x42 lrf bino model here lookd great. Vortex, Sig Sauer, Swarovski, Zeiss if you are reading this, this hereis a product line we want.
Still sounds like you're confusing the Terrapin and the Terrapin-X. The Terrapin X is a non .mil consumer/commercial grade laser just like the binos being released.
And haven't heard of anyone getting stuck with a bricked Terrapin-X.
The original Terrapin (plrf05) and the other PLRF's are a different story.
No, I'm not confused. I am reffering to the Terrapin X. I recognize that you or others may not have heard of problems and that sounds like hearsay but take the anecdote for what it is. Me personally I'm not feeling great with their track record of after sales customer service.
It would be nice, frankly, since a rep is on the thread if it was addressed. I’m sure they’re busy at IWA and will address concerns when they can.
Did you have one of these?
Or one of these?
The first model wasn't warrantied. The second was.
I get we are all piling on here, my reference was to the Terrapin X. I know we all need to keep asking this over and over again. Just because a company states they have a warranty doesnt mean everyone has a good expierence with that warranty okay.
Well, I guess you're not going to want any part of the new Vectronix LRF then. Feel free to see yourself out and save the rest of us having to listen to your whining
Nah, I think I will stick around thanks. But appreciate your autistic defense of Vectronix.
I hope throwing that adverb in there made you feel better. I guess you're dumb enough to try anything twice.Nah, I think I will stick around thanks. But appreciate your autistic defense of Vectronix.
You seem really invested here. I'm not quite sure why you are so butthurt about sharing my opinion and expierence on an online forum about a commercial product. But okay, I'm glad you could take this oppertunity to jump in and defend Vectronix's rep got it boss.
I'm not. It's just you. You're the only one going on about the warranty. Tried to clear it up for you, and I was nice about it, but then you want to get cunty. So now I just want to shit on you.You seem really invested here. I'm not quite sure why you are so butthurt about sharing my opinion and expierence on an online forum about a commercial product. But okay, I'm glad you could take this oppertunity to jump in and defend Vectronix's rep got it boss.
I have the PLRF 25C anf if the binoculars work half as good they will be great. My 25c will range 8k and 50x50 at 4k.
I'd want 8x for hunting or 12x for competition usage.
Maybe just need to go 10x and then won't be happy either way....
8x +booster will give you 11.2x , close enough to your 8and 12x requrement
10x gets boosted to 14x and 12x to16.8x Magnification
Had a chance to peek through them at IWA and the concept with optical boosters looked well executed , no noticable distortion that i could see on show. Of course once Ilya gets a pair to put trough its paces we will see what gives...
Does the reticle have its own focus adjustment?
No you dumbfuck you intentionally asked the same question for the third time after it had been answered by me again, and again. Then you proceeded to gatekeep the thread. Don't sit there and act like you answered anything that's complete bullshit. Do me a favor and take an answer the first time instead of going full auto retard. Don't intentionally quote me from days ago just so you can pick a fight in a vain attempt to protect a brand. Kay thanks bye.
Last edited:
Good point...there's no free lunch with exit pupil. Less total light transmission (more an issue at dawn/dusk), but also more difficult to stay behind (keep your eye lined up) during all conditions.
Combined with age-related decrease in pupil size (our eyes' ability to dilate weakens w/ age starting after 20s), it can be more of an issue for some of us.
10x42 w/ an exit pupil of 4.2mm is already smaller than most people's max-dilated pupil size, so anything smaller will produce less observed light (low light conditions), and 12x42 (without extenders) exit pupil is already smaller than the 15x56.
Last edited:
Being reticle designer and proud member of project team, I am happy to tell that your concerns too were considered very carefully.
As FinnAccuracy original MSR / MSR2 riflescope reticles, Vector X MSR-DMR is designed with absolute guideline of fundamental binocular use: Reticle has to be non obstructive, clear and simple for any observing use - while offering precision and versatility when mil references are needed.
Reticle design notes:
- Upper 50% of FOV is perfectly clean for any observing use
- When display is not on, wide lower center part of reticle is clean without any etched structures
- Uaers will get full reticle functionality with both basic and range enhancer use
- "T" elements blend nicely with display, are kept very close to it for multiple reasons
- Outside "T" hairlines, reticle extensions are subtle dots and also toward outer areas of FOV. Dot weights are balanced so that they are not effecting general clear feel. Still, If wider or taller reference size than T is needed, eye catches on them immediately.
- Dot-grids can be used as layover mil reference on top of target. They are most obstructive elements of reticle, but are also located in outer FOV area. Grid element weights are light, for precision and daytime use.
- Center area cross is 1x1 mrad, with 1mrad stepped dot extensions. Center cross area is compact but still useful refence for many needs, calling shot corrections based on impact signature for instance.
For those who appreciate good optical quality, I can confirm that it is good! Rather early prototype Vector X test mule I benchmarked against Zeiss Victory RF 45mm objective version was already preforming same, if not slightly better than Zeiss. But Vector X optical system was still improved after that, so final version is even better. Image also remains good when pushed up to 17x with range enhancers. This includes other than bright daytime use, enhancer quality is also very good.
Edit - P.S.

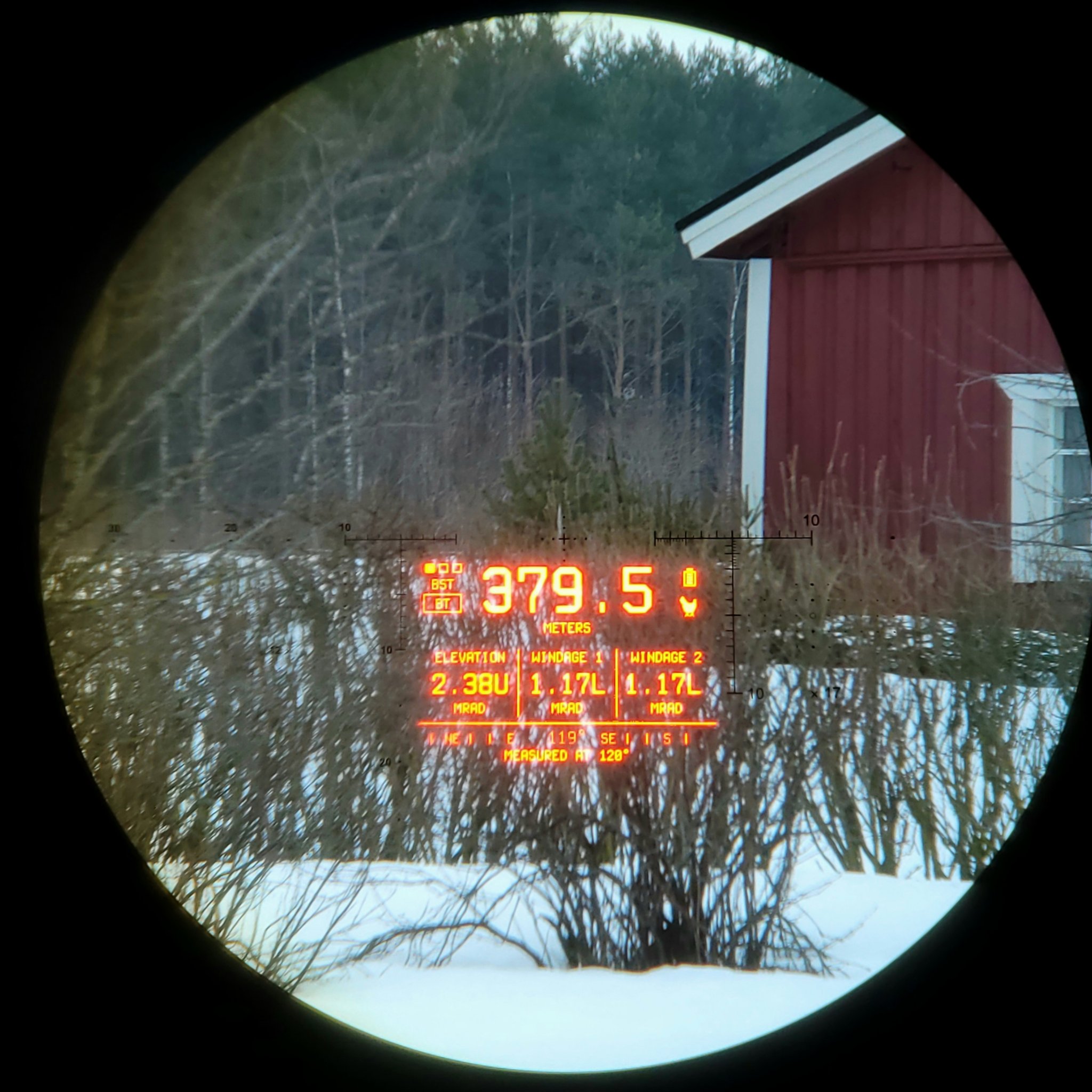

Photo taken with 12x42 and mobile phone, no range enhancers. Reticle feel is very different against practical backgrounds - black&white reticle drawing changes its appearance to very highlighted. Only elements eye catches immediately in real life are center cross and compact mil-T:s, rest are there if needed and when eye concentrates on it. Bit hard to explain, but functionality and "real-life feel" on practical use is based on dimensioning, weights and locations on FOV as combination.
Phone adapters were also considered when eyepiece was designed, so almost any cheap Amazon phone adapter will work very nicely. Also display refresh rate matters and was taken into account, display won't flicker annoyingly when Vector X owners want to capture photos or video. Eyepiece is also very easy to remove for cleaning, very useful but rather rare feature in binoculars.
Attachments
Last edited:
Couple questions....
How long does the display stay lit after a target is marked, and are these a release button(for range),like the Vector 21's?
I've ran a 21 almost daily for the past 13 years, and it has functioned perfectly. It's by far the best device I own for durability, and precision.
I'm hoping this newest offering will compete with the optical quality of the Leica HDB 3000, and the Swaro EL Range....
How long does the display stay lit after a target is marked, and are these a release button(for range),like the Vector 21's?
I've ran a 21 almost daily for the past 13 years, and it has functioned perfectly. It's by far the best device I own for durability, and precision.
I'm hoping this newest offering will compete with the optical quality of the Leica HDB 3000, and the Swaro EL Range....

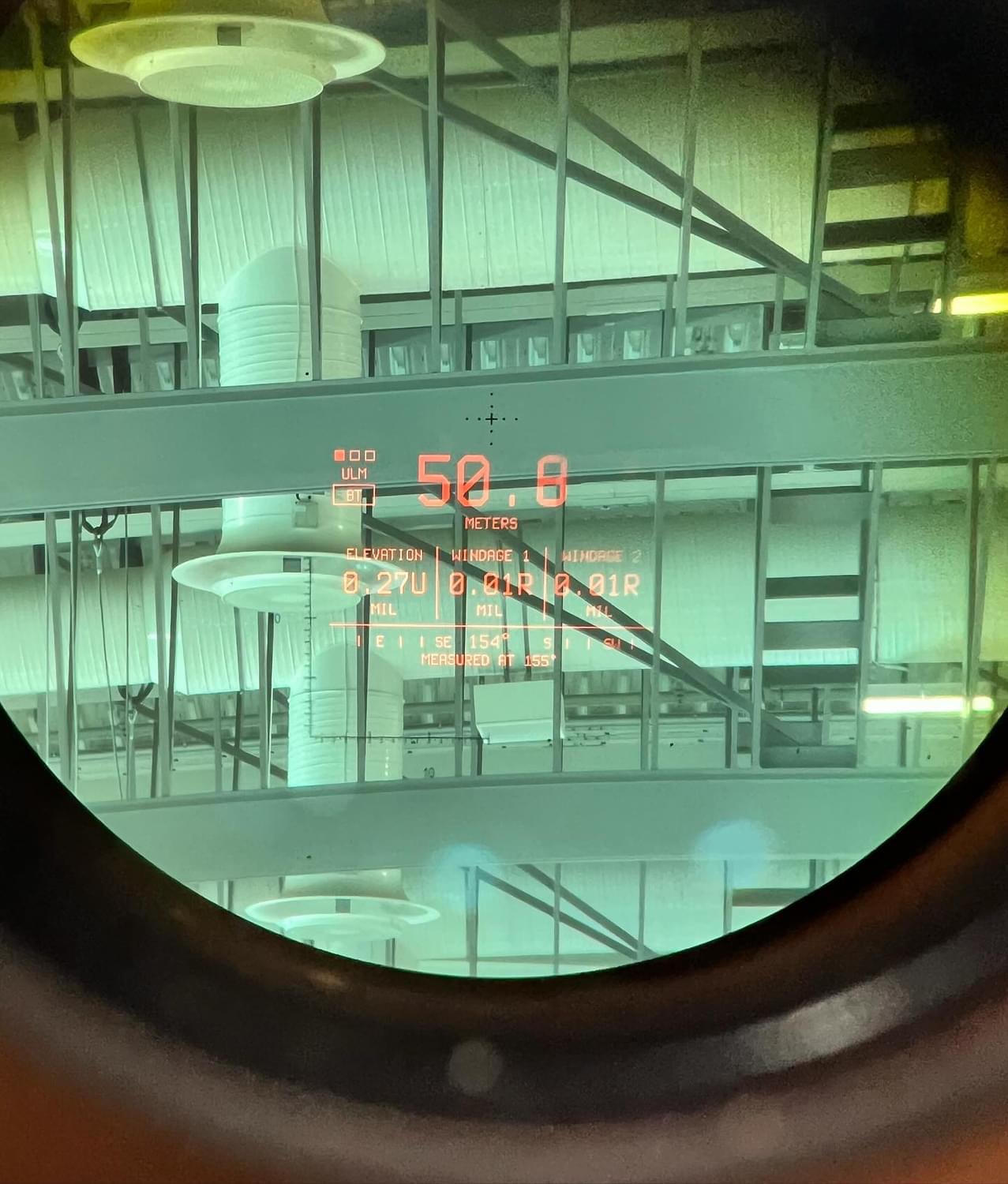

Yessir, compass is asking for "chicken dance" calibration with blinking chicken. Not sure if symbol is still used in production version.Is that a chicken under the battery?
Last edited:
Thanks for the pic, was curious about this. Which model is wearing the battery extension, 10x?
Does the 18650 battery setup extend beyond the end of bino, with and without lens caps? (my use case includes enclosed chest pack, without caps)
Have you tried calling EuroOptic for service on your Vectronix? I thought I read on their site they're now the U.S. service center.
Yes, I spoke with them at length at SCI last year..... they put me in touch with a guy named Jason Baney who was supposedly their lead rep.....basically was told I was out of luck. I originally bought them from Euro Optics.
Can the threaded objective caps also thread onto the magnifiers?
I believe I read they can on one of the post on their web site.
