Range Report  Short barrel 6.5Creed?

Skunk

Violating Rights
Full Member
Minuteman
Nov 24, 2003
669
1,099
Rolling Green
All,

I've been shooting 16-20" .308's forever. I recently picked up an AXMC that came with a 26" 6.5Creed barrel. Needless to say, it's a long rifle and I'm hanging a suppressor on the end as well. So, I'm wondering about cutting this thing back to somewhere around 16-20" but am completely unfamiliar with this cartridge. Will I be chopping the legs out from under this by going that short? 308's do well short, does the 6.5Creed?



Covertnoob5

Major Hide Member
Full Member
Minuteman
  • Feb 12, 2017
    2,213
    1,202
    SoCal
    Wondering the same thing. Thinking about doing a short 6.5 creed


    Sent from my iPhone using Tapatalk


    Skunk

    Violating Rights
    Full Member
    Minuteman
    Nov 24, 2003
    669
    1,099
    Rolling Green
    I know there are guys out there shooting short 6.5's. I've seen mention of guns that are 16.5" here on the Hide. Hopefully they'll see this and respond. I just want to know how short can the barrel be and still push a good bullet to a speed that matters. Will I still be better off than shooting a 308?


    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida

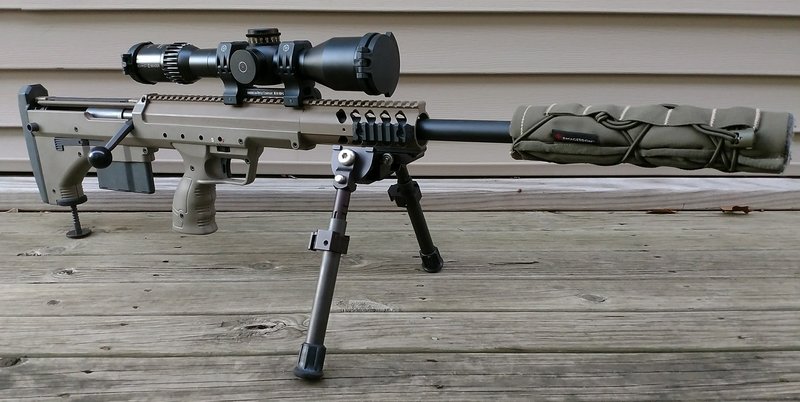

    In my opinion, giving up 100 fps by going 20" is not an issue. I just picked up a Tikka TSR-1 in .260 Rem with a 20" barrel and it is a shooter. Since I can load my 26" barreled .260 to 2850 fps without issue using 136 g Scenars, The 2750 that I can get with the 20" barrel will do just fine. Consistency is much more important to me than sheer speed. Plus, like you, I appreciate that the 20" barrel provides a bit shorter platform for my 9" can.

    Oh yeah, it looks great too!


    47chevycoe

    Private
    Full Member
    Minuteman
    Feb 12, 2017
    324
    29
    Nebraska
    I have a 16.5" 6.5 creedmoor barrel on an AIAX. I shoot the 123 scenars at 2800. And the load isn't near max. I also have a 24" 308 barrel shooting the 168's, and ballistics are identical out to 1000 yds.


    SHLowlight

    HMFIC Damage Controller
    Staff member
    Moderator
    Commercial Supporter
    Full Member
    Minuteman
    Jul 24, 2001
    25,061
    25
    Colorado

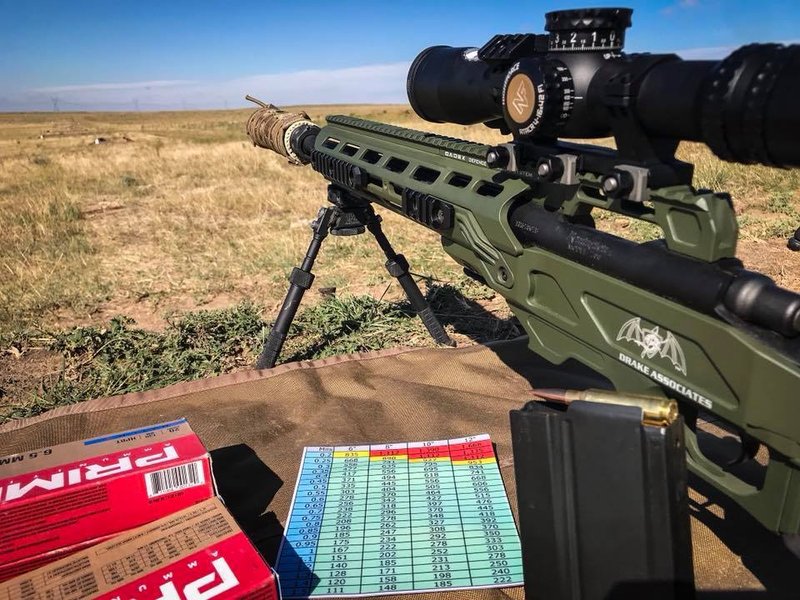

    18" 6.5CM here

    <iframe width="560" height="315" src="https://www.youtube.com/embed/6M17GhdUWwY" frameborder="0" allowfullscreen></iframe>

    • Like
    Reactions: jb41291

    ker2222

    Full Member
    Full Member
    Minuteman
    Sep 3, 2004
    617
    30
    49
    Hastings, MN
    this is a question I have asked myself too....

    at what velocity does the 6.5 lose (or have marginalized) its huge ballistic advantage over the 308.....


    Bradu

    Full Member
    Full Member
    Minuteman
    Aug 24, 2011
    3,103
    1,191
    IL
    I can help with this topic with first hand experience. I have a 17", 22" and a 26" .260 that I shoot the same load in because it does well in all of them even though the SD sucks in the 26" barrel. My 17" barrel is running 2480 but it has less than 100 rounds on it so it may pick up a little speed. The 22" barrel is right around 2725 and the 26" is just a hair over 2800. That's 42 grains of h4350 behind a 142 SMK. I have no doubt I could pick up speed in the short barrel by switching powders but it shoots good and my range is only 700 yards so there really isn't any point in pushing it harder.


    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida
    I can help with this topic with first hand experience. I have a 17", 22" and a 26" .260 that I shoot the same load in because it does well in all of them even though the SD sucks in the 26" barrel. My 17" barrel is running 2480 but it has less than 100 rounds on it so it may pick up a little speed. The 22" barrel is right around 2725 and the 26" is just a hair over 2800. That's 42 grains of h4350 behind a 142 SMK. I have no doubt I could pick up speed in the short barrel by switching powders but it shoots good and my range is only 700 yards so there really isn't any point in pushing it harder.

    Ya know, I recently 'discovered' how well the 142 does out of a short barrel. I e always used other 6.5s in my .260s, but then picked up this 20" Tikka. Shot some FGMM with the 142s at a relatively slow 2575 fps and doped them out to 1000. Then shot a local match with the rest of them and was very pleased with the performance of this bullet out of a short barrel. I am now working up a load for this rifle using the 142s (or will be once recovery from freakin' Irma is done with).

    Last edited:
    • Like
    Reactions: kai24

    kRcu

    Full Member
    Full Member
    Minuteman
    Jun 5, 2013
    802
    357
    Denver, CO
    Pick up my TL3 w/ 18" 8-twist 6.5 on Monday. Going to go zero and start getting data to 1,000 on Friday. I'll try the 142's. I only bought 140ELD's. Ive been wanting to try 130 PRIME also.

    Ill report back how it does to 1k.


    devldogs55

    Sergeant
    Full Member
    Minuteman
    Feb 11, 2014
    315
    8
    N. Idaho
    The 22" barrel is right around 2725

    I'm trying to wrap my head around how a 22" .260 with 142s is at the exact same velocity my .308 is at with a 22" barrel and 175s. I thought the whole advantage of the .260/6.5s over .308 was the additional speed. Is the only advantage a better BC? Is that how it dodges wind better than a .308?

    I've been wanting to move from .308 to 6.5x47 for a while now, but I don't know jack about the 260. Are you just shooting really mild loads?

    Last edited:

    Bradu

    Full Member
    Full Member
    Minuteman
    Aug 24, 2011
    3,103
    1,191
    IL
    42 grains of h4350. They are pretty mild. I figure no point in running shit hot, if I want faster I will get a bigger caliber. Im thinking it shot good in the upper 43 grains and I didn't feel like losing primer pockets that quick.


    BoilerUP

    Old Salt
    Full Member
    Minuteman
    Jan 16, 2011
    3,567
    1,395
    37
    Floyd Co, IN
    I had a 26" 1:8 Criterion 6.5 Creedmoor; I got 2820 with a 140gr HPBT over 42.5gr H4350 and 2857fps with 140gr Amax Match factory ammo (barrel had about 950rds through it).

    Same barrel cut back to 18" got 2640fps with the 140gr HPBT load and 2662fps with the 140gr Amax Match factory load.


    Bradu

    Full Member
    Full Member
    Minuteman
    Aug 24, 2011
    3,103
    1,191
    IL
    42 grains of h4350. They are pretty mild. I figure no point in running shit hot, if I want faster I will get a bigger caliber. Im thinking it shot good in the upper 43 grains and I didn't feel like losing primer pockets that quick.


    tex68w

    Mister Bevilaqua
    Full Member
    Minuteman
    Mar 10, 2017
    727
    383
    I've been kicking around the idea of a 18-20" barrel for my AX in 6.5CM to go with the 26" I already have. Frank isn't your average shooter, but that video is encouraging.


    raven88

    Private
    Full Member
    Minuteman
    Feb 10, 2010
    75
    18
    71
    midwest
    Might be a little late to this discussion.......so for what it is worth....... I have a 6.5 CM RPR with a 26" LRI barrel.......very pleased with the accuracy.......Has consistently shot sub 1/2" groups with hornady factory 140 ELD-M's. For reloads I have found that 41.5 of H4350 with either the 140 or 130 ELD-M will also produce consistent sub 1/2" in groups. I wanted a short barreled rifle and purchased a Tikka Stainless CTR 20" in 6.5 CM. I was pleasantly surprised when this rifle produced 1/2" groups with the Factory Hornady 140 ELD_M ammo as well. I did not expect there to be such a velocity loss with the 20" barrel.

    i don't know how to attach images, but here are some numbers from my v3 magspeed to compare.
    Tikka.....factory Hornady 140ELD-M... shooting suppressed 10 shots......2591 mv
    RPR ....factory Hornady (same lot of ammo) 140ELD-M....no suppressor or brake.......10 shots......2842 mv
    Tikka....reloading 41.5 H4350 with 130 ELD-M with suppressor......sup 1/2" group......2535 MV with SD 6.2 ES 15
    RPR.... reloading 41.5 H4350 with 130 ELD-M....no suppressor or brake......sub 1/2" with MV of 2797 SD 11.1 ES 22

    I generally do not push what the reloading manuals say is maximum powder charge, so my 41.5 of H4350 only produce 2740-2750 mv from my RPR. I recently ran a test using Lapua brass and loaded up 41.7, 41.9 and 42.1 of h4350 with 140 ELD-M but did not see accuracy that my 41.5 load produces. The 42.1 of h4350 had MV of 2787 with SD of 5.3 and ES 13

    Just a quick mention: I did not see any pressure signs at 42.1 (.6 past what manual says is max)



    Jedi

    Team AndiCapp
    Full Member
    Minuteman
    Dec 10, 2003
    137
    5
    Mountains
    i run a 20" 6.5 x47, have done for going on 10 yrs
    Creed will work fine in a 20, better than any 308 period
    Short barrels dont require any special voodoo, however they can perform exceptionally with right bullet/powder combo
    Now lapua does creed brass with small primer, i may swap over after this barrel
    Small primer imho opinion does make a difference
    You really want to that 20" to perform like a 24"
    lose the 140, sure lots of folk shoot them but your limited by barrel lenght. Which hinders fps, not as much as you would think but it does
    Swap to 130gr bullet, several out there, sierra gets the nod from me at this time
    lose the h4350, run RE17, you will pickup 100fps or so over h4350 with same load
    load so boat tail junction is at case neck junction, barrel of course should be chambered with this in mind
    Ideally you build rig from get go to run a short barrel, thou having chambered redone not a big deal
    My lil 20" x47 shoots flatter than the 26" 308 running 155 @2950fps it replaced
    20" creed running 130 over Re17 will put a big grin on you for sure









    81sfo

    Gunny Sergeant
    Full Member
    Minuteman
  • Aug 5, 2008
    2,408
    172
    USA TX

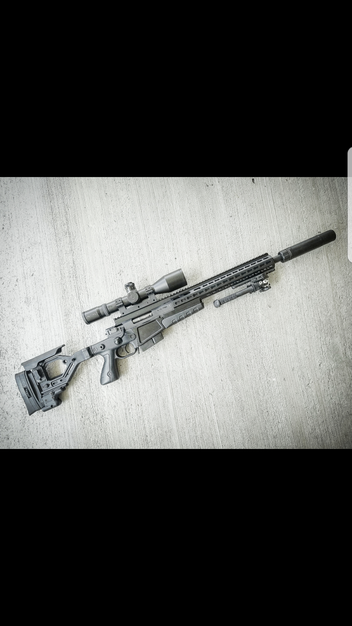

    Im running a 2012 AX with a used barrel i bought here , 16.5 Benchmade chambered by TS Customs . I wasn't expecting miracle ballistics but im more than happy. 123 eldm 2000mr powder and Br2 primers in the 2900s Suppressed. Hornday brass isnt lasting but three firings due to the load but there are no ejector marks no swipes no primer seapage no sticky bolt... load at your own risk. 1100 yards im dialing 9 mils of elevation at sea level and its plenty consistent. I will likely stay at 16.5" when i burn up this barrel. Dont be scared to go with a short barrel 6.5 creed its better than a 20" 308 in my opinion. Screenshot_20171107-144016.pngScreenshot_20171107-144558.png


    81sfo

    Gunny Sergeant
    Full Member
    Minuteman
  • Aug 5, 2008
    2,408
    172
    USA TX

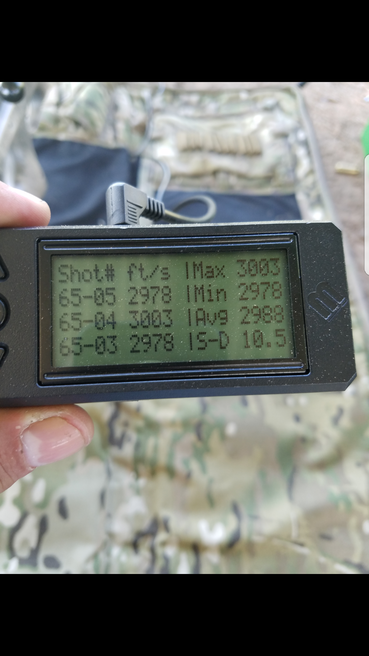

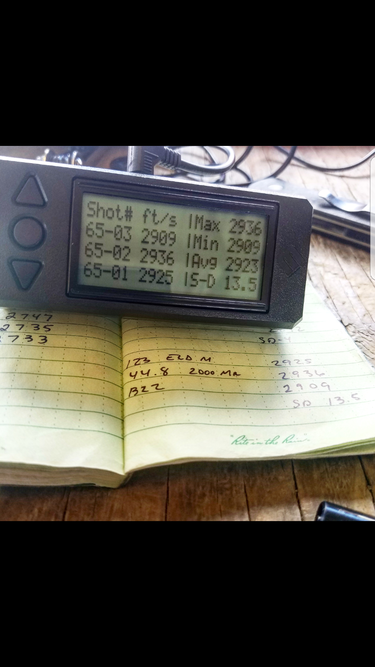

    Ive been using Alliant Power Pro 2000mr in short barreled 308s , 260 rem and now 6.5 CM and its good stuff . Heres my same load that i shoot (123 eldm 2000mr Br2 ) Screenshot_20171107-145737.png but this was out of an AW 20" 6.5 cm chambered by GAP reaching 3k fps no pressure signs . Load at your own risk **


    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida
    You two have totally peaked my interest. I recently picked up a 20" .260 and haven't settled on "the" load yet. I'm much more of a load 'em and shoot 'em kinda guy and not so much of a perfect load kinda guy, but I've been mostly loading for longer barrels and powder choices can be different for shorter barrels. I've never tried 2000mr, but now want to do so for this rifle.


    81sfo

    Gunny Sergeant
    Full Member
    Minuteman
  • Aug 5, 2008
    2,408
    172
    USA TX
    2000mr is like Reloader 17 but its a fine ball powder instead of extruded. In my old 21" 260 rem Bartlein barrel i had the 142 smk flying 2860s suppressed no pressures with 2000mr in lapua brass .

    Last edited:

    Supersubes

    Heathen
    Full Member
    Minuteman
  • Sep 6, 2006
    6,100
    5,514
    Rural Nevada
    I'm trying to wrap my head around how a 22" .260 with 142s is at the exact same velocity my .308 is at with a 22" barrel and 175s. I thought the whole advantage of the .260/6.5s over .308 was the additional speed. Is the only advantage a better BC? Is that how it dodges wind better than a .308?

    I've been wanting to move from .308 to 6.5x47 for a while now, but I don't know jack about the 260. Are you just shooting really mild loads?


    Were talking about pretty similar velocities here, and BC will always trump speed. Regarding the 142(old bullet)...its got a better BC than pretty much any iacketed .30 bullet until around the newer 200 gr 30’s. With 308 sized cases, the 6.5 bore size just wins. Plug a few combos into the ballistic solver, and see for yourself.

    6.5x47, .260, creedmoor, all pretty much same same.



    Ledzep

    Chancellor
    Full Member
    Minuteman
  • Jun 9, 2009
    3,296
    2,905
    NE
    Yep, just run the numbers. For equivalent BC, the 6.5 will run much faster muzzle velocity. For equivalent weights, the 6.5 will be slower but the BC will be significantly better and make up for any velocity difference.

    For example (all 20-24ish inch barrel velocities), 155gr .30 cal TMK bc .519 @ 2800 fps vs. a 147 ELDM bc .697 @ 2650fps (think I'm kind of low-balling the 6.5 here). The 6.5 ends up being slightly flatter to 1000, less wind, and stays supersonic longer, all else being equal.

    Now if you use a 123gr ELD in the 6.5 with a BC of .51, you can shoot it faster than the 155's in a .308, basically the same BC, more velocity, 6.5 wins (except energy). Now if you go for pure energy, the .308 may have an advantage at closer ranges, but at some point down range the 6.5's higher BC's will overtake it.


    5RWill

    Optics Fiend
    Full Member
    Minuteman
  • Oct 15, 2009
    5,356
    1,557
    30
    Mississippi
    I have an 18" 6.5x47 on the way. Plan is 2800fps with 123s, very much superseding the 20" 308 it replaced as far as drop/wind is concerned. As everyone's responses have indicated, i wouldn't hesitate.

    For those of you using 2000-MR How is the velocity variance in relation to temperature?

    Joe has this video with his 16.5" 6.5CM pushing 123s at 2800-2850. Also has a 21" 6.5 SAUM pushing 140s at 3050.


    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida
    I have an 18" 6.5x47 on the way. Plan is 2800fps with 123s, very much superseding the 20" 308 it replaced as far as drop/wind is concerned. As everyone's responses have indicated, i wouldn't hesitate.

    For those of you using 2000-MR How is the velocity variance in relation to temperature?

    Joe has this video with his 16.5" 6.5CM pushing 123s at 2800-2850. Also has a 21" 6.5 SAUM pushing 140s at 3050.

    I'm researching this right now too since I just picked up a pound of 2000MR for my 20" .260 and 142/143 class bullets. With 4350, I have to push them pretty hard to get 2600 fps and I'd like 2700 or so. So far while searching around for info and data points, I found this thread that focuses on .308 heavies, but stretched over 2-1/2 years.

    https://www.snipershide.com/shooting/forum/...lliant-2000-mr

    No solid data on temp sensitivity, but results seem to be somewhere between 1/2 to 3/4 fps per degree F. That's not terrible unless you are somewhere like the desert where you can have 50 degree temp swings in half a day.

    Now I just have to do a bit of load development to see for myself.


    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida
    2000mr is like Reloader 17 but its a fine ball powder instead of extruded. In my old 21" 260 rem Bartlein barrel i had the 142 smk flying 2860s suppressed no pressures with 2000mr in lapua brass .

    What load were you using?

    Alliant, in all of their wisdom, advertises this as a great powder for use with heavy bullets in the medium cartridge, but only lists load data for 90g and 120g varmint bullets in .260. Really?

    Last edited:

    81sfo

    Gunny Sergeant
    Full Member
    Minuteman
  • Aug 5, 2008
    2,408
    172
    USA TX
    What load were you using?

    Alliant, in all of their wisdom, advertises this as a great powder for use with heavy bullets in the medium cartridge, but only lists load data for 90g and 120g varmint bullets in .260. Really?

    I used 142smk 43gn 2000mr in new Winchester 308 brass resized to 260 and also 260 Lapua brass .it may not be safe out of your rifle start alot lower charges.


    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida
    I used 142smk 43gn 2000mr in new Winchester 308 brass resized to 260 and also 260 Lapua brass .it may not be safe out of your rifle start alot lower charges.

    Thanks. That will work with what I'd planned. I figured to start my pressure loads at 39.0 and go to 42.5, based on just what I could find reading what little is out there. I'll add two more charges to bring it to 43.0 and see what my rifle likes.


    HoustonB77

    Online Training Member
    Full Member
    Minuteman
    Jan 28, 2014
    502
    146
    Nixon TX
    In my opinion, giving up 100 fps by going 20" is not an issue. I just picked up a Tikka TSR-1 in .260 Rem with a 20" barrel and it is a shooter. Since I can load my 26" barreled .260 to 2850 fps without issue using 136 g Scenars, The 2750 that I can get with the 20" barrel will do just fine. Consistency is much more important to me than sheer speed. Plus, like you, I appreciate that the 20" barrel provides a bit shorter platform for my 9" can.

    Oh yeah, it looks great too!
    You mean it looks like This? Getting 2738 with a 143 ELDX:). I've had zero issues getting hits to 1300.


    Sent from my SAMSUNG-SM-G890A using Tapatalk



    lash

    Swamp Rat
    Full Member
    Minuteman
    Sep 28, 2012
    7,381
    9,142
    62
    Central Florida
    You mean it looks like This? Getting 2738 with a 143 ELDX:). I've had zero issues getting hits to 1300. [IMG2=JSON]{"data-align":"none","data-size":"full","src":"https:\/\/uploads.tapatalk-cdn.com\/20171120\/15fa0f24ff33eb0432a646943c7b6a20.jpg"}[/IMG2]

    Sent from my SAMSUNG-SM-G890A using

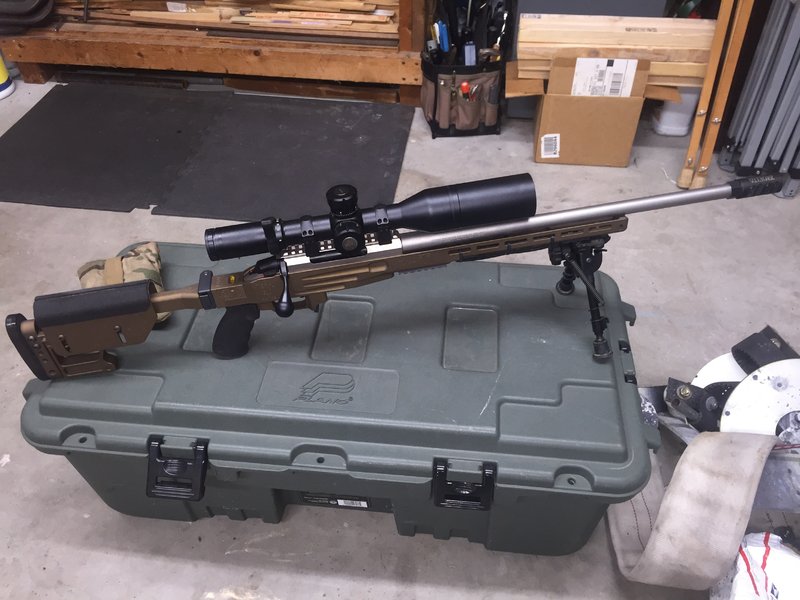

    Sorta, kinda, but with just a couple differences I made.


    Attachments

    • attach6766241.jpg
      82.7 KB · Views: 49
    • Like
    Reactions: TheChief

    Trojan6

    Private
    Full Member
    Minuteman
    Jan 14, 2010
    12
    0
    44
    Georgetown, Texas, USA
    I'm running a 16" Faxon barrel on an AR10 build. My old school Chrony is saying 2650 with Factory 143 ELDX and then ran it over a Gen 1 magnetto speed which said 2450fps. 2450 does not jive with my confirmed dope out to 600 on steel (based on published BC from Hornady). I'm dialing 15 MOA to get there consistently, which is more like 2575 fps based on JBM. Either way I'm happy, beats my elevation for my old 20" 308 bolt gun and significantly better wind (almost 50% better). Absolutely loving the round. I'm not a precision/bench rest guy, use primarily for hunting, but am getting 5" groups at 600 driving a gas gun that I'm not used to (yet). I run a 30P-1 on it.


    CoyoteKilo

    Sergeant
    Full Member
    Minuteman
    Dec 7, 2017
    96
    9
    Guys are shooting 20" 308s no problem, 6.5 is ballistically superior to 308 so I dont think you should have a problem.


    Hondo1

    Sergeant USMC
    Full Member
    Minuteman
  • Jun 2, 2014
    1,033
    322
    Colorado
    Anyone trying RL-16 with your shorty Creedmoors? If so could you please post your results?


    mjsand44

    Online Training Member
    Full Member
    Minuteman
    Jun 3, 2017
    57
    12
    Canada
    I run a 6.5 cm in a bighorn tl3 with a 24 “ spencer barrel
    It’s burning 42.8 grains of 4350
    Cci br2 match primers
    Norma brass
    Hornady eld m
    Mv 2821 da 7678
    Temp 91 hr 33 percent
    I run a at10 in 6.5 cm with a 18” proof carbon barrel. 143 eldx gave mv 2515
    I run the 130 Bergers to make up difference in loss velocity. I can push them to 2645


    ezekeial

    Private
    Minuteman
    May 17, 2018
    18
    1
    18 inch 6.5 cm Msr-10 (newer) with Omega
    Hdy factory 120 ELD match = 2730 fps
    Hdy factory 140 ELD match = 2650 fps

    These were higher velocities than expected, but after cleaning rifle several times am guessing new Savage barrel is a little tight. Got better accuracy after removing the factory brake/compensator.


    Killswitch Engage

    Gunny Sergeant
    Full Member
    Minuteman
    Dec 23, 2008
    2,081
    992
    ohio
    ive ran 18 and 20" 6.5x47 with 123's for a kill rifle and it flat kicks ass. you can run them close to 2900 pretty easy in 20"


    honuswagner

    Sergeant of the Hide
    Full Member
    Minuteman
    Oct 29, 2018
    167
    106
    Utah
    I know this thread is a bit old, but I found it useful so I'll add my 2 bits. I was concerned that my velocities were too low, but after seeing these posts I think I'm right where I need to be given the short barrel.

    I have a 6.5 CM in an AR-10 platform, 18" barrel, shooting with Omega can.

    Loading Hornady brass, H4350, ELD-Match 140gr, CCI 200 primers.

    My charge weights and velocities on a recent trip to the range were as follows:

    40.0 2510
    40.2 2496
    40.4 2510
    40.6 2554
    40.8 2554
    41.0 2554
    41.2 2574
    41.4 2564
    41.6 2594
    41.8 2599
    42.0 2614
    42.2 2609
    42.4 2666
    42.6 2650
    42.8 2704

    Found good nodes around 2554fps and 2600fps. Feeding from mag so can't seat to lands, however tweaking the seating depth led to a nice group at 2554fps. Going to try 2600fps and see if it yields equally good results.

    Hope that's helpful to someone!

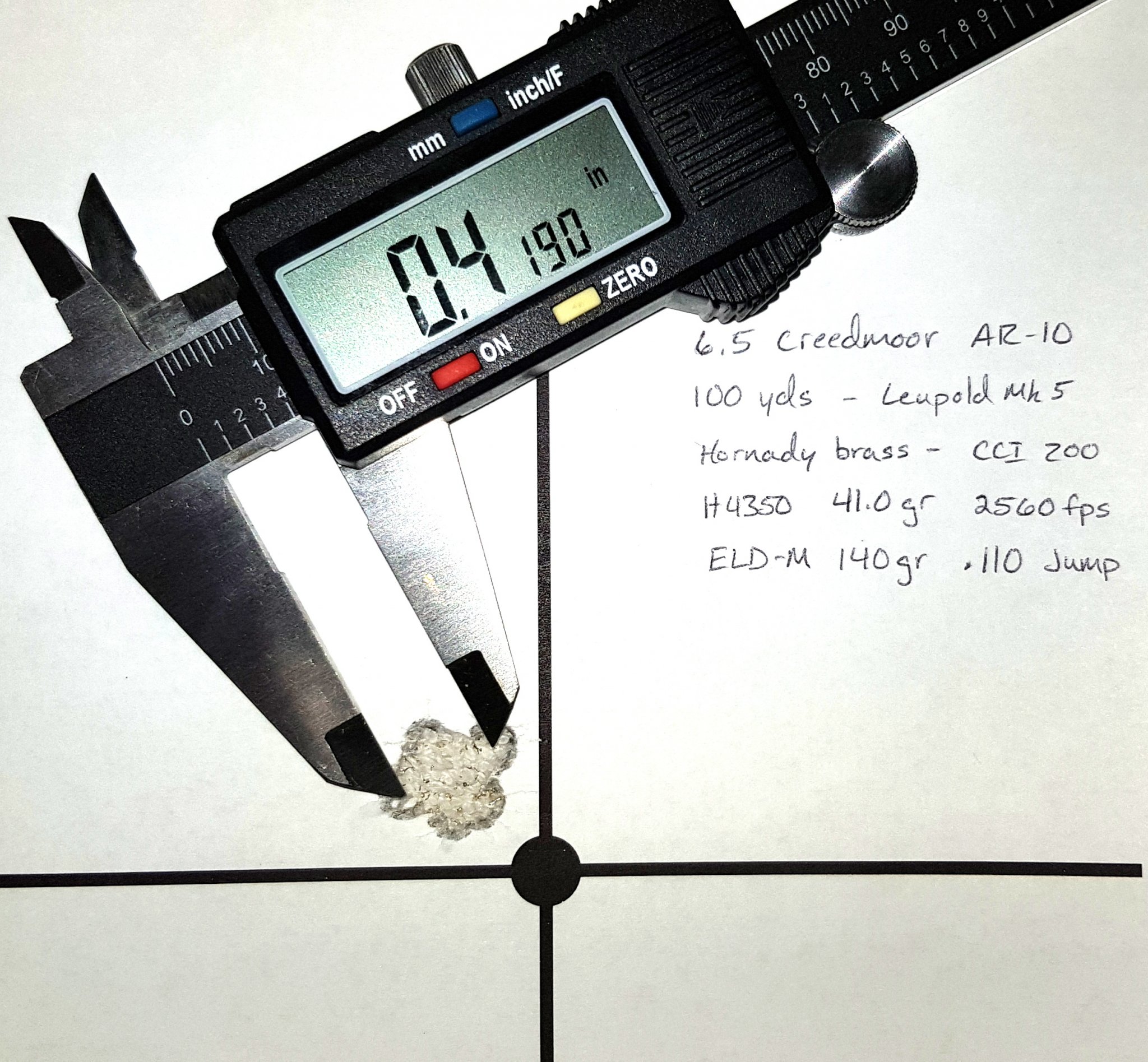

    Attachments

    • 2018-10-30 00.50.24.jpg
      2018-10-30 00.50.24.jpg
      606.1 KB · Views: 21

    WuYen

    The riddle of steel...
    Full Member
    Minuteman
    May 27, 2017
    25
    2
    SoCal
    I was interested in a shorty for hunting so I picked up a Remington 783 16.5” I’ve been enjoying shooting off hand so I’m running an eotech XPS2 and was able to stack rounds on top of each other on a steel plate at 100 and hit 500 off a tripod pretty easily, so far velocity started at an average of 2515fps with 140s from Hornady American Gunner factory ammo for break in (30 rounds 10 cleanings) next shoot I got an average of 2211 from a starting load of 32gr of varget SD 5 ES 13, max load per Lyman manual of 34gr (VERY conservative IMO) gave me an average of 2316 with 140 BTHP “match” hornady bullets. 120ELD Match Hornady factory average was 2673 with the last round hitting 2780! I want to try Nosler E-tips for hunting...

    Any thoughts on 34gr max load per the manual? Online hodgdon website max with 140gr AMAX using varget was 35.8...?

    I’m going to try 35.5-35.8gr of varget with 140ELDM at 2.820” and report back later. Cheers.


    Luke

    Sergeant
    Full Member
    Minuteman
    May 29, 2002
    998
    180
    Colorado
    No thoughts on the 34gr max load, but you should be seeing higher numbers than 2316fps, and 2211fps just seems crazy slow.. My Rock Creek 18" has sped up 100fps after about 200 rounds, and I'm sitting at about 2600fps with Hornady 147gr ELD's. With a 140gr I would expect you should be seeing a minimum of 2500fps even with the 16" barrel.

    • Like
    Reactions: jbrand11

    Roadkill4us

    Private
    Full Member
    Minuteman
    Jul 19, 2017
    58
    14
    I have a Ruger Am. Predator 260
    22" factory barrel with 130gr prime = 2812
    cut this barrel to 16.5 with the 130gr prime = 2611
    Running it in a MDT chassis suppressed - very handy and fun. Enjoy
