Firstly, you misunderstood his posts.

Secondly, the person you are speaking to once commanded the AMU.


RyanScott

Sergeant
Belligerents
Oct 14, 2005
2,366
1,164
219
34
Houston
He might be right or wrong on something but he did earn some respect. He also gave a list of things you can do to increase accuracy which he didn’t think were worth the investment, but some may.


lennyo3034

Gunny Sergeant
Belligerents
Apr 18, 2010
2,672
634
219
35
Southern MD
Expensive to do (billable gunsmith-time wise) that may or may not give significant improvement for a team of four to sixteen guys to maintain across five uppers each.
This is where I believe most of the disconnect on this thread lies.

A guy building one accurate rifle for himself is going to be willing to spend much more time than someone paying for a gunsmith to work on possibly hundreds.

I personally bed my barrel extensions and true uppers, but I have a very methodical process to do it. I can’t imagine the cost of paying a gunsmith to do it across dozens or more uppers.

I shoot my gas guns in local PRS type matches as well as gas gun specific matches. Mag fed .223 to 800+ is not the same as single loaded to 600.

I’m all for innovation and testing to squeeze the best accuracy possible, and have done a lot of myself. However my situation is completely different from Sinister’s and can’t base my builds around what he did nor can I fault him for building a certain way.

  • Like
Reactions: rocketscience

Charger442

Sergeant
Belligerents
Nov 2, 2010
1,352
910
219
South Texas
Does he need you to speak for him?
Not really. Carrier tilt with piston guns is not about how hard the piston pushes, but where it pushes. In a DI gun, the bolt does the pushing, and is aligned with the carrier. On a piston gun, the force is applied above the carrier at what is normally the gas key. That causes tilt.

What's being discussed in this thread is a different thing, that is more about how a loosely fitting carrier sits in an upper.

so i dont really know who Sinister is (seems to be given some deference by others here) and i dont know who you are, but your above statement slid by a lot of people already on here, and even though it did, its very inaccurate.

in DI and piston guns, whether it be gasses directed at the gas key by the gas tube, or a metal rod acting on a point similar to the gas key, the carrier and bolt are both "pushed" back at the same point on the carrier. if someone is saying there is tilt induced by this, its done similarly by both DI and piston guns.

now, what you claimed would be accurate for 9mm ARs and 22lrs which are direct blow back operation. and not direct impingement, like traditional ARs.


Charger442

Sergeant
Belligerents
Nov 2, 2010
1,352
910
219
South Texas
The gas doesn’t push on the key it pushes against the gas rings. The forces are in line with the bore.
well, technically, yes, but the force of the gas has to be turned down in the key. so you have a force component that hits rearward at the gas key elbow.


whatsupdoc

Major Hide Member
Belligerents
Minuteman
Dec 12, 2017
1,140
1,108
119
The gas is directed between the bolt and the bolt carrier causing both to want to move away from each other. The bolt gas rings only provide a seal between the two. The bolt cant move forward so the pressure drives the carrier rearward causing the carrier cam slot to push on the cam pin rotating and unlocking the bolt.

  • Like
Reactions: Harman117

Charger442

Sergeant
Belligerents
Nov 2, 2010
1,352
910
219
South Texas
You're still wrong.
anyone know what a free body diagram is? The force from the gas impulse is not entirely parallel with the bore.

you cant have the force from the gas tube parallel to the centerline of the BCG, hitting into the gas key, which is above the line of the bore, and say that all the force is only acting along the center of the BCG.


Charger442

Sergeant
Belligerents
Nov 2, 2010
1,352
910
219
South Texas
It’s insignificant. Or does your exhaust manifold push your car into the ground?
well, we are discussing carrier tilt in a system using gas from an explosion. If someone is worrying about carrier tilt, and its significant enough to have "tilt", then the forces acting on it must not be insignificant.

and the answer is yes, exhaust would "push" your car into the ground, but it is insignificant and cannot be notice when compared to the force that gravity enacts on a vehicle whose mass is several orders of magnitude higher than a BCG.


Charger442

Sergeant
Belligerents
Nov 2, 2010
1,352
910
219
South Texas
It’s insignificant. Or does your exhaust manifold push your car into the ground?
and how can you call the gas force insignificant, when its the only force acting on the system, ignoring the spring force propelling the firing pin, and he force of the propellant at the bolt face when the lugs are locked.


srt-4_uk

Private
Belligerents
Aug 6, 2011
1,092
673
219
Nebraska
Are you taking into account the gas going through the bend in the gas tube? That should also give it a downward push since the tube bends slightly upward to go through the receiver.


sinister

Gunny Sergeant
Belligerents
Apr 16, 2002
1,781
221
169
College Station, Texas
There are a few ways to center the bolt carrier group in the center of the upper with the firing pin hole coaxial with the center of the bore. Make a carrier with a large flange at the back end, bush the front end, and conically face the carrier to fit the end of the extension (a la LMT).

The carrier can't lock up so tight it prevents reciprocation to function.

You have three force vectors that change with every shot: the action spring pushing from the rear; the force of the magazine spring from the bottom (which varies at every shot from 30 to empty); and the force of the hammer as it hits not only the firing pin but pushes the carrier group into final battery.

Each and every mod can incrementally add to consistent lock-up.

The self-centering flange on the front end of an LMT enhanced carrier which mates into the receiver extension recess (M16):




AR-10/SR-25:

You can get anti-tilt buffers designed to help reduce tilting off-axis (advertised for piston rifles but can be used on direct-gas carriers, they fit into the rear of your carrier):



If I were to do anything else, I'd buy an LMT switch-barrel upper. You get the advantage of a long, heavy barrel shank secured to the upper over a longer distance at the cost of weight. Turn the barrel down in the front to compensate and you get a little more sinoidal whip.

The President's Match shoot-off at 600 yards at Camp Perry, fired with a sling, no sighters, 4.5X scope:


Last edited:

Mike_in_FL

Gunny Sergeant
Belligerents
Feb 29, 2008
981
165
49
Tampa Bay, FL
Wow, just wow.
It is no surprise that the world is going to hell with the way we talk to each other, when we're supposed to be on the SAME side. I often wonder what would happen if certain groups showed up at a range together and realized who each other is, lol.


redneckbmxer24

Merica!
Belligerents
Jan 15, 2005
7,267
2,730
219
Gulf Coast, FL
It is no surprise that the world is going to hell with the way we talk to each other, when we're supposed to be on the SAME side. I often wonder what would happen if certain groups showed up at a range together and realized who each other is, lol.
I'm near Tampa myself. Want to get a beer, smile, and call each other assholes?


Mike_in_FL

Gunny Sergeant
Belligerents
Feb 29, 2008
981
165
49
Tampa Bay, FL
I'm near Tampa myself. Want to get a beer, smile, and call each other assholes?

LMAO, I know you live near me, I'm the one who told you to bring lube for Grandma in your infamous thread. A beer would be awesome although thanks to my ex-wives alienating everyone near them, I've learned to do quite well without any friends :).


Bball8703

Private
Belligerents
Sep 9, 2013
13
4
6
Middle Tennessee
There are a few ways to center the bolt carrier group in the center of the upper with the firing pin hole coaxial with the center of the bore. Make a carrier with a large flange at the back end, bush the front end, and conically face the carrier to fit the end of the extension (a la LMT).

The carrier can't lock up so tight it prevents reciprocation to function.

You have three force vectors that change with every shot: the action spring pushing from the rear; the force of the magazine spring from the bottom (which varies at every shot from 30 to empty); and the force of the hammer as it hits not only the firing pin but pushes the carrier group into final battery.

Each and every mod can incrementally add to consistent lock-up.

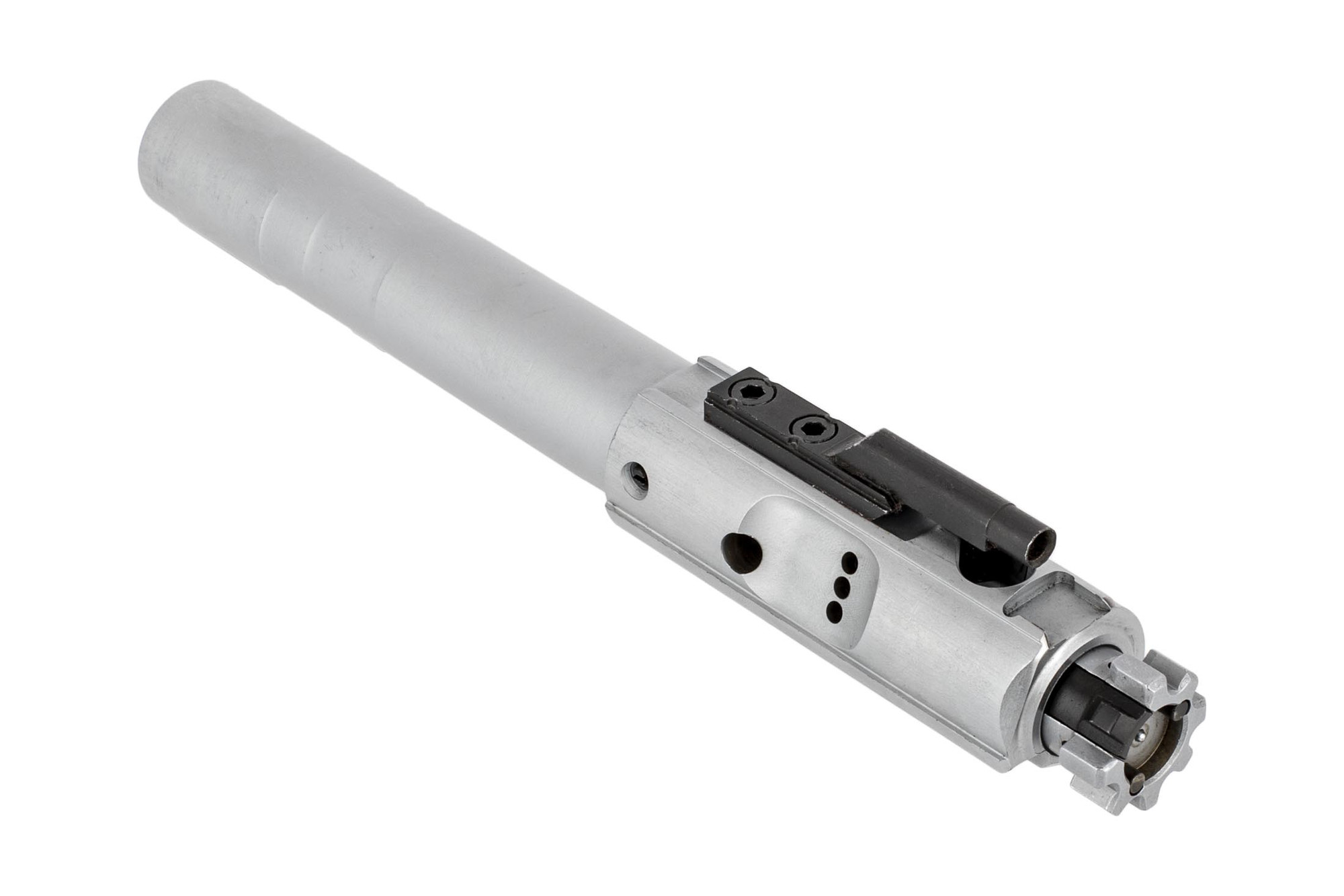

The flange on the front end of an LMT enhanced carrier which mates into the receiver extension recess (M16):



AR-10/SR-25:
View attachment 7200148

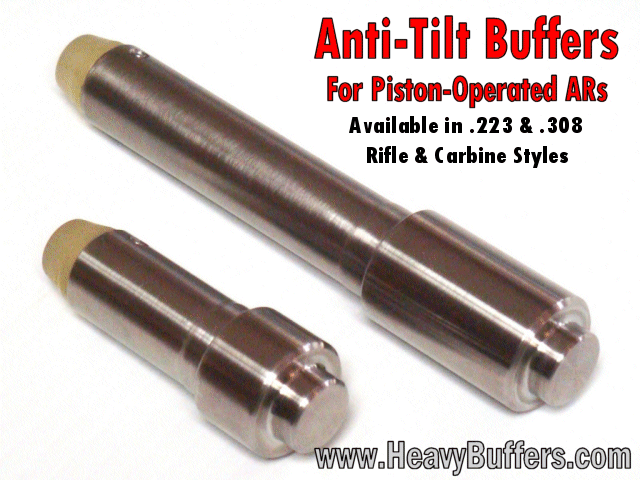

You can get anti-tilt buffers designed to help reduce tilting off-axis (advertised for piston rifles but can be used on direct-gas carriers, they fit into the rear of your carrier):

View attachment 7200224


If I were to do anything else, I'd buy an LMT switch-barrel upper. You get the advantage of a long, heavy barrel shank secured to the upper over a longer distance at the cost of weight. Turn the barrel down in the front to compensate and you get a little more sinoidal whip.
Thanks Sinister, I appreciate your explainations. This thread has been informational and entertaining to say the least.


MontanaMan

Private
Belligerents
Apr 26, 2007
454
253
69
Well, I'm still scratchin' my head waiting for someone to post up some targets from the same gun with different BCG's that show any measureable improvement, or no improvement at all.

Cause so far, I haven't heard anything definitive one way or the other.

Trends, maybe; some "ought to's" but no data.

MM


MontanaMan

Private
Belligerents
Apr 26, 2007
454
253
69
W/o evaluating the barrel snugging procedure from the BCG change, there's no way to know how much improvement can be attributed to the BCG vs just the barrel bedding, since he made both changes at once.

I don't think the improved BCG's hurt a thing, but I've still seen no definitive evidence that they make a measureable change either.

  • Like
Reactions: bfoosh006

bfoosh006

Sergeant
Belligerents
Jun 13, 2007
982
345
69
PNW
Apparently someone at Proof Research seems to think there's some merit to them https://www.gunsandammo.com/editorial/accurize-your-ar-15/247749
Great article... certainly makes me feel better about Truing receiver faces and Loctiting in barrels.. Lol

I just got CMC enhanced BCG's in both 308 and 5.56. ( Flare tail and extra exhaust port on both ) might have to see if there is a benefit in precision.

I realize it is more a matter of the sum of all parts... but, I is worth a try !


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
683
118
49
Freestate
Lost of interesting conversations in this thread, but if I'm building and actual AR its getting an LMT EBCG. I've tried Lantac, rca titanium, surefire, lmt, colt, bcm, toolcraft, im sure there are more i cant think of.

Lmt combined with a kynshot and tubbs flatwire gives me such a soft shooting platform by increasing lock time (befoee the bolt opens). That combo is like nothing else ive found and thats pretty much my biggest hobby. Is testing and combining all the fancy shit they make for ars and other guns.

Let me ask you this. If you get .2moa from a carrier designed to prevent anti tilt. Is that worth 20% more recoil? Guess it depends on the application.

Out of the ones I've tried ive never seen a noticeable change in accuracy. That could be me as a shooter. But that still makes it not worth it for me and my application.


MontanaMan

Private
Belligerents
Apr 26, 2007
454
253
69
Let me ask you this. If you get .2moa from a carrier designed to prevent anti tilt. Is that worth 20% more recoil? Guess it depends on the application.
Why do you think that carrier (assuming same nominal weight) will give 20% more recoil?

Unless you are assuming a weight increase.

Besides, that's what's adjustable GB's are for........................

MM


Sincerd

Drone
Belligerents
Minuteman
Dec 29, 2019
683
118
49
Freestate
Why do you think that carrier (assuming same nominal weight) will give 20% more recoil?

Unless you are assuming a weight increase.

Besides, that's what's adjustable GB's are for........................

MM
You'd just have to shoot it or try the build. Kynshot compresses during unlock and again when buffer bottoms out. They think it may again when bolt slams home but not proven yet. Check out amphibians work on arfcom. It shoots smoother than a setup on the edge of reliability.
20% was conservative because I knew someone would call it out. i think .2moa was probably giving the anti tilt a little more than it is worth as well. I would say recoils less than half as much as my next properly gased Midlength ar with h2. It just dosent move...at all.

I would say the only thing that is slightly worries me is the reliability of the hydraulic system. I know other hydraulic buffers have had issues before. Doubt it would make it into a home defense or Duty setup

Last edited:
  • Like
Reactions: JS8588

RyanScott

Sergeant
Belligerents
Oct 14, 2005
2,366
1,164
219
34
Houston
Given the massive improvements in shocks for trucks I’m surprised someone doesn’t hire a racing shock company to design a hydraulic buffer for the AR that times all of the functions of the action perfectly.

  • Like
Reactions: JS8588

JS8588

Ballistic Hipster
Belligerents
Minuteman
Apr 7, 2020
149
79
34
NEPA
You'd just have to shoot it or try the build. Kynshot compresses during unlock and again when buffer bottoms out. They think it may again when bolt slams home but not proven yet. Check out amphibians work on arfcom. It shoots smoother than a setup on the edge of reliability.
20% was conservative because I knew someone would call it out. i think .2moa was probably giving the anti tilt a little more than it is worth as well. I would say recoils less than half as much as my next properly gased Midlength ar with h2. It just dosent move...at all.

I would say the only thing that is slightly worries me is the reliability of the hydraulic system. I know other hydraulic buffers have had issues before. Doubt it would make it into a home defense or Duty setup
Yeah, I like the concept but for me, hydraulic buffers (and for that matter the SCS from JP) fall under the same category as adjustable triggers & adjustable gas blocks. Just something extra that could fail.


FishinGuns

Doesn’t fish well with others
Belligerents
Minuteman
Jun 29, 2017
247
274
69
Michigan
Guess I didn’t realize those SCS’s were failing? I thought everyone’s beef was that they are expensive.


nick338

Private
Belligerents
Feb 21, 2013
692
428
69
So the theory, from what Proof was suggesting in the article is that rds that feed from the left side of the magazine will chamber slightly different than the ones from the right, due to carrier tilt.

So load up a magazine with 20rds and shoot at 2 different targets, alternating 1rd at a time at each target. Then load up 20 rds and shoot 10 at each target but not switching targets until you have a 10 shot group on one target.

Measure the groups and see if there is any correlation between the first 2 groups and the last 2.

  • Like
Reactions: Rocketvapor

Rocketvapor

Gunny Sergeant
Belligerents
Minuteman
Dec 10, 2018
986
535
99
South East Louisiana
and shoot another group with single feed from a sled.
With respect to DI and Piston uppers, where is the bullet when something starts to move in the action?
Lock time not dwell time allows the barrel to move before the bullet exits.


nick338

Private
Belligerents
Feb 21, 2013
692
428
69
and shoot another group with single feed from a sled.
With respect to DI and Piston uppers, where is the bullet when something starts to move in the action?
Lock time not dwell time allows the barrel to move before the bullet exits.
I'm going to try this when I get my Grendel.


theLBC

Shiftless
Belligerents
Minuteman
Jun 21, 2019
3,375
6,197
119
i figured there is a reason they use a center feed magazine for e-lite rifles.
glad i was patient enough to read the 2nd page of this thread.
