The AR15 Picture Thread

IWillNotComply

Sergeant of the Hide
Full Member
Minuteman
Jan 13, 2021
103
59
NC

New lower sitting with the 13.7 until my KAC upper alerts hit.


MSTN

Sergeant
Full Member
Minuteman
Jan 31, 2010
980
1,148
MIDDLE OF ARIZONA
MSTN.BIZ
@MSTN would you say the Santan is the best receiver for precision builds as well? Better than say a Vltor MUR?
Also I’m guessing you prefer JP bolt for everything?
I'll be the first to admit that I haven't tried them all. Here's what (I think) I do know:

For a precision UPPER, the Vltor MUR is I believe a premier choice. Best one of which I'm aware, and has been for almost 20 years. Forged - stout as can be. Not a lightweight, either. Well engineered and well executed. Barrel extensions may require a tad of Locktite, since it is designed to work with anything. Guaranteed to rattle a little on most lowers, because it is purposely designed to work with ALL uppers. If yours is tight on your lower, it's due to tolerance stacking.

SanTan takes a different approach. For a precision upper/lower receiver set, SanTan is hard to beat. Let's go tight on tolerances!!! Don't try to slap your SanTan upper on anything but a SanTan lower. Plan on a solid 30 seconds with your heat gun on high to get that Proof Research CFW barrel extension to fit. The now discontinued Young MFG National Match bolt carriers would not even fit inside the early SanTan receivers.

Another thing with SanTan - The anodizing so so good that it makes the other aluminum parts on your gun look kinda cheap.


themightytimmah

Private
Full Member
Minuteman
Dec 12, 2010
224
46
34
New Orleans, LA
Had an AR with a Triji 1-8, UBR, and a 13.5” NSR that wasn’t a whole lot of fun to shoot at anything but man sized or bigger steel (reticle center covered a full mil, the damn thing was hard enough to zero) - decided to turn it into a wrong handed MK12 Mod H, and it’s now a ton of fun. Lighter, handier, and 3” plates at 200 yards are easy pickings.

I’m sure LPVOs have their place in an actual tactical environment, but I forgot how much easier “aim small, miss small” is with a traditional scope and the fine reticle.


Attachments

  • 56DCFE83-A7AE-4719-BA2C-E945E39742B6.jpeg
    999.3 KB · Views: 52

Clayman

Sergeant of the Hide
Full Member
Minuteman
Jul 29, 2021
245
275
AZ
I'll be the first to admit that I haven't tried them all. Here's what (I think) I do know:

For a precision UPPER, the Vltor MUR is I believe a premier choice. Best one of which I'm aware, and has been for almost 20 years. Forged - stout as can be. Not a lightweight, either. Well engineered and well executed. Barrel extensions may require a tad of Locktite, since it is designed to work with anything. Guaranteed to rattle a little on most lowers, because it is purposely designed to work with ALL uppers. If yours is tight on your lower, it's due to tolerance stacking.

SanTan takes a different approach. For a precision upper/lower receiver set, SanTan is hard to beat. Let's go tight on tolerances!!! Don't try to slap your SanTan upper on anything but a SanTan lower. Plan on a solid 30 seconds with your heat gun on high to get that Proof Research CFW barrel extension to fit. The now discontinued Young MFG National Match bolt carriers would not even fit inside the early SanTan receivers.

Another thing with SanTan - The anodizing so so good that it makes the other aluminum parts on your gun look kinda cheap.

Are you still making barrels with kac's intermediate gas length?

  • Like
Reactions: MSTN

Forgetful Coyote

Sergeant
Full Member
Minuteman
Dec 13, 2011
2,887
1,546
Georgia
Had an AR with a Triji 1-8, UBR, and a 13.5” NSR that wasn’t a whole lot of fun to shoot at anything but man sized or bigger steel (reticle center covered a full mil, the damn thing was hard enough to zero) - decided to turn it into a wrong handed MK12 Mod H, and it’s now a ton of fun. Lighter, handier, and 3” plates at 200 yards are easy pickings.

I’m sure LPVOs have their place in an actual tactical environment, but I forgot how much easier “aim small, miss small” is with a traditional scope and the fine reticle.
Specs/details?


MSTN

Sergeant
Full Member
Minuteman
Jan 31, 2010
980
1,148
MIDDLE OF ARIZONA
MSTN.BIZ
No. I ran out of all my special order KAC length gas tubes.

I actually only went with this KAC length so I'd have a gas system that would work with a long since discontinued KAC URX integral flip up front sight.

The new "standard" in intermediate length, for lack of a better term, designed by Eric Kincel (head of R&D for BCM) and John Noveske (Noveske Rifle Works), works equally well and is of course much more readily available. It's only a fraction of an inch longer than the KAC.

  • Like
Reactions: Clayman

themightytimmah

Private
Full Member
Minuteman
Dec 12, 2010
224
46
34
New Orleans, LA
Specs/details?
Upper
Stag left handed upper and BCG
PRI rifle length free float tube
PRI recce rail
Nightforce 2.5-10 mildot (in regular rings, sorry ARMS clone guys)
BCM stubby grip
White Oak 16” barrel
Sandman K

Lower
Stag lower
B5 SOPMOD
Geissele NM with light springs

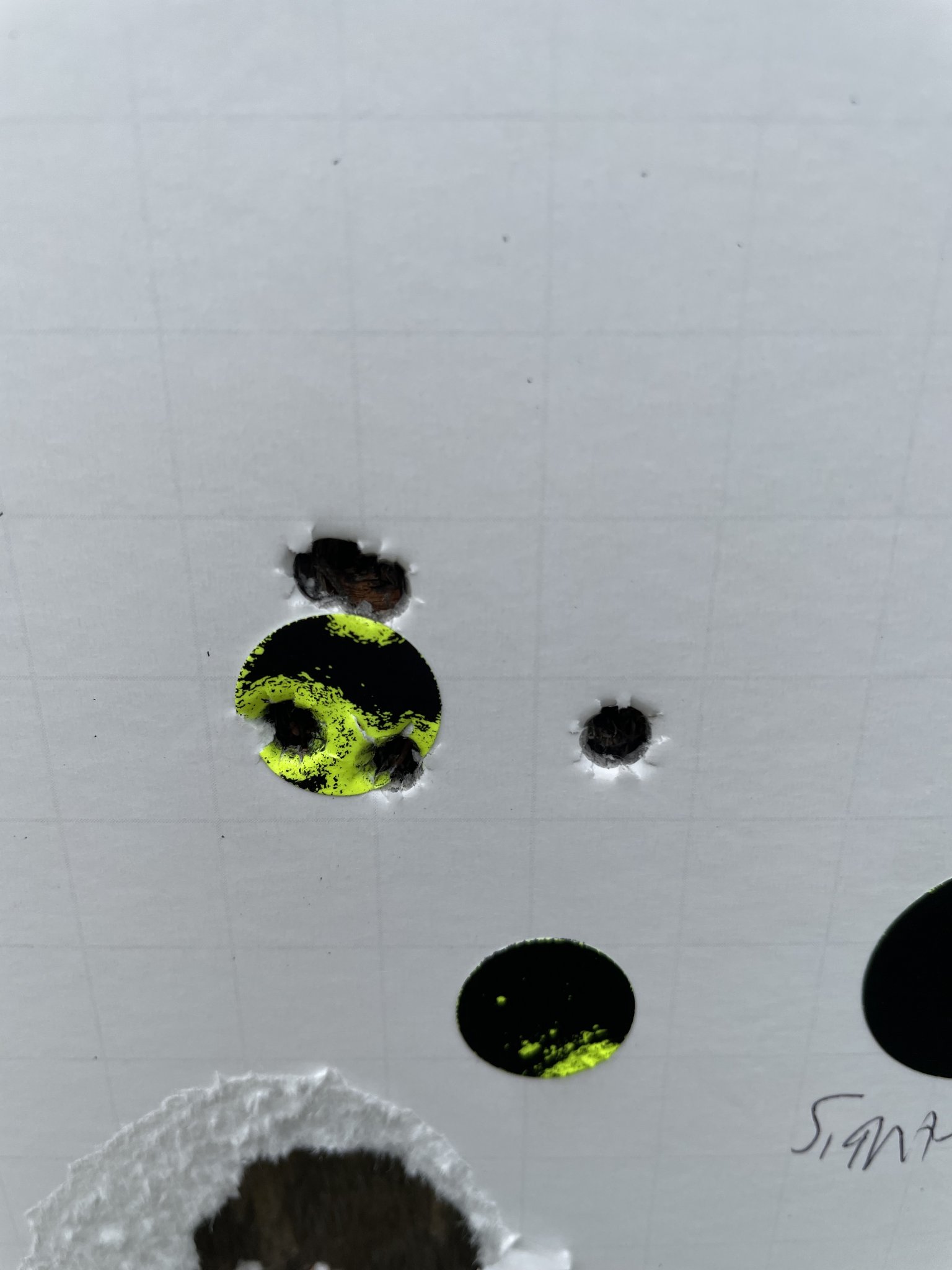

The pic below was with 75gr hand loads, 1/2” Shoot n C dot.


Attachments

  • 6EBBB9AC-FBA6-4783-AA79-E66CF7C945DC.jpeg
    201.6 KB · Views: 22
  • Like
Reactions: Forgetful Coyote

Clayman

Sergeant of the Hide
Full Member
Minuteman
Jul 29, 2021
245
275
AZ
No. I ran out of all my special order KAC length gas tubes.

I actually only went with this KAC length so I'd have a gas system that would work with a long since discontinued KAC URX integral flip up front sight.

The new "standard" in intermediate length, for lack of a better term, designed by Eric Kincel (head of R&D for BCM) and John Noveske (Noveske Rifle Works), works equally well and is of course much more readily available. It's only a fraction of an inch longer than the KAC.

Alright, thanks for the response.

I was looking at potentially utilizing kac's intermediate length for a dedicated suppressor host with extremely short dwell length. Noveske's iirc is roughly .4" longer and won't work for the length barrel I was looking to run.

Do you still have the specifications for the kac length? Like exact length to the gas port and length of the gas tube needed?


MSTN

Sergeant
Full Member
Minuteman
Jan 31, 2010
980
1,148
MIDDLE OF ARIZONA
MSTN.BIZ
Alright, thanks for the response.

I was looking at potentially utilizing kac's intermediate length for a dedicated suppressor host with extremely short dwell length. Noveske's iirc is roughly .4" longer and won't work for the length barrel I was looking to run.

Do you still have the specifications for the kac length? Like exact length to the gas port and length of the gas tube needed?
No, sorry. I'm afraid that was over 13 years ago.

  • Like
Reactions: Clayman

Clayman

Sergeant of the Hide
Full Member
Minuteman
Jul 29, 2021
245
275
AZ
Don’t Criterion do a intermediate barrel? Pretty sure you can get one from CLE or Craddock too..

I don't think Criterion does.

I'm looking to do a 12.5 with KAC's intermediate length. Standard intermediate is too long for that application. I'd have to go 13.X with standard 12.5 with kac is similar in dwell length to 11.5 mid.

If KAC uppers weren't so difficult to find atm I'd just buy one and get it chopped and gas port opened. I'll probably just wait and do this. I refuse to overpay for things. I can buy them at like $2200 but I'm not going to do that.


Jcaplinger199

Supporter
Supporter
Full Member
Minuteman
Nov 5, 2019
392
32
Arlington, TX
In the beginning it was going to be a mk12 clone. I got the handguard and rail correct 🤷‍♂️ It’s a blast to shoot


Attachments

  • 094D85A0-B213-47FF-B0D9-F1EC735F075C.jpeg
    509.9 KB · Views: 60

roostercogburn98

Crawling America, one mall at a time
Supporter
Full Member
Minuteman
Nov 3, 2010
3,591
7,095
Back together for today. Going to replace current HG with a PRI CF version at some point.


warp_foo

Wait... what?
Minuteman
Feb 27, 2008
3
5
St. Paul, MN

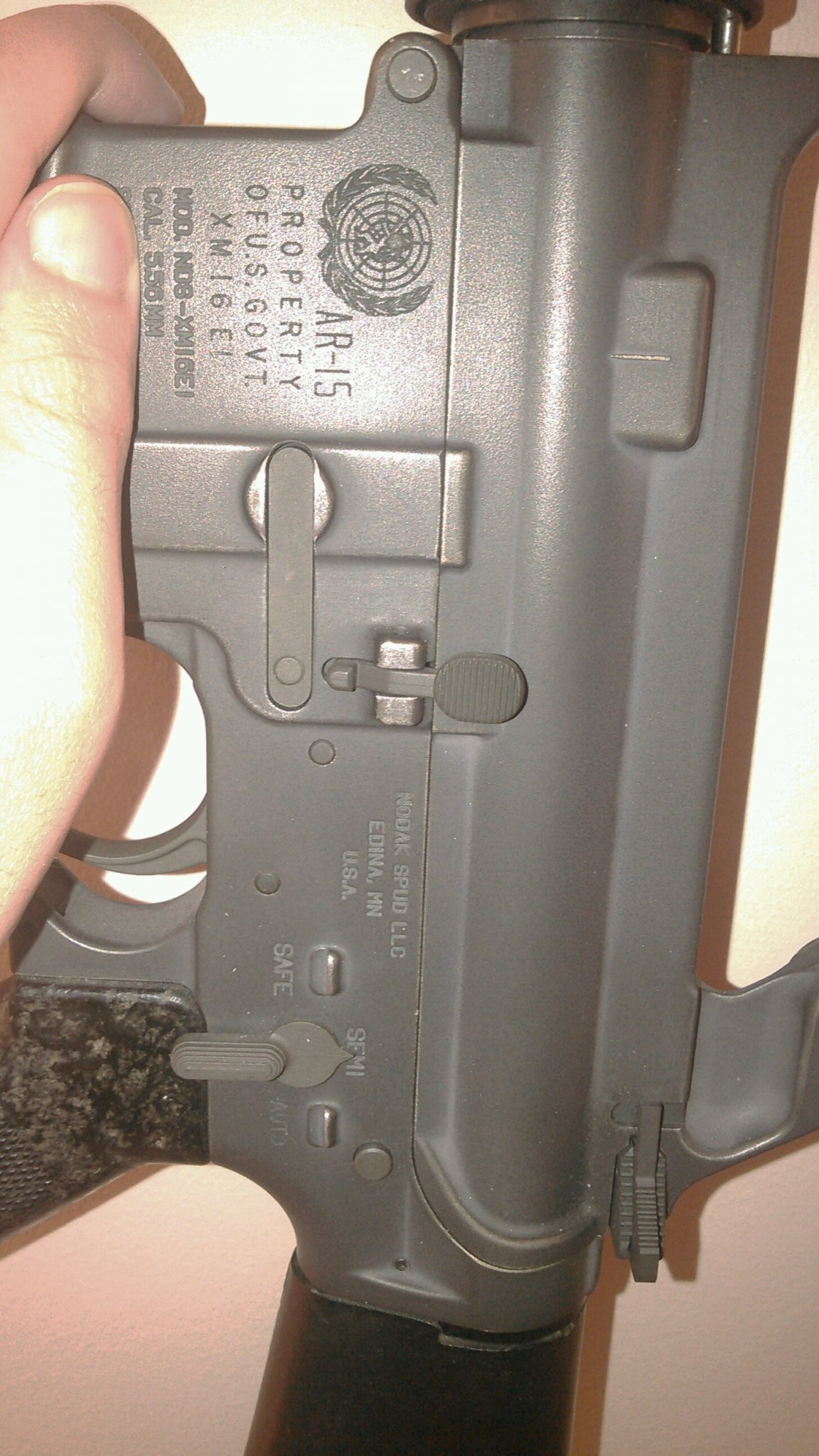

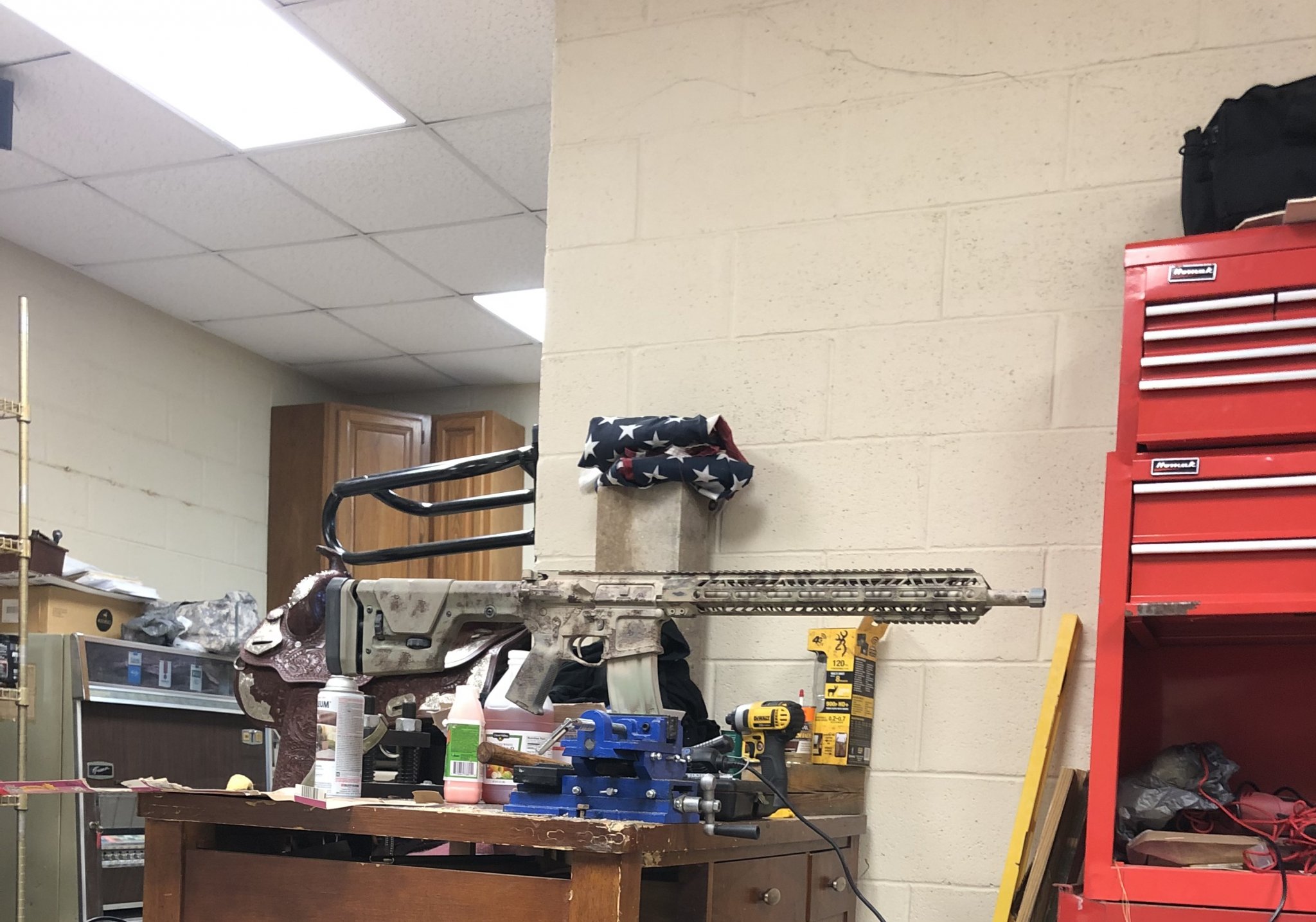

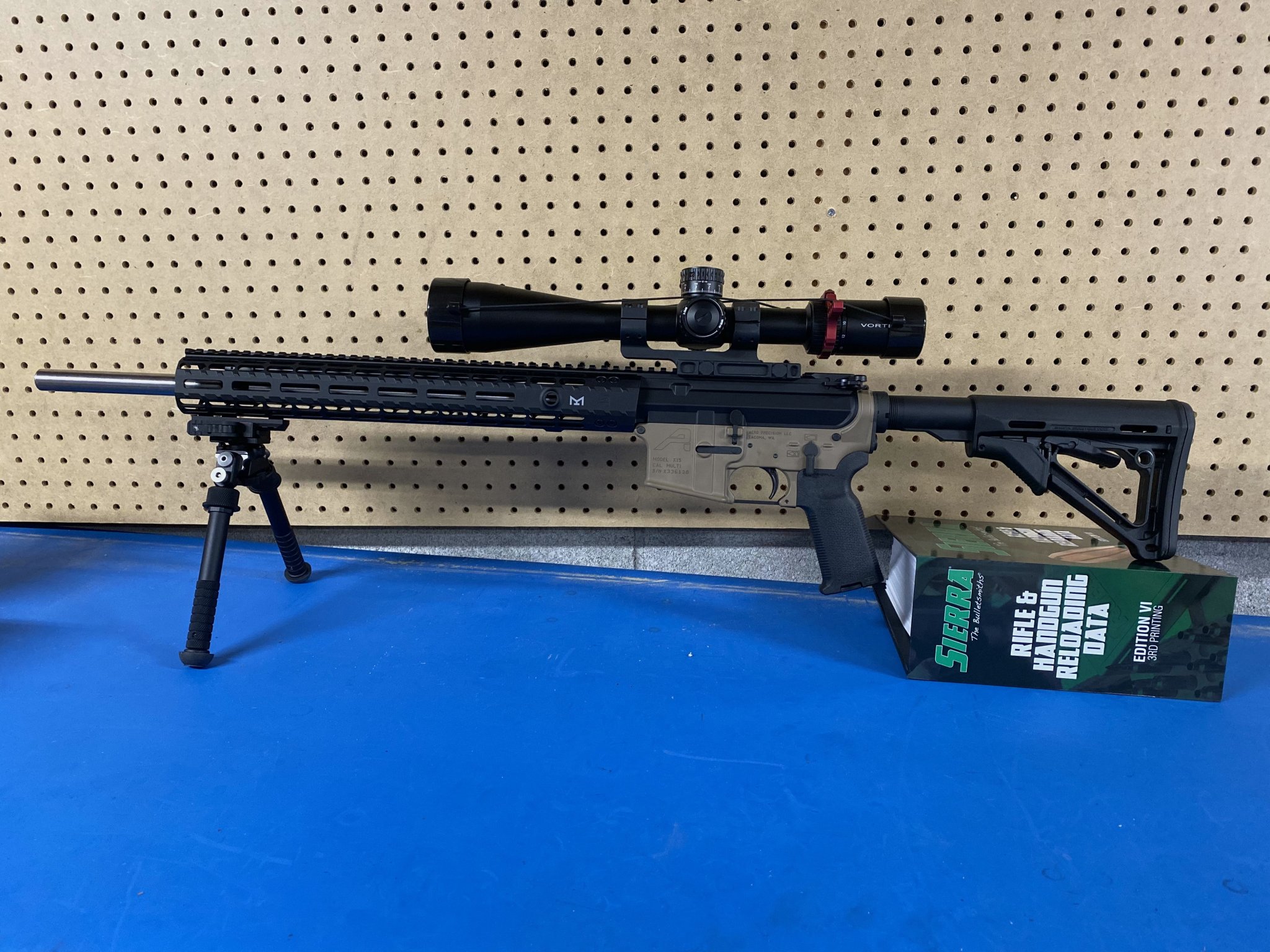

A number of years ago I had two NRA High Power A2s made. One by Compass Lake, the second by White Oak Precision. I shot them a bit, but then life happened, and I put them away for a long time. I recently gotten bit by the bug again, so I had the Compass Lake converted to a flat top with an Aero Precision Enchanced upper, a fully free floated AP handguard, a low profile gas block, a Geissele SSA-E, and a Vortex Viper PST GII 5-25. I'll likely toss a Magpul PRS G3 on at some point.

The White Oak is also getting the same treatment.

(ignore the bench collapsing... :) )




MSTN

Sergeant
Full Member
Minuteman
Jan 31, 2010
980
1,148
MIDDLE OF ARIZONA
MSTN.BIZ

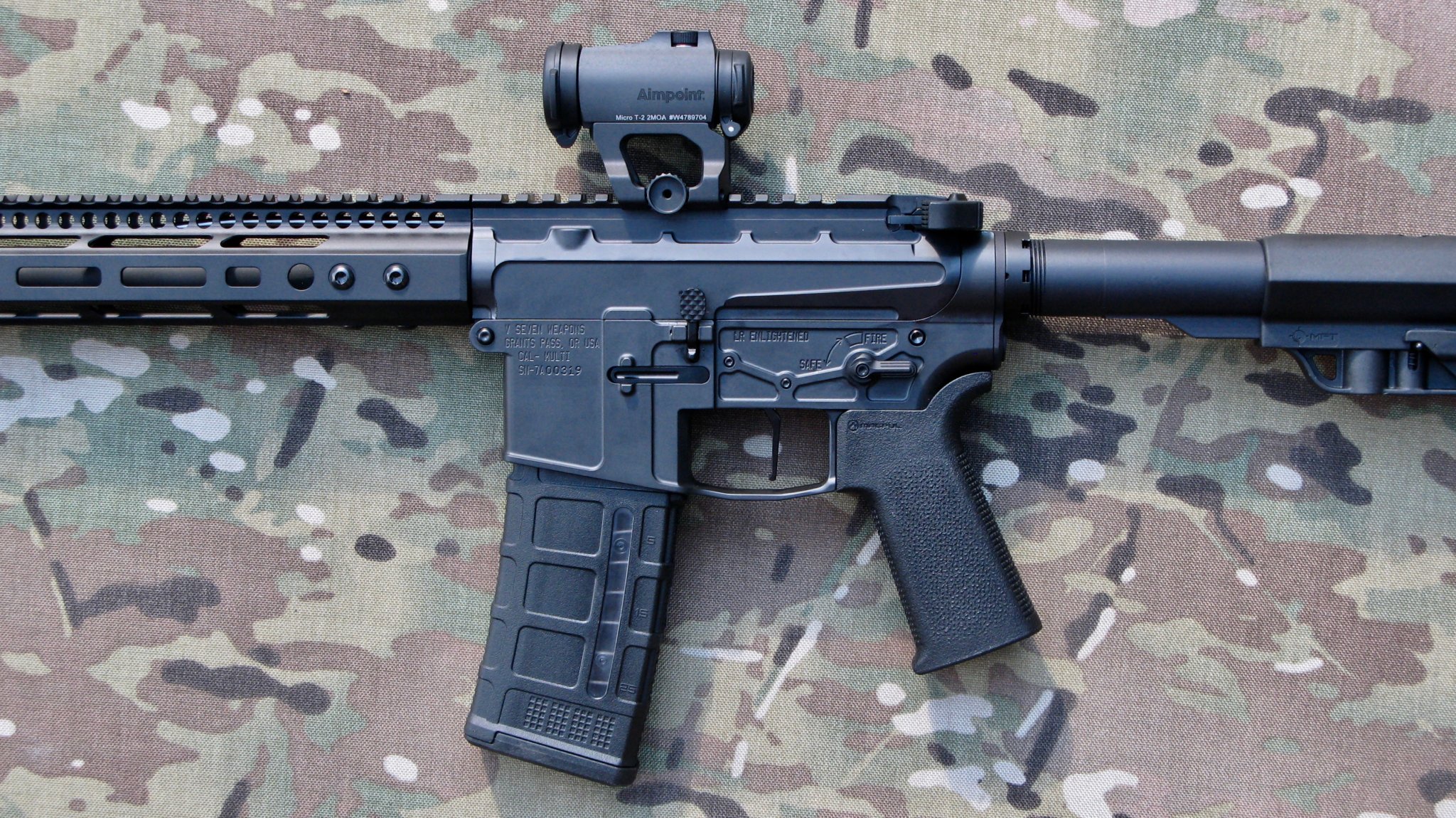

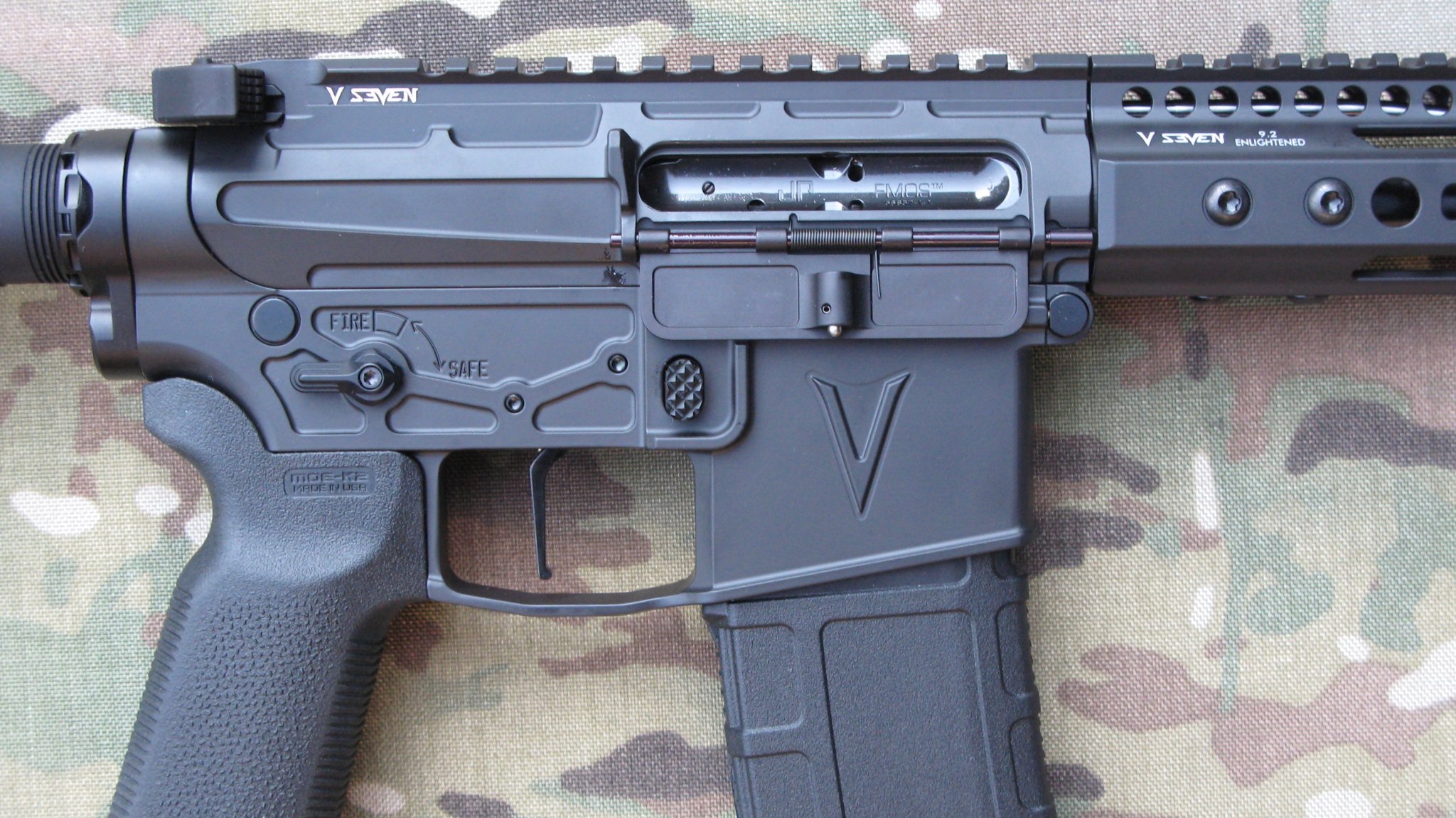

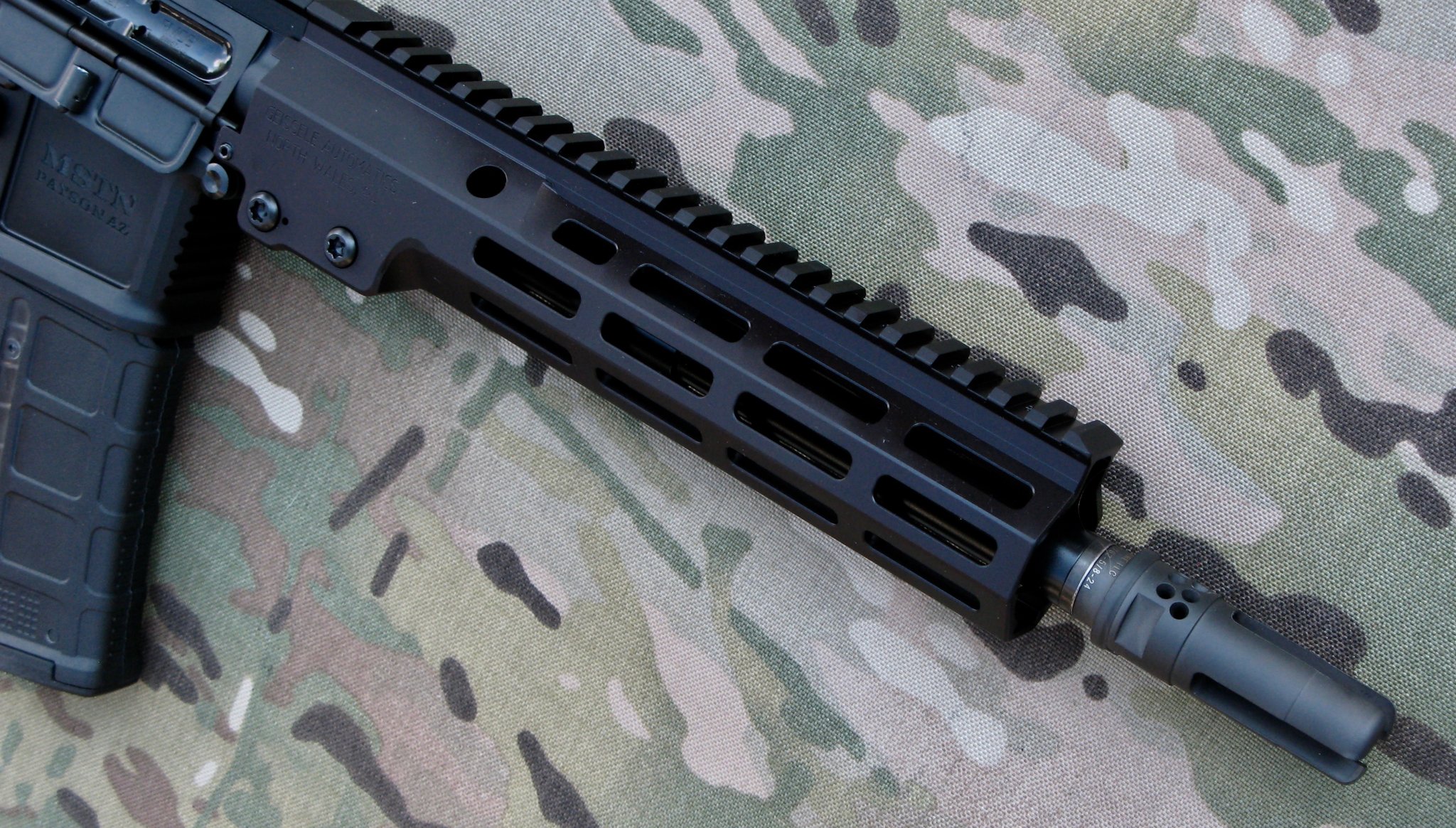

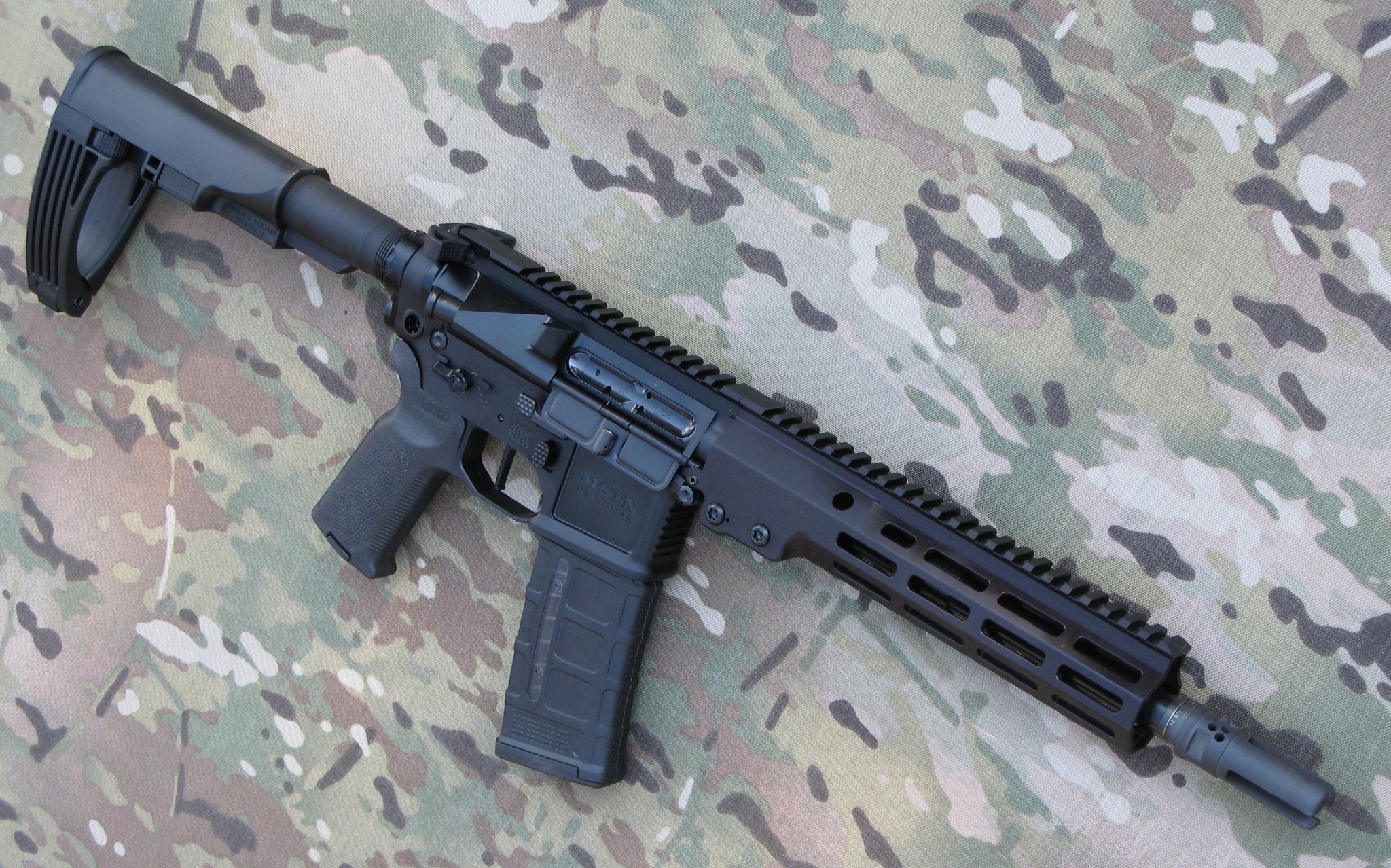

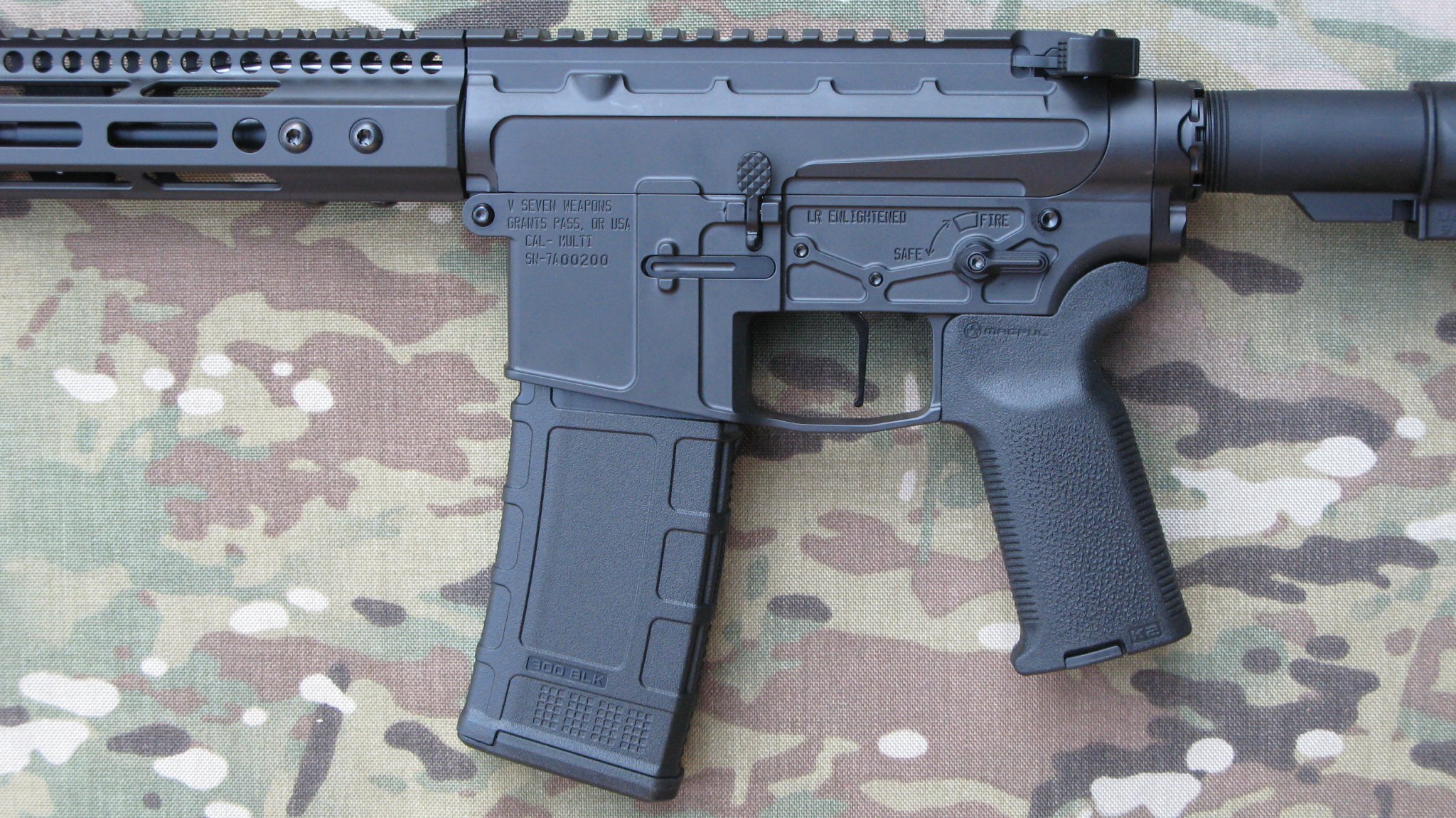

Lightweight but hard use capable - A collection of the best components available: V Seven 7075 LR Enlightened billet receiver set; Criterion Core chrome lined 10.5" barrel with feed ramps contoured and polished; SLR 0.625" gas block; Ionbond DLC coated gas tube; V Seven 2099 Enlightened 9.3" M-Lok handguard; Geissele Airborne charging handle; JP FMOS bolt carrier group, with bolt fitted at 1.4666"; V Seven S7 tool steel bolt stop; V Seven titanium magazine release; V Seven titanium/aluminum Hybrid 57 degree safety; Geissele SSA trigger; Gearhead works Mod 2 pistol brace; JP H2 SCS (Silent Captured Spring) recoil system; Fortis K1 receiver end plate and castle nut; Magpul K2 pistol grip; Magpul 30-RD Pmag window version; Aimpoint T-2 in Scalarworks mount.


MSTN logo-lg.jpg


MSTN

Sergeant
Full Member
Minuteman
Jan 31, 2010
980
1,148
MIDDLE OF ARIZONA
MSTN.BIZ

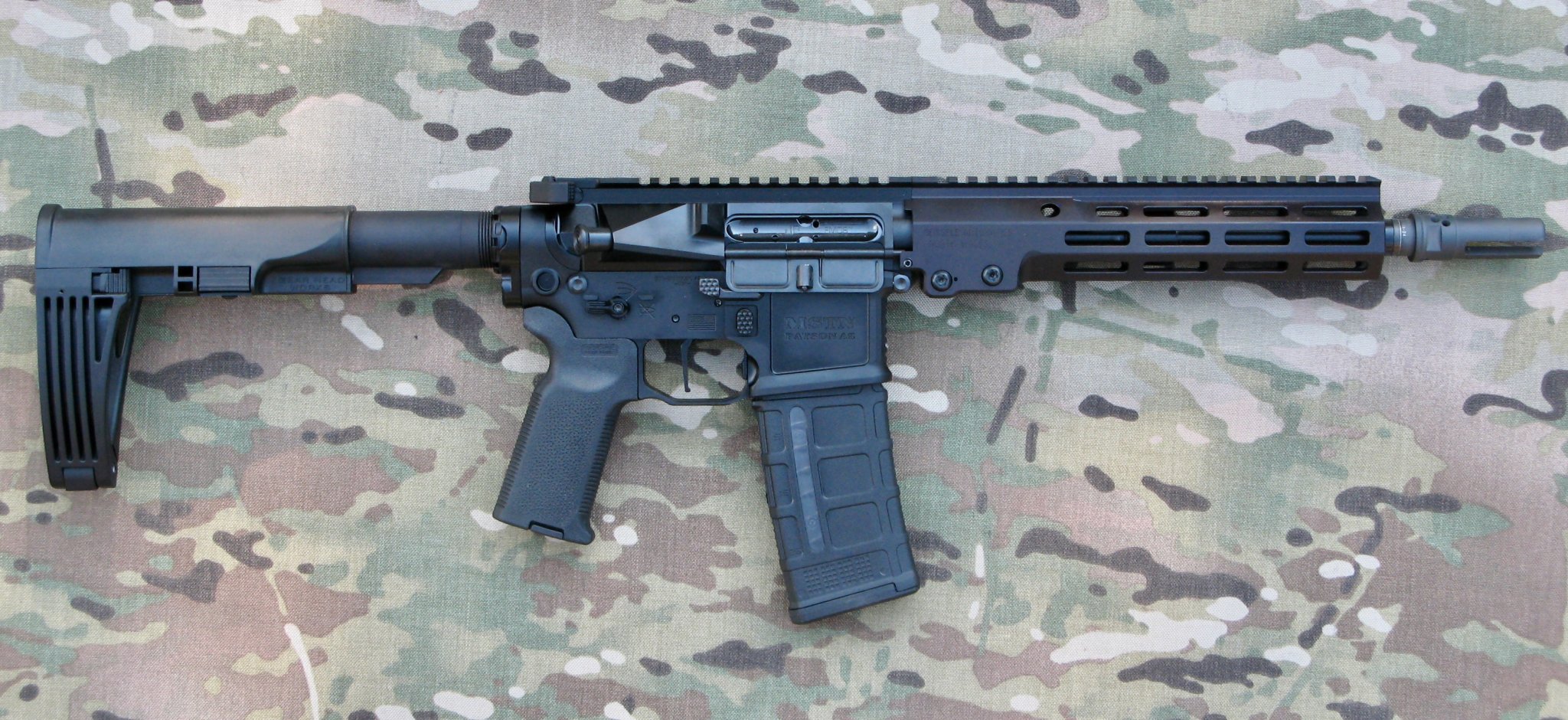

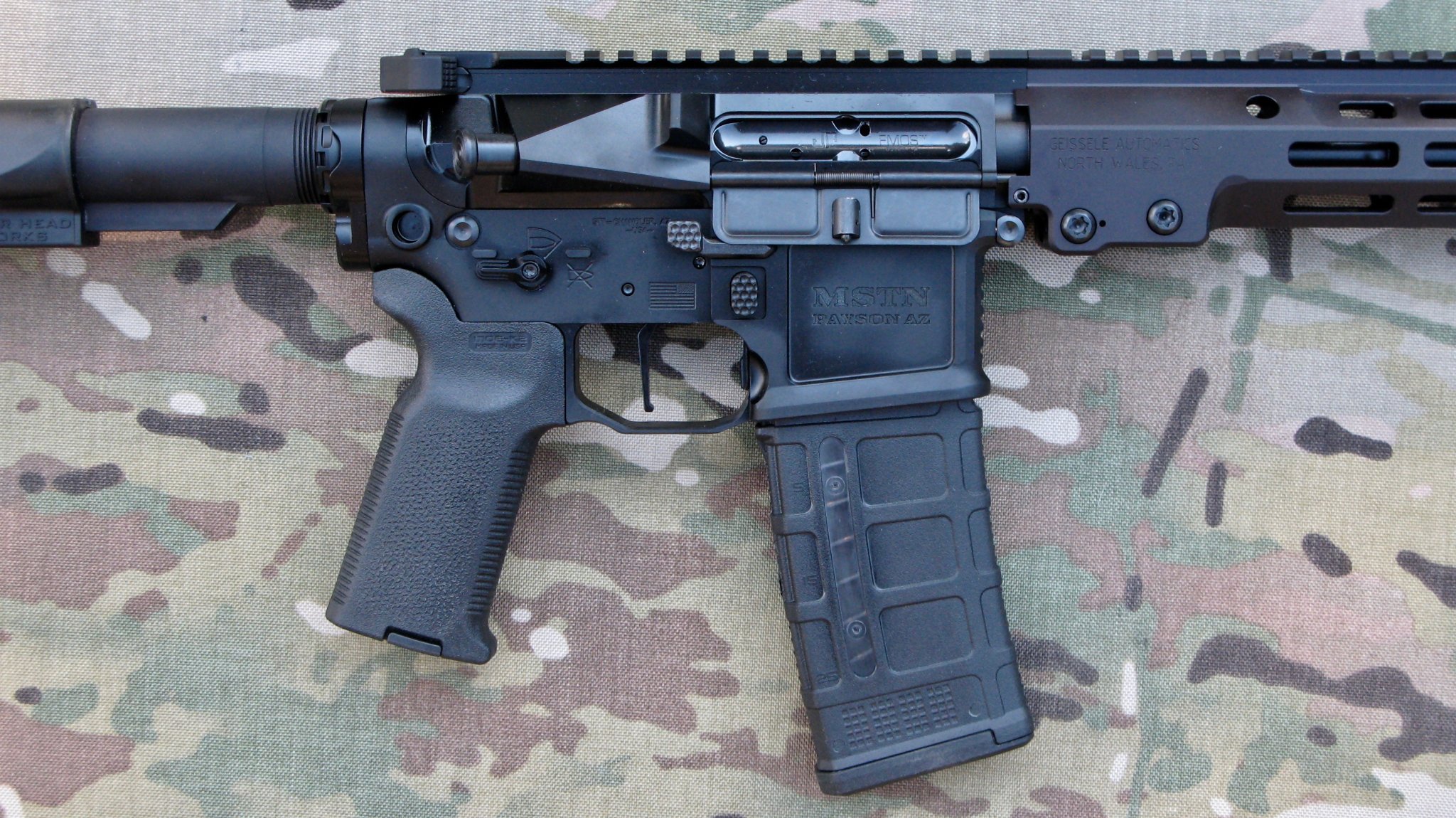

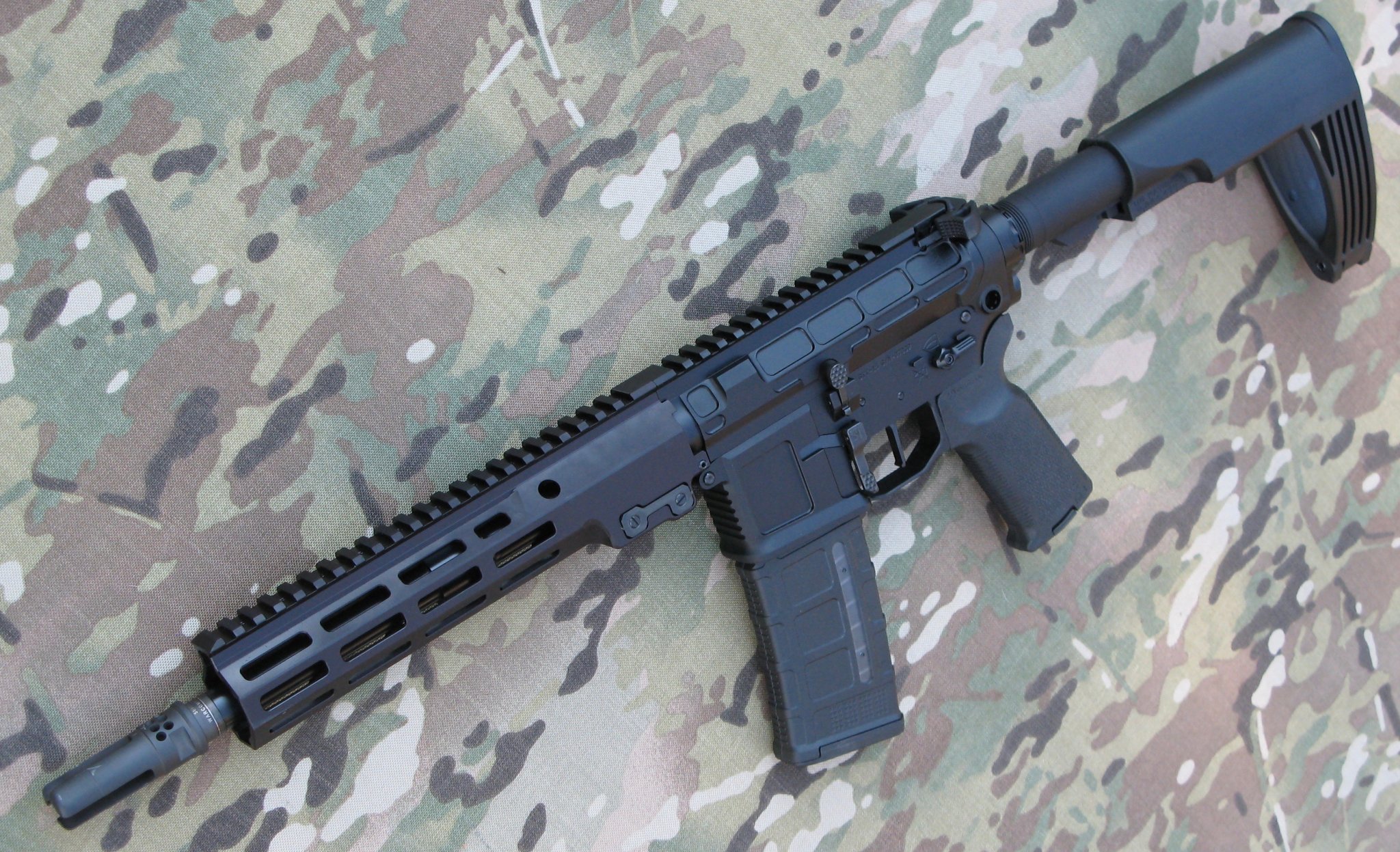

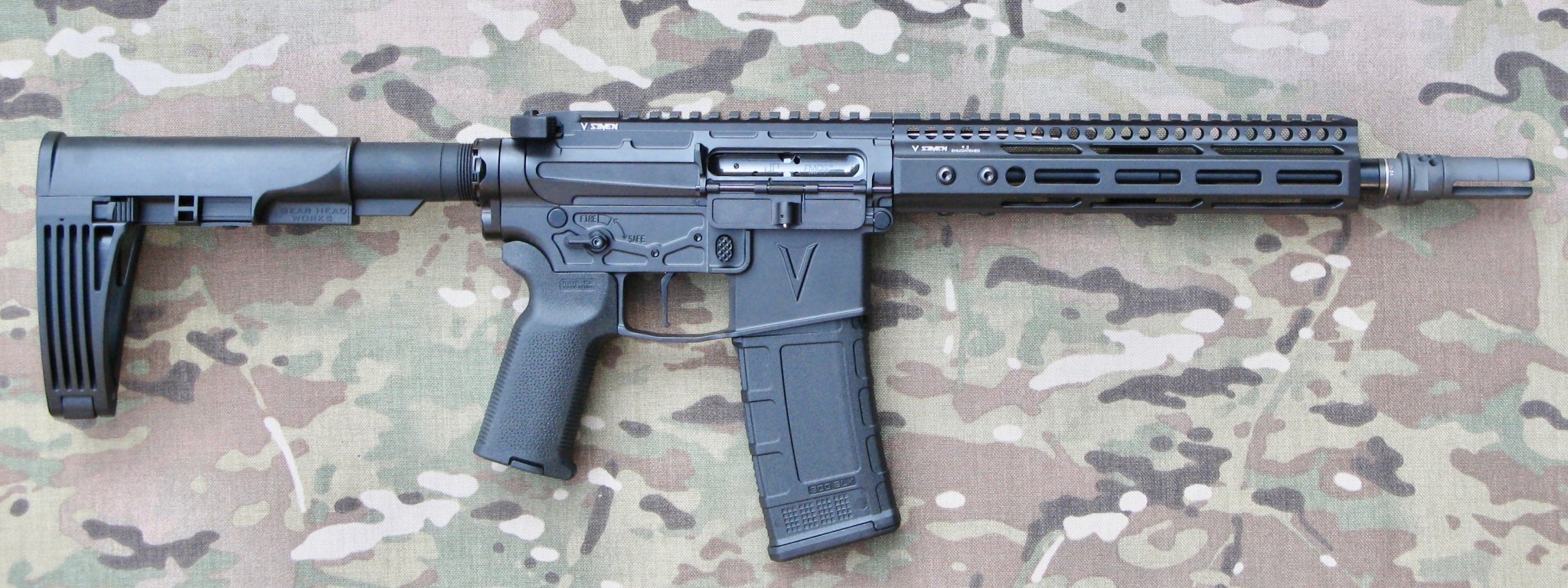

Compact. Light. Potent. The .300 Blackout cartridge dominates the PDW market. This particular one is assembled from all top shelf components: SanTan STT-15 full ambi billet receiver set; V Seven stainless 10.25" .300 Blackout barrel, done in KG GunKote Black; Geissele hard-to-find MK 16 9.3" handguard; Geissele ambi ACH charging handle; JP FMOS bolt carrier group; Trigger Tech Adaptable 2.5 LB - 5.0 LB trigger on V Seven titanium fire control pins; DHD ambi 57 degree safety; Magpul K2 grip; Fortis K1 receiver end plate and castle nut; Gearhead Works Mod 2 pistol brace; V Seven teflon coated silicon steel recoil spring with H buffer; Magpul 30-RD .300 Blackout magazine.


MSTN logo-lg.jpg

Last edited:

S197

Gunny Sergeant
Full Member
Minuteman
Nov 22, 2019
717
635
A number of years ago I had two NRA High Power A2s made. One by Compass Lake, the second by White Oak Precision. I shot them a bit, but then life happened, and I put them away for a long time. I recently gotten bit by the bug again, so I had the Compass Lake converted to a flat top with an Aero Precision Enchanced upper, a fully free floated AP handguard, a low profile gas block, a Geissele SSA-E, and a Vortex Viper PST GII 5-25. I'll likely toss a Magpul PRS G3 on at some point.

The White Oak is also getting the same treatment.

(ignore the bench collapsing... :) )


View attachment 7695513
What did you do with the old receiver


JS8588

Ballistic Hipster
Full Member
Minuteman
Apr 7, 2020
222
149
NEPA

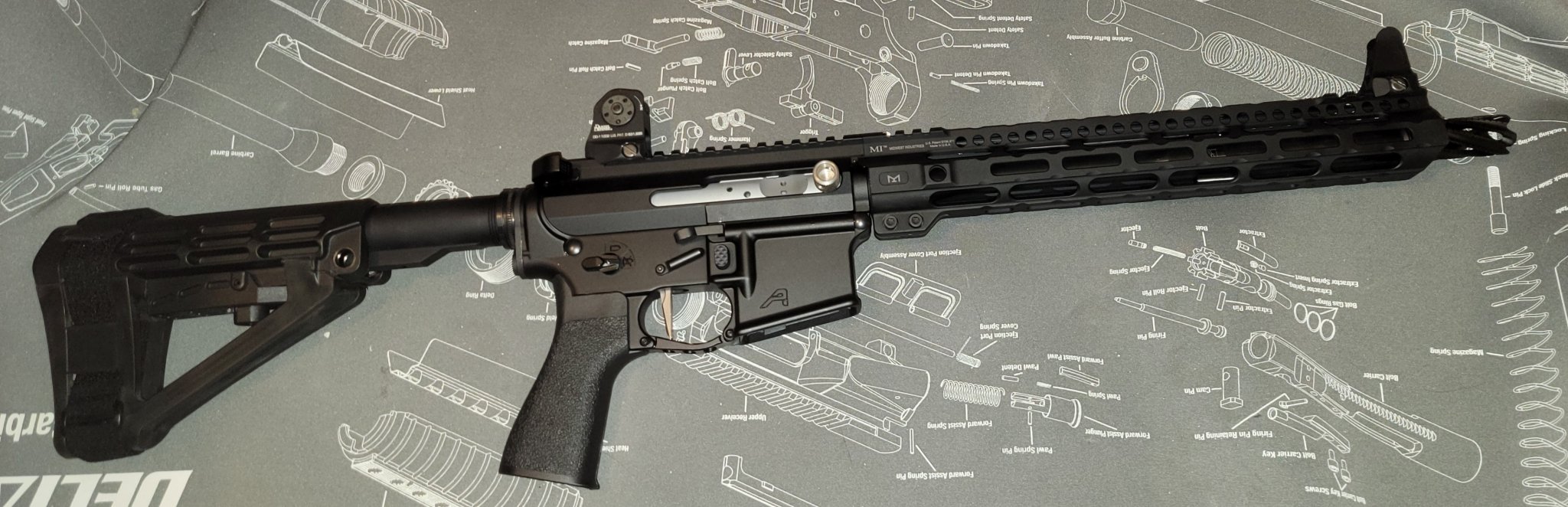

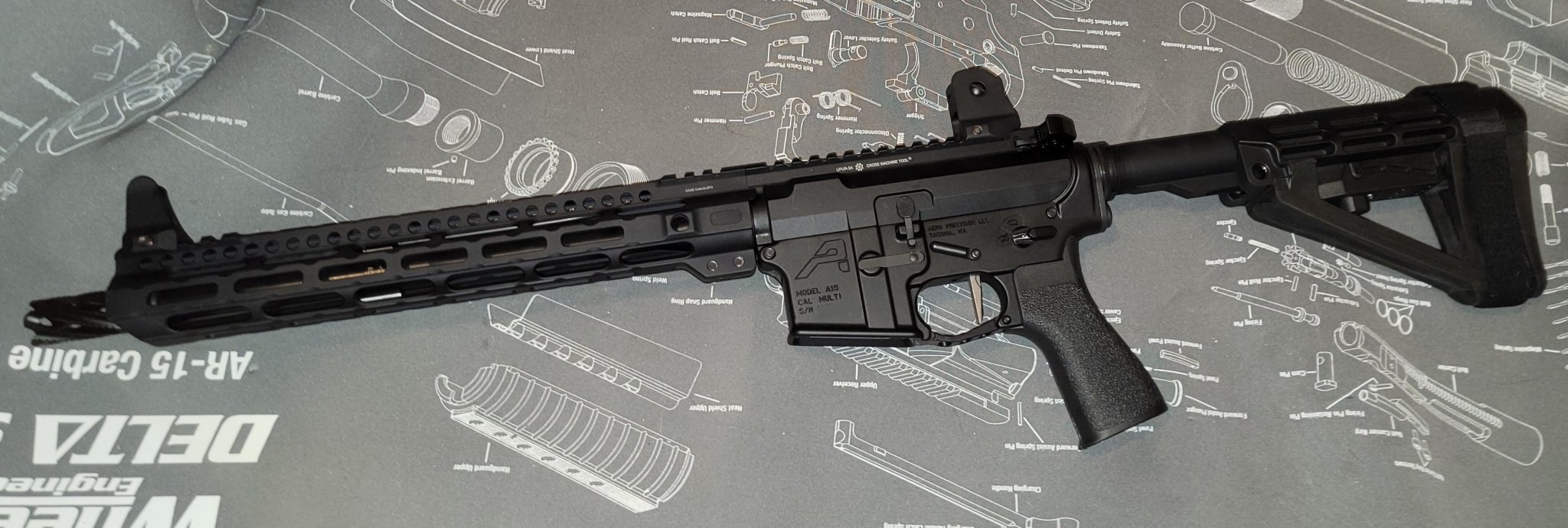

Rainier Arms Flash Hider
Rosco Bloodline 12.5 inch barrel
Midwest Industries 12.625 Lightweight Combat Rail
Battle Arms DLC Coated Titanium Gas Block
Bootleg Carbine Length Nitrided Gas Tube
Cross Machine Tool Upper
Fulton Armory Chrome BCG
Geissele Airborne Charging Handle
Daniel Defense Fixed Sights
JP Microfit Oversized Takedown/Pivot Pins
Aero Precision Ambi Lower
2A Armament Trigger Guard
Strike Industries Carbine Buffer Spring
Rise Armament/OpticsPlanet RA-240 Trigger
SBA4 Brace & Buffer Tube
Radian Talon Ambi Safety
KNS Anti Rotation/Walk Pins
TangoDown BG-18 Grip
AllStar Tactical 5oz Buffer
WMD Nitomet Mag Release
Seekins Mag Release Button
PWS Castle Nut/End Plate

Just needs a sling, red dot, & maybe a light.

Last edited:
  • Like
Reactions: MackDaddy1962

MSTN

Sergeant
Full Member
Minuteman
Jan 31, 2010
980
1,148
MIDDLE OF ARIZONA
MSTN.BIZ

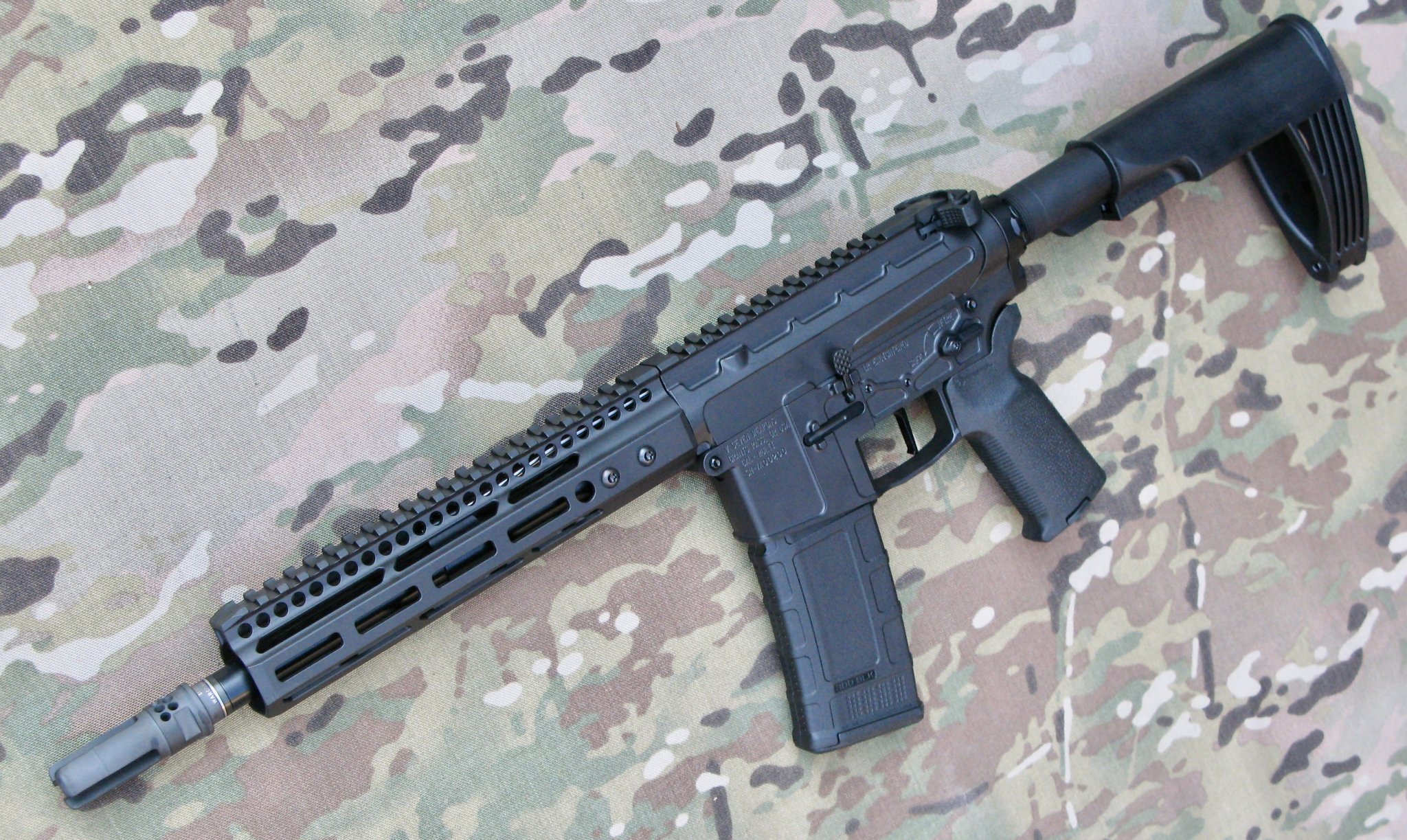

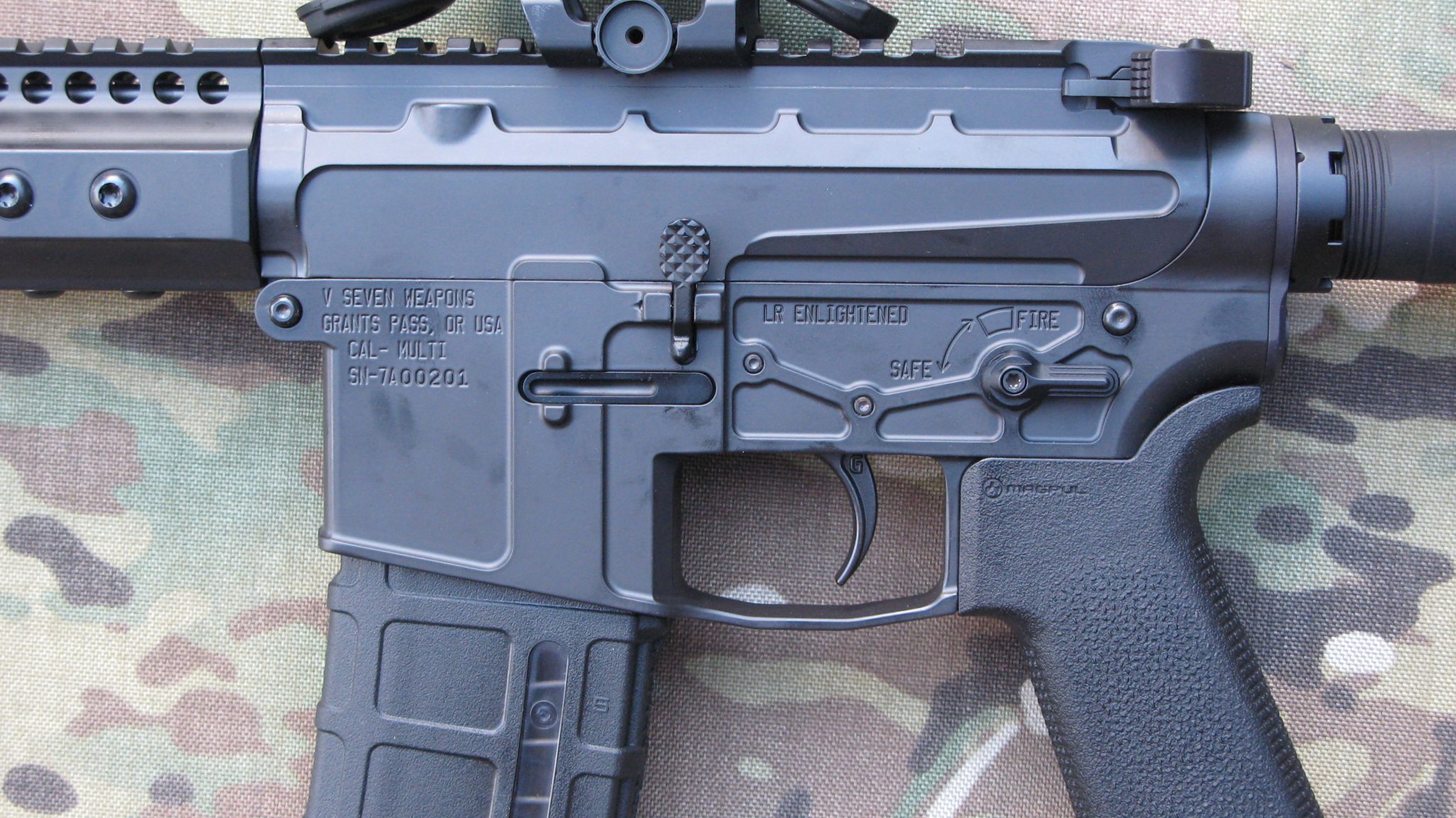

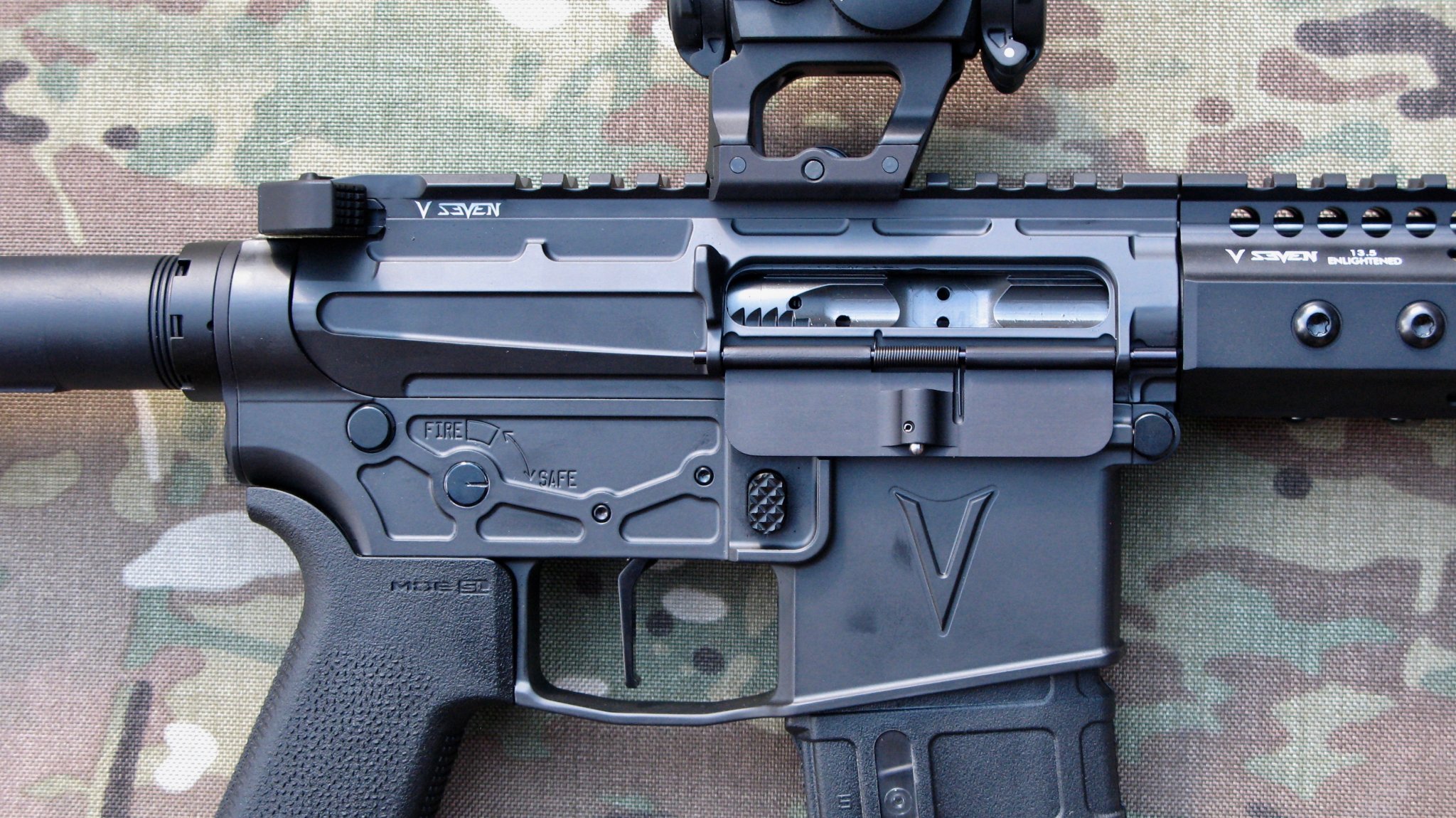

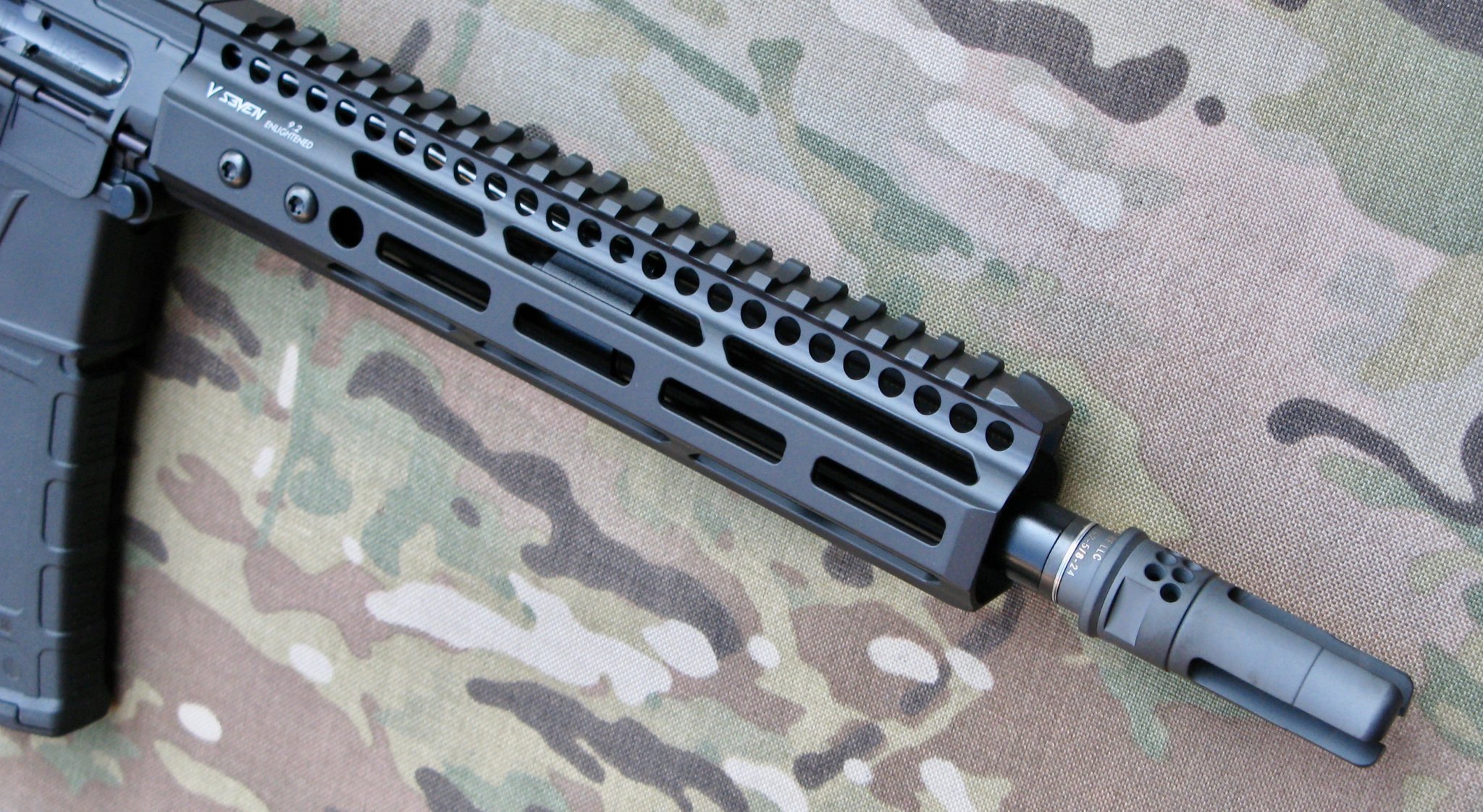

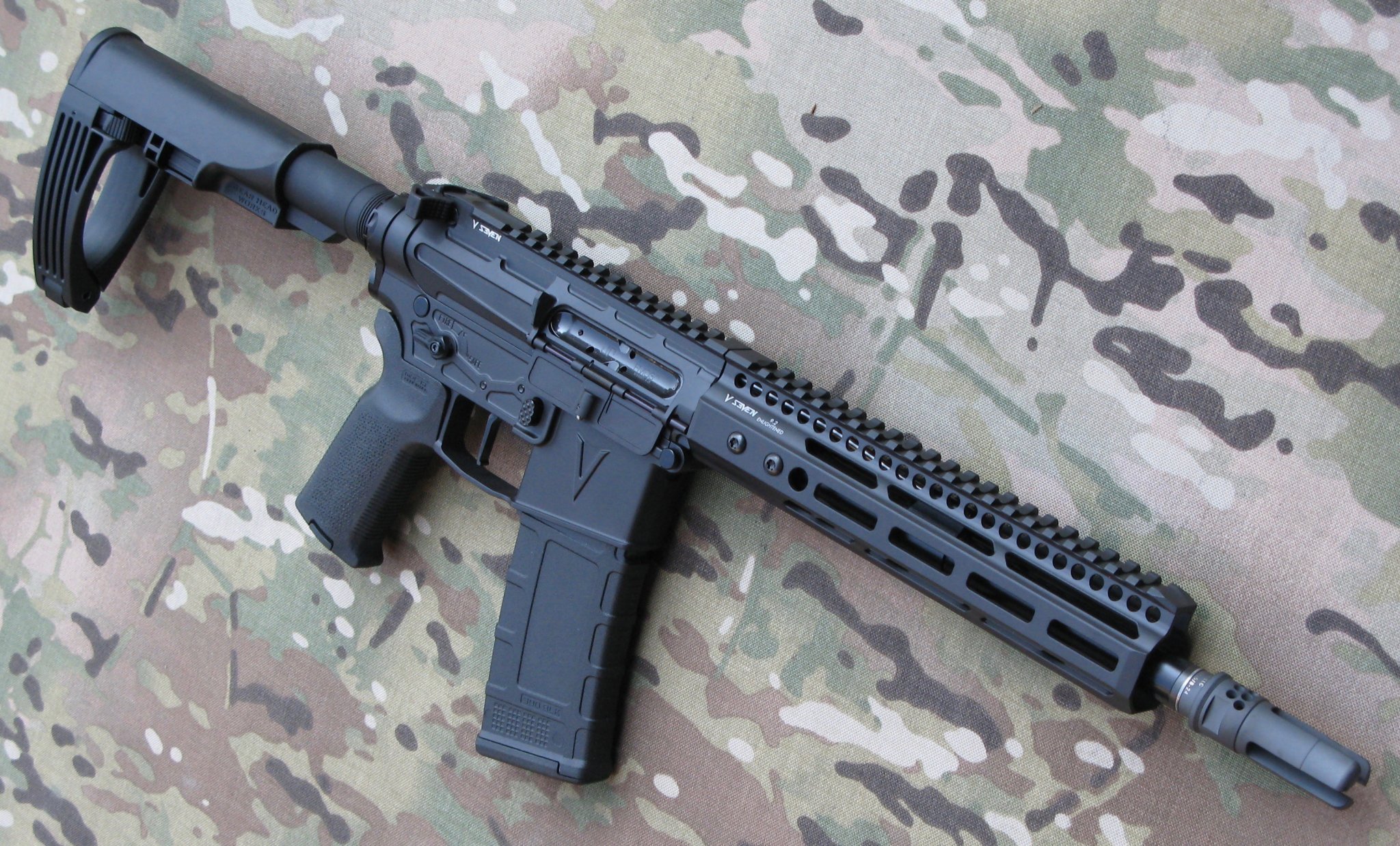

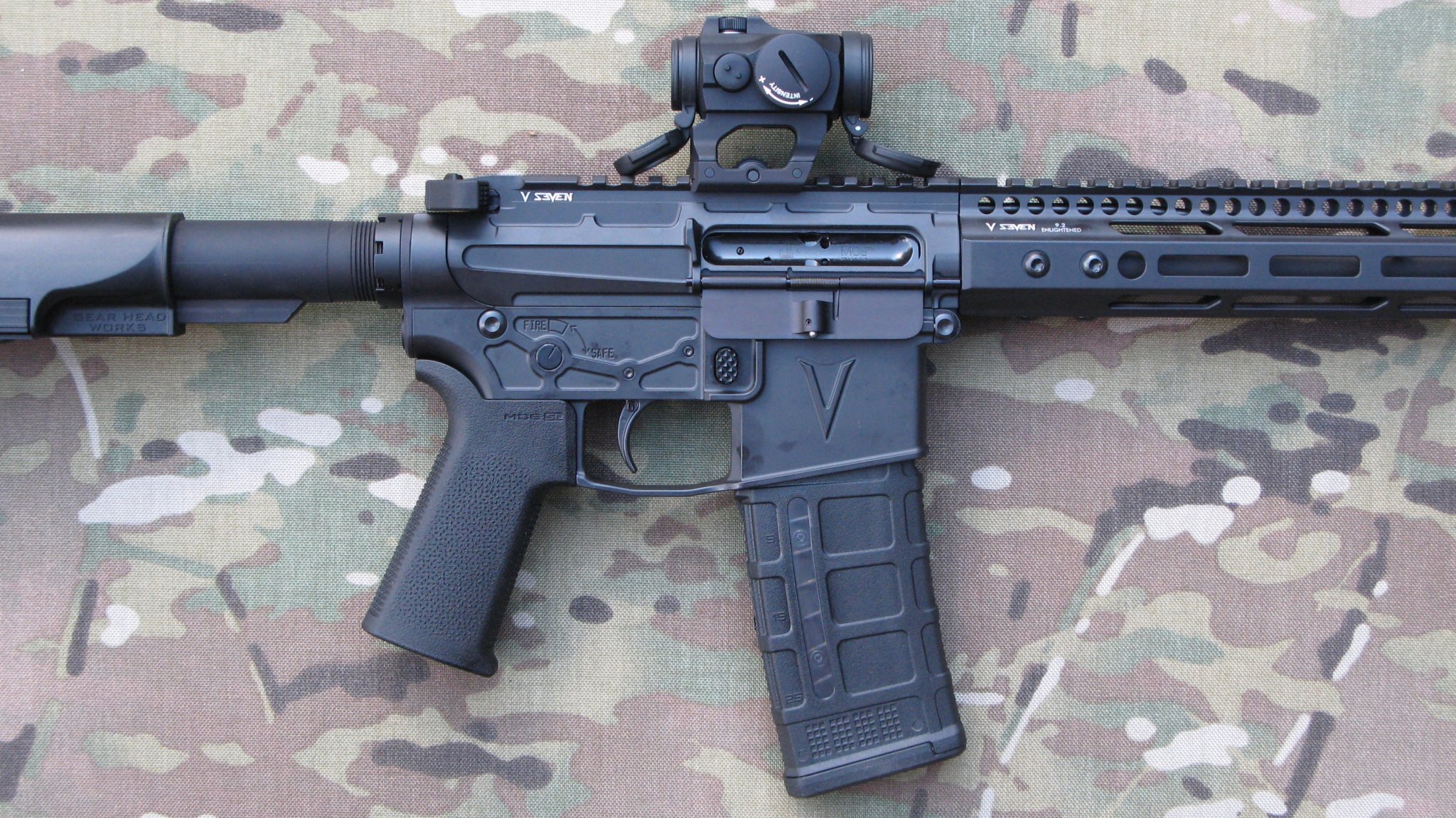

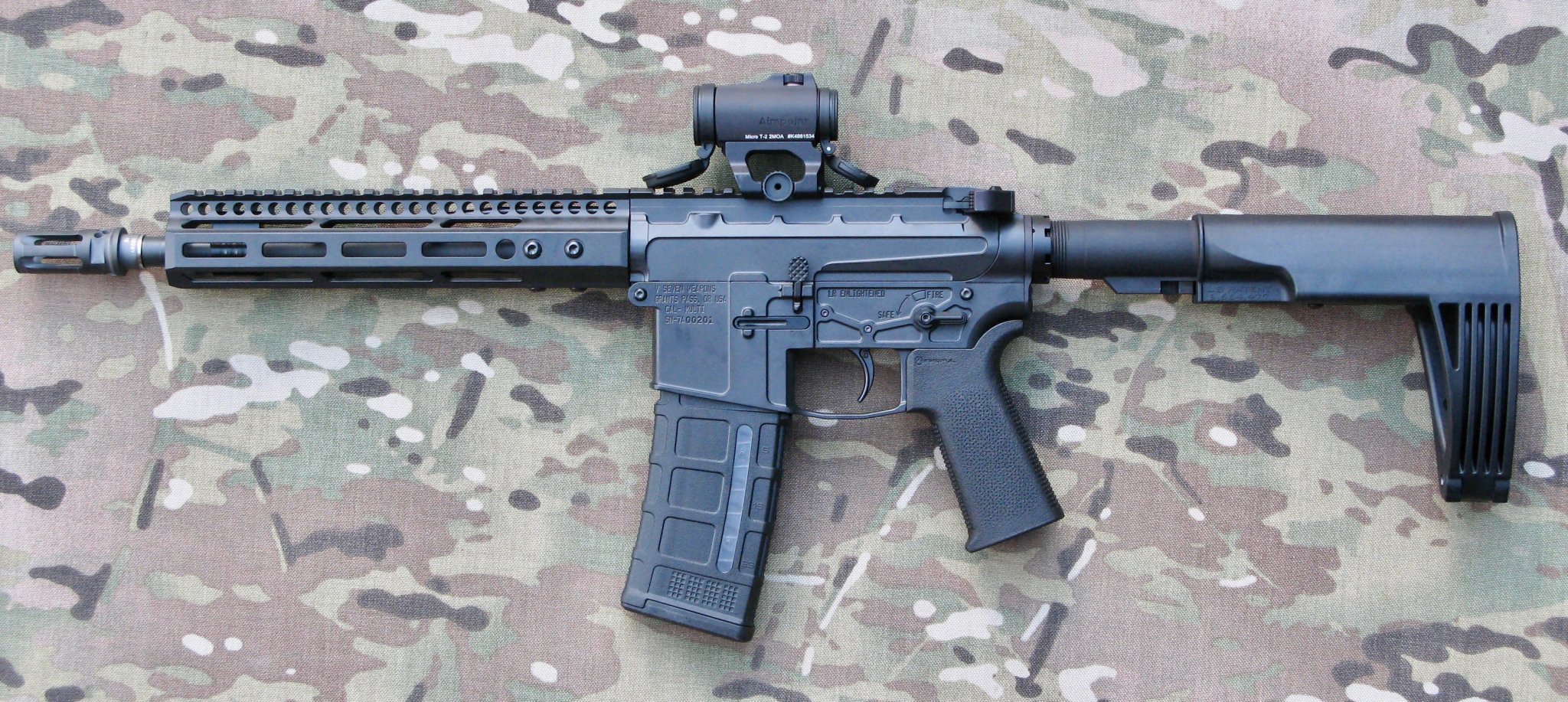

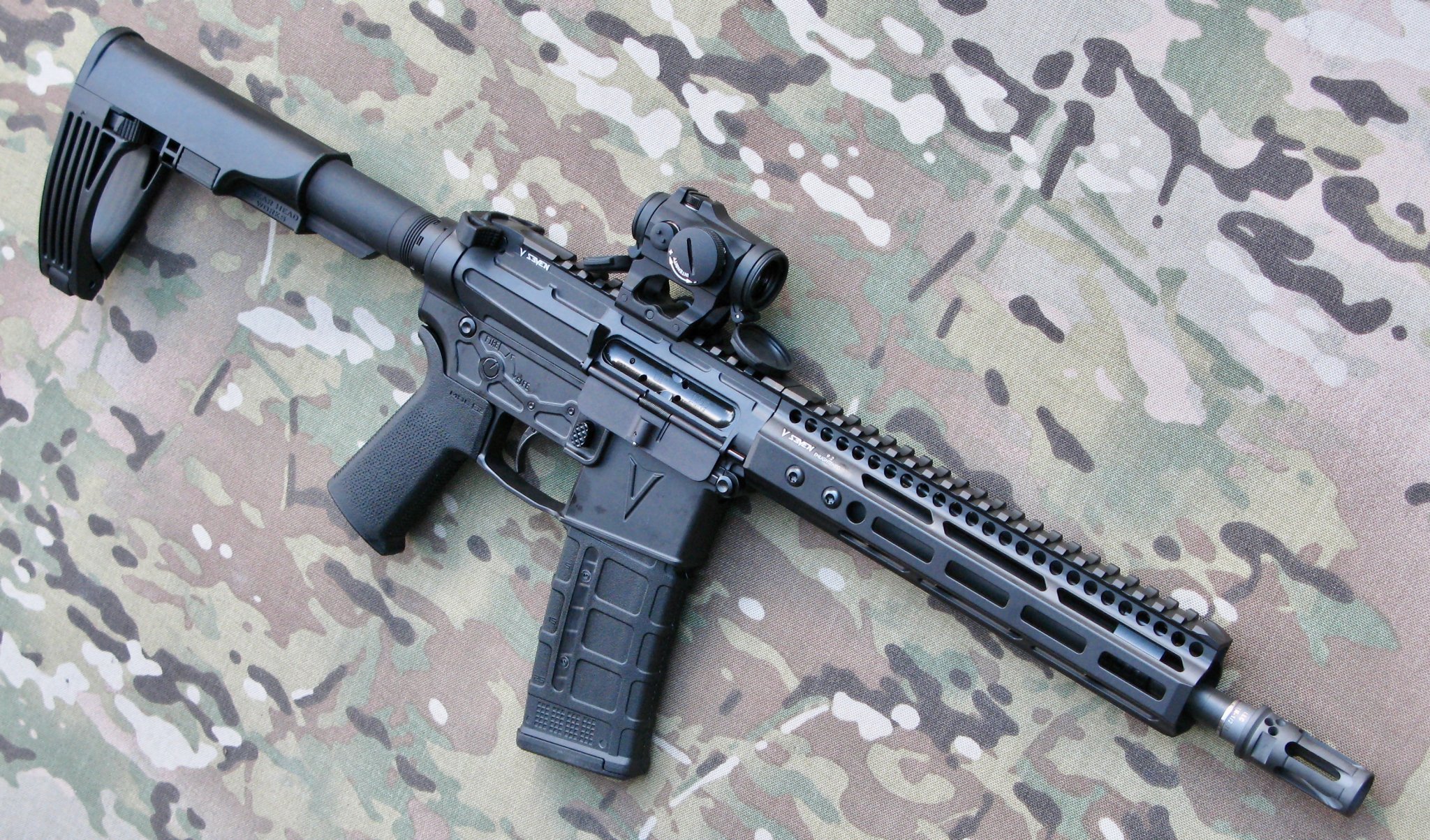

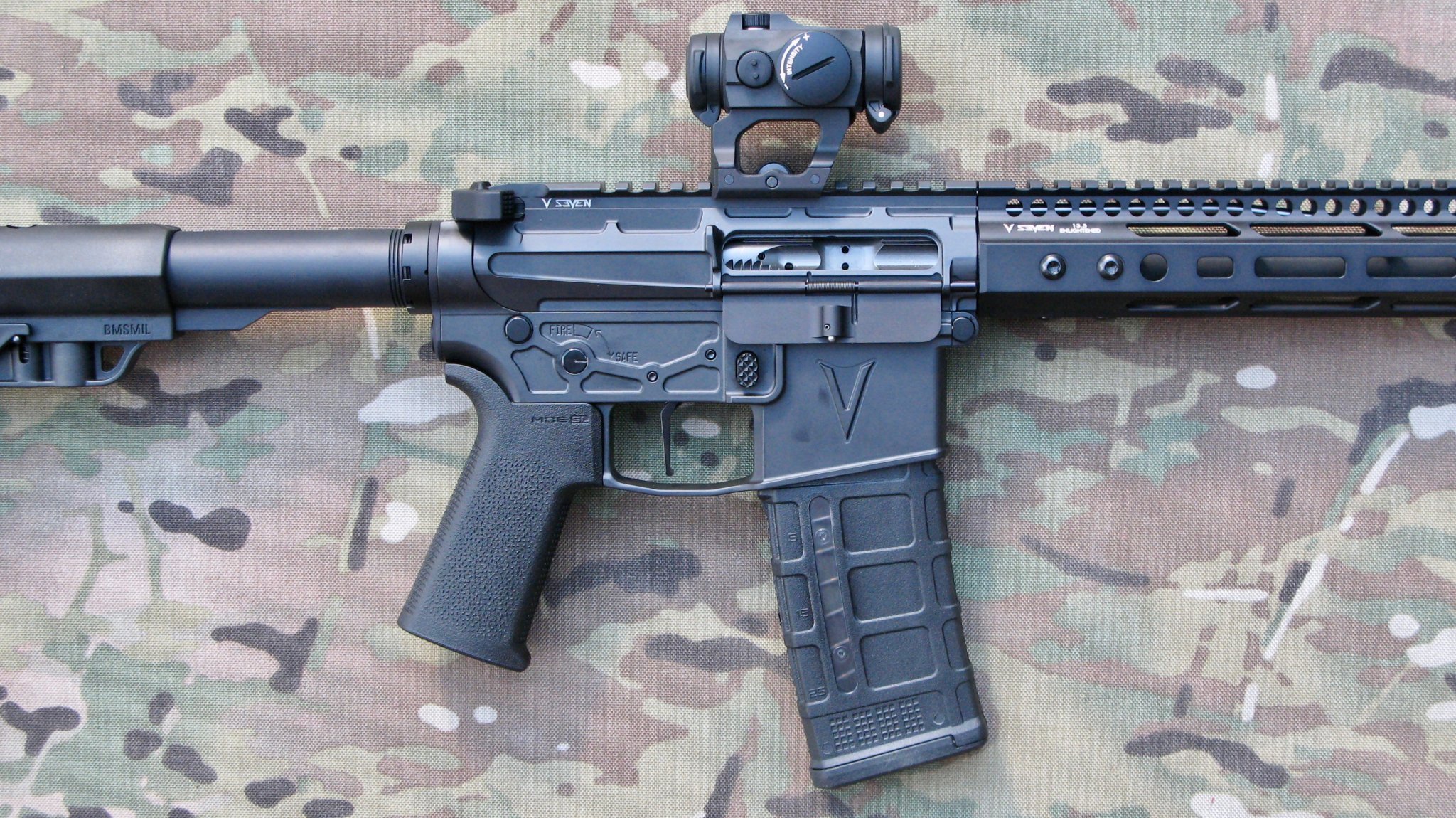

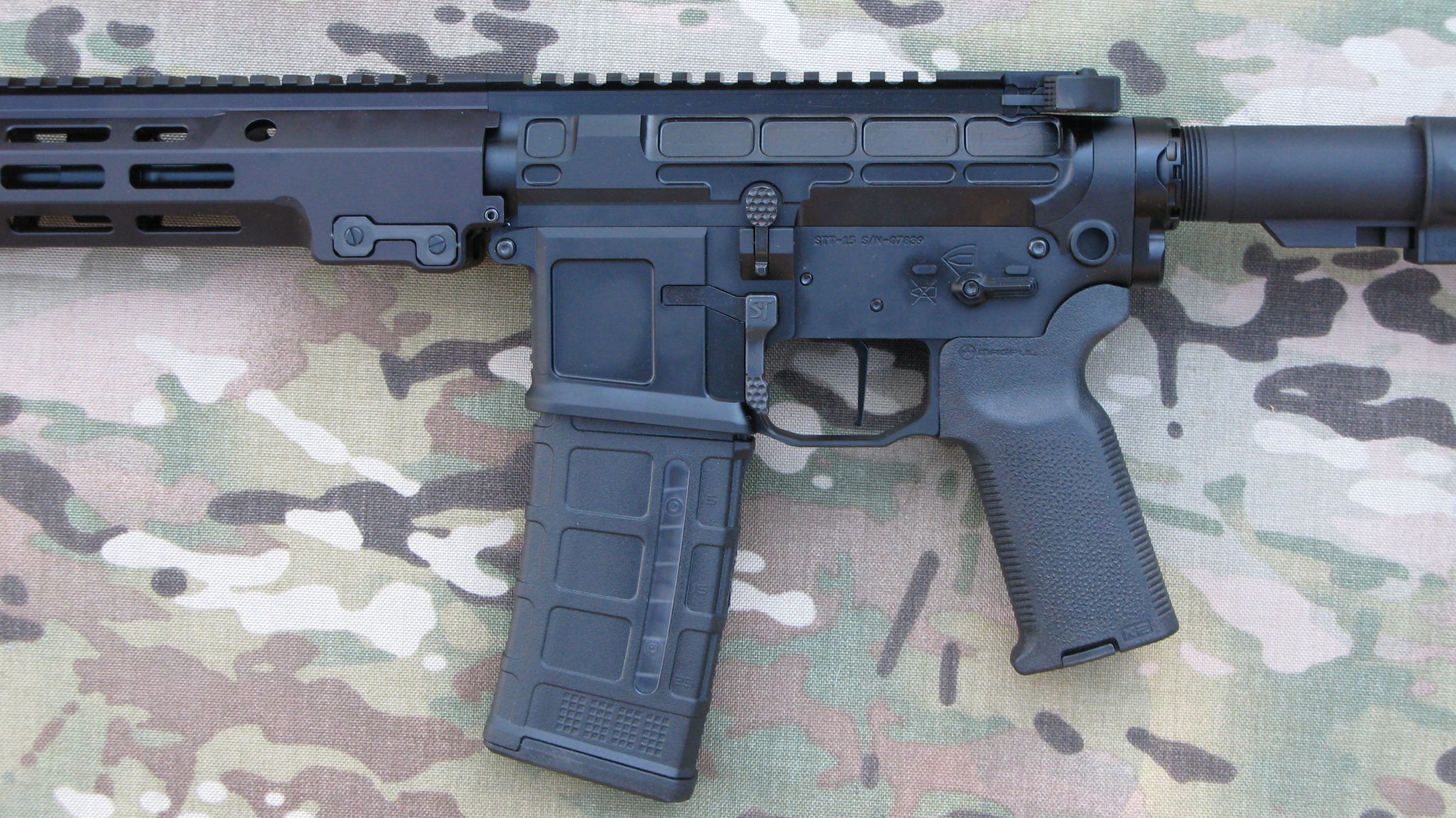

This is my first MSTN SuperLite build using V Seven billet upper/lower and rail. I am in danger of keeping this one. The bare rifle topped out at 5 LB 1.5 OZ. This was only possible using the Noveske HFCL Skinny 14.5" barrel (20.5 OZ) and Young Superlite bolt carrier, no longer made. V Seven titanium and aluminum everything, with TriggerTech competition trigger and Geissele ACH. Matt McLearn did his usual superlative pin and weld on the V Seven Furion brake. I'm still running the Vlor A5 recoil system, because it is worth the slight weight penalty. This rifle doesn't move when you shoot it. How about that way cool Scalarworks Aimpoint Micro mount? Waited a long time for those!

MSTN logo-lg.jpg


PBWalsh

Preston Walsh Fitness
Supporter
Full Member
Minuteman
Feb 10, 2017
1,948
1,050
28
Central AL
@MSTN

How are the TT triggers holding up after heavy use? I’ve got a Diamond sitting around in a spare lower and am thinking about swapping out a Larue MBT 2S for it in my primary AR15.


kyzim311

Sergeant of the Hide
Full Member
Minuteman
  • Jan 29, 2020
    350
    263
    Ohio
    @MSTN

    How are the TT triggers holding up after heavy use? I’ve got a Diamond sitting around in a spare lower and am thinking about swapping out a Larue MBT 2S for it in my primary AR15.
    I have had my trigger tech diamond in my main lower for a couple years now. It is my go to setup, but I am not a high round count guy. I do a lot of groundhog hunting with my ar's, and they do get some range time. They also see plenty of dust, and I have noticed no problems.

    • Like
    Reactions: PBWalsh

    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,948
    1,050
    28
    Central AL
    Yeah it was used for an SPR upper (for sale btw) but I’m asking about how they hold up for high round count guns.


    db2000

    Supporter
    Supporter
    Full Member
    Minuteman
  • Mar 27, 2020
    1,738
    952

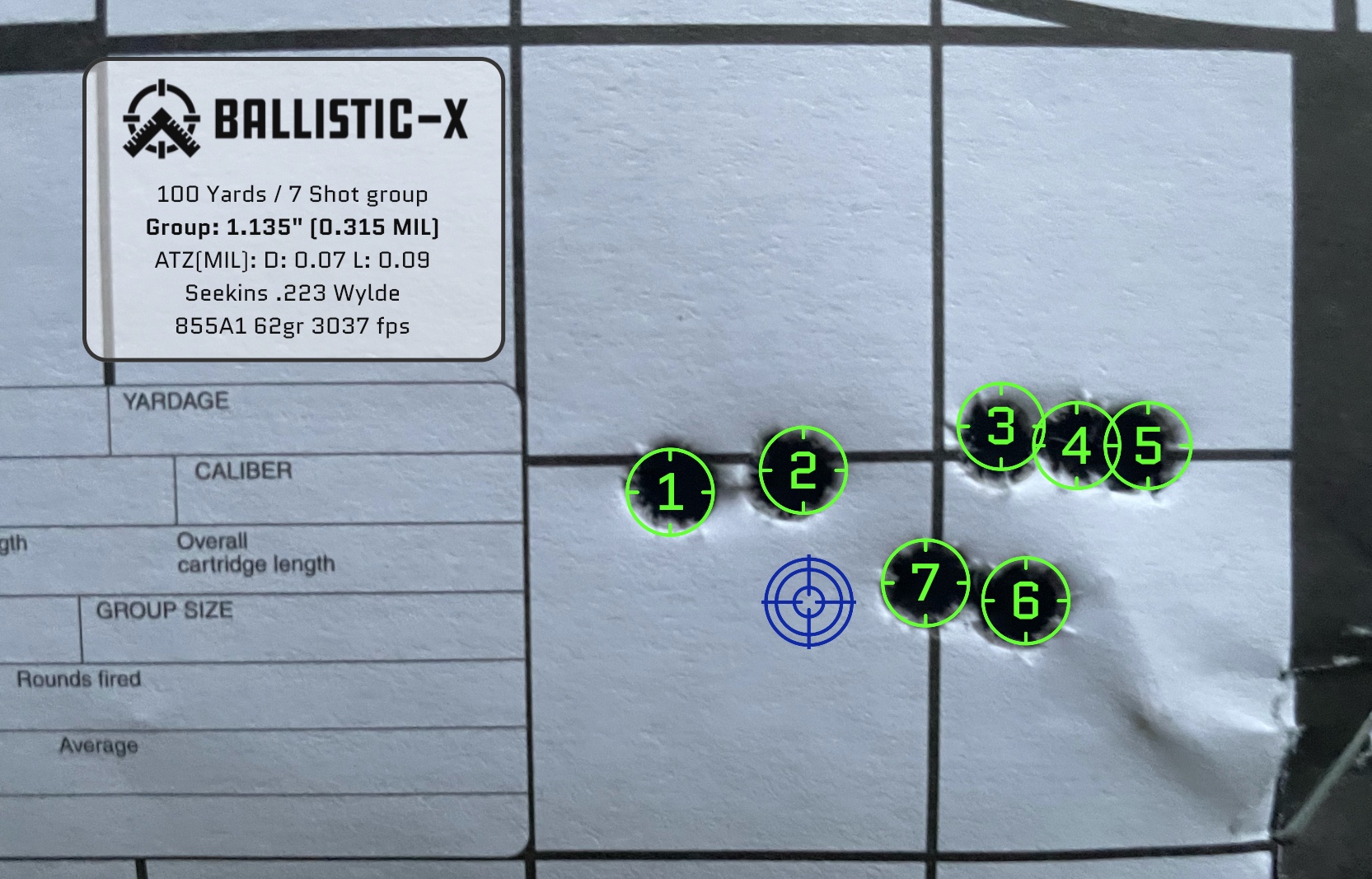

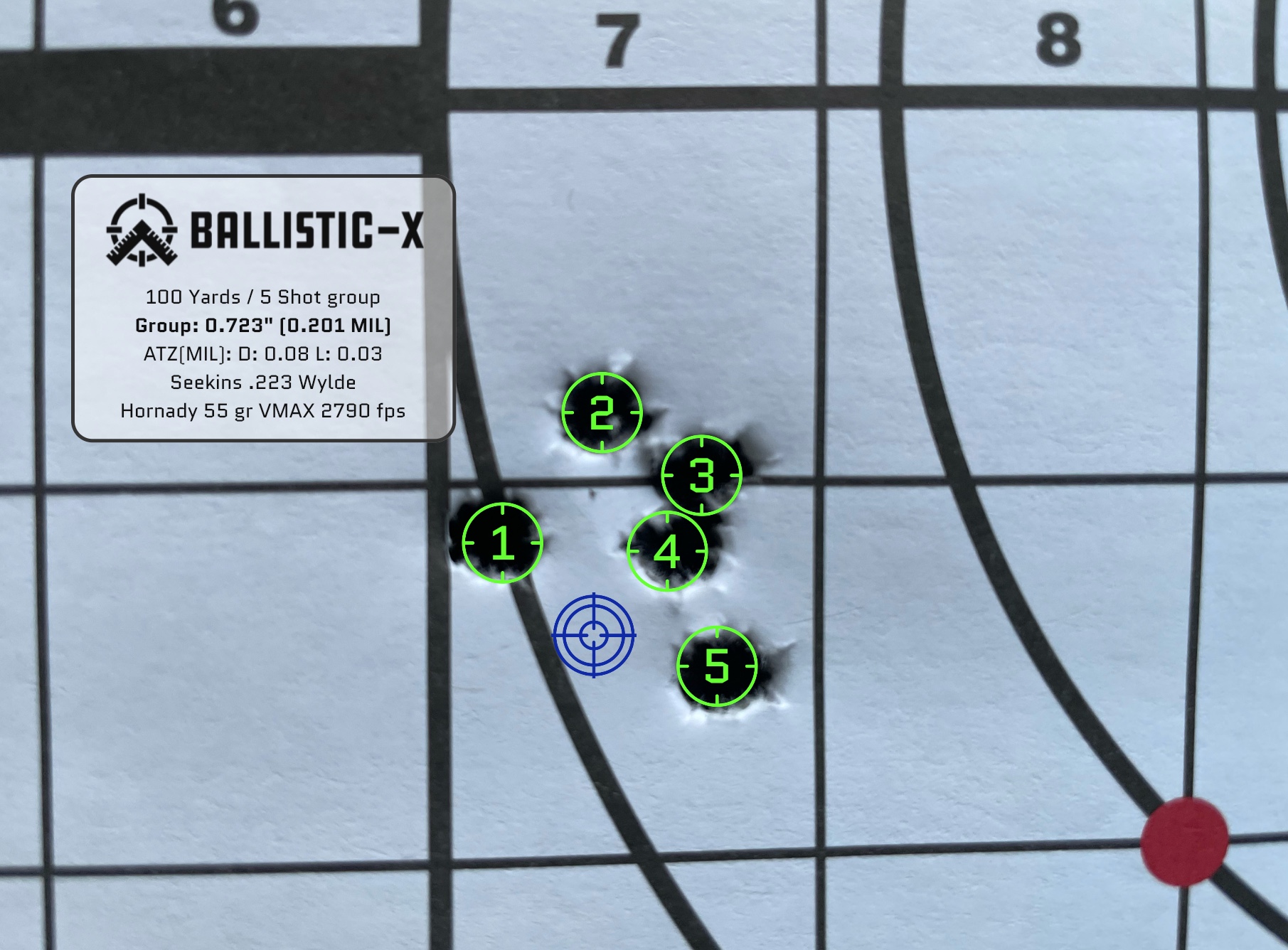

    Seekins .223 Wylde w/ Geissele SSA-E
    Geissele Super Braid 42/H2, Fail Zero/JP bolt, 16” Proof 1:8, Omega
    Really likes 855A1 and Hornady VMAX during barrel break in. SMK 77 and H4895 need a little work.




    Last edited:

    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,948
    1,050
    28
    Central AL

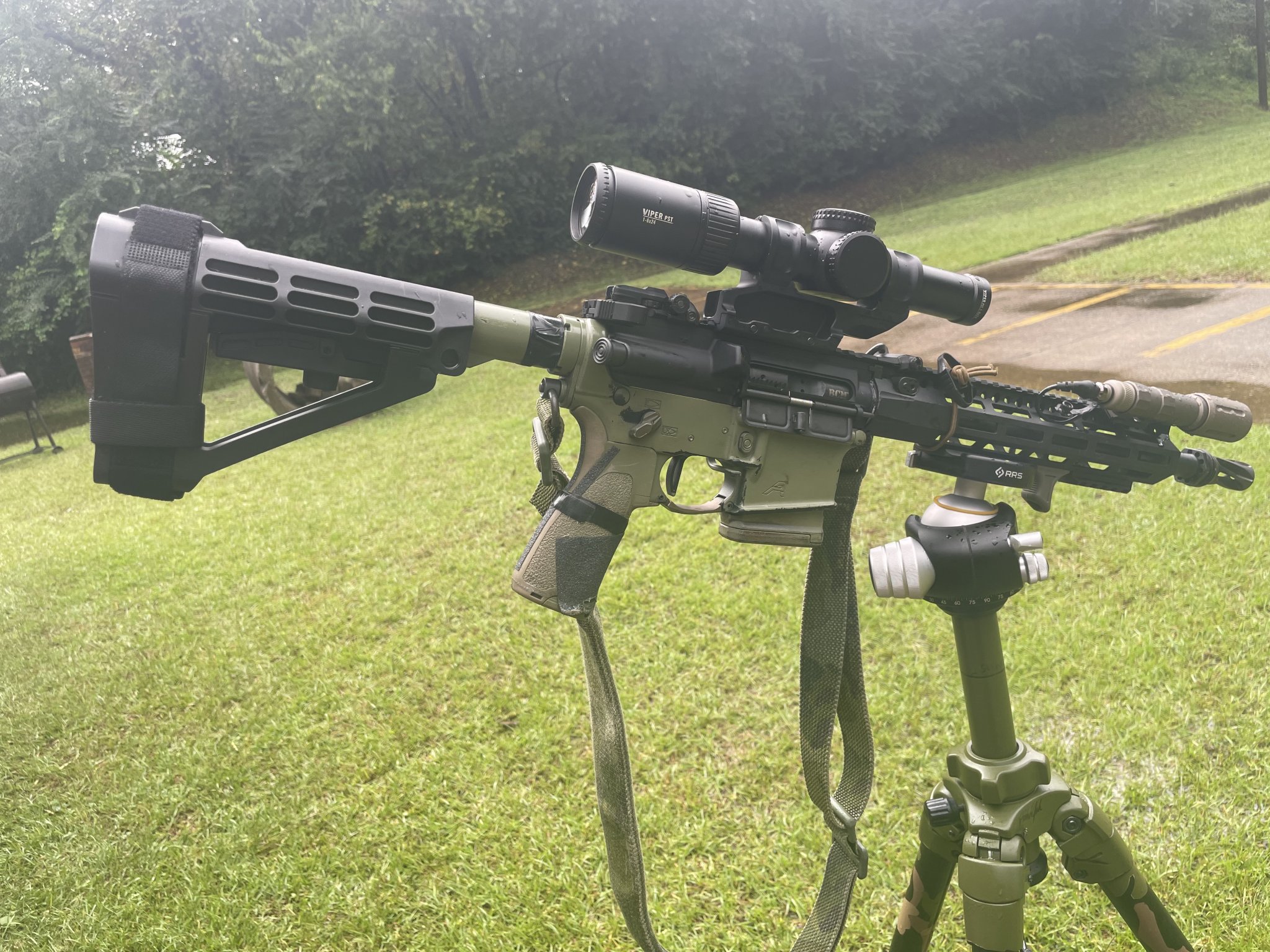

    Yet another evolution. SWFA 1-6 went down so I grabbed a PST 1-6 on store credit. First outing was positive, its optically superior to the SWFA, illumination is definitely rainy day bright.



    • Like
    Reactions: MackDaddy1962

    PBWalsh

    Preston Walsh Fitness
    Supporter
    Full Member
    Minuteman
    Feb 10, 2017
    1,948
    1,050
    28
    Central AL
    Was it the swfa ss?
    Yes, the 1-6x24 HD. The mag ring magically froze on me. Unknown as to how it happened, just went to dryfire one day and boom, frozen. Instead of waiting on a backorder (their whole line has been “backordered” for over a year), I cashed in store credit for the PST.


    TonyTheTiger

    Like a Boss
    Full Member
    Minuteman
    Feb 14, 2017
    2,948
    3,252
    Yes, the 1-6x24 HD. The mag ring magically froze on me. Unknown as to how it happened, just went to dryfire one day and boom, frozen. Instead of waiting on a backorder (their whole line has been “backordered” for over a year), I cashed in store credit for the PST.
    Sounds like you got quite the upgrade.

    • Like
    Reactions: PBWalsh
