The AR15 Picture Thread

[MSTN]

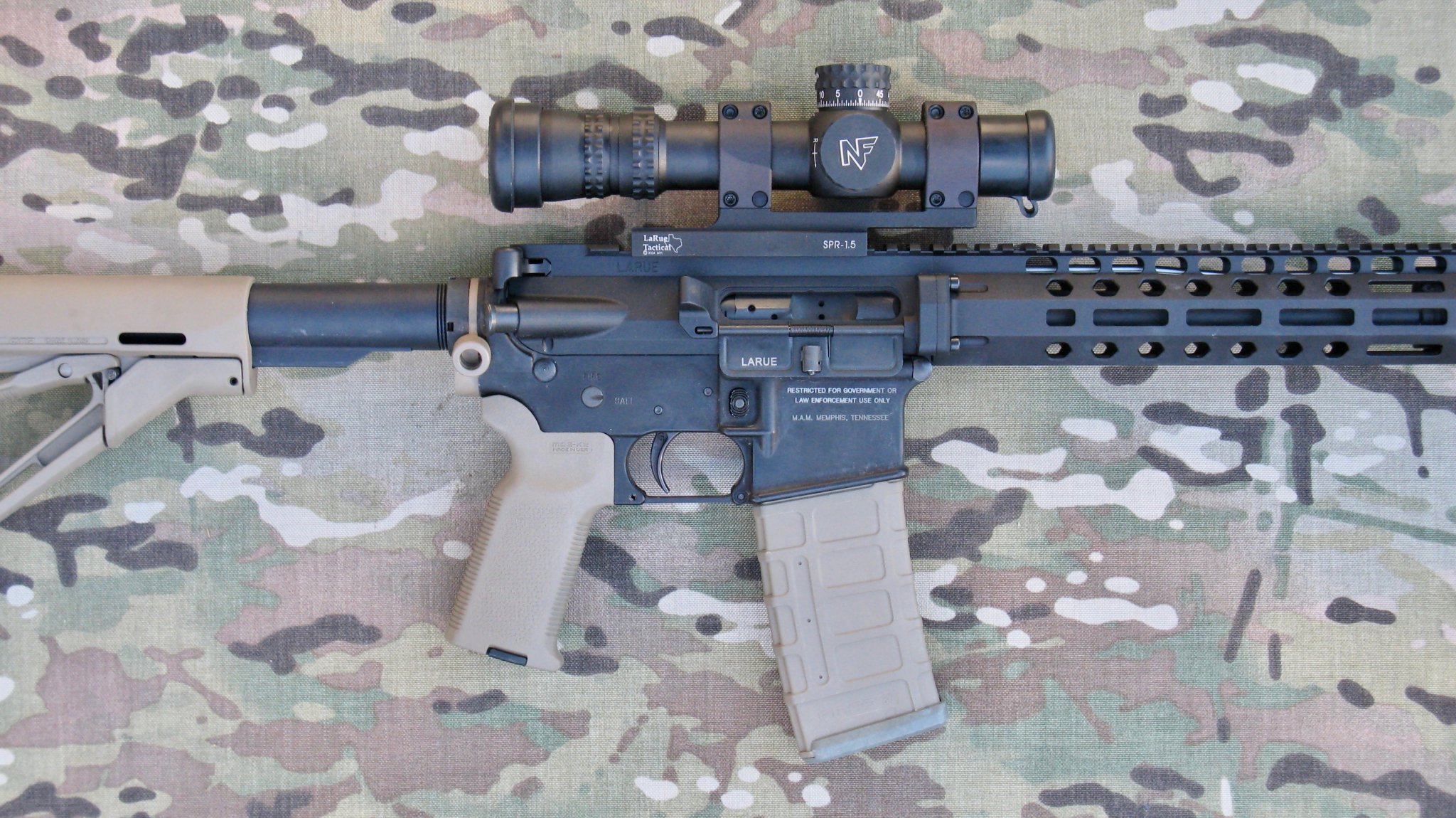

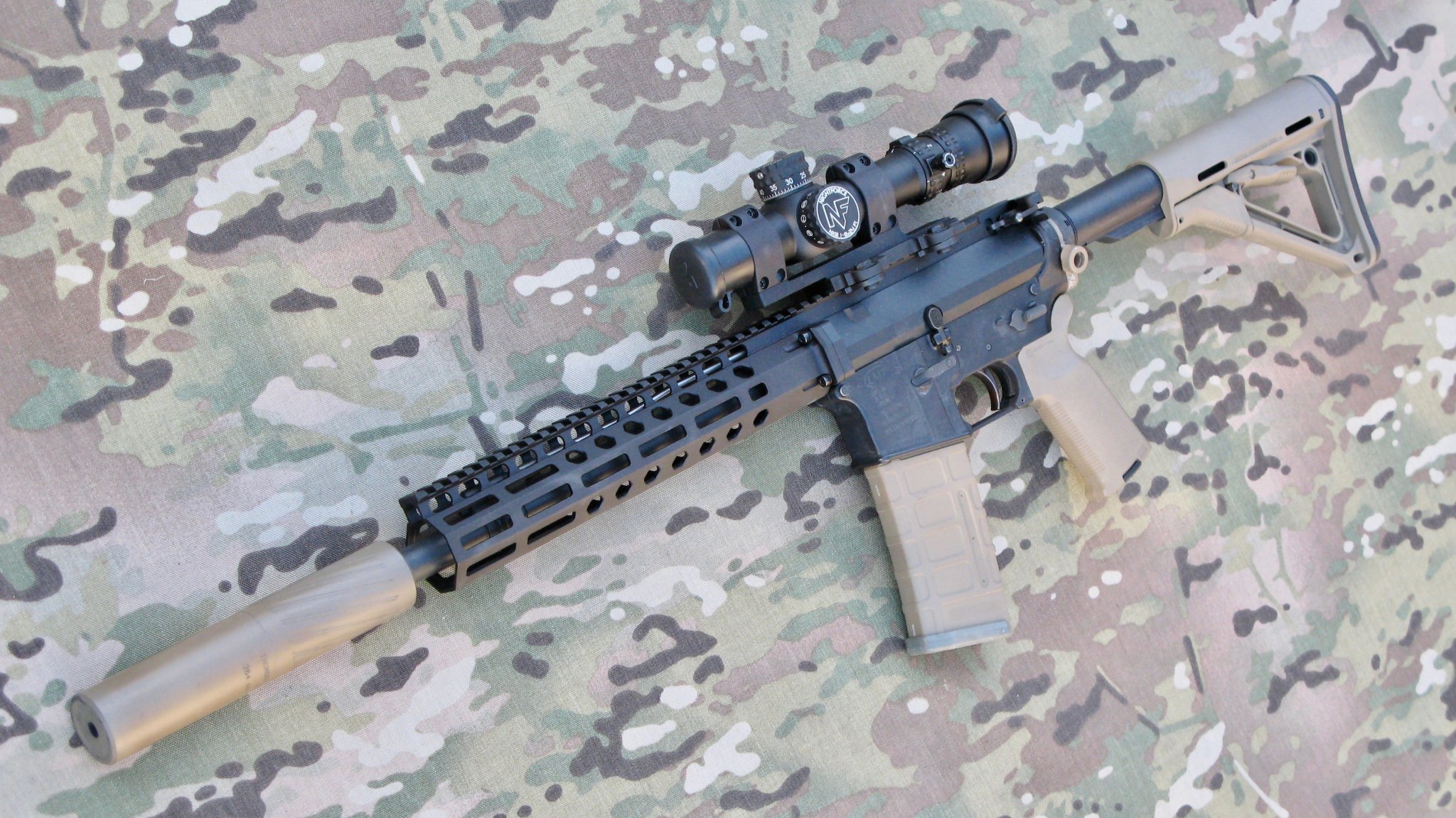

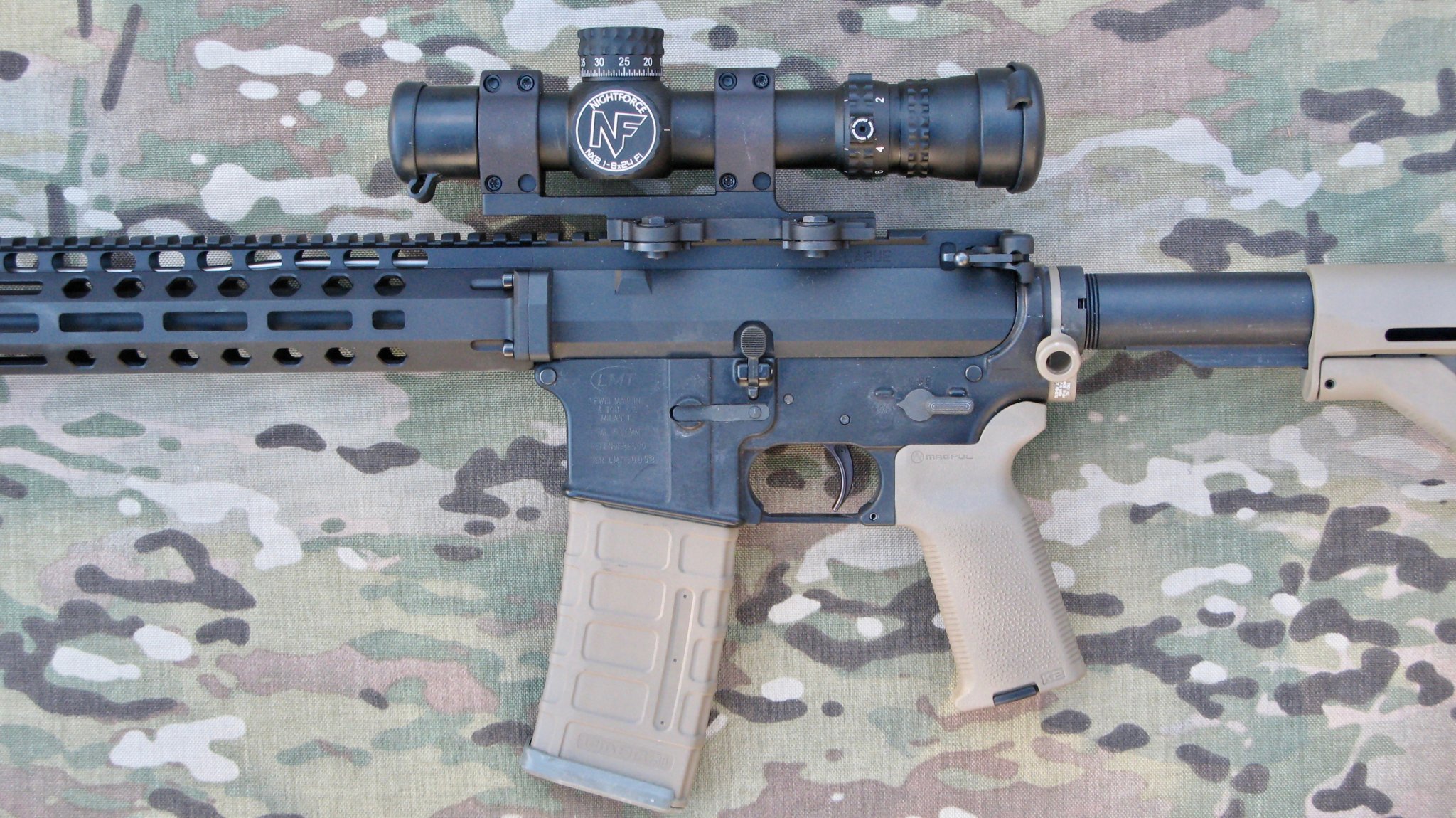

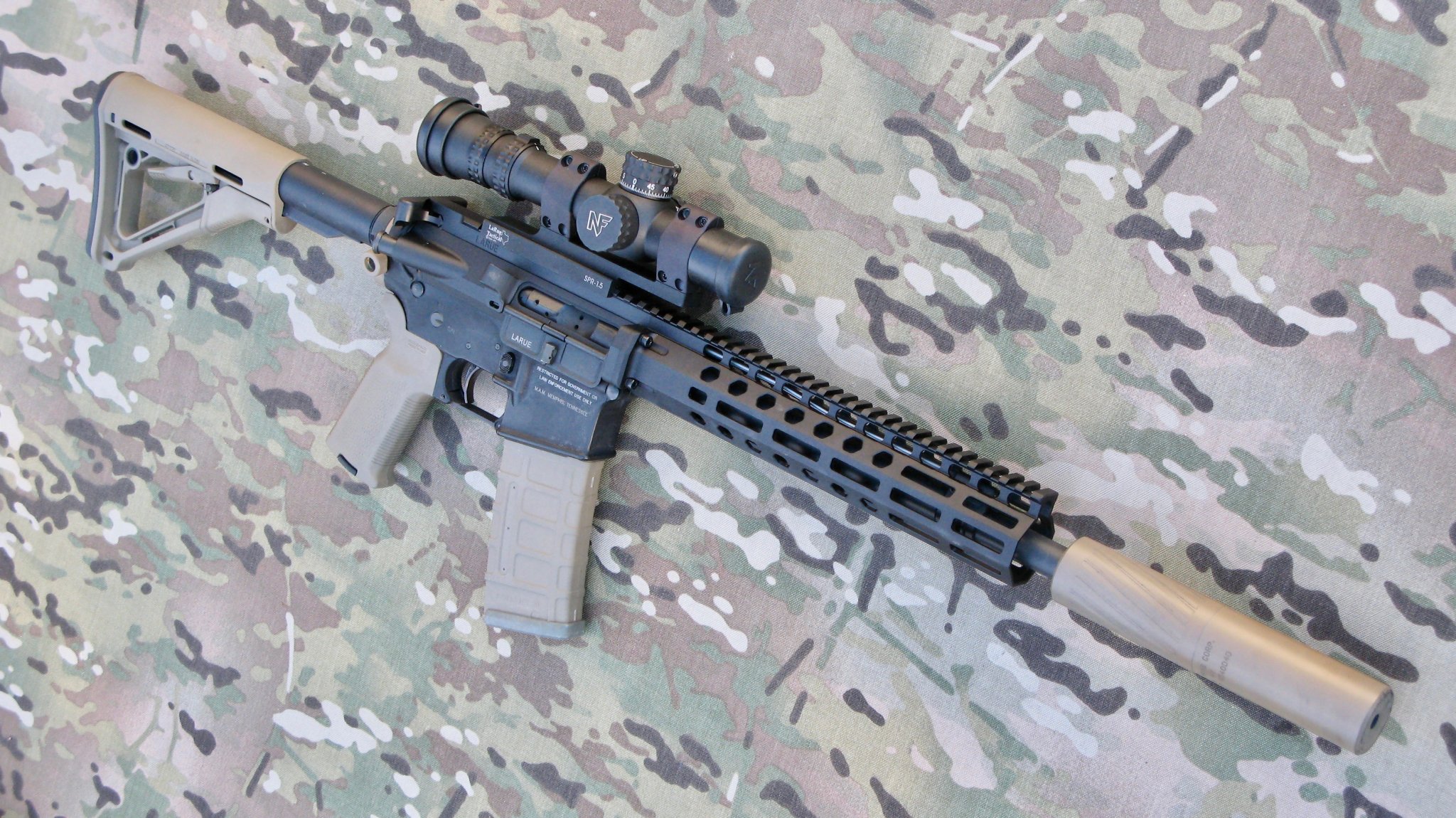

My own 12.5" 6.5 Grendel SBR. Built around another Bartlein barrel turned out by Craddock Precision. The host lower is a 16 year old LMT SBR with my typical Vltor A5 recoil system and vintage Geissele SSA trigger.

I'm using the usual MSTN DLC coated National Match (by Young MFG) bolt carrier, cam pin, plus firing pin, with the addition of a JP 6.5 Grendel bolt. JP uses extractors contoured to the 6.5 G case head, unlike some other manufacturers out there, minimizing the problems with broken extractors.

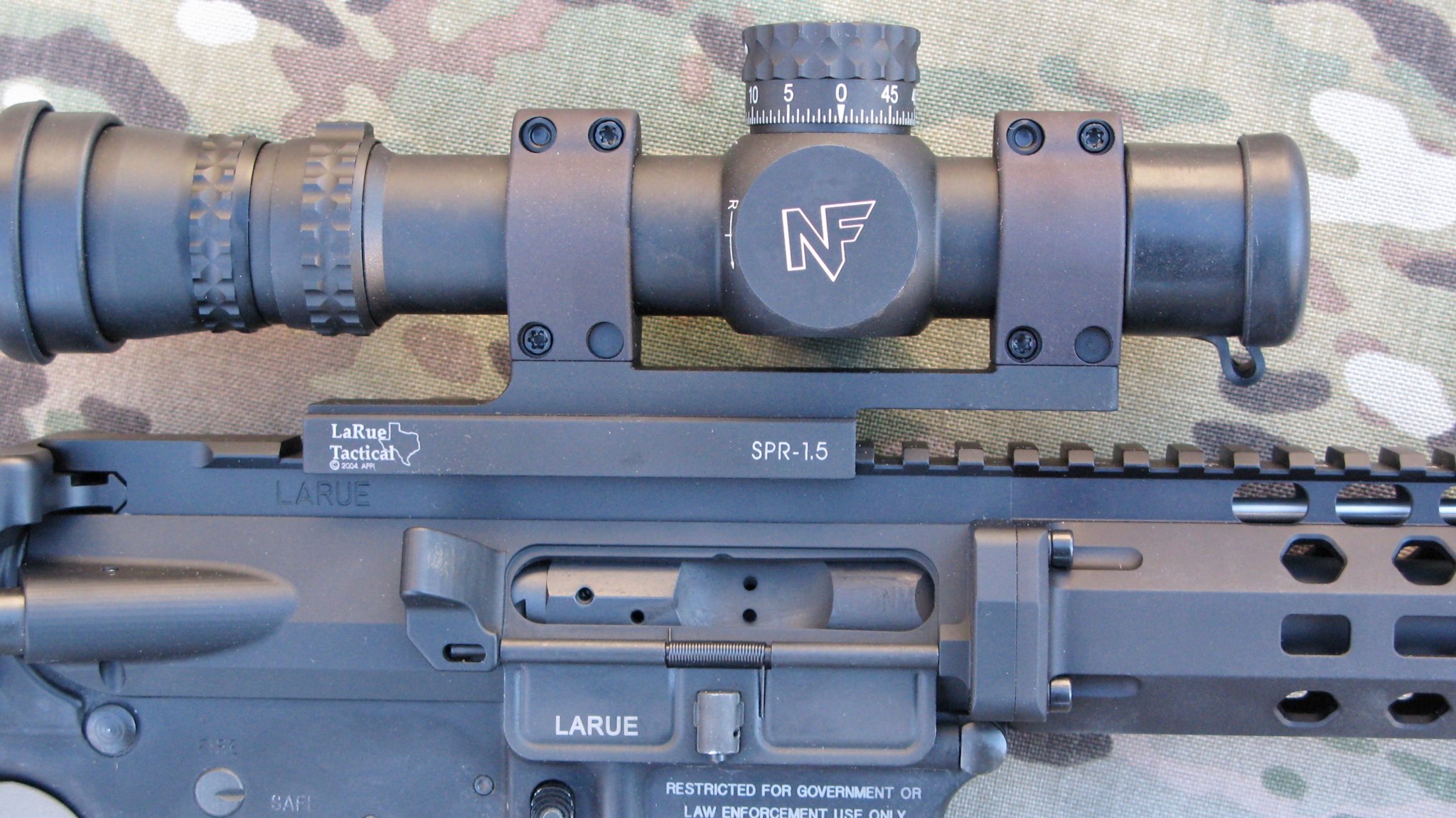

You'll notice the LaRue Stealth 2.0 billet receiver and 10" forend combo here. Even though I pay retail at LaRue, like everyone else, I do so with the appreciation that the LaRue uppers lock up snugly on just about any and all forged lower you might have for a host. The barrel nut not impinging on the forend is a huge accuracy potential boost, too, I truly believe. The combo is remarkably light in weight, as well. At $399 retail, it doesn't hurt that much.

ThunderBeast cans on a gas gun - I know, I know, they have a LOT of back pressure, but the SLR adjustable gas block goes a long way toward alleviating that. In the end, the extreme light weight, excellent sound suppression, and above all - ACCURACY - make the TB Ultra 7 my choice for this application.

If I told you how Hornady 6.5 Grendel 123 ELD groups with just this little 8X Nightforce NX8 scope out of this 12.5" barrel, you would not believe me. And I would not blame you.



[just browsing]

I will own a build by you, MSTN. One day.



[snarkscarbine]

The Larue system looks like a great idea. Just wish we could all agree to stop putting that useless wart on the right side of the upper. Time for the forward assist to die.



[snarkscarbine]

My own 12.5" 6.5 Grendel SBR. Built around another Bartlein barrel turned out by Craddock Precision. The host lower is a 16 year old LMT SBR with my typical Vltor A5 recoil system and vintage Geissele SSA trigger.

I'm using the usual MSTN DLC coated National Match (by Young MFG) bolt carrier, cam pin, plus firing pin, with the addition of a JP 6.5 Grendel bolt. JP uses extractors contoured to the 6.5 G case head, unlike some other manufacturers out there, minimizing the problems with broken extractors.

You'll notice the LaRue Stealth 2.0 billet receiver and 10" forend combo here. Even though I pay retail at LaRue, like everyone else, I do so with the appreciation that the LaRue uppers lock up snugly on just about any and all forged lower you might have for a host. The barrel nut not impinging on the forend is a huge accuracy potential boost, too, I truly believe. The combo is remarkably light in weight, as well. At $399 retail, it doesn't hurt that much.

ThunderBeast cans on a gas gun - I know, I know, they have a LOT of back pressure, but the SLR adjustable gas block goes a long way toward alleviating that. In the end, the extreme light weight, excellent sound suppression, and above all - ACCURACY - make the TB Ultra 7 my choice for this application.

If I told you how Hornady 6.5 Grendel 123 ELD groups with just this little 8X Nightforce NX8 scope out of this 12.5" barrel, you would not believe me. And I would not blame you.


View attachment 7002601View attachment 7002602View attachment 7002603View attachment 7002604View attachment 7002605

Did you get pmags to feed Grendel? What witchcraft is this!!?



[MSTN]

Good catch! I just threw a Pmag in for the photo.

I use the E-Lander mags in the 6.5 Grendel. I find they work well in the 6.8 SPC, also.



[snarkscarbine]

Good catch! I just threw a Pmag in for the photo.

I use the E-Lander mags in the 6.5 Grendel. I find they work well in the 6.8 SPC, also.

ASC 6.8 mags also pull double duty pretty well. Run without a hiccup in my Grendel and Valkyrie. ??



[SpeedDrop]

F1 Firearms SBR Build. Just waiting on a Surefire RC2.



[Biggy]

My own 12.5" 6.5 Grendel SBR. Built around another Bartlein barrel turned out by Craddock Precision. The host lower is a 16 year old LMT SBR with my typical Vltor A5 recoil system and vintage Geissele SSA trigger.

I'm using the usual MSTN DLC coated National Match (by Young MFG) bolt carrier, cam pin, plus firing pin, with the addition of a JP 6.5 Grendel bolt. JP uses extractors contoured to the 6.5 G case head, unlike some other manufacturers out there, minimizing the problems with broken extractors.

You'll notice the LaRue Stealth 2.0 billet receiver and 10" forend combo here. Even though I pay retail at LaRue, like everyone else, I do so with the appreciation that the LaRue uppers lock up snugly on just about any and all forged lower you might have for a host. The barrel nut not impinging on the forend is a huge accuracy potential boost, too, I truly believe. The combo is remarkably light in weight, as well. At $399 retail, it doesn't hurt that much.

ThunderBeast cans on a gas gun - I know, I know, they have a LOT of back pressure, but the SLR adjustable gas block goes a long way toward alleviating that. In the end, the extreme light weight, excellent sound suppression, and above all - ACCURACY - make the TB Ultra 7 my choice for this application.

If I told you how Hornady 6.5 Grendel 123 ELD groups with just this little 8X Nightforce NX8 scope out of this 12.5" barrel, you would not believe me. And I would not blame you.


View attachment 7002601View attachment 7002602View attachment 7002603View attachment 7002604View attachment 7002605

Can you use other brand barrels with the larue tactical Stealth 2.0 Receiver and M-lok handguard ** and barrel nuts ** ? Also, is the barrel extension fit in the upper nice and tight or at least snug or is it just a slip in fit ? Also, if you were to damage just the handguard, can you buy a replacement from Larue ? Also, would you happen to know the i.d. of the handguard ? Thanks



[MSTN]

You can use any AR' barrel you want. The fit between barrel and receiver will be dependent on the outside diameter of the barrel extension, as they tend to vary. In the case with the Craddock Precision barrel, it was a very snug fit. I had to blast the receiver with the heat gun to get the barrel to slide into position.

You're right - The handguard is not offered for sale separately. My best guess is that LaRue CS would take good care of you if you needed a replacement forend.

While I do not recall the precise ID of the handguard, I can tell you it's too tight for a suppressor. The handguard does however have a lot of room in the gas block channel, which makes it compatible with adjustable gas blocks.

I'll try to remember to measure the ID for you.



[shangli_wu]

My first AR, BCM 14.5 middy



[Baron85]

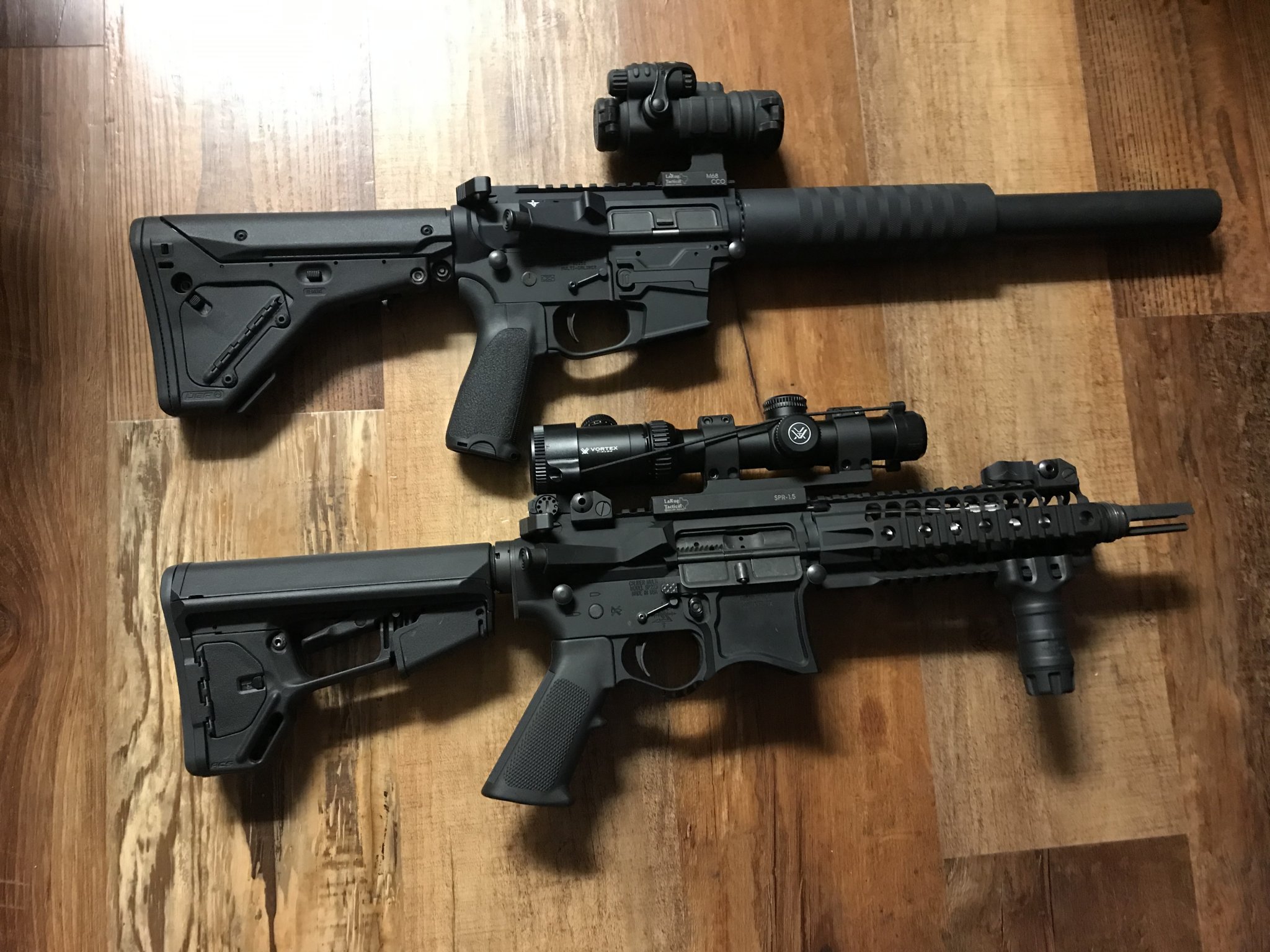

A pair of my shorties.

Top is a quarter circle 10 5” 9mm with liberty mystic can.

Bottom is seekins 8” 300blk



[midSCarolina]



[JIMB3AM]

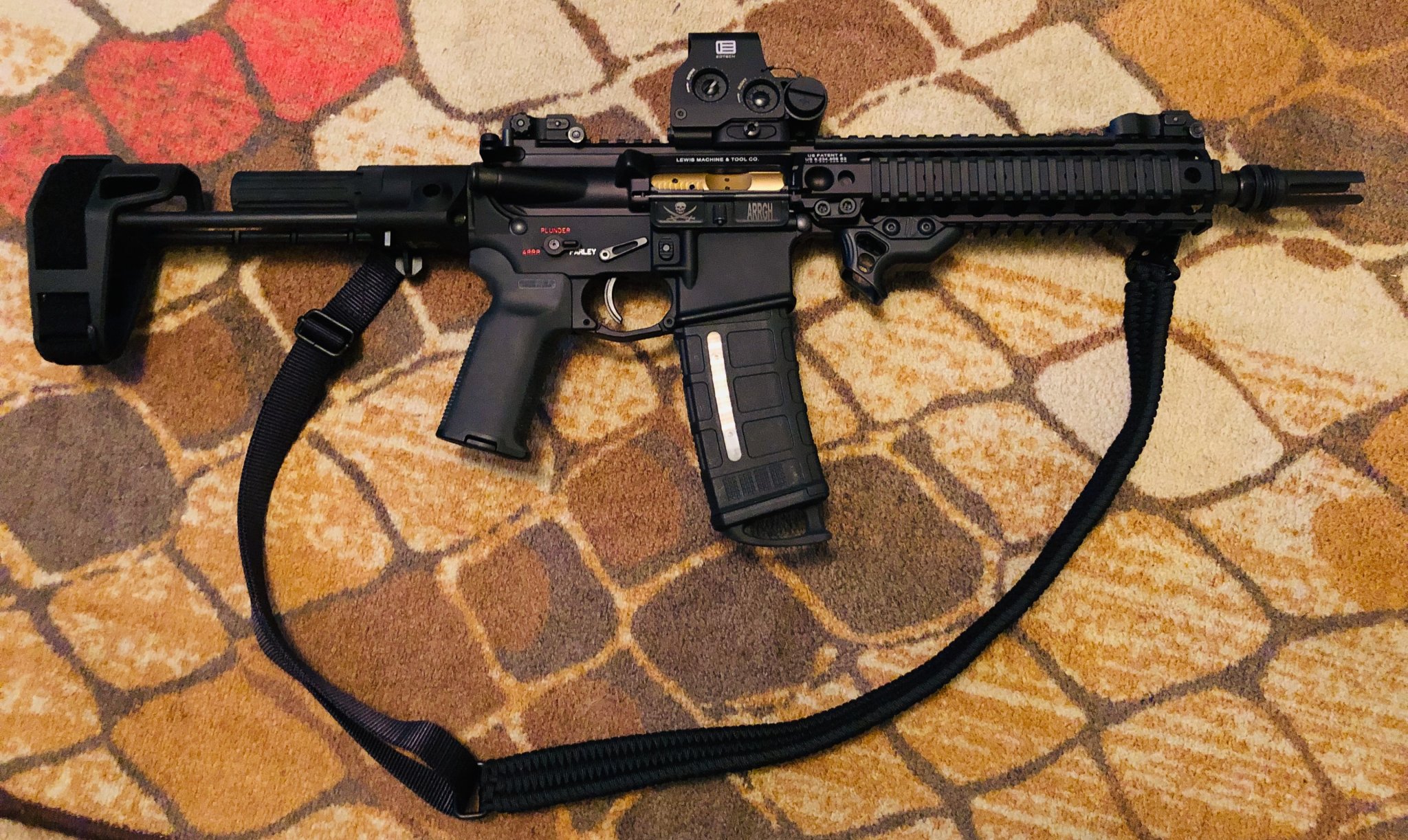

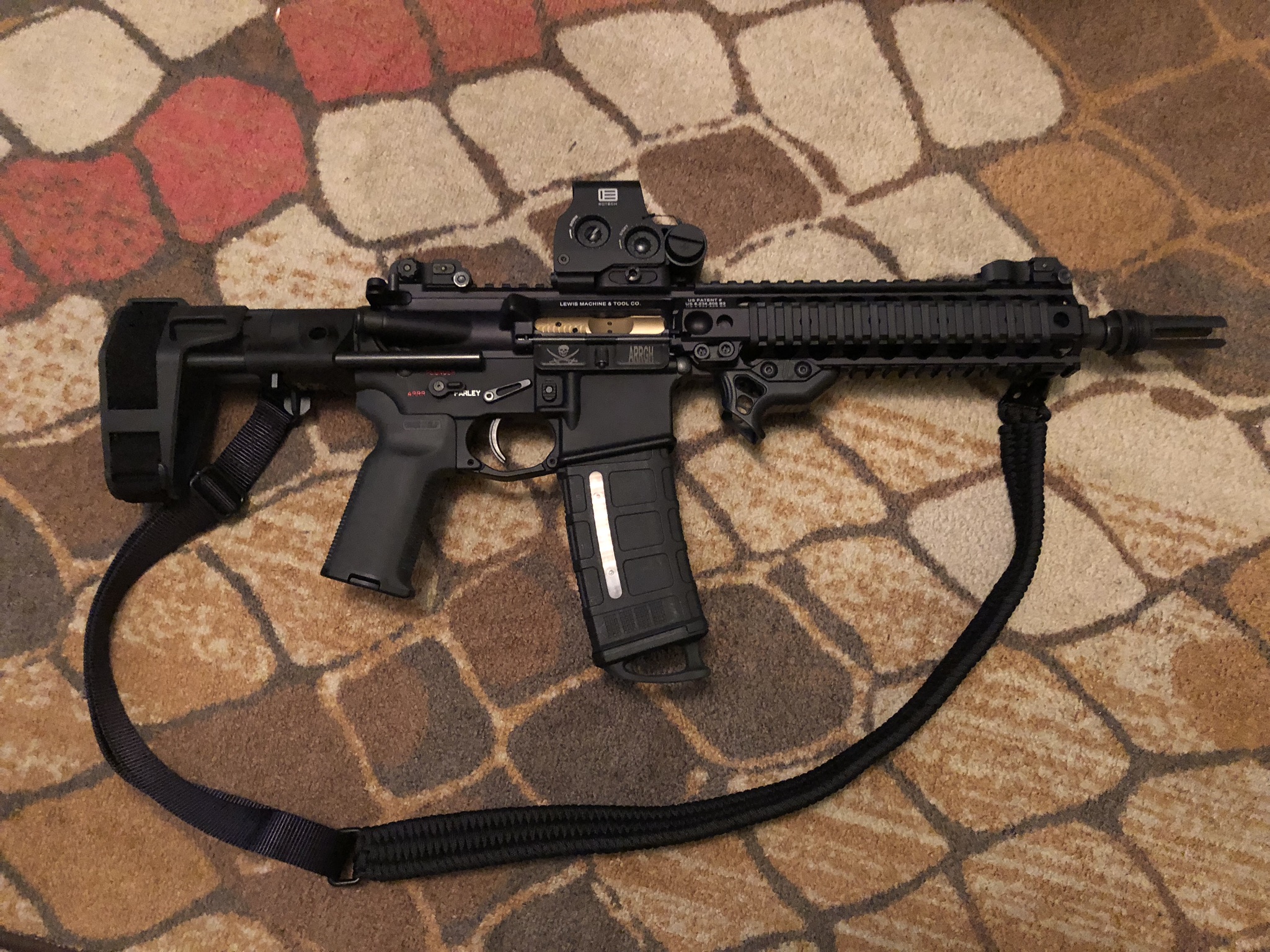

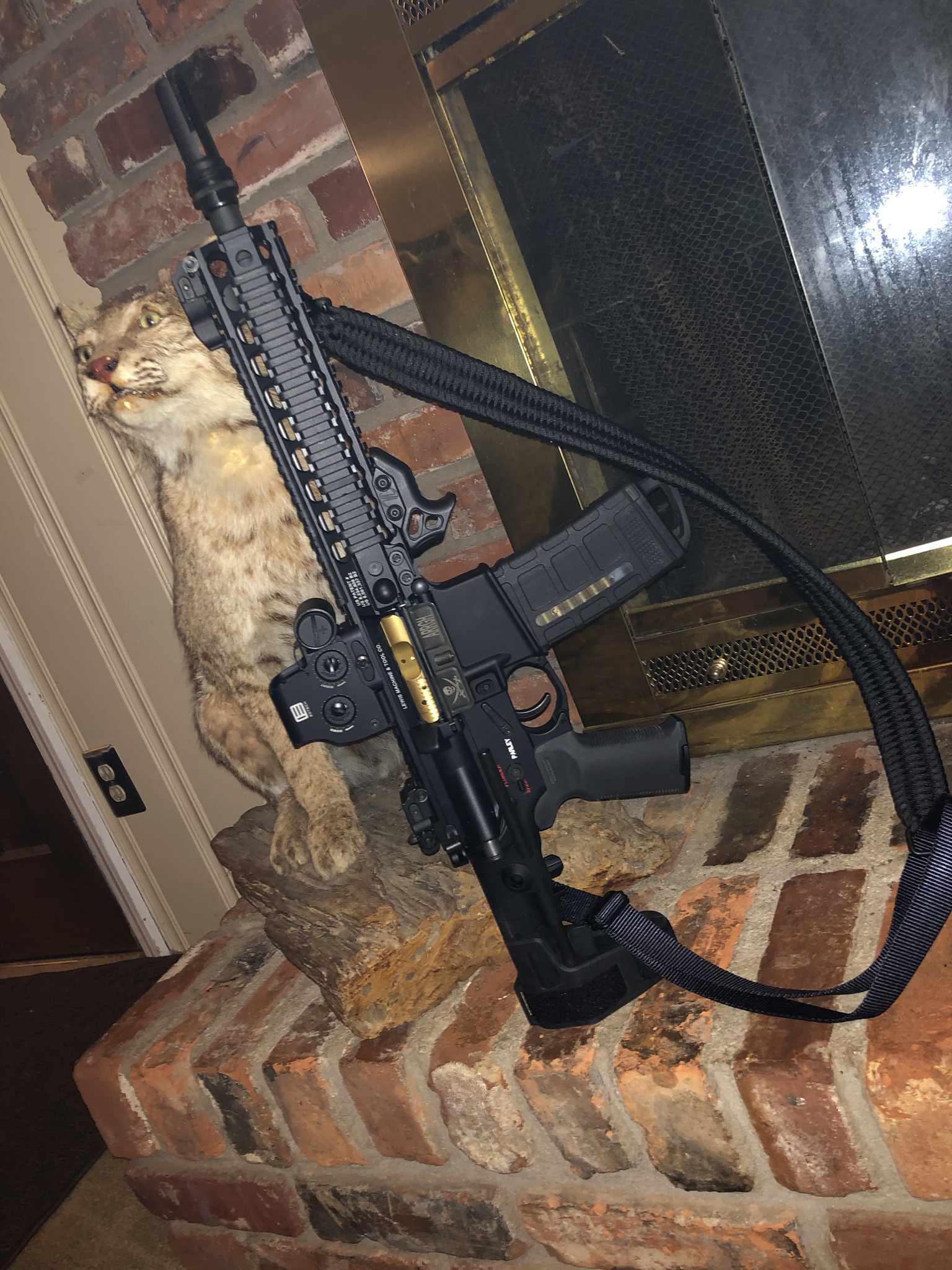

Custom build...
Spike’s Lower
F/A fg custom tuned springs and custom tuned buffer
LMT CQB upper 10.5 5.56
Samson sights & Eotec
Just a complicated gun made reliable...



[INMY01TA]

18” stainless Seekins 223 wylde 1:8, Larue MBT2. The rest is obvious.



[D-Huf]

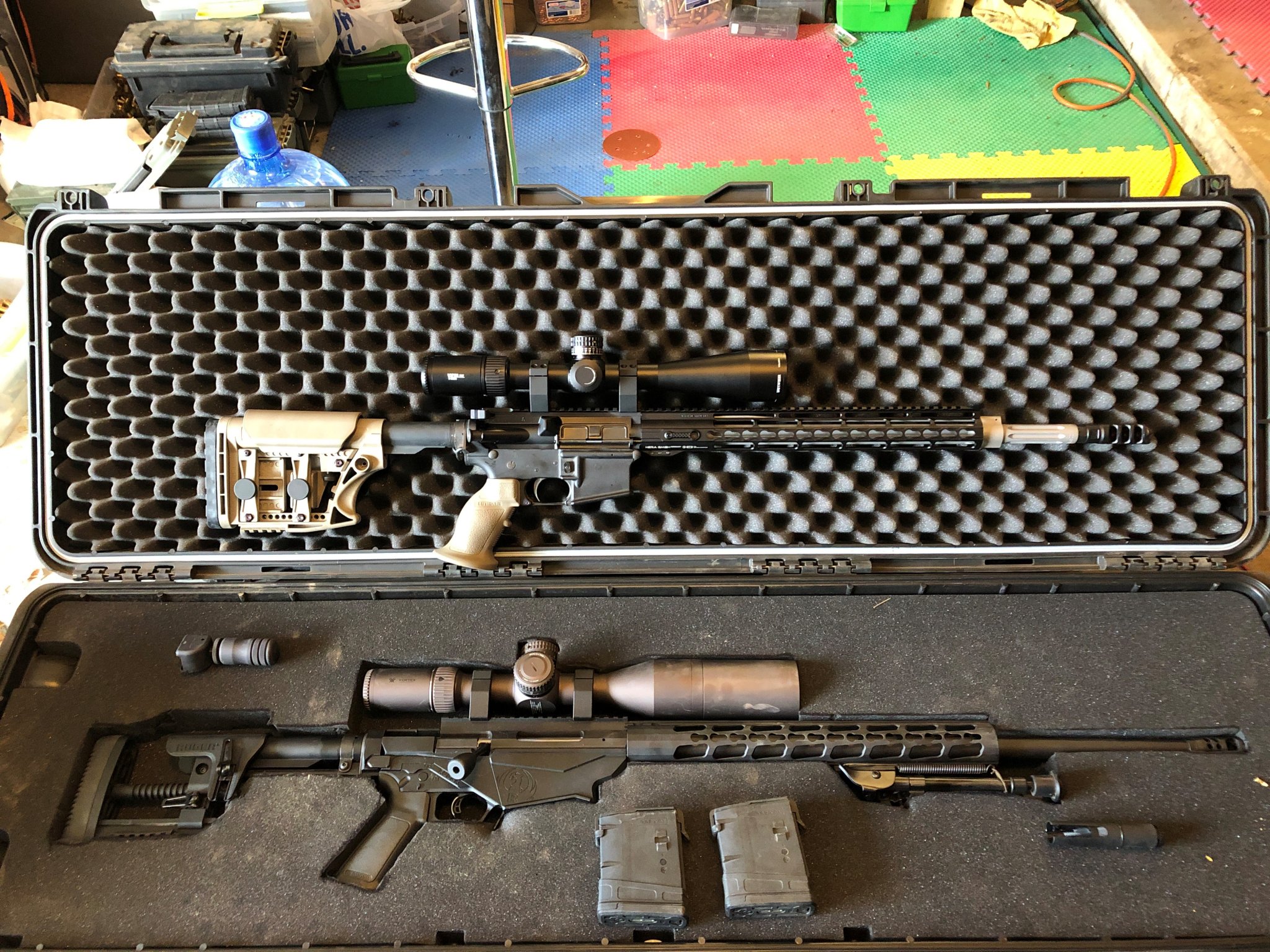

These are my present toys.

I just finished getting all the pieces together on the top one.

Its a Craddock Precision 20" in 224 Valkyrie, capped with a POF 3G Brake, a Vortex 5-25x50 PST Gen 2 with the ERB-2C reticle. The lower is a my old stag lower. I added a Luth-AR MBA-3 butt stock and a Chubby grip.

The bottom is a RPR in 6.5 topped with a Vortex Gen 2 Razor, yep you guessed it, ERB-2C reticle too (both are MOA).



[TonyTheTiger]

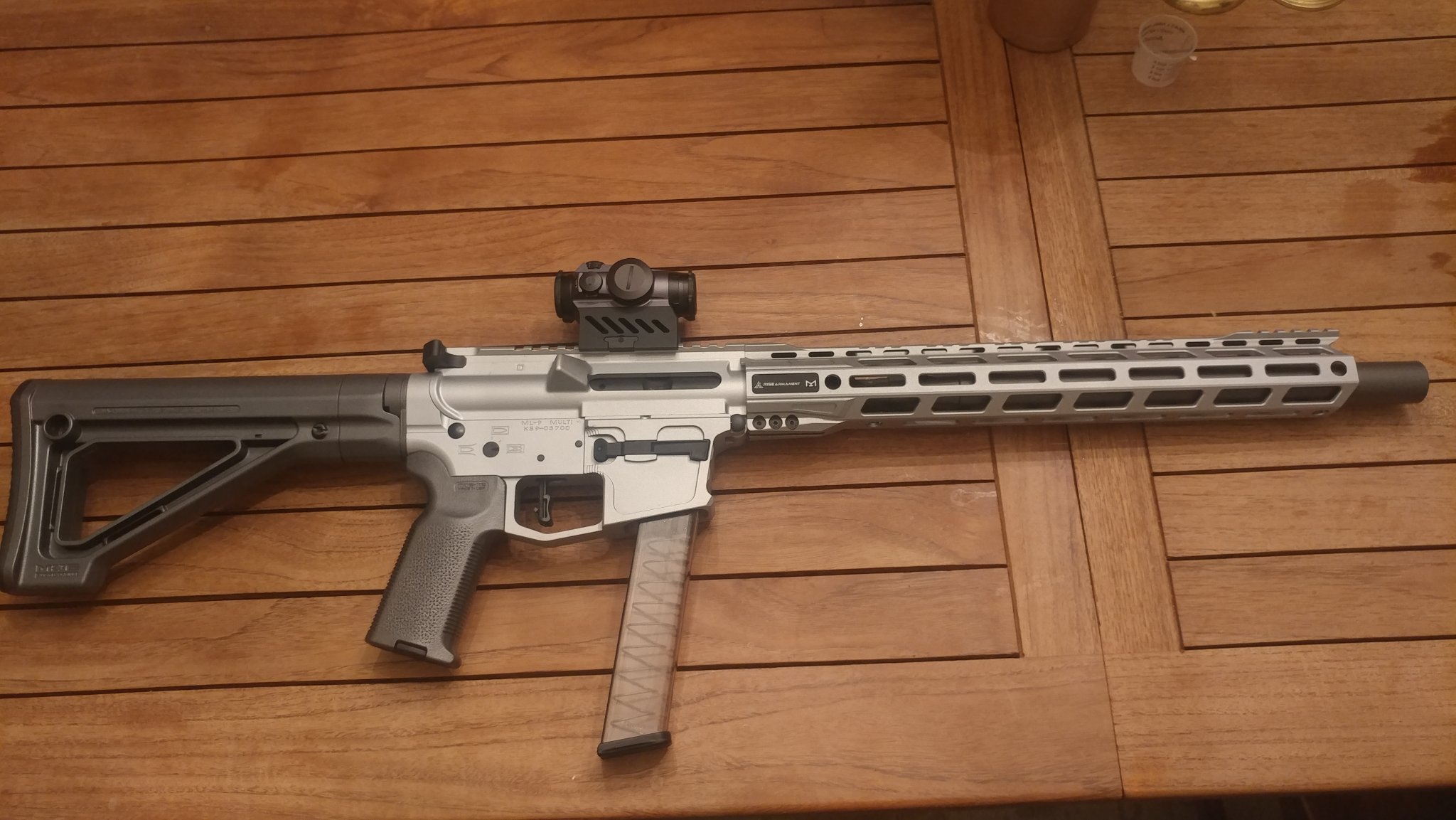

Just finished this little guy. It got an aluminum extension pinned on a 4.5" barrel, very light and points extremely fast.
View attachment 6977658

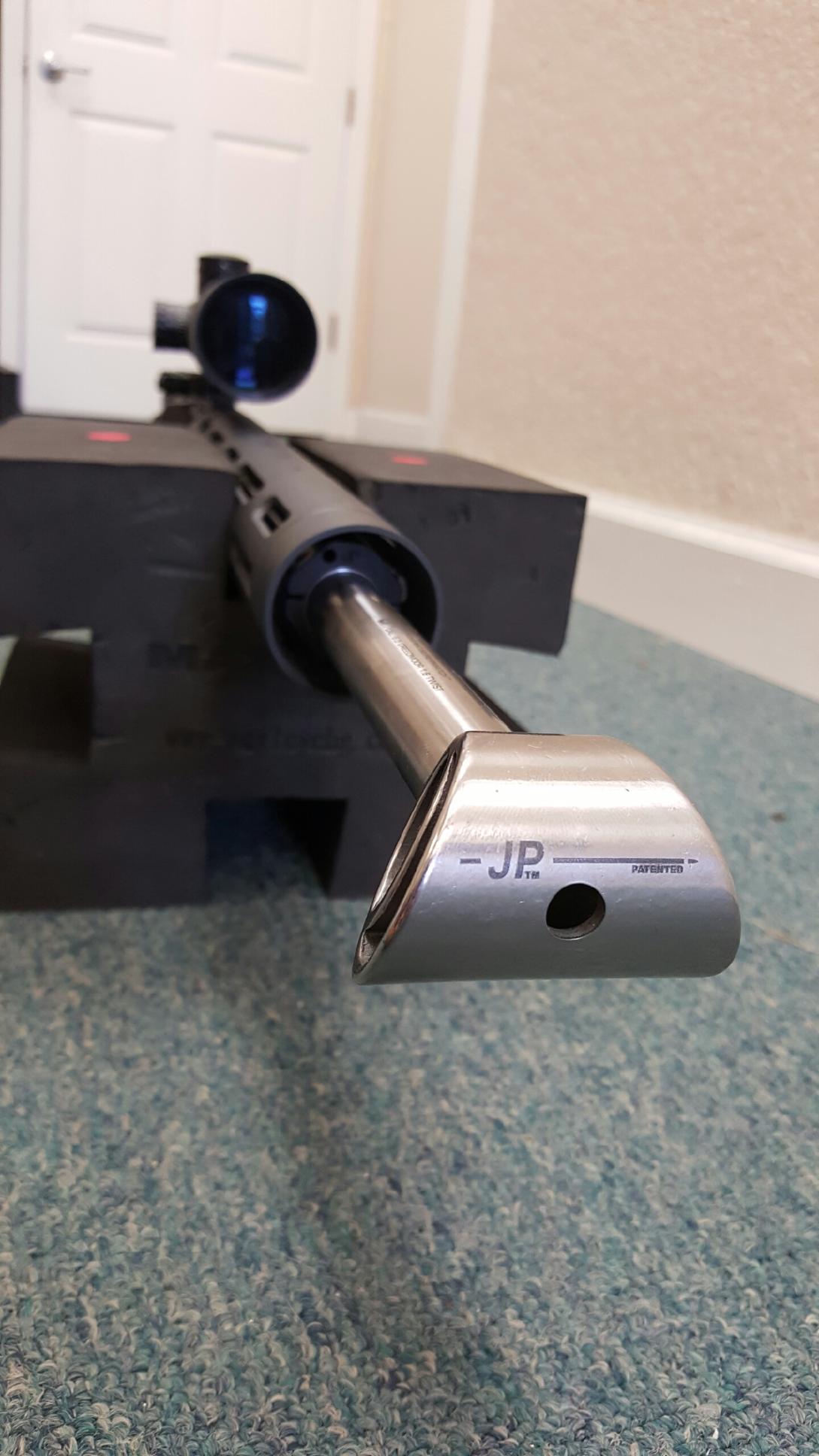

Just because mid-barrel comps are cool.



[GaTacoma]

SAM-R and A4 clone. SAM-R is my favorite shooter.



[PBWalsh]

Just because mid-barrel comps are cool.
View attachment 7017770

Not burning you hand??



[TonyTheTiger]

Not burning you hand??

Not at all, just turns my wrist black. I'm sure if it was a 223 that would be a different story.



[rybe390]

Well, I pulled the paint from my 6.5 Grendel



[JIMB3AM]

Nice AR! Never toyed around with the Grendel...
I’ve always been a big fan of LMT’s rifles! Very rugged and heavy duty feeling or everything else the markets have to offer.



[JIMB3AM]

18” stainless Seekins 223 wylde 1:8, Larue MBT2. The rest is obvious.

That’s a sexy rig!



[PBWalsh]

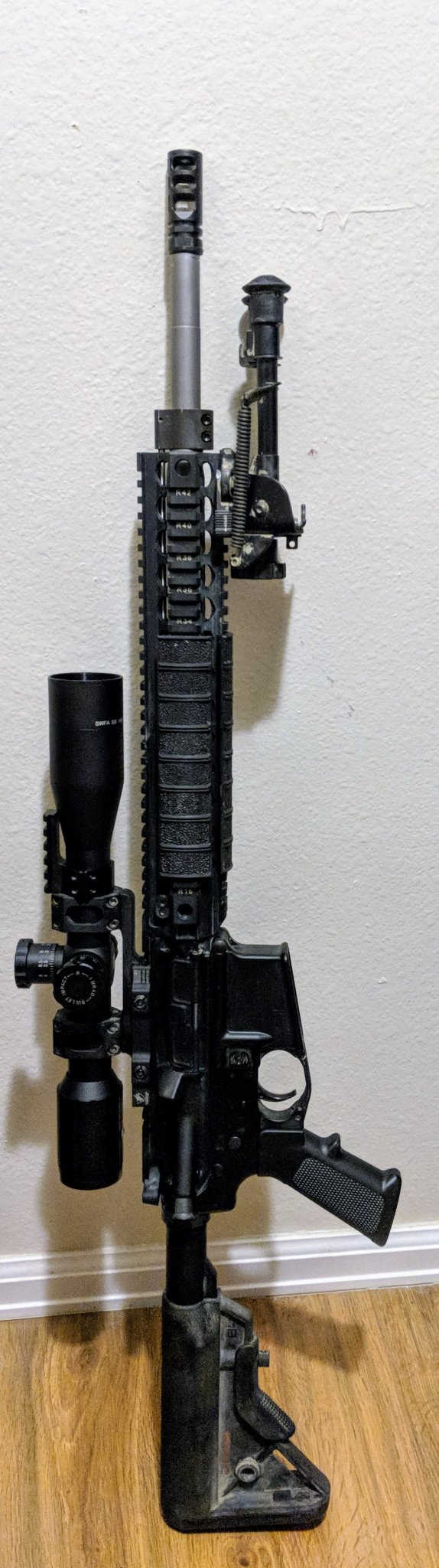

Well, I pulled the paint from my 6.5 Grendel

View attachment 7018841

What pic rail ring is that mounted forward of the mount?



[rybe390]

What pic rail ring is that mounted forward of the mount?

I'm pretty sure it's a weaver 30mm ring mount if I remember correctly. Plan is to put a micro dot up top and have a budget 1-10 haha.



[PBWalsh]

I'm pretty sure it's a weaver 30mm ring mount if I remember correctly. Plan is to put a micro dot up top and have a budget 1-10 haha.

If you do this, please do a review of it if you can, interested to read the results.



[Fret]

Just picked this up this morning. RRA LAR 15 Varmint with 20" barrel.



[HolyCity73]

After a hiccup with the original upper and a bad cerakote job screwing up my tolerances, this is the current configuration with the rebuilt upper and a Trijicon 5-20. The group is rounds 19-21. I expect the precision to increase as break in is completed. Also, I will be swapping out the CMC drop in unit for a Geiselle national match.



[Soulezoo]

A BCM and Noveske Reece



[JSchell1309]

Still my favorite gas gun in the safe. It loves a steady diet of 77gr OTMs.



[hitman]

Sweet rifles and Wes- I have been thinking about the Larue upper for one of my build for the reasons you stated. I think it may ring out some more accuracy how it mates together. I do not have much interest in all the stuff with the full kit but that is not a bad deal either. I think I will order just the upper for my Grendel and see how I like them.



[eddie102870]

a few of mine



[SniperGod]



[JSchell1309]

@SniperGod I would move your bipod back onto your free float rail and off your gas block.

When you load or unload the bipod you are going to load the barrel during the shot and move your POI.



[SniperGod]

@SniperGod I would move your bipod back onto your free float rail and off your gas block.

When you load or unload the bipod you are going to load the barrel during the shot and move your POI.

Damn. I never thought of that.



[JSchell1309]

Damn. I never thought of that.

Yep, the point of the free float handguard is to remove anything contacting the barrel besides the gas block and gas tube. You want the barrel to be able to freely resonate during a shot.

Anything contacting the barrel will move it’s POI relative to your established POA with the scope.



[candyx]

Collecting dust till the SHTF



[greg1147]

Mostly AERO
BA barrel
Ground Zero trigger
Griffin Recce 7
Magpul stock
Primary Arms1-8x24 optics



[Lawless]



[Jefe's Dope]

My new carbine trainer.

View attachment 7032598

Get one of these and it will be the only gun you'll want to shoot.



[Lawless]

Get one of these and it will be the only gun you'll want to shoot.

Very Cool!
http://www.mcfaden.com/mobile/Category.aspx?id=1828



[schlaiek]

long range plinker, maybe some prarie dogging



[Jcarpenter223]

My 3 gun rifle. Jp lmos bcg, nordic components match 223 wylde 18" barrel, hipertouch 24c trigger, UTG super slim handguard, bcm gunfighter charging handle, taccom light weight buffer and spring and a Leupold vx6 1-6 firedot but had the reticle changed out to the cmr2



[Rudy Gonsior]

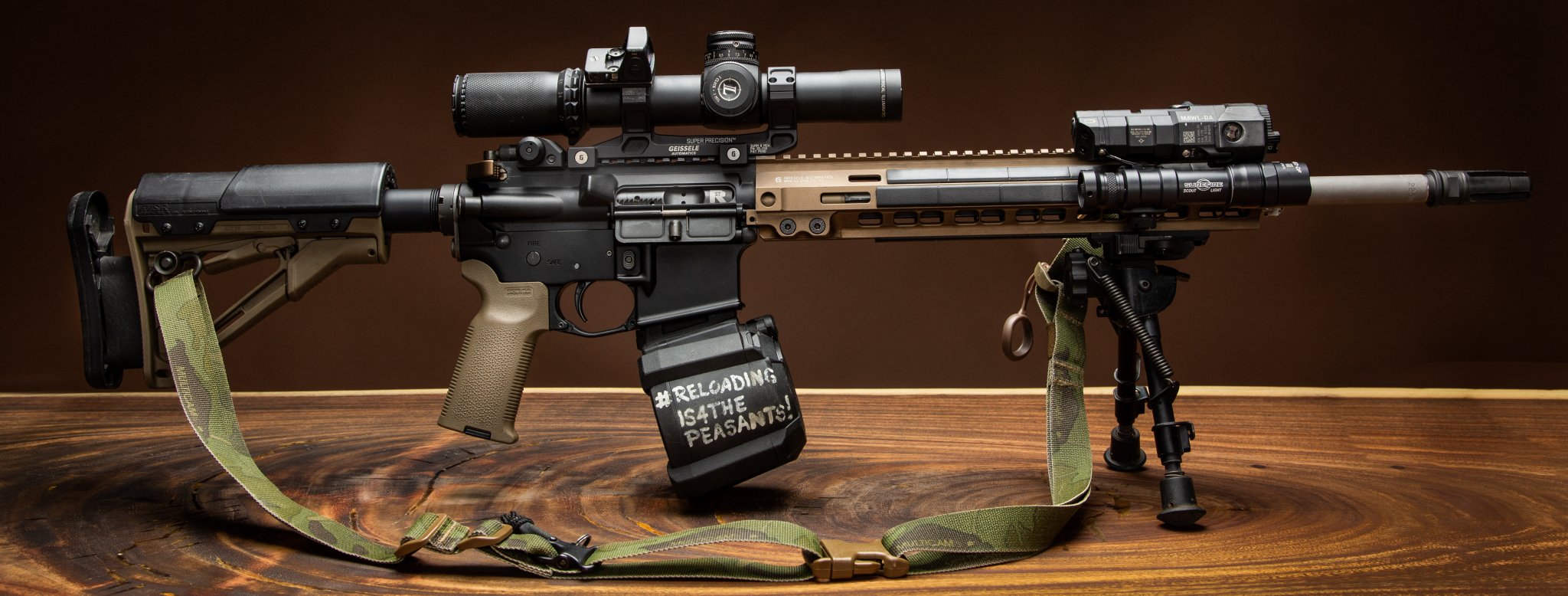

My buddy Matt Stagliano (firelancemedia.com) took some “portraits” of my rifle during a project. It’s definitely one of my favorite rifles, but seeing it again in print I was like “Damn, I’d buy that rifle twice!”



[Strykervet]

A pair of my shorties.

Top is a quarter circle 10 5” 9mm with liberty mystic can.

Bottom is seekins 8” 300blk

That's slick with the 9mm, I've got a Mystic X can I don't use and have toyed with that idea. Seeing yours I may just do it, it's better than having a can that just sits. I bet it's a fun plinker.

Here, I'll play, add some to the mix.

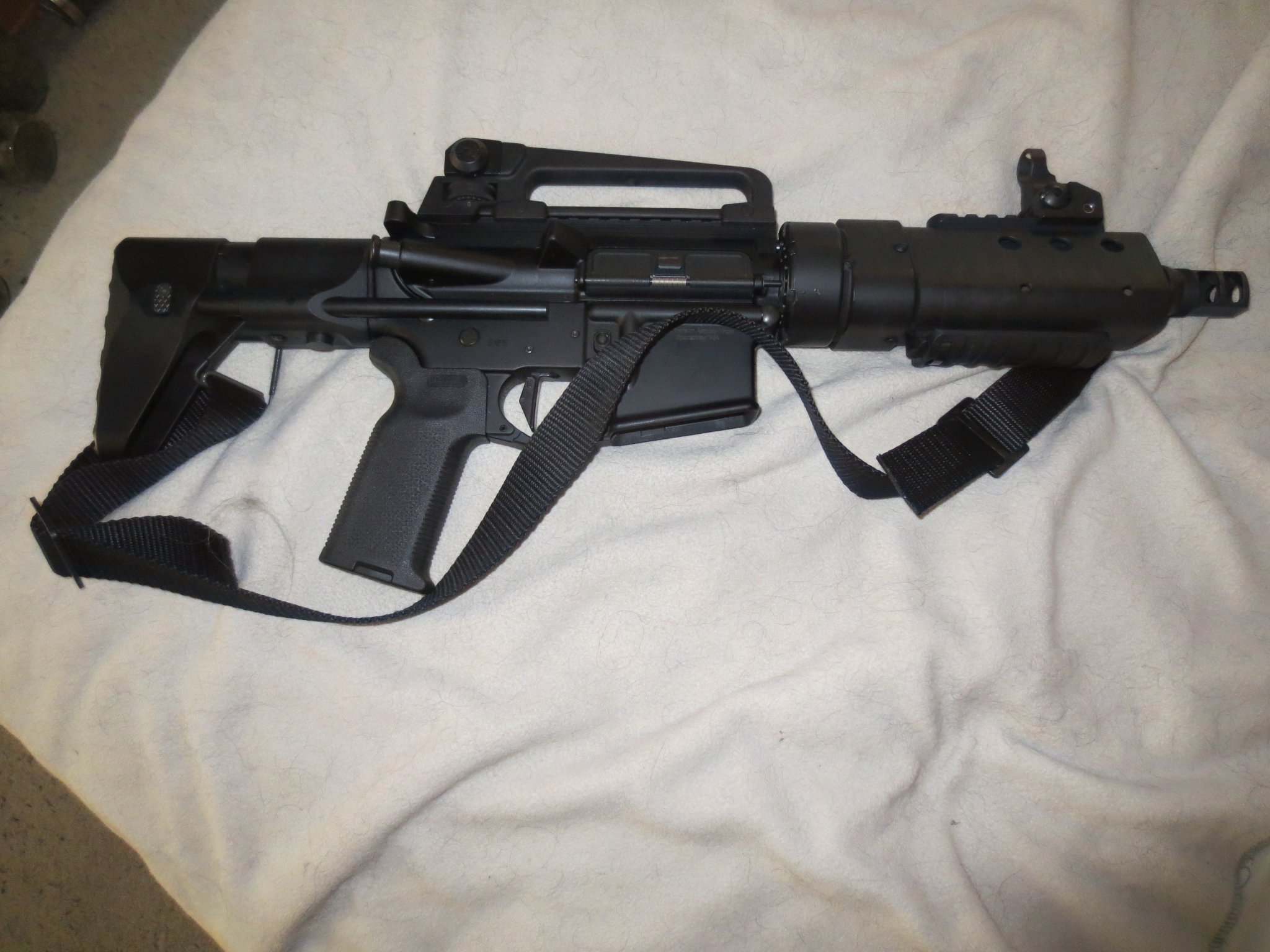

Here's the smallest one, a .300BLK. Yes, I SBR'd a damn Mega:

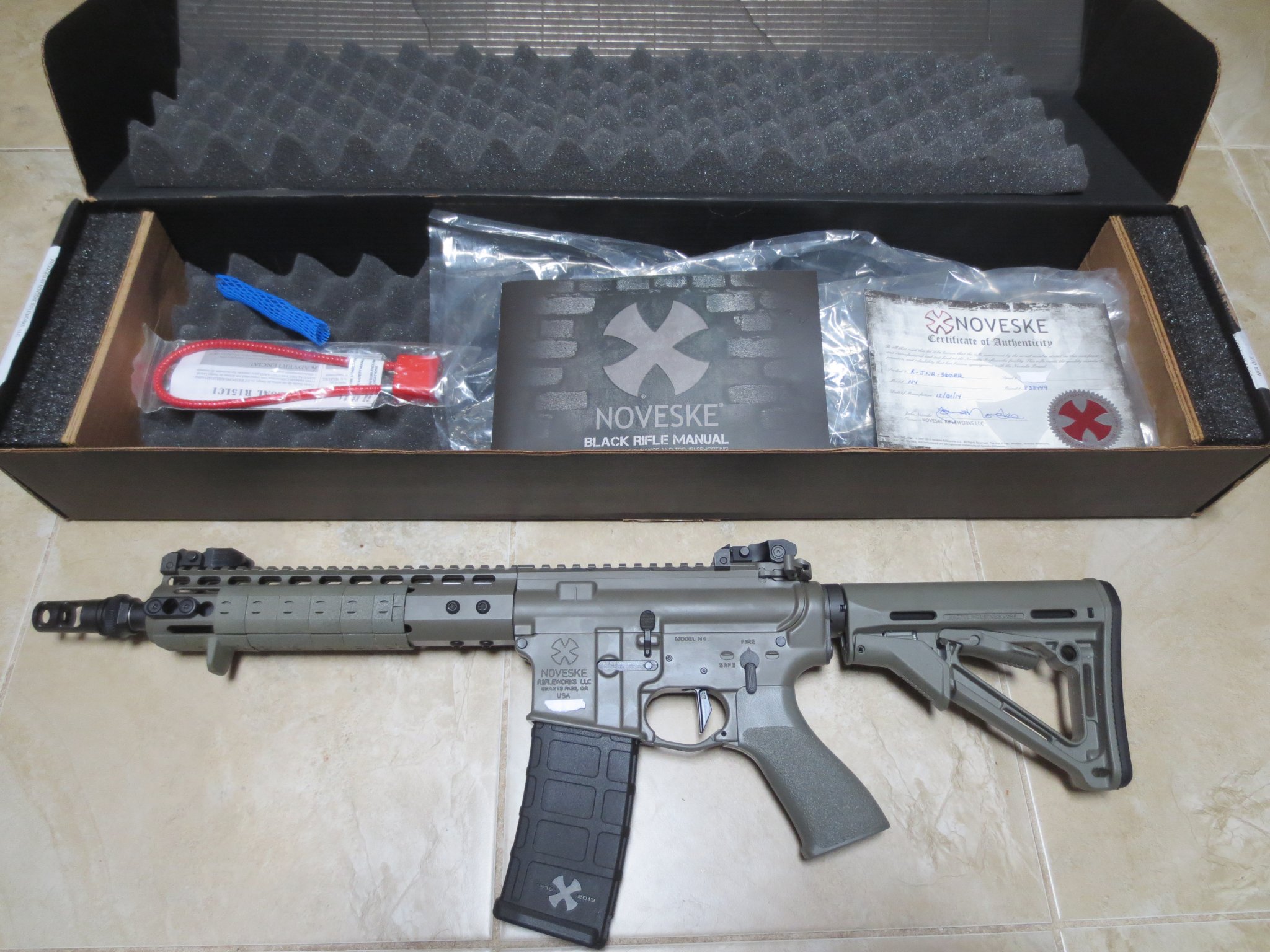

Noveske Johnny Rifle #70 of 250. Unfired, bought for the ex. Also .300BLK:

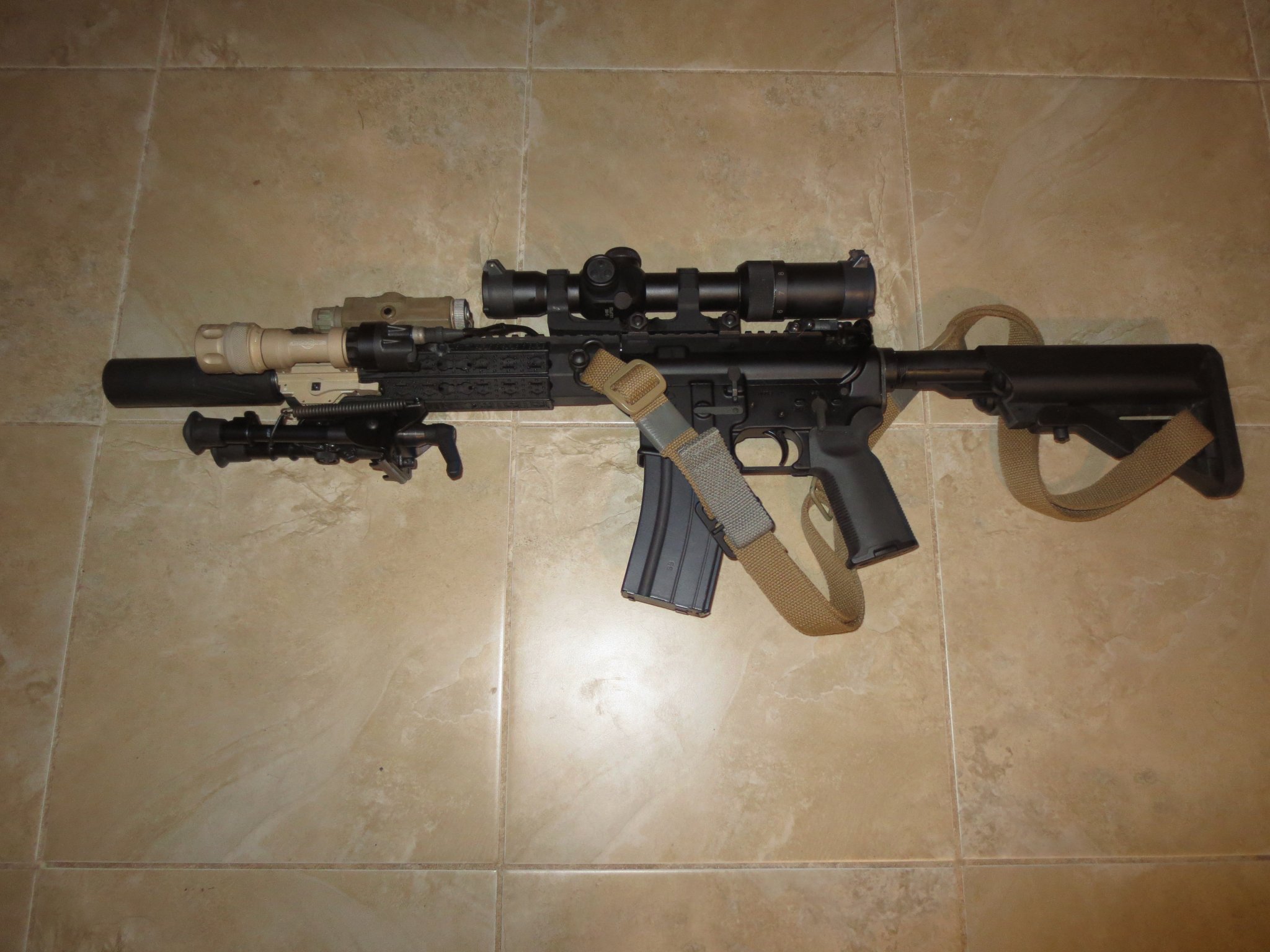

Recce rifle built around the Lilja Navy barrel:

20" basic DMR style rifle:

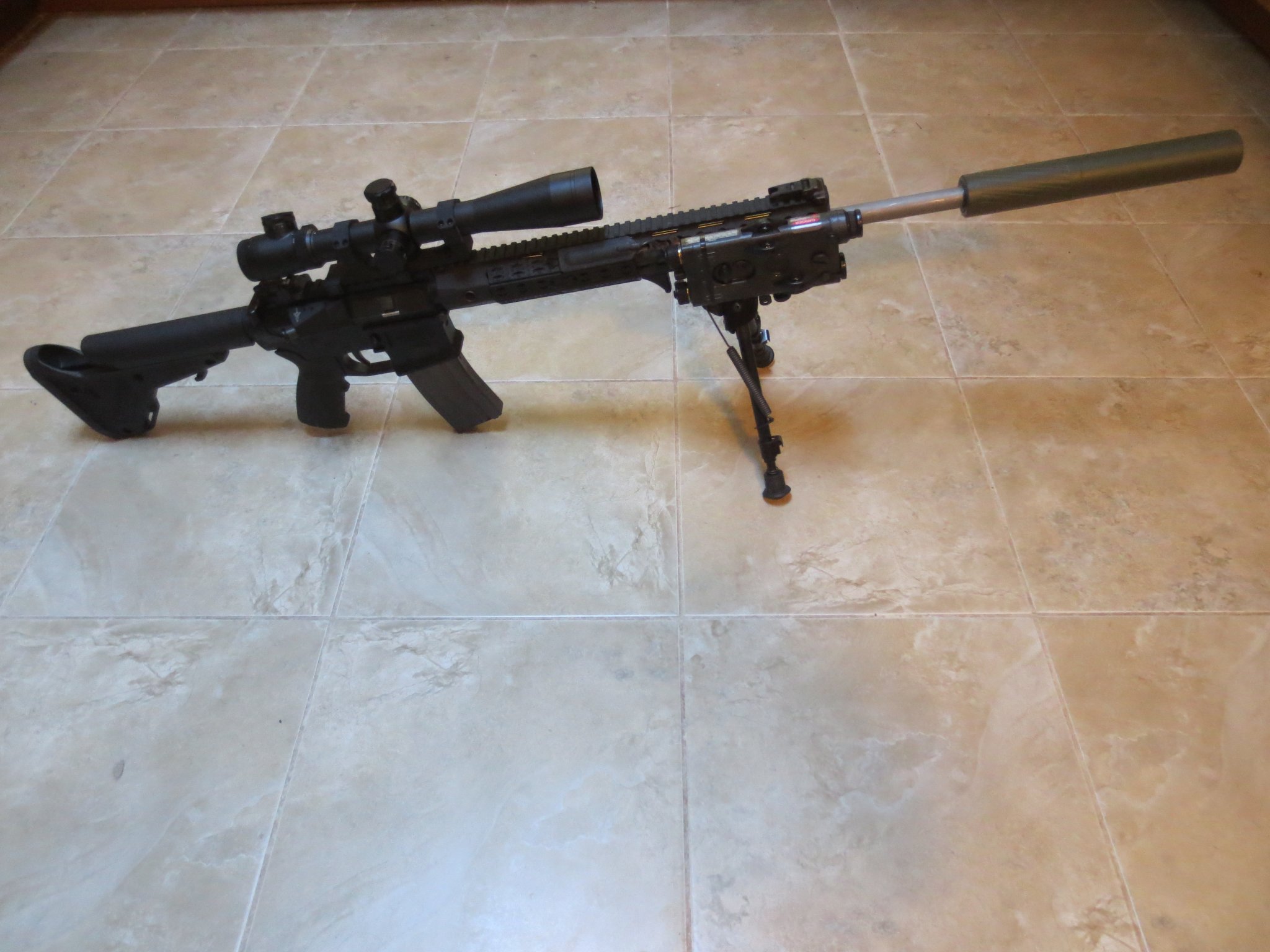

6.5G SBR using Lilja 11.5" bbl. and TBAC Ultra 5:

Another .300BLK SBR:

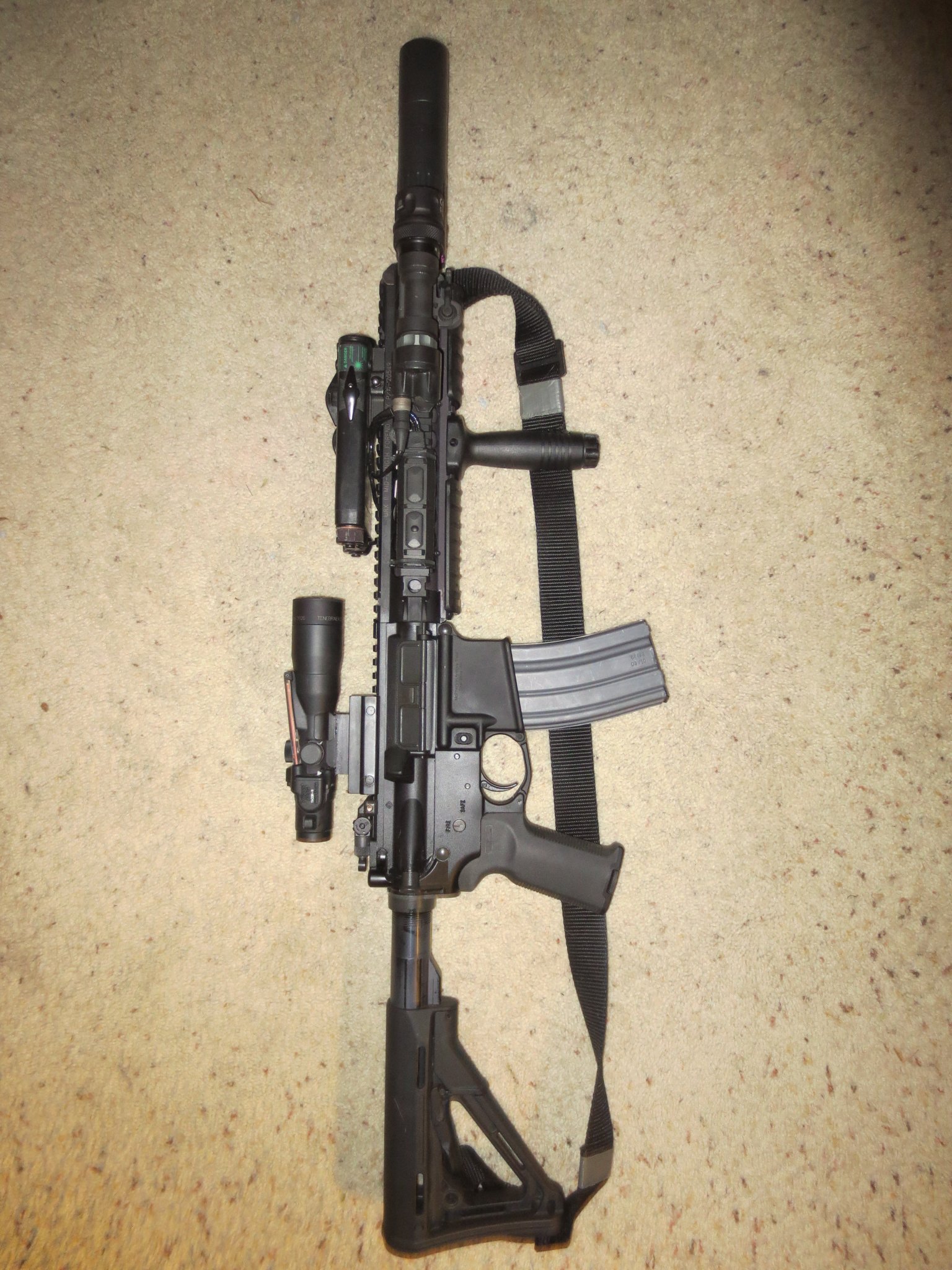

5.56 11.5" w/AAC SD can:

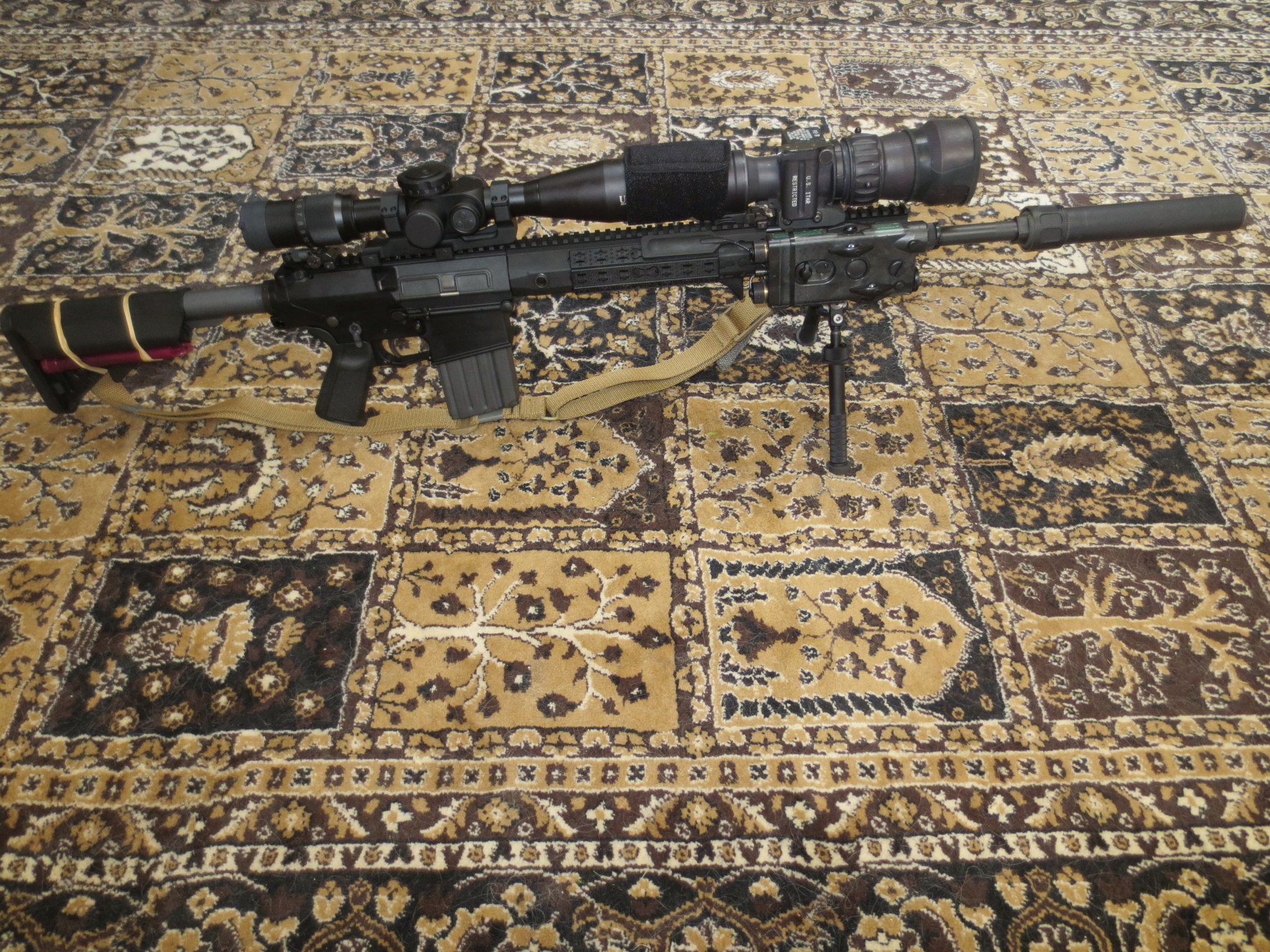

SR25 w/PVS 30, USO LR17 and QDC suppressor (yeah, it's heavy, probably ~20lbs?):

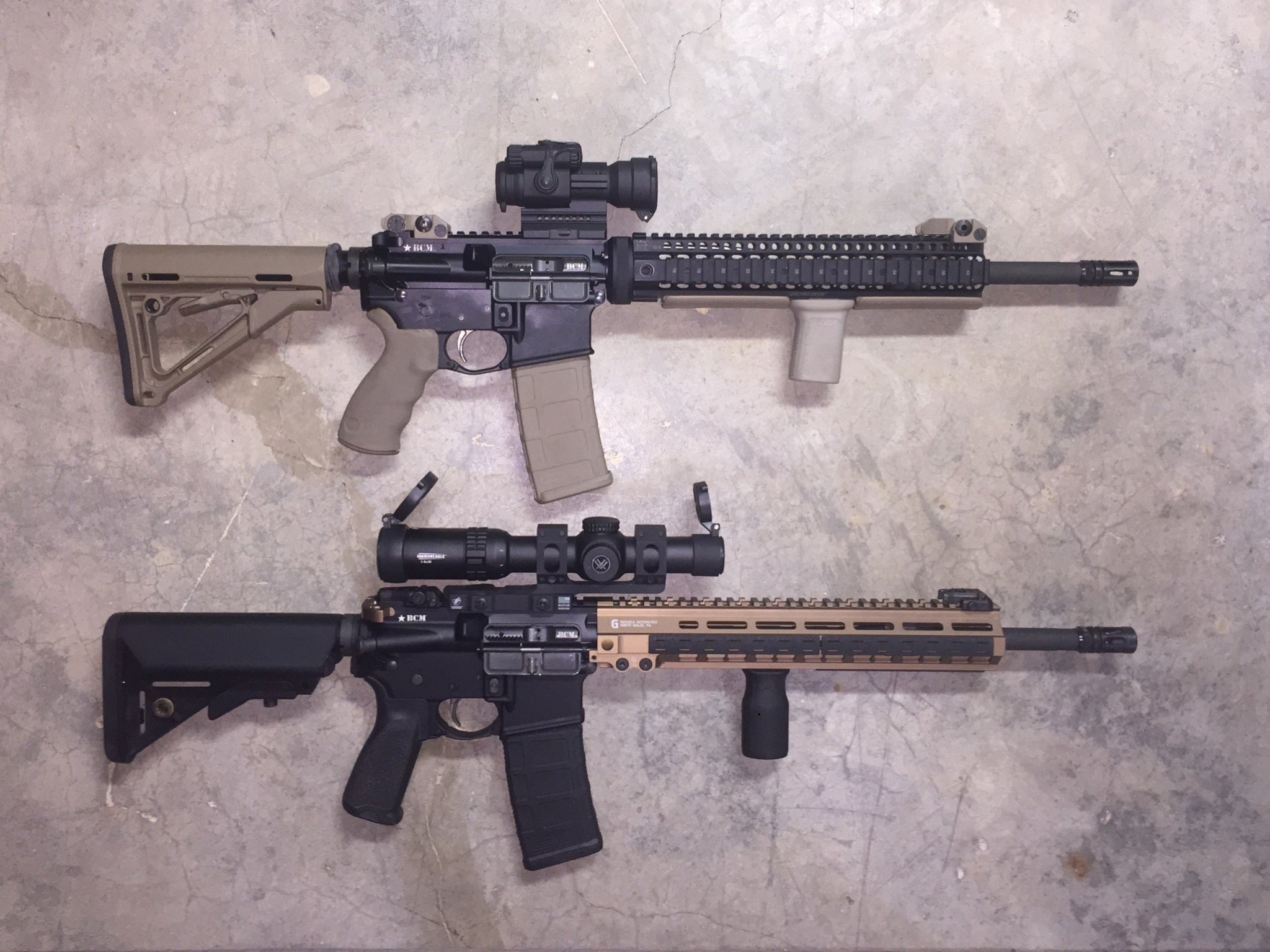

[carp]

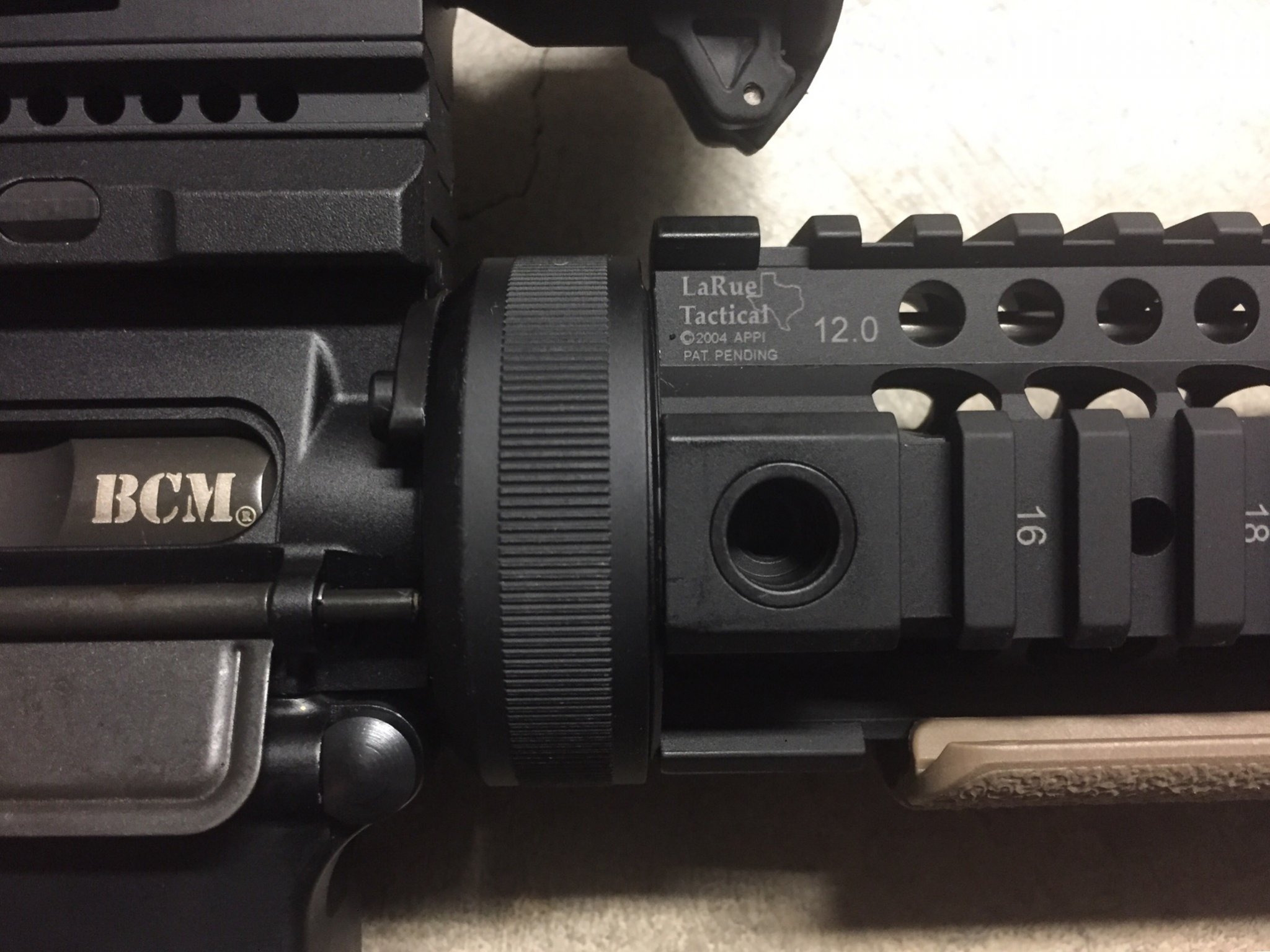

Top: BCM wears Larue

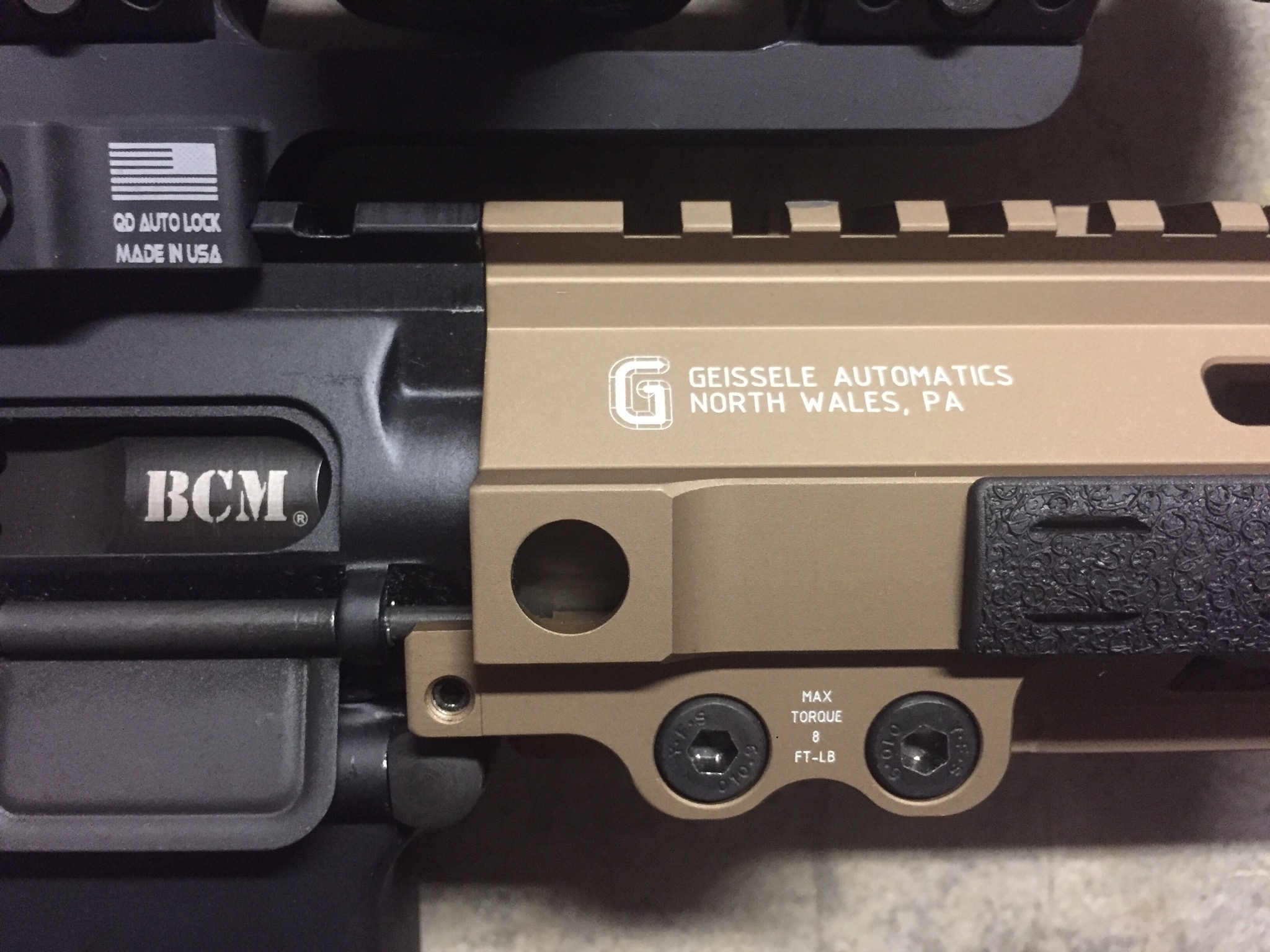

Bottom: BCM wears Geissele w/ B5 SOPMOD Enhanced



[SNIPER64]

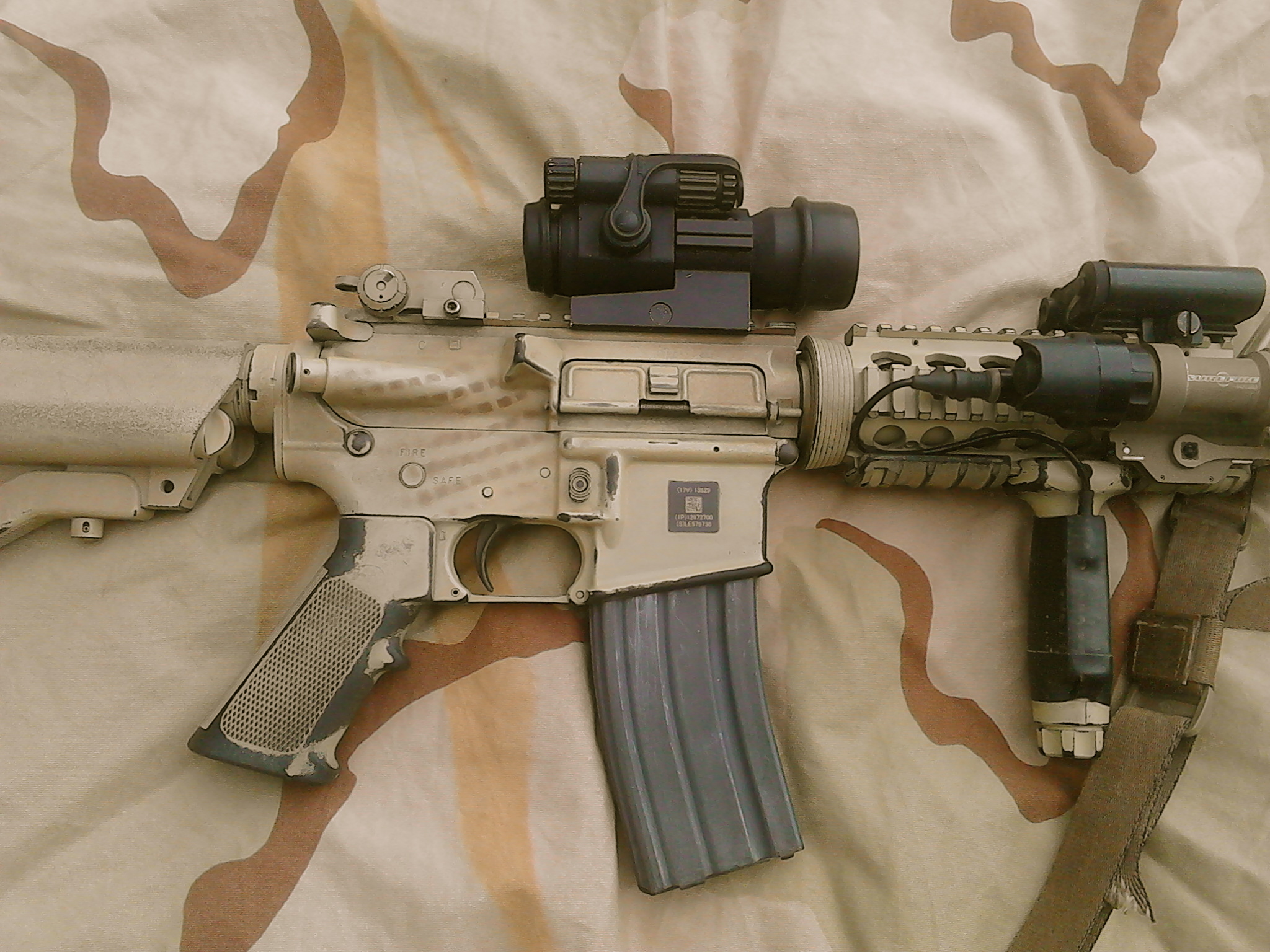

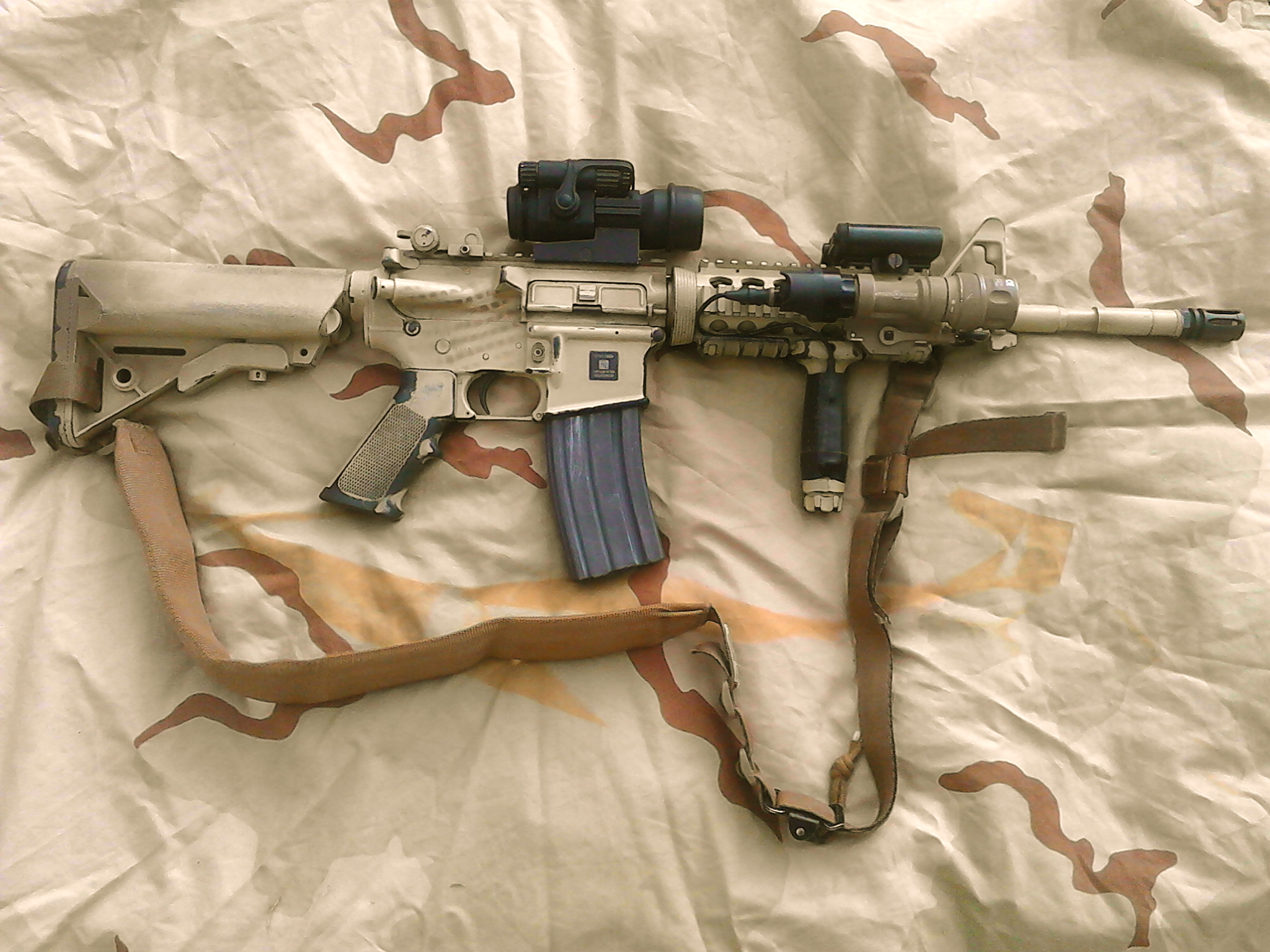

Colt M4 desert camo spry paint

Aimpoint M2



[SNIPER64]



[Strykervet]

And here's yet another AR, probably my favorite small frame, it's a 20" Satern heavy barreled 6.5G w/MUR1 upper and Noveske gen.2 lower (those are nice!) JP small parts, Geissele adj. Hi-Speed, MIAD grip, UBR A5 stock, URX4 tube and other KAC parts, Mk4 3.5-10x in a Badger mount, TBAC 6.5Ultra9 and brake. This one has shot .33MOA consistently with 120 Nosler BT's in the past, we'll see how it does with the new stock and handguard along with the can soon.

May have to move the front sight for PVS 30 clearance unless I can get someone to trade me another set of angled for my straights... Hint, hint... PM me if you got 'em and wanna trade.



[pewpewfever]



[Michael Field&Cave]

So I march to the beat of my own drummer...
