Threading Tikka Superlite 300wm

AK4900PA

Sergeant
Full Member
Minuteman
May 25, 2013
479
305

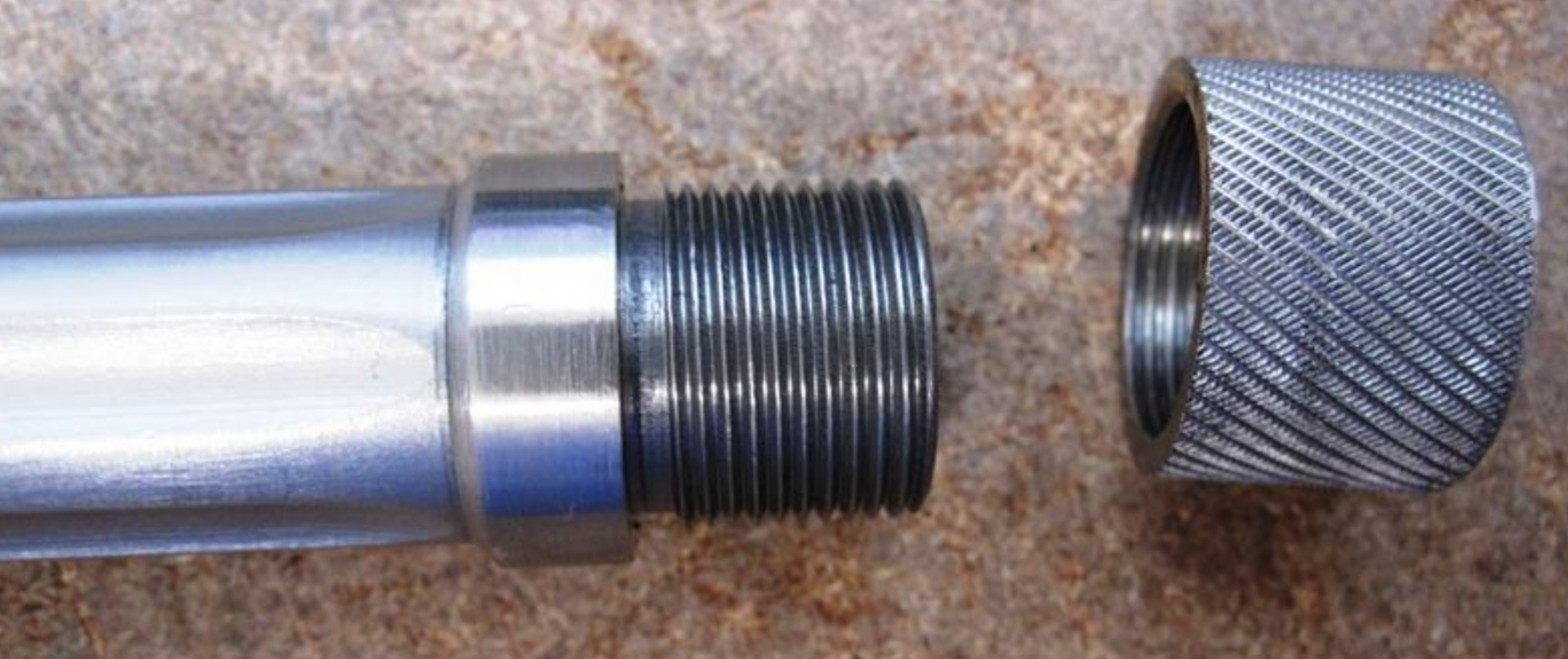

I'm looking to have my T3x Superlite in 300wm cut down to 22" and threaded so I can use my Griffin Paladin on it. Any advantages one way or the other between threading 9/16"-24 vs having a stepped shoulder machined like this to allow for 5/8"-24 threading?

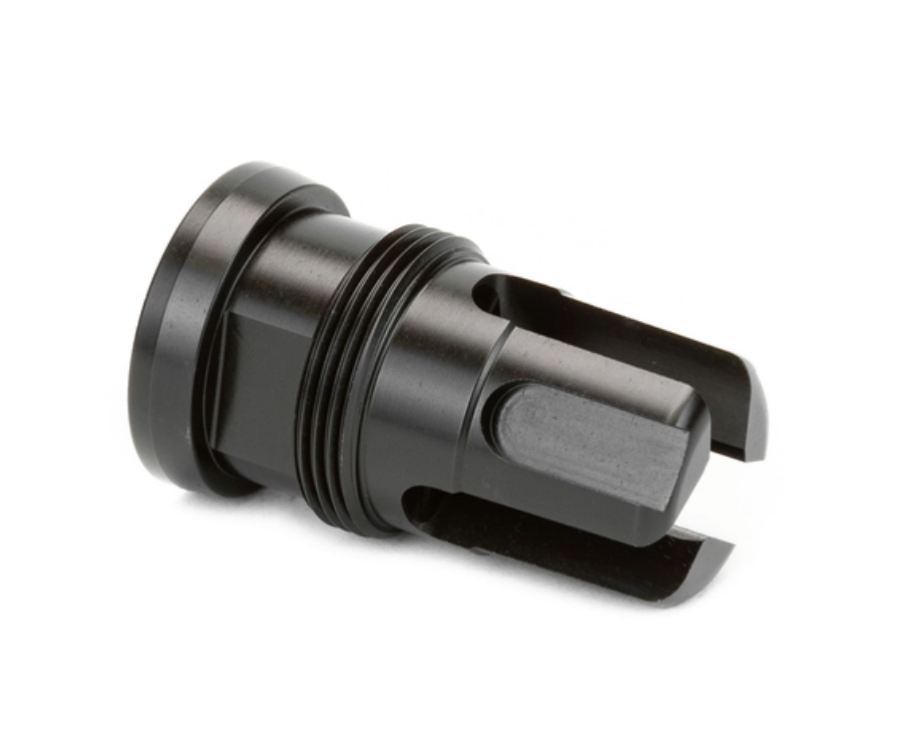

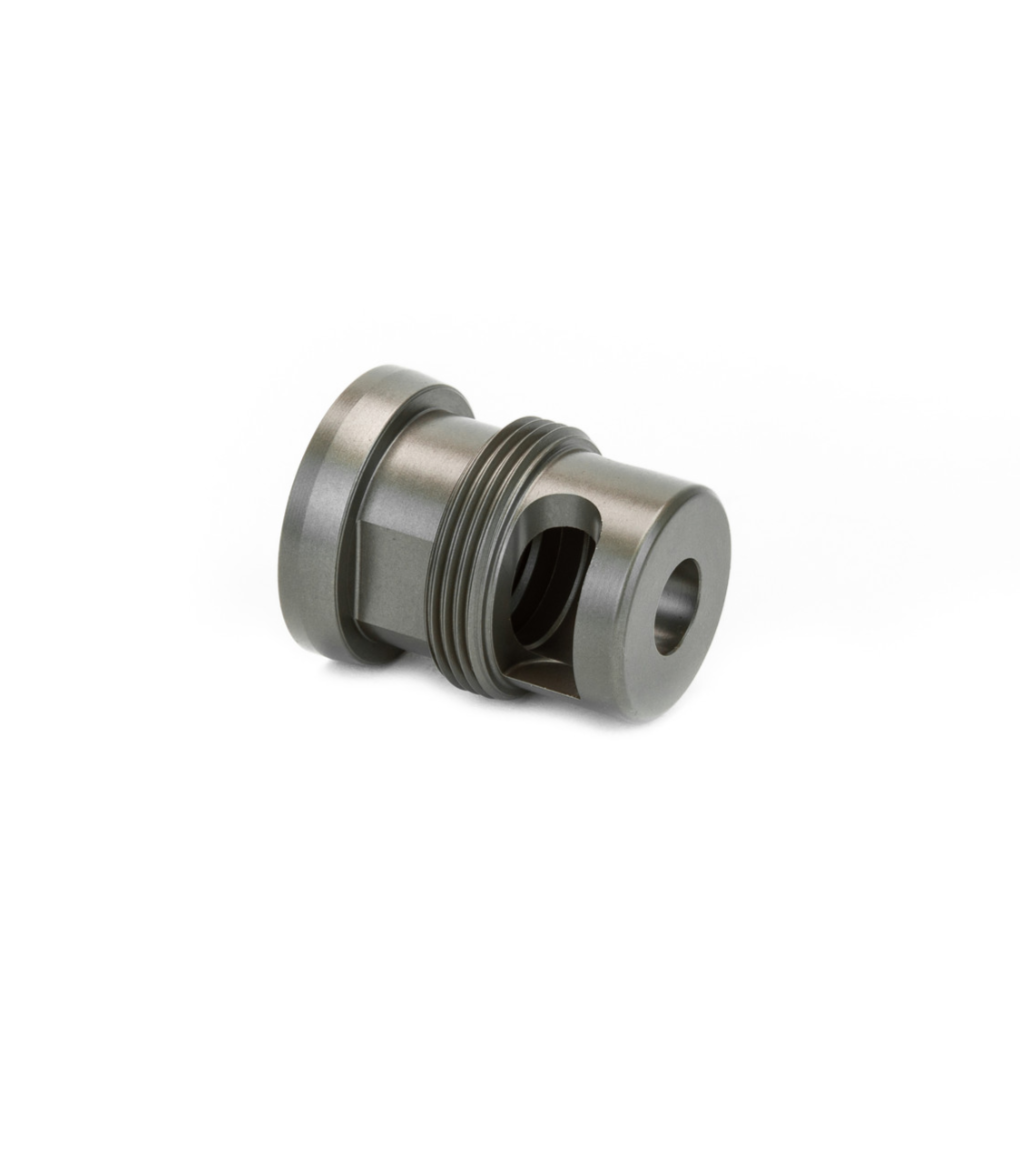

If I go 9/16"-24 I'm limited to the steel flash hider where as if I go 5/8"-24 I can get the titanium brake.


AK4900PA

Sergeant
Full Member
Minuteman
May 25, 2013
479
305
It has to mount my suppressor so there's only so many options. The only real option for 9/16"-24 is the steel flash hider. 5/8"-24 does offer some more options. I'd go with the ti muzzle break. I'm sure the one ounce savings with the ti brake would be offset by the added material to create the shoulder so that doesn't really matter. Do the 5/8"-24 threads with machined shoulder offer an advantage in regards to accuracy and/or durability?



mjspeers

Sergeant of the Hide
Full Member
Minuteman
Supporter+
Mar 28, 2020
129
34
I had a Tikka T3x, 22-250 cut down to 20”. It sucked. Barrel is too thin for suppressor.

For me the smith said there wouldn’t have been enough shoulder for 5/8, had to go 1/2x28.

Save the money and buy a prefit. I understand it may require a new stock, but you’ll be much happier in the end.


AK4900PA

Sergeant
Full Member
Minuteman
May 25, 2013
479
305
I had a Tikka T3x, 22-250 cut down to 20”. It sucked. Barrel is too thin for suppressor.

For me the smith said there wouldn’t have been enough shoulder for 5/8, had to go 1/2x28.

Save the money and buy a prefit. I understand it may require a new stock, but you’ll be much happier in the end.
That is an option I'm considering. What exactly was your issue with the factory barrel?


tlear

Private
Supporter
Full Member
Minuteman
Supporter+
Mar 2, 2011
280
28
47
NE PA
There’s some discussion here on threading Tikka T3s; maybe it will help.




spife7980

Luchador
Full Member
Minuteman
Feb 10, 2017
11,867
12,577
Central TX
If you are sticking with the factory super lite contour and cutting it down I don’t see how/why a step up shoulder is possible?
Obviously the 5/8 would be the stronger choice.
Sticking with the factory super lite barrel though I think the 9/16 is your only option. You can’t step a shoulder up to where the material doesn’t exist for you to do so in the first place.


mjspeers

Sergeant of the Hide
Full Member
Minuteman
Supporter+
Mar 28, 2020
129
34
That is an option I'm considering. What exactly was your issue with the factory barrel?
Too thin. Then hanging a suppressor off the end. With the factory stock the balance was all off and never felt right. You won’t like it. If it’s all you can afford, I understand but otherwise save your smith fees and get a prefit carbon (if wanting to stay light).


AK4900PA

Sergeant
Full Member
Minuteman
May 25, 2013
479
305
If you are sticking with the factory super lite contour and cutting it down I don’t see how/why a step up shoulder is possible?
Obviously the 5/8 would be the stronger choice.
Sticking with the factory super lite barrel though I think the 9/16 is your only option. You can’t step a shoulder up to where the material doesn’t exist for you to do so in the first place.


JBoomhauer

Gunny Sergeant
Full Member
Minuteman
Feb 16, 2019
722
1,024
The super lite is somewhere around .640 where the flutes terminate. This makes even the 9/16-24 a little sketch.

Another vote for a prefit.


RHutch

Sergeant
Supporter
Full Member
Minuteman
  • Apr 23, 2005
    1,240
    164
    Frisco, TX
    The Tikka sporter barrel is too thin to thread 5/8x24 and have a shoulder, even down to 17”.
    I have 2…a .223 cut to 17” threaded 1/2x28 and a 6.5CM cut to 18” threaded 1/2x28 and use an adapter to get to 5/8x24.
    Dont know that I’d be comfortable with a .30 bore threaded 1/2x28.


    LeftyJason

    Thumbnail-les
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Mar 8, 2017
    3,683
    5,710
    36
    Kaysville Utah

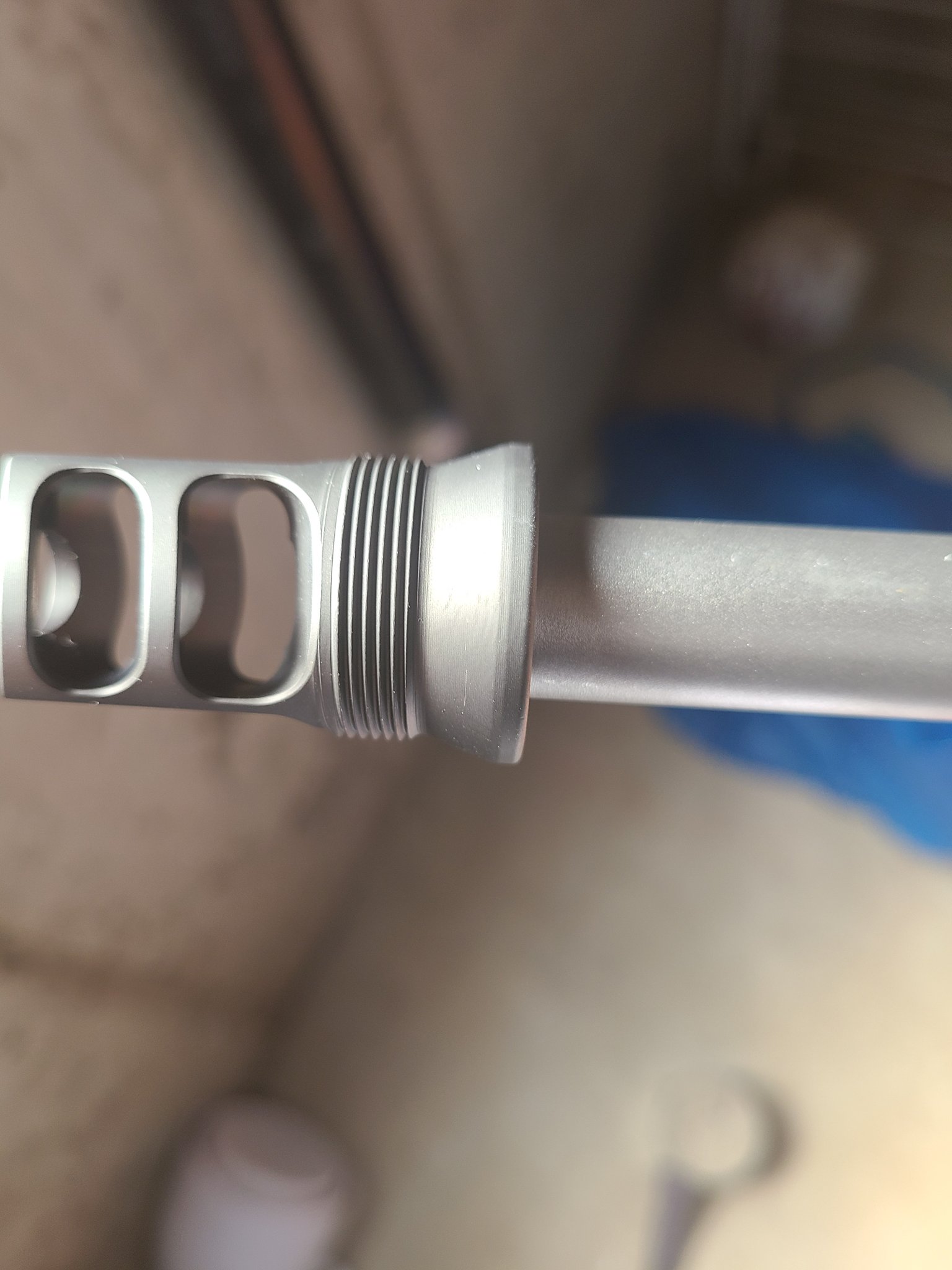

    Slightly different than you since I have a tbac ultra 7. I sent my t3x lite to Thunderbeast to have them mount one of their face mount brakes. Uses the face of the muzzle as the shoulder. Threaded 9/16 underneath.


    • Like
    Reactions: AK4900PA
