Tuning MDT 6BR Mags

Slate264

Supporter
Supporter
Full Member
Minuteman
  • Jun 19, 2019
    128
    15
    Looking for recommendations how tune MDT 6br mags. Bought 2 mags and both not functioning properly. Every 7/8 round nose dives when either running the bolt or doing it by hand. impact action and mpa chassis. If you had a similar issue and fixed pls let me know how. Thank you


    spife7980

    Luchador
    Full Member
    Minuteman
    Feb 10, 2017
    11,865
    12,573
    Central TX
    Can’t tell what the failure is by looking at the outside of a mag. Is the follower sticking down inside the mag?

    Does every 7/8 mean it fails on round 7 or 8 out of 10? Or just every so often with no relation to the exact round out of the mag? Aka, if you don’t fill it up that full will they still fail or is it o my those rounds at that point? Tried stretching the spring out of the follower is sticking? Need to sand the follower a smidge?

    Lots to know that we don’t.


    Dschapp44

    Supporter
    Supporter
    Full Member
    Minuteman
  • Oct 15, 2018
    1,888
    290
    I ran into a similar problem. Make sure there’s about .050-.060 minimum from the front of the round the the of the magazine.

    also putting a screw thru the bottom while and pinning the spring to the back spacer did wonders. Both were recommended to me by Keith Baker

    • Like
    Reactions: kindabitey

    Slate264

    Supporter
    Supporter
    Full Member
    Minuteman
  • Jun 19, 2019
    128
    15
    Can’t tell what the failure is by looking at the outside of a mag. Is the follower sticking down inside the mag?

    Does every 7/8 mean it fails on round 7 or 8 out of 10? Or just every so often with no relation to the exact round out of the mag? Aka, if you don’t fill it up that full will they still fail or is it o my those rounds at that point? Tried stretching the spring out of the follower is sticking? Need to sand the follower a smidge?

    Lots to know that we don’t.
    7th or 8th round dives when I load 11 or 12 in the mag. Haven’t tried just 3 or 4 in the and see if they dive too. Will check if the follower is sticking inside the mag as well. Never ran br family cartridges before so this magazine stuff is new to me


    Slate264

    Supporter
    Supporter
    Full Member
    Minuteman
  • Jun 19, 2019
    128
    15
    I ran into a similar problem. Make sure there’s about .050-.060 minimum from the front of the round the the of the magazine.

    also putting a screw thru the bottom while and pinning the spring to the back spacer did wonders. Both were recommended to me by Keith Baker

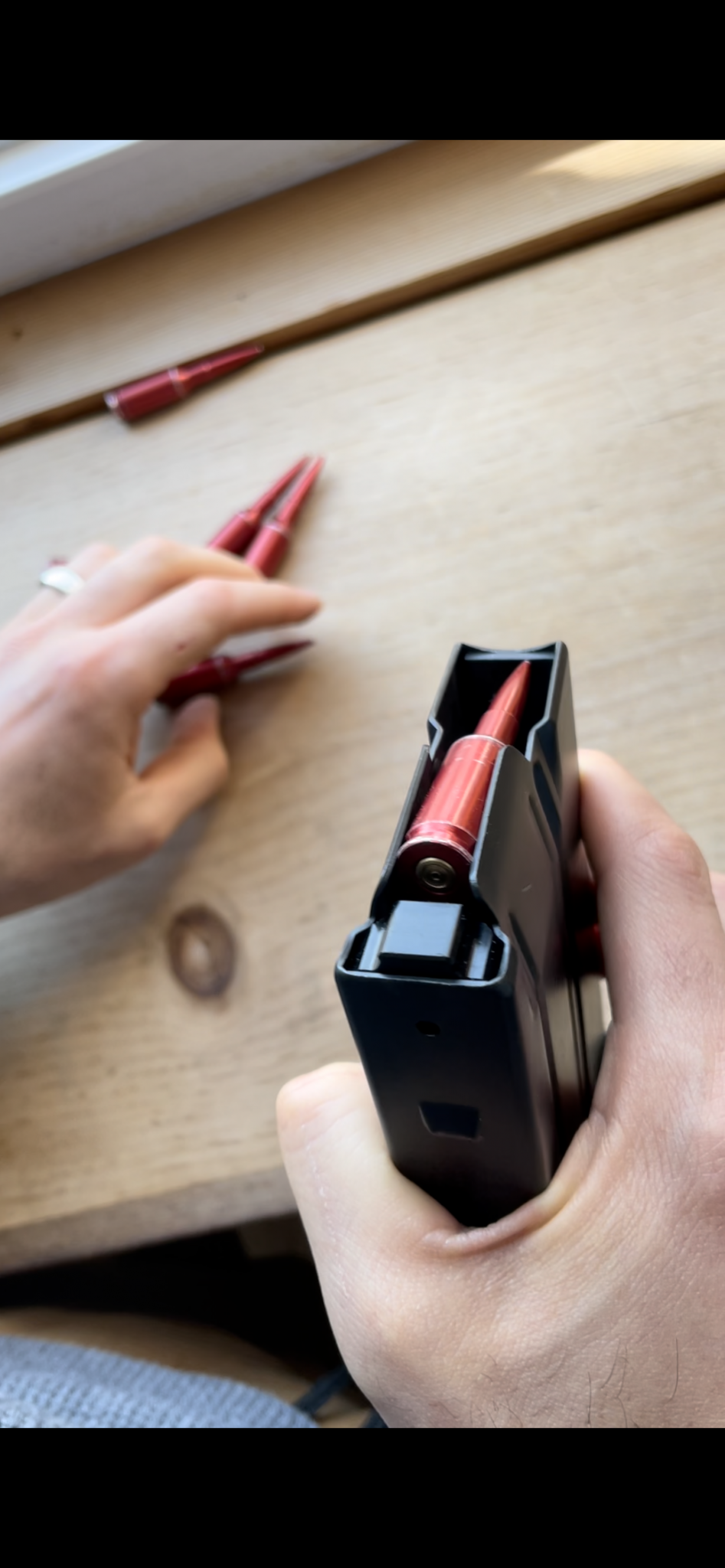

    Looks like there is plenty of clearance from the tip to the mag.
    Can you pls explain the second step in more details

    • Like
    Reactions: TwistedOneinSeven

    drwood96

    Samsonite! I was way off!
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Sep 16, 2017
    848
    504
    Tuscaloosa, AL
    rolltide.com
    IMO, the back of your feed lips are too wide. You normally want back closer then the front. The MPA feed lip tool or pliers work to adjust them. These are stamped metal part and not every one come out prefect.

    • Like
    Reactions: Slate264

    Dschapp44

    Supporter
    Supporter
    Full Member
    Minuteman
  • Oct 15, 2018
    1,888
    290
    Looks like there is plenty of clearance from the tip to the mag.
    Can you pls explain the second step in more details

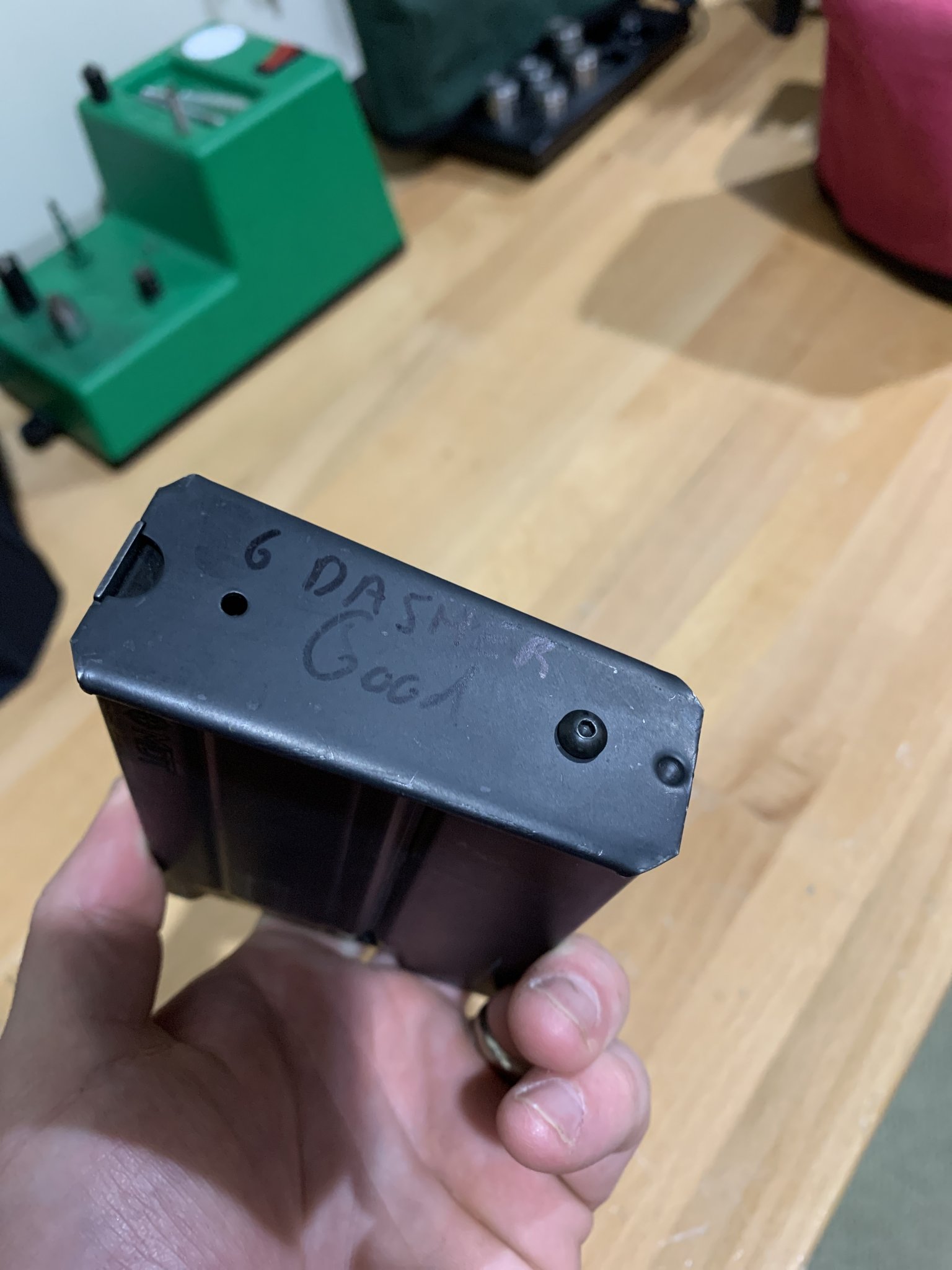

    After you taken the baseplate off and are reinstalling don’t push all the way closed. Just enough so the hole in the bottom of the mag is inside the mag body and then install the screw as shown in pictures and finish installing baseplate all the way on.

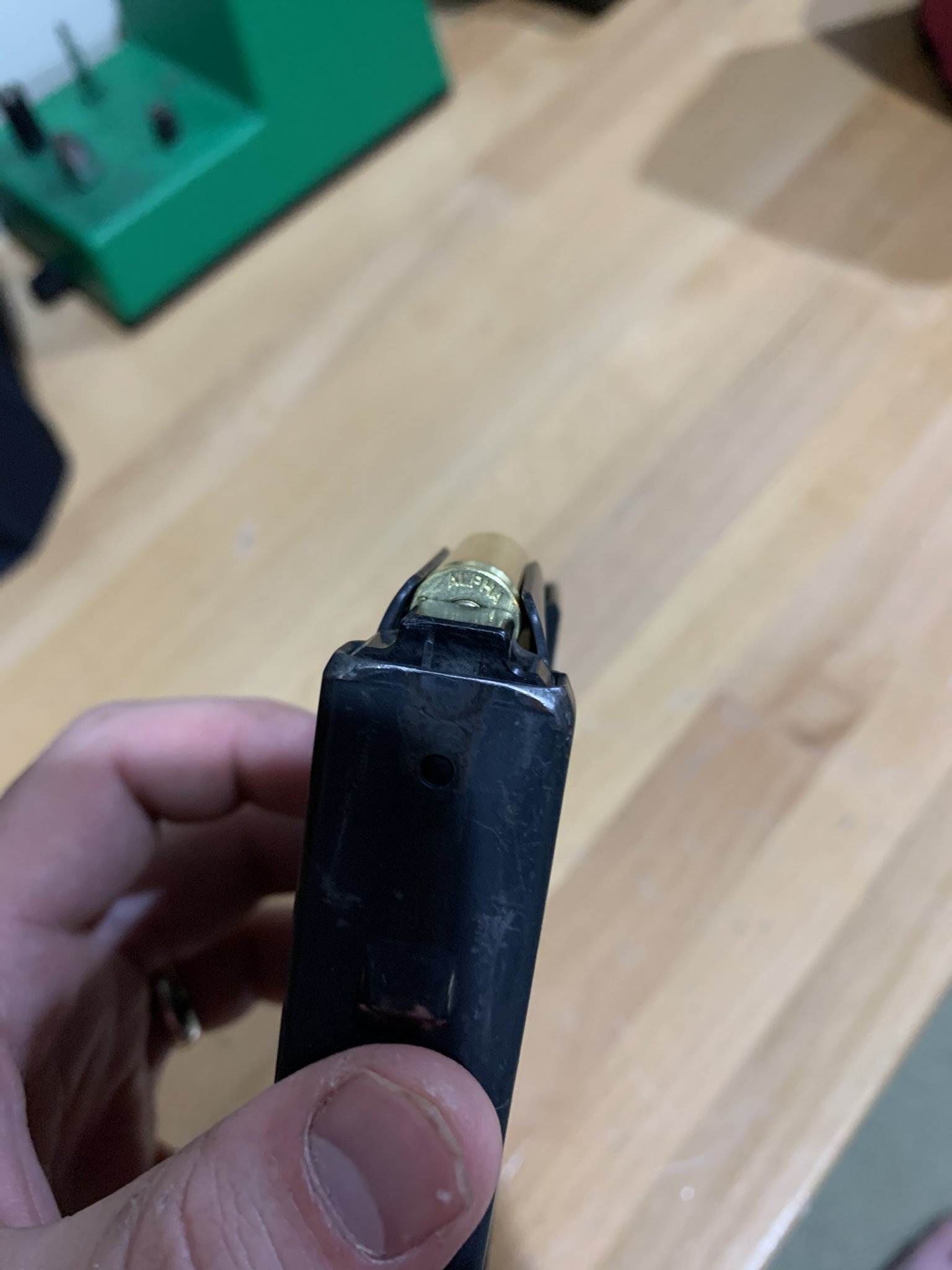

    second picture is case at the top of mag and how it sits on the feed lips. Those are non adjusted from the factory feed lips


    Attachments

    • image.jpg
      230.7 KB · Views: 171
    • image.jpg
      185.1 KB · Views: 160

    Birddog6424

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Apr 25, 2014
    3,355
    3,050
    Boise, Idaho
    @Birddog6424 - yo dude, wasn't this the same issue you were talking to Pat and I about at the .22 match?
    This one is the exact opposite. His nose is dropping into the mag and sticking there.

    My round feeds forward, and as soon as it clears the feedlips, the base of the round drops into the magazine and the nose hits the barrel instead of feeding into the chamber. Its a pain in the ass..

    • Like
    Reactions: FALex

    TwistedOneinSeven

    From a land Down Under
    Minuteman
    Mar 24, 2020
    89
    89
    Down Under
    Looking for recommendations how tune MDT 6br mags. .
    I'm using MPA Chassis, Terminus Zeus actions, MDT "BR" mags and AI AICS with MDT BR/Dasher Follower kits;
    I think MDT BR mags need a "stronger" follower spring.
    No comparison to AICS MDT (actually PVA I think) BR Follower Kit spring as far as nose-up pressure on follower and rounds.

    Tip I was given that works well is to always put some graphite powder in new mags to lubricate follower travel - makes a huge difference in follower binding in my experience.
    Also, check COAL. MDT lists possible of appx 2.500" but if my cartridges are near COAL 2.500" about 7/8th round nose dives as mentioned in OP

    • Like
    Reactions: Slate264

    Slate264

    Supporter
    Supporter
    Full Member
    Minuteman
  • Jun 19, 2019
    128
    15
    After you taken the baseplate off and are reinstalling don’t push all the way closed. Just enough so the hole in the bottom of the mag is inside the mag body and then install the screw as shown in pictures and finish installing baseplate all the way on.

    second picture is case at the top of mag and how it sits on the feed lips. Those are non adjusted from the factory feed lips
    Thanks for detailed explanation, I’ll give it a shot
