.22 creedmoor

moore_man

Private
Belligerents
Minuteman
May 2, 2013
148
17
gilbert Arizona
Started building my new .22 creedmoor. (.224/6.5 creedmoor)

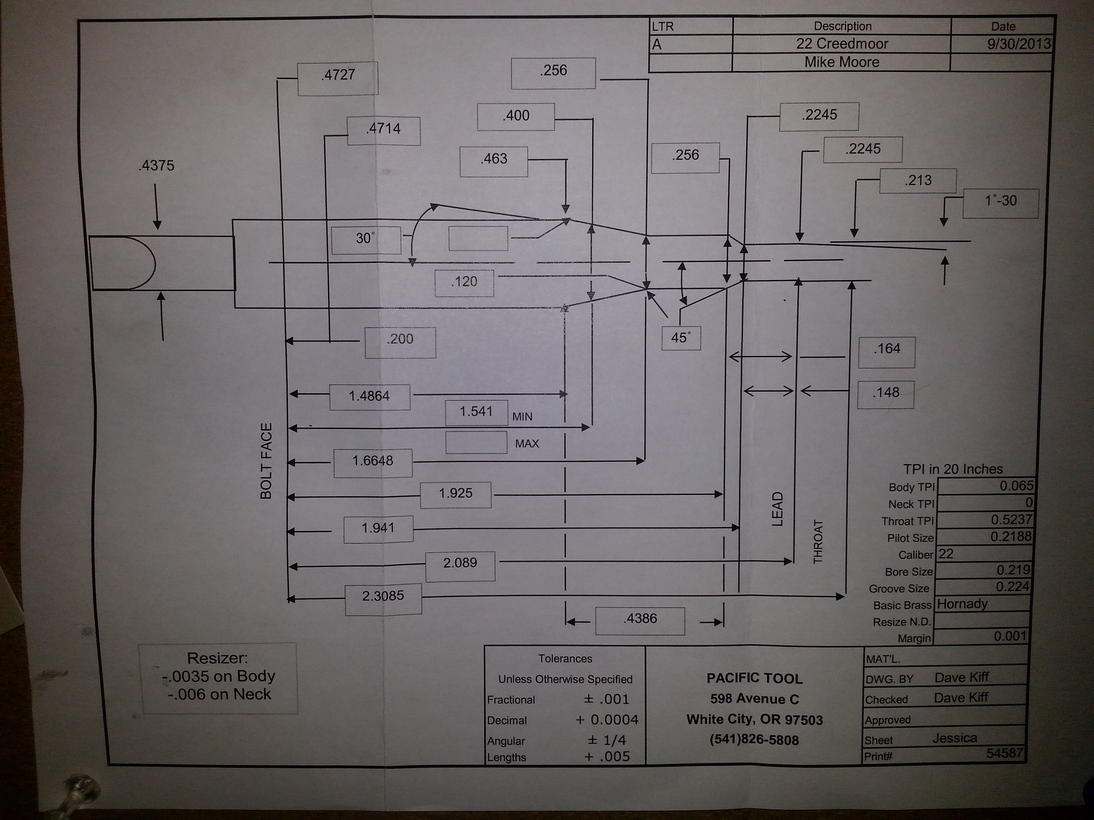

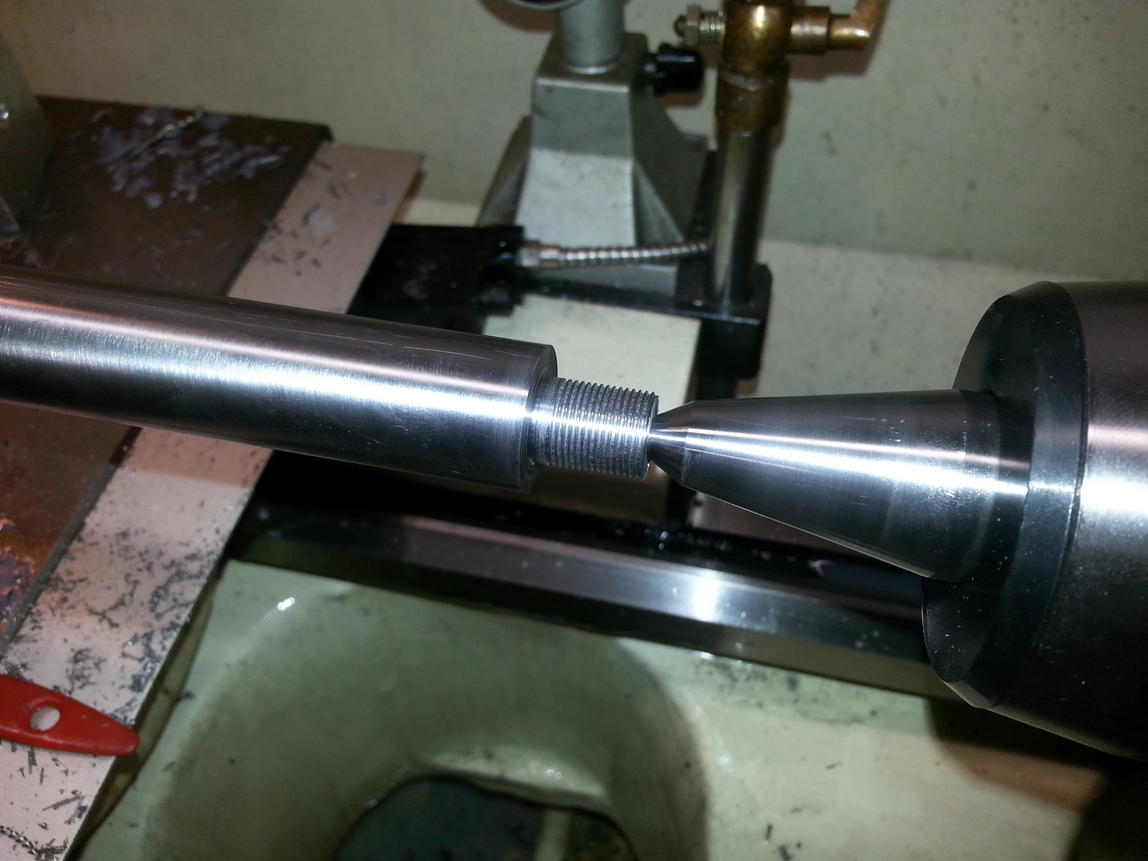

I had the pleasure of Dave kiff at Pacific Tool and Gauge build me up a finish reamer and full length die reamer for a .22 creedmoor. The main objective was to shoot the 90grn bullets at a respectable velocity and use it in various types of match style shoots/competitions as well as a hunting rig. According to Berger's 90.0 grn Ballistic Coefficient (
.551), velocity running around 3100fps-3200fps and a modern match grade case geometry to boot, the .22 creedmoor became a very intriguing cartridge. After running the numbers everything shows that it does very well in both trajectory and kinetic energy not to mention very little recoil.

Here is an example of the .22 creed against the parent 6.5 creed. Using the 6.5 and a 130grn berger running 2800 FPS drops about 8.0 mils vertically with a 100yrd zero and 1.7 mils horizontally in a 10mph cross wind with 734 ft-lbf @ 1k according to strelok ballistics . Under the same conditions the .22 creed with a 90.grn berger running 3100fps drops 6.1 mils vertically , 1.45 mils horizontally and has 676 ft-lbf on impact.

So far for testing purposes I have acquired the following... Remington M700 SA, PTG lug, Bartlien 7.7 twist varminter barrel finished at 26", jewel trigger, Custom K.B Precision Scope rail, H-S police Stock skim bedded and PTG BDL bottom metal. Started the build and should be ready for load testing over the weekend.

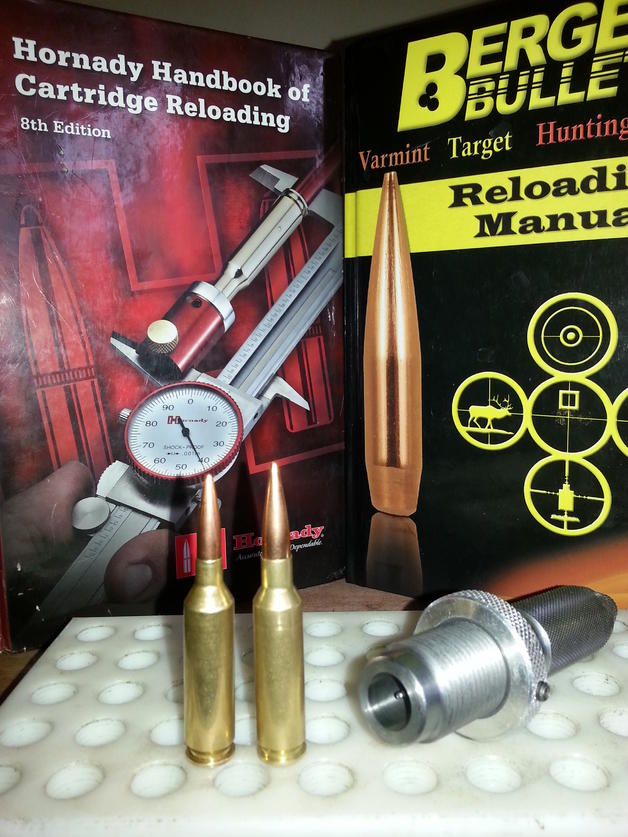

22 creed.jpg .22 creedmoor left and 6.5 creedmoor right

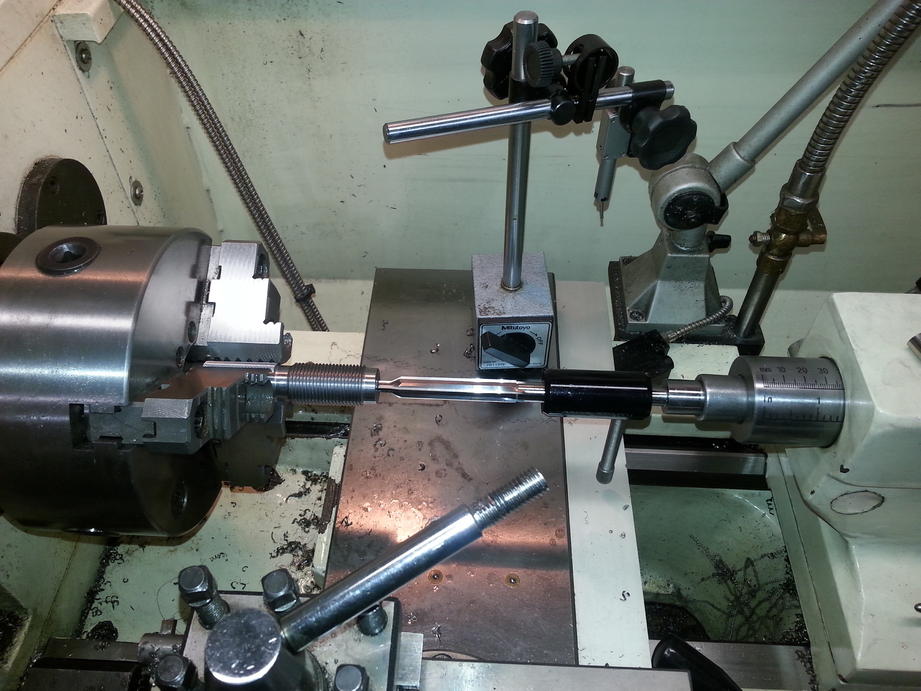

View attachment 19762finishing the FL sizing die

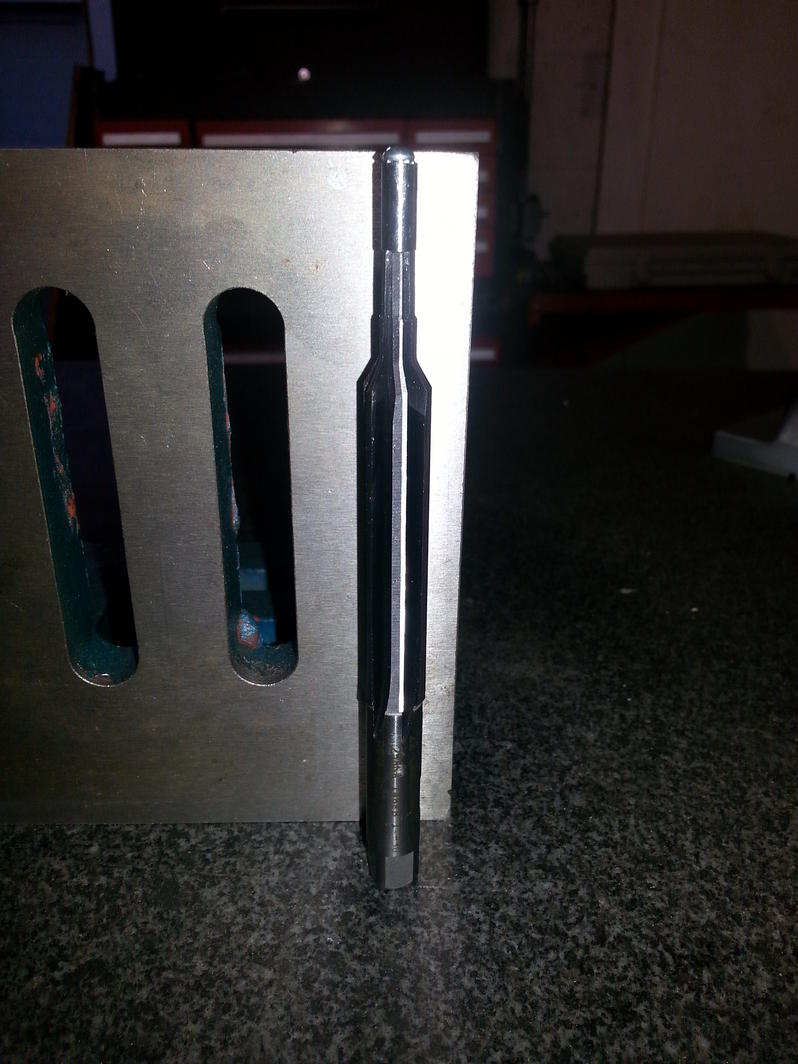

phone 066.jpgPTG removable pilot reamer

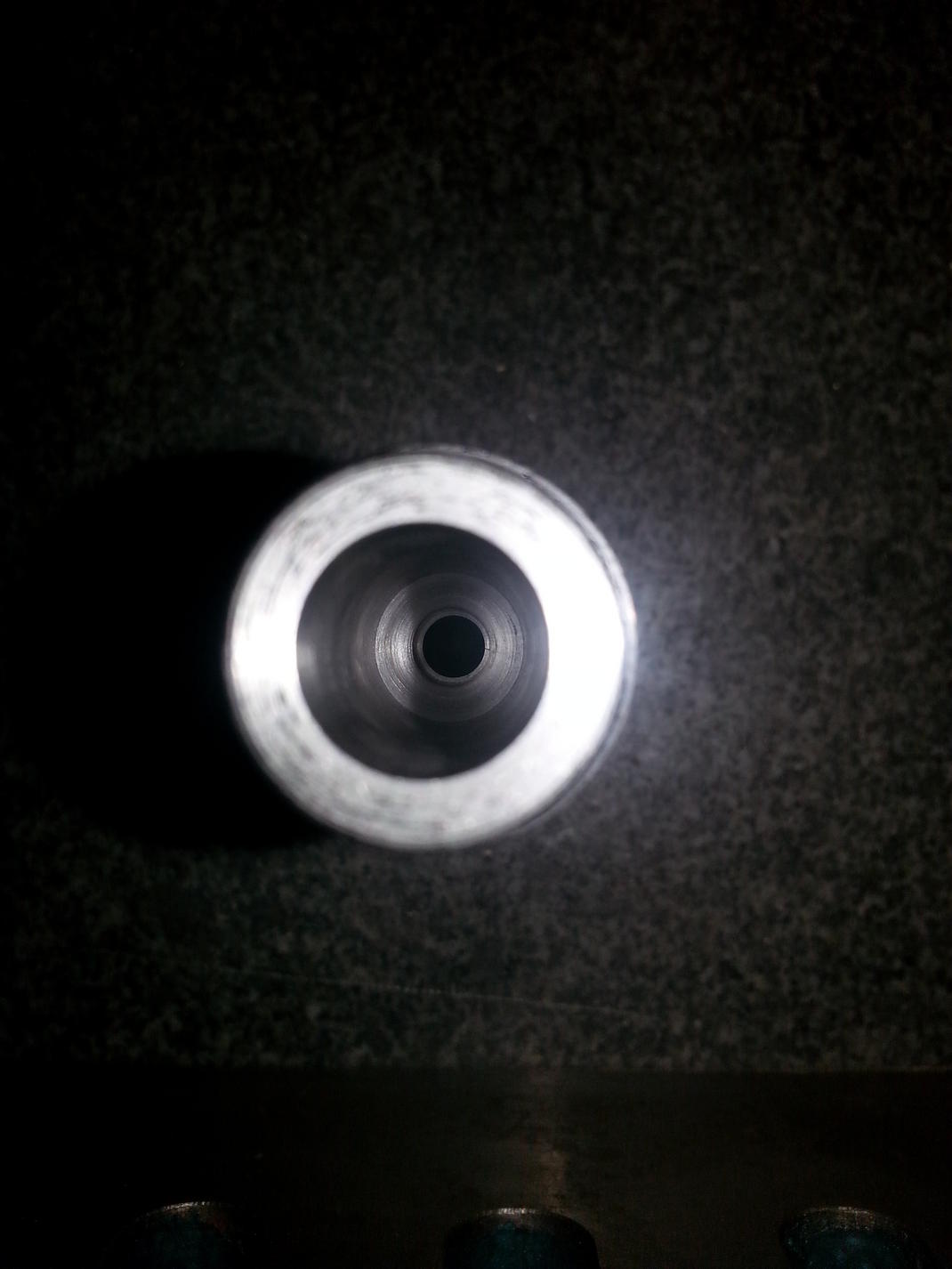

phone 063.jpg a look into the FL die
phone 064.jpg


Attachments

Last edited:

long range newbie

Sergeant
Belligerents
Minuteman
Apr 7, 2013
837
2
Oregon
sounds like a shooter :) can we also get pics of all the parts, and some performance updates soon as you get it shooting :).

Last edited:

PowerstrokeOBX

Gunpowder Addict
Belligerents
Minuteman
Jul 6, 2011
1,045
74
Outer Banks NC
.22 creedmoor

.22CM looks interesting... The only downside for comps is you might not have enough energy to "flash" targets. Or kick up enough dirt to spot misses. I'm probably wrong though.

It has 160 less FPE than 105 at same speed.


The_FNG

Sergeant
Belligerents
Minuteman
Sep 17, 2010
645
0
48
Australia
Started building my new .22 creedmoor. (.224/6.5 creedmoor)
Here is an example of the .22 creed against the parent 6.5 creed. Using the 6.5 and a 130grn berger running 2800 FPS drops about 8.0 mils vertically with a 100yrd zero and 1.7 mils horizontally in a 10mph cross wind with 734 ft-lbf according to strelok ballistics . Under the same conditions the .22 creed with a 90.grn berger running 3100fps drops 6.1 mils vertically , 1.45 mils horizontally and has 676 ft-lbf on impact.
At what distance is this?


Saito

Sergeant
Belligerents
Minuteman
Jun 10, 2008
477
1
1537 Paper St.
Most, if not all, of the comps I've shot this year had 6mm as the minimum caliber. Other than that, it looks pretty awesome ! I best get rolling on my .22-250 AI now :)


moore_man

Private
Belligerents
Minuteman
May 2, 2013
148
17
gilbert Arizona
".22CM looks interesting... The only downside for comps is you might not have enough energy to "flash" targets. Or kick up enough dirt to spot misses. I'm probably wrong though.

It has 160 less FPE than 105 at same speed. "

After running the ballistics the .22 creedmoor hangs just behind the 6.5 with a 130grn at 2800 which is what I shoot and seems to be common speed.
here is a look at energy @ 600 yrds under the same conditions
6.5 with 130 berger @ 2800 =1180 ft-lbf (strelok)
.22 with a 90 berger @ 3100 = 1058 ft-lbf (strelok)


moore_man

Private
Belligerents
Minuteman
May 2, 2013
148
17
gilbert Arizona
looking at just trajectory, its an awesome candidate for paper punching to say the least. I can see it being great for high power use, benchrest use, f-class use and for deer size game and under. For the folks looking for a great AR round or a light hunting rig...this will surly accommodate. You get less case stretching compared to the 22-250, good uniform burning plus some extra velocity over it. For guys like me with a couple 6.5 creedmoors and lots of brass, its an easy change :)


moore_man

Private
Belligerents
Minuteman
May 2, 2013
148
17
gilbert Arizona
probably not. looks like GA Precision did the same thing. I wonder who did it first lol. There's nothing new under the sun as my father says. Next is to slightly modify the case. Got another reamer coming soon slightly different which increased powder capacity some more. Let the testing begin :)


6.5 Shaggy

Private
Belligerents
Minuteman
Apr 29, 2012
46
1
45
N.W. Texas
I run a 22 PDK, which is a 6.8 spc blown to 30 degree shoulder and necked to.224. I run 80gr Amaxs at 3130 fps with 29 grains of powder from a 23 inch barrel and can easily spot hits at 1000yds on steel with a 10x scope. I think your velocities should exceed mine by far and hits should be very easy well beyond 1K. I have ran mine to 1164yds and although I saw no splash (tall grass and shadows) the "plink" was very audible, and the group was only slightly over 1 MOA. I believe you as well as the rest of us will be more than impressed with you findings. Keep us posted.


KYS

BBN #1
Belligerents
Minuteman
Oct 8, 2008
9,812
26
Lexington, KY
You will be running this cartridge a lot slower then what it was intended for if you go into a match. Most are capped under 3200 fps. This caliber can easily achieve 3400 with a 75gr amax. I hope accuracy does not suffer when the velocity changes.

What twist did you choose?


KYS

BBN #1
Belligerents
Minuteman
Oct 8, 2008
9,812
26
Lexington, KY
probably not. looks like GA Precision did the same thing. I wonder who did it first lol. There's nothing new under the sun as my father says. Next is to slightly modify the case. Got another reamer coming soon slightly different which increased powder capacity some more. Let the testing begin :)
GAP built my 22CM almost a year and a half ago….. they must have had our reamer print on file.


BoilerUP

Gunny Sergeant
Belligerents
Minuteman
Jan 16, 2011
3,237
907
37
Clark Co., IN
Why a 7.7 twist if 90gr VLDs are your fodder?

Shooter sez at 500' ASL, 59F, 29.92Hg that a 90gr VLD @ 3100fps has a stability factor of 1.16.


moore_man

Private
Belligerents
Minuteman
May 2, 2013
148
17
gilbert Arizona
the 7.7 twist was the fastest twist I could find ready to buy (1:7 Krieger on the way). It may not show great stability past 600 but I figured I would get a handle on round count, velocity and accuracy. Although the books say 1:7/1:6.5 twist for the bigger bullets I didn't feel too handicapped seeing that it was going to be a test gun and I wouldn't be over spinning the smaller bullets like the 69-82grn too bad. The 3100 fps was chosen just for competition use here locally. Rules are no faster than 3100 or 3150 and nothing bigger than .30 cal. I know looking at case capacity between the 22-250, 220 swift and 22-250 AI, the .22 CM would be more like 3250 maxed, maybe just maybe 3300fps. I figured if I was to stay on the lower side of what is still great velocity and shoot the biggest bullet, I would see better barrel and case life.

Does pressure or velocity have the most effect on accuracy? If its pressure I could keep the barrel on the shorter side maxing out velocity around 3100 but the operating pressure wont decrease

Last edited:

6brshooter

Sergeant
Belligerents
Minuteman
  • Oct 2, 2012
    2,354
    984
    Illinois
    Sounds and looks good, as long as ur barrel likes that bullet and shoots accurate at that speed. My 6.5 cm sends 140 hybrids@2840.


    moore_man

    Private
    Belligerents
    Minuteman
    May 2, 2013
    148
    17
    gilbert Arizona
    Sounds and looks good, as long as ur barrel likes that bullet and shoots accurate at that speed. My 6.5 cm sends 140 hybrids@2840.
    140 doing 2840? are you using slower powder and a long barrel? I maxed the 130grn just under 2900 (24" barrel) before I started to get flat primers. After about 3 or 4 firings I can feel the primer pockets getting looser as well.


    SUIScide

    Gainesville, TX
    Belligerents
    Minuteman
    Oct 26, 2012
    283
    40
    45
    North Central Texas
    So how much more powder capacity in this than the 22-250? I know there is a lot of discussion of short barrel life in fast twist 22-250, why no discussion of this with this creedmore wildcat?


    triceratops3

    Sergeant
    Belligerents
    Minuteman
    Dec 27, 2010
    739
    1
    26
    Northern VA
    So how much more powder capacity in this than the 22-250? I know there is a lot of discussion of short barrel life in fast twist 22-250, why no discussion of this with this creedmore wildcat?
    Can't answer the question about powder capacity. No where near an expert on the subject, but according to what I've read on the other threads about this, KYS is upto 1300 rounds on his 22 Creed and is seeing no signs of wear and estimates around .243 barrel life. The reason behind the relatively long barrel life on an overbore cartridge is that it's running at pretty low pressures compared to similar cartridges.


    customones

    Sergeant
    Belligerents
    Minuteman
    Jan 18, 2011
    289
    23
    49
    billings montana
    I built a 22x47 lapua two years ago and was running a 80 grain vld comfortably at 3400 with 38.2 grains of H 4350. I would imagine if you stepped on the cm it would get you to the 3300 mark with the 90 grain vld.


    6brshooter

    Sergeant
    Belligerents
    Minuteman
  • Oct 2, 2012
    2,354
    984
    Illinois
    26" brux, 43.0 gr h4350. Primer edges still have slight radius to them. i get 8-12 reloads on the brass. Verified velocity with actual drops out to 1250 yds. I had a 24" ar10 that sent 123 amax at 2925, also confirmed with drops to 1 k.


    moore_man

    Private
    Belligerents
    Minuteman
    May 2, 2013
    148
    17
    gilbert Arizona
    So how much more powder capacity in this than the 22-250? I know there is a lot of discussion of short barrel life in fast twist 22-250, why no discussion of this with this creedmore wildcat?
    This is according to Chuck Hawks on the following case capacities

    .22-250 Remington (W-W): 44.6 grains
    223 WSSM (W-W): 55.0 grains
    243 WSSM (W-W): 53.0 grains

    Now according the Wiki the 6.5 creedmoor is 53.0 grns H2o

    All that aside I'm not exactly sure how correct the info is.

    I'm hoping less powder, more velocity at lower pressures.


    KYS

    BBN #1
    Belligerents
    Minuteman
    Oct 8, 2008
    9,812
    26
    Lexington, KY
    This is according to Chuck Hawks on the following case capacities

    .22-250 Remington (W-W): 44.6 grains
    223 WSSM (W-W): 55.0 grains
    243 WSSM (W-W): 53.0 grains

    Now according the Wiki the 6.5 creedmoor is 53.0 grns H2o

    All that aside I'm not exactly sure how correct the info is.

    I'm hoping less powder, more velocity at lower pressures.
    We finally have someone that gets it!!! Good work! :D


    Pusher591

    Gunny Sergeant
    Belligerents
    Minuteman
    Jun 18, 2009
    2,567
    231
    36
    Gaston County
    ".22CM looks interesting... The only downside for comps is you might not have enough energy to "flash" targets. Or kick up enough dirt to spot misses. I'm probably wrong though.

    It has 160 less FPE than 105 at same speed. "

    After running the ballistics the .22 creedmoor hangs just behind the 6.5 with a 130grn at 2800 which is what I shoot and seems to be common speed.
    here is a look at energy @ 600 yrds under the same conditions
    6.5 with 130 berger @ 2800 =1180 ft-lbf (strelok)
    .22 with a 90 berger @ 3100 = 1058 ft-lbf (strelok)

    The only problem I see with that is your selling the 6.5 short with those numbers. That velocity is more in line with shooting the 140's which, depending if you shoot the 140 Amax's or the 140 Bergers or Hybrids your gonna have a BC of .585-.618 (compared to the 130 VLD's .552 BC) which should change those numbers up a good bit.

    If your going to stick with comparing the 130 Bergers should probably up the velocity a good 130-140 fps.


    ** Just saw above, you say that's what you get out of your 6.5 setup. Just curious what your load is and your barrel length. If you run a standard 22"-26" aftermarket barrel, your probably leaving a lot of performance on the table with those 130's. My soft load out of my old 21" barrel was seeing 2830-2840fps with the 130's and the hot loads with the 130's were seeing 2920

    Last edited:

    moore_man

    Private
    Belligerents
    Minuteman
    May 2, 2013
    148
    17
    gilbert Arizona
    The only problem I see with that is your selling the 6.5 short with those numbers. That velocity is more in line with shooting the 140's which, depending if you shoot the 140 Amax's or the 140 Bergers or Hybrids your gonna have a BC of .585-.618 (compared to the 130 VLD's .552 BC) which should change those numbers up a good bit.

    If your going to stick with comparing the 130 Bergers should probably up the velocity a good 130-140 fps.


    ** Just saw above, you say that's what you get out of your 6.5 setup. Just curious what your load is and your barrel length. If you run a standard 22"-26" aftermarket barrel, your probably leaving a lot of performance on the table with those 130's. My soft load out of my old 21" barrel was seeing 2830-2840fps with the 130's and the hot loads with the 130's were seeing 2920
    I use a 24" Krieger 1:8 running 38.0grns of Varget over a 130 Berger VLD at 2850. My 18" version runs the same load at 2717. The velocities stated above come right from the Berger book. Not that people don't go faster because we all know they do. It was a comparison of book data to book data if you will.


    steve123

    Lt. Colonel
    Belligerents
    Minuteman
    Mar 16, 2008
    8,876
    1,347
    none of your business
    C'mon moore_man, AZPRC is next weekend and I wanna take a few pops out of your 22Creed.

    I'm even bringing the Oehler Chronogragh for you.

    Last edited:

    BERTMAN77MK2

    Gunny Sergeant
    Belligerents
    Minuteman
    Dec 17, 2009
    2,701
    43
    63
    displaced TEXAN
    Who has the highest round count on a premium barrel thus far?
    Am interested in this round for a bolt gun varmint rifle and a .22/Grendel
    variation in an AR15 varmint rifle

    Last edited:

    moore_man

    Private
    Belligerents
    Minuteman
    May 2, 2013
    148
    17
    gilbert Arizona
    20131215_153027.jpgGot some groups to show as well as some velocities. The top picture is shown with 77grn SMK at 3450 and picture below is shown with the 80grn Amax at 3450


    moore_man

    Private
    Belligerents
    Minuteman
    May 2, 2013
    148
    17
    gilbert Arizona
    So far this .22 creedmoor is every bit comparable to the .223 WSSM and then some. I have been achieving book velocities with slightly less powder than the .223 WSSM according to the berger and hornady manuals.


    hunter67wa

    Private
    Belligerents
    Minuteman
    Nov 8, 2012
    11
    1
    53
    WA
    Why did you go with a 30 Degree shoulder and not say a 35?

    p.s. Im' shooting 140Berger VLD at chrono 2769 H4350. Corrected to 2900 per 900y target shooting 1/2 minute at 900y.

    • Like
    Reactions: Tjstratt

    moore_man

    Private
    Belligerents
    Minuteman
    May 2, 2013
    148
    17
    gilbert Arizona
    Why did you go with a 30 Degree shoulder and not say a 35?

    p.s. Im' shooting 140Berger VLD at chrono 2769 H4350. Corrected to 2900 per 900y target shooting 1/2 minute at 900y.
    I wanted to alter as little as I could of the parent case and still achieve what the 22-250 couldn't. I looked at going with a 35Deg shoulder and shortening the neck length some but just not sure if there's a point to. For me it was very easy to take 6.5 creedmoor brass and strait neck them down and run with it. How many firing do you get out of your brass?


    hunter67wa

    Private
    Belligerents
    Minuteman
    Nov 8, 2012
    11
    1
    53
    WA
    I hear ya on ease of making brass. I was just curious. A couple of us were driving to a place to LR shoot and we thought it would be fun take make a 22 CM. When I got online to research it I seen your post. We are ordering the reamer from PT&D and am going to run with it. Have you shot the 90g Bergers? What do you think is going to be your go to bullet weight?

    I am on my 5th reload on my brass and still tight pockets. Got to love the CM.


    KYS

    BBN #1
    Belligerents
    Minuteman
    Oct 8, 2008
    9,812
    26
    Lexington, KY
    I hear ya on ease of making brass. I was just curious. A couple of us were driving to a place to LR shoot and we thought it would be fun take make a 22 CM. When I got online to research it I seen your post. We are ordering the reamer from PT&D and am going to run with it. Have you shot the 90g Bergers? What do you think is going to be your go to bullet weight?

    I am on my 5th reload on my brass and still tight pockets. Got to love the CM.
    I have tested 5 different bullets. With my barrel twist rate I found that accuracy is not great with anything less then a 70gr bullet and no heavier then 80gr. My favorite load is the 75gr amax. It's been the most consistent across the board. I did have success with 62gr solids. But theta speeds were getting pretty high. Around 3670 fps. I'd say that will kill barrel life pretty fast.


    Sent from my iPad using Tapatalk


    OKbow87

    Sergeant
    Belligerents
    Minuteman
    Mar 30, 2006
    274
    0
    Oklahoma City, OK
    I have tested 5 different bullets. With my barrel twist rate I found that accuracy is not great with anything less then a 70gr bullet and no heavier then 80gr. My favorite load is the 75gr amax. It's been the most consistent across the board. I did have success with 62gr solids. But theta speeds were getting pretty high. Around 3670 fps. I'd say that will kill barrel life pretty fast.


    Sent from my iPad using Tapatalk
    But I thought you were expecting great barrel life with the same speeds as the other hot rod 22's because of less powder and less pressure. So why would the speed of the 62's kill the barrel life? Speed has nothing to do with it, right? ;)


    KYS

    BBN #1
    Belligerents
    Minuteman
    Oct 8, 2008
    9,812
    26
    Lexington, KY
    .22 creedmoor

    But I thought you were expecting great barrel life with the same speeds as the other hot rod 22's because of less powder and less pressure. So why would the speed of the 62's kill the barrel life? Speed has nothing to do with it, right? ;)
    I'll break it down for you again. When you start running bullets that weren't designed for the twist rate we designated you can have a few bad things happen. Bullets will come apart and you heat up your chamber 2 and 3x as fast. Hot chambers = pressure spikes or most call it "cooking a loaded round". That will make the accuracy unpredictable since you are already skirting a fine line between the speed and accuracy node. I'm not a fan of running these calibers to their absolute limit. Same with 6.5 saum, it was designed a certain way for certain results. We accomplished that with the 75gr load with mild powder charges and low pressures.


    Sent from my iPad using Tapatalk

    Last edited:
