223 Bolt Gun (current climate)

ToKeepAndBear

Sergeant
Full Member
Minuteman
Feb 2, 2011
208
58
49
Chattanooga, TN
800 yards

Last edited:
  • Like
Reactions: Bcera

powdahound76

Old tired dad
Supporter
Full Member
Minuteman
Supporter+
Sep 7, 2011
8,477
21,172
Denver CO
Just finished putting together my daughter’s 18” .224 last night.

First rounds down it this afternoon


powdahound76

Old tired dad
Supporter
Full Member
Minuteman
Supporter+
Sep 7, 2011
8,477
21,172
Denver CO
If my 18” Mueller barrel chambered in .224 Wylde is any indication, it will be a friggin laser. 😁

This is a local smith and his work is nothing but awesome.

Prior indicators on his barrels say with decent loading I should get .5 moa or below pretty easy.
Have seen more than 1 of his hit .3’s from 600-1050 yds (not me shooting).


jLorenzo

Sergeant
Full Member
Minuteman
Feb 20, 2017
1,074
178
Hey guys so I'm curious on some stuff right now my 223 bolt gun is a wylde chamber with .061 freebore. I ordered a brux barrel and plan to chamber it in 223ai. At first I was looking at the Manson. 124fb ai chamber but I'm thinking that's too much freebore because I wanna run the Berger 75 80 80.5 and 85.5 and when my chamber was new my oal jammed in lands with the 85.5 was 2.547. I'm curious if anyone has .124 freebore and what their oal was please
Might want to post on accurateshooter forums. Lots of technical knowledge on there as far as this kind of thing goes.

  • Like
Reactions: Bigmeech556

padom

SuperMod
Staff member
Moderator
Supporter
Full Member
Minuteman
  • Mar 13, 2013
    11,256
    6,645
    Southeastern, Pennsylvania
    bighorn origin and get a shouldered prefit for it. would be what i would do.

    This is the easy button... then load 80's. I shoot 80 Amax (I have 4000+ I got dirt cheap when every shop was unloading the 600ct boxes to put ELD on the shelf).... 2900+ out of 26" 1:7 with H4895.


    MarshallDodge

    At the Reloading Bench
    Full Member
    Minuteman
    Jul 19, 2007
    914
    1,841
    Utah
    • Like
    Reactions: BuLLet

    6brshooter

    Sergeant
    Full Member
    Minuteman
  • Oct 2, 2012
    2,561
    1,221
    Illinois
    This is the easy button... then load 80's. I shoot 80 Amax (I have 4000+ I got dirt cheap when every shop was unloading the 600ct boxes to put ELD on the shelf).... 2900+ out of 26" 1:7 with H4895.

    I hate to agree, but yeah. I prefer the nuke 2.0 to the 2 origins I had, for no other reason than the nuke didn't need
    any work on cocking piece to fix coc. I'm not sure I'd want to buy an impact, stiller or defiance in 223, but on actions like bighorn, arc, and deadline it's not expensive to swap to a 308 or mag bolt head for switch barrel.


    jLorenzo

    Sergeant
    Full Member
    Minuteman
    Feb 20, 2017
    1,074
    178
    Anyone know some good sources for an Origin shouldered prefit?


    padom

    SuperMod
    Staff member
    Moderator
    Supporter
    Full Member
    Minuteman
  • Mar 13, 2013
    11,256
    6,645
    Southeastern, Pennsylvania
    I think Keystone has Green Mountain 224 blanks in stock to make any shouldered prefit you want for your origin... I know they have a 223 Wylde and a long freebore 223 reamer if you want

    • Like
    Reactions: jLorenzo

    BuLLet

    I need a new gun!
    Full Member
    Minuteman
    Apr 6, 2004
    1,928
    3,324
    USA
    Got 500 77 SMKs from brownells on there way to me now... :)

    I'll try out the 75 ELDMs soon as I can find those too.

    :)

    Brownells and Powder Valley have 77s in stock but I like the 75 ELD and 77 RDF better at longer ranges.


    Pharmseller

    Sergeant of the Hide
    Full Member
    Minuteman
    Nov 14, 2021
    266
    435
    Oregon

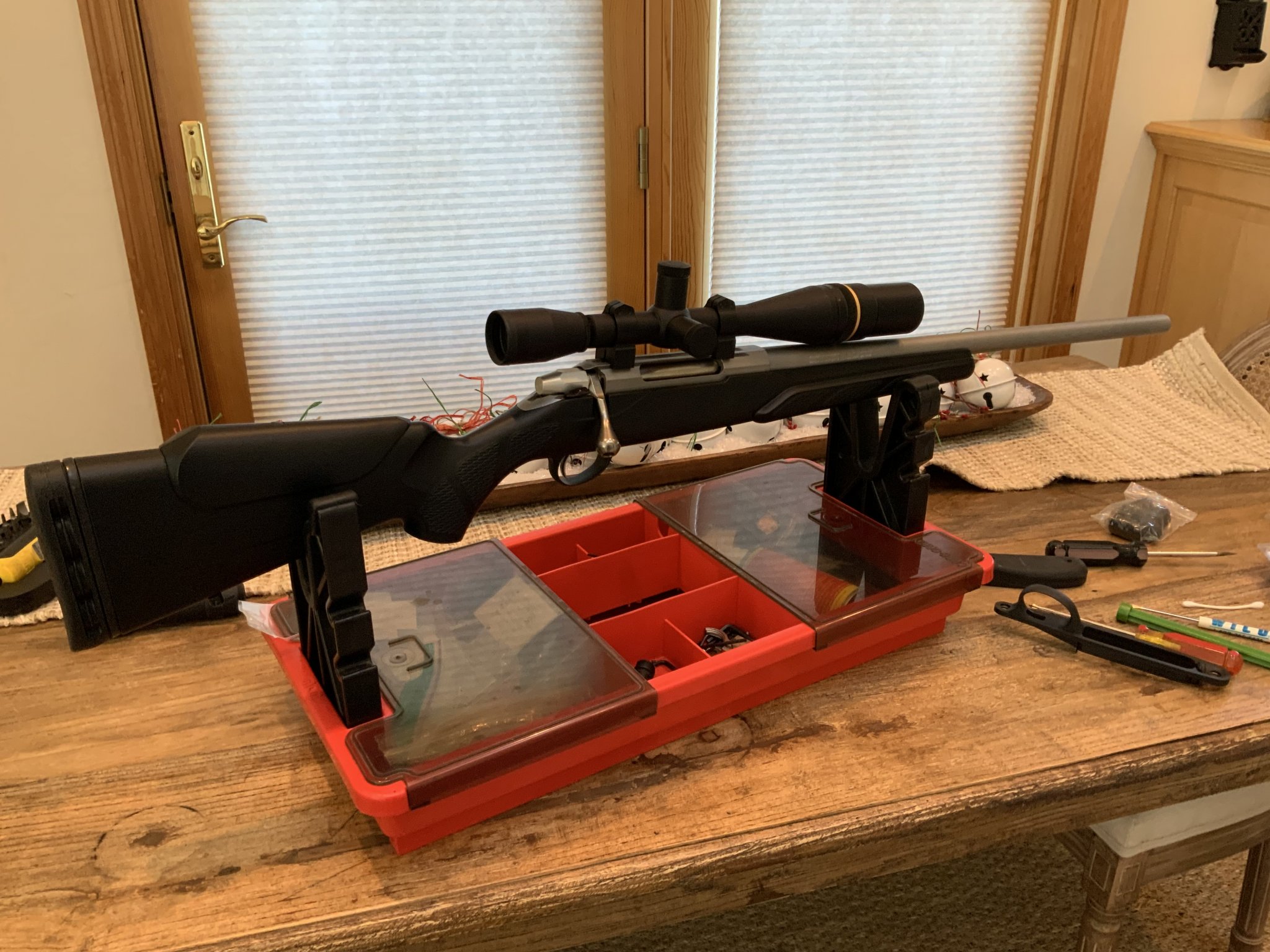

    Used Tikka Varmints are out there. I bought one from a member of this site last November. Put a fixed 12x with target turrets on her and worked up a loading using 75 gr ELDM.





    I do not recommend this load. Do not exceed book maximums.

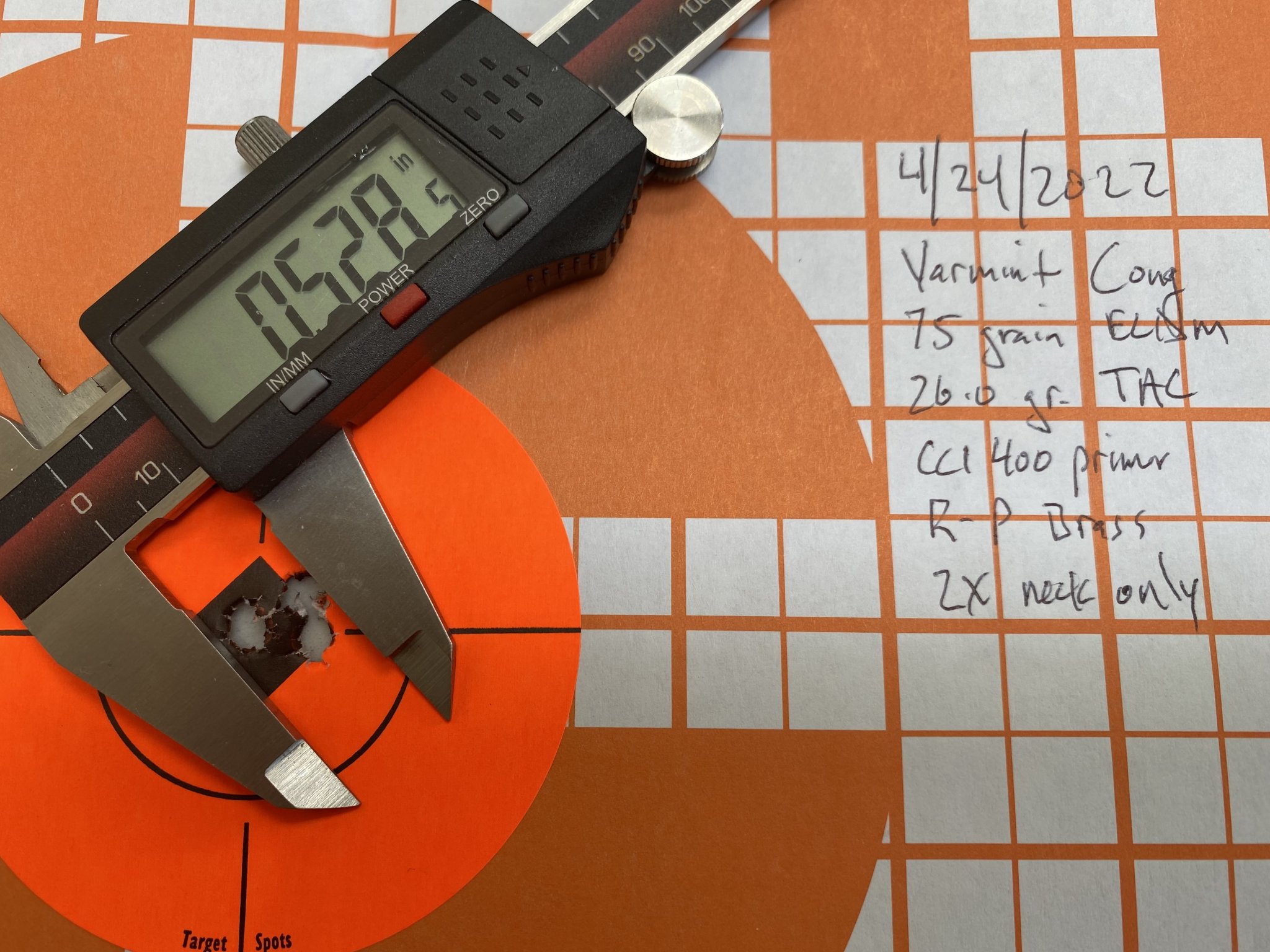

    Initial development:

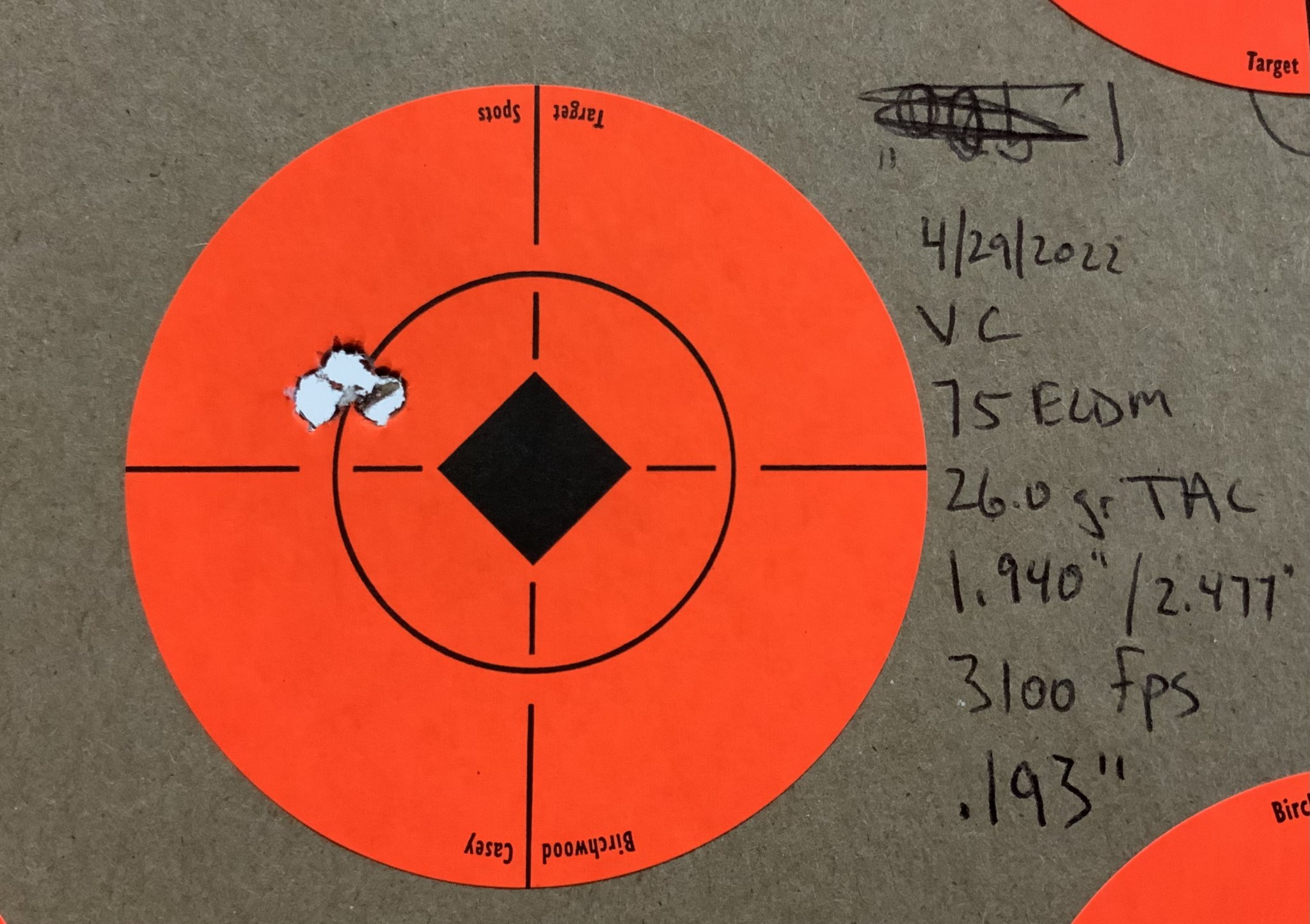

    Confirmation and chrono:




    They’re worth the search.



    P

    • Like
    Reactions: jLorenzo

    reubenski

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 8, 2008
    6,999
    7,794
    To

    ma smith

    Supporter
    Supporter
    Full Member
    Minuteman
  • Sep 29, 2020
    1,351
    880
    2.477 OAL going 3100fps with 75gr ELM out of OEM stock tikka...

    am i reading this right?


    Pharmseller

    Sergeant of the Hide
    Full Member
    Minuteman
    Nov 14, 2021
    266
    435
    Oregon

    • Like
    Reactions: jLorenzo

    Sagesniffer

    Private
    Minuteman
    Dec 3, 2020
    8
    3
    Carson city, nevada
    Hey Folks,

    I’ve been looking at picking up a 223 bolt gun for local PRS styles matches , we have 0-700 yards.
    Clearly it’s not a popular caliber in terms of off the shelf rifles.

    - My first choice was Tikka CTR, back ordered like 9 months since it’s a “sako select” now.

    - Bergara doesn’t make anything for it

    - Ruger American ranch? 16 inch barrel and weak stock options make me think twice about this.

    Are people basically going custom actions to shoot .223? Pricing that out it seems like it’s going to be 3X the cost of a Tikka.

    You are allowed to use gas guns but I really wanted to stick to bolt action for simplicity and effectiveness when suppressed.

    Any guidance would be appreciated
    Go with the tikka t3x heavy varmint,77gr bullet,good powder,brass,and primer. You won't be disappointed!!!


    GMZ

    Retired
    Full Member
    Minuteman
    Mar 15, 2007
    507
    583
    PNW
    So if you get the metal mdt mags or accurate ones you can take the insert plastic pieces out and dremel the front of them off then put it back together and boom metal mag that has a max oal of about 2.615

    A few passes with a rat tail file did the trick for me.


    jLorenzo

    Sergeant
    Full Member
    Minuteman
    Feb 20, 2017
    1,074
    178
    I'm working on my polymer mdt mags but they seem pretty close to right for my chamber. Jam is just passed 2.55 with most VLD style bullets.


    jLorenzo

    Sergeant
    Full Member
    Minuteman
    Feb 20, 2017
    1,074
    178
    Those 75gr ELDs are super hard to beat. Try some 8208 XBR if you get a chance. I got them up to 3044 at 35 degrees. No pressure signs, brass looks great. I'm working on a load for the 75gr BTHPs and Tac also.


    BuildingConceptsllc

    Don't Start None, won't be none.
    Supporter
    Full Member
    Minuteman
    Supporter+
  • Nov 13, 2020
    3,705
    2,786
    Alabama
    Those 75gr ELDs are super hard to beat. Try some 8208 XBR if you get a chance. I got them up to 3044 at 35 degrees. No pressure signs, brass looks great. I'm working on a load for the 75gr BTHPs and Tac also.
    The 75 bthp and tac is awesome for 223. No reason to spend more on the bullet and tac gives great speed without pressure and is easier to get. Great combo


    RichS

    Private
    Full Member
    Minuteman
    Nov 16, 2001
    240
    62
    51
    PG County Maryland
    Nothing fancy, just a Howa mini action in Brownells/MDT. Next gun is going to be a Ruger American Ranch in .223. 20+ years ago I had a two Rem PSS. One in .308 and one in .223. I thoroughly enjoyed the .223.



    Seader1084

    Private
    Minuteman
    Jan 12, 2021
    62
    119
    Augusta Georgia
    Big Horn Origin .223
    26” 1:7 Proof Research Comp prefit
    Trigger tech 2-stage flat
    DeadAir Sandman S
    Manners T4A team elite
    Razor Gen II 4.5-27
    MPA BA mount 1.125” height
    MDT .223 metal AICS mags


    I’ve been shooting factory Remington 77 gr matchking bthp, shoots 1/4”-3/8” all day.




    • Like
    Reactions: MnMWC and BuLLet

    Greenmoustache

    Supporter
    Supporter
    Minuteman
    Supporter+
  • Mar 26, 2021
    20
    16
    Costa Mesa
    I recently picked up a .223 prefit for my TL3 (and Origin with the recoil lug swap) and fell in love. It’s similar to how I felt shooting 6 Dasher after years of 6.5 CM… but an order of magnitude cheaper. The barrel, bolt head, and magazine cost a total of ~$700.

    I’ve been running 77gr SMK factory seconds + range brass I anneal and size and the performance is unbeatable for the cost. I still love the Dasher but paying almost $0.50/projectile, $1/piece for brass, and barrel wear are brutal at ~5k rounds per year.


    reubenski

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 8, 2008
    6,999
    7,794
    To
    Same here. It's the TL3 trainer kit.

    1. 26" Krieger Heavy Palma, 223 Wylde chamber, muzzle flats
    2. Accurate mag AICs with the front trimmed out.
    3. 223 bolt head from Zermatt
    4. 8" crescent wrench to torque the barrel on and break torque to unscrew at the range.
    5. Dillon 650 + bullet feeder
    6. Hornady 75gr BTHP bulk pack, 16lbs of 8208, 3000pcs LC brass, case of Rem 6 1/2's.



    Mister Ridge

    Sergeant
    Supporter
    Full Member
    Minuteman
  • Aug 15, 2011
    1,320
    1,362
    Maryland
    I like my 40XC-KS in a KRG Bravo. I go back and forth on wanting to get rid of it but that's because I'd like to upgrade to a Nucleus. Just don't feel like spending the money right now and I haven't had any luck getting anything else sold or traded.


    PB&J.

    Dope Ass Jive Turkey
    Full Member
    Minuteman
    Mar 8, 2022
    103
    89
    Australia
    Hey does anyone know if you need to modify 223 rem aics mags to work with 223ai? Or not

    Mine fed fine out of standard MDT poly mags, but I have since modified them slightly and they now feed the AI cartridges smoother than they did in their factory configuration with standard 223rem brass.


    JimmyH

    Private
    Supporter
    Full Member
    Minuteman
    Nov 9, 2011
    79
    39
    46
    South Louisiana
    Same here. It's the TL3 trainer kit.

    1. 26" Krieger Heavy Palma, 223 Wylde chamber, muzzle flats
    2. Accurate mag AICs with the front trimmed out.
    3. 223 bolt head from Zermatt
    4. 8" crescent wrench to torque the barrel on and break torque to unscrew at the range.
    5. Dillon 650 + bullet feeder
    6. Hornady 75gr BTHP bulk pack, 16lbs of 8208, 3000pcs LC brass, case of Rem 6 1/2's.

    View attachment 7886231View attachment 7886232View attachment 7886233
    @reubenski Really nice rifle and reloading set-ups!

    Would you mind taking some closer pics of the wrench flats in your barrel please and explain your barrel/muzzle device removal process? I remember hearing Jacob Bynum (on his Podcast) briefly mentioning having wrench flats on his barrels and it piqued my interest. Seems like a great option.
    Thanks, Jim


    reubenski

    Supporter
    Supporter
    Full Member
    Minuteman
    Supporter+
    Jun 8, 2008
    6,999
    7,794
    To
    @reubenski Really nice rifle and reloading set-ups!

    Would you mind taking some closer pics of the wrench flats in your barrel please and explain your barrel/muzzle device removal process? I remember hearing Jacob Bynum (on his Podcast) briefly mentioning having wrench flats on his barrels and it piqued my interest. Seems like a great option.
    Thanks, Jim
    Jim, this is it. I don't even use a torque wrench anymore because varying amounts of torque doesn't change accuracy or return to zero.


    I stand the rifle on it's butt, pointing directly up, muzzle in front of my chest. I place the chassis/ action/ buttstock between my knees and grab the barrel with one hand. I place a crescent wrench (these days) on the flats with my strong hand and turn counter clock wise to break torque or clockwise to apply torque. I leave everything else about the rifle assembled. Screw and unscrew to remove. Easy peasy. Faster than a post-14 AI. Only tool required is some sort of wrench.


    JimmyH

    Private
    Supporter
    Full Member
    Minuteman
    Nov 9, 2011
    79
    39
    46
    South Louisiana
    Man! That’s what I’m talking about! No special action wrench or barrel vise needed👍
    Thank you very much for your detailed description, that helps a ton.
    Jim

    • Like
    Reactions: reubenski

    mosin46

    Sergeant
    Supporter
    Full Member
    Minuteman
    Supporter+
    Aug 11, 2010
    2,367
    368
    75
    florida 32621
    i couldn't find a HB tikka of any kind anywhere. ended up with a howa mini and a howa SA. bought SH blind off GB and afraid the SH is a 1/12. my bad gamble. that is the reason for my "looking for a barrel" post on here. savage does make a few models in 223 1/7. not on web site have to call sales and get exact part # and have an ffl order. pricey for a savage and don't know if they are even available. problem for me and likely anyone is going to be time and $. did talk to bartlein and for the do do the whole job would be about $800 and about 10 mos. poblem with most factory 223s is 1/9 twist and my goal is to get a 600yd gun since i have that range available. don't believe any 1/12 50-60gr bullets will hold up at that range. savage,rem and many others are 1/9 so,got a project i didn't much want.


    PB&J.

    Dope Ass Jive Turkey
    Full Member
    Minuteman
    Mar 8, 2022
    103
    89
    Australia
    I have used the metal mdt mags because I trimmed the inserts down.. they should work



    How did you modify them?

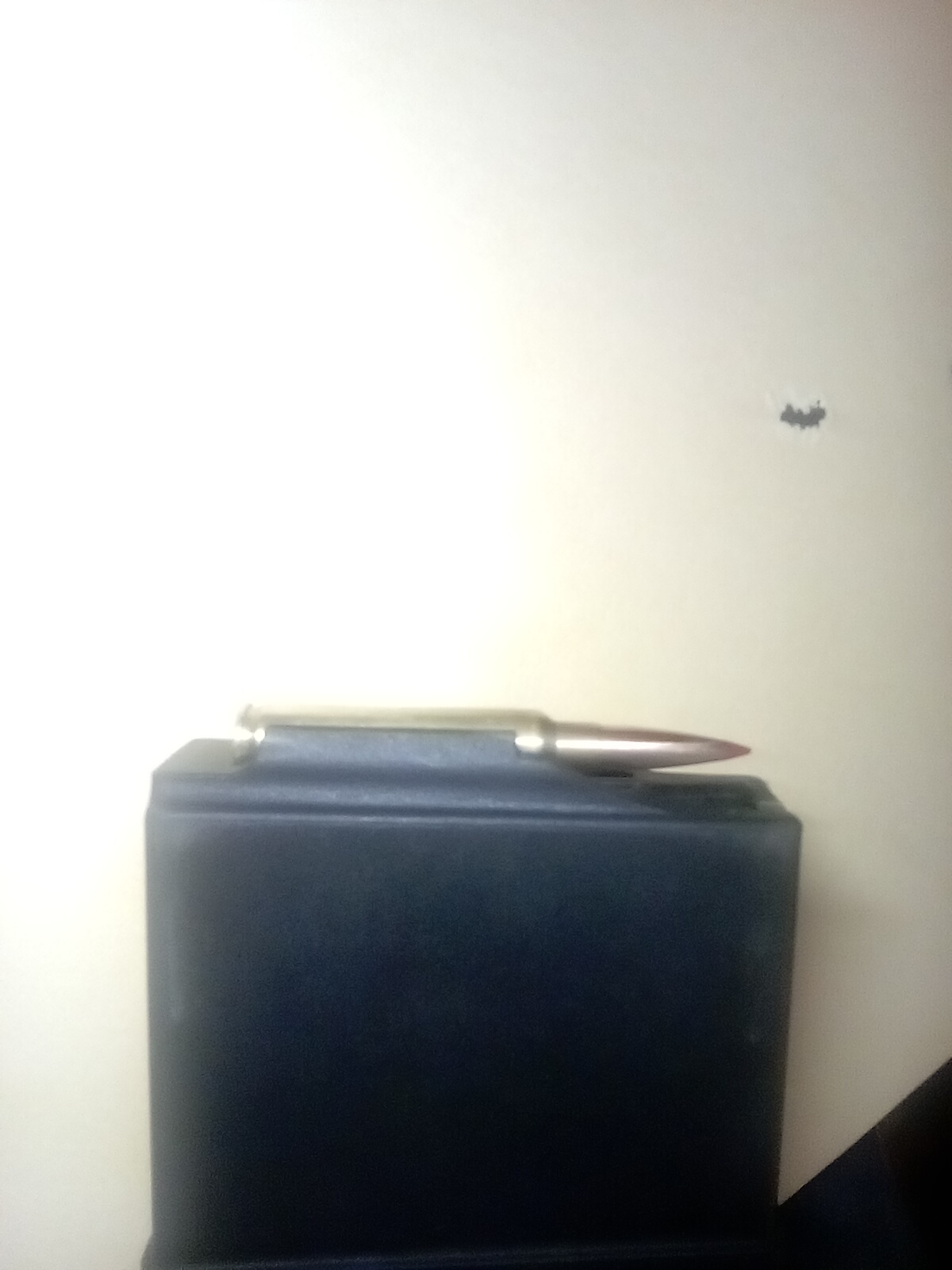

    It's a rat shit photo, but it should get the idea across. All I did was shorten the feed lips so the cartridge releases a bit sooner and I also "opened up" the inside of the feed lips towards the front so the rear of the cartridge doesn't kick down into the next round as much as it is pushed forward.

    It's not an AI thing though as feeding standard 223rem is smoother as well. This along with some work on the feed ramp and the rifle feeds like butter now.
